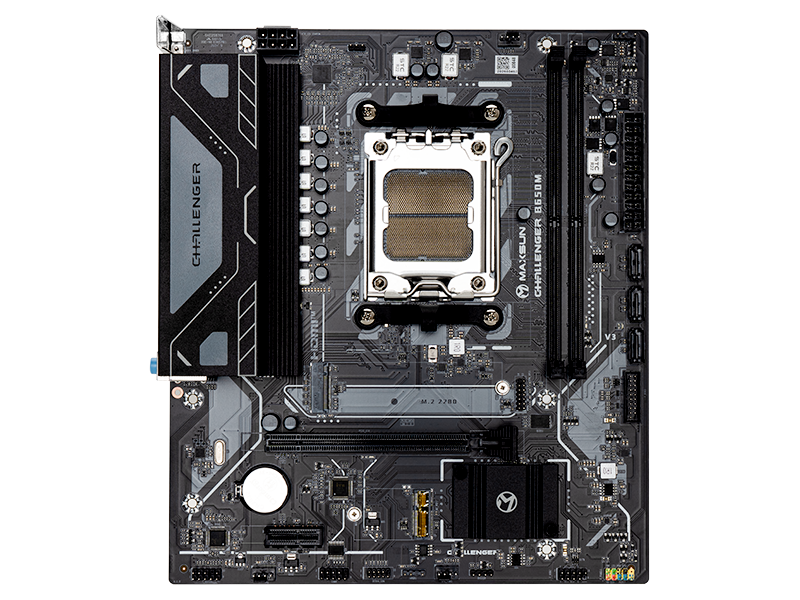

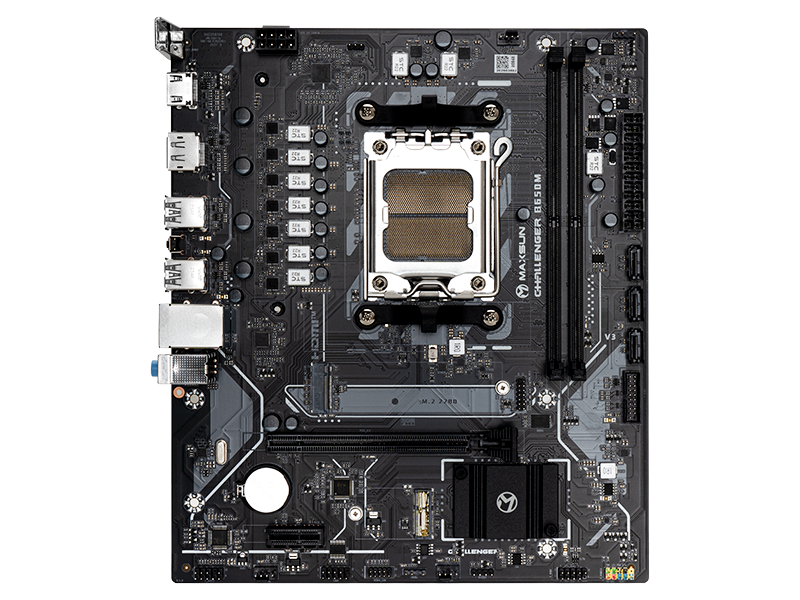

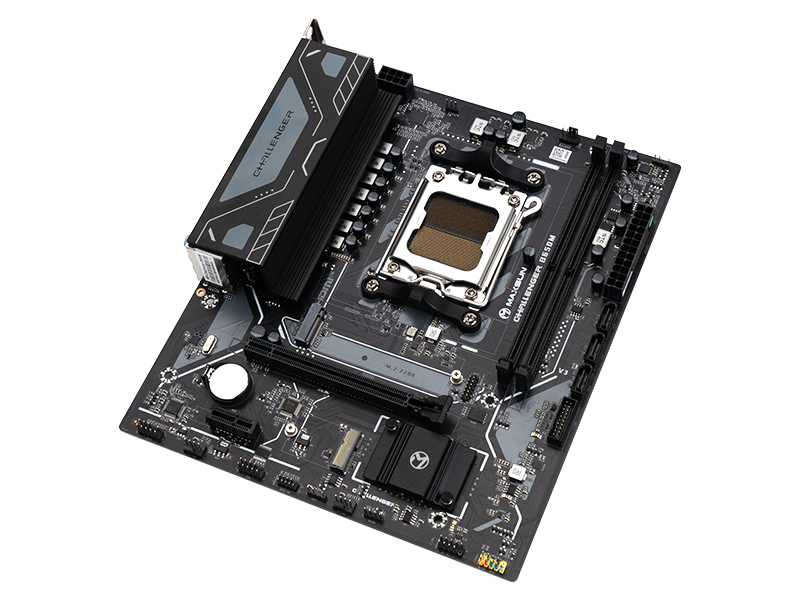

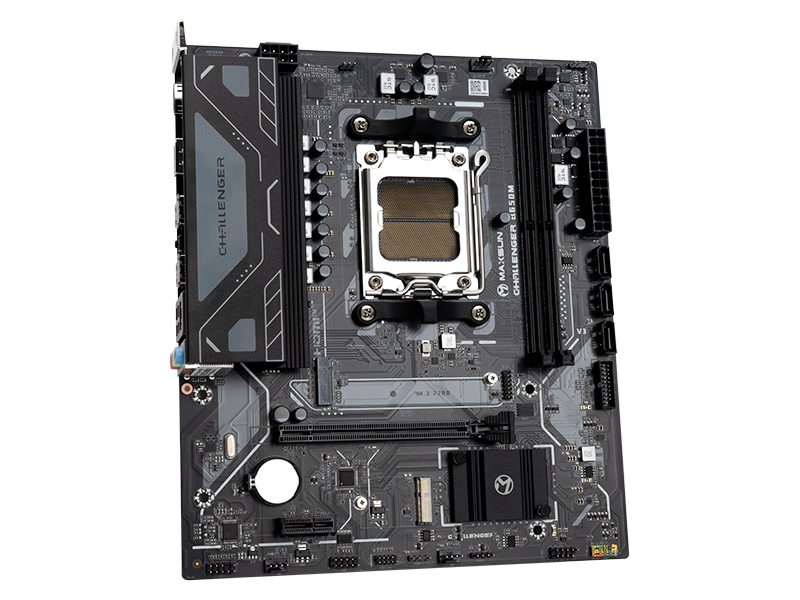

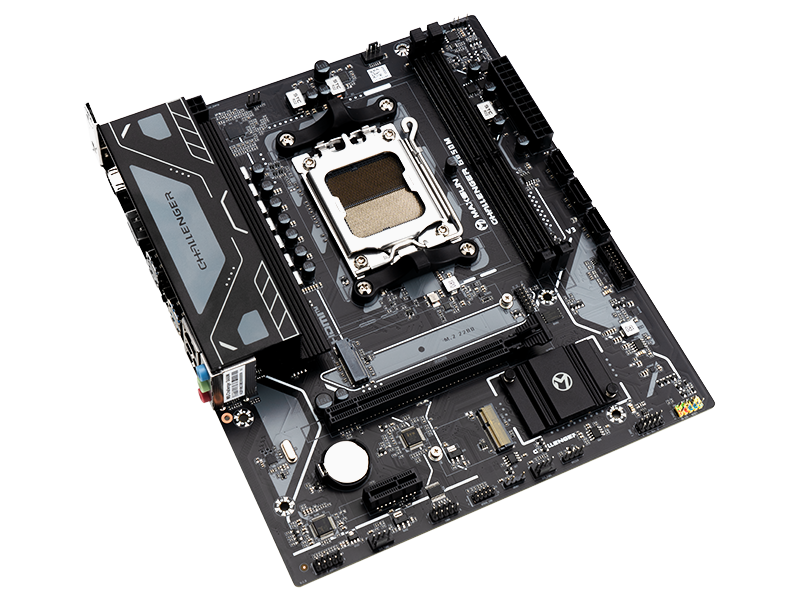

MS-Challenger B650M(Ver.V3)

• Form Factor
• M-ATX (Micro-ATX)
  Size: 245mm × 210mm

• CPU Support
• AMD® AM5 socket
  Compatible with AMD® Ryzen™ 7000 / 8000 / 9000 Series processors

• Chipset
• AMD® B650 chipset

• Memory
• 2 × DDR5 DIMM slots, up to 96GB
  Dual-channel memory architecture
  Supports memory overclocking
  Supported speeds:
  6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5200 / 4800 MHz

• Graphics Output
• 1 × HDMI™ 1.4 (up to 4K @ 30Hz)
  1 × DisplayPort (up to 4K @ 60Hz)

• Expansion Slots
• 1 × PCIe x16 slot (PCIe 4.0 x16)
  1 × PCIe x1 slot (PCIe 3.0 x1)

• Storage Interfaces
• 1 × M.2 slot (PCIe 4.0 x4/x2, supports 2242 / 2280)
  3 × SATA 6Gb/s ports

• Networking
• 1 × Realtek RTL8111H / RTL8111M Gigabit Ethernet (1000Mbps)
  1 × M.2 E-Key 2230 slot (supports PCIe & USB 2.0)

• USB Ports

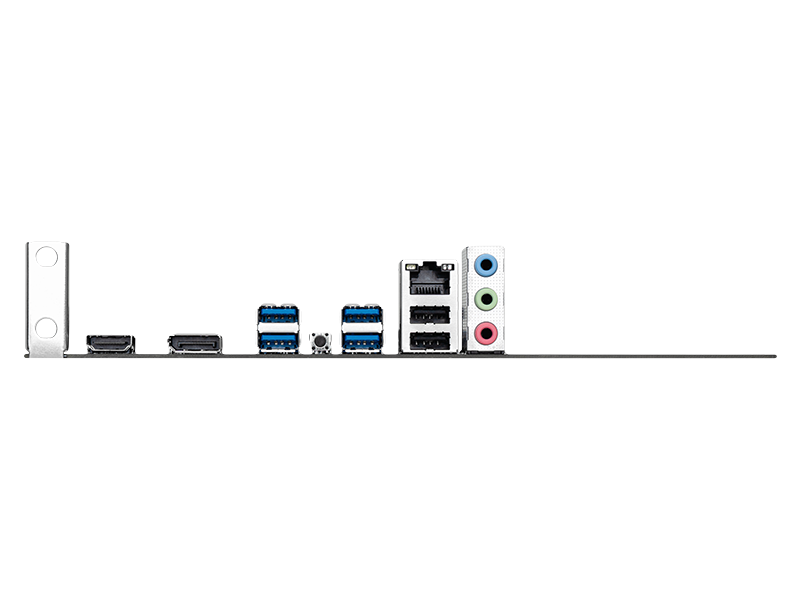

• Rear I/O:
  4 × USB 3.2 Gen1 Type-A (5Gbps)
  2 × USB 2.0 Type-A

  Onboard USB headers:
  1 × USB 3.2 Gen1 header (supports 2 × USB 5Gbps)
  1 × USB 2.0 header (supports 2 × USB 2.0)

• Audio
• Realtek ALC897 HD Audio Codec

• Internal Connectors
• 1 × 24-Pin ATX power
  1 × 8-Pin +12V CPU power
  1 × 4-Pin CPU_FAN header
  2 × 4-Pin SYS_FAN headers

• Operating System Support
• Windows® 11 64-bit
  Windows® 10 64-bit

• Special Features
• Distributed Debug LEDs
  Maxsun Sync lighting control
  CLR_CMOS button
