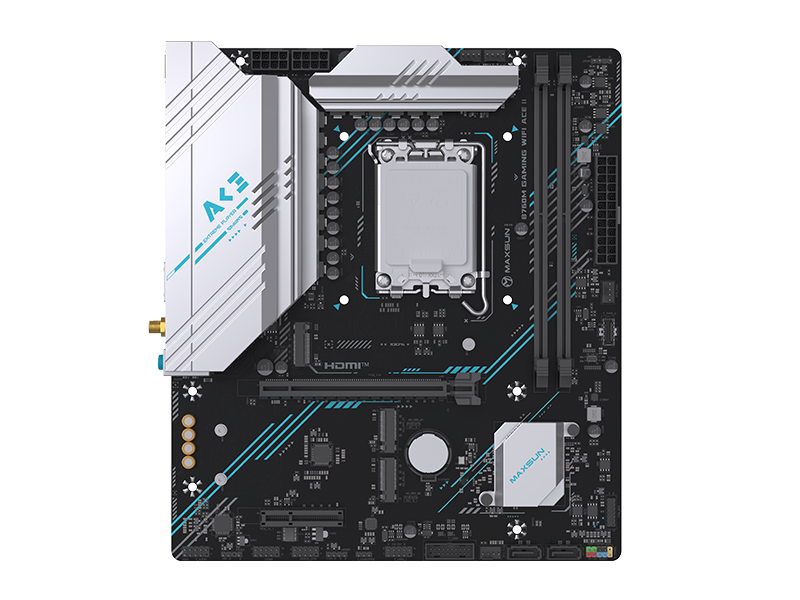

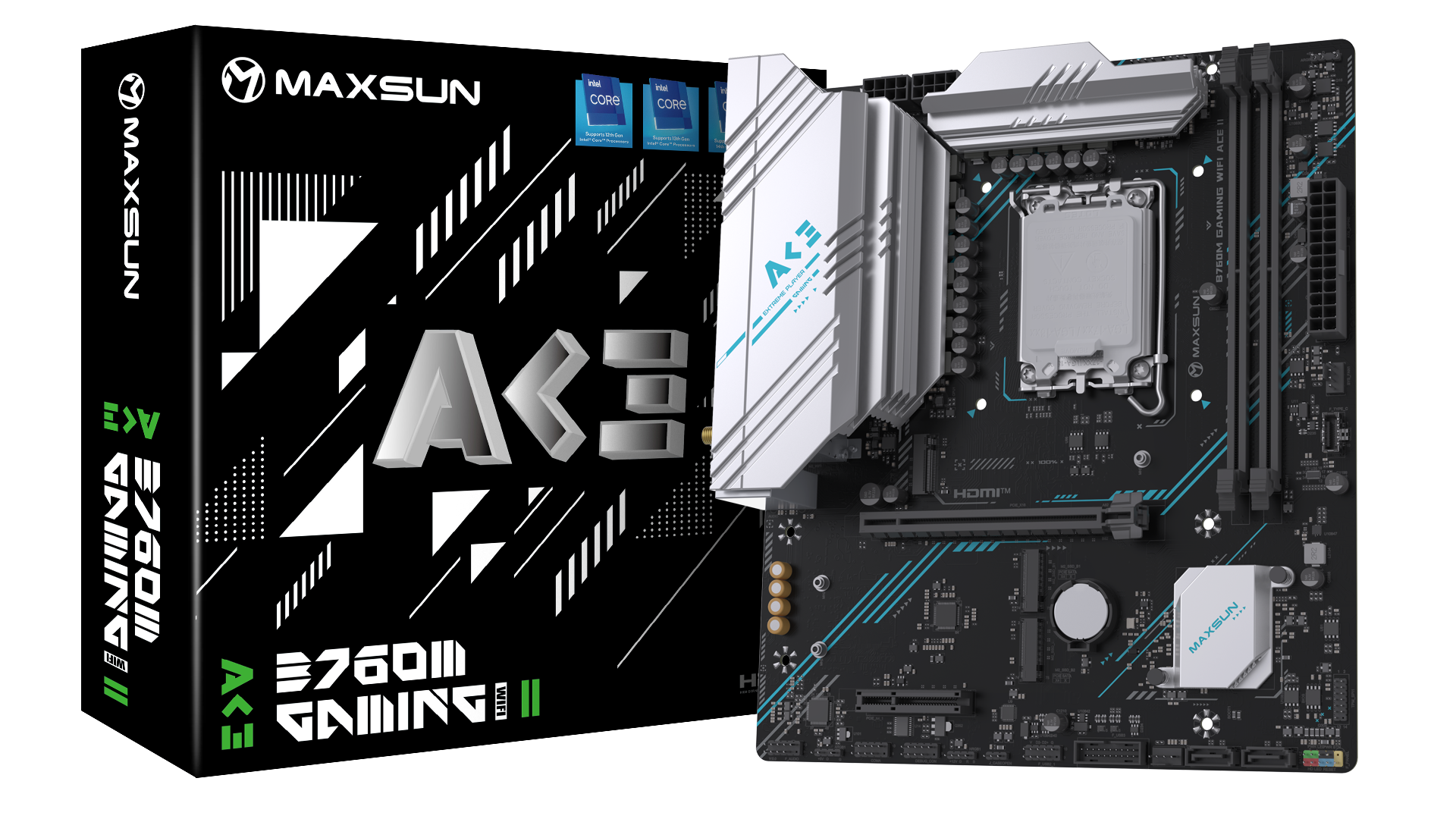

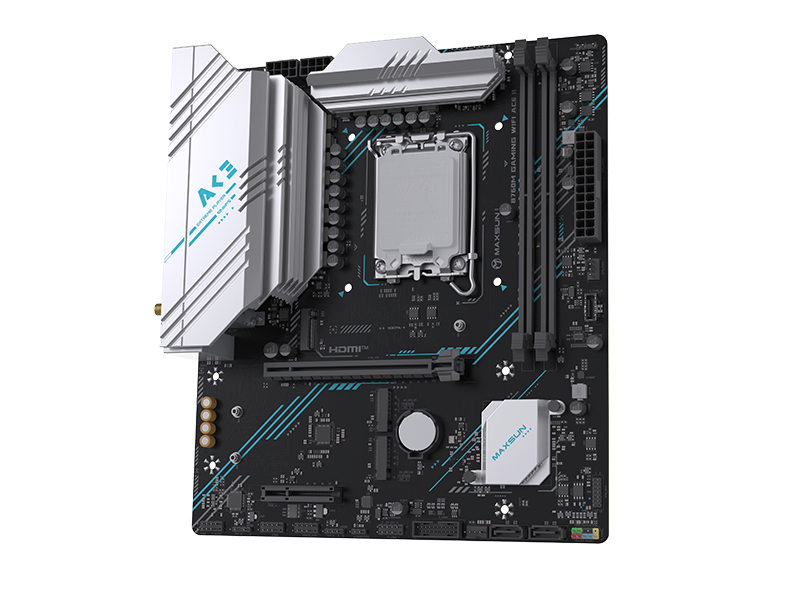

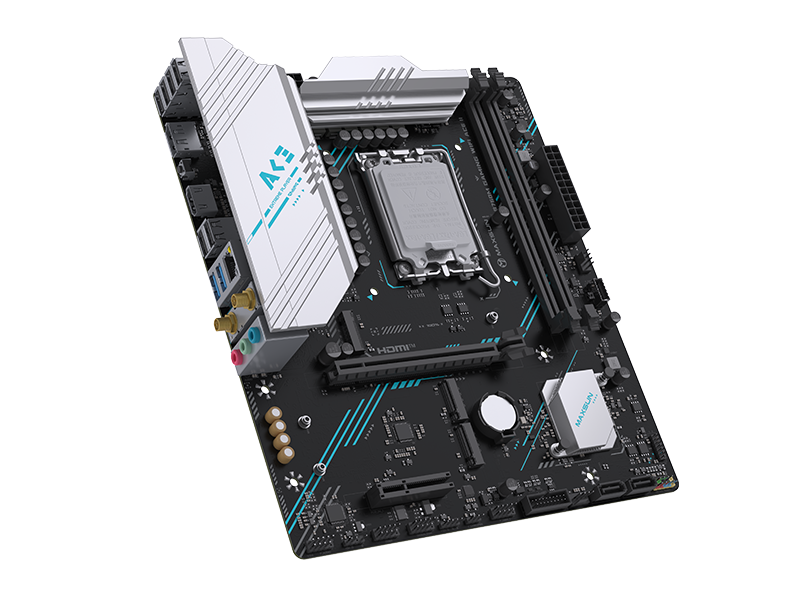

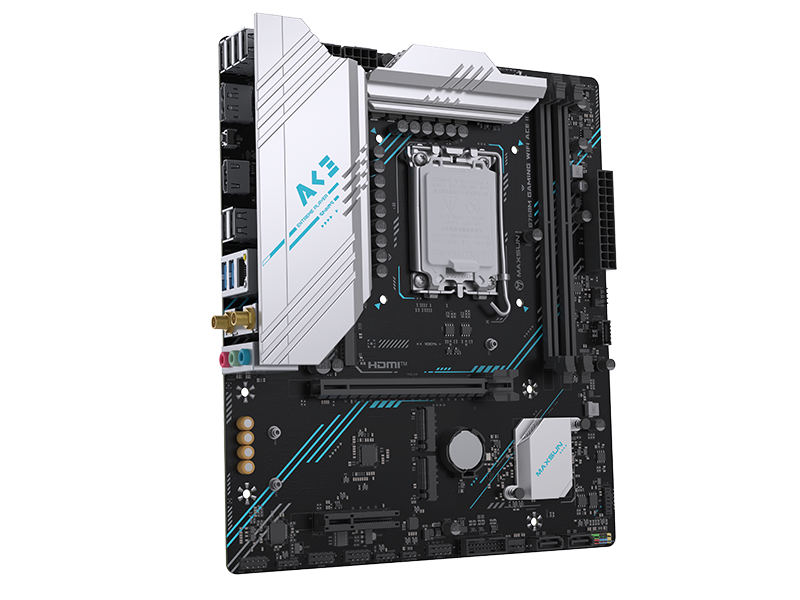

MS-B760M GAMING WIFI ACE Ⅱ

• Model
• MS-B760M GAMING WIFI ACE Ⅱ

• Form Factor
• Micro-ATX

• Chipset
• Intel B760

• Processor Support
• Intel LGA1700 socket; 12th, 13th and 14th Gen Intel Core processors

• Memory
• 2× DDR5 DIMM slots; dual-channel

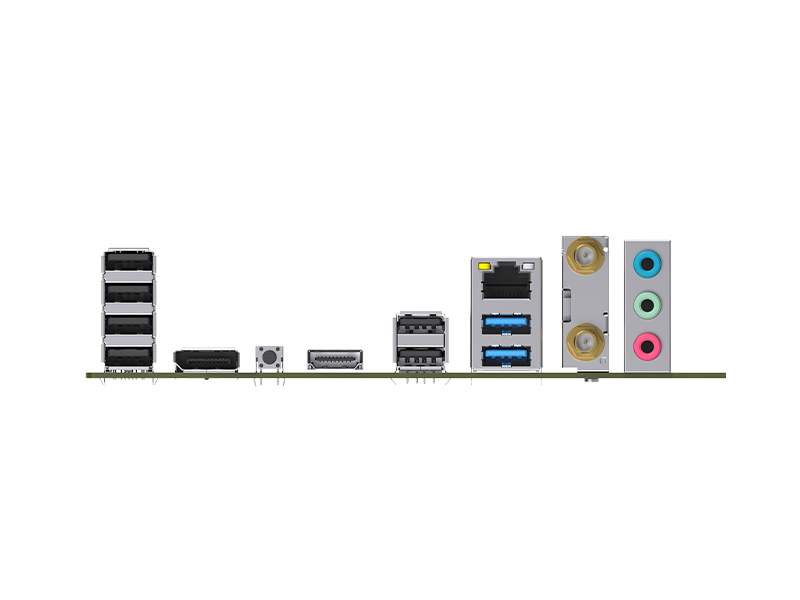

• Display Outputs
• 1× HDMI
  1× DisplayPort

• Expansion Slots
• 1× PCIe 5.0 x16
  1× open-ended PCIe x4 slot

• Storage
• 3× M.2 PCIe 4.0
  2× SATA 6Gb/s

• Audio
• Realtek ALC897 HD audio codec

• Wireless
• Intel AX101 Wi-Fi 6

• USB
• Rear: 2× USB 5Gbps, 6× USB 2.0
  Internal: 2× USB 5Gbps, 2× USB 2.0, front USB Type-C 10Gbps

• Power Connectors
• 1× 24-pin ATX
  2× 8-pin ATX 12V
