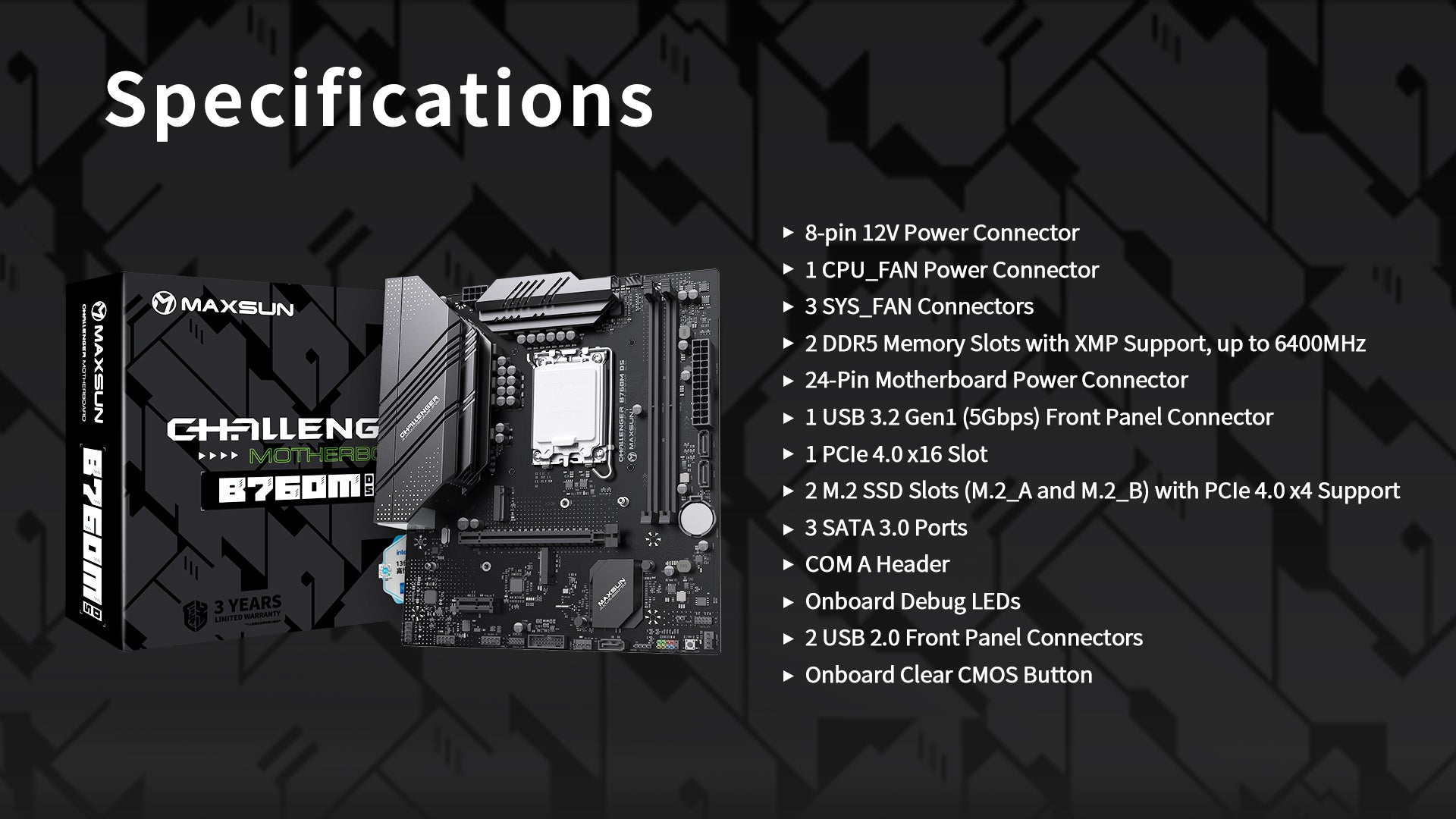

Challenger B760M D5

• CHIPSET
• INTEL B760 High-speed chipset

• CPU
• Support for LGA1700 slots
  The 12th ,13th and14t generation processors
  TDP: 200W

• MEMORY
• 4x DIMM DDR5 memory slots (second and fourth slots)
  Maximum support in total is 192GB
  Support for dual-channel memory technology
  Support for 7200 / OC + memory frequency

• EXPANSION SLOT
• 1x PCIE X16
  5.0 slot 1x PCIE X4 3.0 slot
  1x PCIE X1 3.0 slot
  Support for AMD and NVIDIA independent graphics cards

• STORAGE
• 3x M.2 slots (2242 / 2280 PCIE X4 / X2 channel SSD supported only)
  4x SATA 3.0 ports

• RAID
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• USB
• *On-board rear port: 2x USB 3.2 GEN 2 ports, 6x USB2.0 ports
  Plate insert: 1x group (2 double rows) U SB2.0 pins, 1x group (single row) USB2.0 pin,
  1xgroup (2 rows) USB 3.2 GEN 1 pin,
  1x TYPE C(USB 3.2 GEN 2X2) ports

• NETWORK
• Integrated REALTEK 8125 card chip (10 / 100 / 1000 / 2500Mbit)
  1x onboard R]45 port
  Support network arousal
  Support PXE no disk, UEFI no disk guide

• AUDIO
• Integrated REALTEK ALC 897 sound chip

• INSIDE BOARD SOCKET
• 1x 24-PIN motherboard ATX power supply port
  1x 8+4-PIN motherboard A TX 12V power supply port, 12V input,
  2x sets of system fan pins and 1x group of CPU fan pins、
  1x group of PUMP fan pinslx group chassis front control panel pin (F PANEL)

• OPERATING SYSTEM
• Support for Windows 10 64bit,
  Windows 11 64bit
  Support for Ubuntu 64bit

• FORM FACTOR
• Micro ATX 245mm x 245mm
