iCraft Z790ITX WIFI
- Intel Core 14th Gen CPU
- 9 phases power supply
- 90A Dr.Mos
- RAA229131 PWM
- Hybrid cooling system
- DDR5 XMP 7400MHz+
- 2.5G LAN
- 2*20G Type-C
OVERVIEW
Powerful power supply
9-phase direct exit
Dr. Mos power supply
Efficient heat dissipation
temperature controlled
start/stop cooling fan
High-speed network
2.5G & WIFI6E

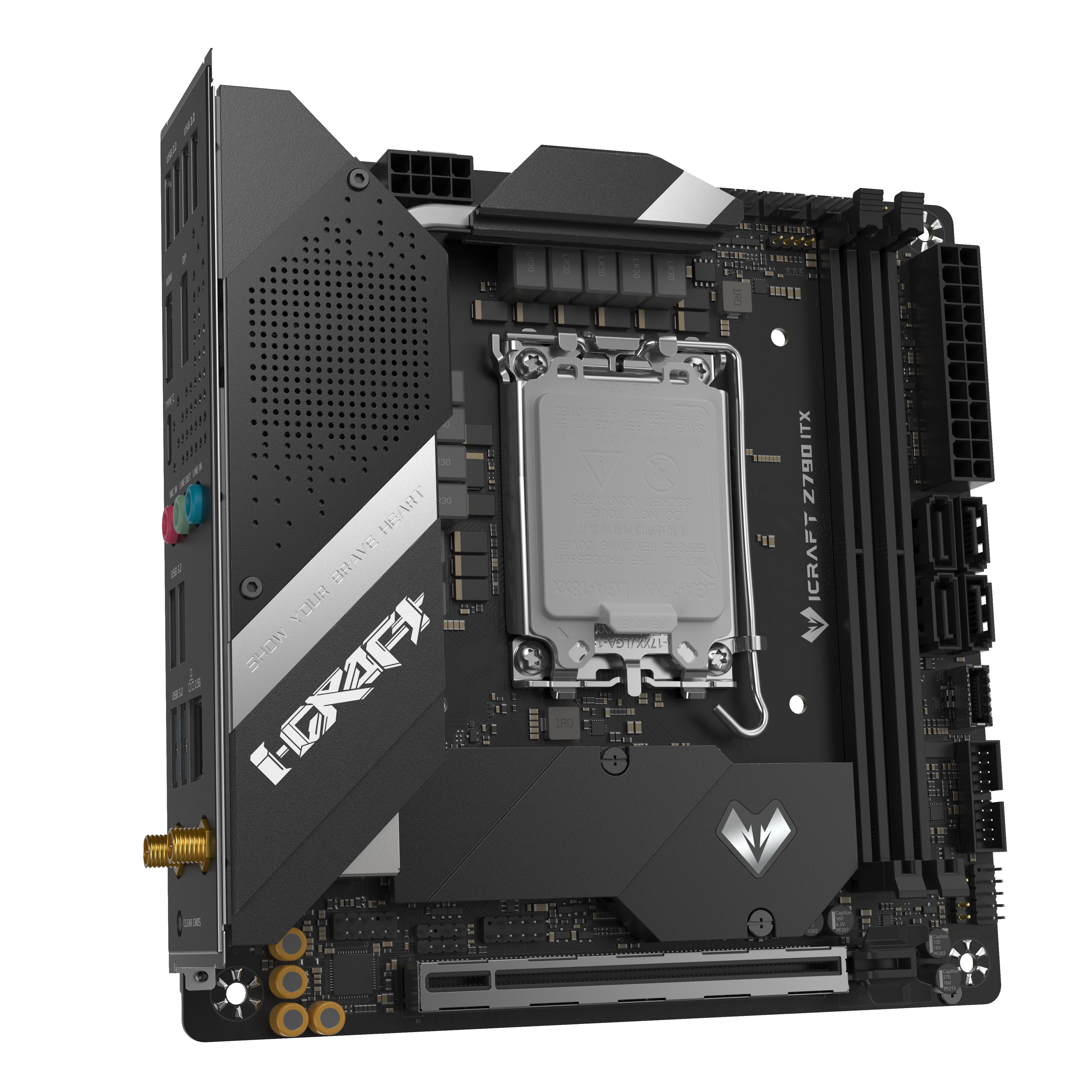

MS-iCraft Z790ITX WIFI
ITX Style size：172*172mm
13th & 12th
Intel Core LGA1700 Support
Excellent strength,
easy to use
9-phase direct exit Dr. Mos
power supply
RAA229132 PWM Master
Control
ISL99390 90A Dr.Mos
USB3.2 Gen2x2
Type-C
Front and rear dual 20G rate
Dual M.2 hard drive slots
M.2_A supports PCle4.0x4
M.2_B supports PCle4.0x4/SATA
Full plate thermal armor
Alloy Thermal Armor
6mm nickel-plated copper tube
High quality thermally
conductive silicon strips
Mini Ball Cooling Fan
DDR5 memory
Memory OC Potential 7400MHz
Dual channel 2*DIMM
2.5G wired network card
Realtek RTL8125B Network Card chip
User-friendly and
convenient functions
Distributed DEBUG diagnostic light
+ one-touch CLR CMOS
WiFi6E wireless
network card
Intel AX211 + Magnetic WIFI Antenna
Powerful power supply
Squeeze the full performance
out of 13th Gen Core
9-phase power supply & integration Dr. Mos
9-phase direct exit Dr. Mos power supply，ISL99390 Dr. Mos with 90A per phase，RAA229132 PWM Master Control Chip，Squeeze the full performance out of 13th Gen Core processors.
9-phase power supply
90A Dr.Mos
RAA229131 PWM
Master Control Chip
High efficiency heat sink module
Stable performance release
Dual alloy cooling armor & temperature
controlled start/stop cooling fan
Power supply section of the motherboard above the cooling armor connected by 6mm nickel-plated copper pipes，High quality thermally conductive silicon strips are used on the contact surface between the armor and MOS；Front M.2 slot also equipped with cooling armor，Let the performance be released steadily.
Temperature controlled
start/stop cooling fan
80℃
*Temperature-controlled start/stop cooling fan
only intervenes after the above temperature is reached
6mm nickel-plated copper tube
Dual 20G rate TypeC
One step faster data transfer
Motherboard offers next-generation front and rear USB 3.2 Gen2x2 TypeC ports.
Dual M.2 hard drive interface
Motherboard provides dual M.2 hard drive interfaces，
Alloy heat sink PCle 4.0x4 protocol M.2 interface on the front，NVMe/SATA protocol interface on the back.
2.5G Network Card & WiFi6E
The motherboard is equipped with a 2.5G rate wired network card, and AX211 WIFI6E wireless network card with signal gain antenna to provide stable and high-speed wireless connection.
Foldable antenna design with magnetic base
that can be attached to the top or side of the case
* Comes with a magnetic WiFi gain antenna on the motherboard
Battle the future of DDR5 & PCle 5.0
Equipped with dual-channel DDR5 memory slots for a more stable and pure interface signal. Optimized line layout for stronger memory overclocking potential.
Equipped with one PCle 5.0 alloy armor graphics slot, with faster transfer, theoretical bandwidth up to 128GB/s, ready for the next generation of devices.
128GB/s
Humanized ITX layout design
Vertical cable layout interface, so that players building mini-hosts have a more neat cable management, sophisticated simplicity.
One-touch CLR_CMOS button
at I/O for easy and convenient maintenance
One-click maintenance,
easy and convenient
Alloy backplate armor
The back of the motherboard is equipped with alloy armor, which effectively protects the back of the motherboard components, reducing the damage caused by external collisions on the components, while enhancing the toughness of the motherboard, reducing the deformation caused by gravity over time.
SPECIFICATION
- CHIPSET
- INTEL Z790
- CPU
- Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
- MEMORY
- 2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 7400+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
- ONBOARD GRAPHICS
- 1x DisplayPort 1.4
1x HDMI™port
*HDMI™ port supports up to 4K@30Hz
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- EXPANSION SLOT
- 1x PCIe 5.0 x16 slot
- STORAGE
- M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
- RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- USB
- *Front USB (Total 6 ports)
1x USB 3.2 Gen2 Type C
2x USB 3.2 Gen1 Type A
3x USB 2.0
*Rear USB (Total 9 ports)
1x USB 3.2 Gen2x2 Type C
4x USB 3.2 Gen1 Type A
4x USB 2.0
- LAN
- Realtek® RTL8125BG 2.5G LAN
- WIRELESS / BLUETOOTH
- Intel® Wi-Fi 6E AX211
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3
- AUDIO
- Realtek® ALC897 Codec
5.1-Channel High Definition Audio
- INTERNAL I/O
- 1x 24-pin Power Connector(ATX_PWR)
1x 8-pin Power Connector(CPU_PWR)
1x CPU Fan
1x AIO_PUMP
2x System Fan
2 x M.2 slots (Key-M)
4x SATA 6Gb/s ports
1x M.2 slots (Key-E)
2x 5V 3-Pin ARGB
1x 12V 4-Pin RGB
1x 2-pin Clear CMOS
1x Front Audio
1x SPDIF OUT
- LED FEATURE
- 4x Distributed Debug LED
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- FORM FACTOR
- ITX
172mm x 172mm
