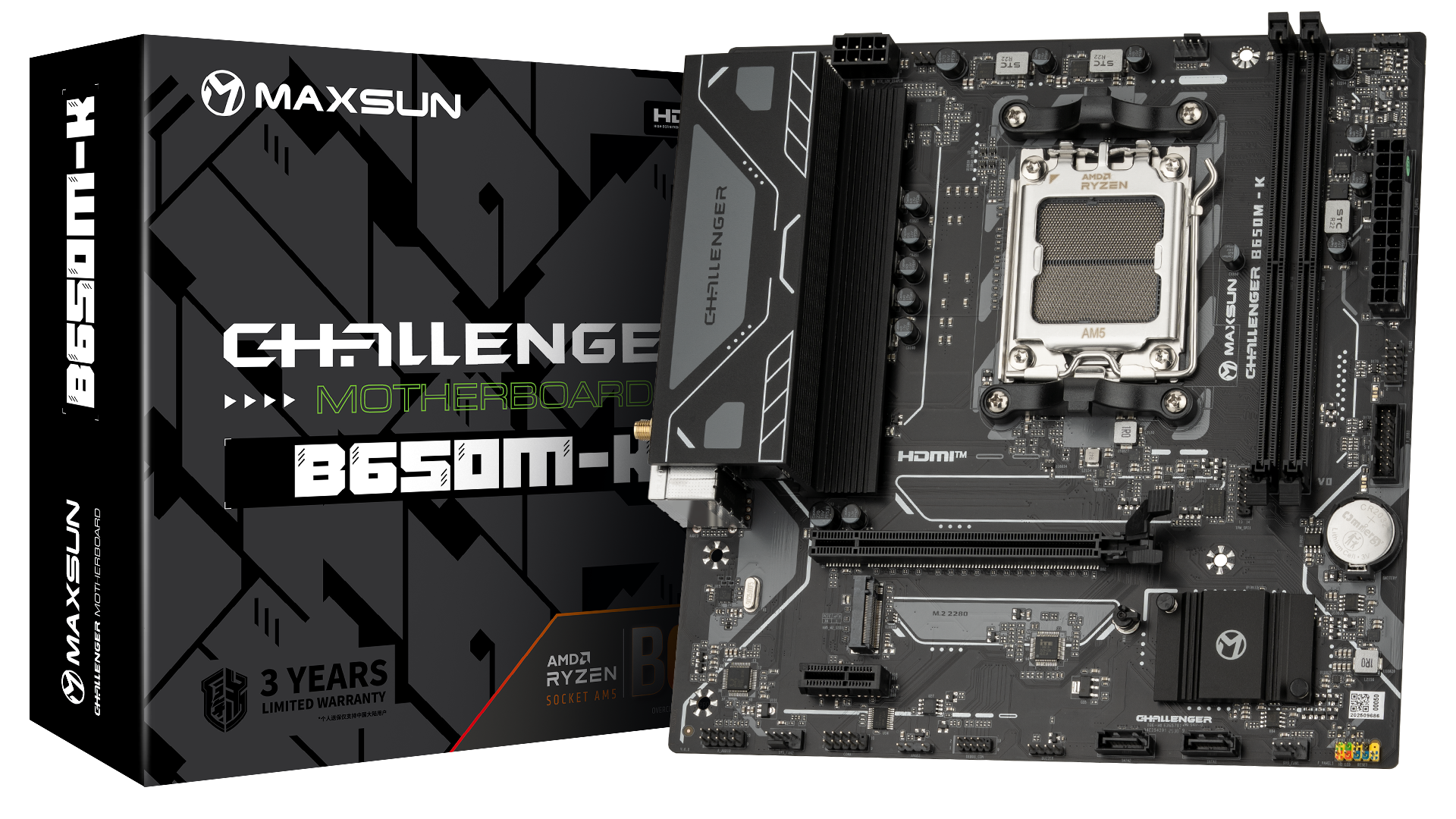

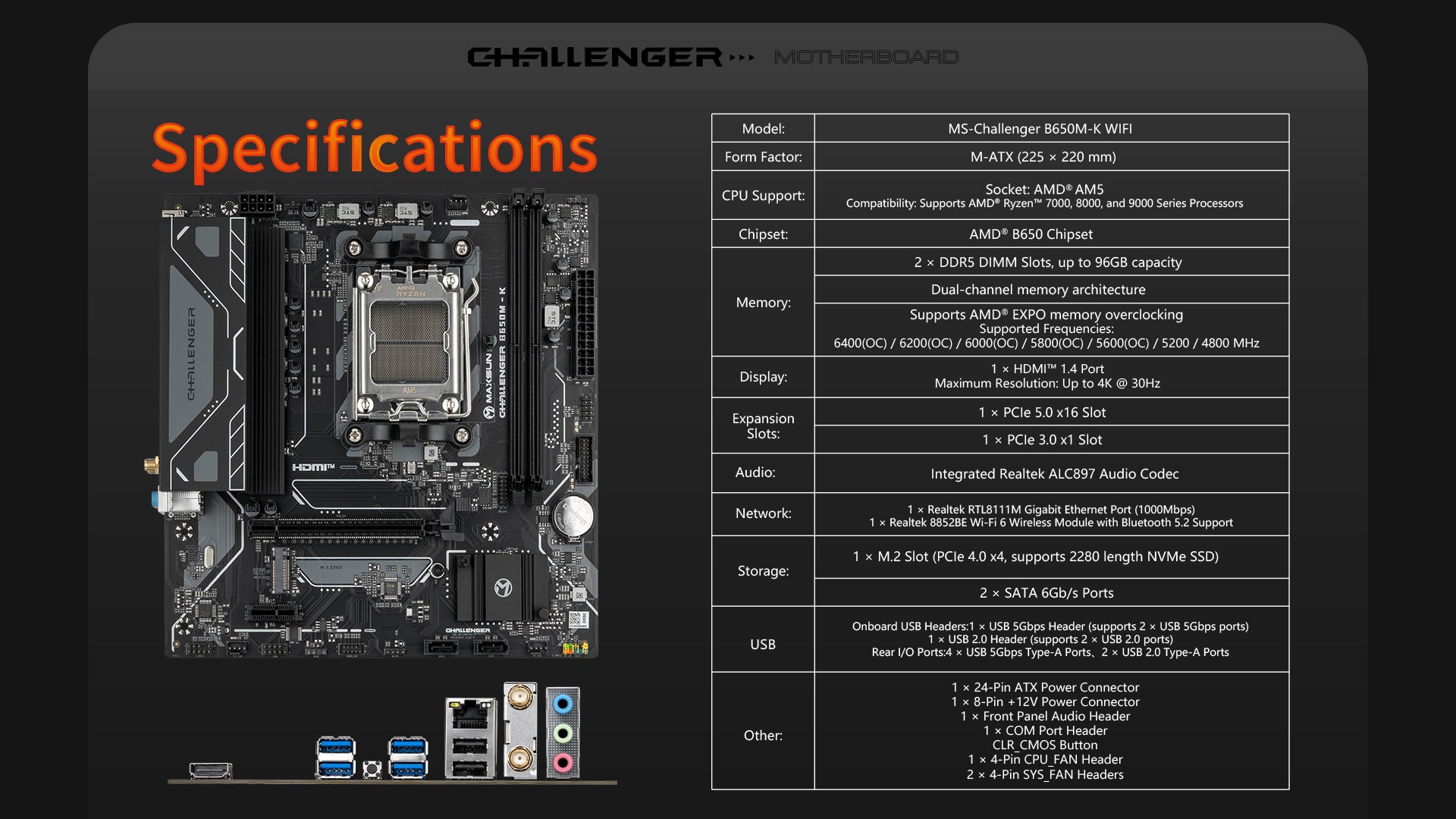

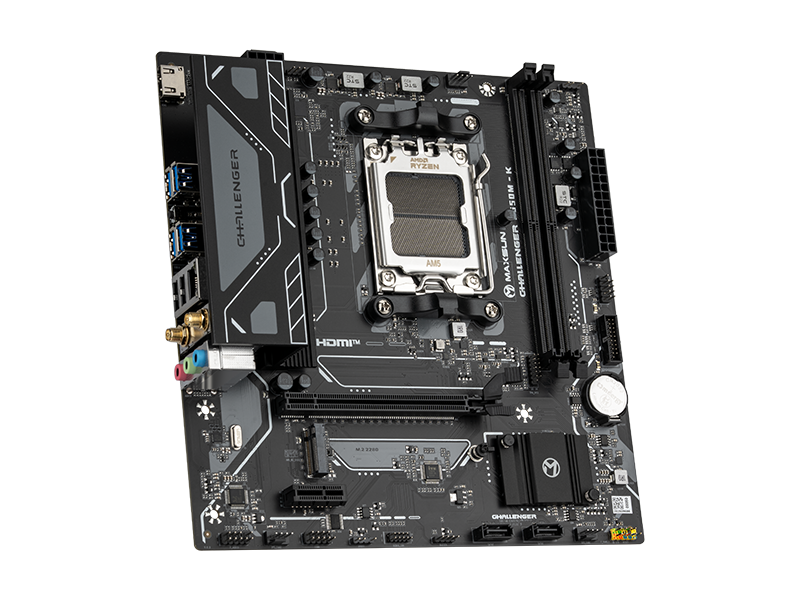

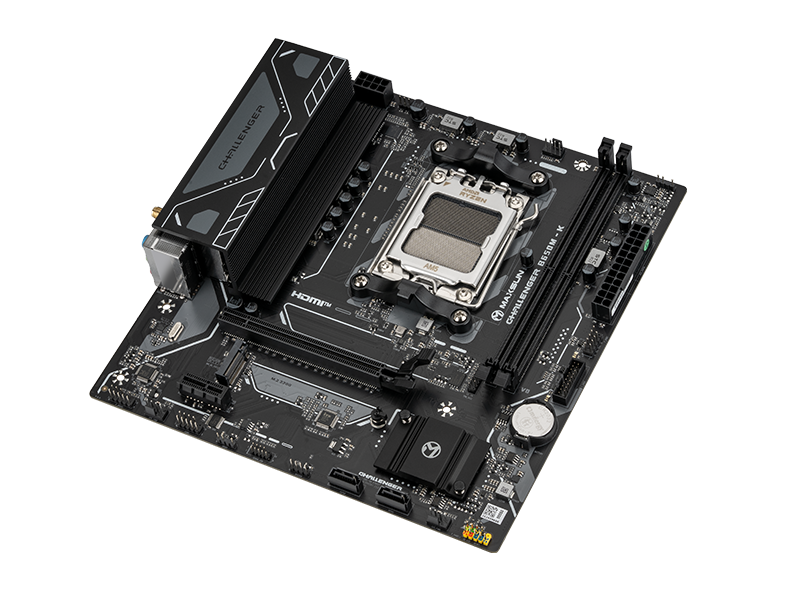

MS-Challenger B650M-K WIFI

• Model
• MS-Challenger B650M-K WIFI

• Form Factor
• M-ATX (225 × 220 mm)

• CPU
• Socket: AMD® AM5
  Supports AMD® Ryzen™ 7000 / 8000 / 9000 Series processors
  Chipset: AMD® B650 chipset

• Memory

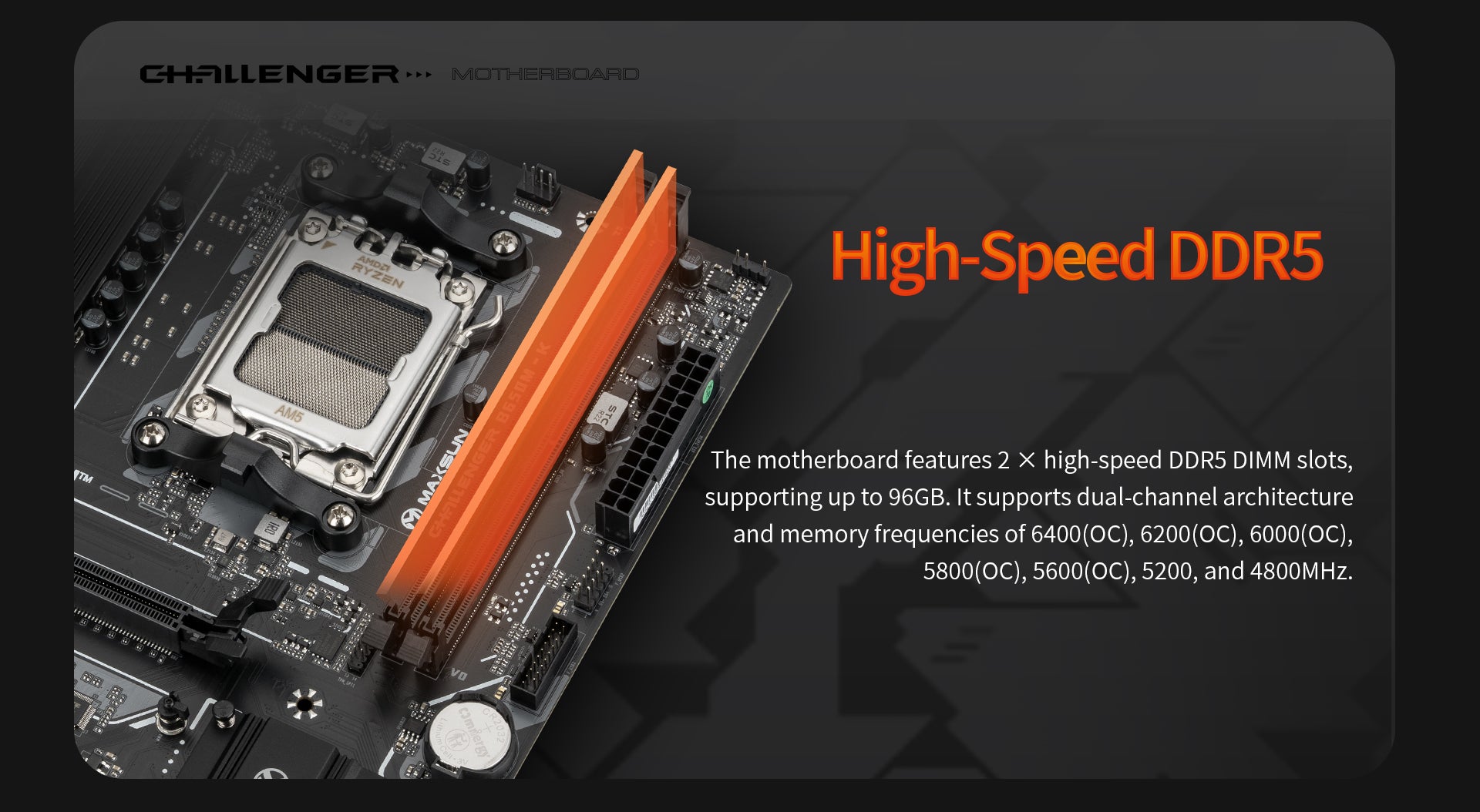

• 2 × DDR5 DIMM slots, up to 96GB
  Dual-channel memory architecture
  Supports AMD® EXPO overclocking
  Supported frequencies: 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5200 / 4800 MHz

• Graphics
• 1 × HDMI™ 1.4 port
  Supports up to 4K @ 30Hz resolution

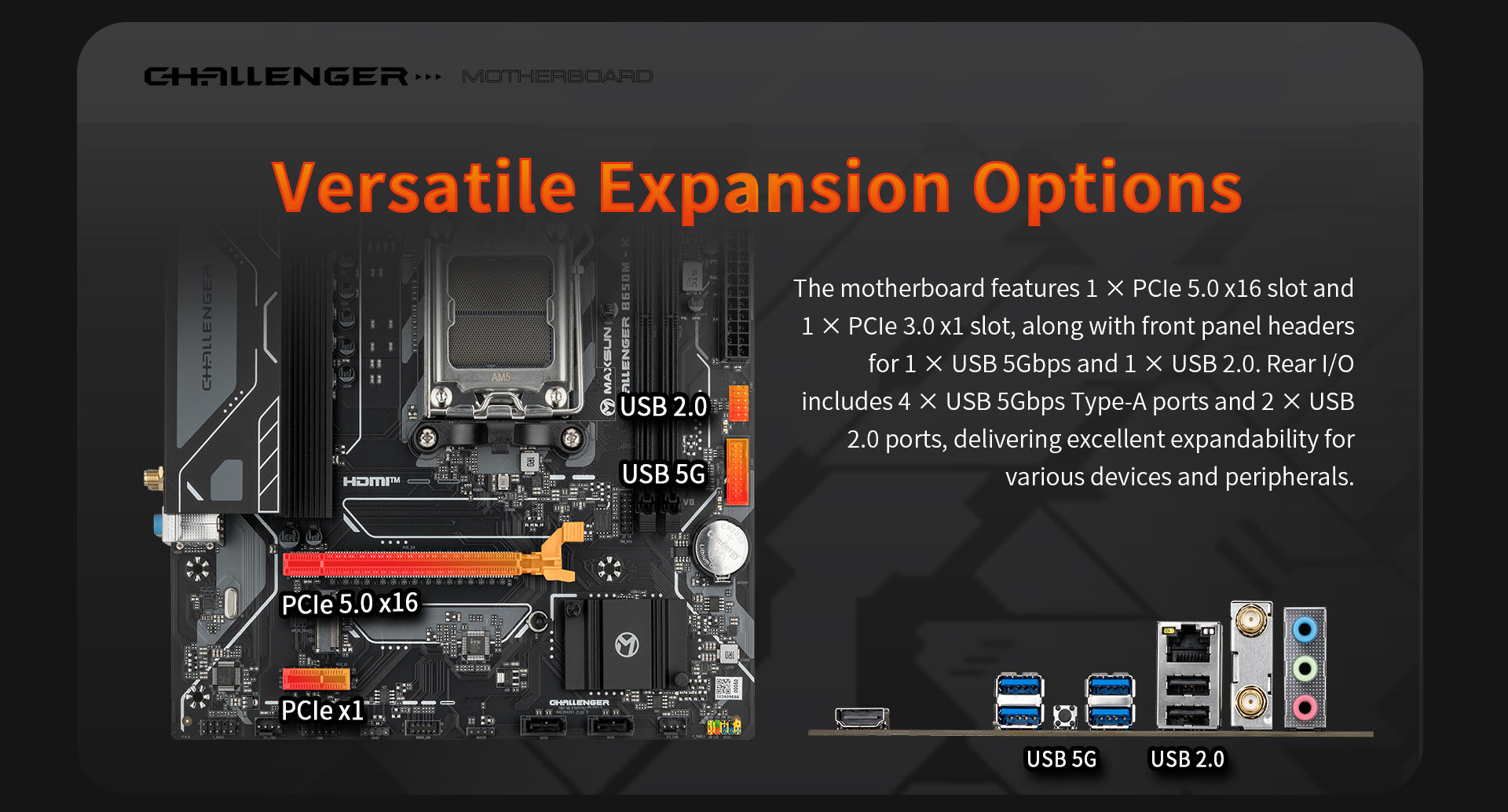

• Expansion Slots
• 1 × PCIe 5.0 x16 slot
  1 × PCIe 3.0 x1 slot

• Audio
• Integrated Realtek ALC897 audio codec

• Networking

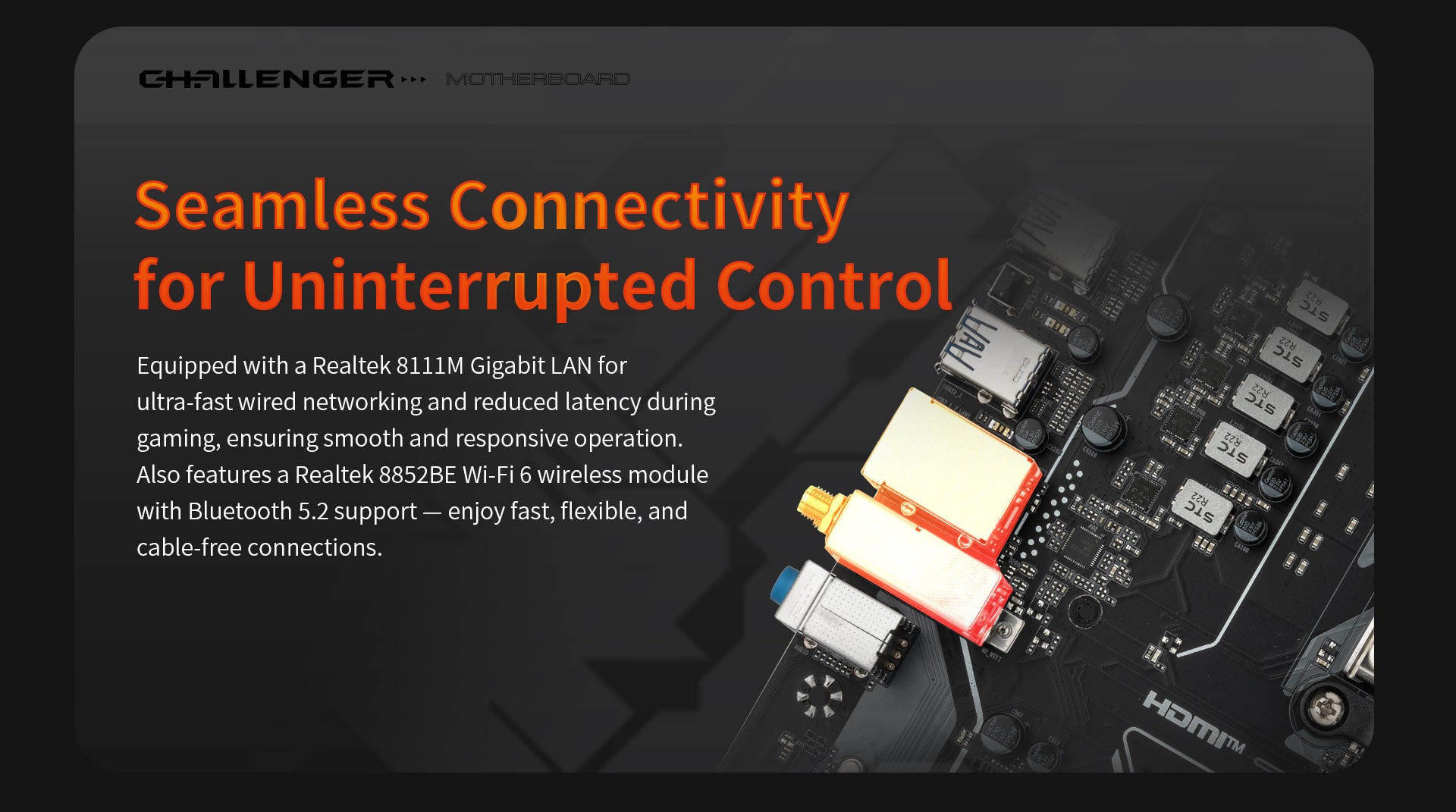

• 1 × Realtek RTL8111M Gigabit Ethernet port (1000Mbps)
  1 × Realtek 8852BE Wi-Fi 6 wireless module with Bluetooth® 5.2

• Storage

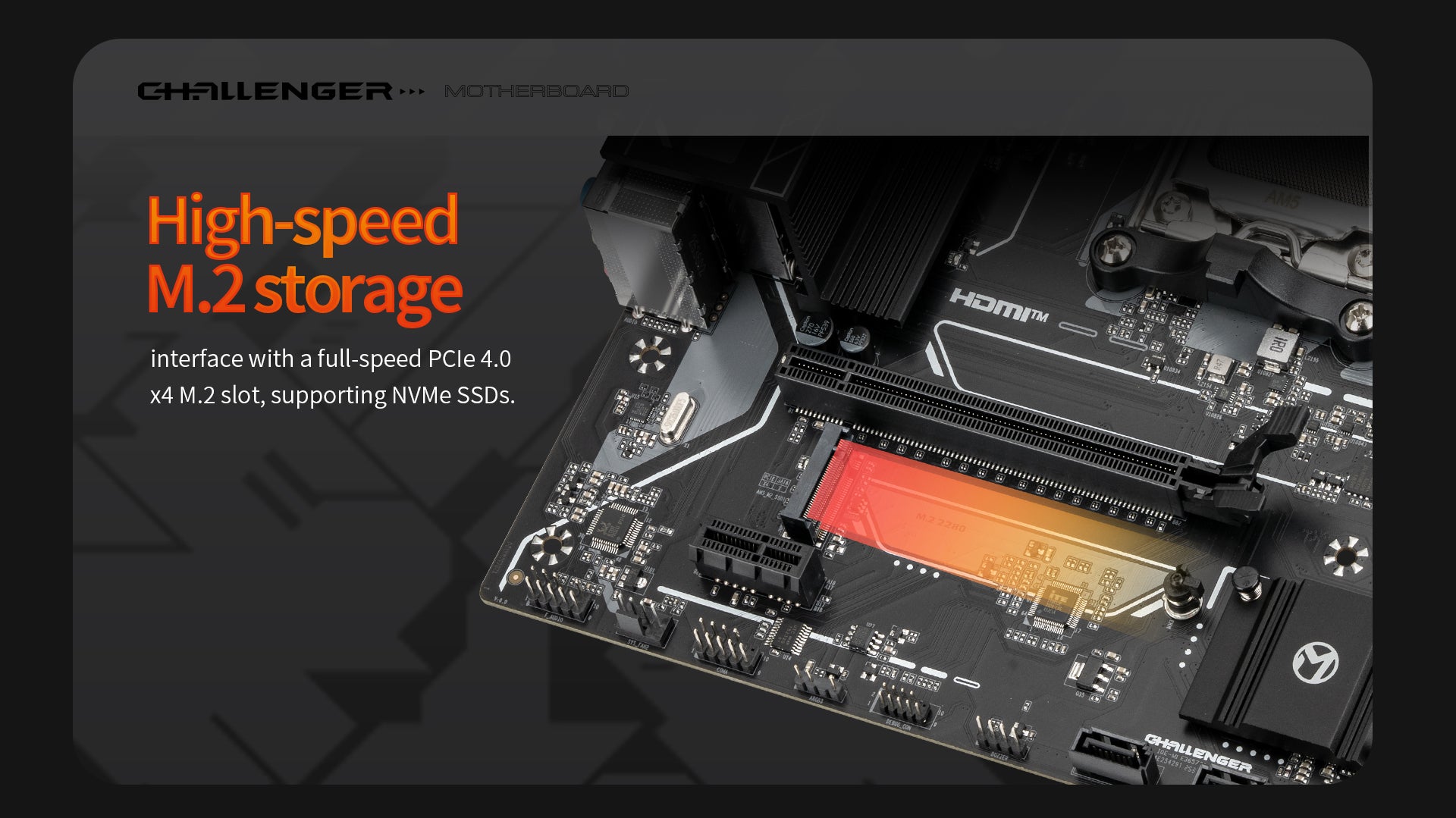

• 1 × M.2 slot (PCIe 4.0 x4, supports 2280 NVMe SSD)
  2 × SATA 6Gb/s ports

• USB
• Onboard USB Headers:
  1 × USB 5Gbps header (supports 2 ports)
  1 × USB 2.0 header (supports 2 ports)

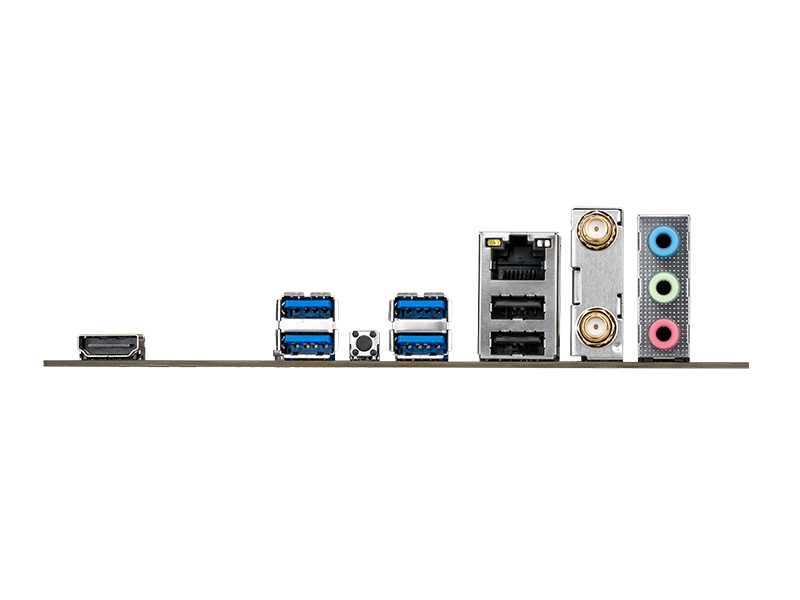

  Rear I/O:
  4 × USB 5Gbps Type-A
  2 × USB 2.0 Type-A

• Other Features
• 1 × 24-pin ATX power connector
  1 × 8-pin +12V CPU power connector
  1 × Front panel audio header
  1 × COM port header

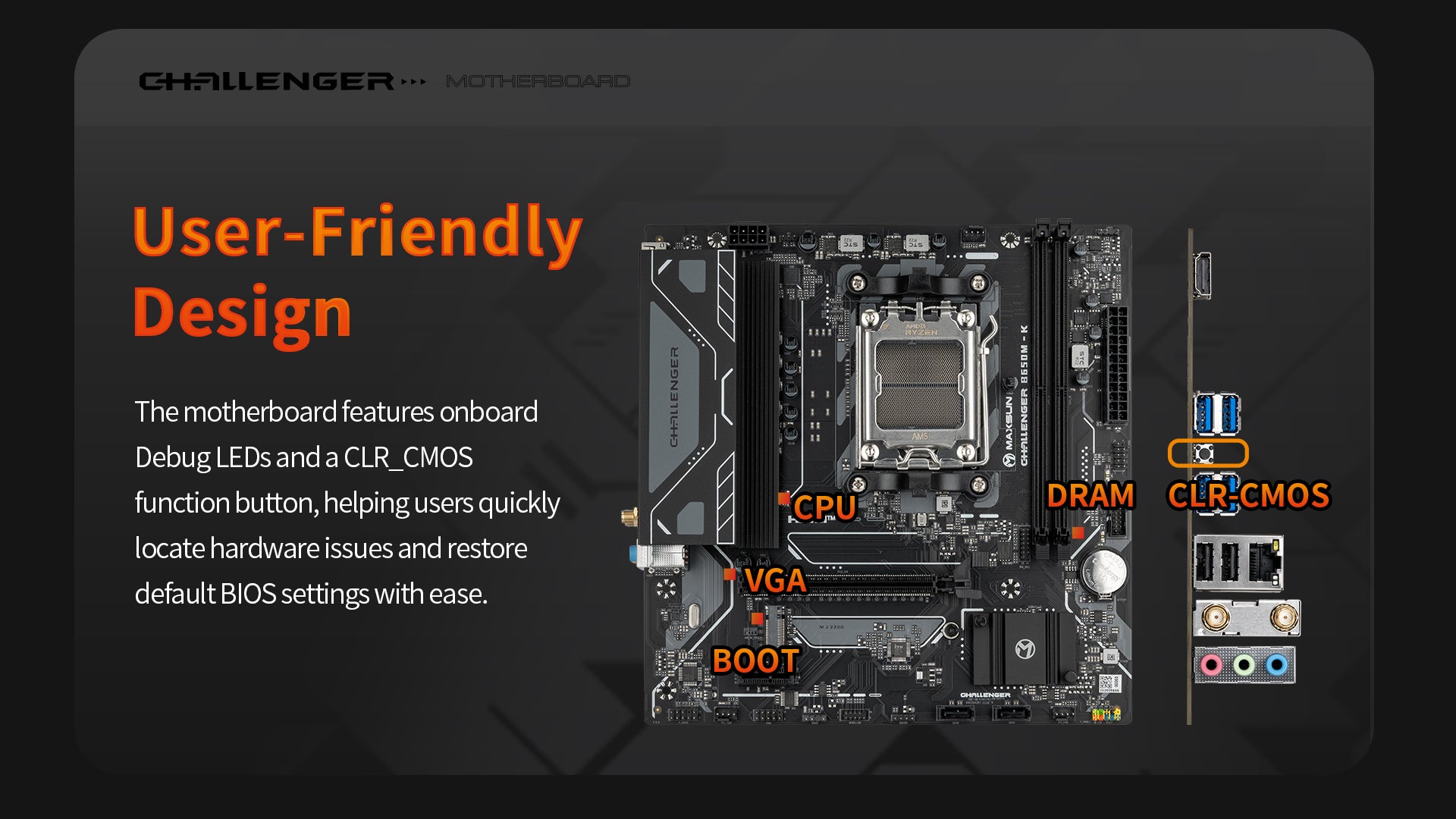

  CLR_CMOS button
  1 × 4-pin CPU_FAN header
  2 × 4-pin SYS_FAN headers
