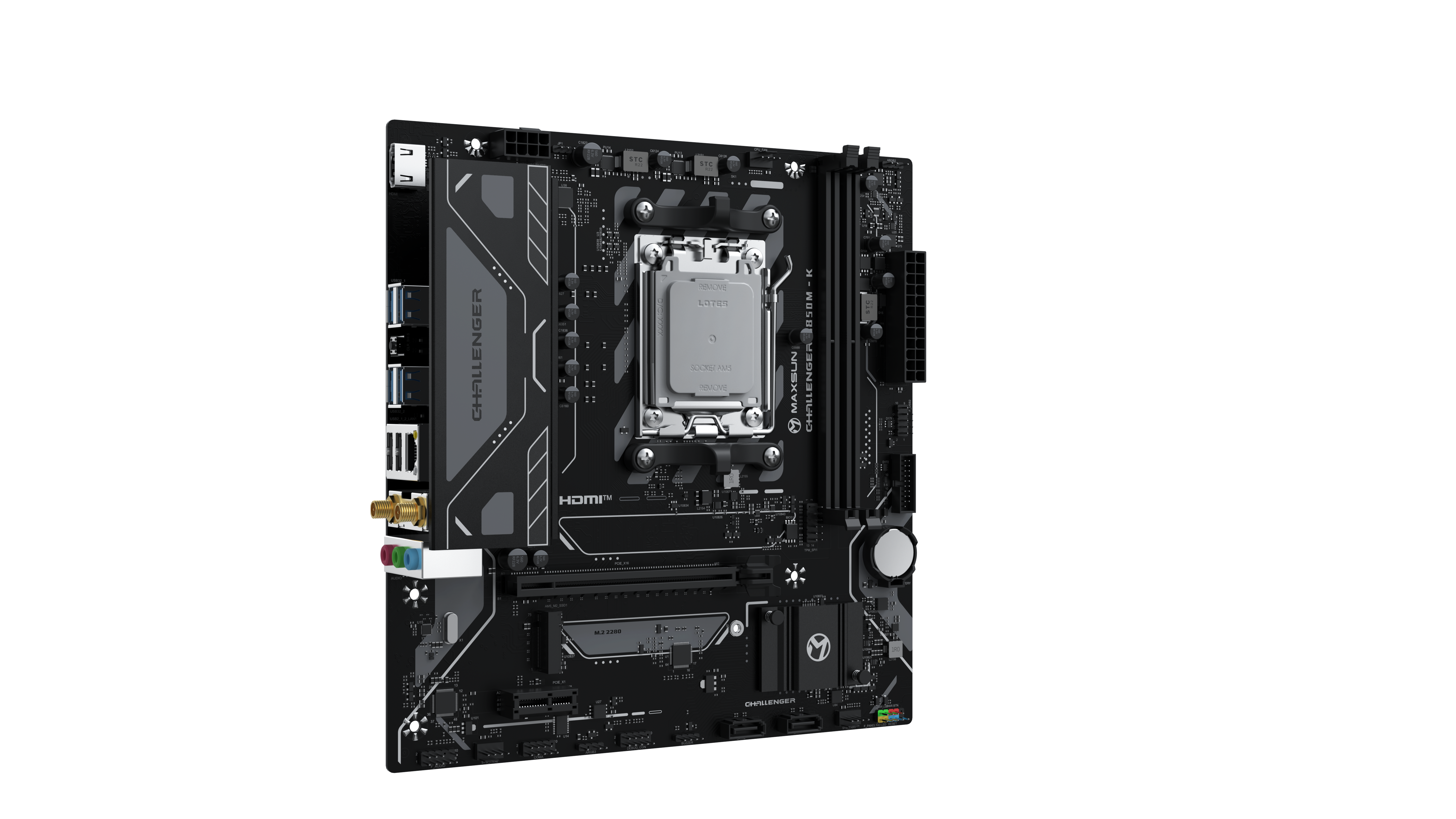

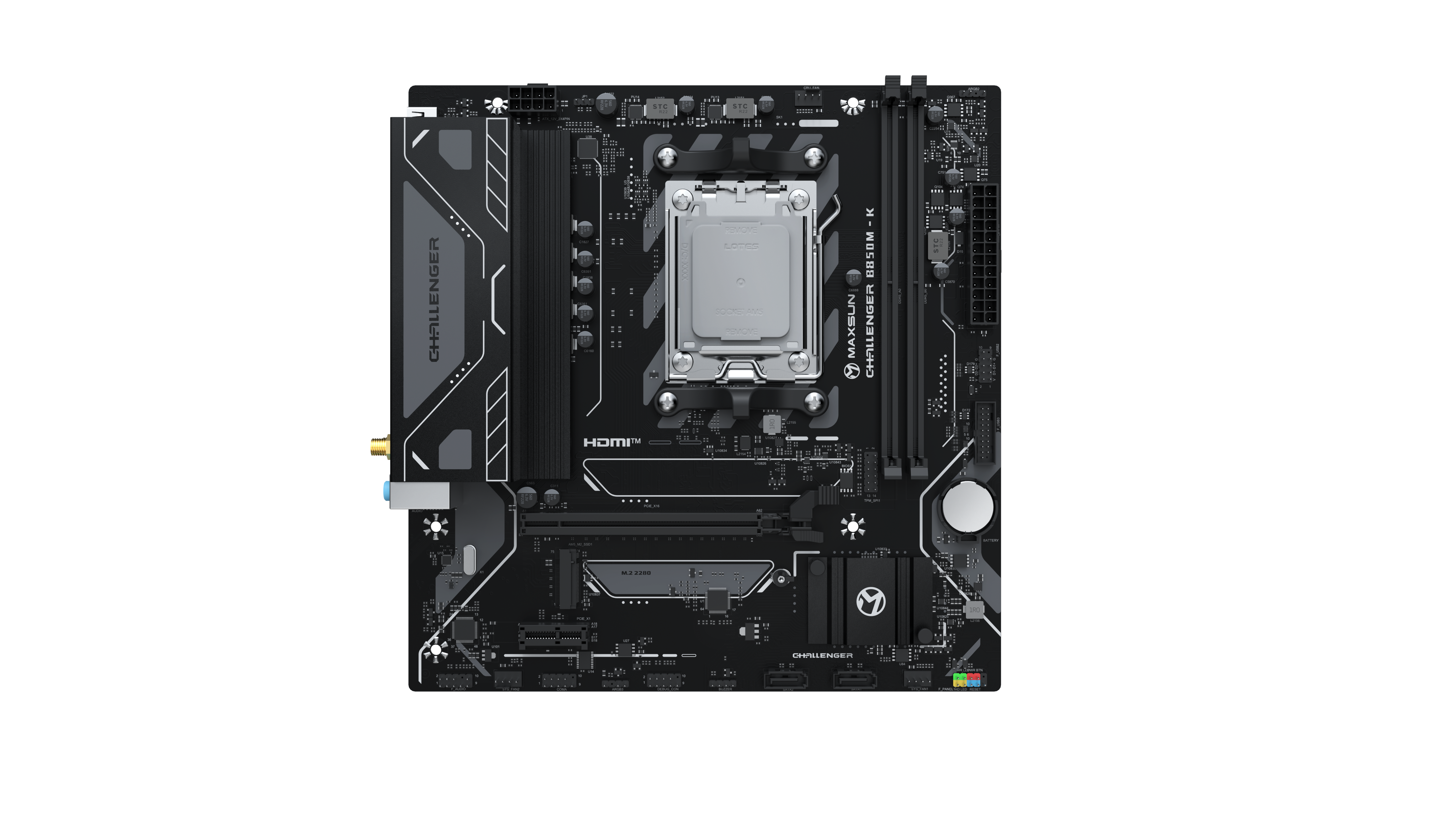

MS-Challenger B850M-K WIFI

• Model
• MS-Challenger B850M-K WIFI

• Form Factor
• Micro-ATX, 225×220mm

• Chipset
• AMD B850

• Processor Support
• AMD AM5 socket; Ryzen 7000, 8000 and 9000 series processors

• Memory
• 2× DDR5 DIMM slots; up to 96GB; dual-channel; up to DDR5-6400 (OC)

• Display Output
• 1× HDMI 1.4, up to 4K at 30Hz

• Expansion Slots
• 1× PCIe 5.0 x16
  1× PCIe 3.0 x1

• Storage
• 1× M.2 2280 PCIe 4.0 x4
  2× SATA 6Gb/s

• Audio
• Realtek ALC897 HD audio codec

• Network
• Realtek RTL8111M Gigabit Ethernet; Realtek 8852BE Wi-Fi 6; Bluetooth 5.2

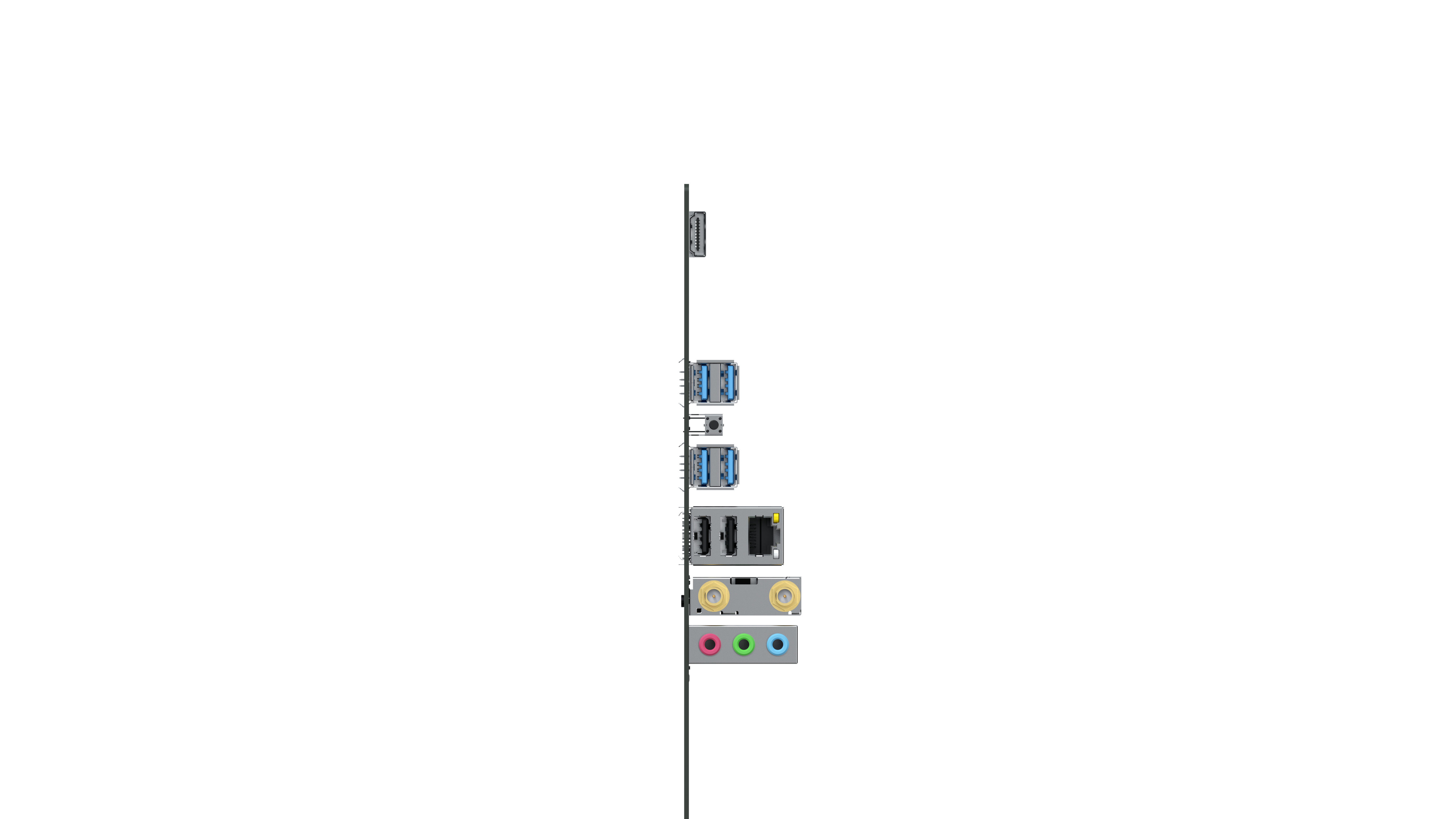

• USB
• Rear: 4× USB 5Gbps Type-A, 2× USB 2.0 Type-A
  Internal: 2× USB 5Gbps, 2× USB 2.0

• Power Connectors
• 1× 24-pin ATX
  1× 8-pin ATX 12V

• Operating System
• Windows 11; Windows 10 64-bit

• Special Features
• Distributed Debug LEDs; rear CLR CMOS button
