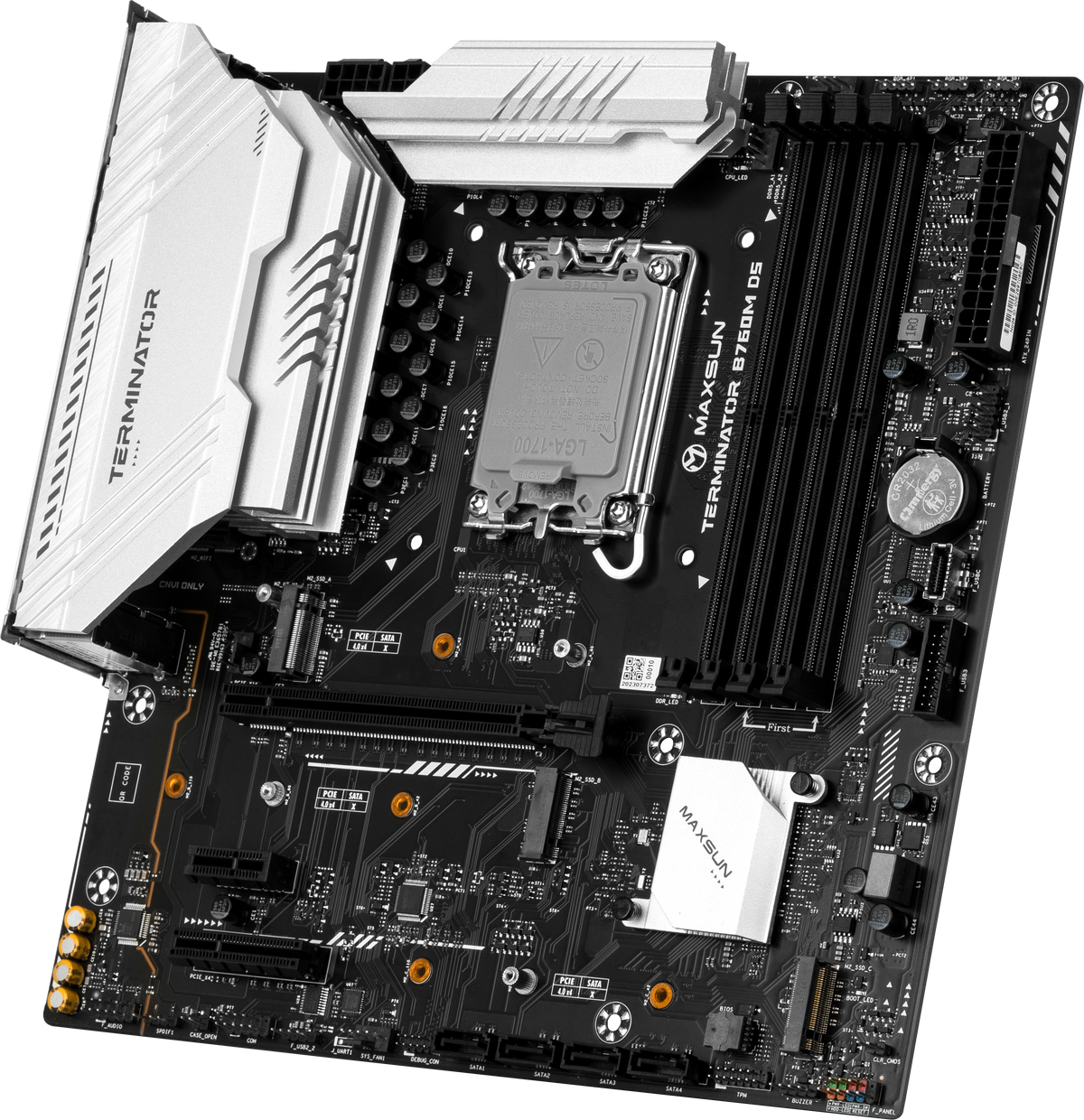

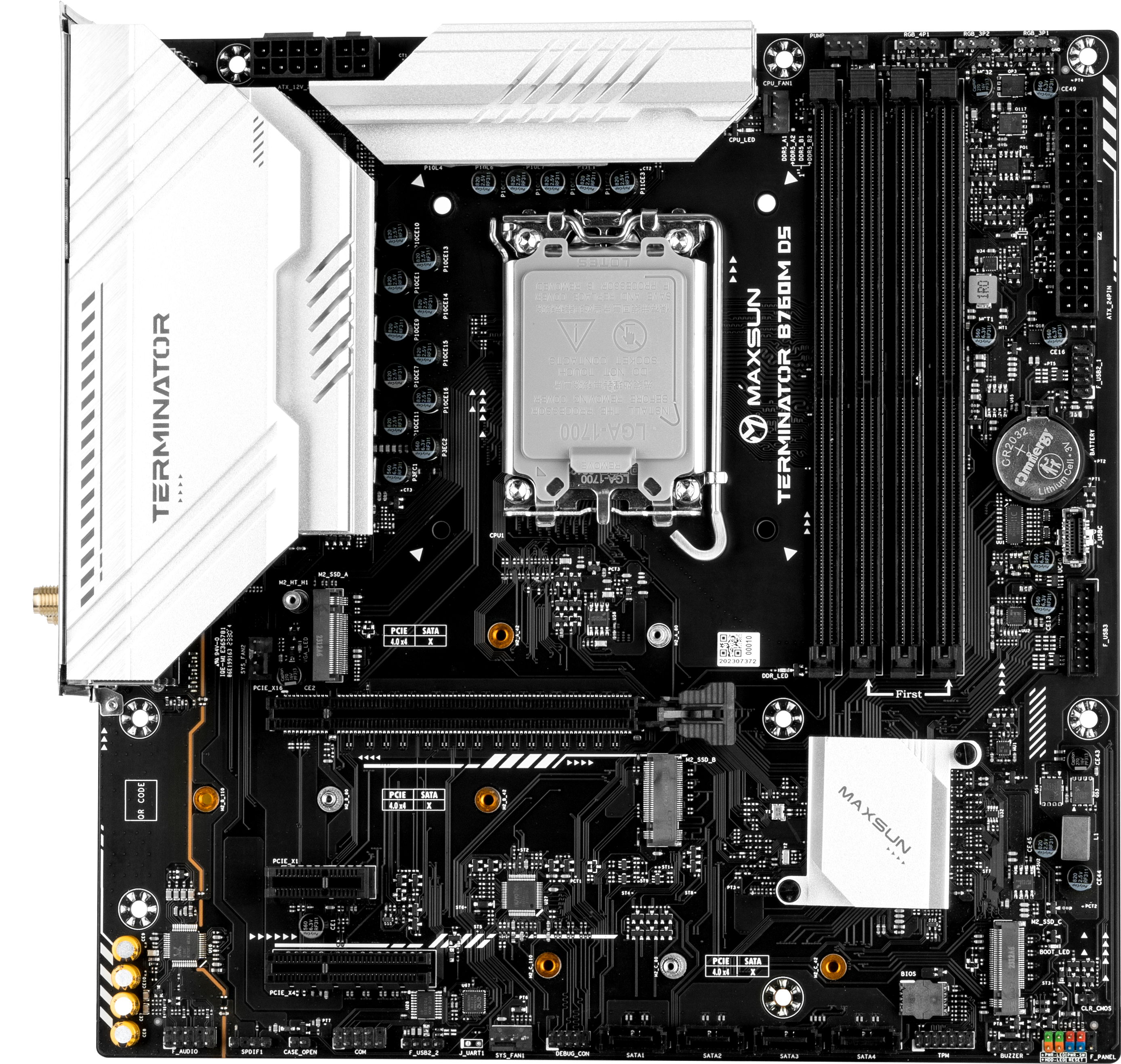

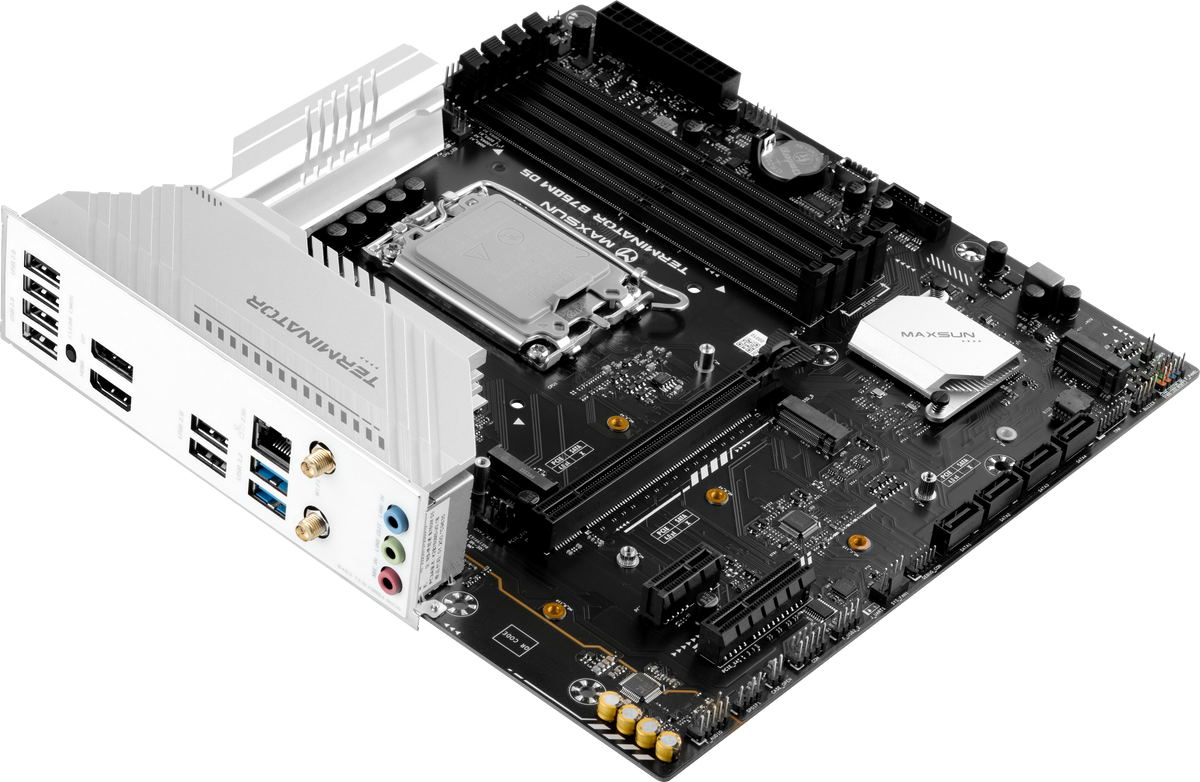

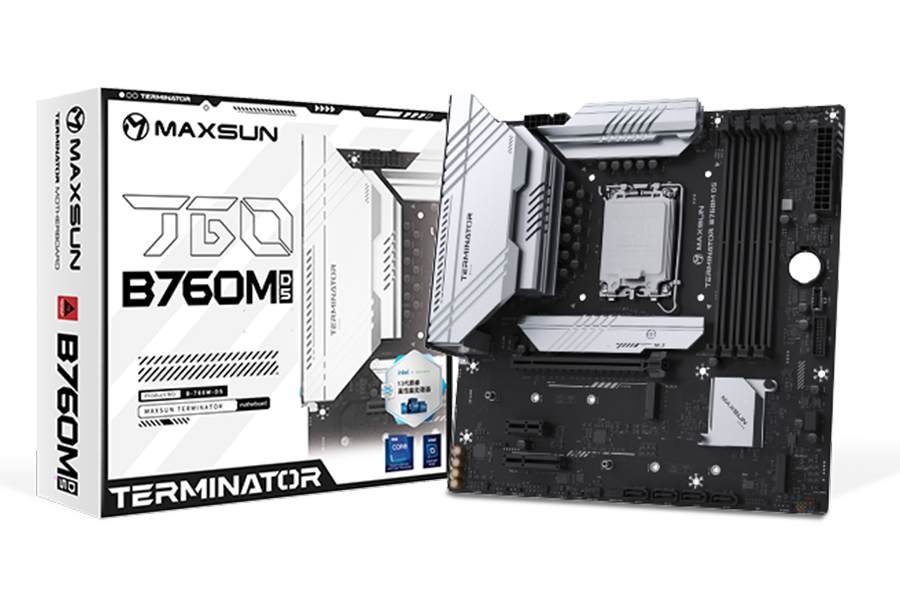

MS-Terminator B760M D5 WIFI 6E

• Model
• MS-Terminator B760M D5 WIFI 6E

• Form Factor
• Micro-ATX

• Chipset
• Intel B760

• Processor Support
• Intel LGA1700 socket; 12th, 13th and 14th Gen Intel Core processors

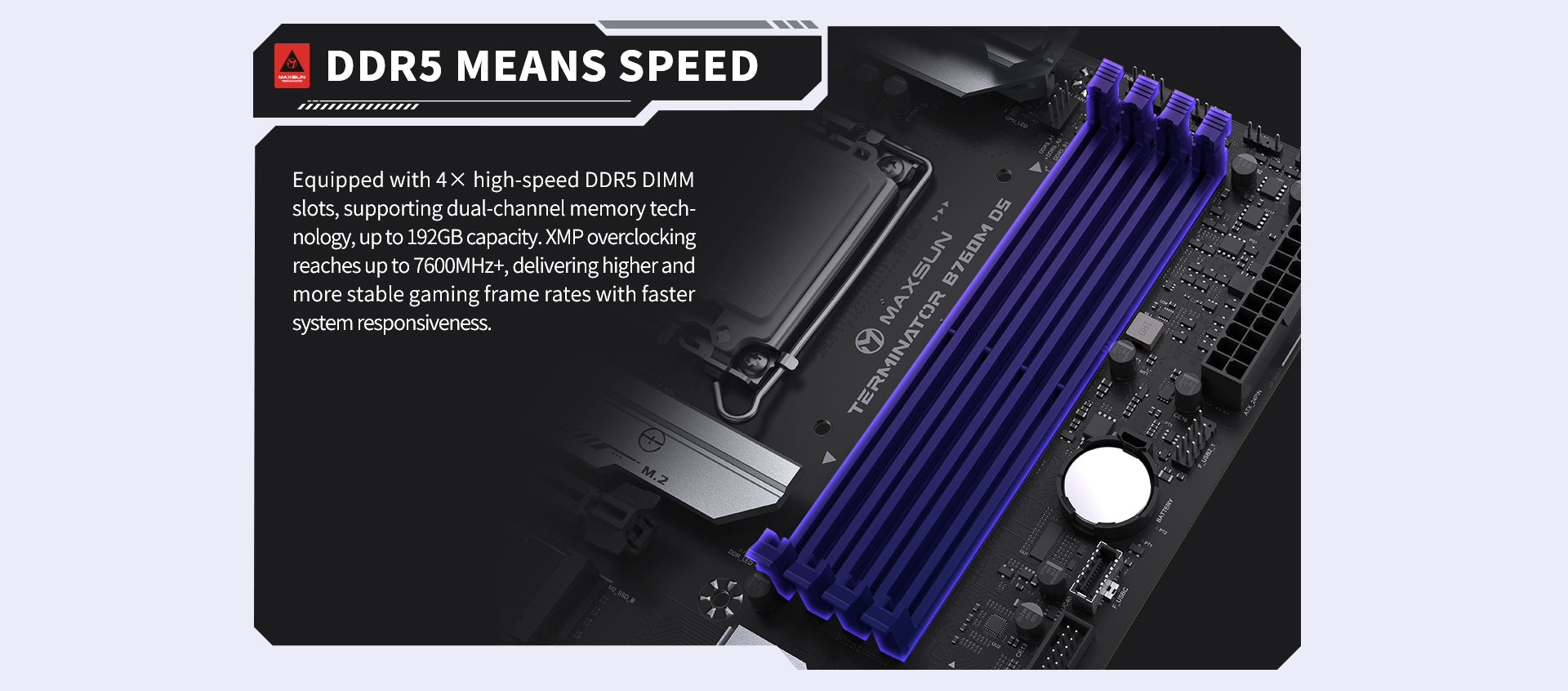

• Memory
• 4× DDR5 DIMM slots; dual-channel

• Display Outputs
• 1× HDMI
  1× DisplayPort

• Expansion Slots
• 1× PCIe 5.0 x16
  1× PCIe 3.0 x4
  1× PCIe 3.0 x1

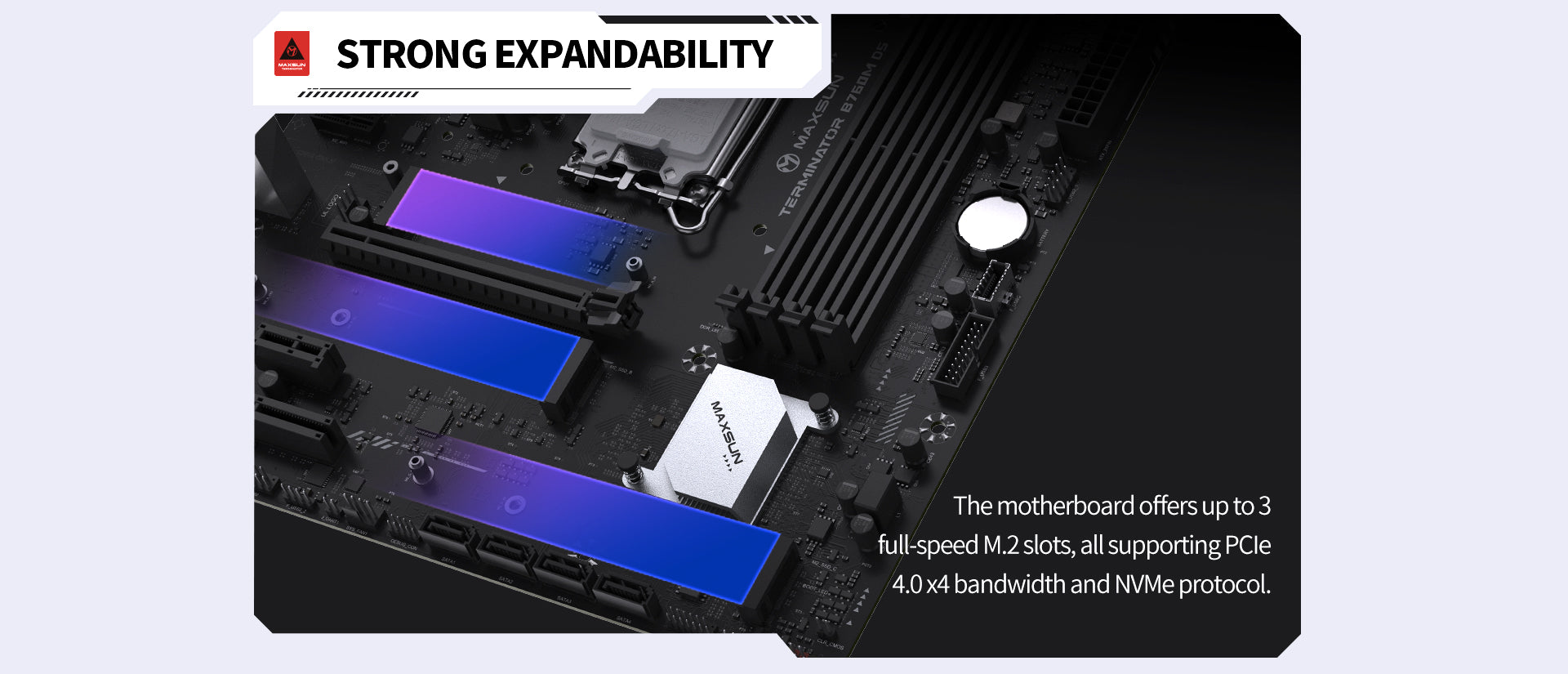

• Storage
• 3× M.2 PCIe 4.0 x4
  4× SATA 6Gb/s

• Audio
• Realtek ALC897 HD audio codec

• Network
• 2.5Gb Ethernet; Intel AX211 Wi-Fi 6E

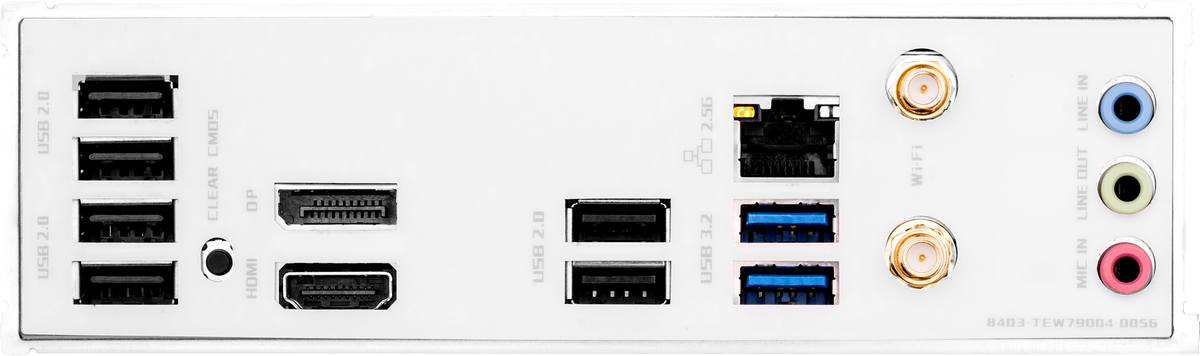

• USB
• Rear: 2× USB 10Gbps, 6× USB 2.0
  Internal: 2× USB 5Gbps, 2× USB 2.0, front USB Type-C 20Gbps

• Power Connectors
• 1× 24-pin ATX
  1× 8-pin ATX 12V
  1× 4-pin ATX 12V

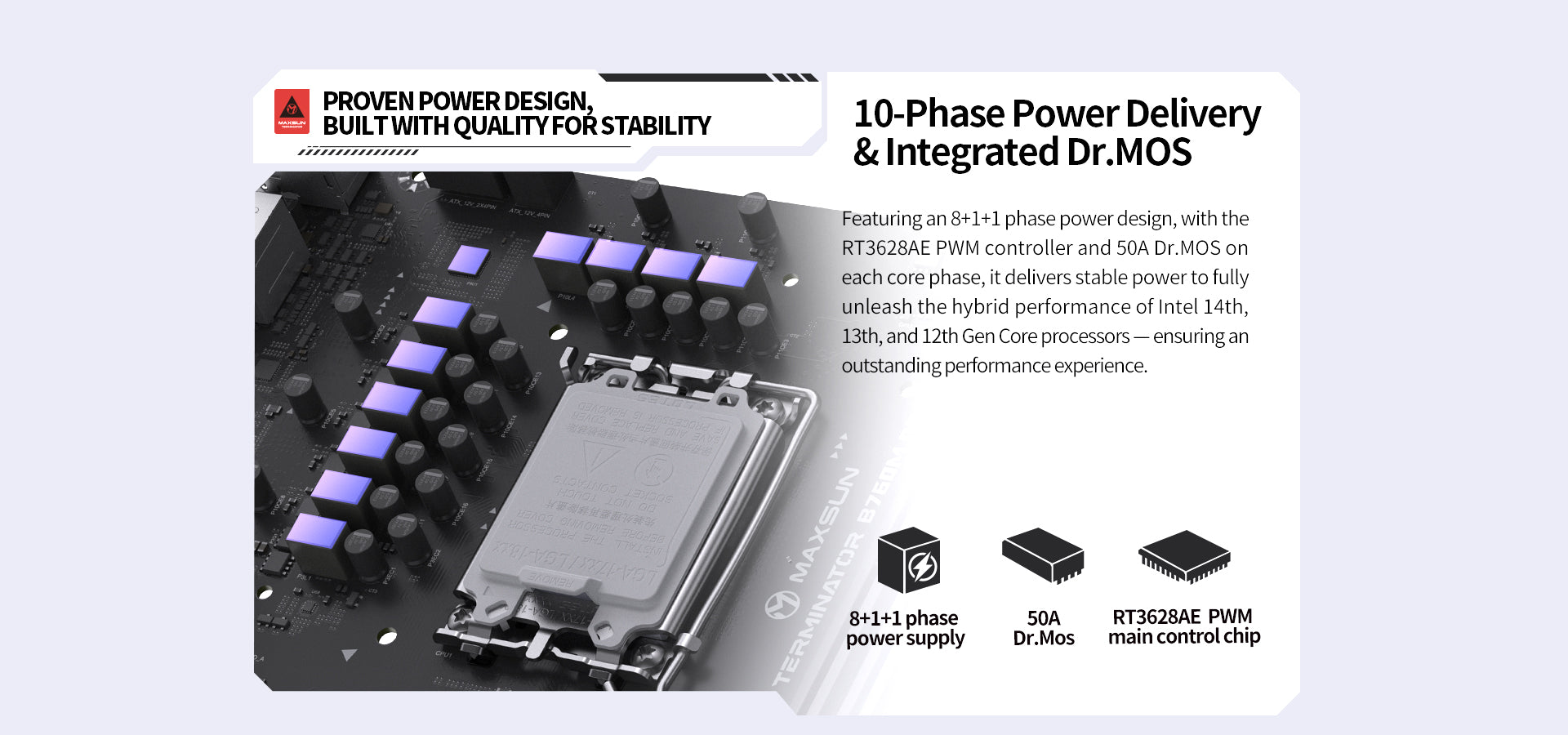

• Power Design
• 10-phase, 50A Dr.MOS
