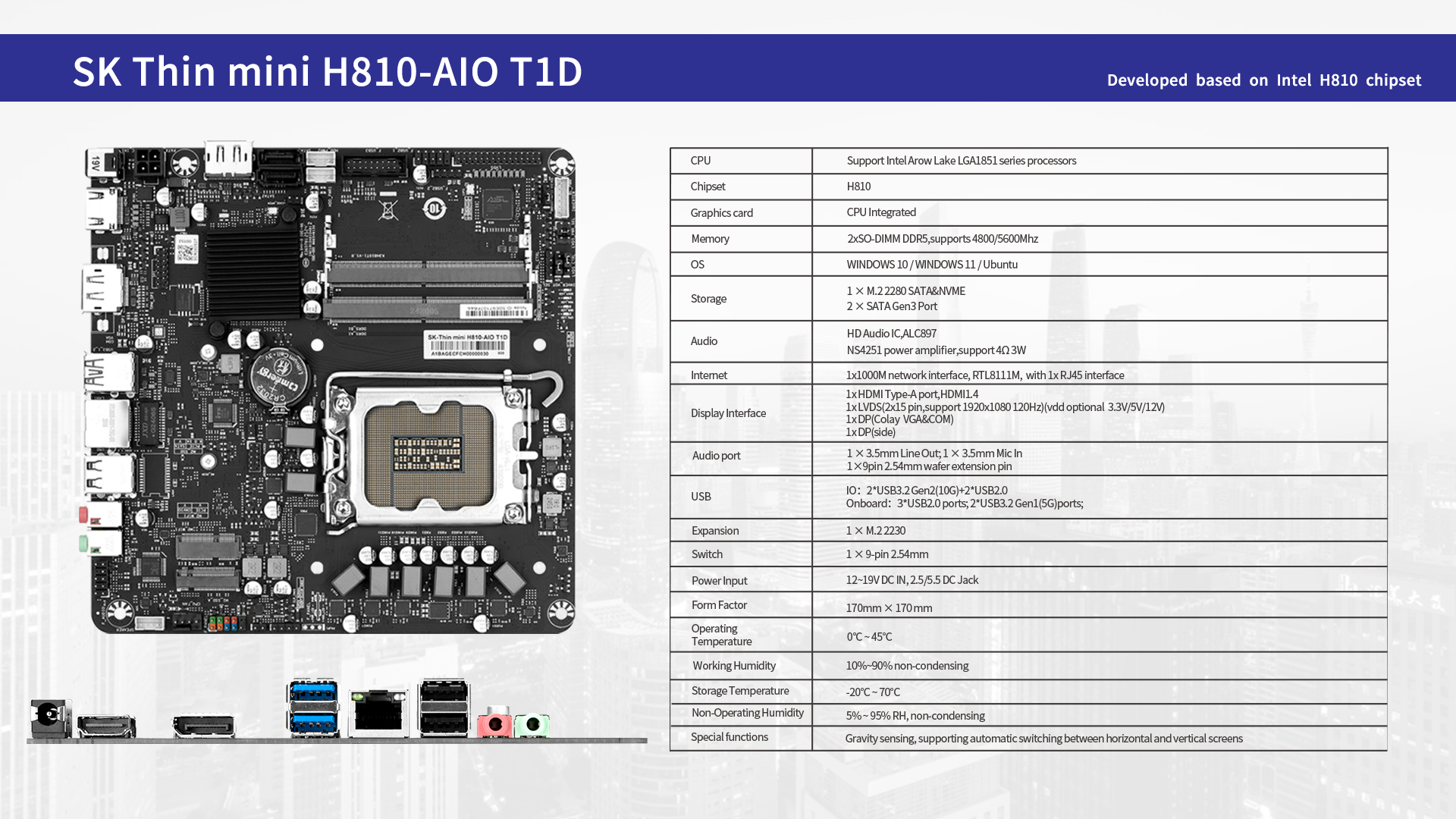

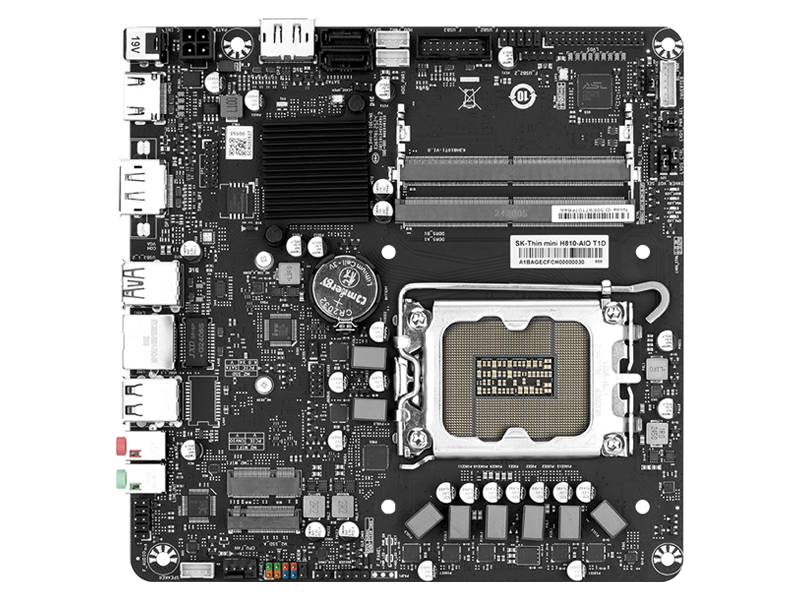

SK-H810AIO T1D

• Model
• SK-H810AIO T1D

• Chipset
• Intel H810

• Processor Support
• LGA1851 socket; Intel Core Ultra processors; F-series processors are not supported (integrated graphics required)

• Memory
• 2× SO-DIMM DDR5 slots

• Storage
• 1× M.2 2280 (NVMe/SATA auto-detect)
  2× SATA 6Gb/s

• Wireless Expansion
• 1× M.2 2230 for Wi-Fi + Bluetooth; CNVi supported

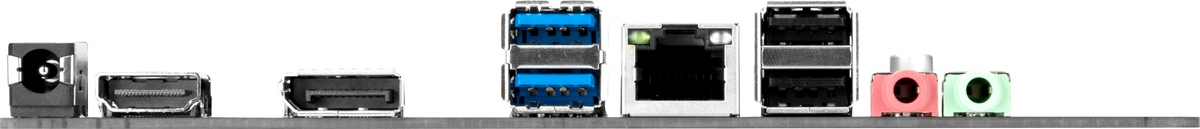

• Rear I/O
• 2× USB 3.2 Gen1 Type-A
  2× USB 2.0 Type-A
  1× HDMI
  1× DisplayPort
  1× RJ45 (1Gbps)
  1× headphone jack
  1× microphone jack

• Internal Headers
• 2× USB 3.2 Gen1
  3× USB 2.0
  1× LVDS
  1× speaker
  1× CPU fan

• Power Input
• 12–19V DC, 5.5×2.5mm

• Special Features
• Gravity sensing; side DP/LVDS display interface; 4-pin ATX connector supports power output only
