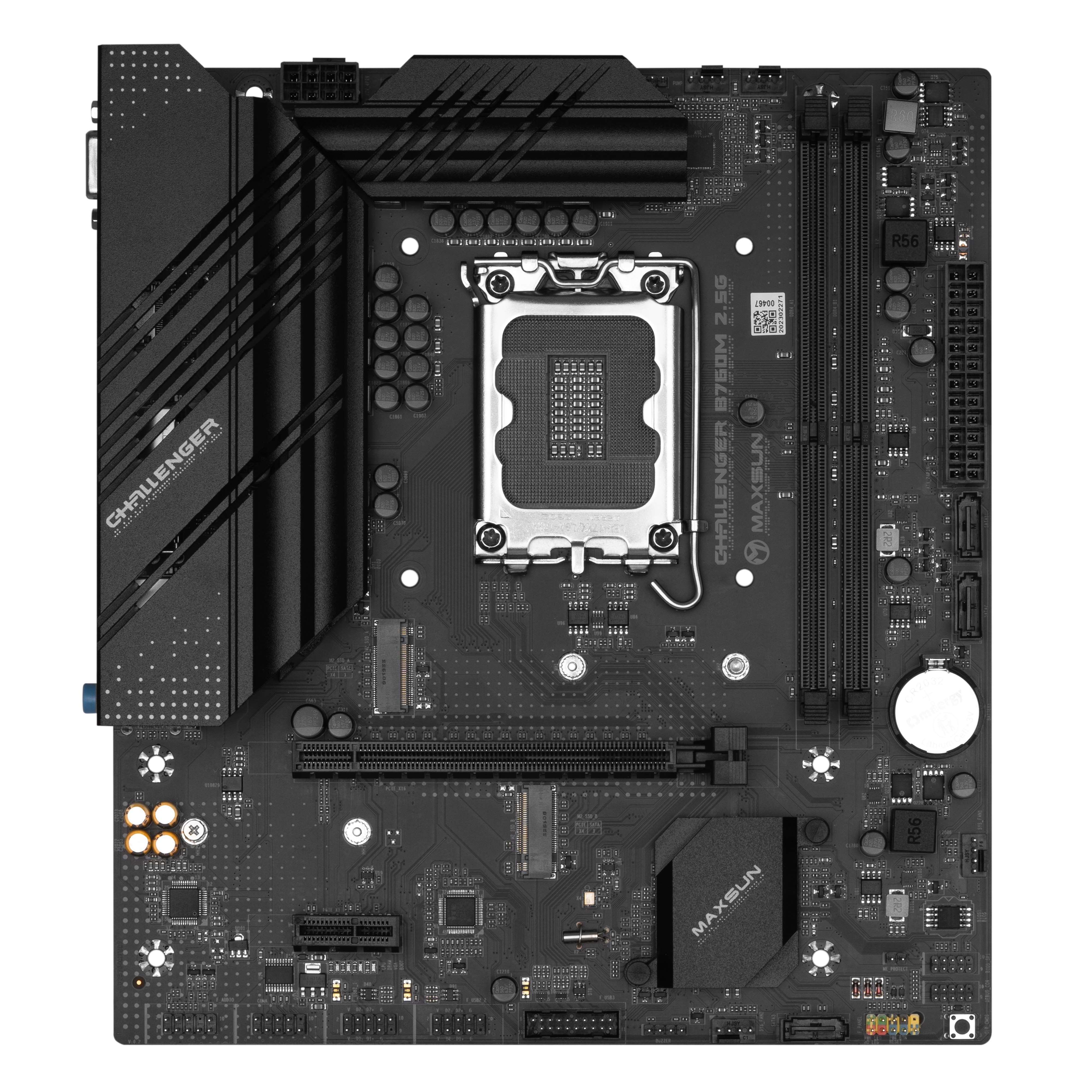

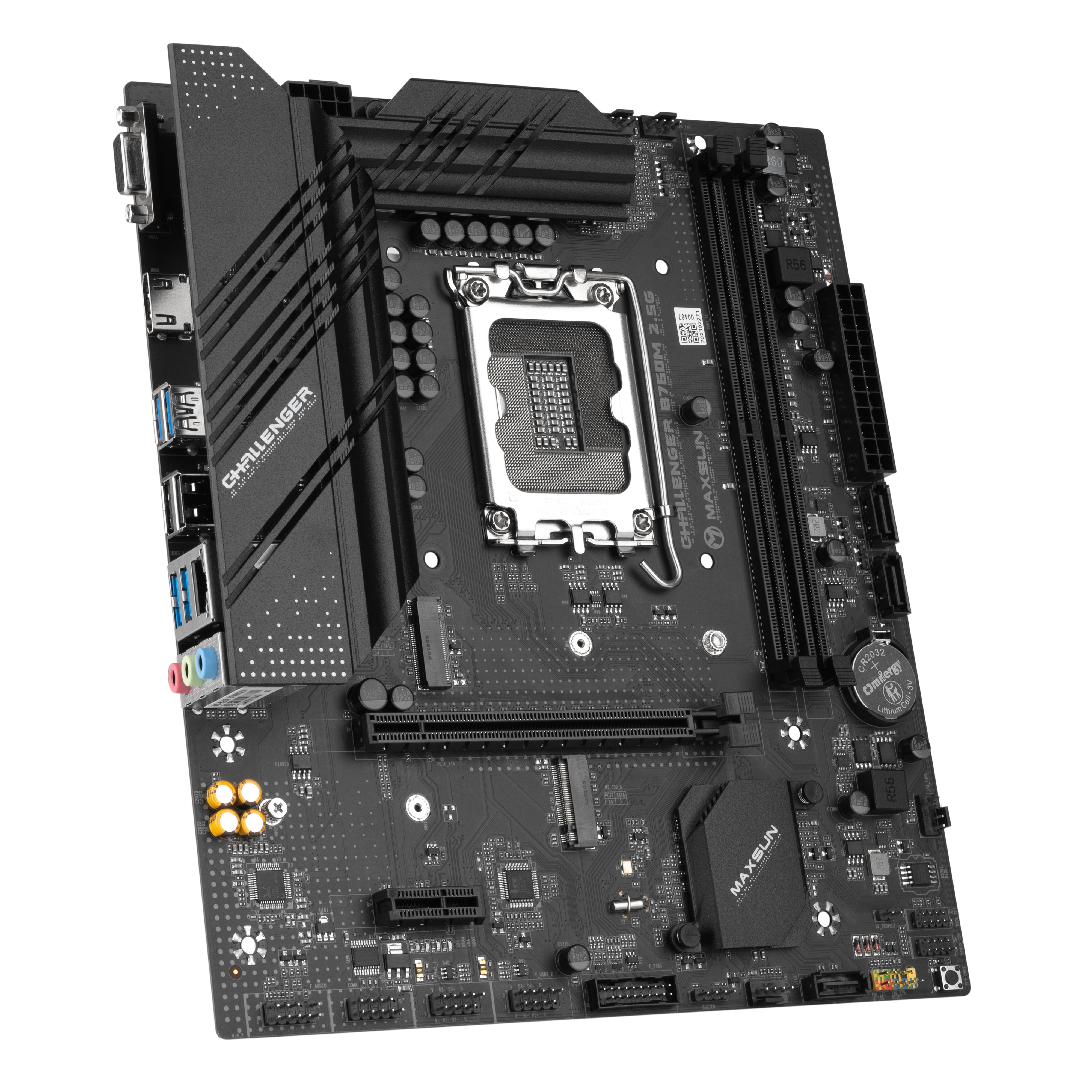

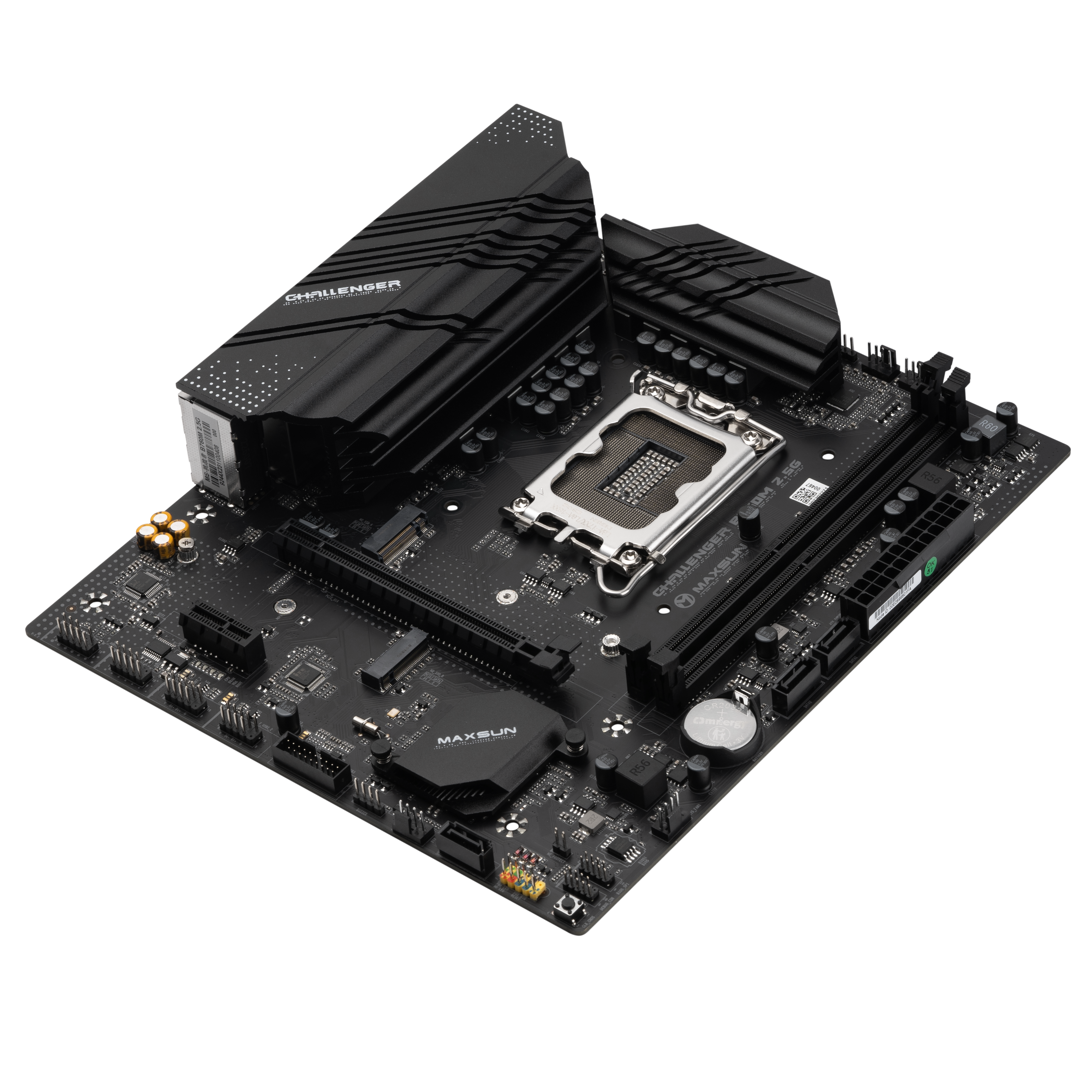

MS-Challenger B760M 2.5G

• CHIPSET
• INTEL B760

• CPU
• Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
  LGA 1700

• MEMORY
• 2x DDR4, Maximum Memory Capacity 64GB
  Memory Support DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz
  Supports Intel® XMP 2.0 OC
  Supports Dual-Controller Dual-Channel mode

• ONBOARD GRAPHICS
• 1x VGA
  *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
  1x HDMI™port
  *HDMI™ port supports up to 4K@30Hz
  *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

• EXPANSION SLOT
• 1x PCIe 4.0 x16 slot
  1x PCIe 3.0 x1 slot

• STORAGE
• M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
  3 x SATA 6Gb/s ports

• RAID
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• USB
• *Front USB (Total 6 ports)
  2x USB 3.2 Gen1 Type A
  4x USB 2.0

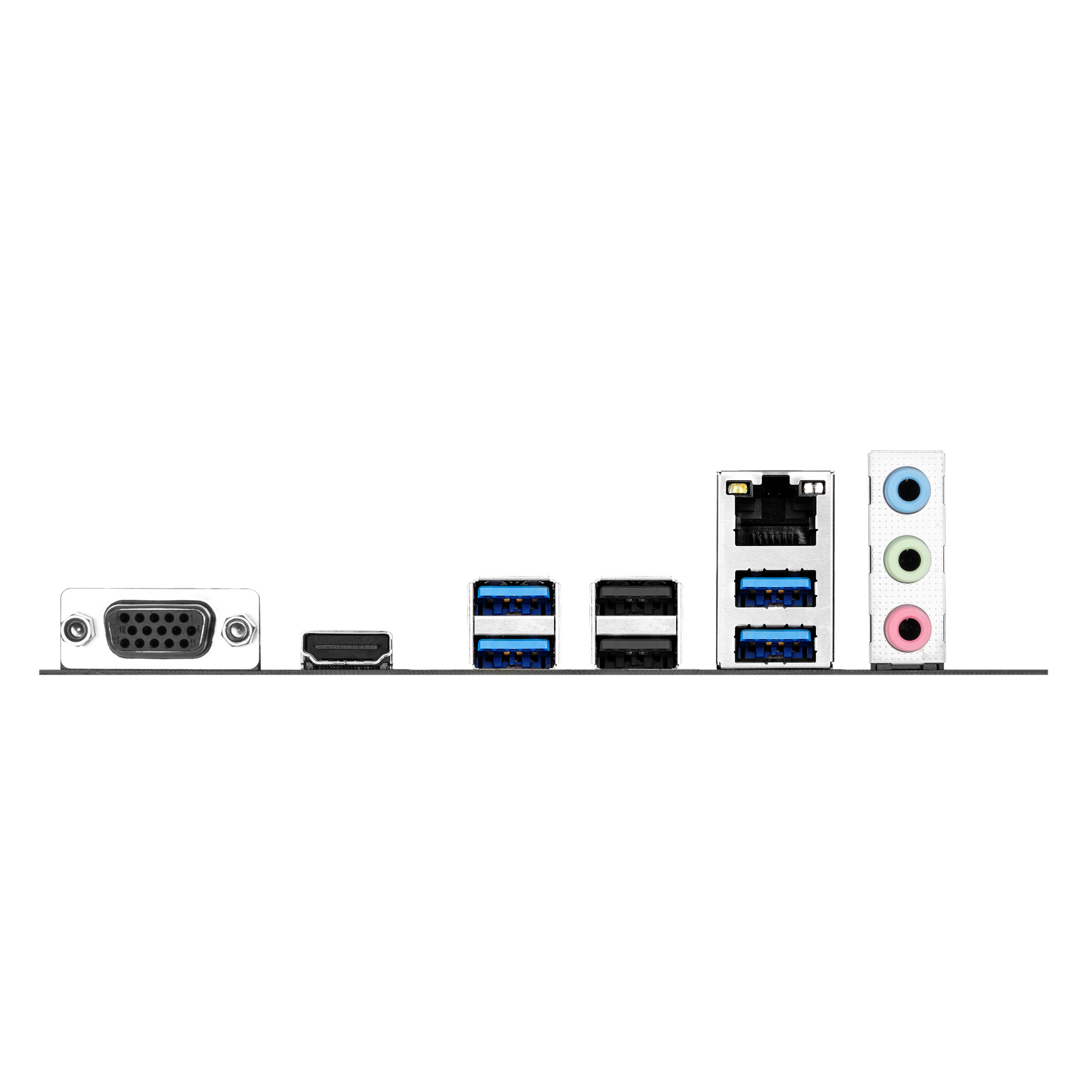

  *Rear USB (Total 6 ports)
  4x USB 3.2 Gen1 Type A
  2x USB 2.0

• LAN
• Realtek® RTL8125BG 2.5G LAN

• AUDIO
• Realtek® ALC897 Codec
  5.1-Channel High Definition Audio

• INTERNAL I/O
• 1x 24-pin Power Connector(ATX_PWR)
  1x 8-pin Power Connector(CPU_PWR)
  1x CPU Fan
  1x PUMP Fan
  2x System Fan
  2 x M.2 slots (Key-M)
  3x SATA 6Gb/s ports
  1x CLR_CMOS
  1x 4-Pin BUZZER
  1x Front Audio
  1x COM_A Port
  1x 9-Pin DEBUG_CON
  1x 9-Pin BIOS_SPI
  1x 2-Pin ME_PROTECT

• LED FEATURE
• 4x Side-by-Side Debug LED

• OPERATING SYSTEM
• Support for Windows® 11 64-bit, Windows® 10 64-bit

• FORM FACTOR
• M-ATX
  230mm x 205mm
