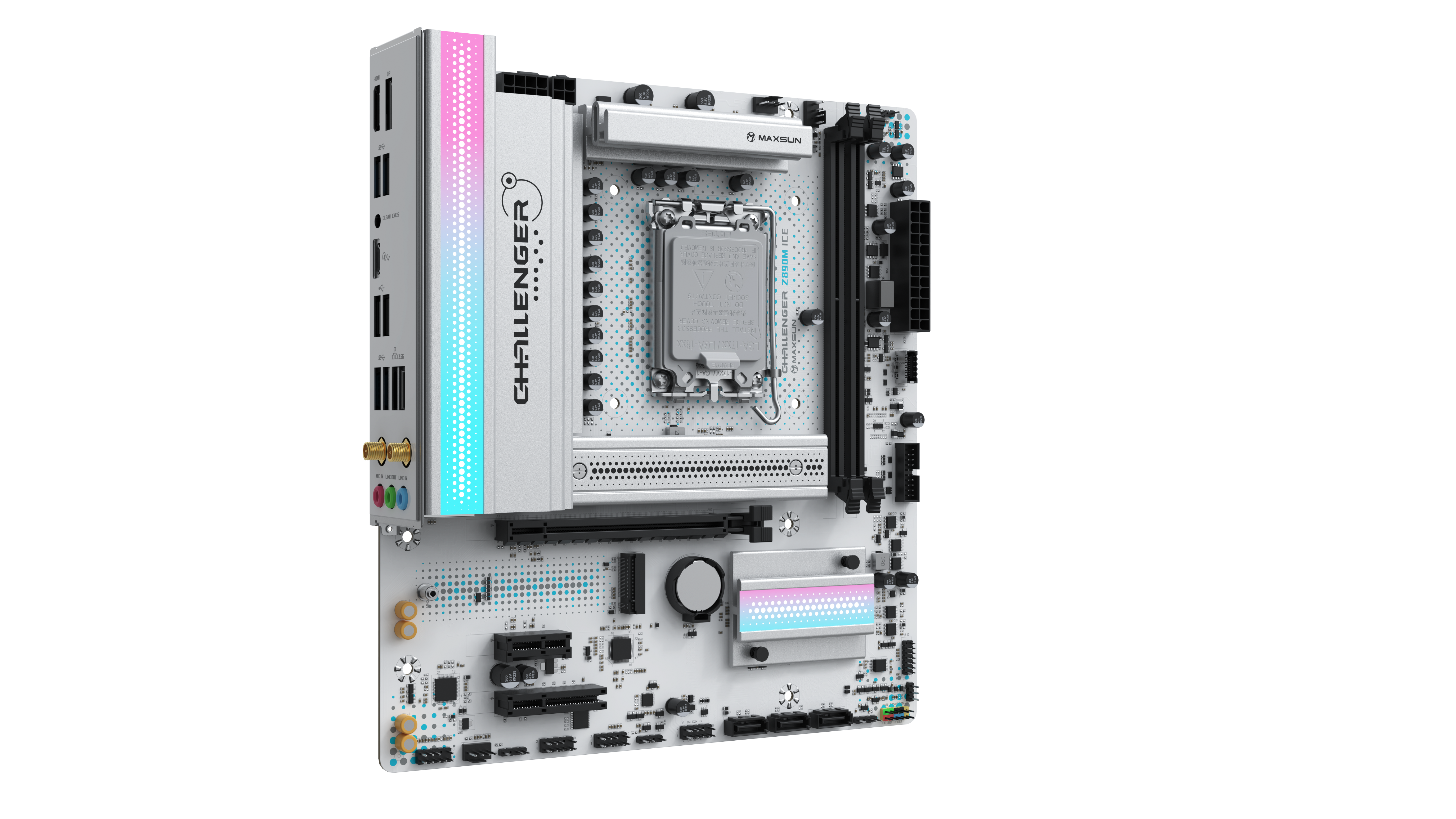

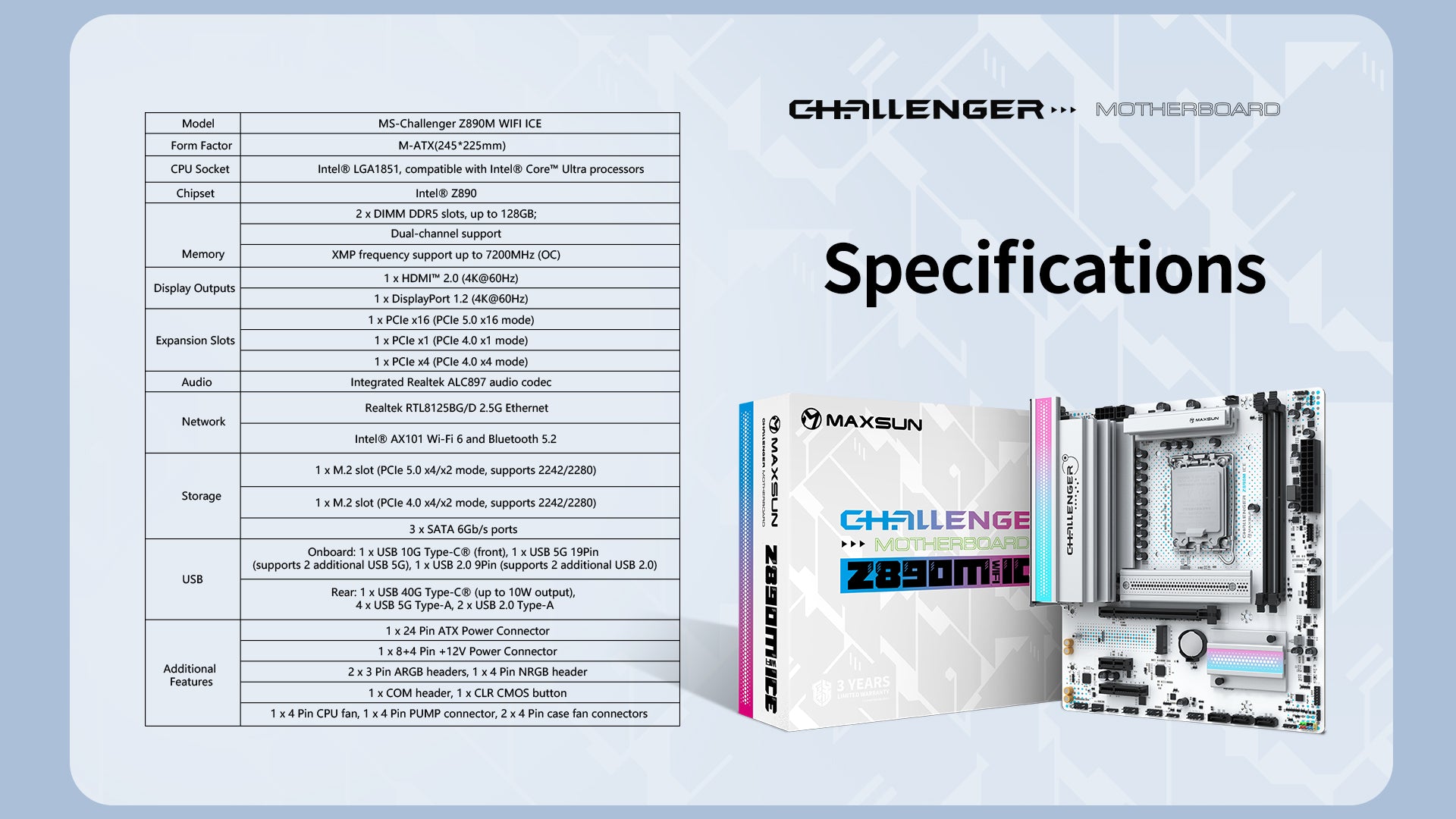

MS-Challenger Z890M WIFI ICE

• Model
• MS-Challenger Z890M WIFI ICE

• Form Factor
• M-ATX (245 x 225 mm)

• CPU Socket
• Intel® LGA1851, compatible with Intel® Core™ Ultra processors

• Chipset
• Intel® Z890

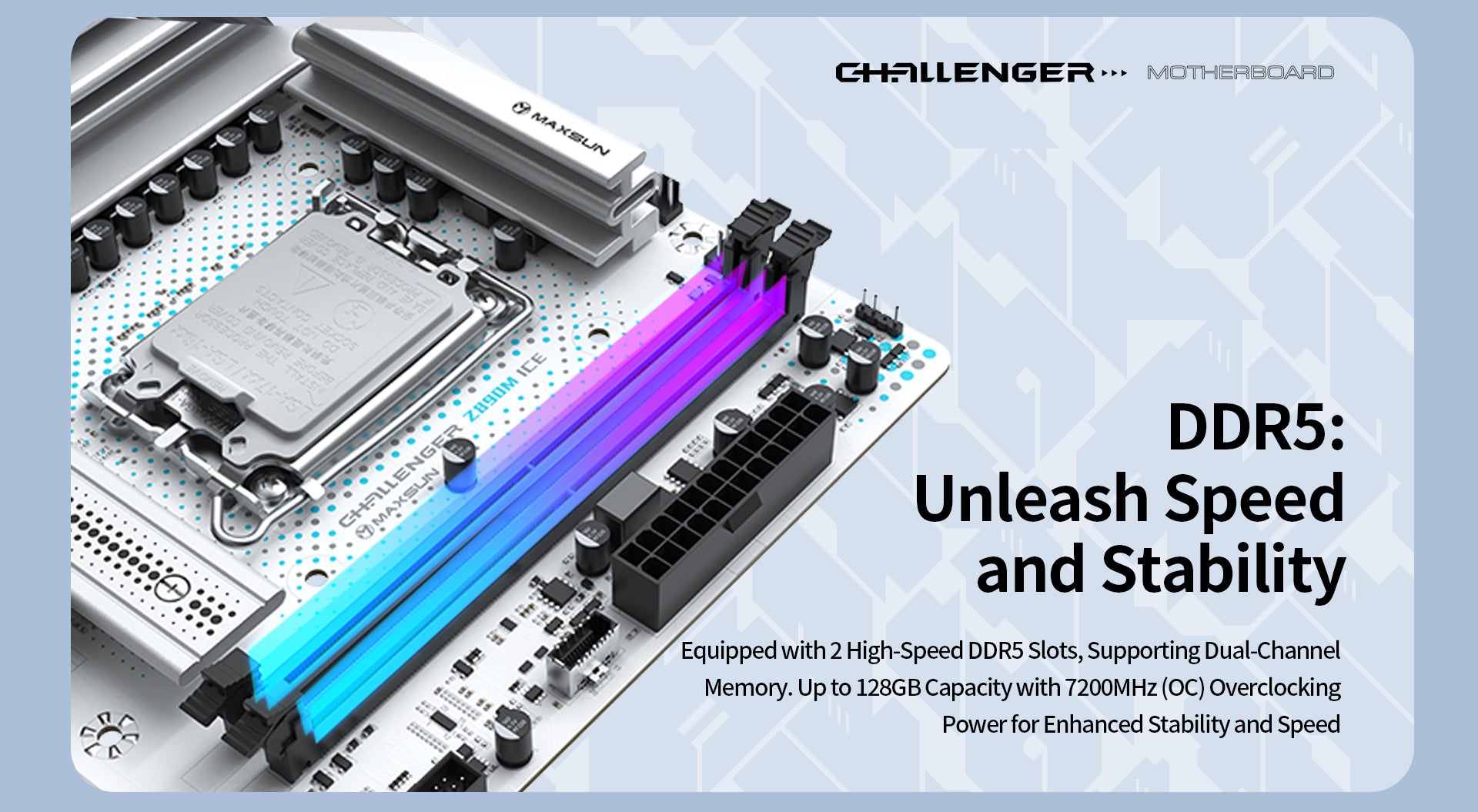

• Memory
• 2 × DIMM DDR5 slots, supporting dual-channel up to 128GB
  Memory speeds: XMP 4800/5000/5200/5400/5600/5800/6000/6200(OC)/6400(OC)/6600(OC)/6800(OC)/7000(OC)/7200(OC) MHz

• Graphics Support
• 1 × HDMI™ 2.0 (up to 4K @60Hz)
  1 × DisplayPort 1.2 (up to 4K @60Hz)

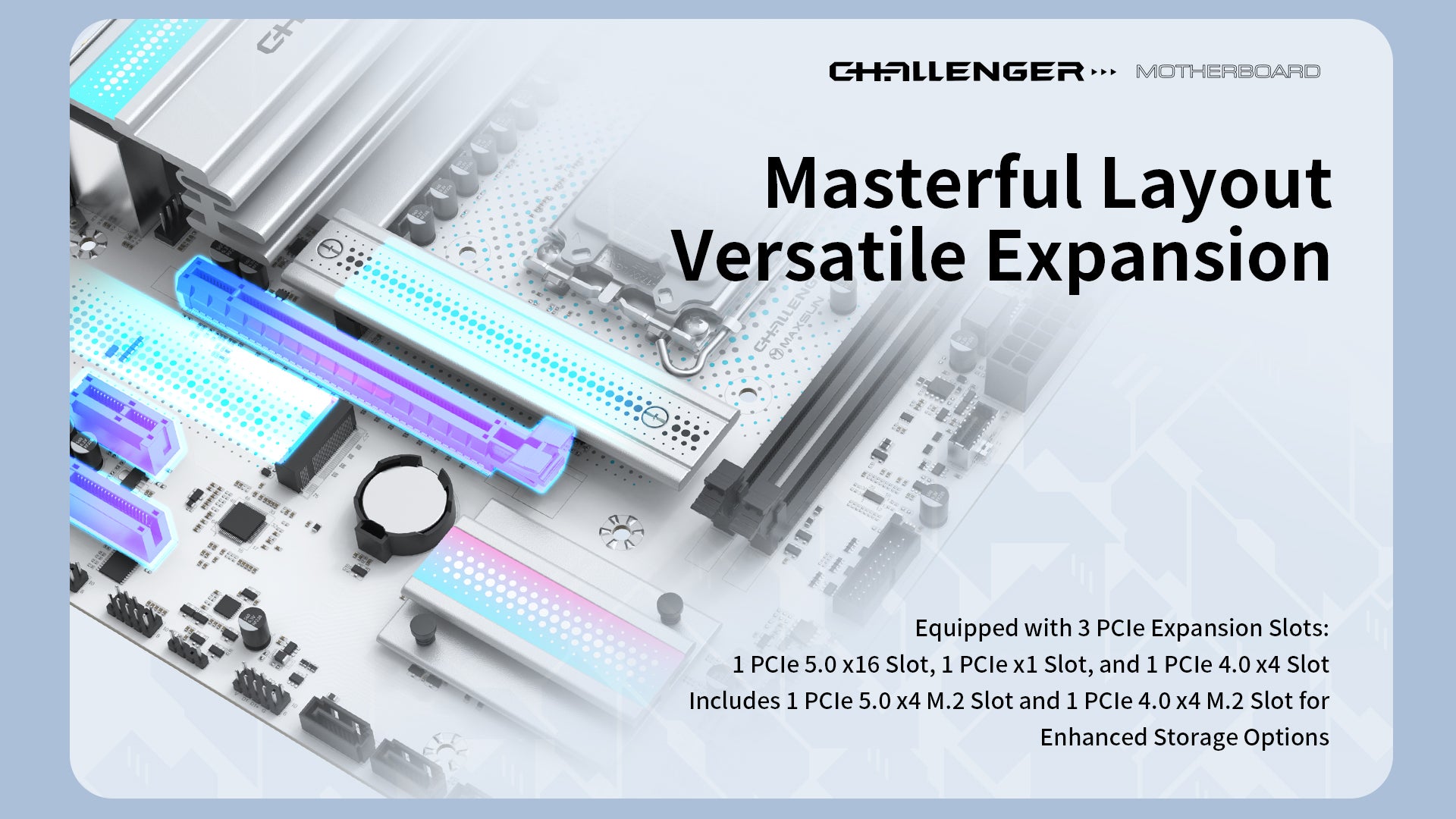

• Expansion Slots
• 1 × PCIe 5.0 x16 slot (supports PCIe 5.0 x16 mode)
  1 × PCIe 4.0 x4 slot (supports PCIe 4.0 x4 mode)
  1 × PCIe 3.0 x1 slot (supports PCIe 3.0 x1 mode)

• Audio
• Integrated Realtek ALC897 Audio Codec

• Networking
• Realtek RTL8125BG/D Ethernet LAN (2.5G)
  Intel® AX101 Wireless supporting Wi-Fi 6 and Bluetooth 5.2

• Storage
• 1 × M.2 slot (PCIe 5.0 x4/x2, supports 2242/2280/22110 lengths)
  1 × M.2 slot (PCIe 4.0 x4/x2, supports 2242/2280/22110 lengths)
  3 × SATA 6Gb/s ports

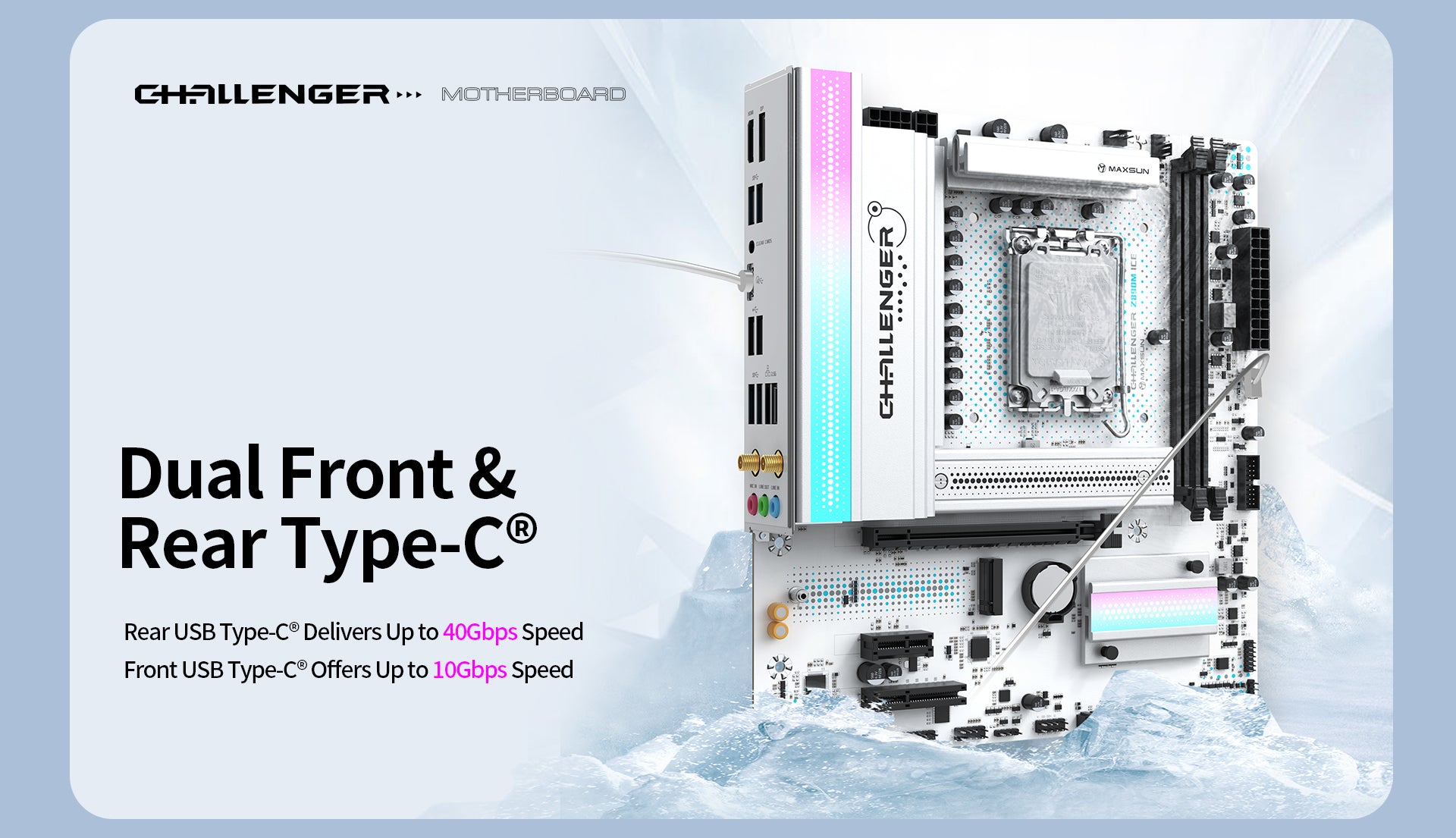

• USB Ports
• Onboard: 1 × USB 10G Type-C® front header
  1 × USB 5G 19Pin header, supports 2 additional USB 5G ports
  1 × USB 2.0 9-pin header, supports 2 additional USB 2.0 ports
  Rear Panel: 1 × USB 40G Type-C® (up to 10W output)
  4 × USB 5G Type-A ports
  2 × USB 2.0 Type-A ports

• Additional Features

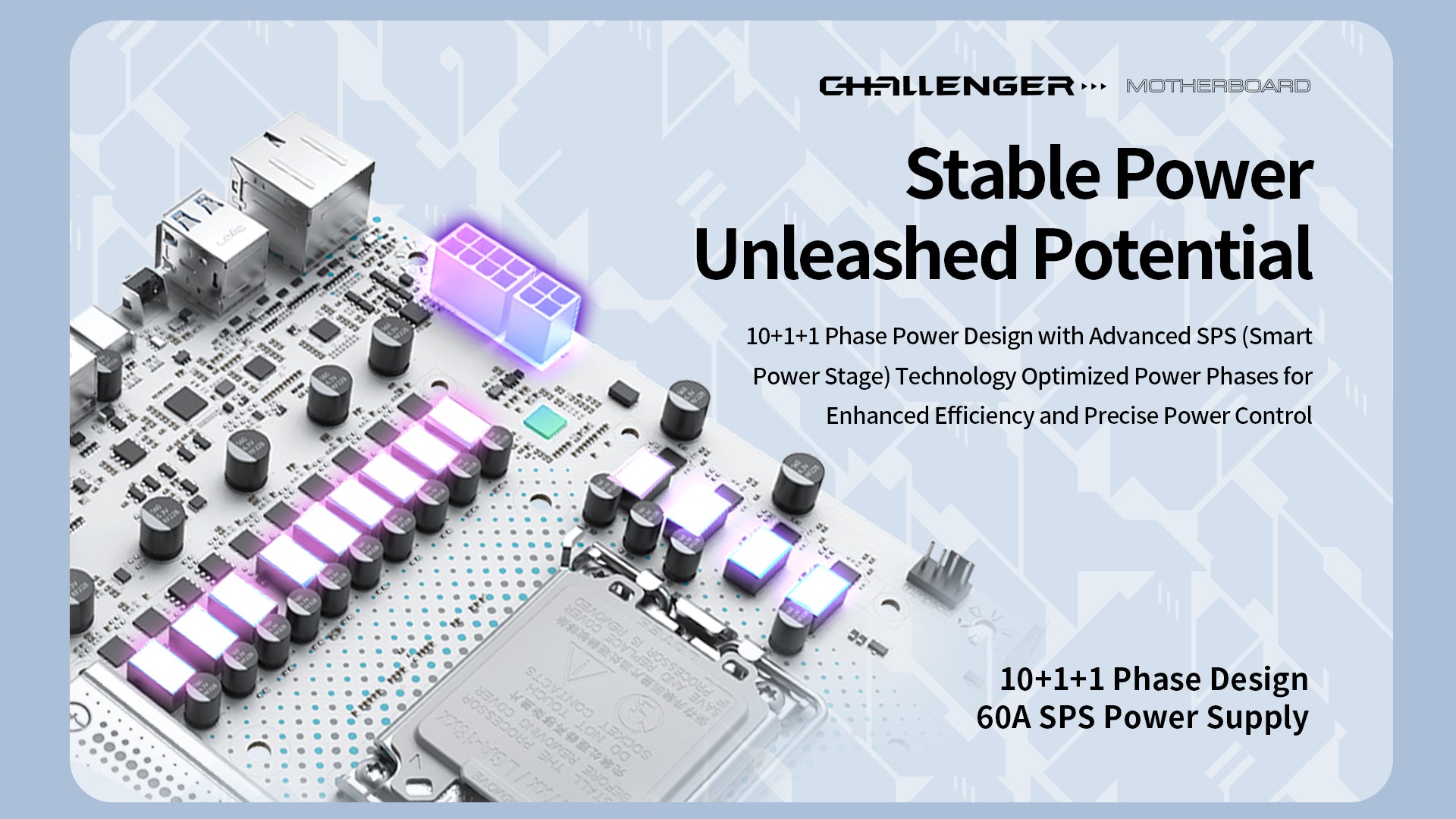

• Power Connectors: 1 × 24-Pin ATX, 1 × 8+4 Pin +12V

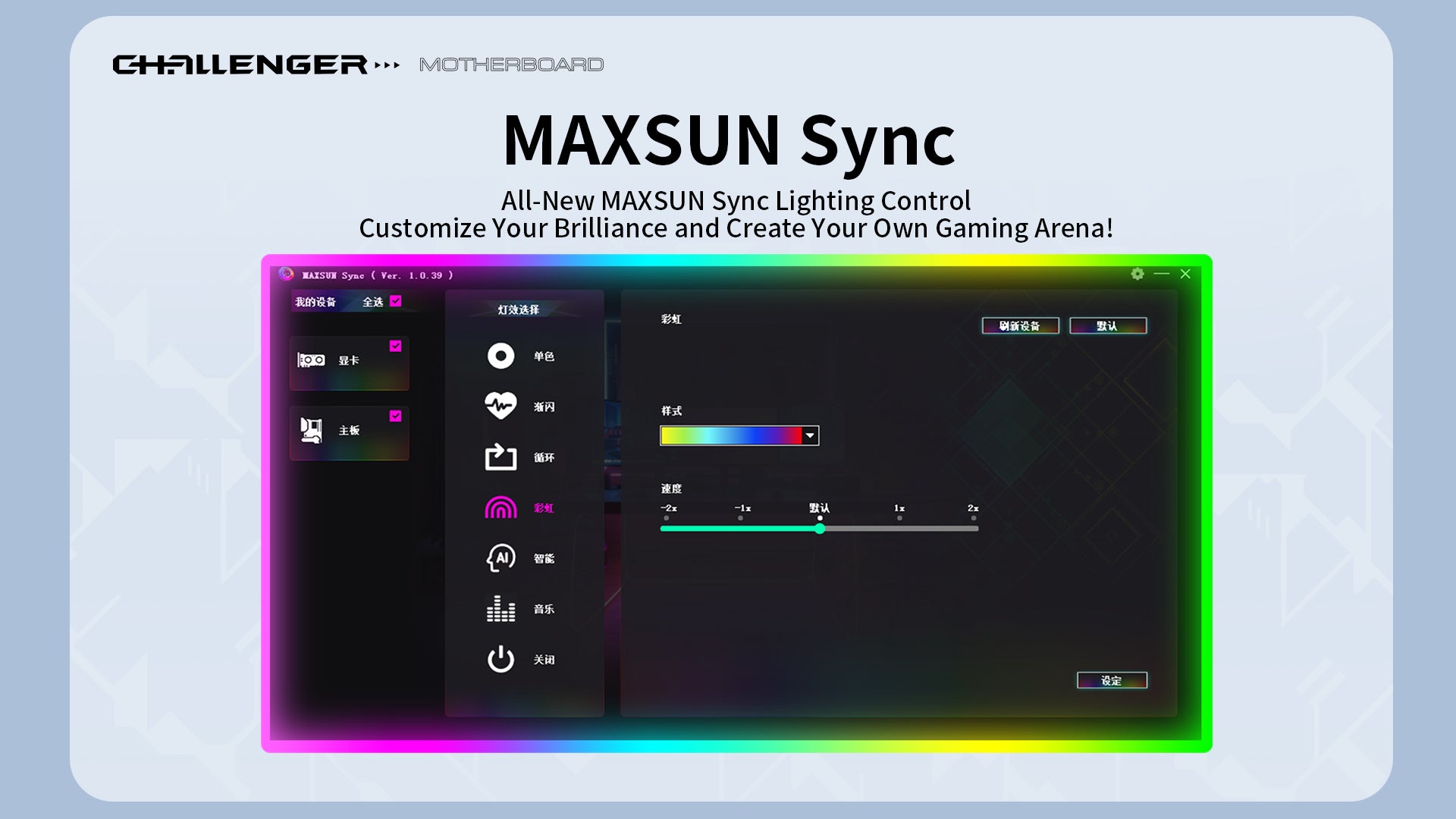

  RGB Headers: 2 × 3-Pin ARGB, 1 × 4-Pin NRGB

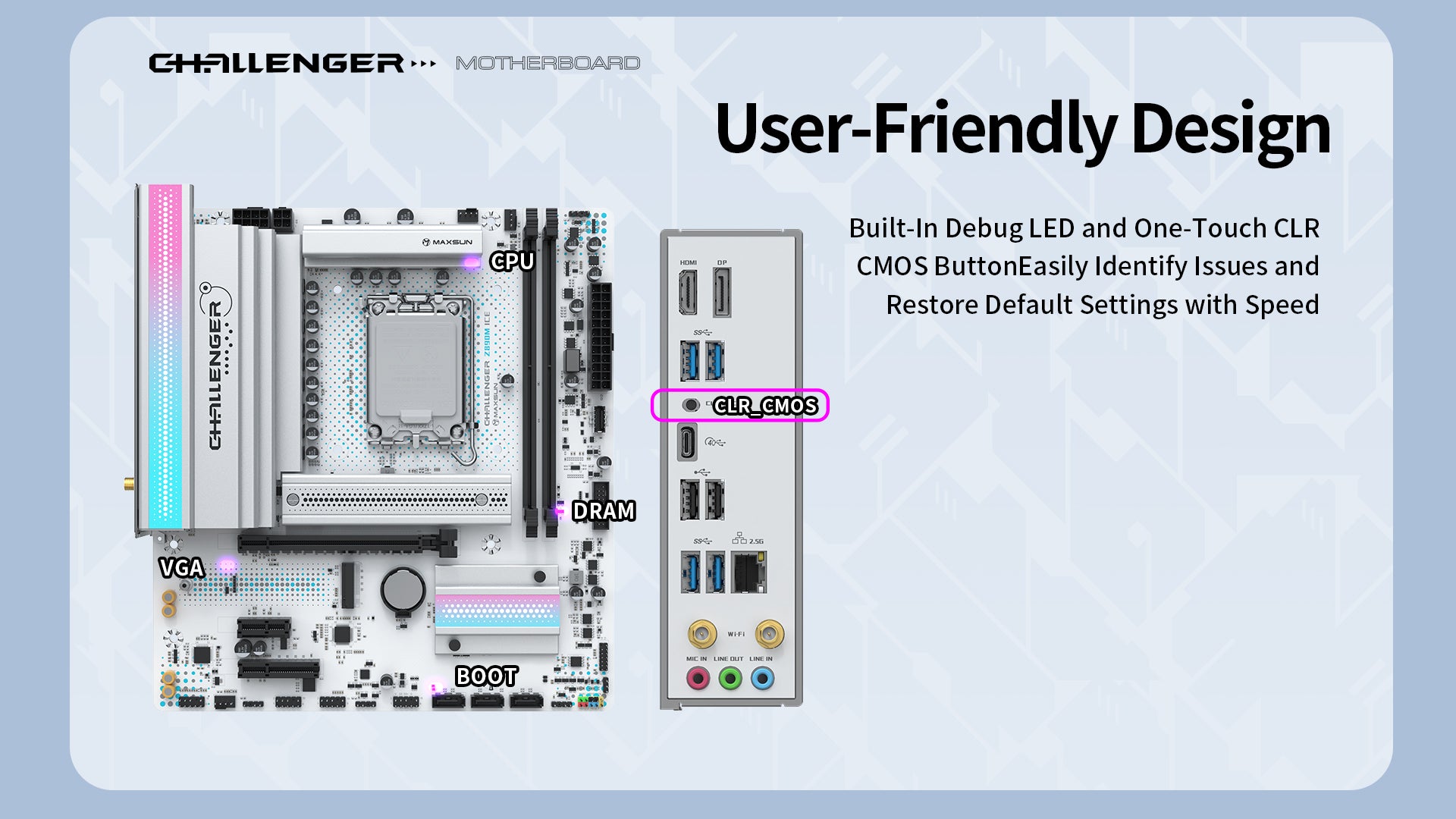

  Other Headers: 1 × COM port header, CLR CMOS button, 1 × 4-Pin CPU FAN header, 1 × 4-Pin PUMP header, 2 × 4-Pin chassis fan headers
