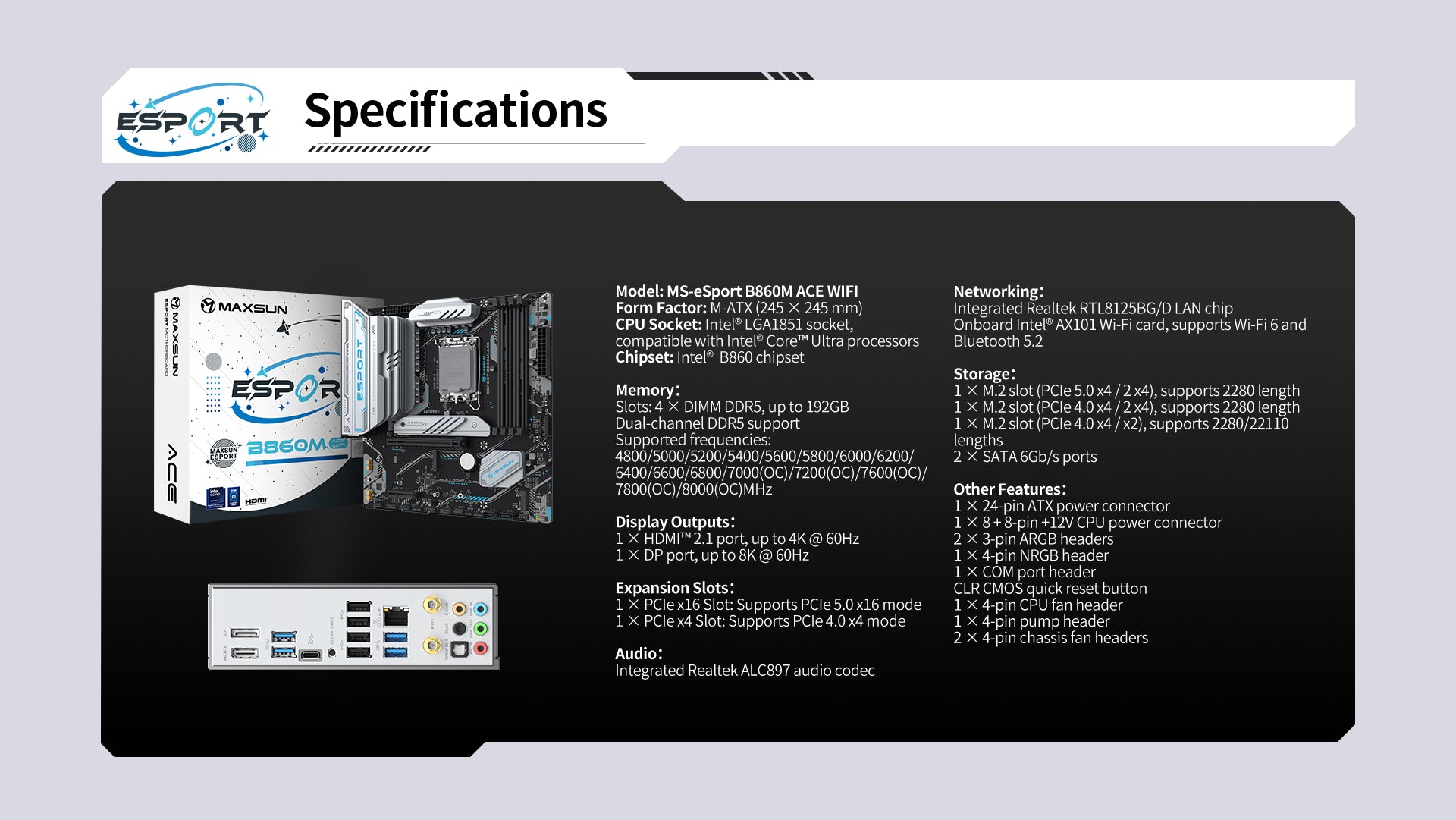

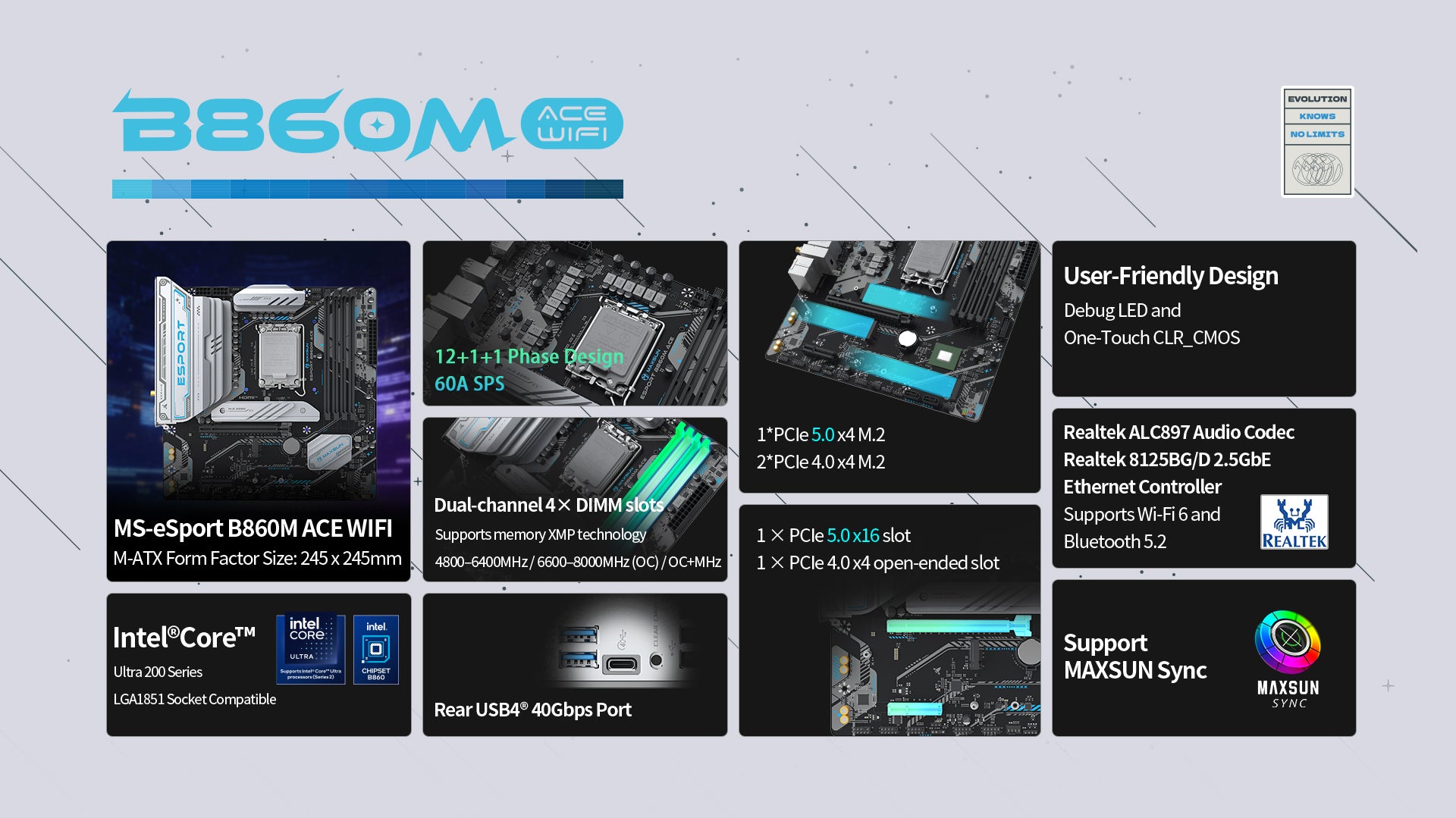

MS-eSport B860M WIFI ACE

• Model
• MS-eSport B860M WIFI ACE

• Form Factor
• Micro-ATX, 245×245mm

• Chipset
• Intel B860

• Processor Support
• Intel LGA1851 socket; Intel Core Ultra processors

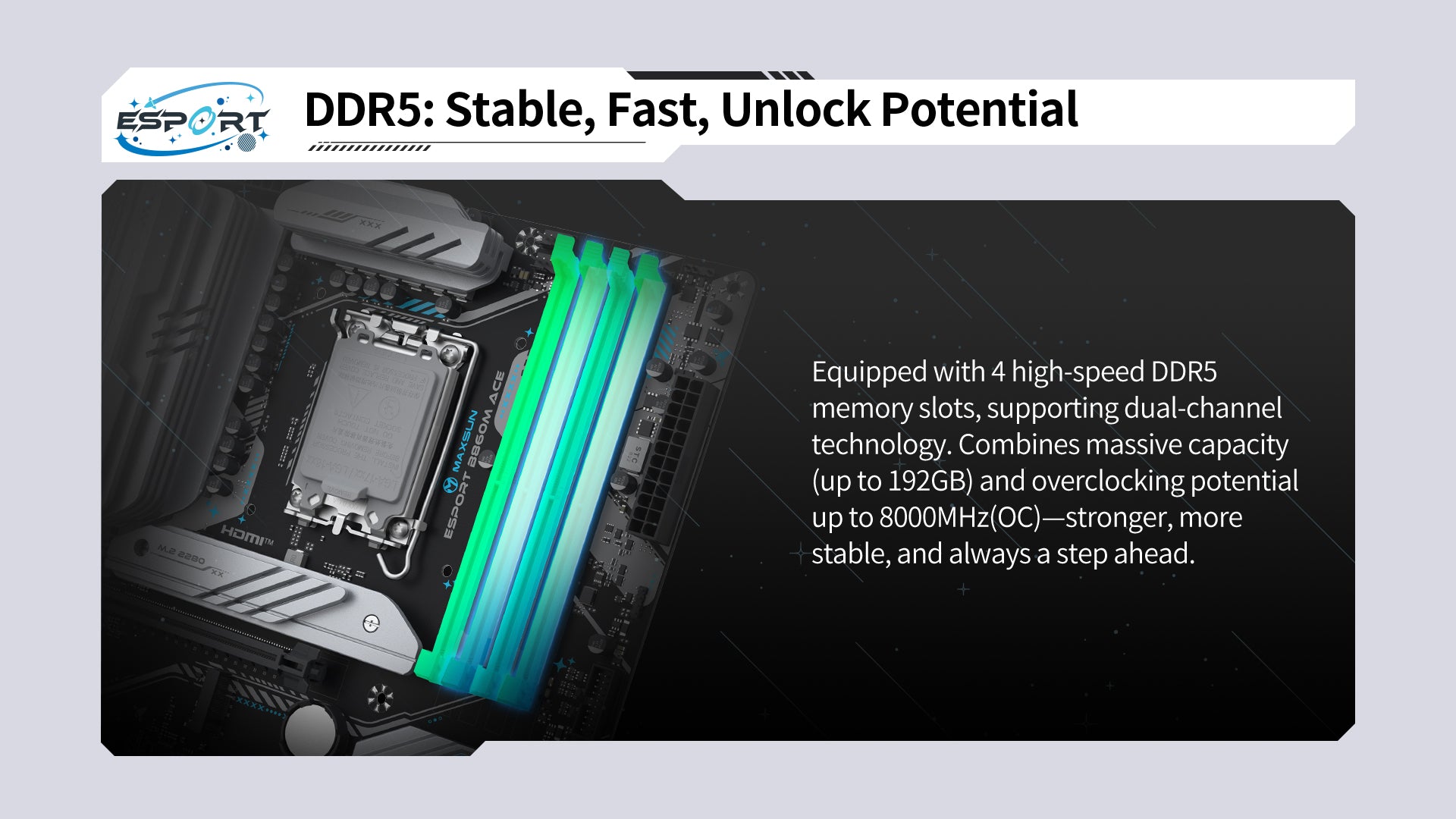

• Memory
• 4× DDR5 DIMM slots; dual-channel; XMP support; up to DDR5-8000+ (OC)

• Display Outputs
• 1× HDMI 2.0
  1× DisplayPort 1.2

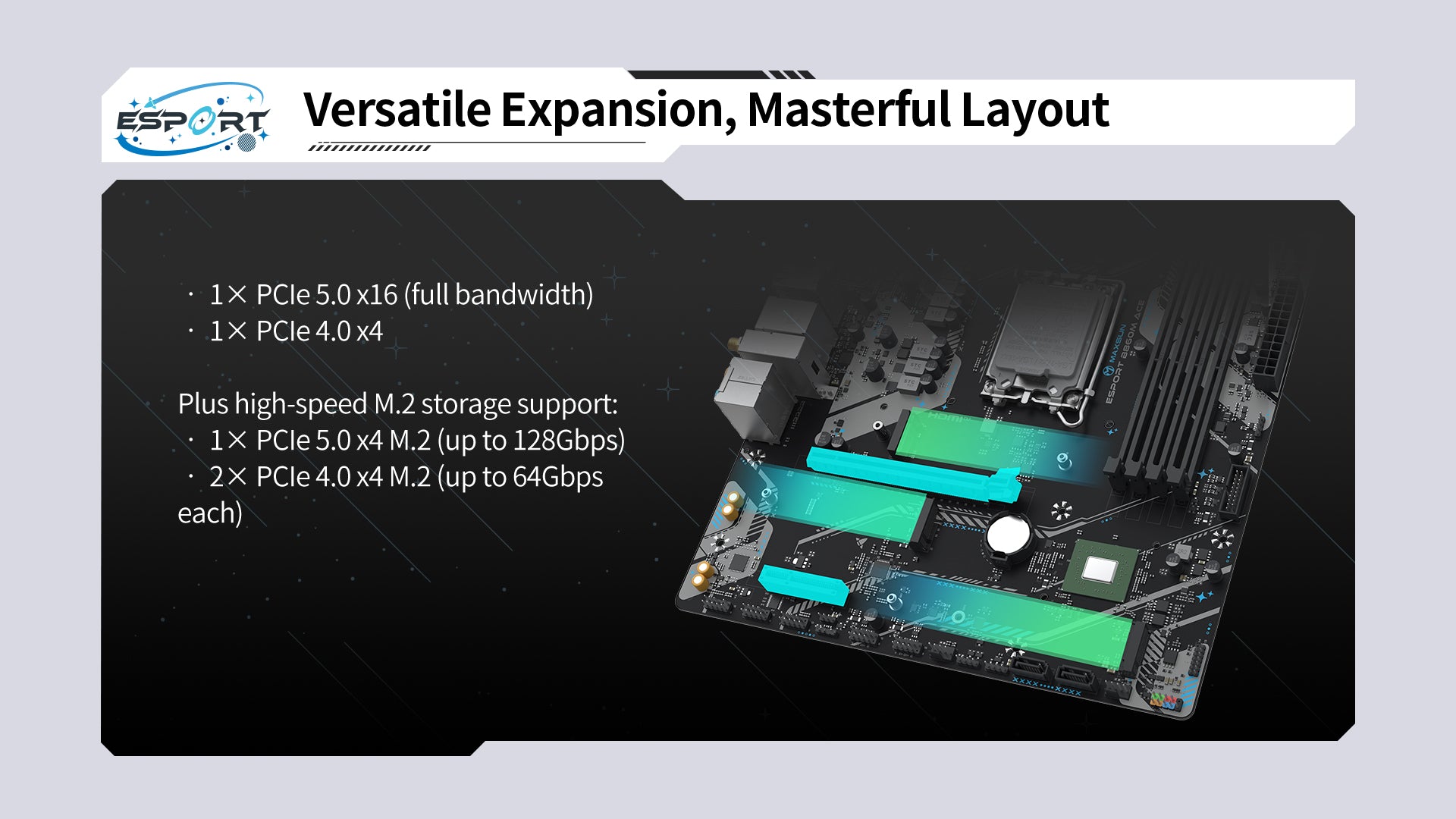

• Expansion Slots
• 1× PCIe 5.0 x16
  1× open-ended PCIe 4.0 x4

• Storage
• 1× M.2 2280 PCIe 5.0 x4/x2
  2× M.2 PCIe 4.0 x4/x2
  2× SATA 6Gb/s

• Audio
• Realtek ALC897 HD audio codec

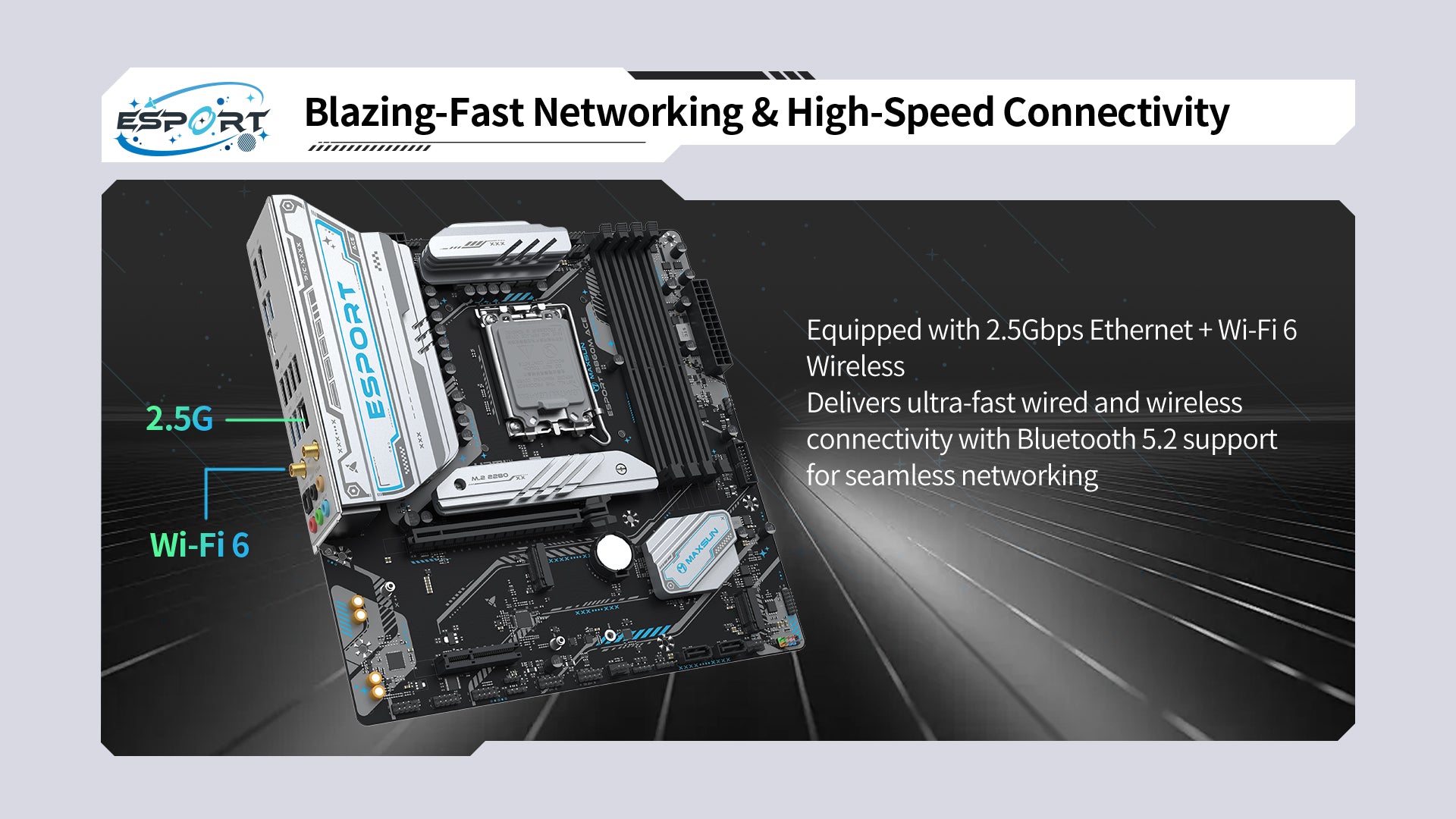

• Network
• Realtek RTL8125BG/D 2.5Gb Ethernet; Intel AX101 Wi-Fi 6; Bluetooth 5.2

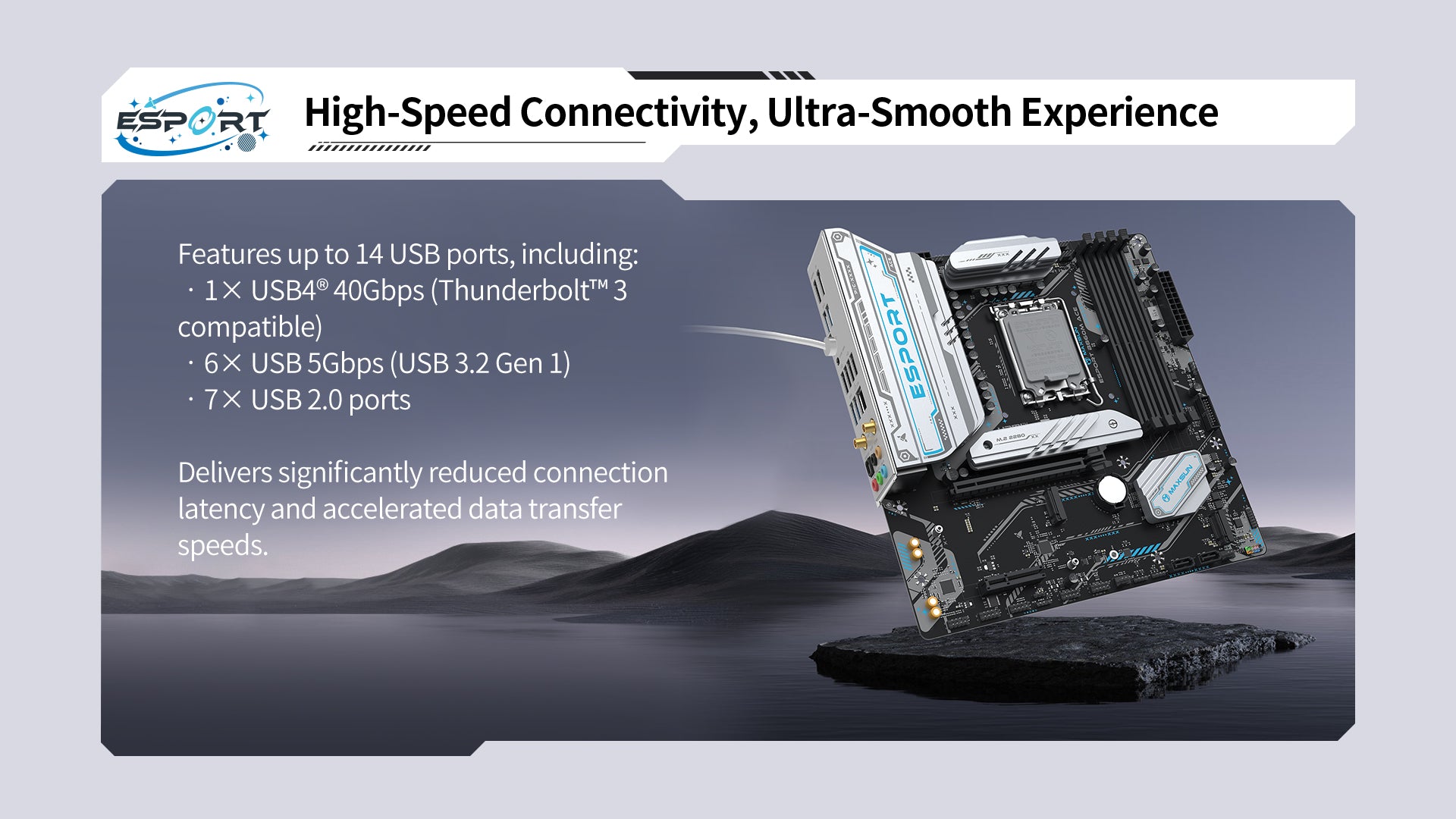

• USB
• Rear: 1× USB4 40Gbps, 4× USB 5Gbps Type-A, 4× USB 2.0 Type-A
  Internal: 2× USB 5Gbps, 5× USB 2.0

• Power Connectors
• 1× 24-pin ATX
  2× 8-pin ATX 12V

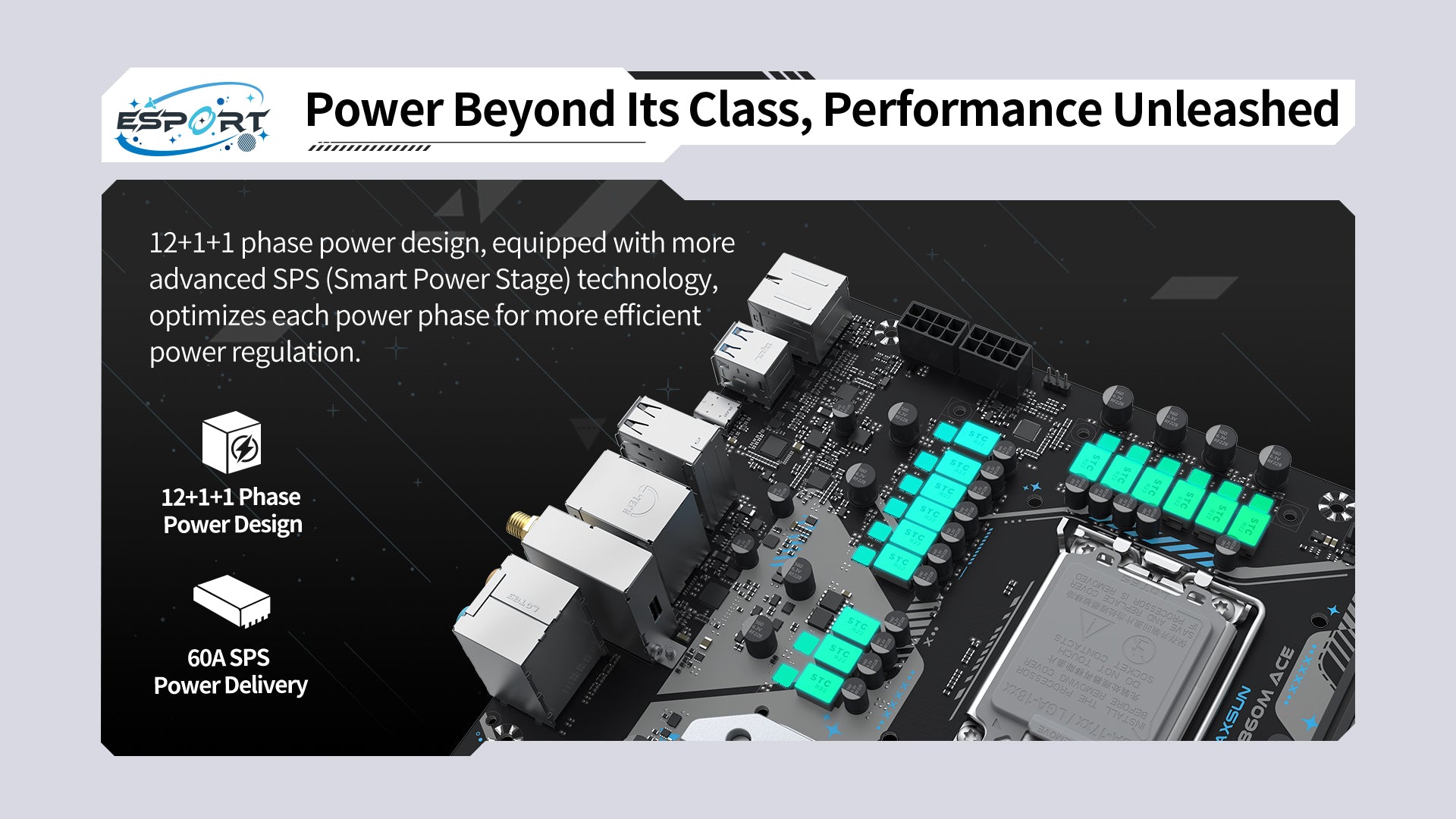

• Power Design
• 12+1+1-phase, 60A SPS
