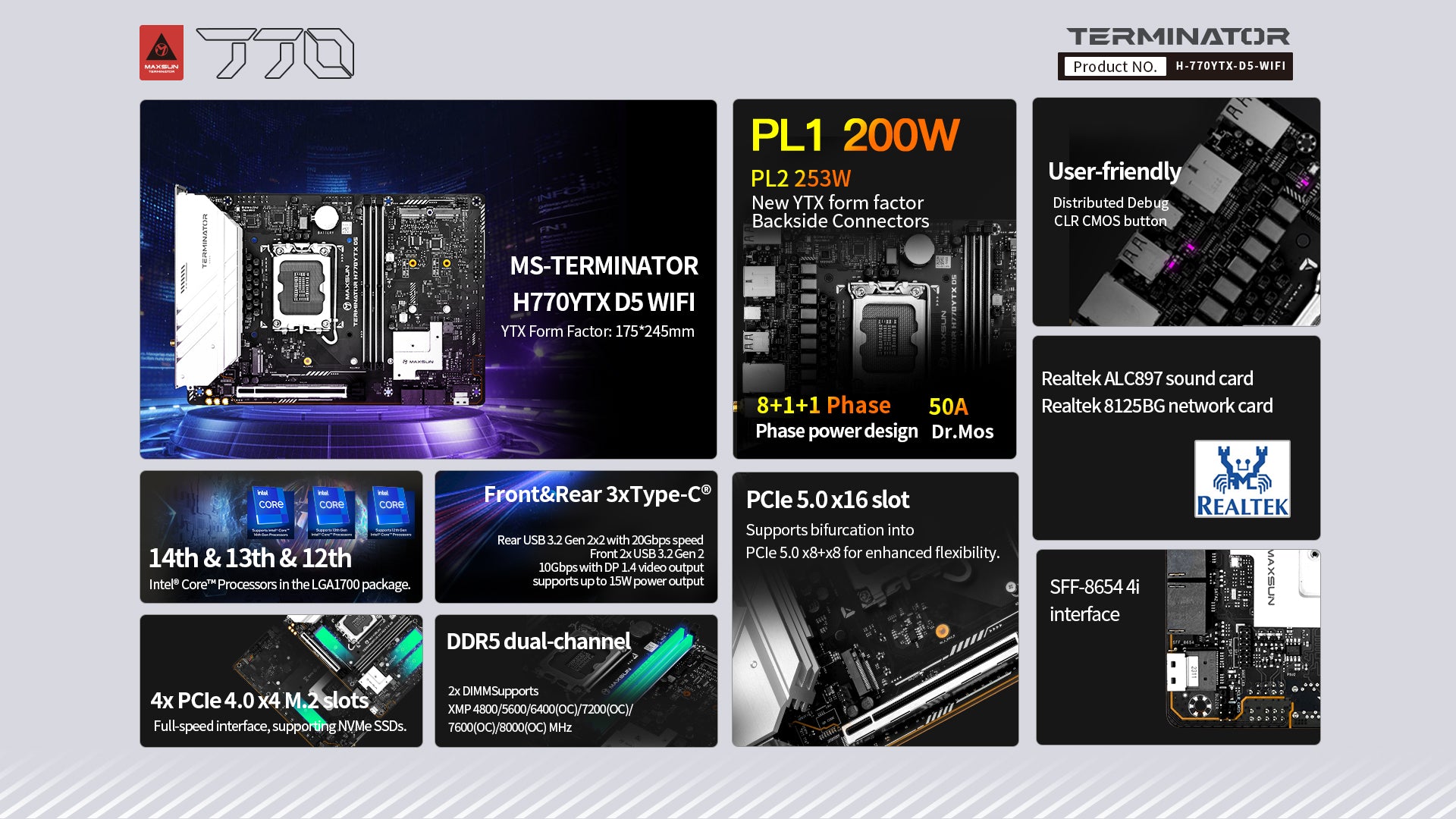

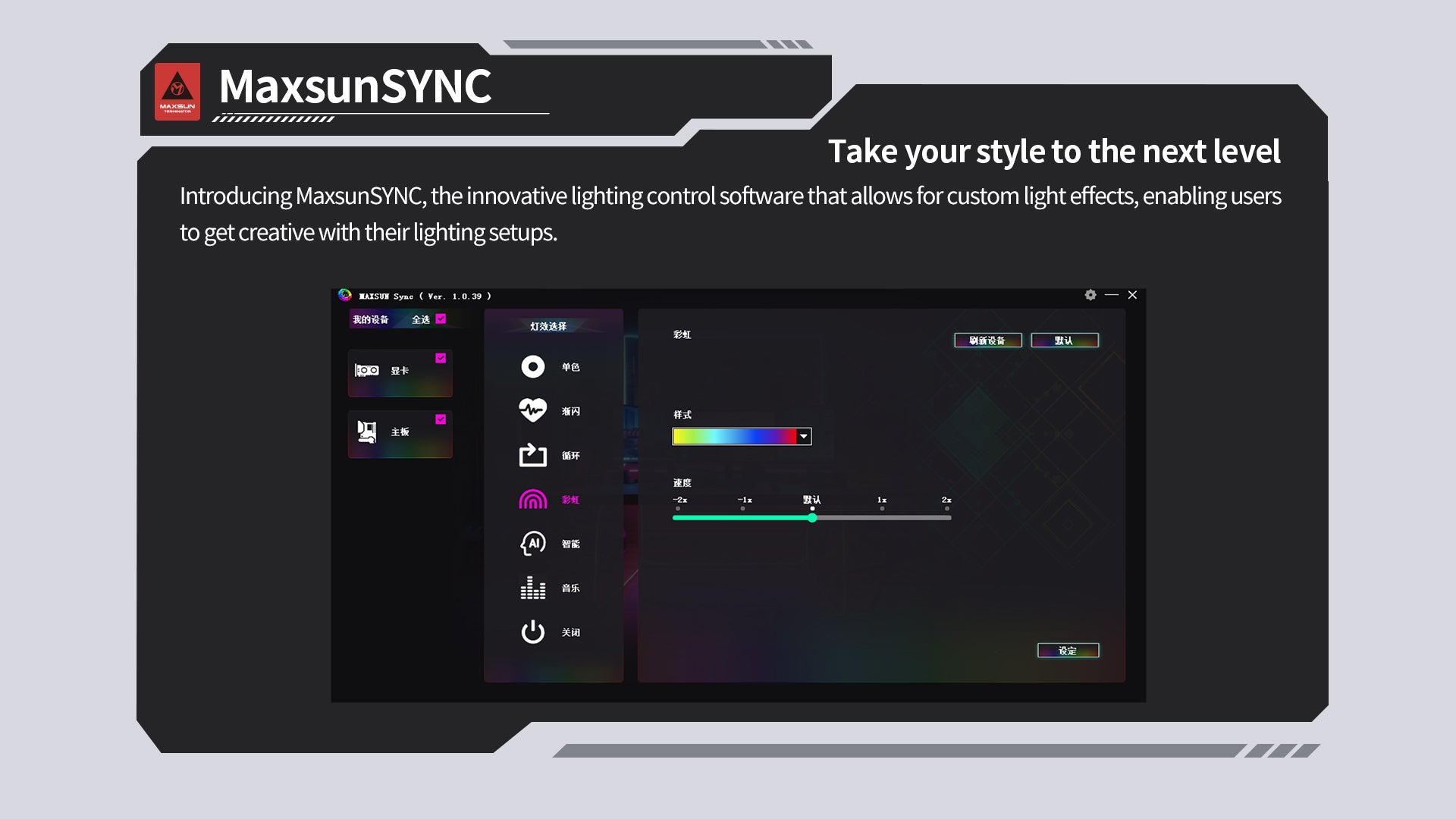

MS-TERMINATOR H770 YTX D5 WIFI

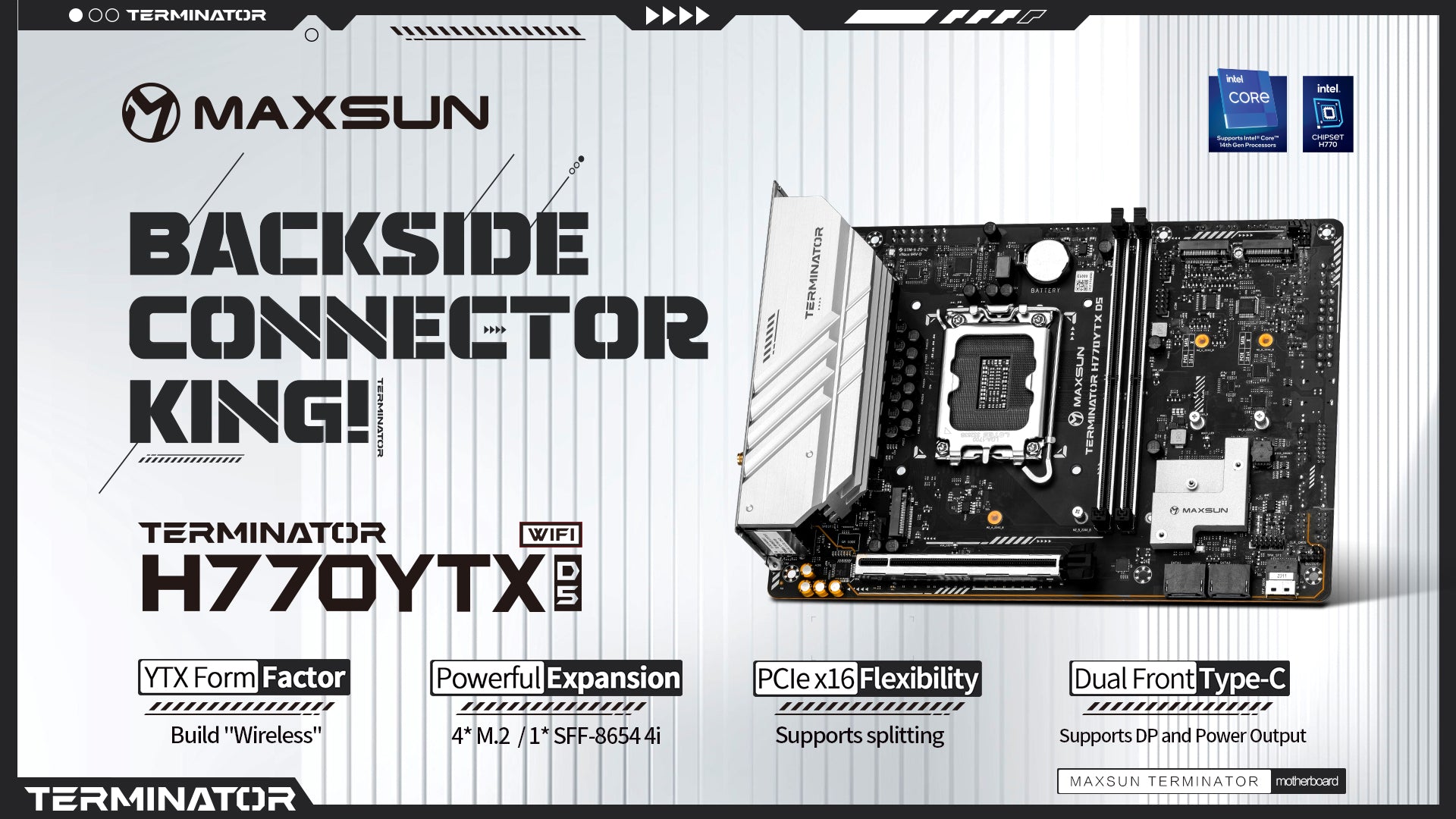

- Backside Connectivity: Enhanced back plug design for superior expansion.
- WIFI TERMINATOR H770: Unmatched wireless performance with the H770 YTX WIFI D5.

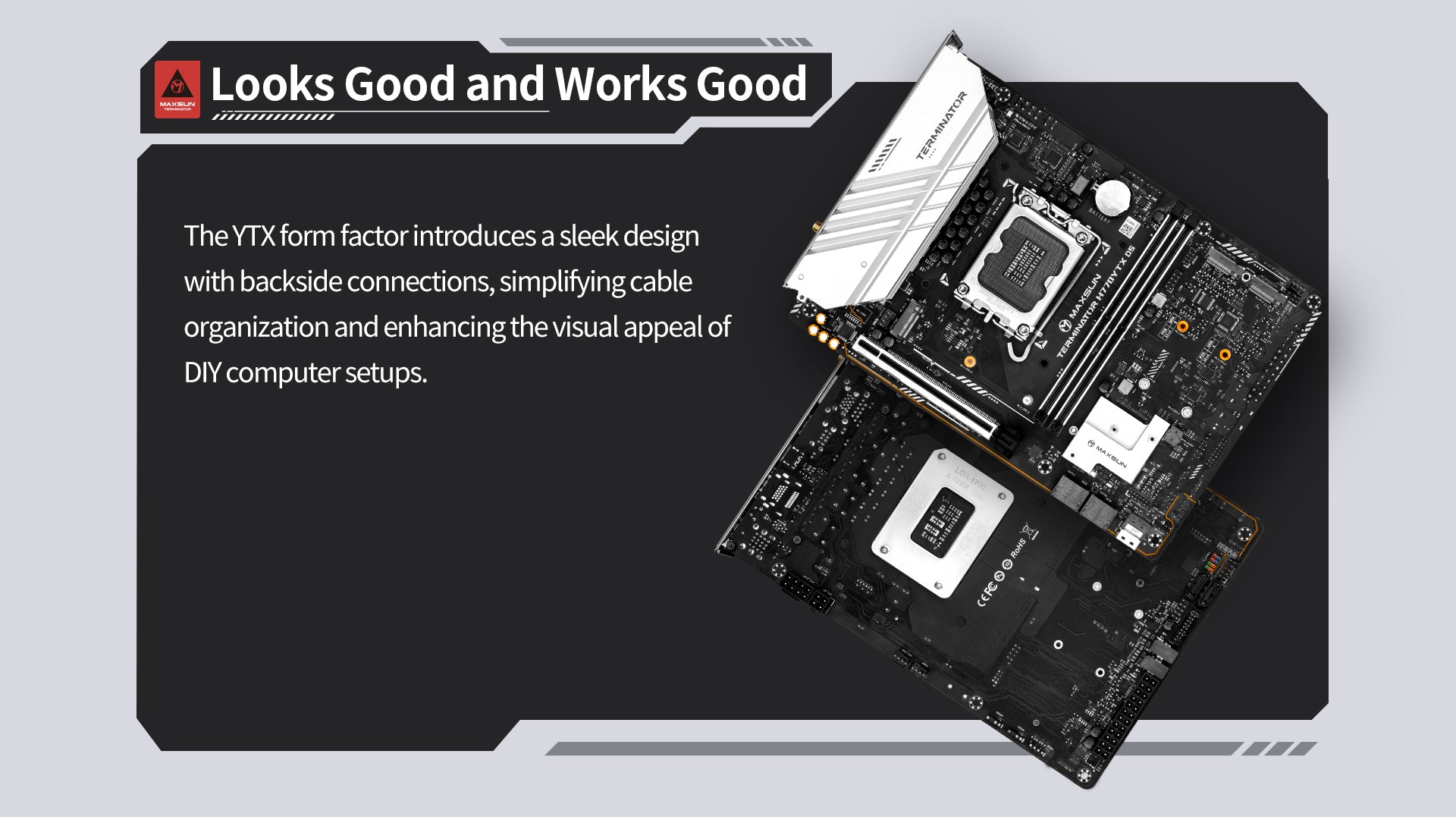

- True Wireless Setup: YTX form factor eliminates wire clutter, enabling clean builds.
- Dual Type-C Ports: Front-facing with support for DisplayPort and power output.

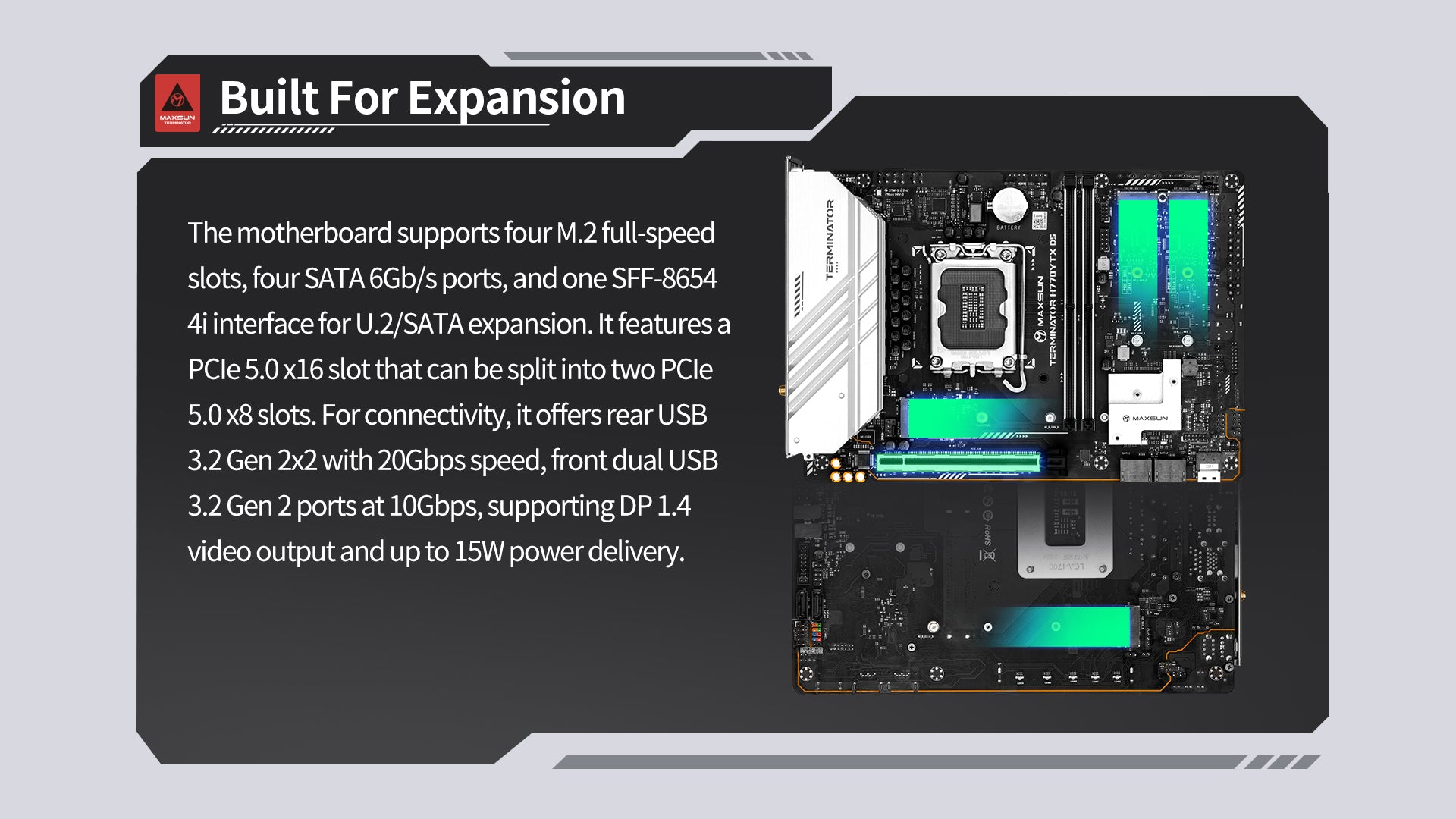

- Expansive Expansion: 4 M.2 slots and 1 SFF-8654 4i for extensive connectivity.
- Flexible PCIe x16 Slot: Supports device splitting for increased expansion.

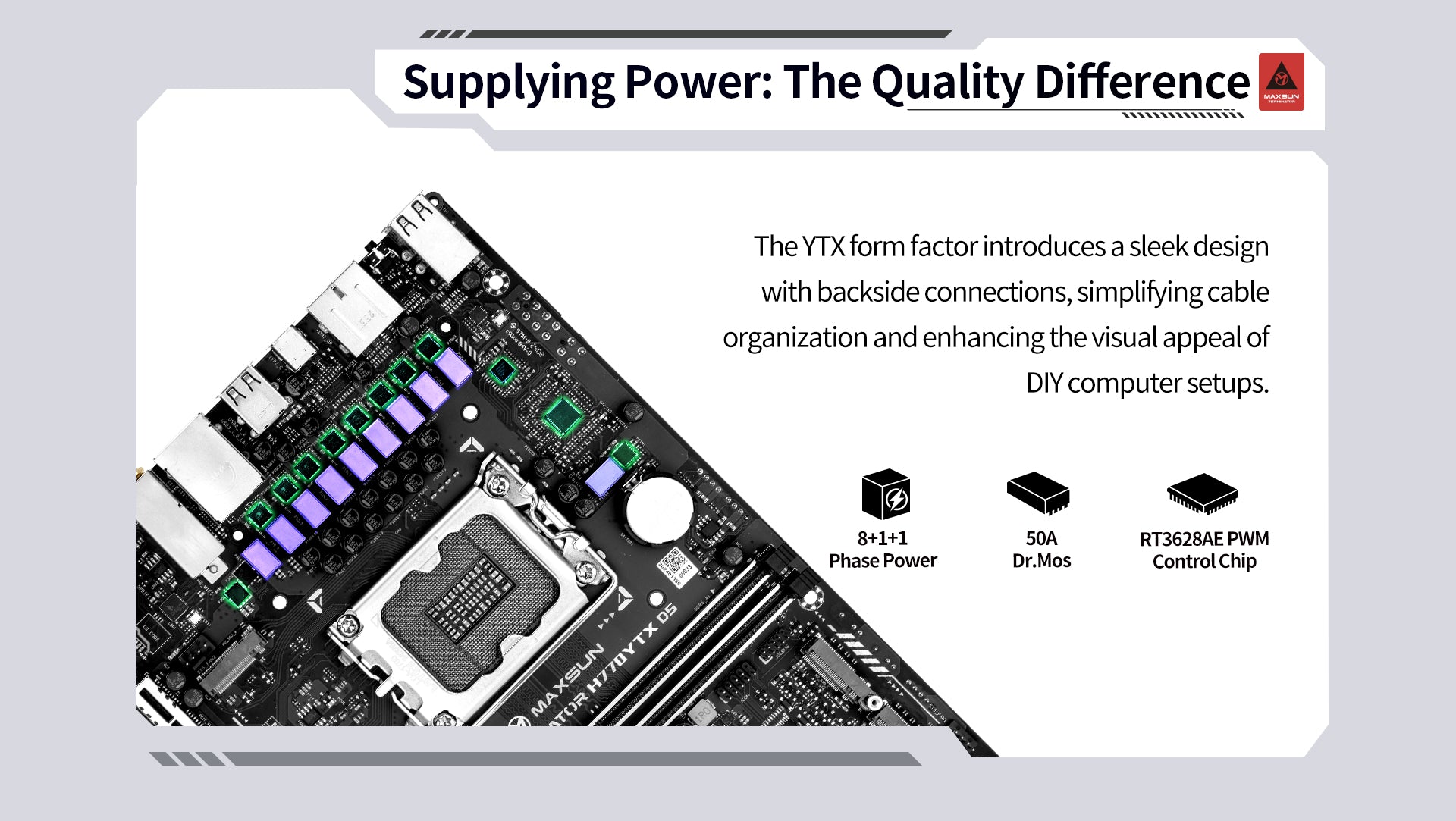

- Robust Power Design: 8+1+1 phase power with up to 253W for demanding components.
- Compact YTX Form Factor: Space-efficient 175*245mm size without compromising performance.
Overview
Specification
Support
- CHIPSET
- INTEL H770
- CPU
- Supports 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700

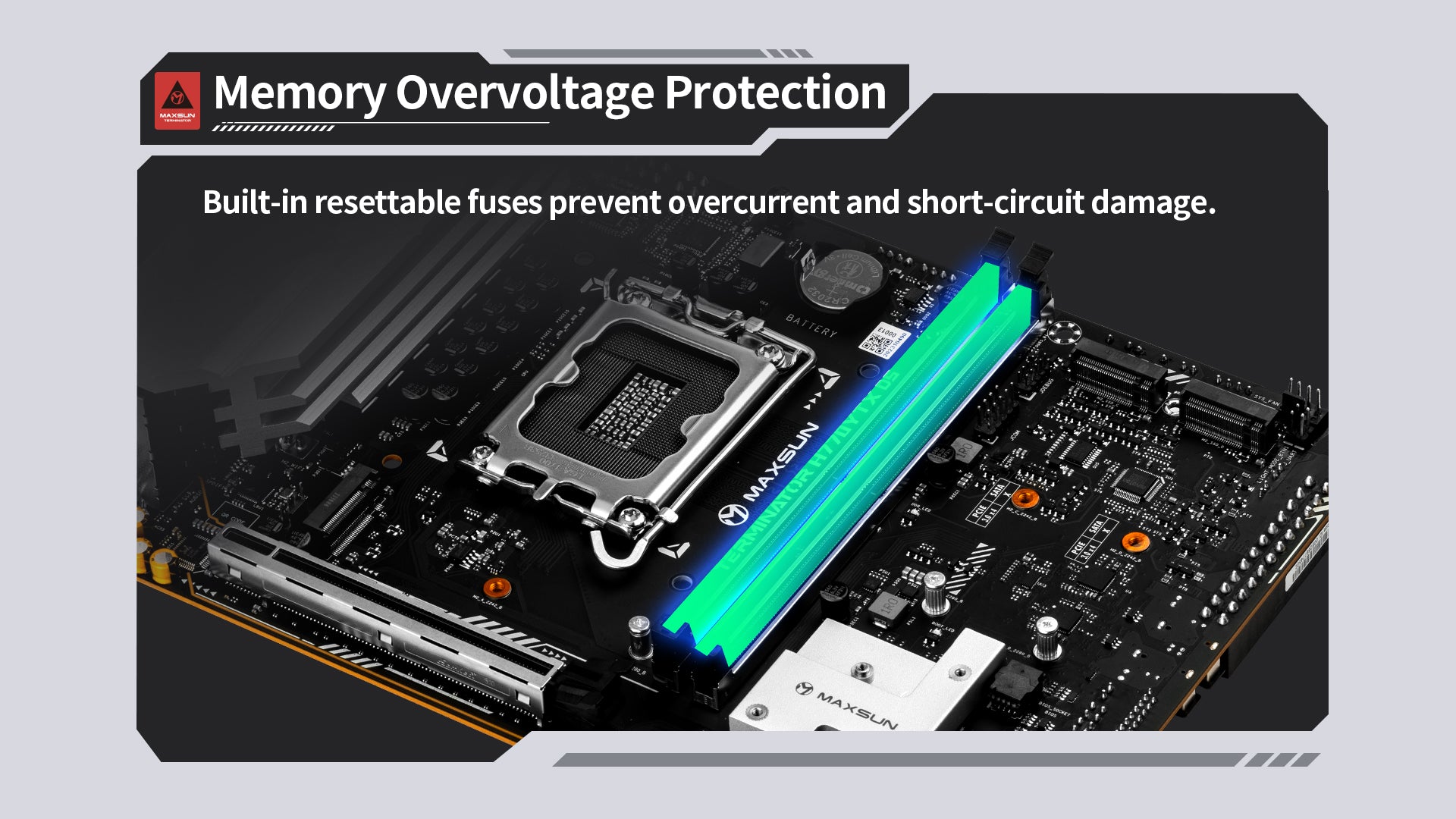

- MEMORY
- 2x DDR5, Maximum Memory Capacity 96GB

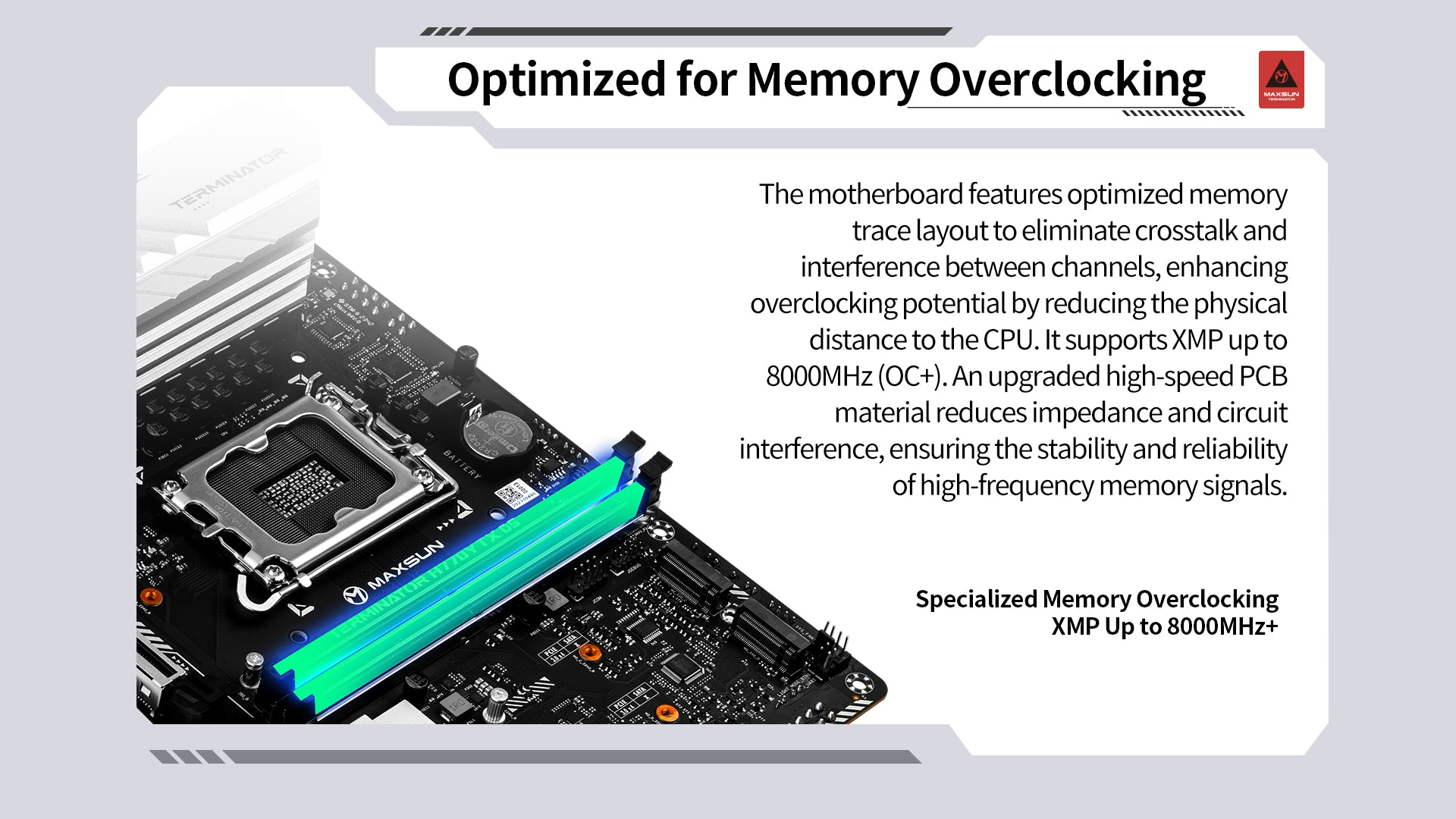

Supports dual-channel memory architecture and Intel Extreme Memory Profile (XMP)Support8000(OC) / 7800(0 C) / 7600(0 C) / 7400(0 C) / 7200(C) / 7000(0 C) / < br > 6800(0 C) / 6600(OC) / 6400(0 C) / 6200(OC) / 6000(OC) / 5800(OC) / < br > 5600 / 5400 / 5200 / 5000 / 4800 MhzMemory frequency.
- ONBOARD GRAPHICS
- 1x DisplayPort 1.4
1x HDMI™ 2.0 port
*HDMI™ port supports up to 4K@60Hz
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- EXPANSION SLOT
- 1x PCIe 4.0 x16 slot
- STORAGE
- Supports a total of 4x M.2 slots, 4x SATA 6Gb/s interfaces, and 1x SFF-8654 4i interface from Intel 14th & 13th & 12th Gen processors:
M.2_A Slot (Key_M): Supports PCIe 4.0 X4/X2 modes, supports 2242/2280 lengths.
M.2_B Slot (Key_M): Supports PCIe 4.0 X4/X2 modes, supports 2242/2280/22110 lengths (located on the back of the motherboard).
M.2_C Slot (Key_M): Supports PCIe 4.0 X4/X2 modes, supports 2242/2280/22110 lengths.
M.2_D Slot (Key_M): Supports PCIe 4.0 X4/X2 modes, supports 2242/2280 lengths.
SFF-8654 4i Interface: Supports PCIe 4.0 X4/X2 and SATA (4x SATA 6Gb/s) modes.4x SATA 6Gb/s interfaces.
- USB
- *Onboard USB (Total of 6 ports):
2x USB 3.2 Gen 2 Type-C (10G) front ports, supporting DisplayPort 1.4 with a maximum 4K@60Hz video output; supporting up to 15W power output.
1x USB 3.2 Gen 1 (5G) header, supporting 2 additional USB 3.2 Gen 1 ports.
1x USB 2.0 header, supporting 2 additional USB 2.0 ports.
Rear USB (Total of 9 ports):
1x USB 3.2 Gen 2x2 Type-C (20G) port.
2x USB 3.2 Gen 1 Type-A (5G) ports.
6x USB 2.0 Type-A ports

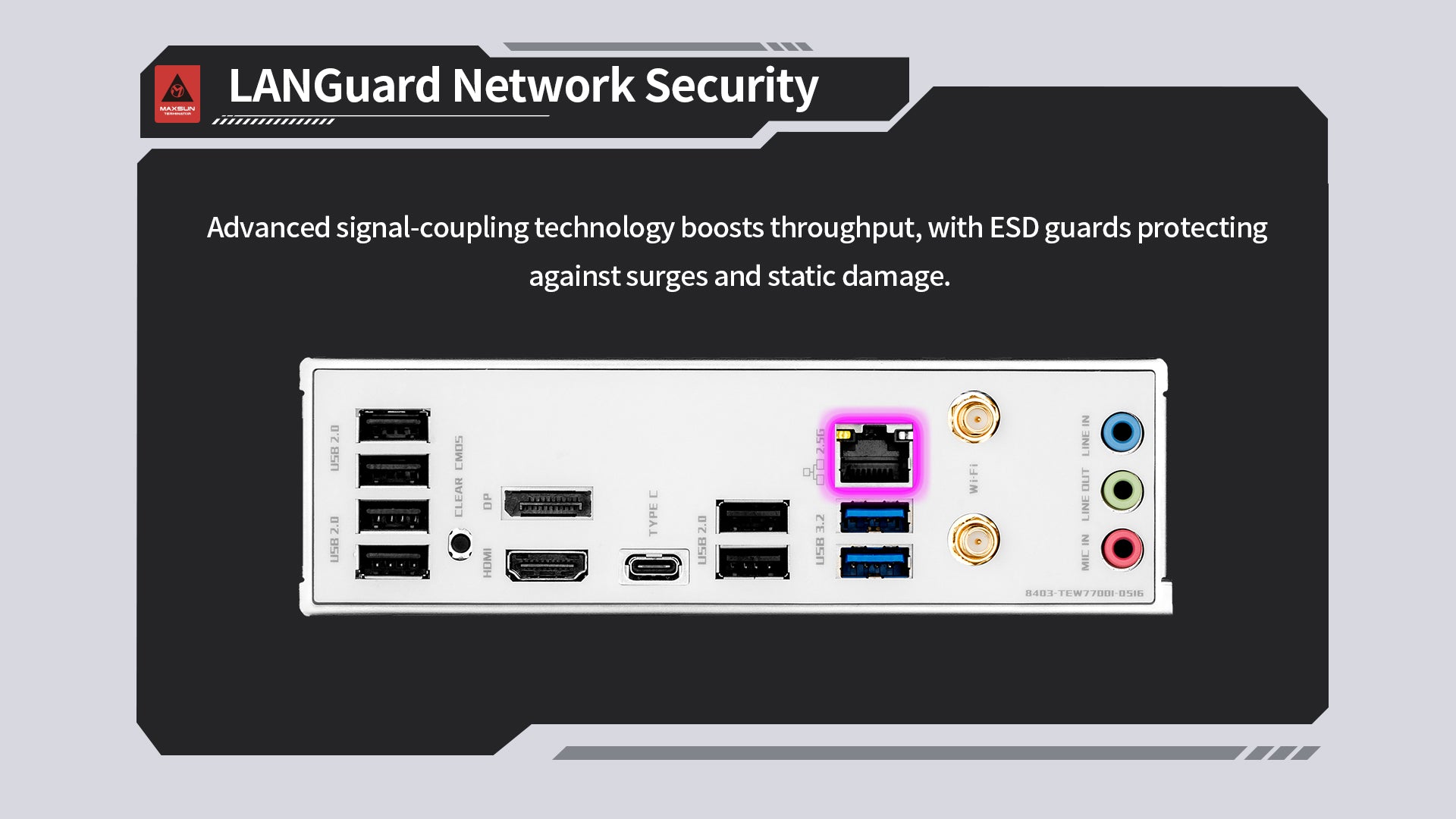

- LAN
- 1x Realtek RTL8125BG 2.5Gb Ethernet port

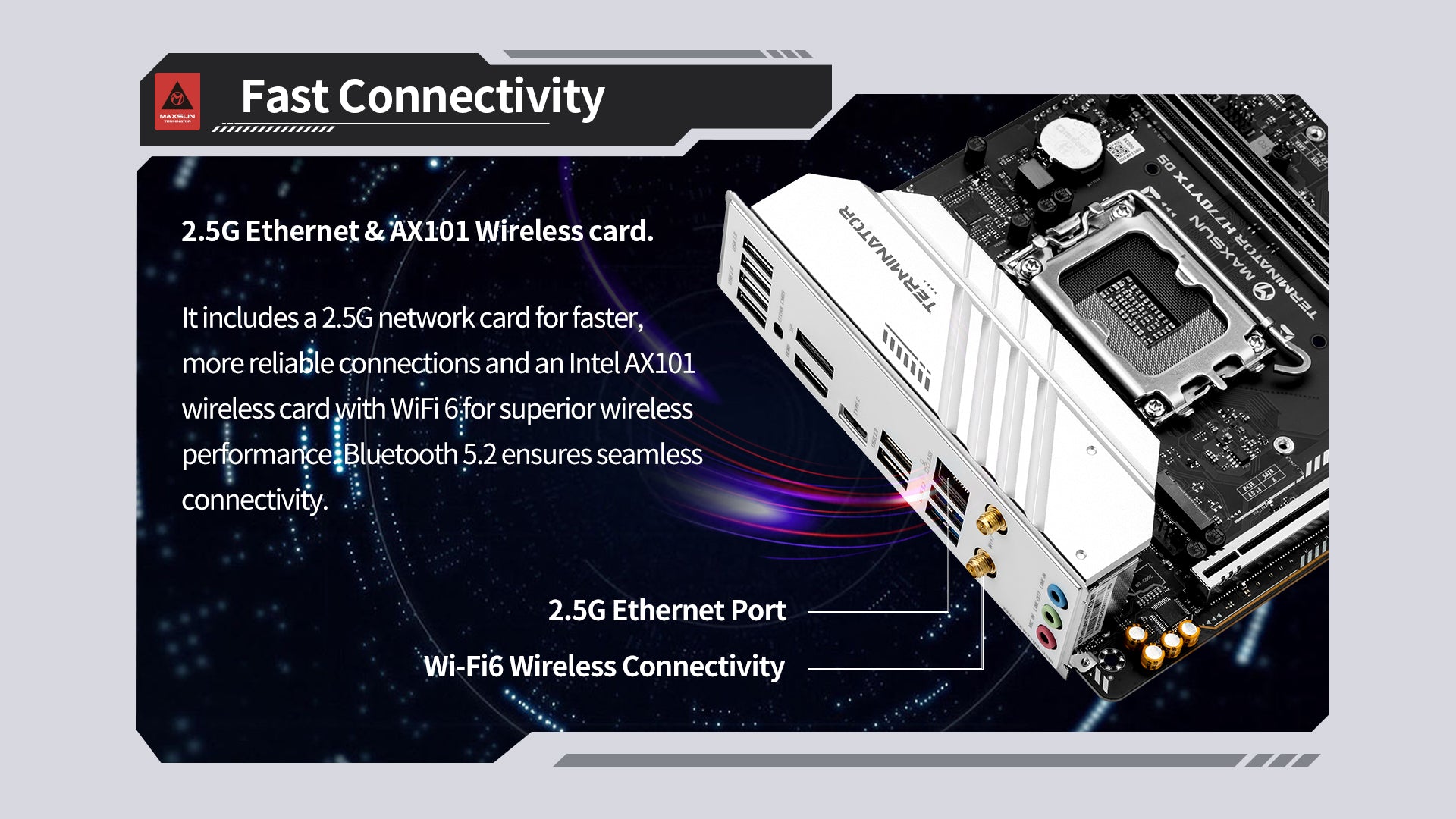

1x Intel AX101 wireless card: Supports Wi-Fi 6 and Bluetooth® v5.2
- AUDIO
- Realtek® ALC897 Codec
5.1-Channel High Definition Audio

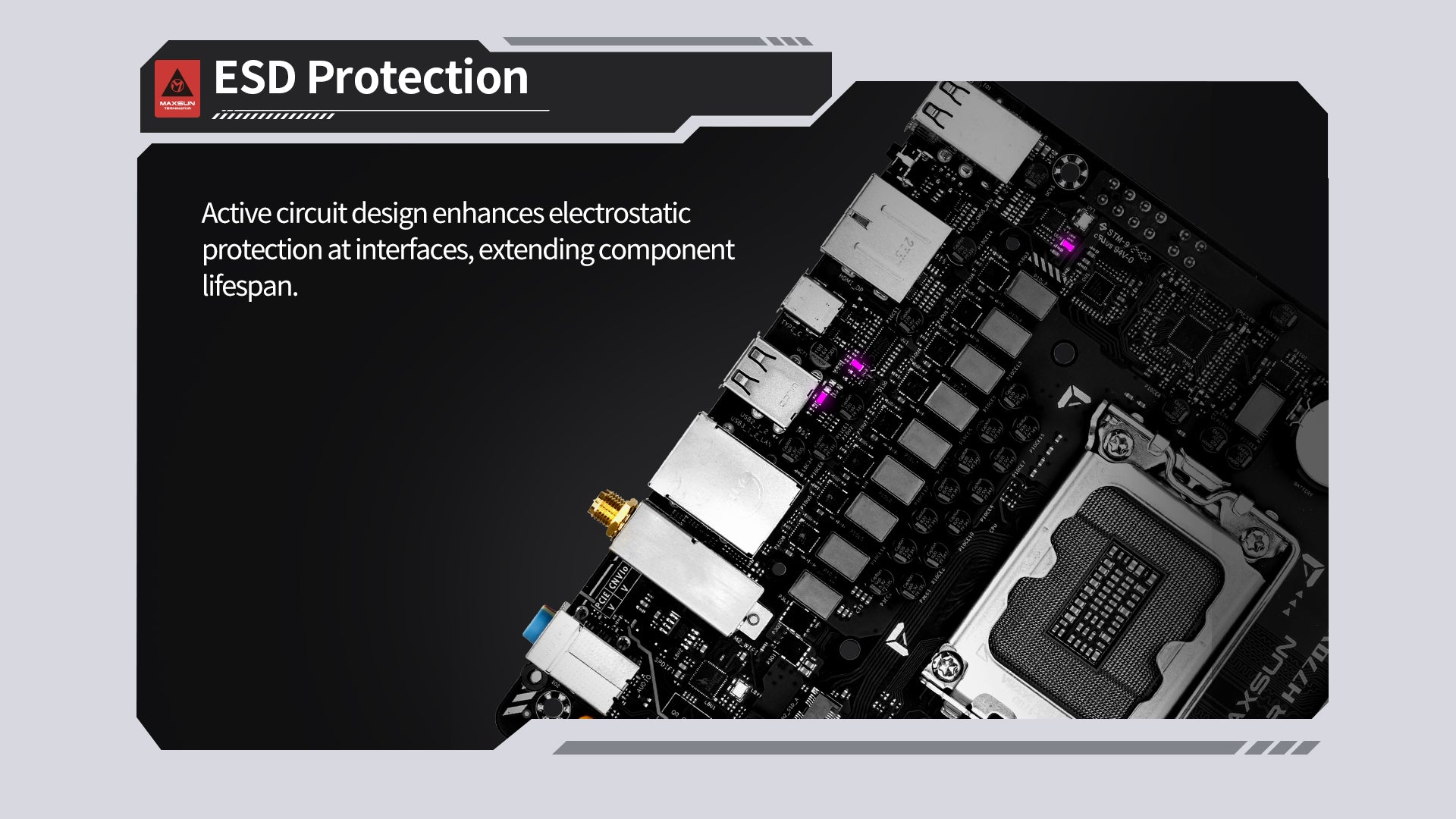

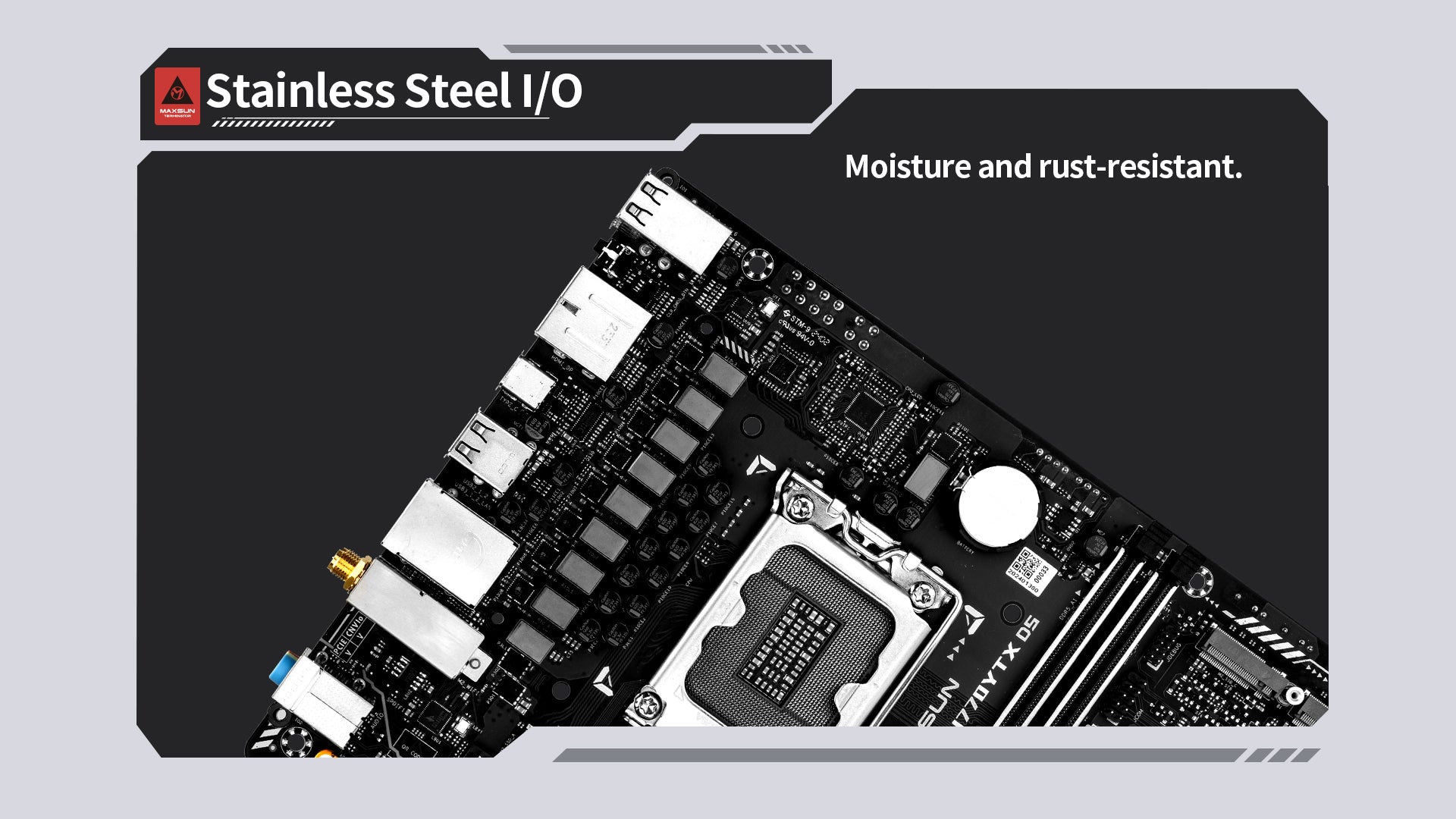

- INTERNAL I/O
- 6x USB 2.0 Type-A ports
CLR_CMOS button
1 x Display Port 1.4
1 x HDMI™ 2.0
1x USB 3.2 Gen 2x2 Type-C® (20G) port
2x USB 3.2 Gen 1 Type-A (5G) ports
1x Realtek 2.5Gb Ethernet port
1x Wi-Fi antenna port
3x audio jacks
- LED FEATURE
- 4x Distributed Debug LED
- PCIE EXPANSION SLOTS
- From Intel 14th & 13th & 12th Gen processors:
1x PCIe x16 slot (supports PCIe 5.0 x16 mode, supports x16 lane splitting, can be split into x8+x8)
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- FORM FACTOR
- YTX
245mm x 175mm
