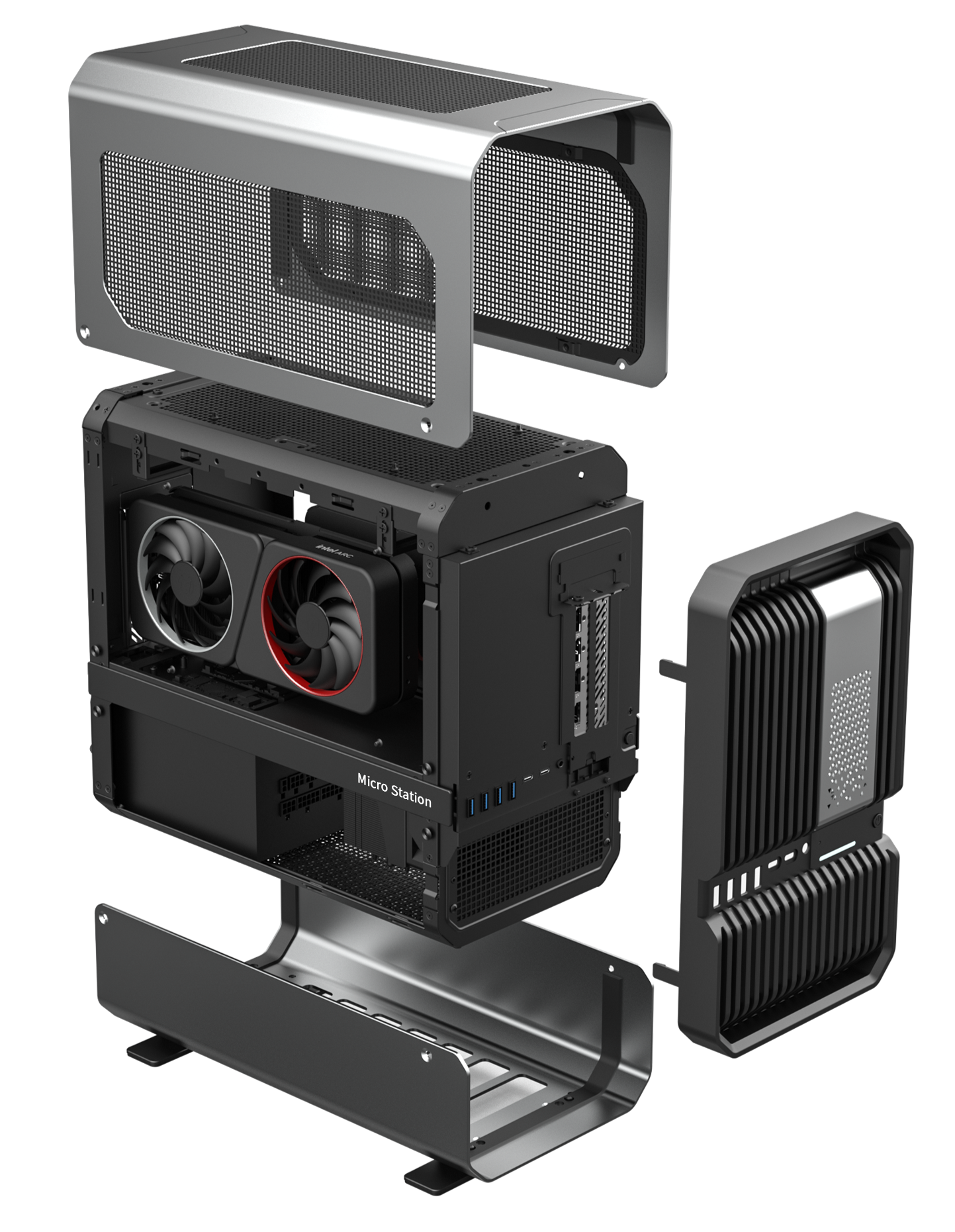

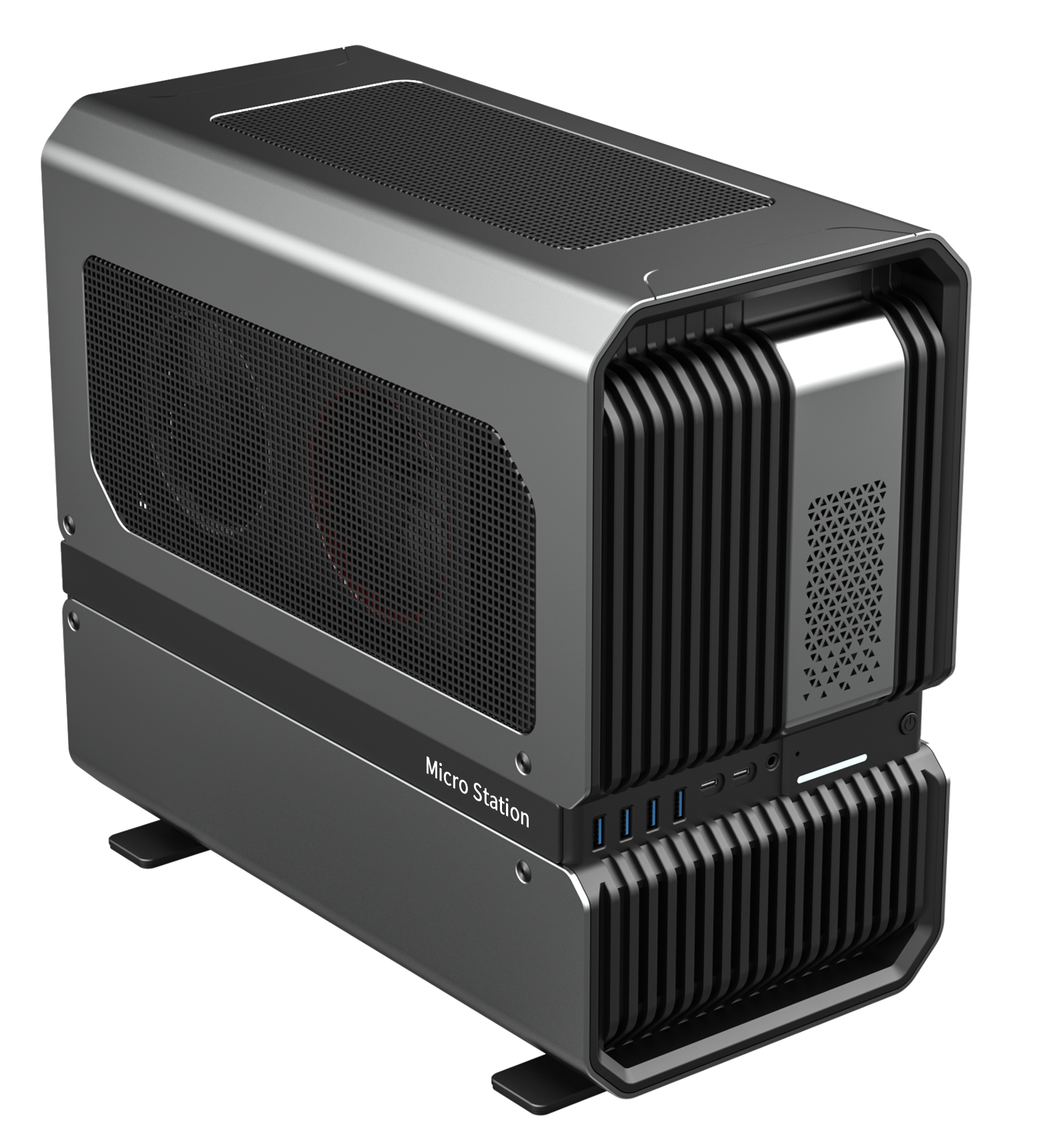

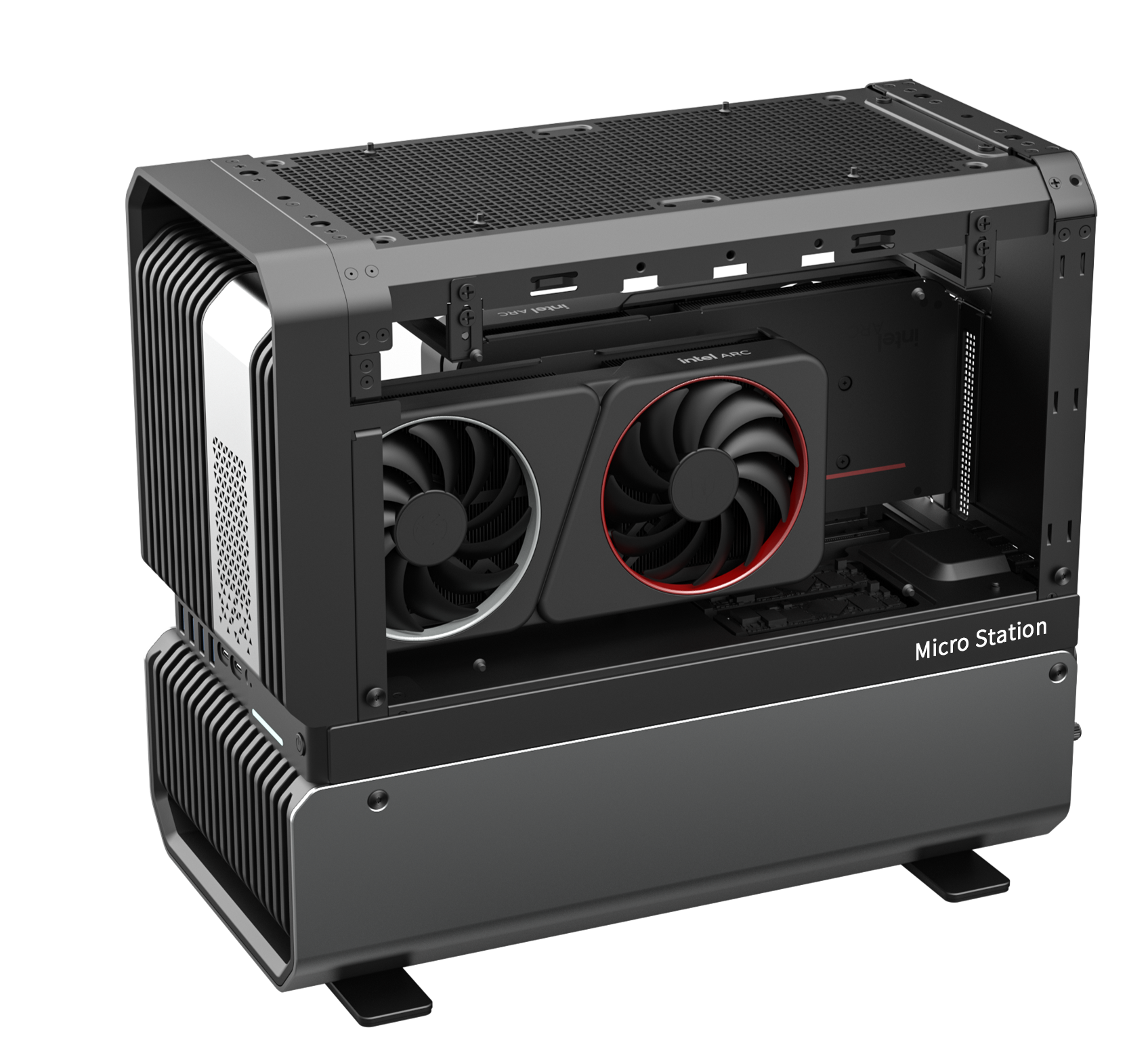

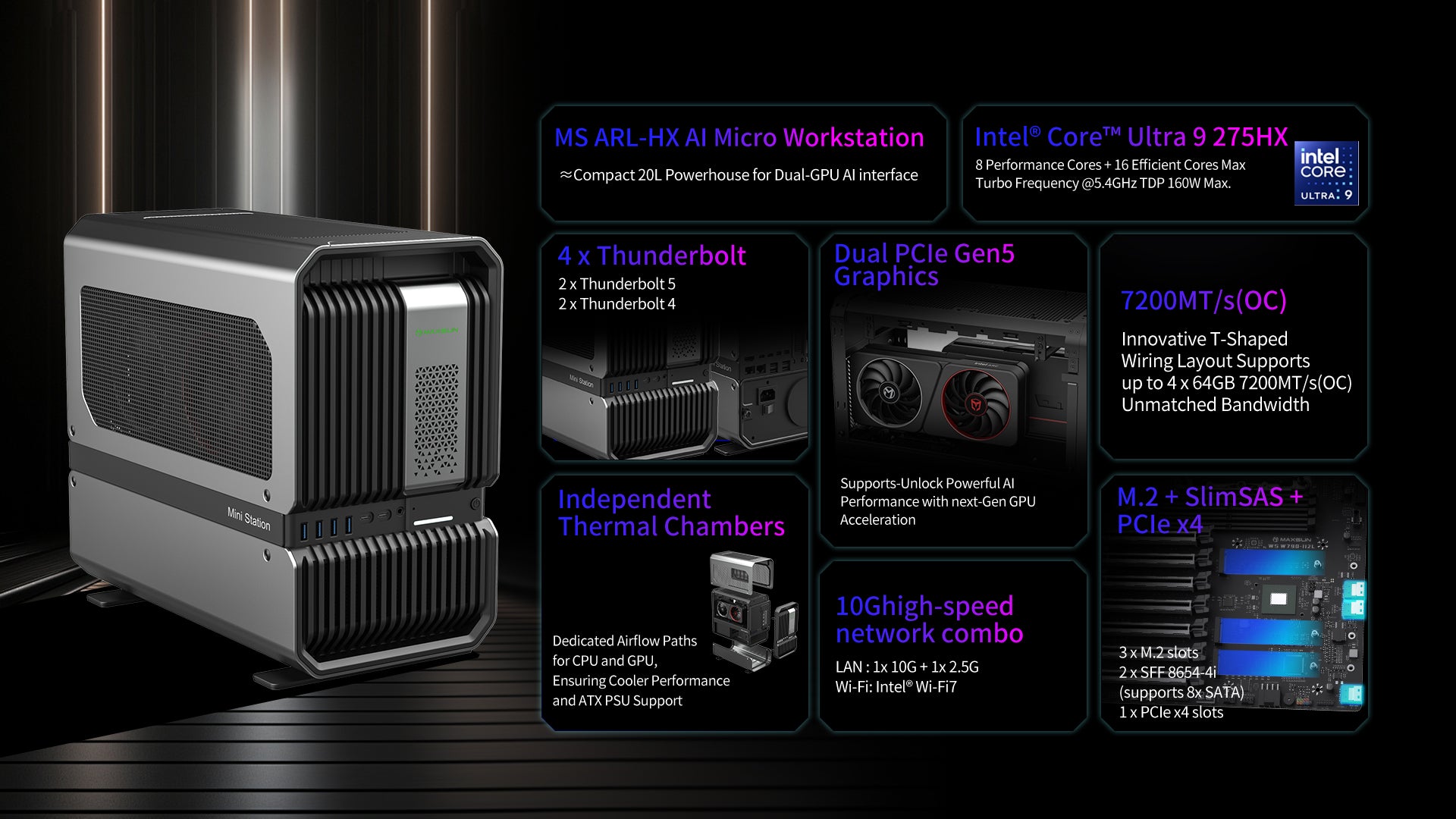

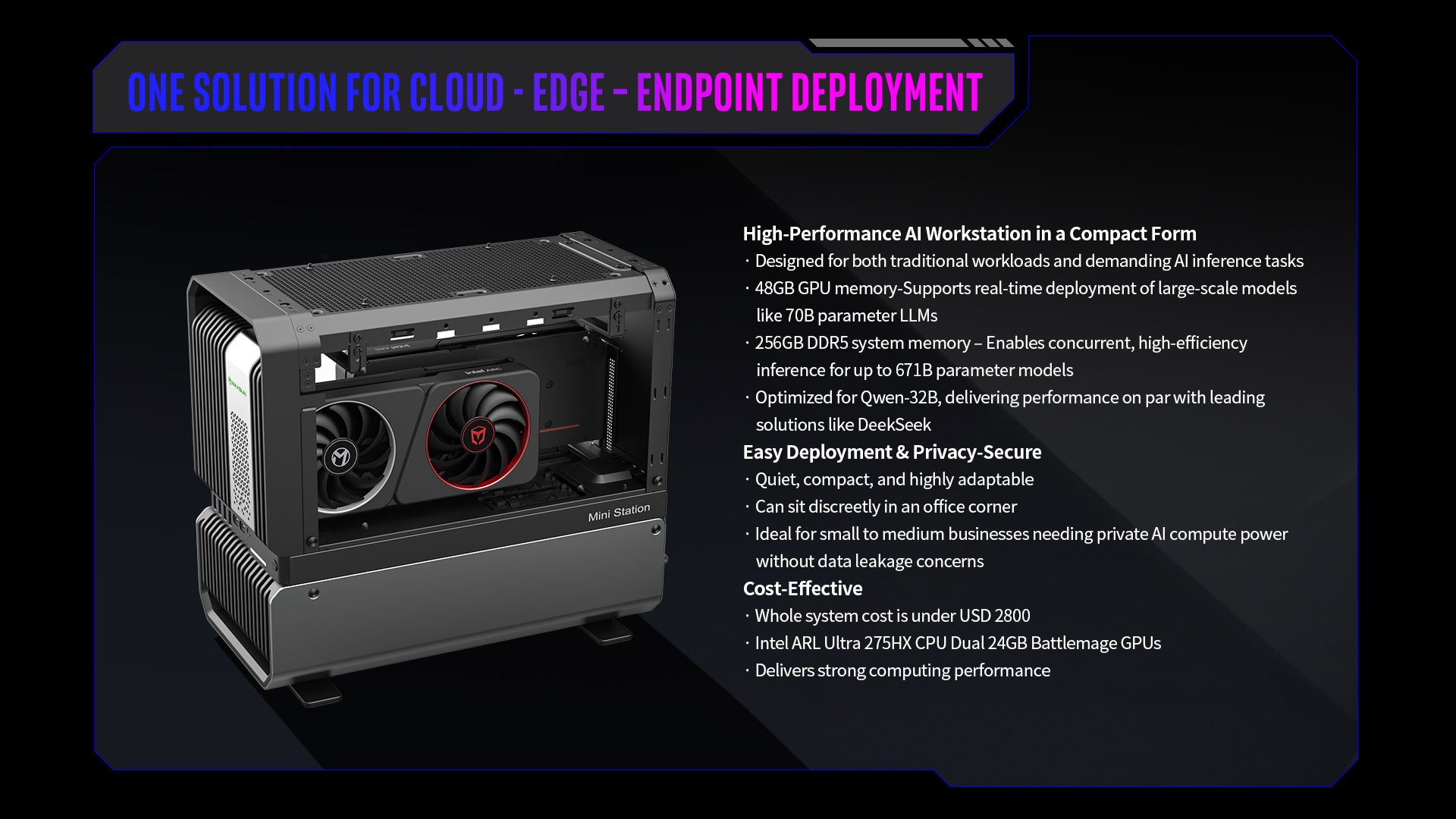

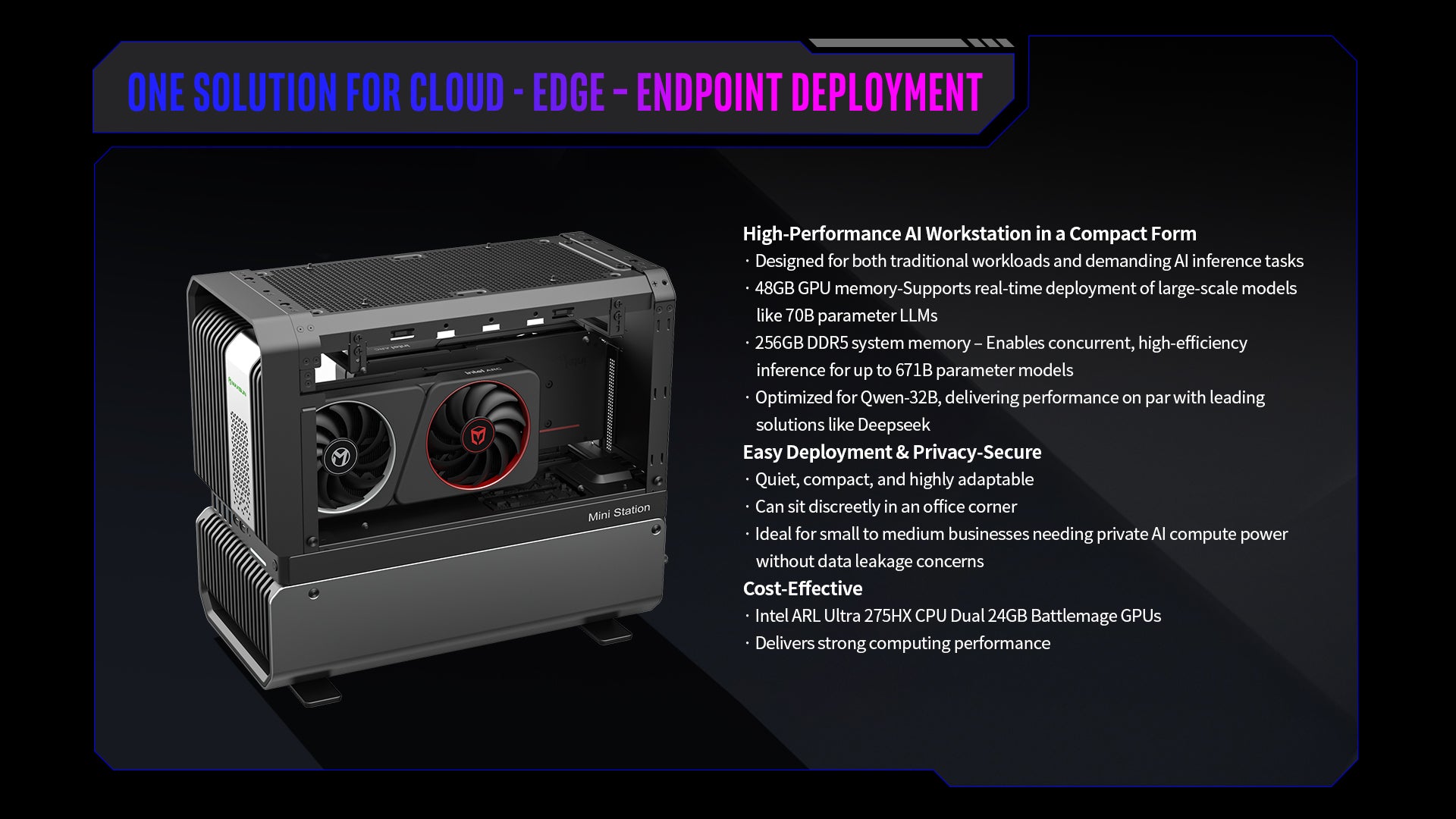

MS-ARL-HX Micro Station

• Model
• MS 275HX AI Micro Station

• Form Factor
• Custom Board, 175 mm x 350 mm

• CPU
• Intel Core Ultra 9 Processor 275HX

• Chipset
• Intel HM870

• Display
• 1 x HDMI 2.1, up to 4K@120Hz (CPU-dependent). Refer to www.intel.com for CPU graphics details.

• Memory
• 4 x DIMM DDR5, maximum capacity 256 GB. Supports dual-channel architecture, Intel Extreme Memory Profile (XMP), and 6000 / 5600 / 4800 MHz memory frequencies.

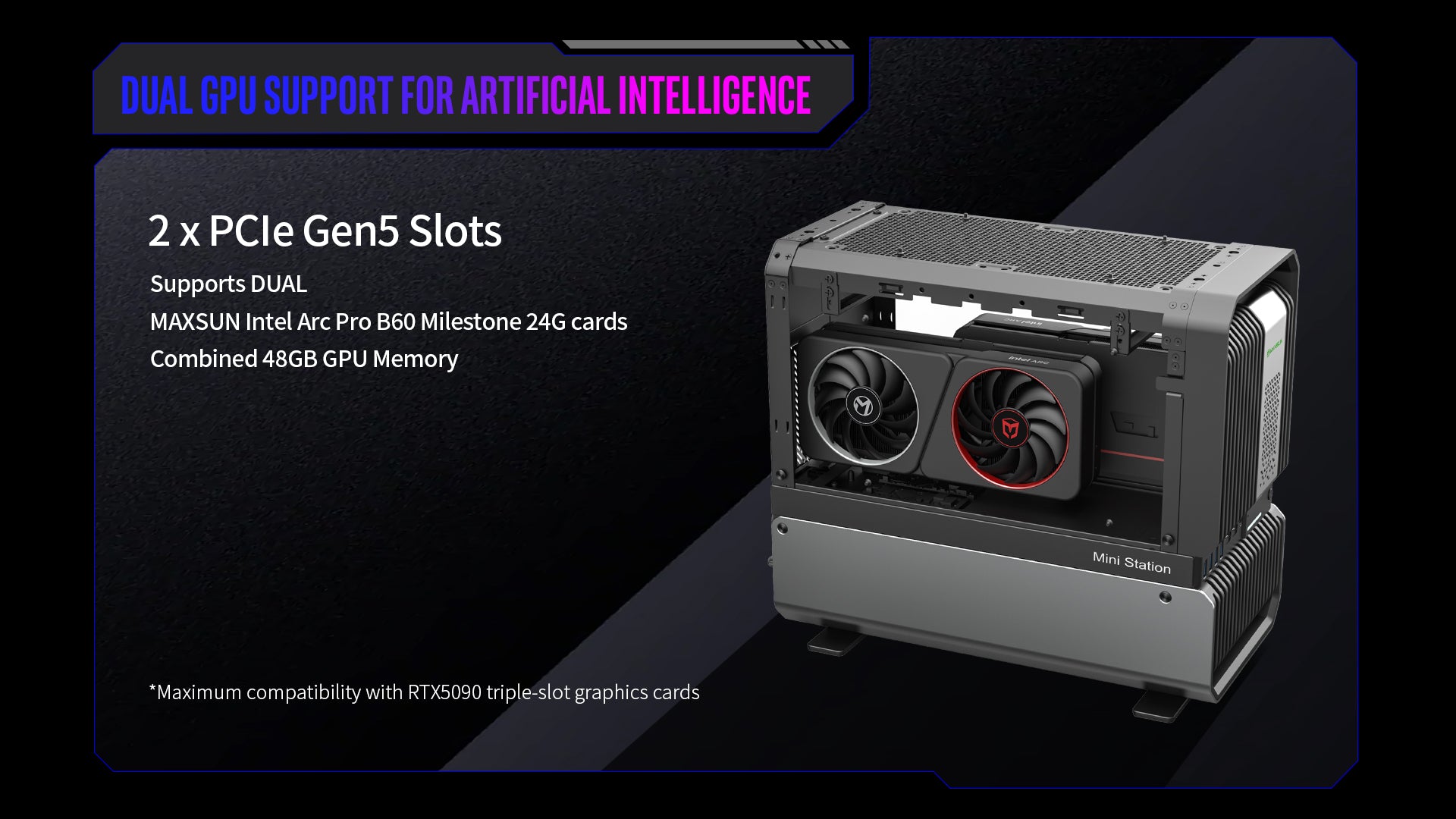

• PCIe Expansion Slots
• From Intel Arrow Lake-HX Processor: 1 x PCIe x16_A slot supporting PCIe 5.0 x16 mode with lane bifurcation, splittable to x8 + x8 or x8 + x4 + x4; 1 x PCIe x16_B slot supporting PCIe 5.0 x8 mode, requiring bifurcation enabled on PCIe x16_A. When activated, PCIe x16_A drops to x8 mode. From Intel HM870 Chipset: 1 x PCIe x4_A slot supporting PCIe 4.0 x4 mode.

• Storage Interfaces
• Total support for 3 x M.2 slots and 2 x SFF-8654 4i connectors. From Intel Arrow Lake-HX Processor: M.2_A slot (Key M) supports PCIe 5.0 x4 / x2 modes and 2280 / 22110 form factors. From Intel HM870 Chipset: M.2_B slot (Key M) supports PCIe 4.0 x4 / x2 modes and 2280 / 22110 form factors; M.2_C slot (Key M) supports PCIe 4.0 x4 / x2 modes and 2280 form factor. 2 x SFF-8654 4i connectors support PCIe 4.0 x4 / x2 modes or SATA (4 x SATA 6Gb/s) modes.

• Networking Features
• 1 x Realtek RTL8127 10Gb Ethernet, 1 x Intel i226-LM 2.5Gb Ethernet, 1 x Intel BE200 Wi-Fi 7 wireless card.

• USB Ports

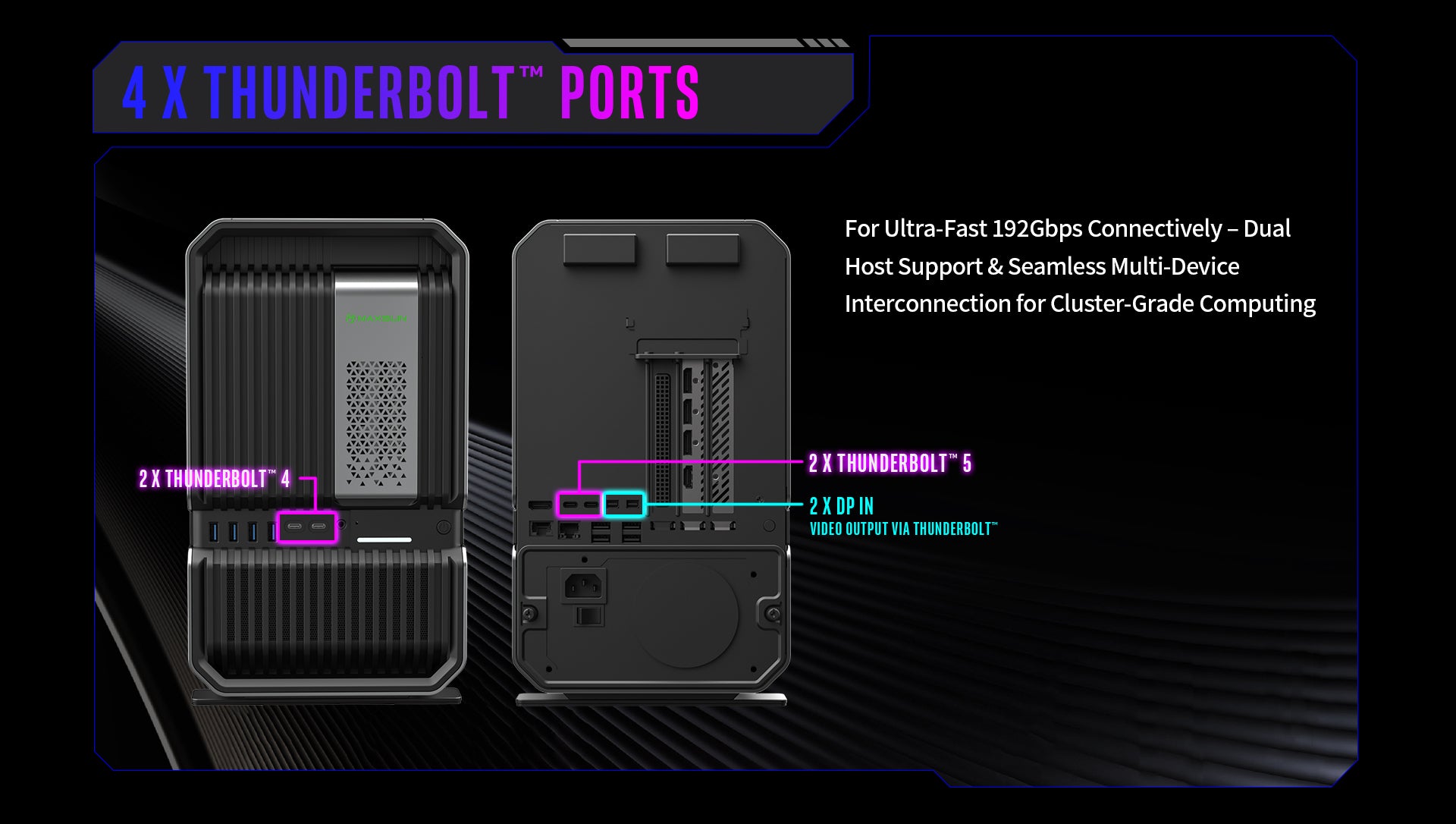

• Front USB: 2 x Intel Thunderbolt 4 40G ports and 4 x USB 10G Type-A ports. Rear USB: 2 x Intel Thunderbolt 5 80G ports and 4 x USB 10G Type-A ports.

• Audio
• Realtek ALC1220 HD Audio Codec

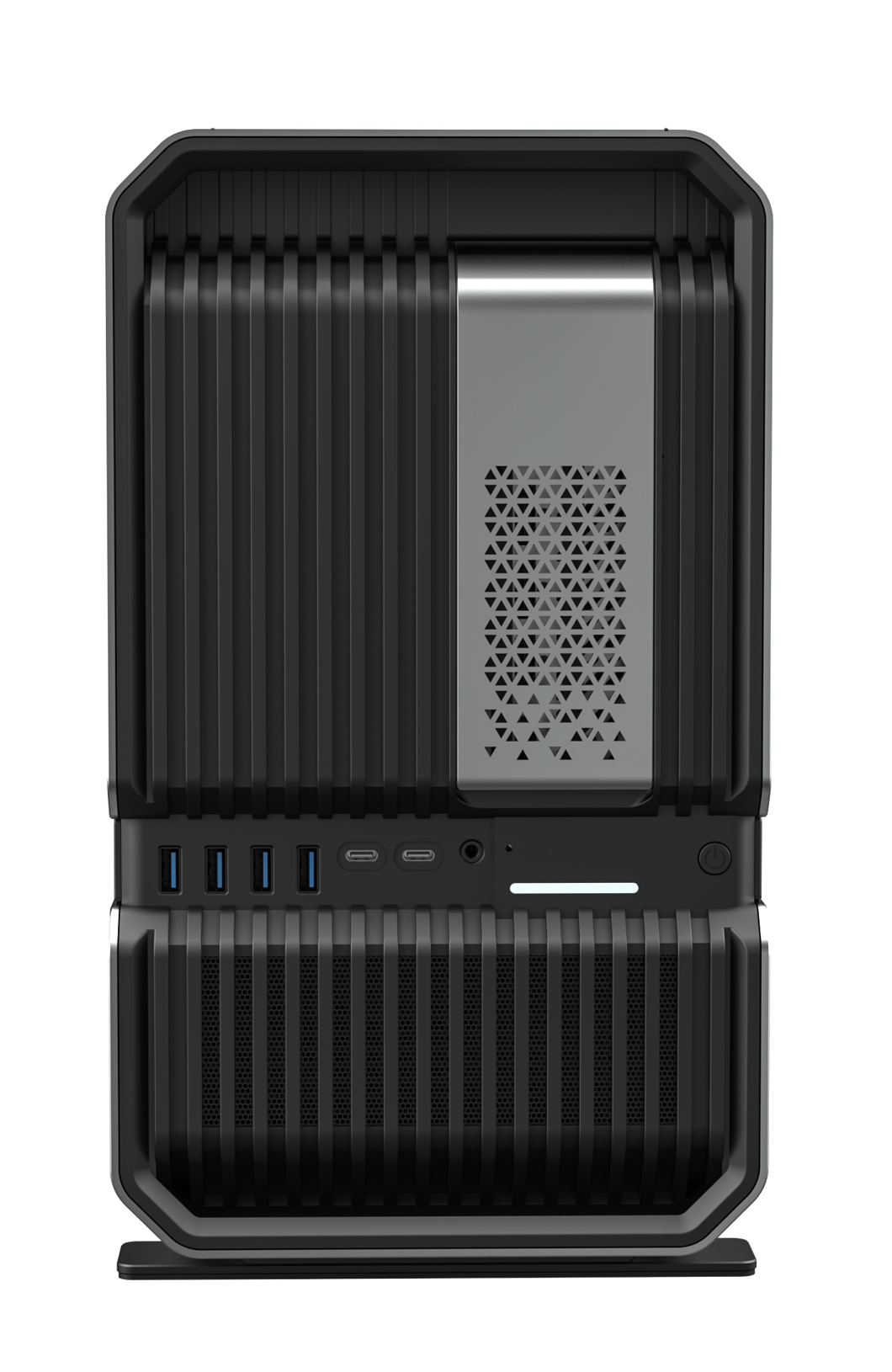

• Front / Rear Panel I/O Connectors
• Front Panel I/O: 1 x POWER_BIN power switch button, 2 x Intel Thunderbolt 4 40G ports, 4 x USB 10G Type-A ports, 1 x 3.5 mm audio port, 1 x CLR_CMOS reset button. Rear Panel I/O: 2 x Intel Thunderbolt 5 80G ports, 2 x Mini DisplayPort IN ports, 1 x HDMI 2.1, 4 x USB 10G Type-A ports, 1 x Realtek 10Gb Ethernet port, 1 x Intel 2.5Gb Ethernet port.

• Power Connectors
• 1 x 24-pin ATX power connector, 2 x 8-pin +12V power connectors.

• Fan Connectors
• 1 x 4-pin CPU_FAN header, 5 x 4-pin SYS_FAN headers.

• Internal I/O Connectors
• Storage connectors: 3 x M.2 slots (Key M), 2 x SFF-8654 4i connectors. Other connectors: 1 x 3-pin ARGB header, 1 x COM port header, 1 x SPI_TPM header, 1 x EBMC slot (Key M, supports PCIe x1 for BMC management card installation).

• Supported Operating Systems
• Windows 11, Windows 10 64-bit, Linux

• Special Features
• Maxsun Sync lighting control, CLR_CMOS quick button, POWER_BIN onboard power switch button, SFF-8654 4i connectors, Resizable BAR technology.

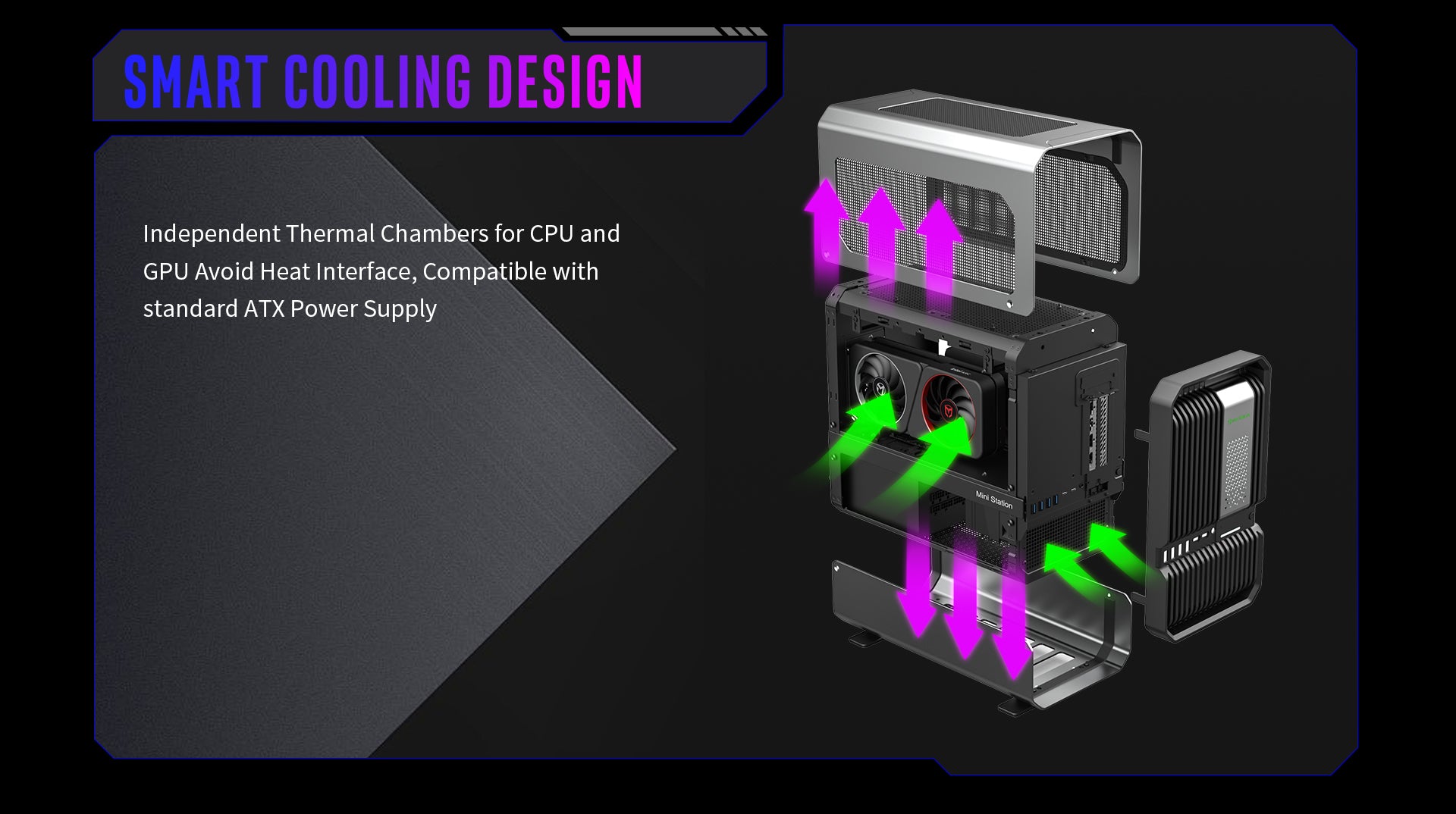

• Power Supply
• Supports ATX power supplies with dimensions up to 150 x 150 x 70 mm.
