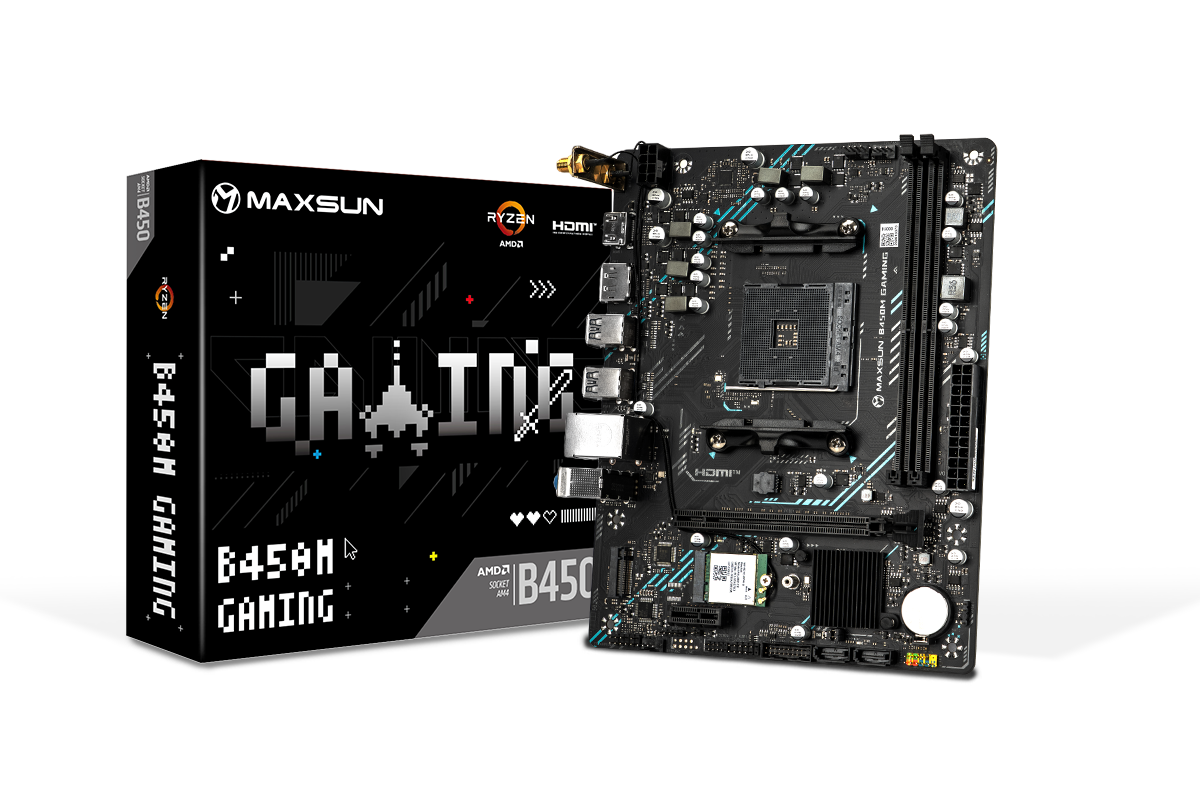

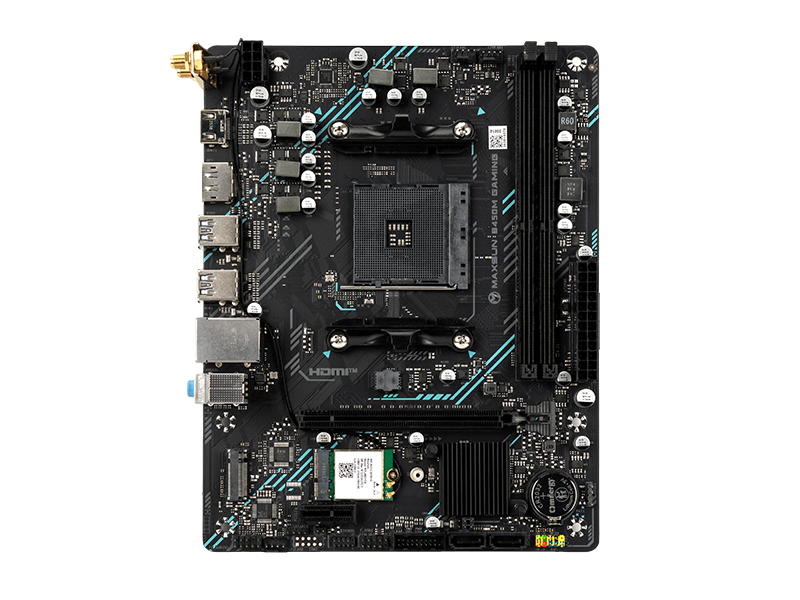

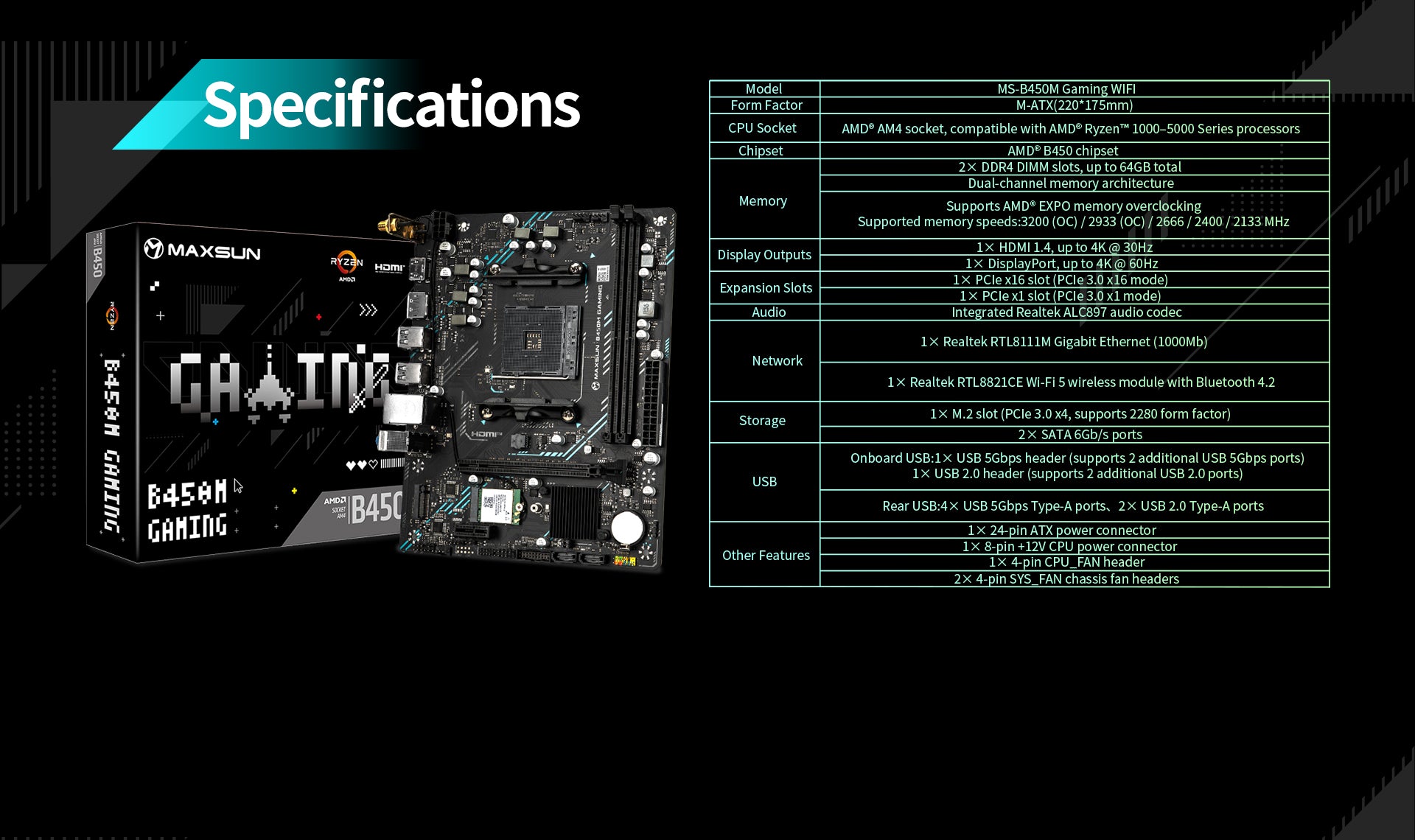

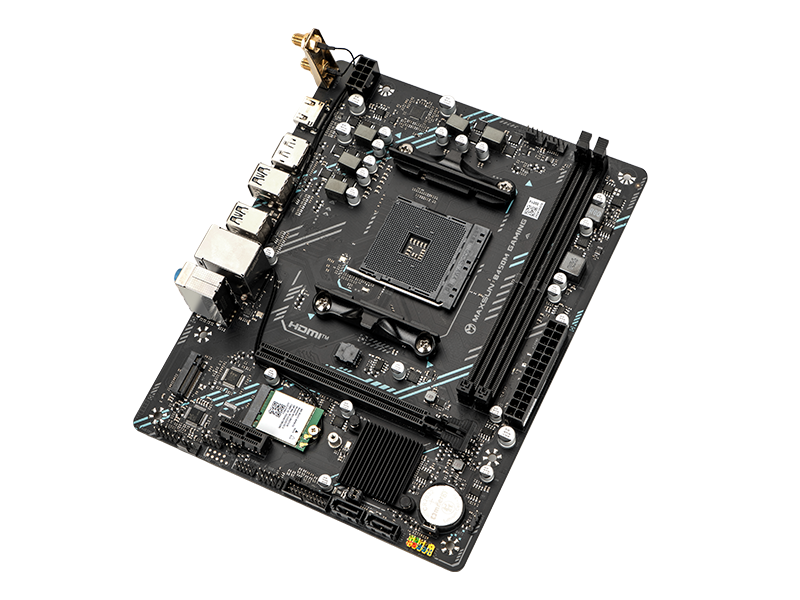

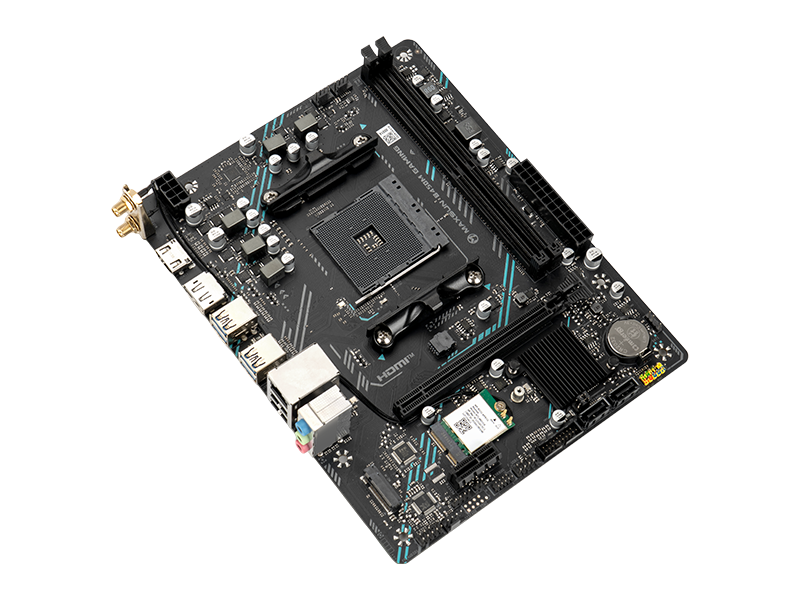

MS-B450M GAMING WIFI

• Model
• MS-B450M Gaming WIFI

• Form Factor
• M-ATX (Micro-ATX)
  Size: 220mm × 175mm

• CPU Support
• AMD® AM4 socket
  Compatible with AMD® Ryzen™ 1000–5000 Series processors

• Chipset
• AMD® B450 chipset

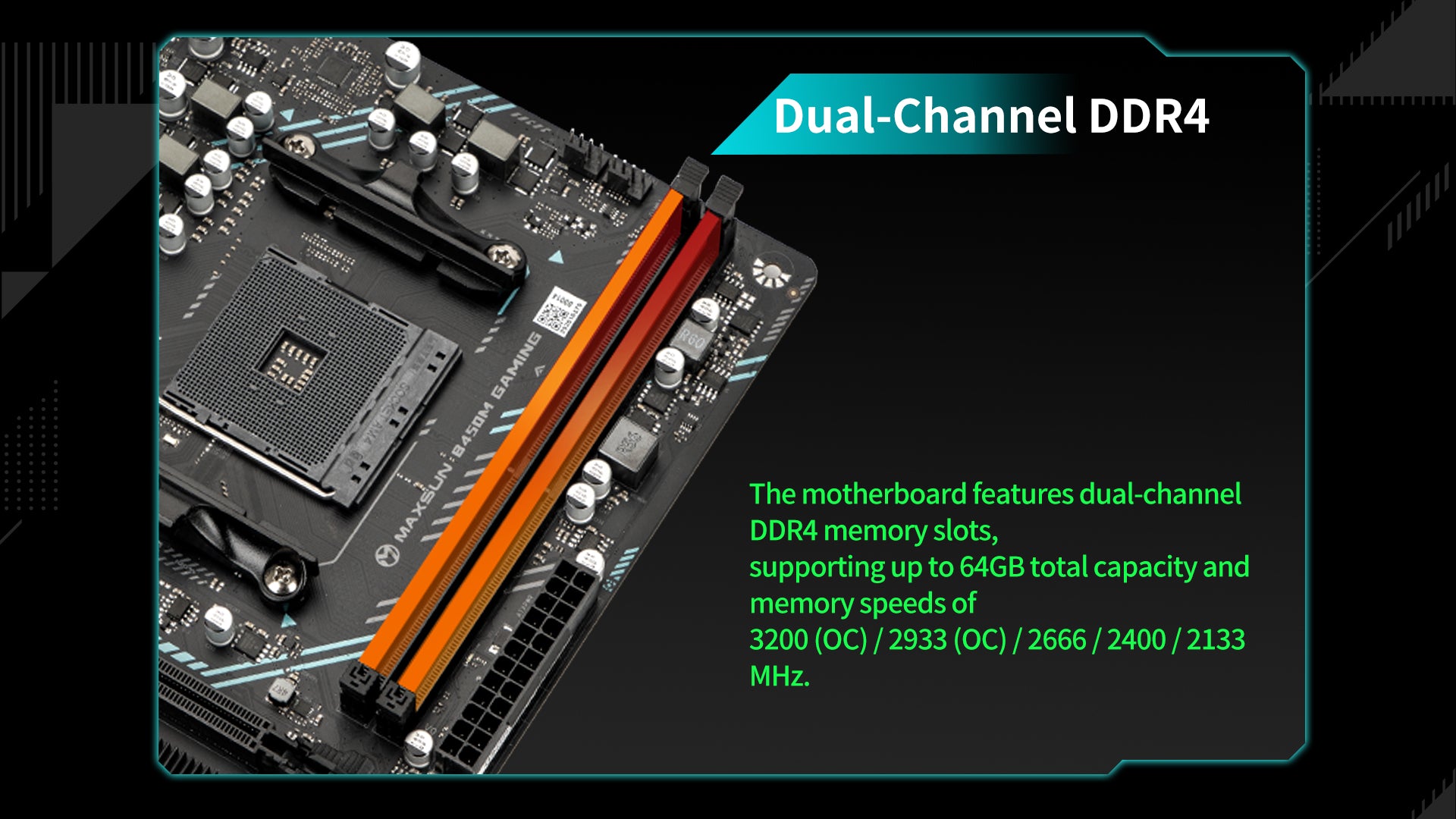

• Memory
• 2 × DDR4 DIMM slots, up to 64GB
  Dual-channel memory architecture
  Supports AMD® EXPO memory overclocking
  Supported speeds:
  3200(OC) / 2933(OC) / 2666 / 2400 / 2133 MHz

• Graphics Output
• 1 × HDMI™ 1.4 (up to 4K @ 30Hz)
  1 × DisplayPort (up to 4K @ 60Hz)

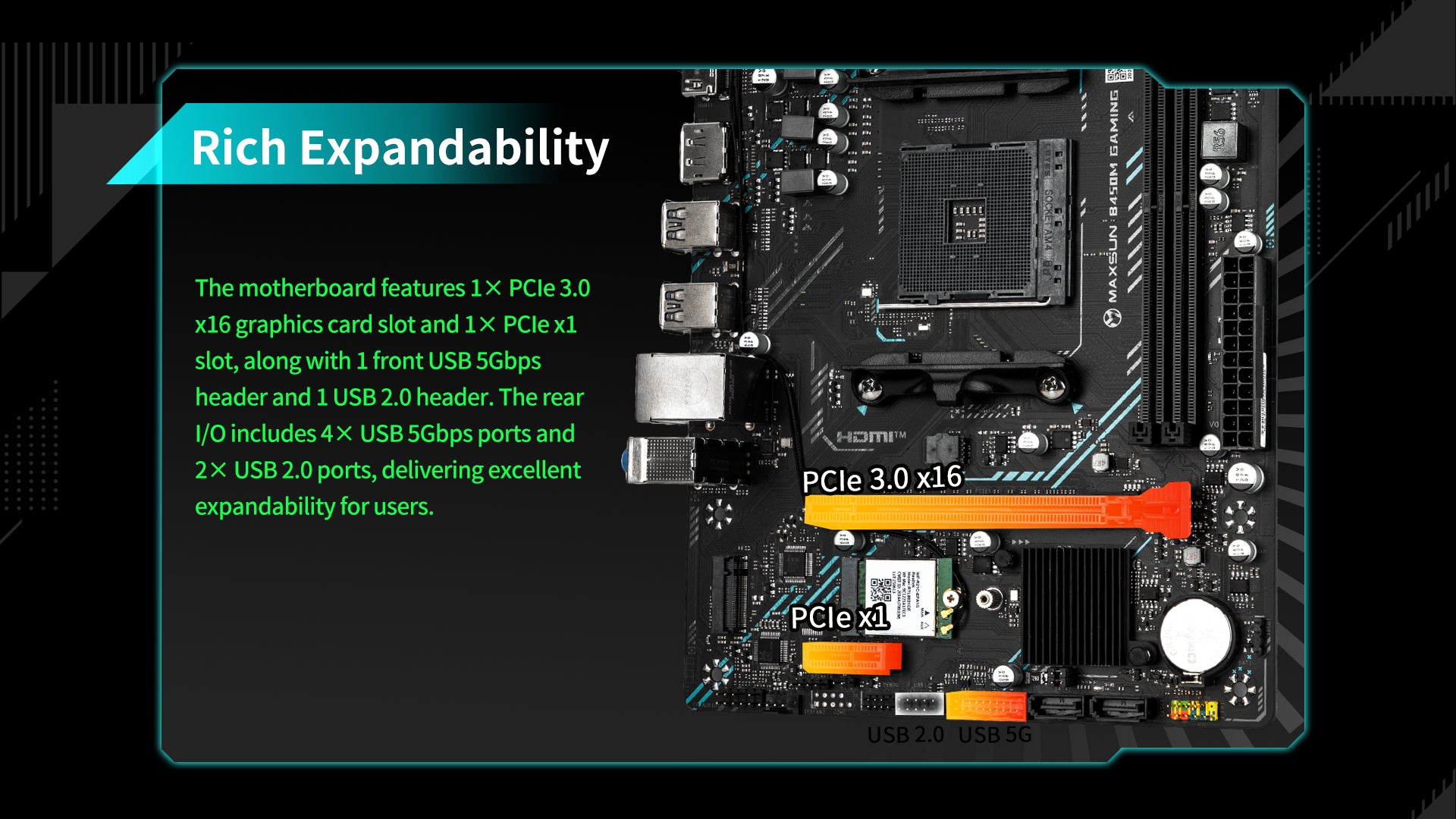

• Expansion Slots
• 1 × PCIe x16 slot (PCIe 3.0 x16)
  1 × PCIe x1 slot (PCIe 3.0 x1)

• Storage Interfaces

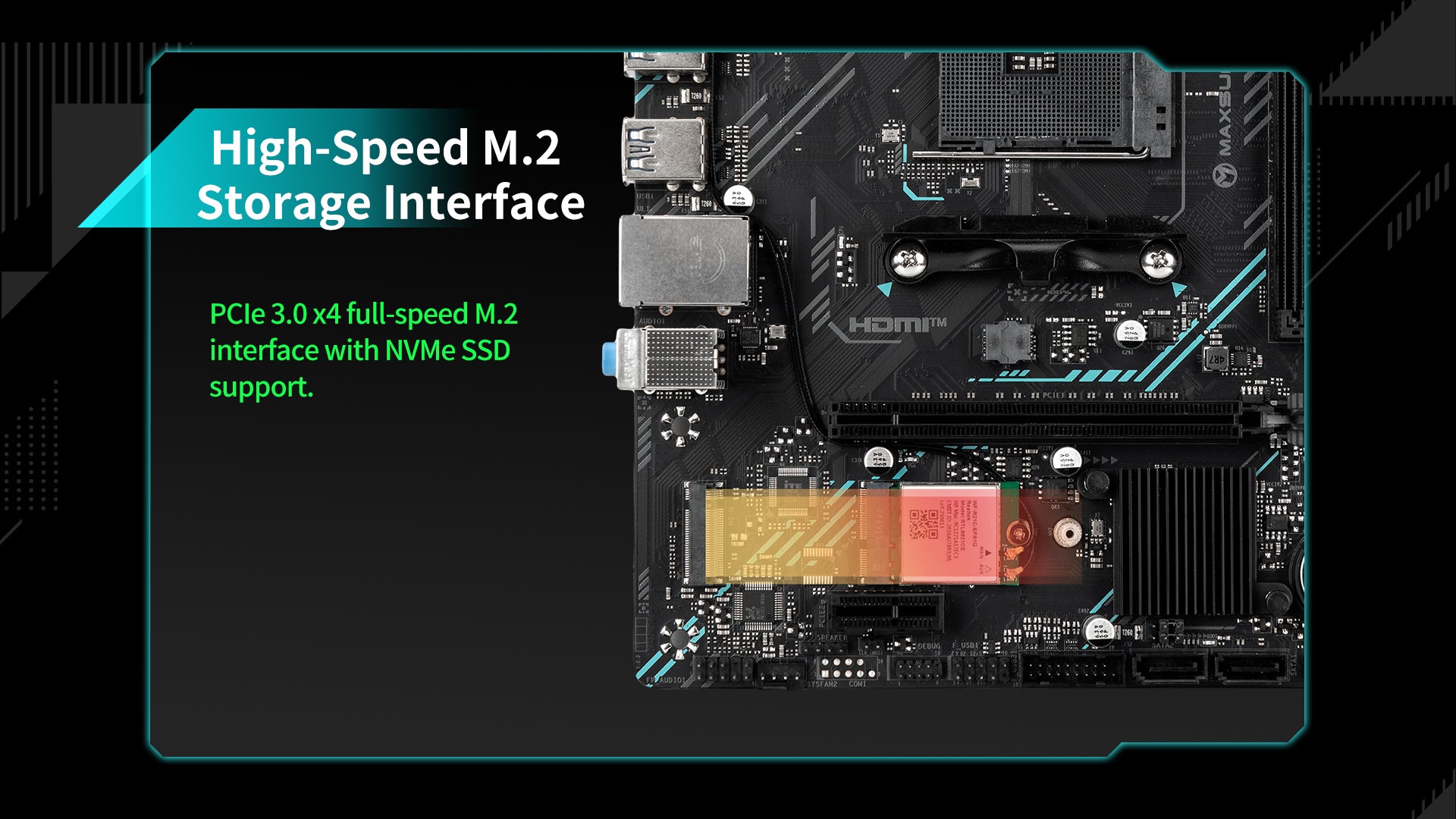

• 1 × M.2 slot (PCIe 3.0 x4, supports 2280)
  2 × SATA 6Gb/s ports

• Networking
• 1 × Realtek RTL8111M Gigabit Ethernet (1000Mbps)

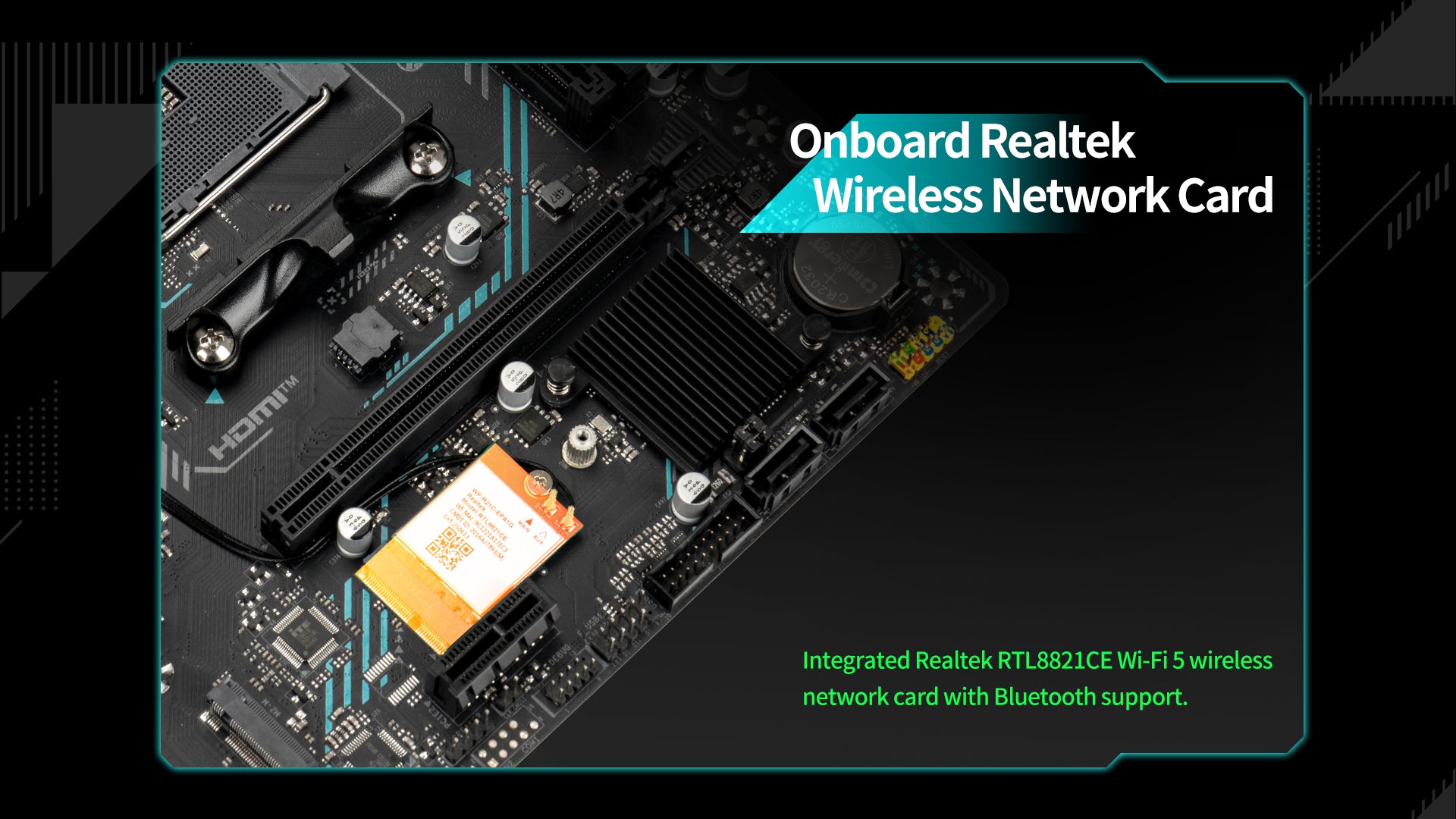

  1 × Realtek RTL8821CE Wi-Fi 5 module with Bluetooth® 4.2

• USB Ports
• Onboard USB headers:
  1 × USB 3.2 Gen1 header (supports 2 × USB 5Gbps)
  1 × USB 2.0 header (supports 2 × USB 2.0)

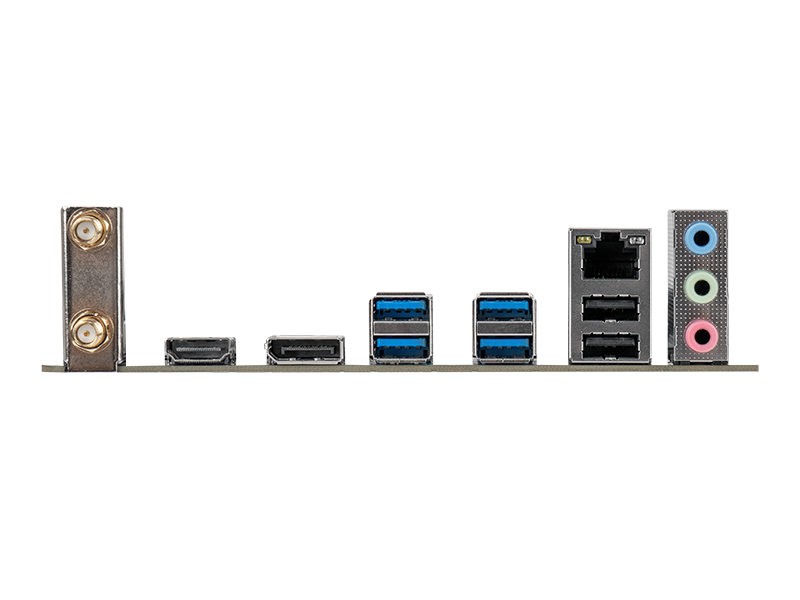

  Rear I/O:
  4 × USB 3.2 Gen1 Type-A (5Gbps)
  2 × USB 2.0 Type-A

• Audio
• Realtek ALC897 HD Audio Codec

• Internal Connectors & Features
• 1 × 24-Pin ATX power
  1 × 8-Pin +12V CPU power
  1 × 4-Pin CPU_FAN header
  2 × 4-Pin SYS_FAN headers
