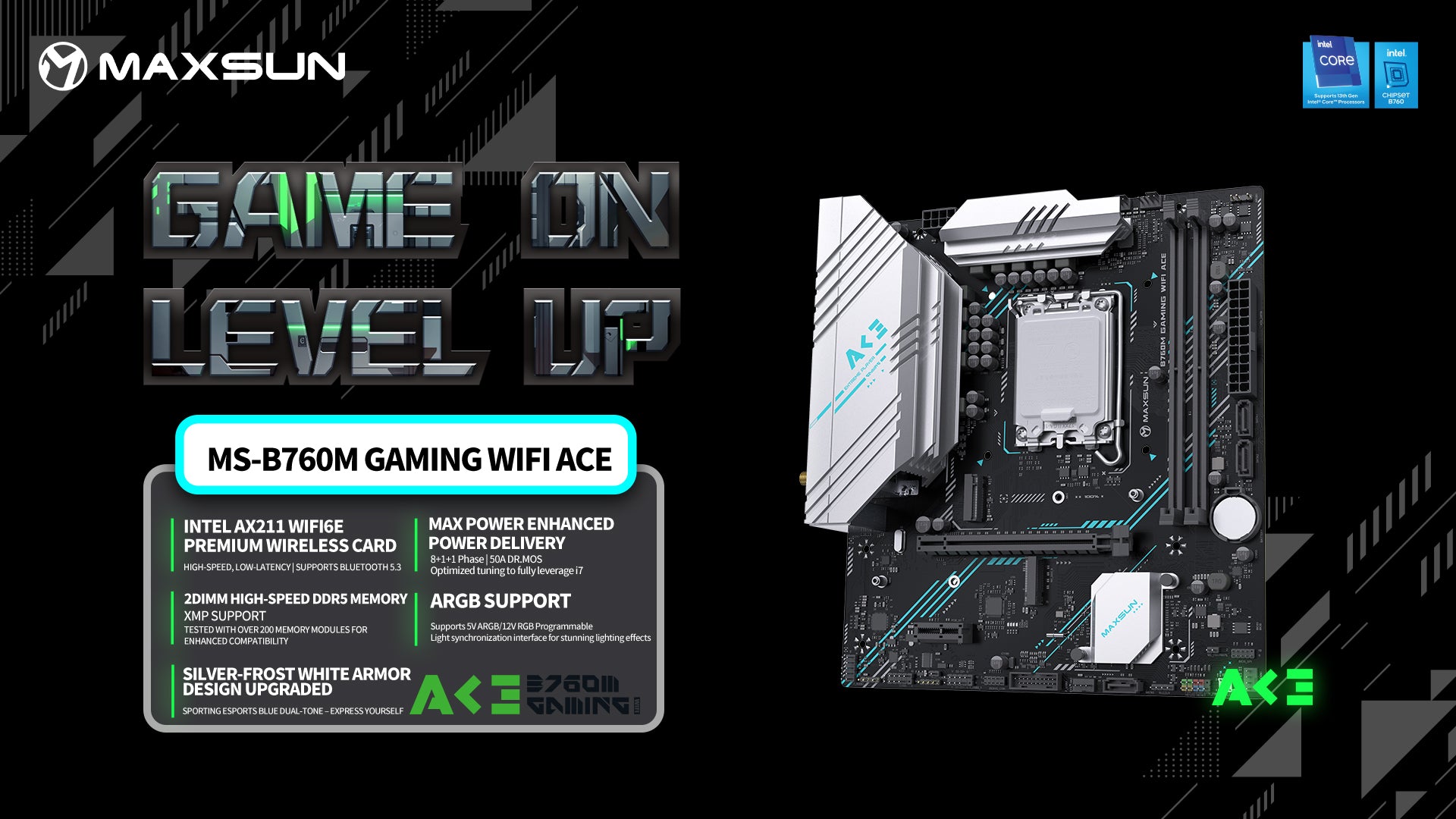

B760M GAMING WIFI ACE


  • Intel AX211 WIFI6E Wireless Card

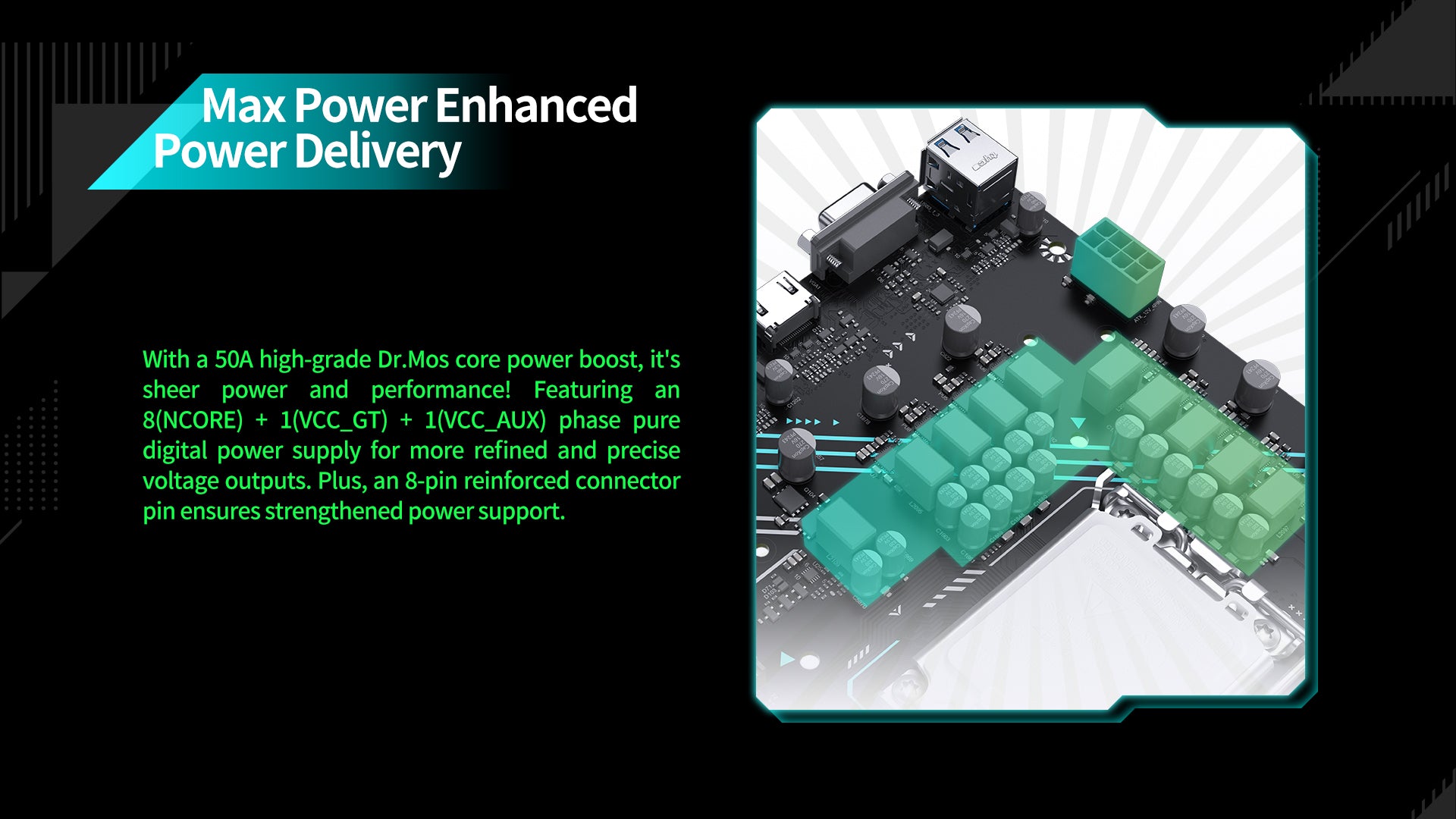

  • Max Power Enhanced Power Supply
  • High-Speed DDR5 Memory

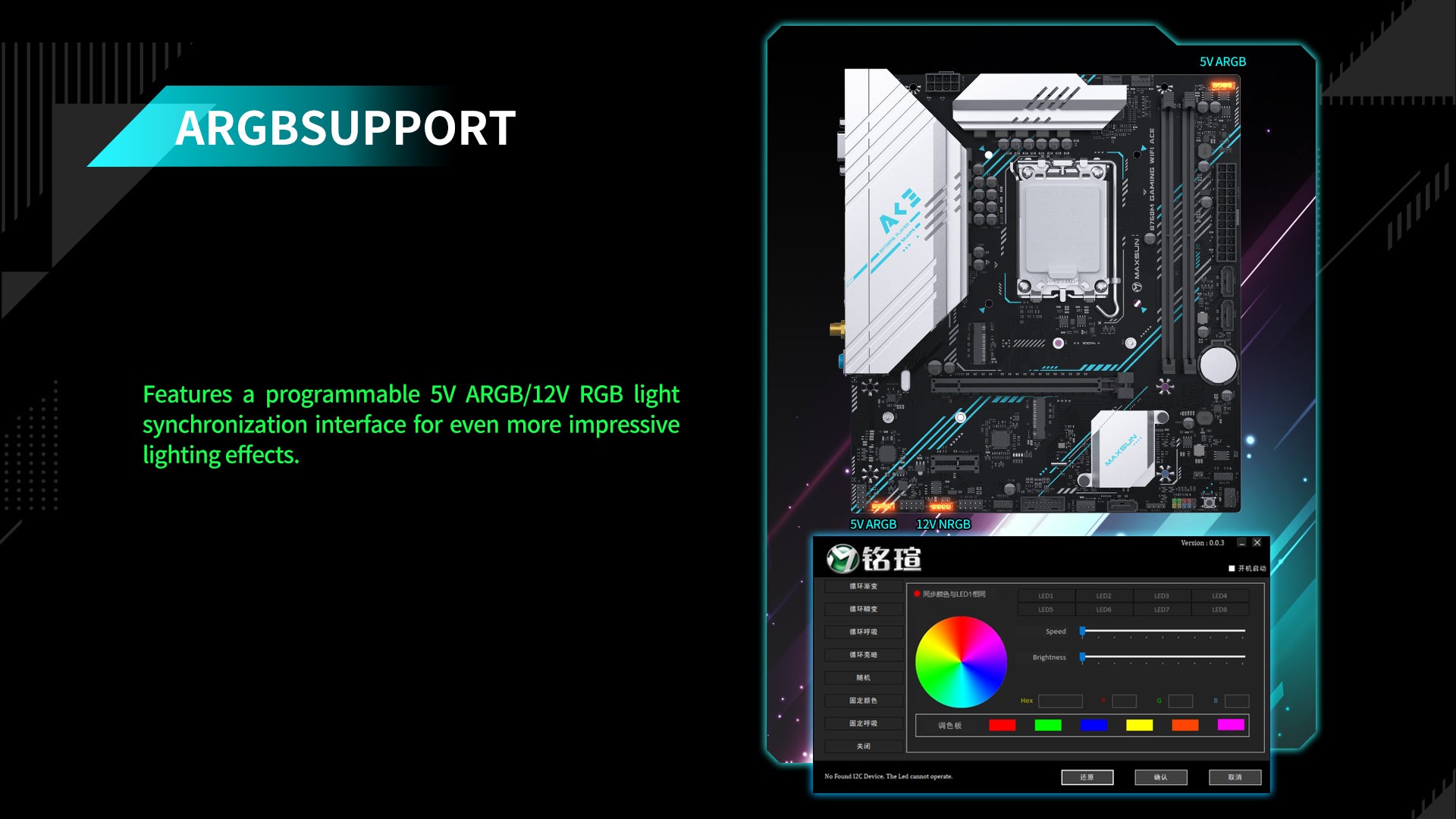

  • ARGB Support
Overview
Specification
Support

  • CHIPSET
  • INTEL B760 High-speed chipset
  • CPU
  • Support for LGA1700 slots
    The 12th/13th/4th Gen processors
    TDP: 125W(8+1+1)
  • MEMORY
  • 2x DIMM DDR5 memory slots
    Maximum support in total is 96GB
    Support for dual-channel memory technology
    Support for 4800/5600/6400MHz OC + memory frequency
  • EXPANSION SLOT
  • 1x PCIE X16 4.0 slot
    5.0 slot 1x PCIE X1 3.0 slot
    Support for AMD and NVIDIA and INTEL graphics cards
    Support for PCIE resizable bar technology
  • STORAGE

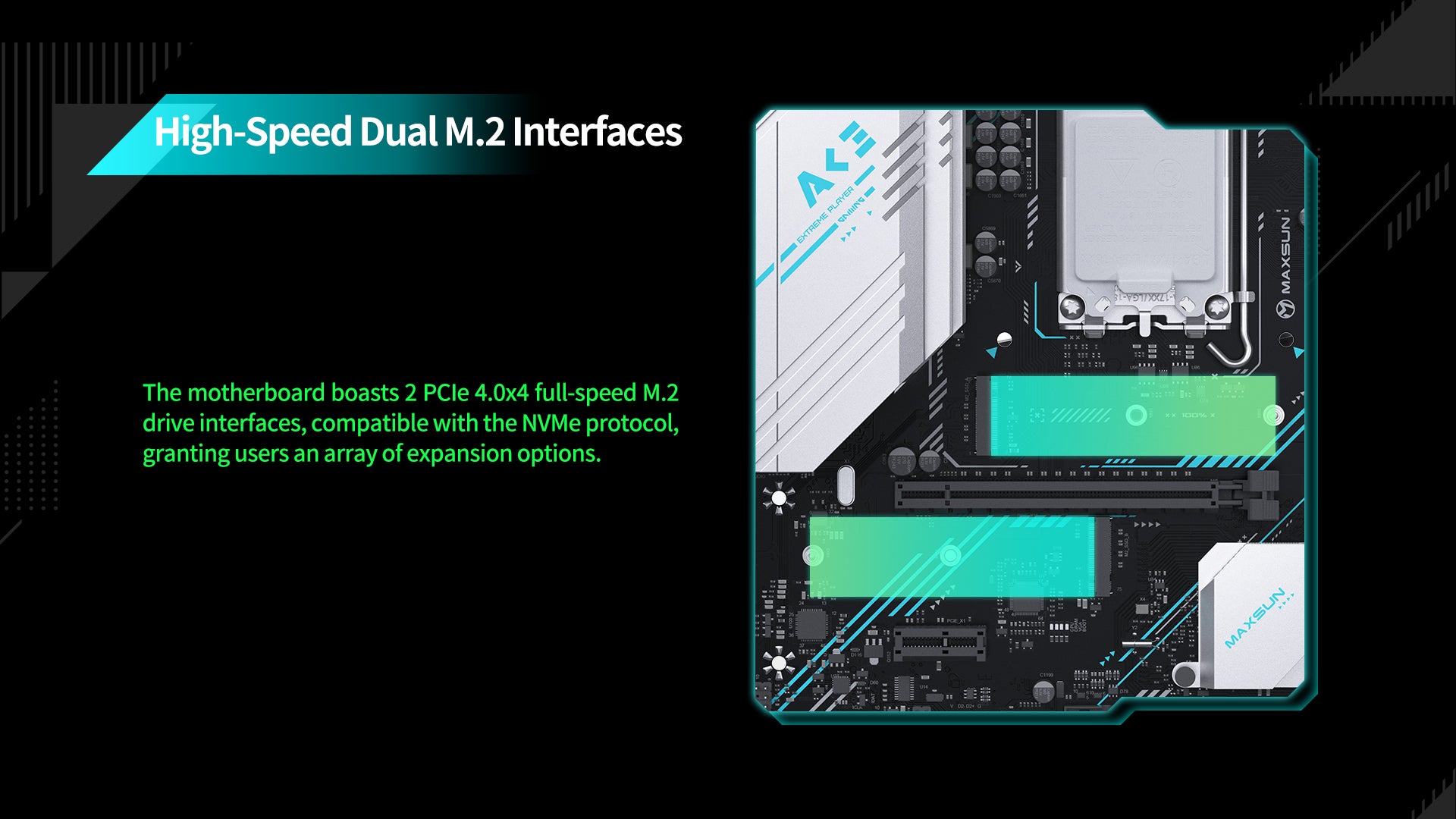

  • 3x M.2 slots (2242 / 2280 PCIE X4 / X2 channel SSD supported only)
    4x SATA 3.0 ports
  • RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB

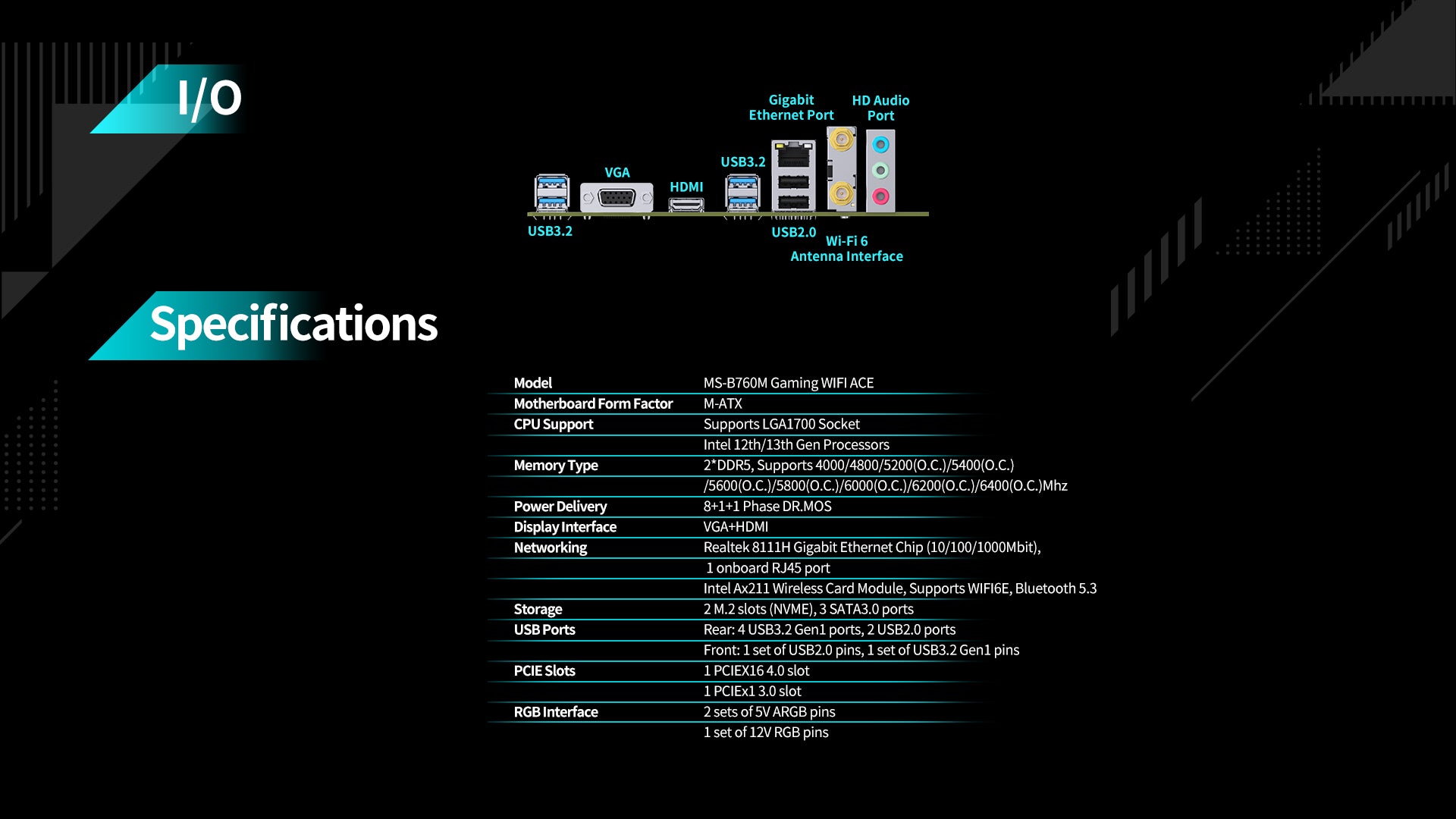

  • *On-board rear port: 2x USB 3.2 GEN 2 ports, 6x USB2.0 ports
    Plate insert: 1x group (2 double rows) U SB2.0 pins, 1x group (single row) USB2.0 pin,
    1xgroup (2 rows) USB 3.2 GEN 1 pin,
    1x TYPE C(USB 3.2 GEN 2X2) ports
  • NETWORK
  • Integrated REALTEK 8125 chip (10 / 100 / 1000 / 2500Mbit)
    1x onboard R]45 port
    Support network arousal
    Support PXE no disk, UEFI no disk guide
  • AUDIO
  • Integrated REALTEK ALC 897 sound chip
  • INSIDE BOARD SOCKET
  • 1x 24-PIN motherboard ATX power supply
    1x 8-PIN motherboard ATX 12V power supply port, 12V input,
    2x sets of system fan pins and 1x group of CPU fan pins、
    1x group of PUMP fan pinslx group chassis front control panel pin (F PANEL)
  • OPERATING SYSTEM
  • Support for Windows 10 64bit,
    Windows 11 64bit
    Support for Ubuntu 64bit
  • FORM FACTOR
  • Micro ATX 230mm x 205mm
