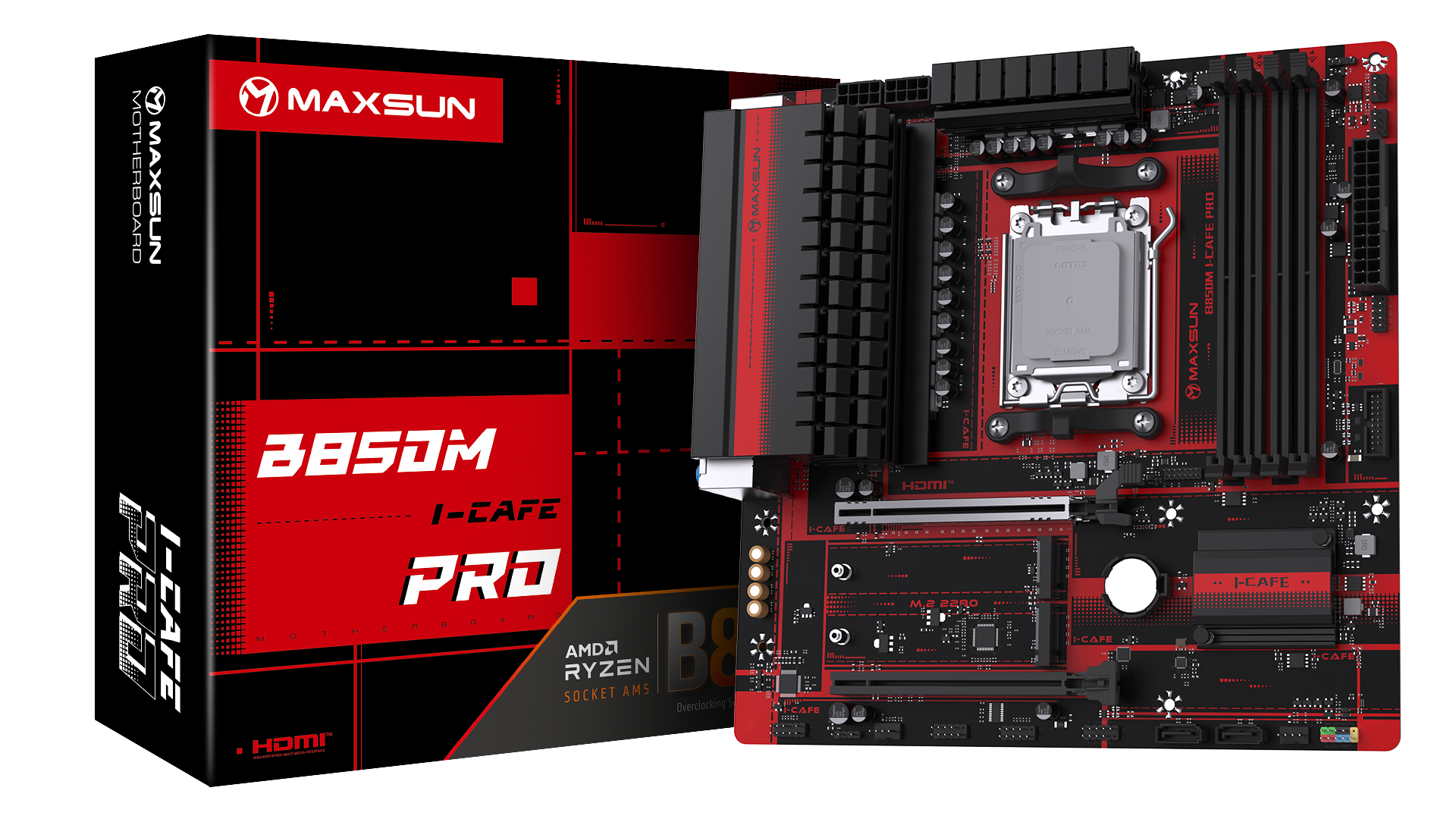

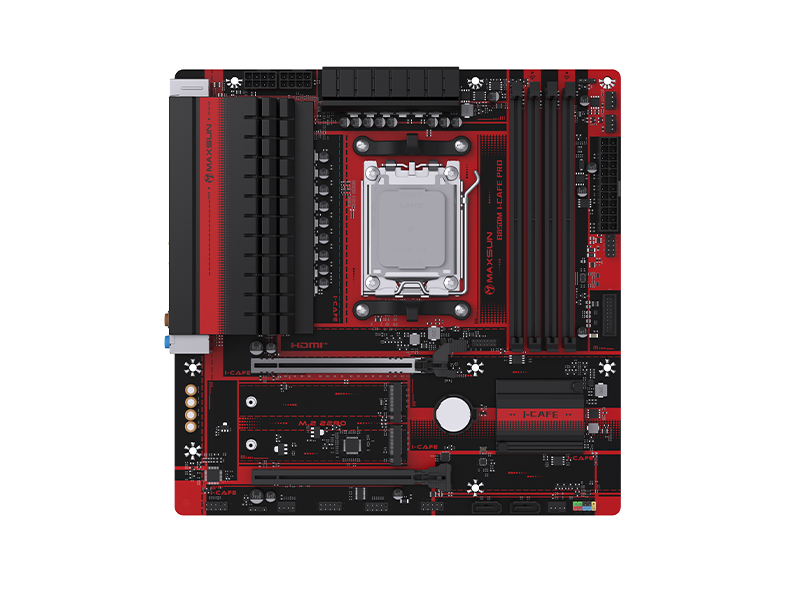

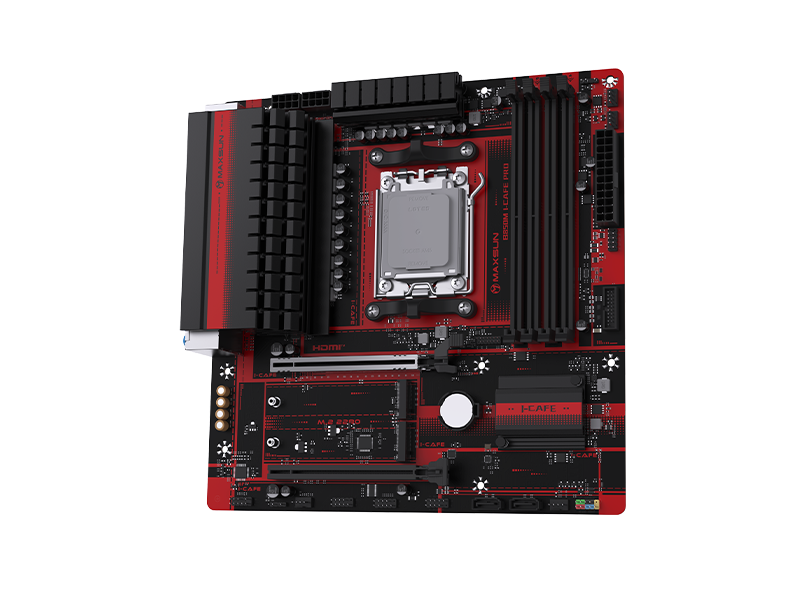

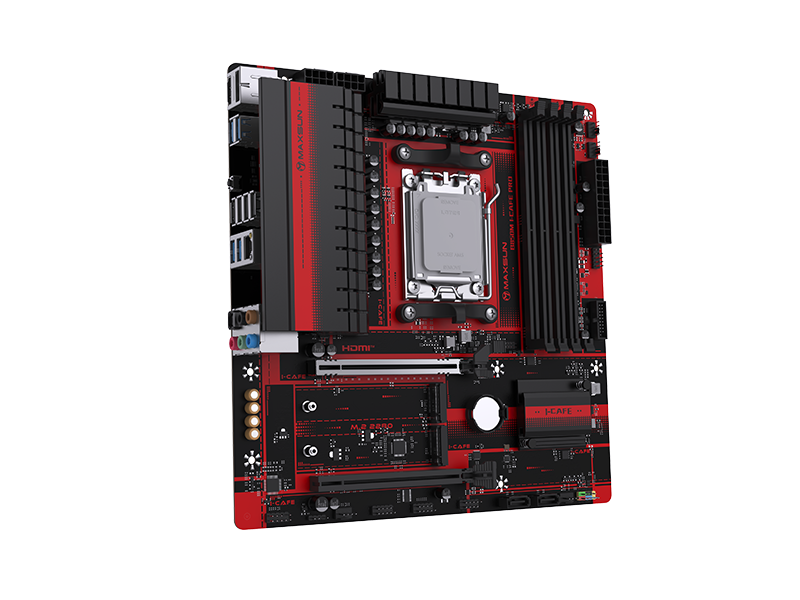

MS-B850M I-CAFE PRO

• Form Factor
• M-ATX (Micro-ATX)
  Size: 245mm × 245mm

• CPU Support
• AMD® AM5 socket
  Compatible with AMD® Ryzen™ 7000 / 8000 / 9000 Series processors

• Chipset
• AMD® B850 chipset

• Memory
• 4 × DDR5 DIMM slots, up to 192GB
  Dual-channel memory architecture
  Supports memory overclocking
  Supported speeds:
  4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MHz

• Graphics Output
• Display function depends on CPU with integrated graphics (shared memory)
  1 × HDMI™ 1.4 (up to 4K @ 30Hz)
  1 × DisplayPort (up to 4K @ 60Hz)

• Expansion Slots
• 1 × PCIe x16 slot (PCIe 5.0 x16)
  1 × PCIe x16 slot (PCIe 4.0 x4)

• Storage Interfaces
• M.2_A (Key M): PCIe 5.0 x4/x2, supports 2280
  M.2_B (Key M): PCIe 5.0 x4/x2, supports 2280
  2 × SATA 6Gb/s ports

• Networking
• 1 × Realtek RTL8125D 2.5Gb Ethernet

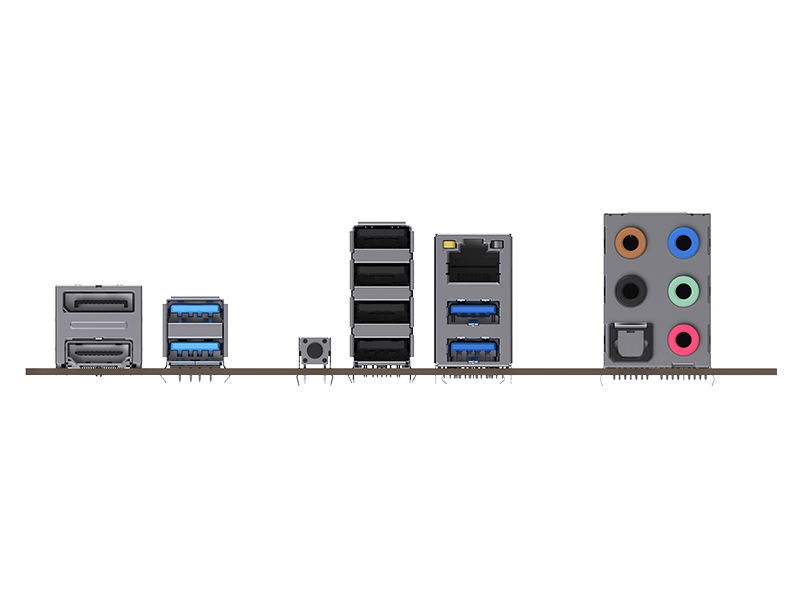

• USB Ports
• Onboard USB headers (Total: 6 ports):
  1 × USB 3.2 Gen1 19-Pin header (supports 2 × USB 5Gbps)
  2 × USB 2.0 9-Pin headers (each supports 2 × USB 2.0)

  Rear I/O (Total: 8 ports):
  4 × USB 3.2 Gen1 Type-A (5Gbps)
  4 × USB 2.0 Type-A

• Audio
• Realtek ALC897 HD Audio Codec

• Internal Connectors
• 1 × 24-Pin ATX power
  2 × 8-Pin +12V CPU power
  1 × 4-Pin CPU_FAN header
  1 × 4-Pin PUMP header
  2 × 4-Pin SYS_FAN headers
  1 × COM port header
  1 × TPM header

• Operating System Support
• Windows® 11 64-bit
  Windows® 10 64-bit

• Special Features
• CLR_CMOS quick button
  2 × 5V 3-Pin ARGB headers
