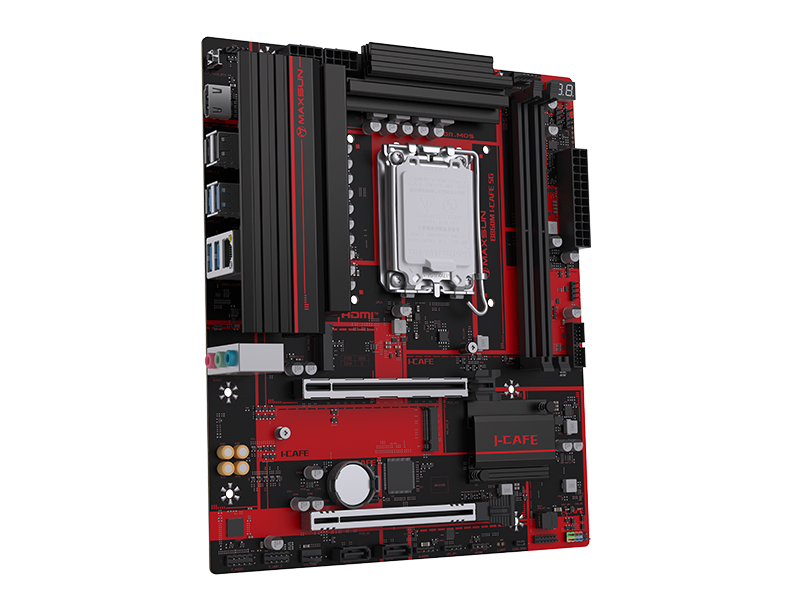

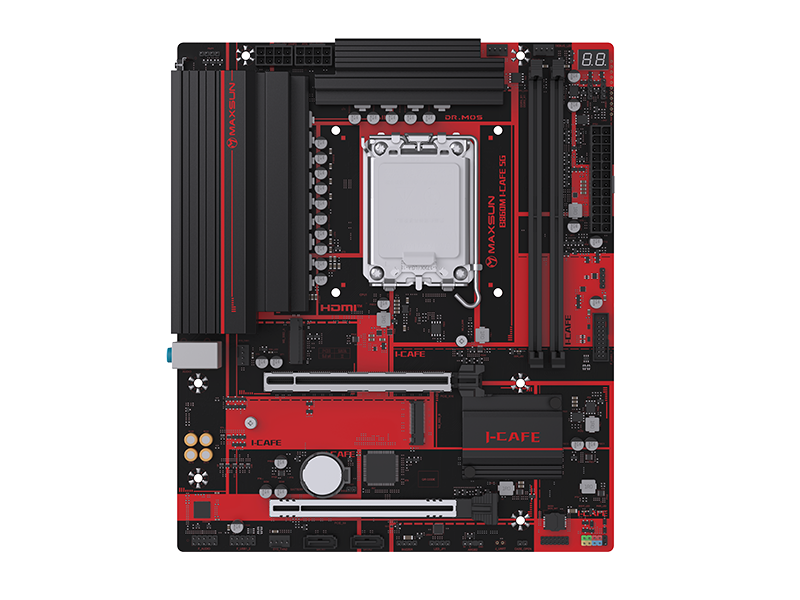

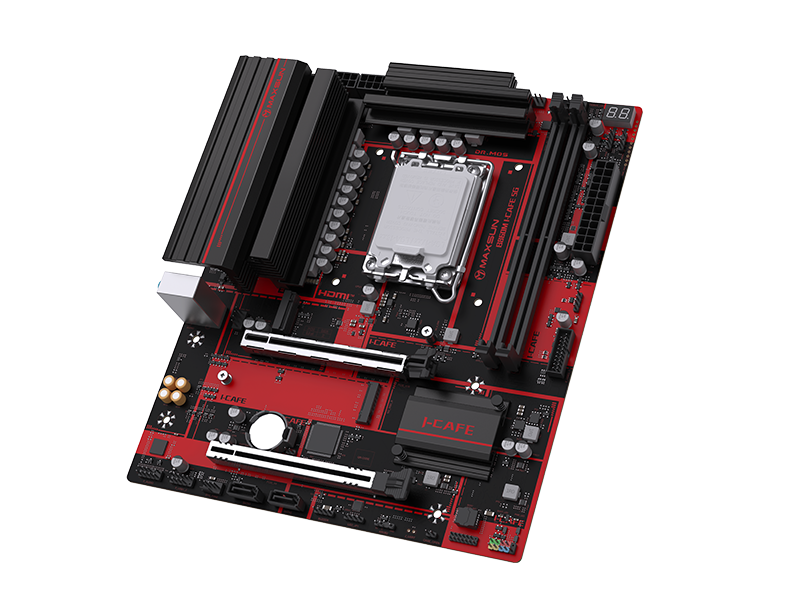

MS-B860M I-CAFE 5G
Overview
Specification
Support
- Model
- MS-B860M I-CAFE 5G
- Form Factor
- Micro-ATX
- Chipset
- Intel B860
- Processor Support
- Intel LGA1851 socket; Intel Core Ultra processors
- Memory
- DDR5 memory; up to DDR5-8600 (OC)
- Expansion
- PCIe 5.0 x16 graphics slot
- Audio
- Realtek ALC897 HD audio codec
- Network
- Integrated 5Gb Ethernet
- Power Design
- 10+1+1-phase SPS power delivery
- Operating System
- Windows 11 64-bit; Windows 10 64-bit
- Special Features
- 80-code POST display; distributed Debug LEDs; rear BIOS restore button; MAXSUN RGB and fan-control software support
