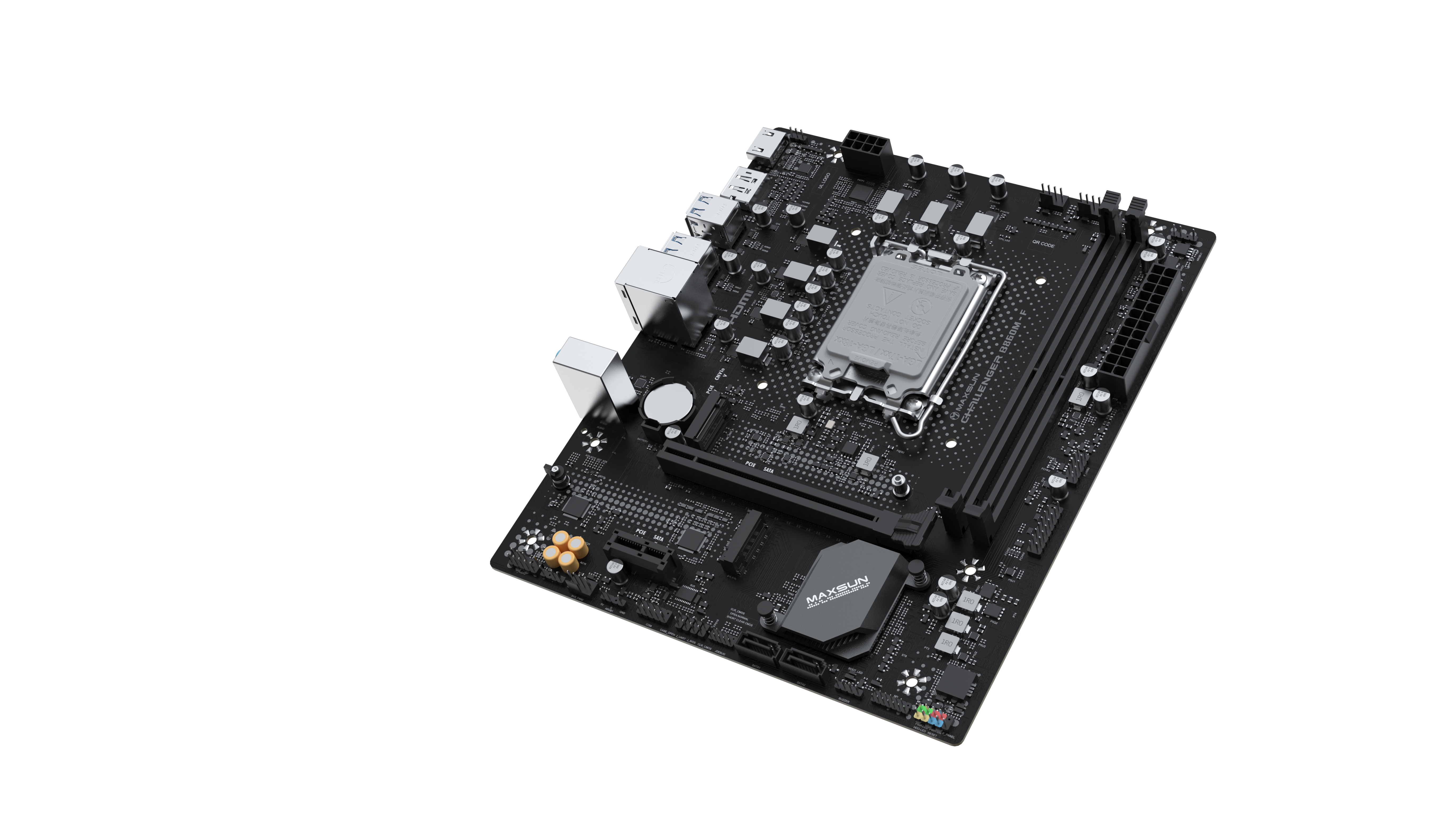

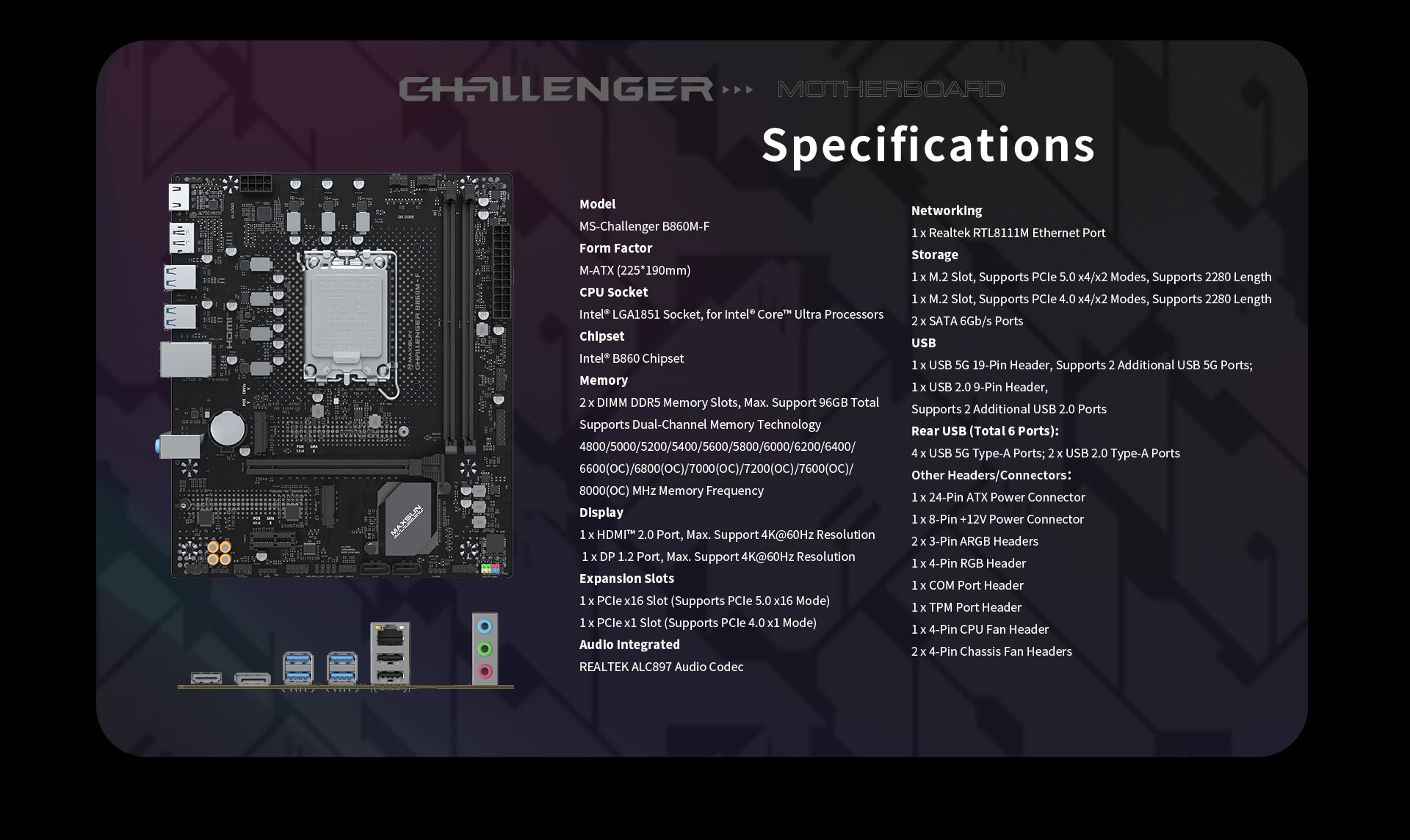

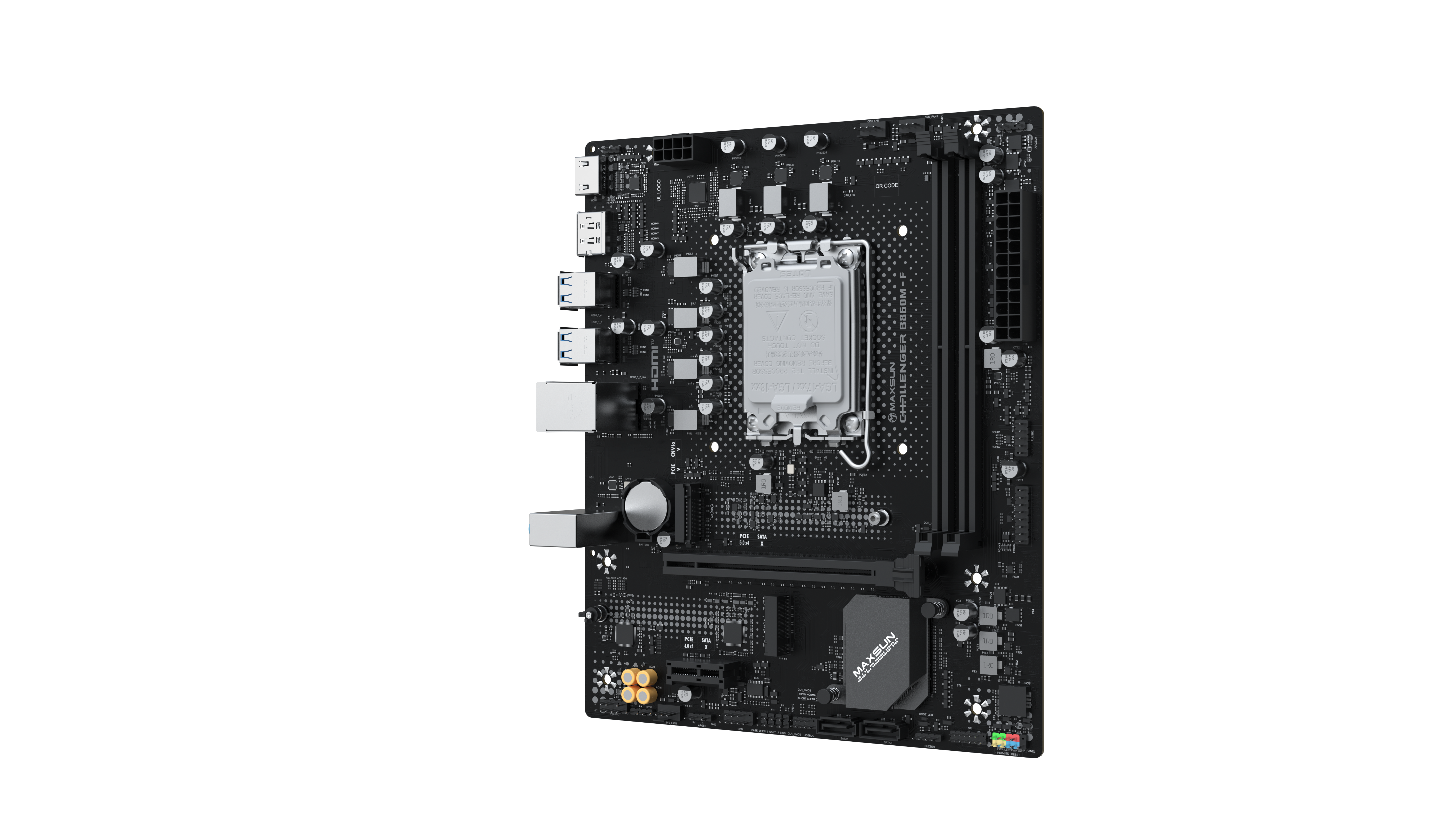

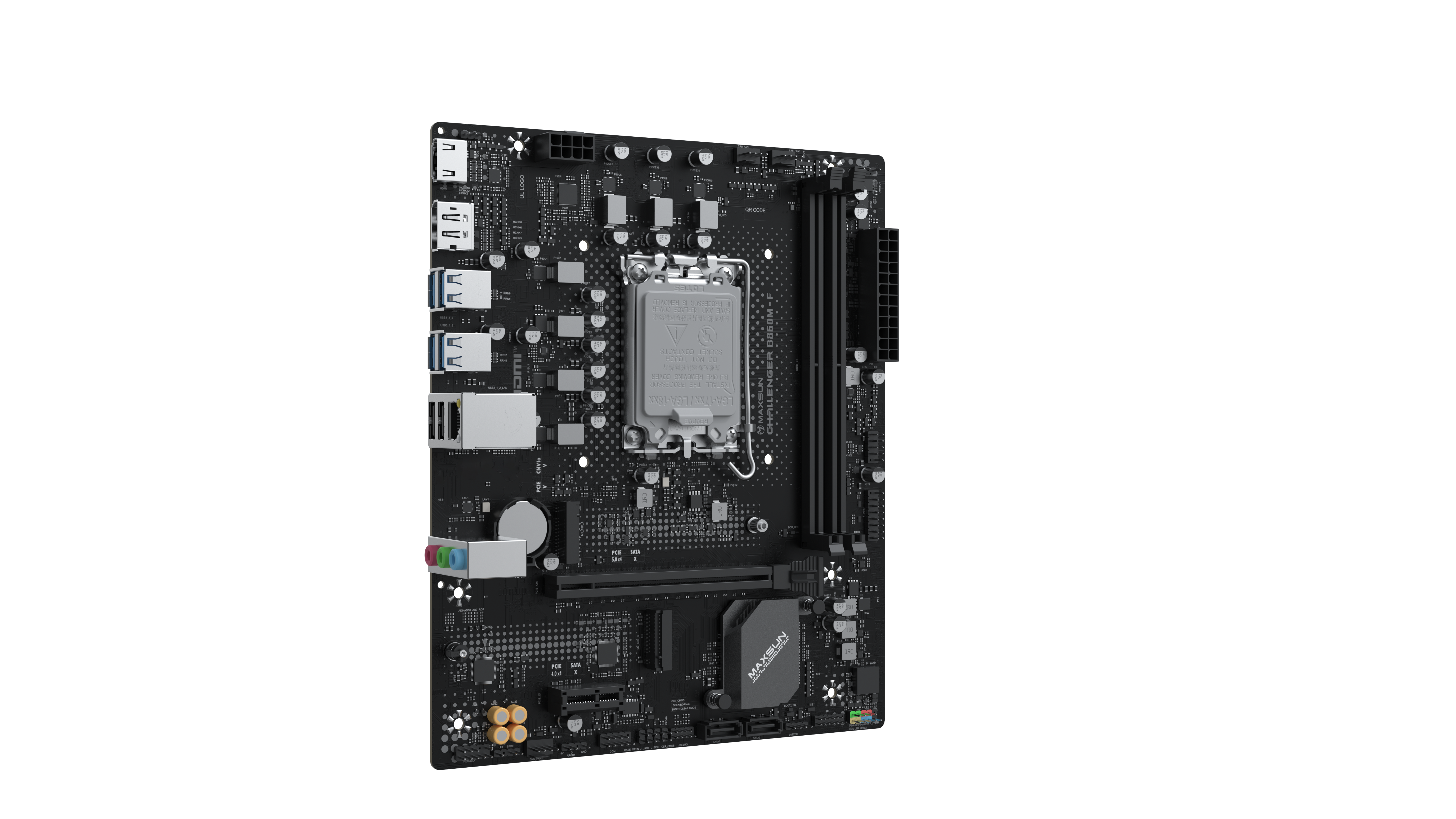

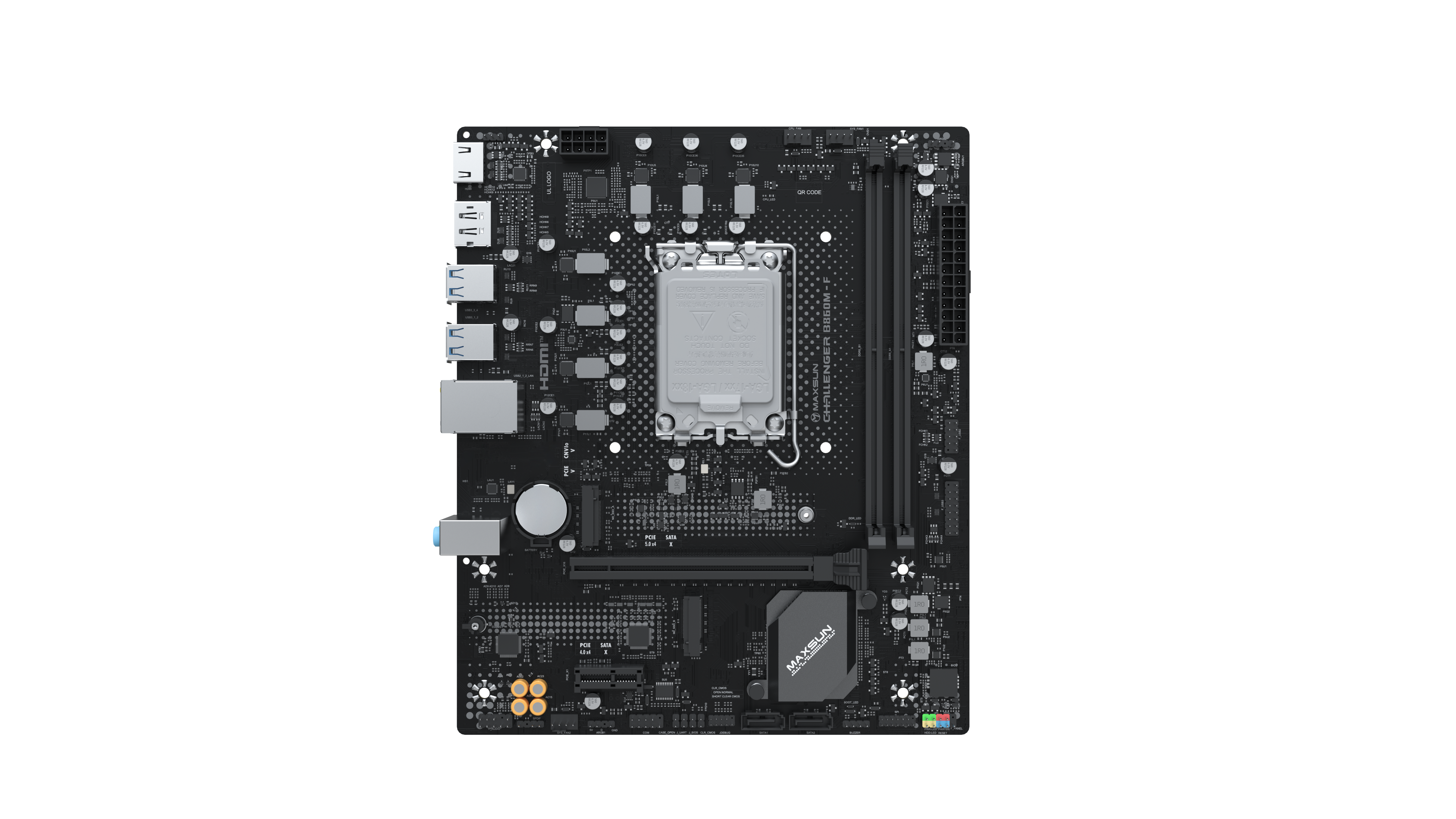

MS-Challenger B860M-F

• Model
• MS-Challenger B860M-F

• Form Factor
• Micro-ATX

• Chipset
• Intel B860

• Processor Support
• Intel LGA1851 socket; Intel Core Ultra processors

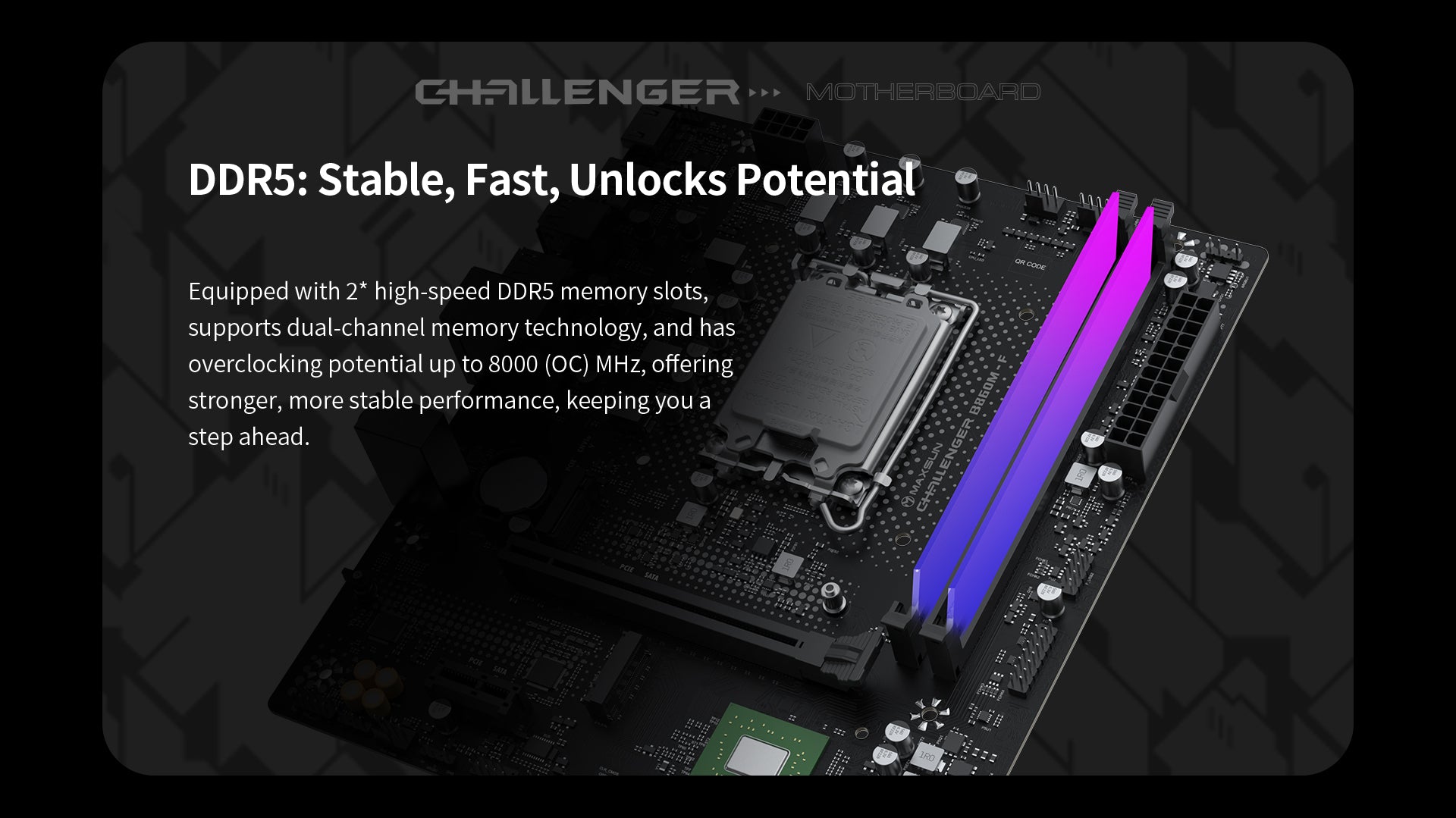

• Memory
• 2× DDR5 DIMM slots; dual-channel; up to DDR5-8000 (OC)

• Display Outputs
• 1× HDMI 2.0
  1× DisplayPort 1.2

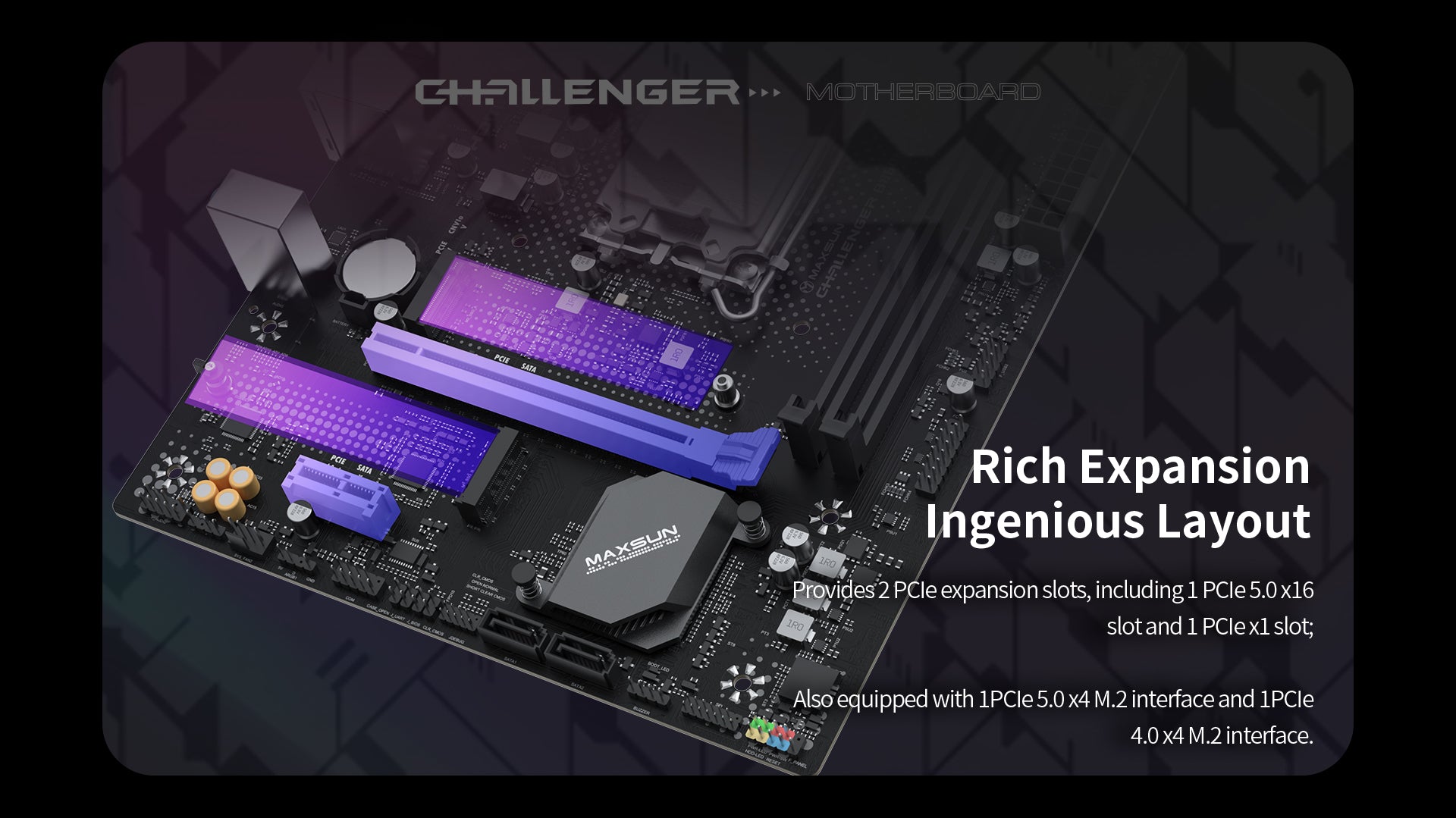

• Expansion Slots
• 1× PCIe 5.0 x16
  1× PCIe 4.0 x1

• Storage
• 1× M.2 2280 PCIe 5.0 x4/x2
  1× M.2 2280 PCIe 4.0 x4/x2
  2× SATA 6Gb/s

• Audio
• Realtek ALC897 HD audio codec

• Network
• Realtek RTL8111M Gigabit Ethernet

• USB
• Rear: 4× USB 5Gbps Type-A, 2× USB 2.0 Type-A
  Internal: 2× USB 5Gbps, 2× USB 2.0

• Power Connectors
• 1× 24-pin ATX
  1× 8-pin ATX 12V

• Operating System
• Windows 11; Windows 10 64-bit
