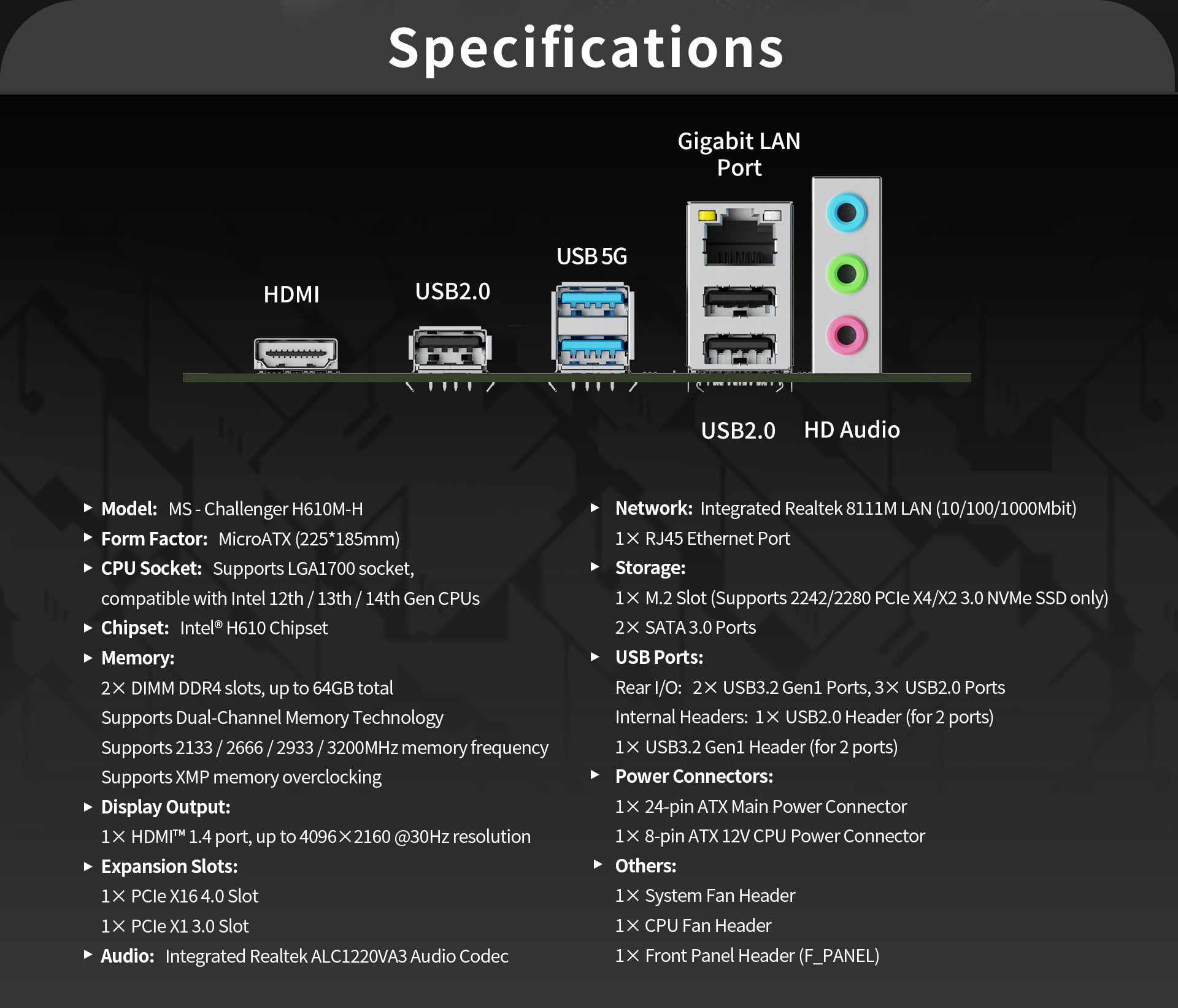

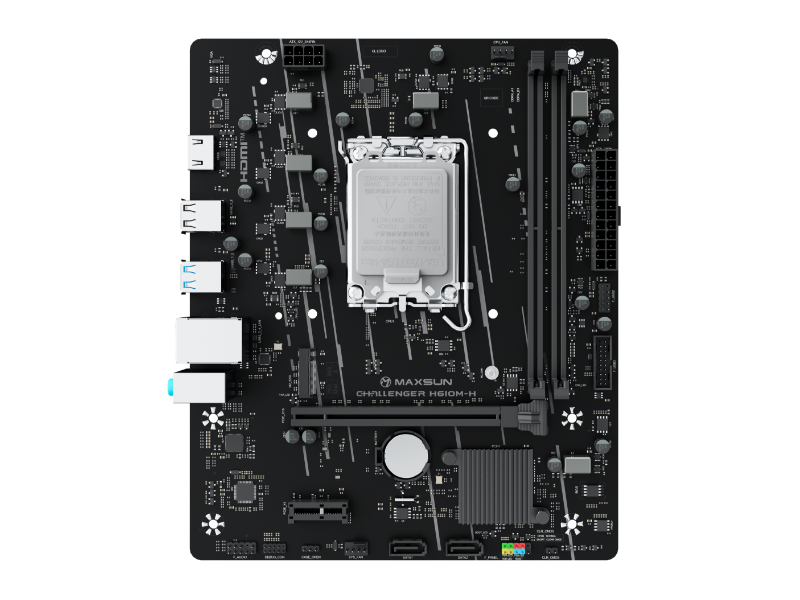

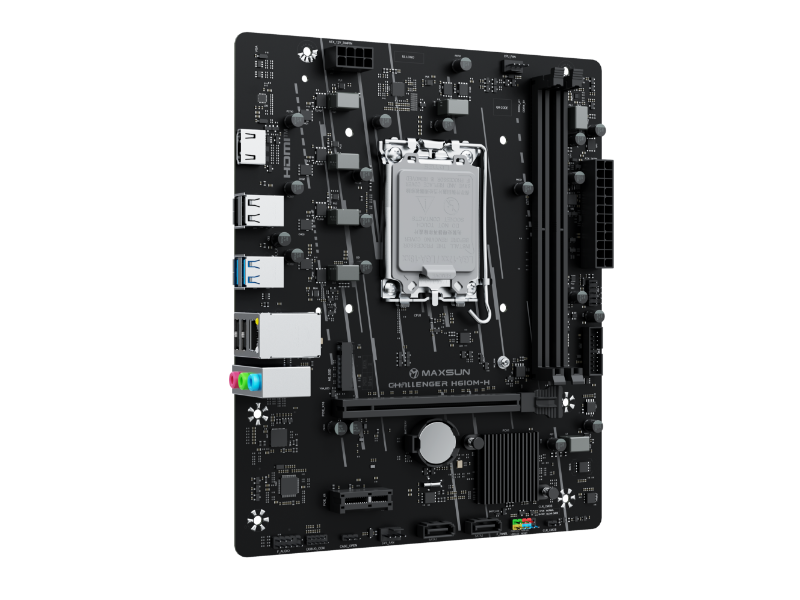

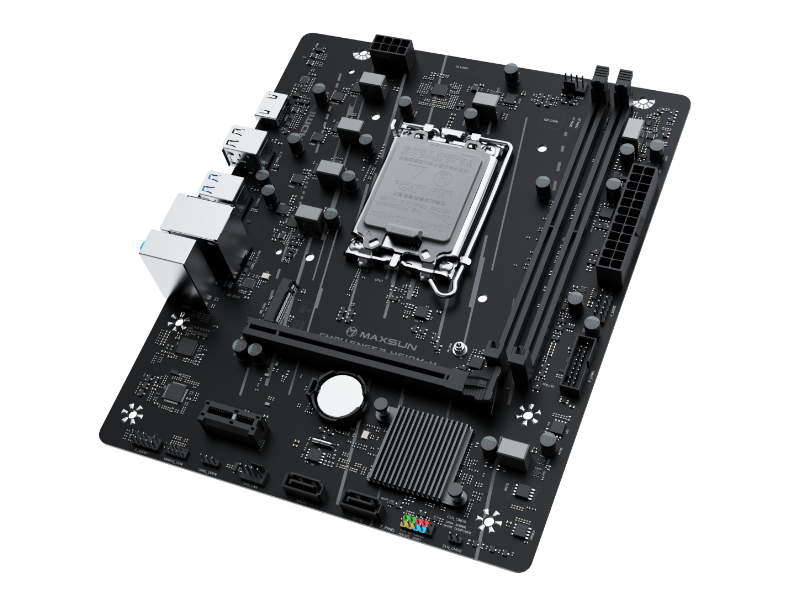

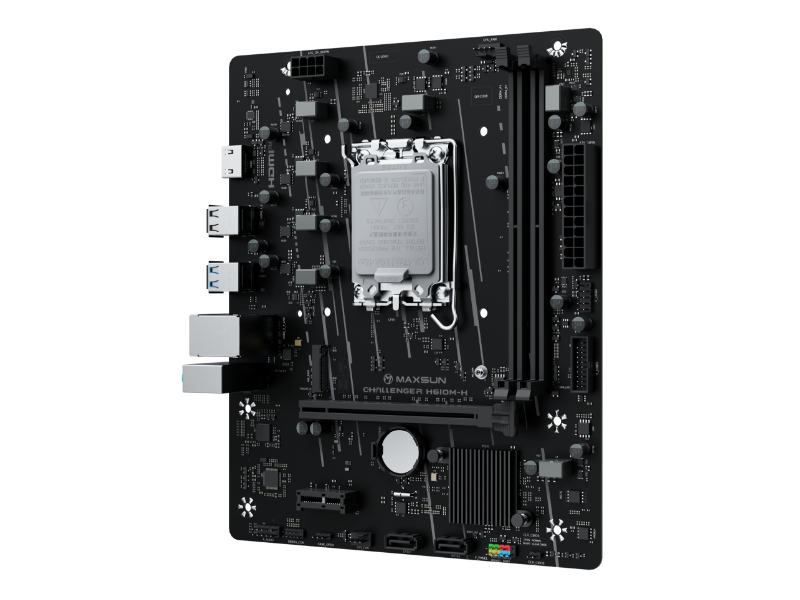

MS-Challenger H610M-H

• Model
• MS - Challenger H610M-H

• Form Factor
• MicroATX (225 × 185mm)

• CPU Socket
• Supports LGA1700 socket, compatible with Intel® 12th / 13th / 14th Gen CPUs

• Chipset
• Intel® H610 Chipset

• Memory
• 2 × DIMM DDR4 slots, up to 64GB total
  Supports Dual-Channel Memory Technology
  Supports 2133 / 2666 / 2933 / 3200MHz memory frequency
  Supports Intel® XMP memory overclocking

• Display Output
• 1 × HDMI™ 1.4 port, up to 4096 × 2160 @30Hz resolution

• Expansion Slots
• 1 × PCIe X16 4.0 Slot
  1 × PCIe X1 3.0 Slot

• Audio
• Integrated Realtek ALC1220VA3 Audio Codec

• Network
• Integrated Realtek 8111M LAN (10/100/1000Mbps)
  1 × RJ45 Ethernet Port

• Storage

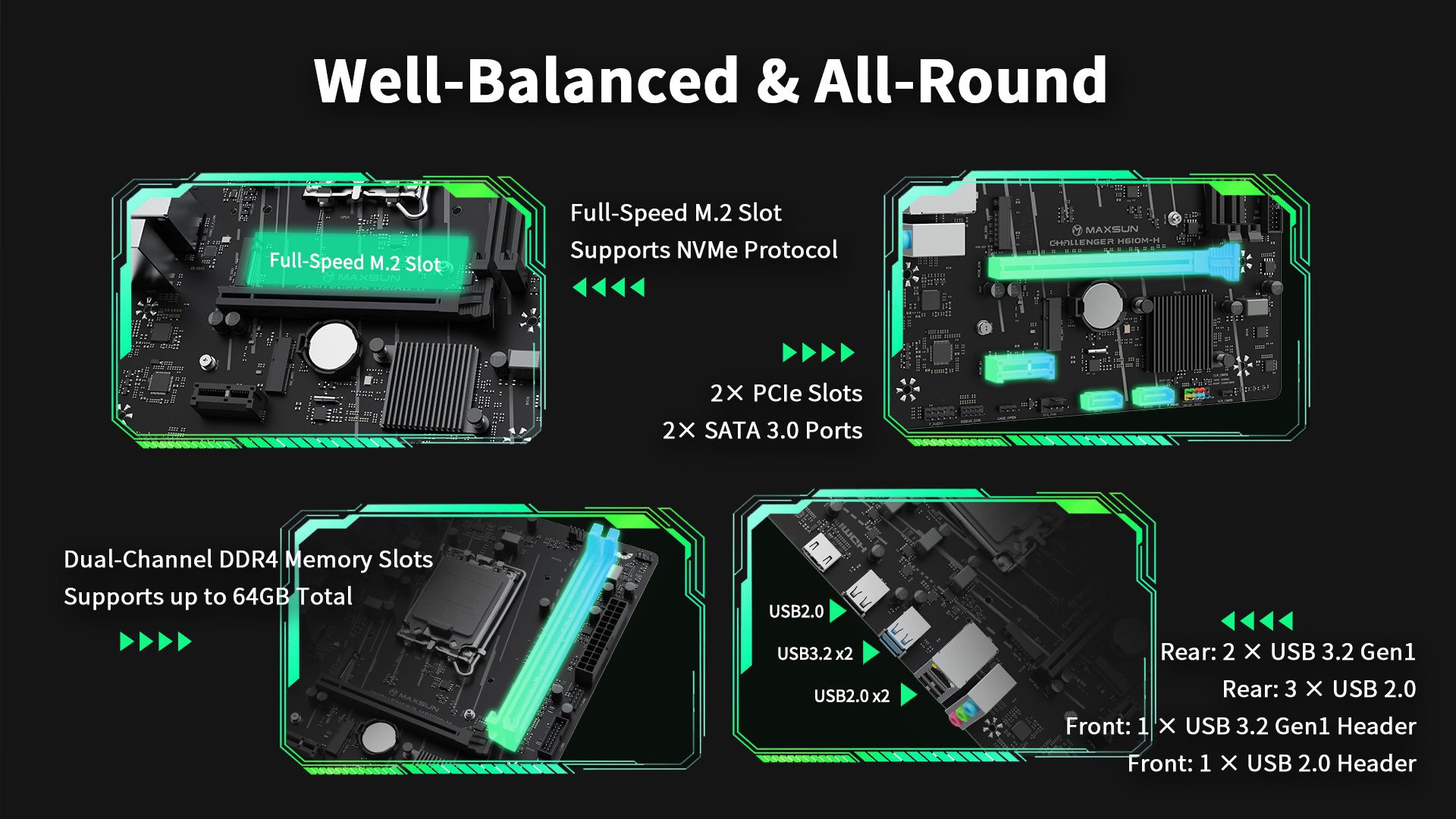

• 1 × M.2 Slot (Supports 2242/2280 PCIe X4/X2 3.0 NVMe SSD only)
  2 × SATA 3.0 Ports

• USB Ports
• Rear I/O:
  2 × USB3.2 Gen1 Ports
  3 × USB2.0 Ports

  Internal Headers:
  1 × USB2.0 Header (for 2 ports)
  1 × USB3.2 Gen1 Header (for 2 ports)

• Power Connectors
• 1 × 24-pin ATX Main Power Connector
  1 × 8-pin ATX 12V CPU Power Connector

• Others
• 1 × System Fan Header
  1 × CPU Fan Header
  1 × Front Panel Header (F_PANEL)
