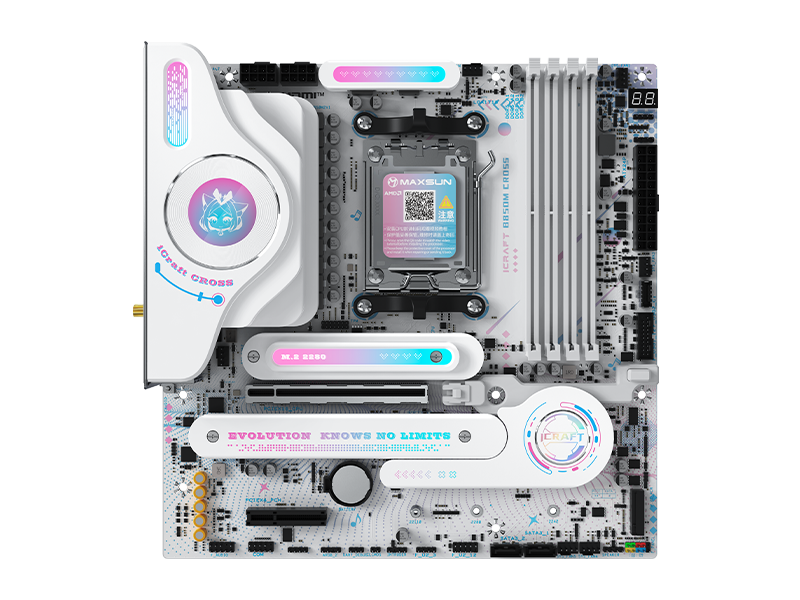

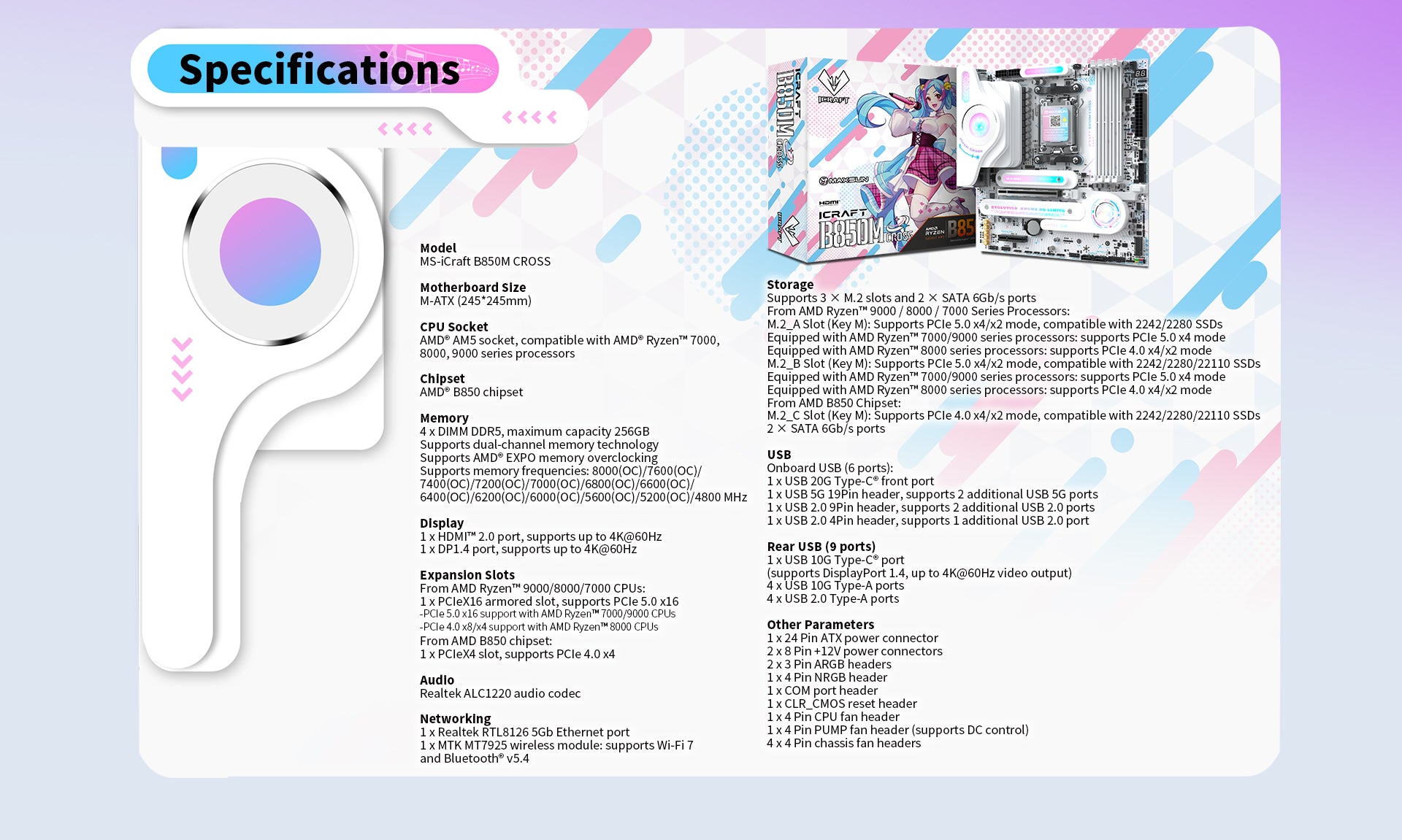

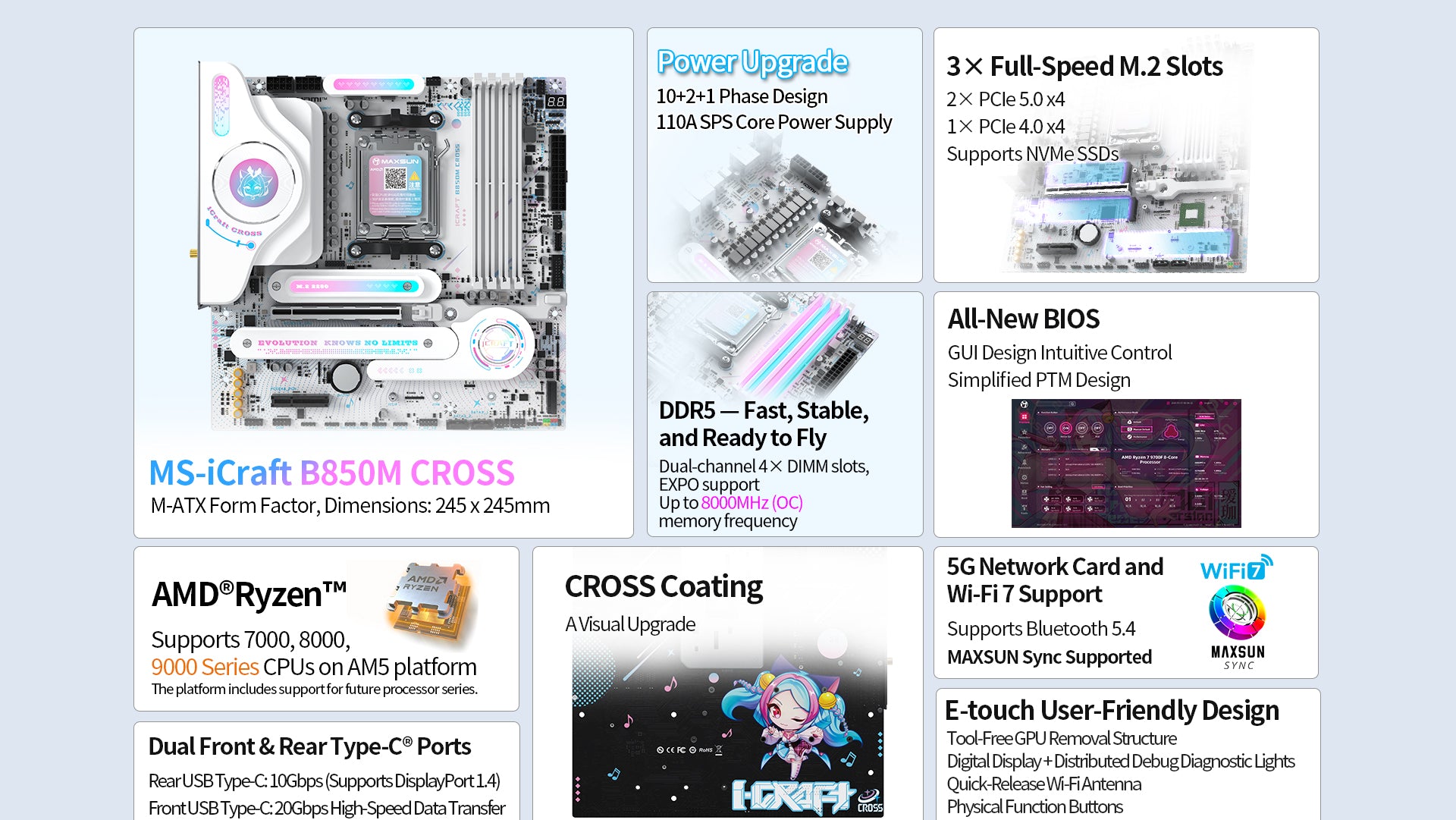

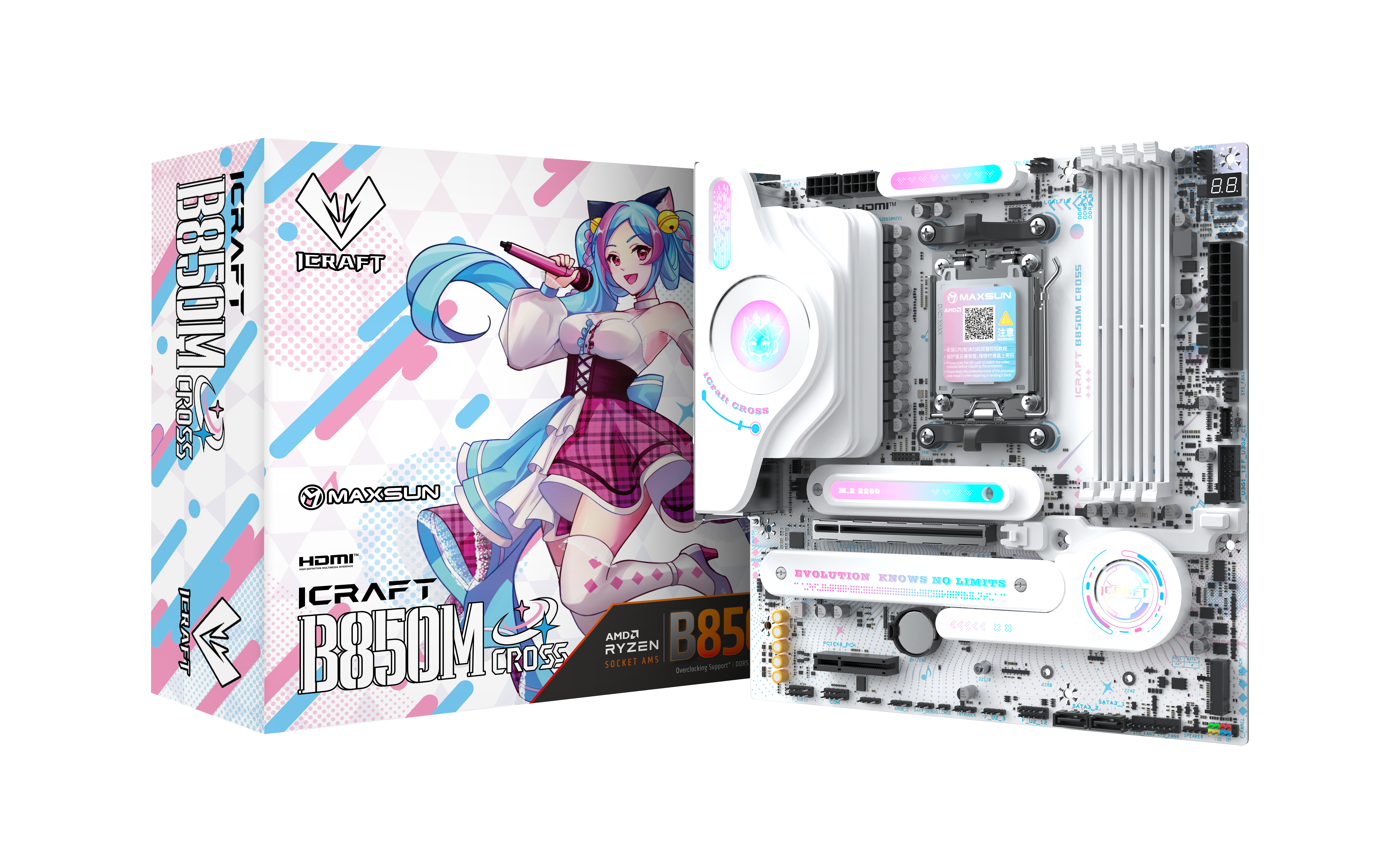

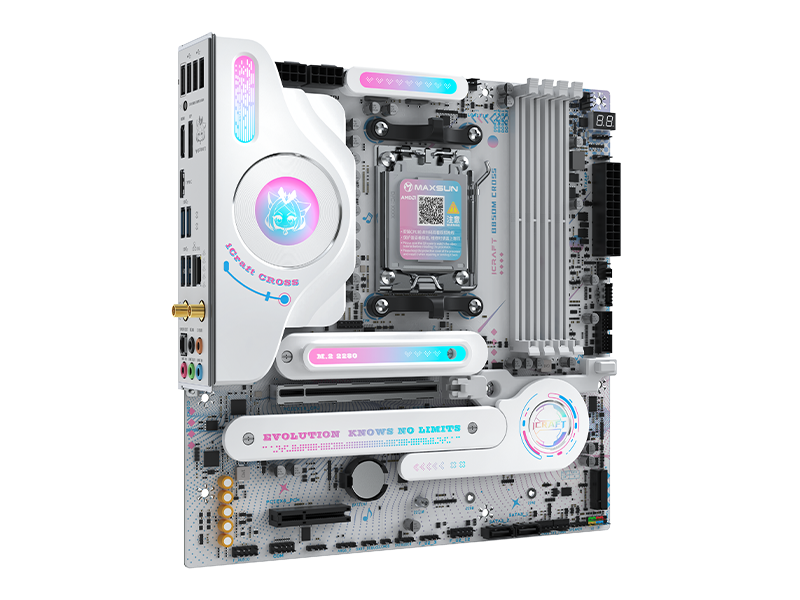

MS-iCraft B850M CROSS

• Model
• MS-iCraft B850M CROSS

• Form Factor
• M-ATX (245 × 245 mm)

• CPU Support
• AMD® AM5 socket
  Compatible with AMD® Ryzen™ 7000 / 8000 / 9000 Series processors

• Chipset
• AMD® B850 chipset

• Memory
• 4 × DDR5 DIMM slots, up to 256GB
  Dual-channel memory
  Supports AMD® EXPO
  8000(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200(OC) / 4800 MHz

• Graphics Output
• 1 × HDMI™ 2.0 (up to 4K @ 60Hz)
  1 × DisplayPort 1.4 (up to 4K @ 60Hz)

• Expansion Slots
• 1 × PCIe 5.0 x16 armored slot
  1 × PCIe 4.0 x4 slot

• Storage
• M.2_A: PCIe 5.0 x4, 2242/2280
  M.2_B: PCIe 5.0 x4, 2242/2280/22110
  M.2_C: PCIe 4.0 x4/x2, 2242/2280/22110
  2 × SATA 6Gb/s

• Networking
• Realtek RTL8126 5Gb Ethernet
  MediaTek MT7925 Wi-Fi 7 & Bluetooth® 5.4

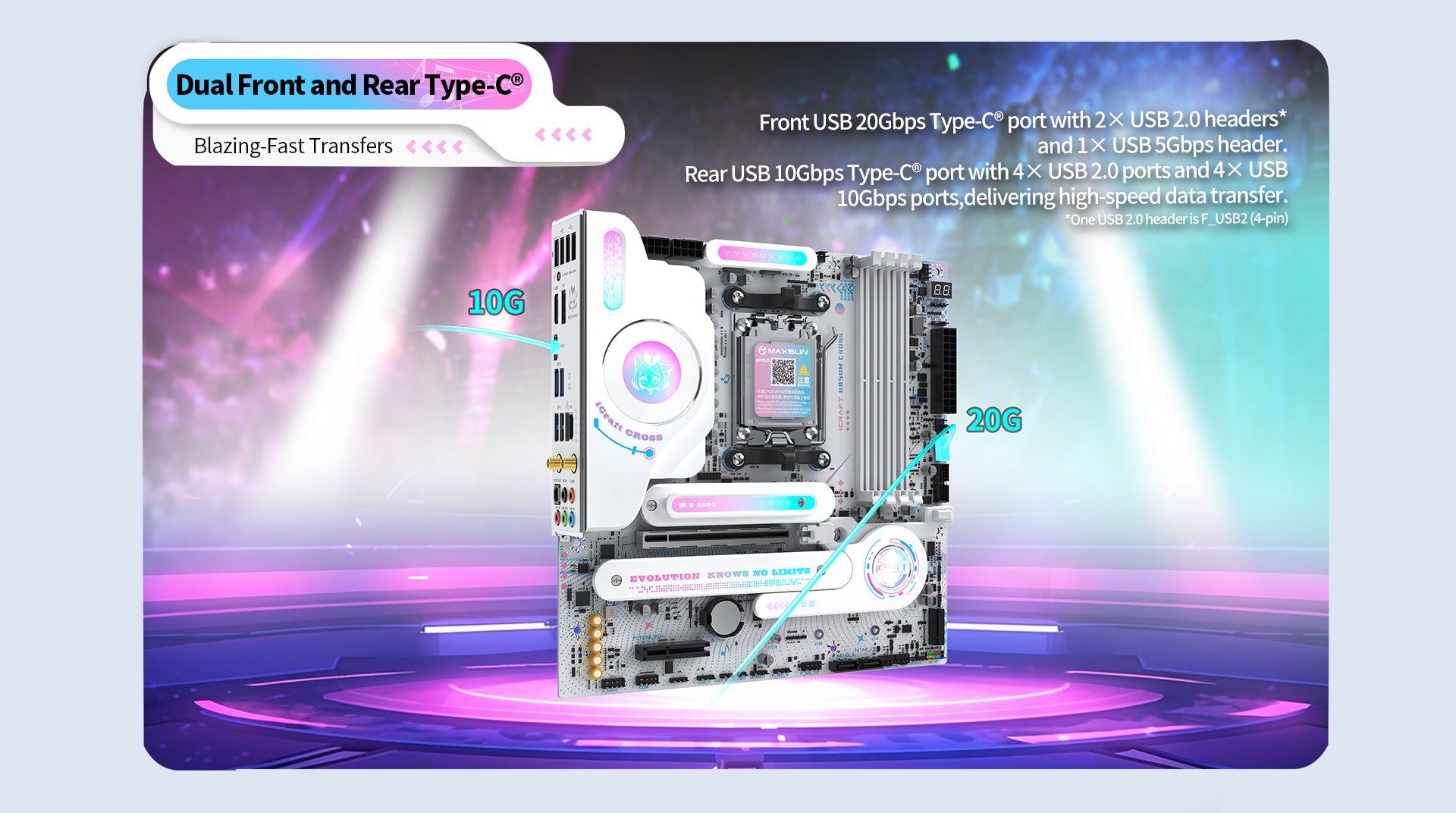

• USB
• Onboard: front USB 20Gbps Type-C, 2 × USB 5Gbps, 3 × USB 2.0

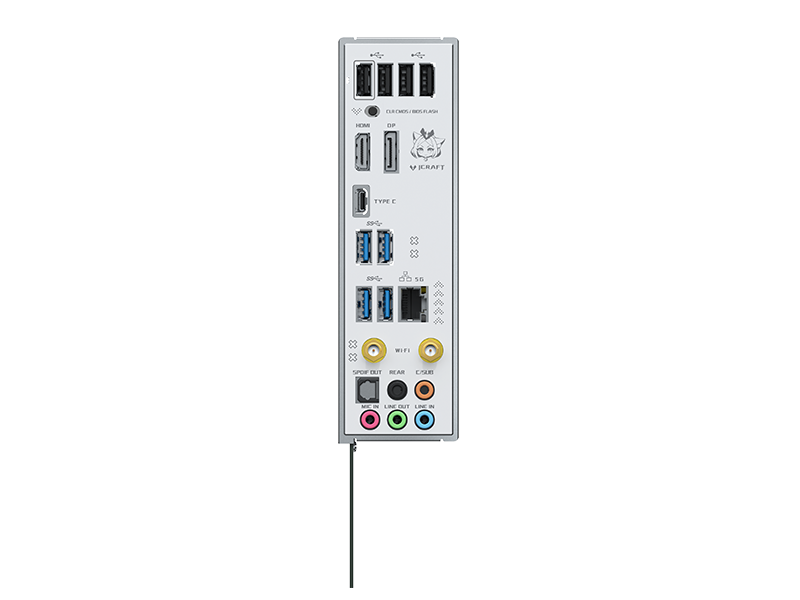

  Rear: 1 × USB 10Gbps Type-C with DP 1.4, 4 × USB 10Gbps Type-A, 4 × USB 2.0 Type-A

• Audio
• Realtek ALC1220 HD Audio Codec

• Internal Connectors
• 1 × 24-pin ATX power
  2 × 8-pin +12V CPU power
  1 × CPU_FAN, 1 × PUMP, 4 × SYS_FAN
  2 × 5V 3-pin ARGB, 1 × 12V 4-pin RGB
  COM and CLR_CMOS headers
