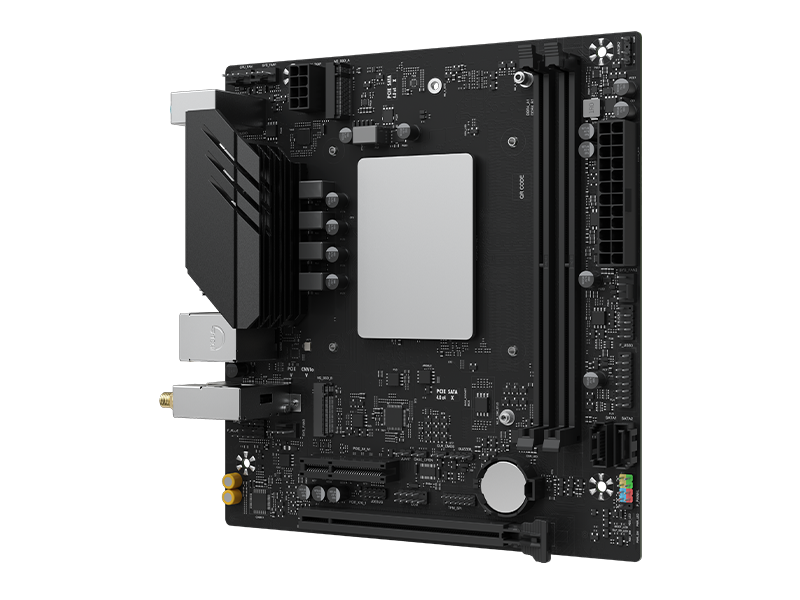

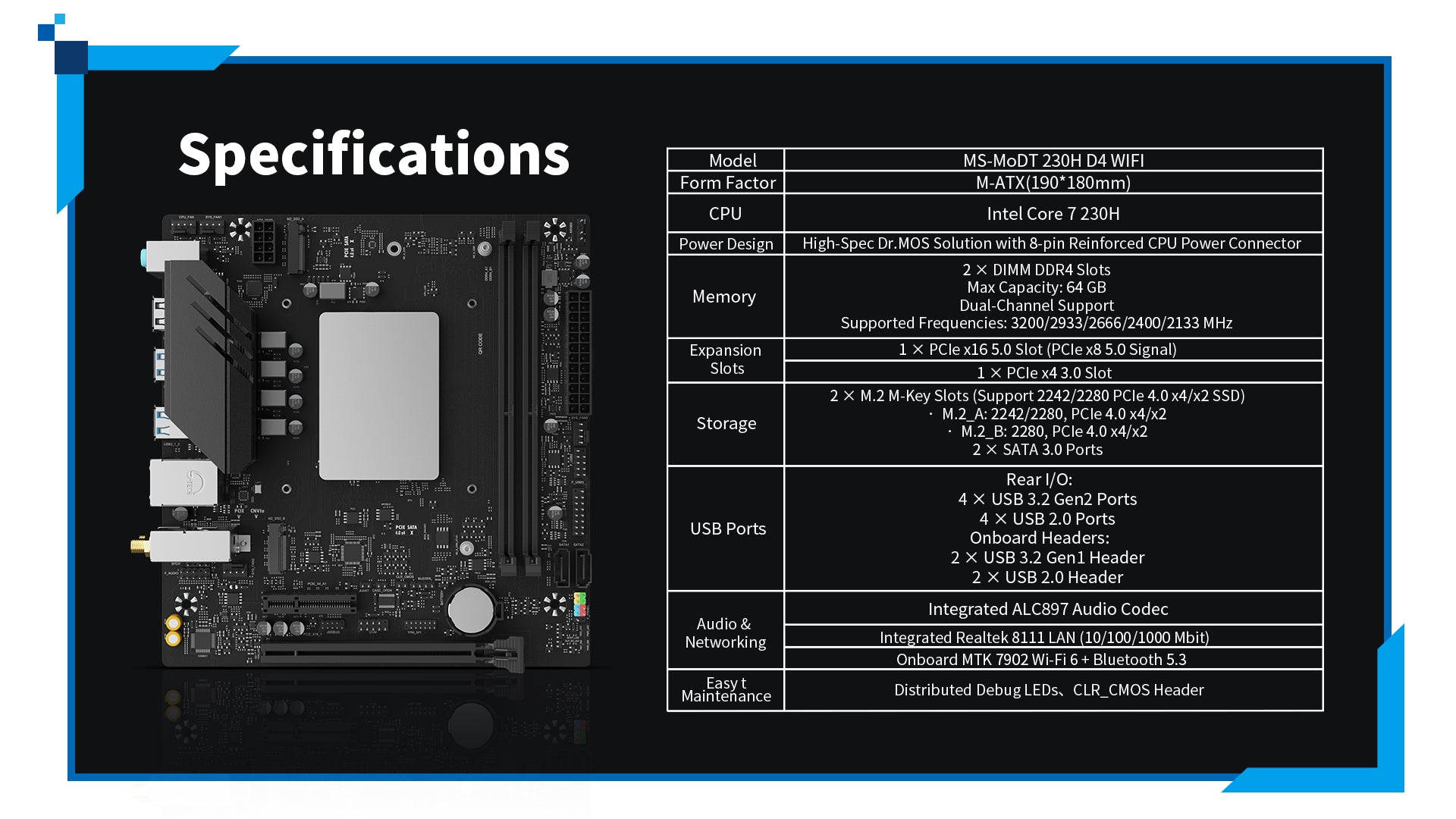

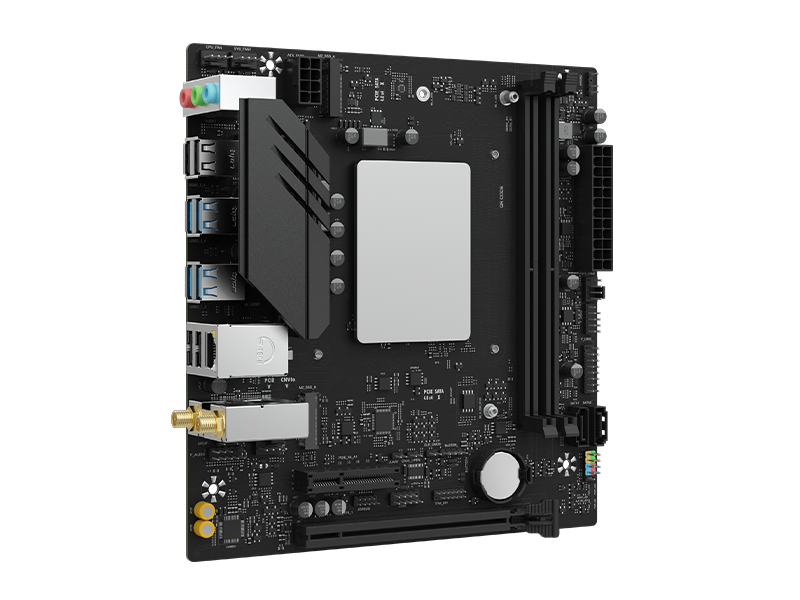

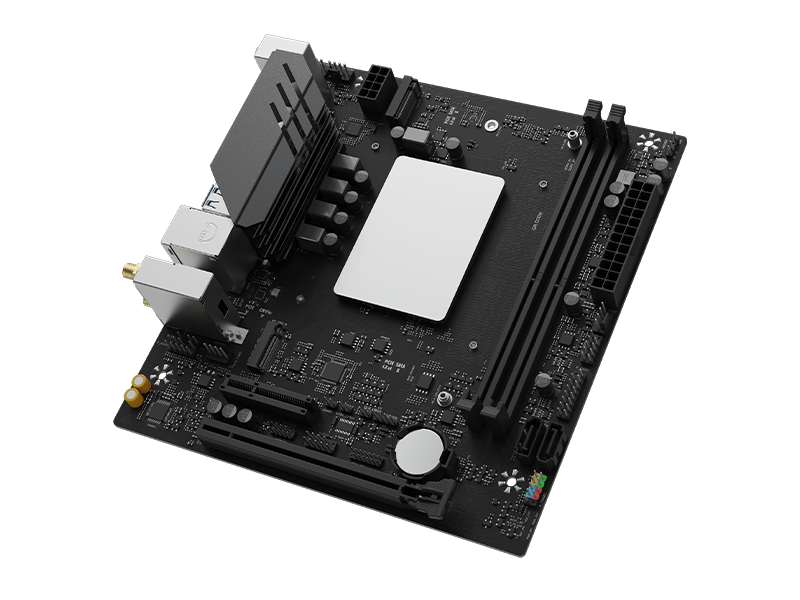

MS-MoDT 230H D4 WIFI

• Model
• MS-MoDT 230H D4 WIFI

• Form Factor
• M-ATX

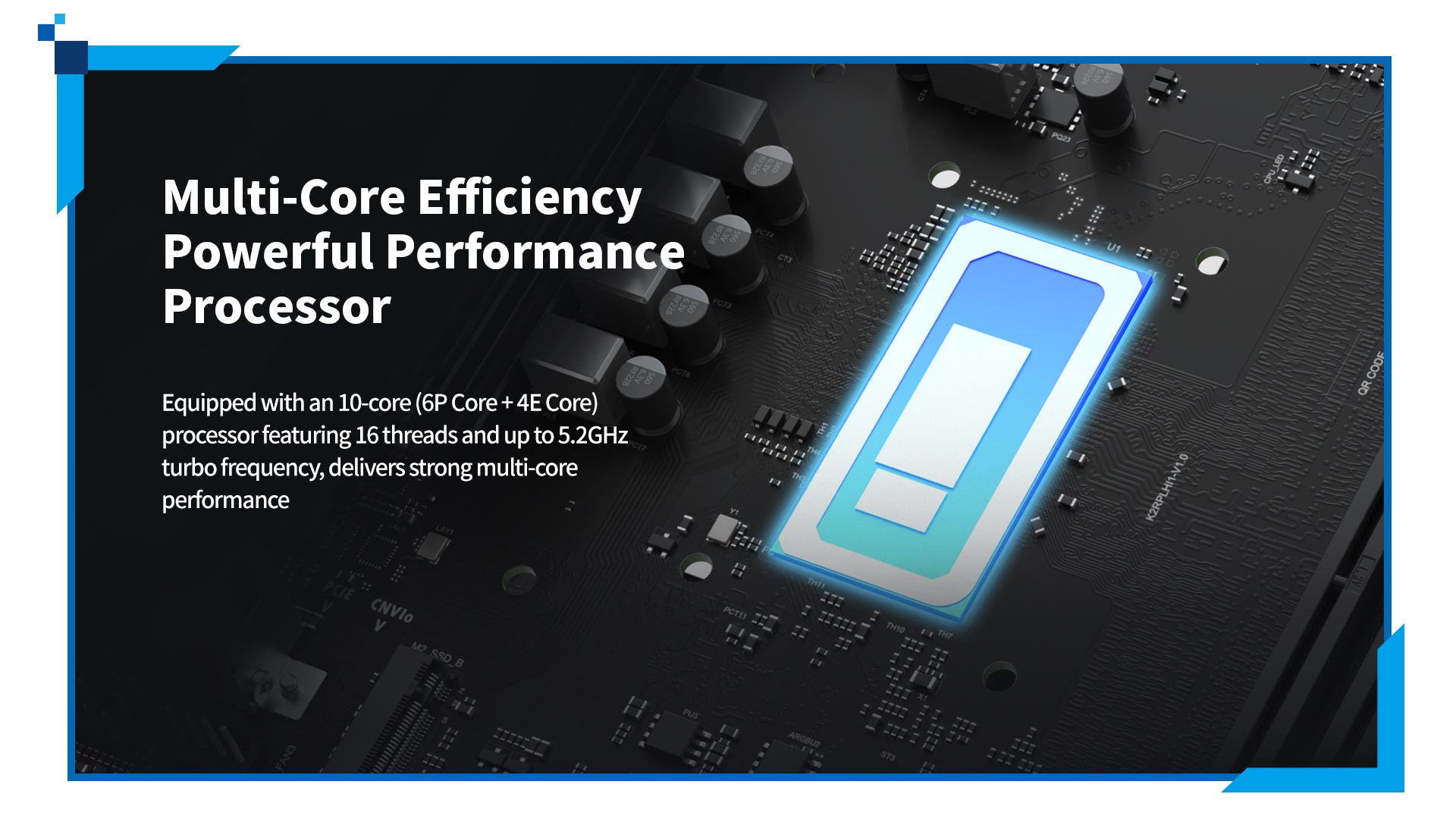

• Processor
• Integrated Intel® Core™ 7 230H

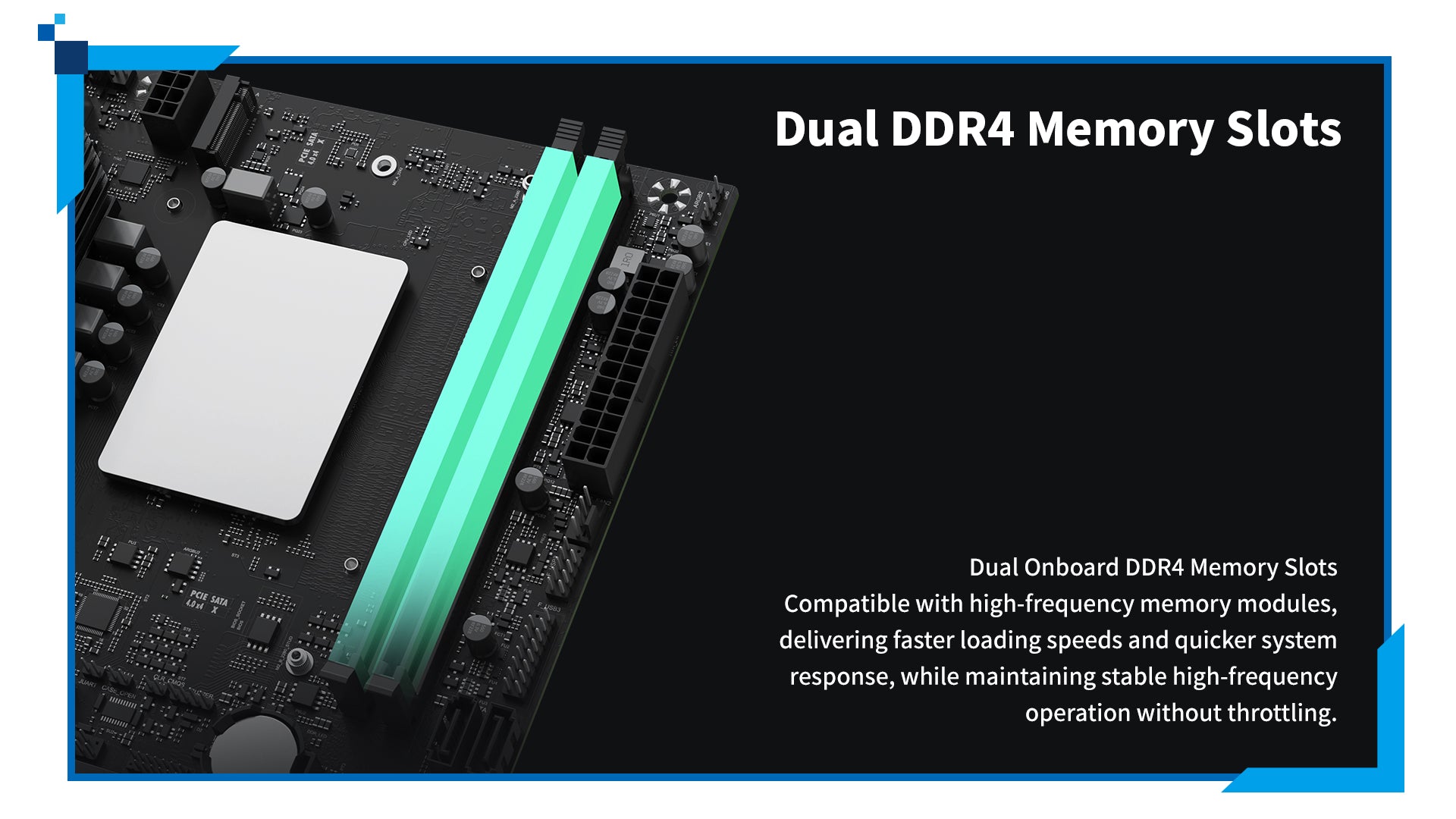

• Memory
• 2 × DDR4 DIMM slots, up to 64GB
  Dual-channel memory
  3200 / 2933 / 2666 / 2400 / 2133 MHz

• Networking

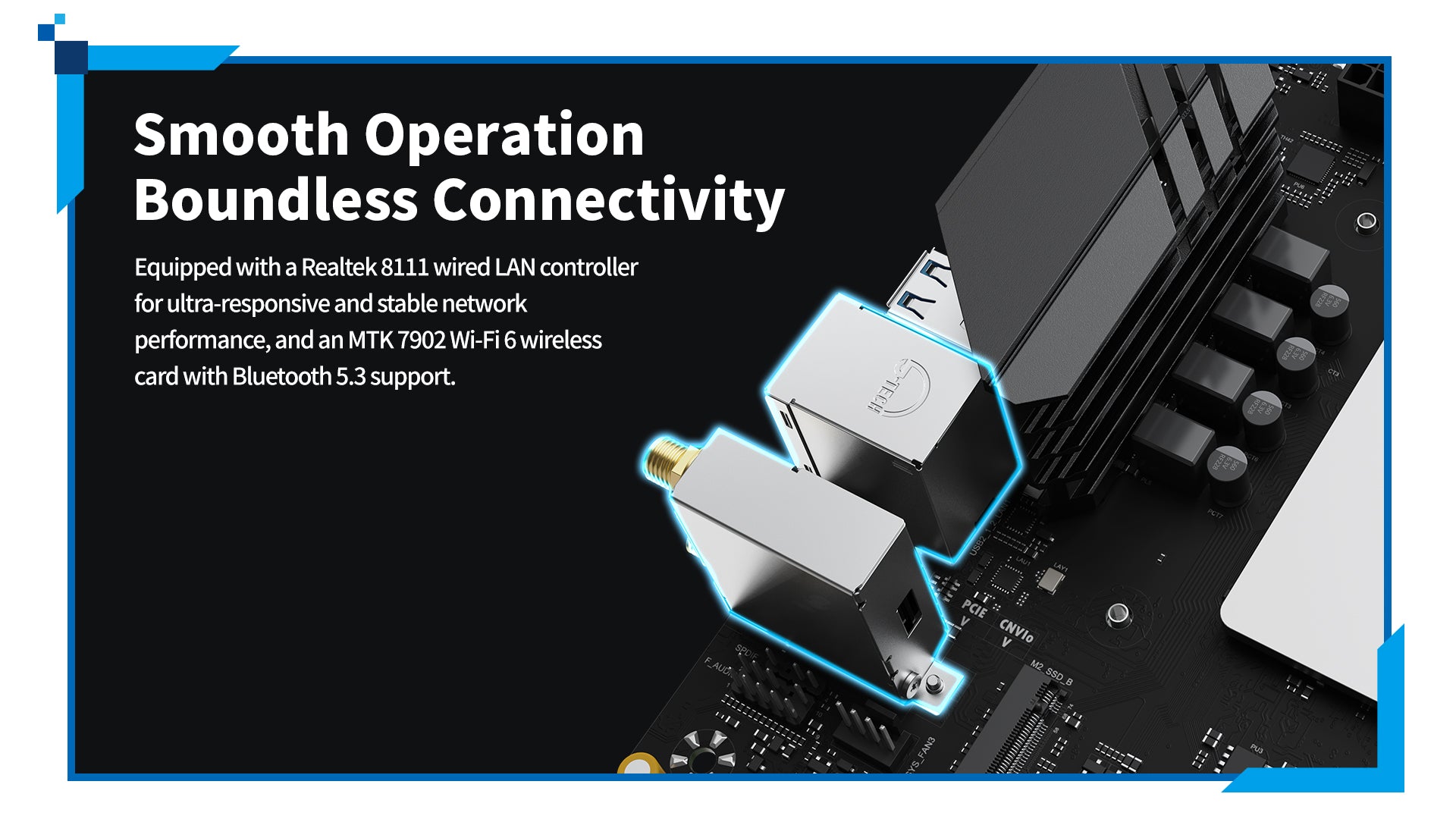

• Realtek RTL8111 Gigabit Ethernet
  MediaTek MT7902 Wi-Fi 6 & Bluetooth® 5.3

• Storage
• 2 × SATA 6Gb/s
  2 × M.2 M-Key PCIe x4/x2 slots (2242/2280)

• Expansion Slots

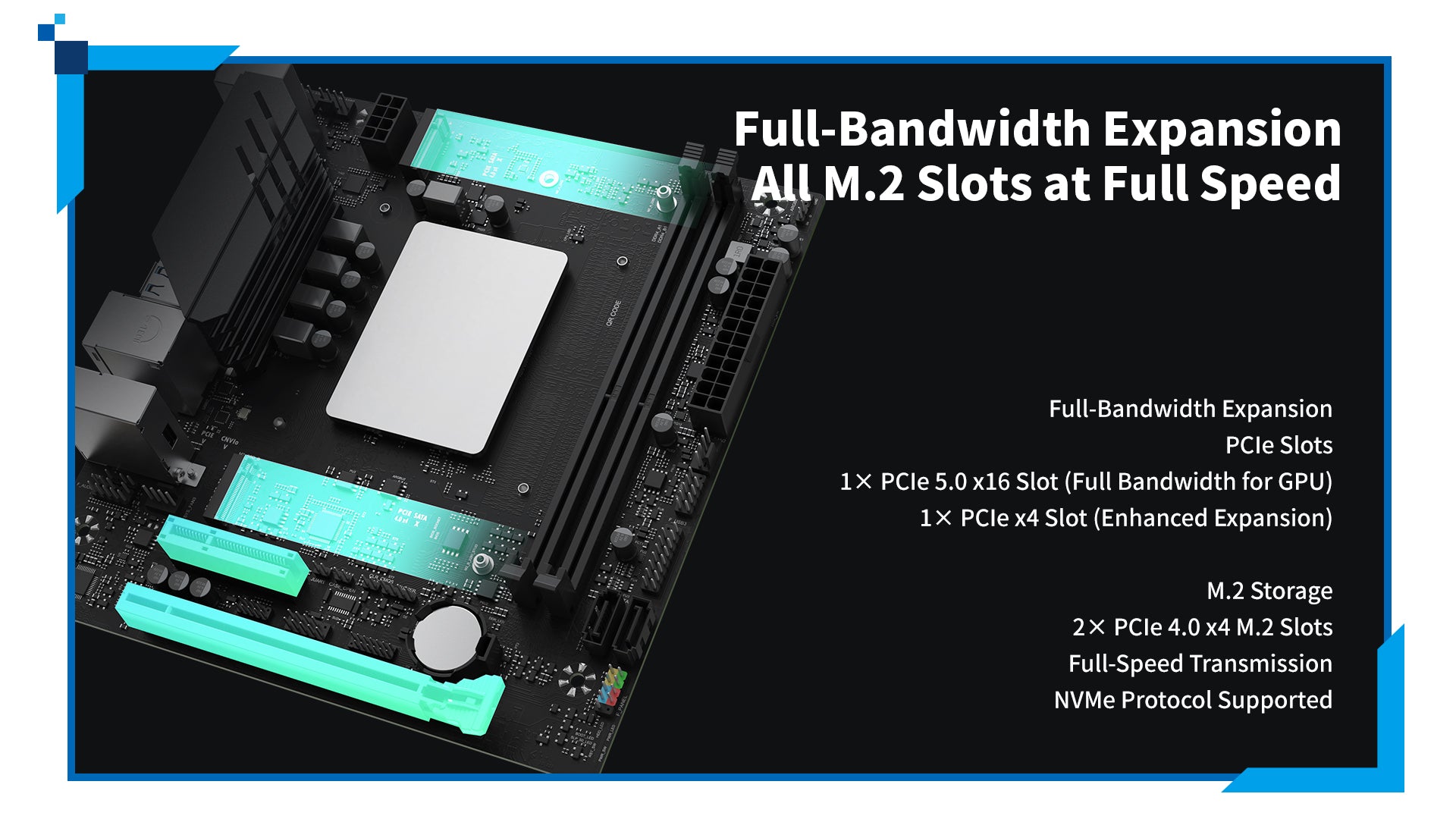

• 1 × PCIe 5.0 x16 slot (x8 signal)
  1 × PCIe 3.0 x4 slot

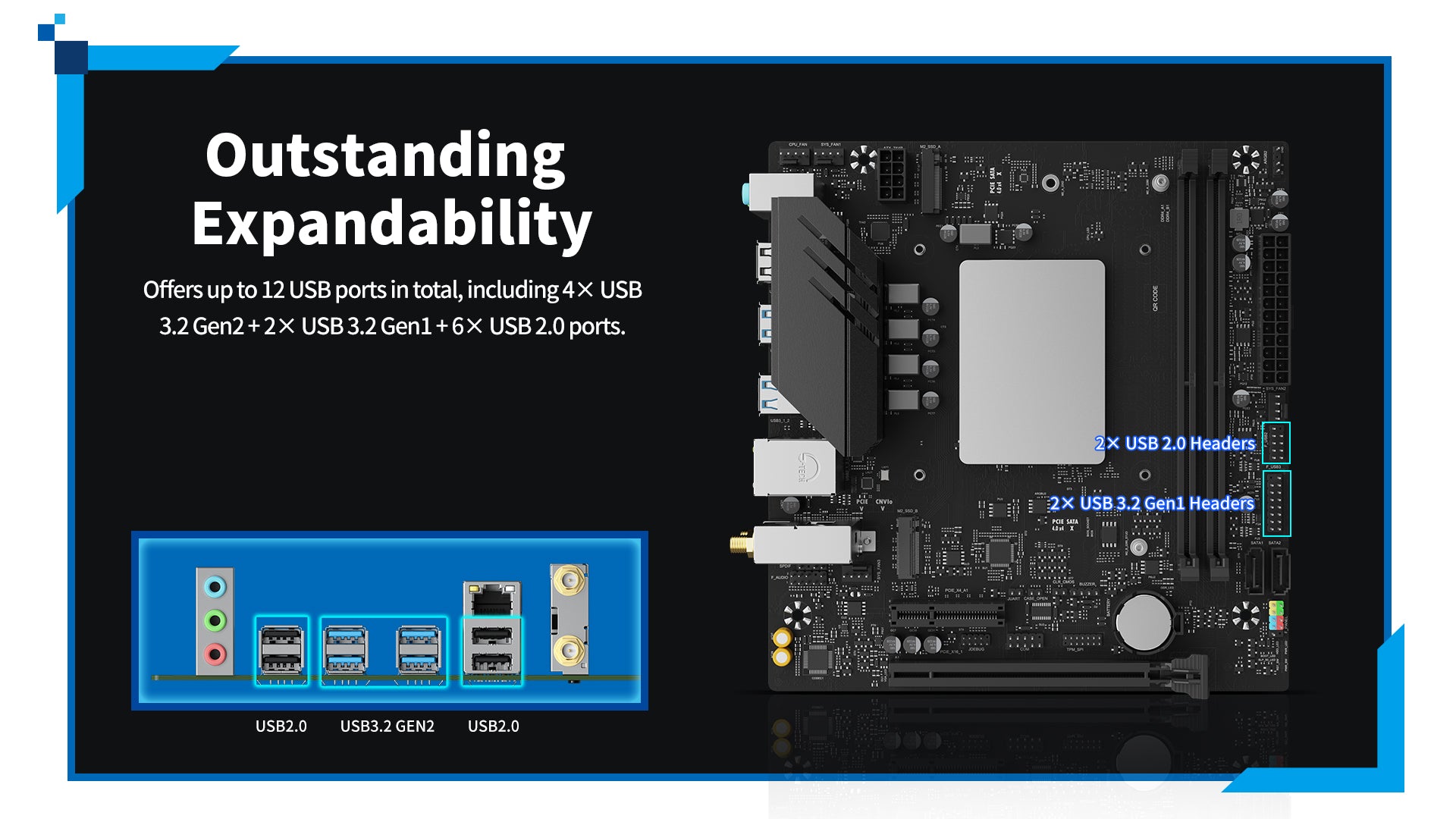

• USB
• Rear: 4 × USB 3.2 Gen2, 4 × USB 2.0
  Internal: 2 × USB 3.2 Gen1, 2 × USB 2.0

• Audio
• Realtek ALC897 HD Audio Codec

• Power Connectors
• 24-pin ATX + 8-pin CPU power

• Accessories
• User manual
  SATA data cable
