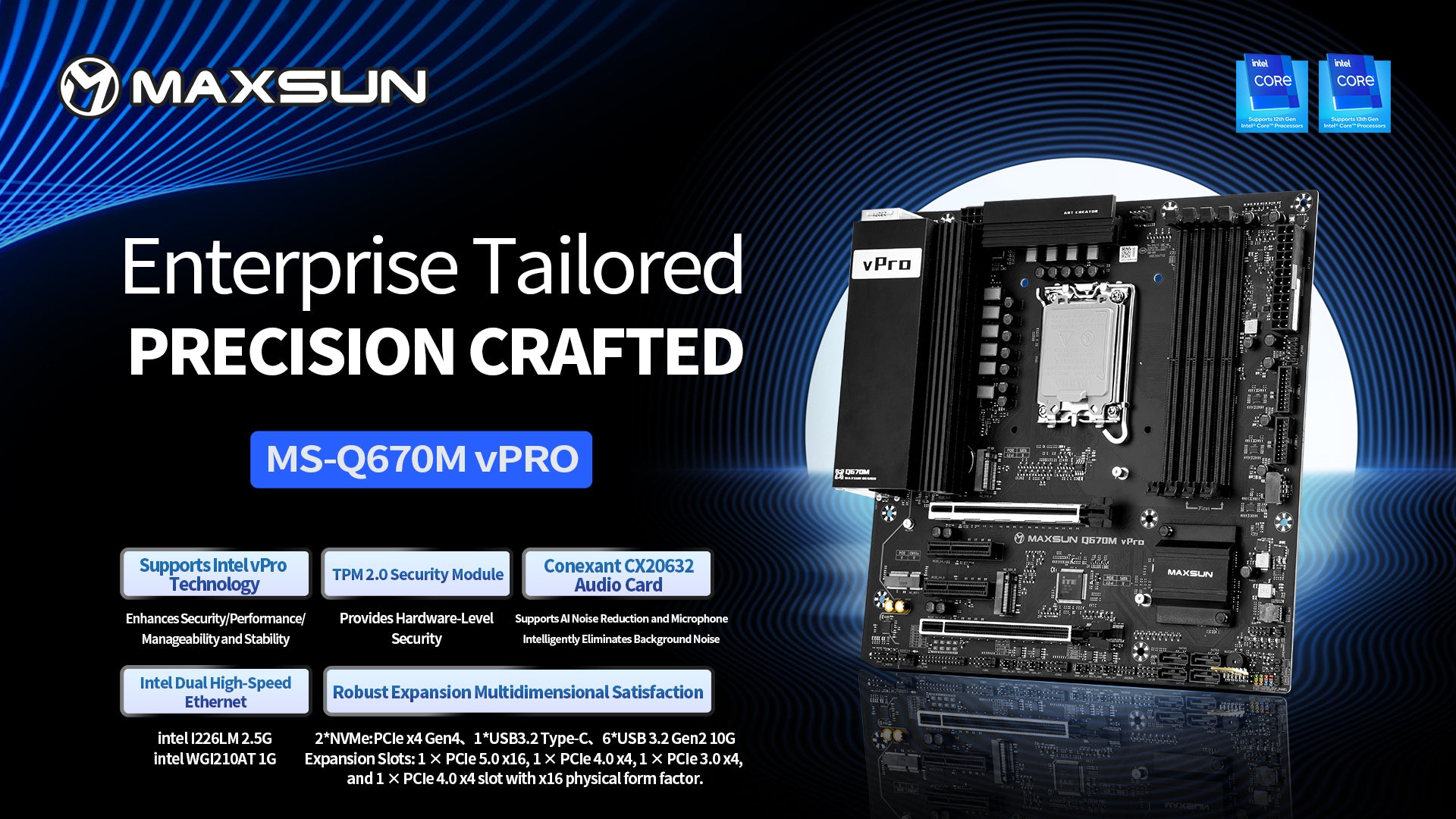

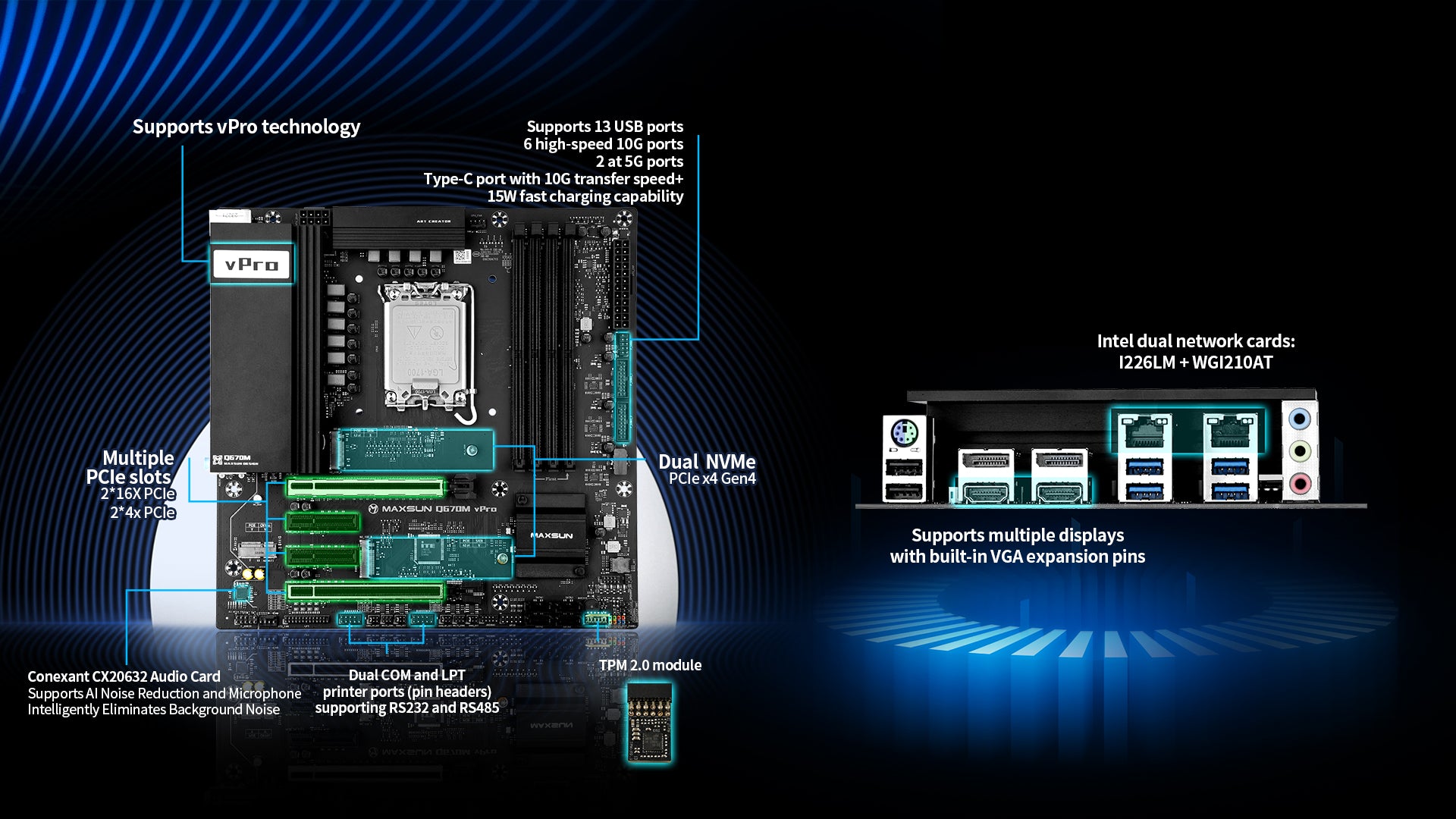

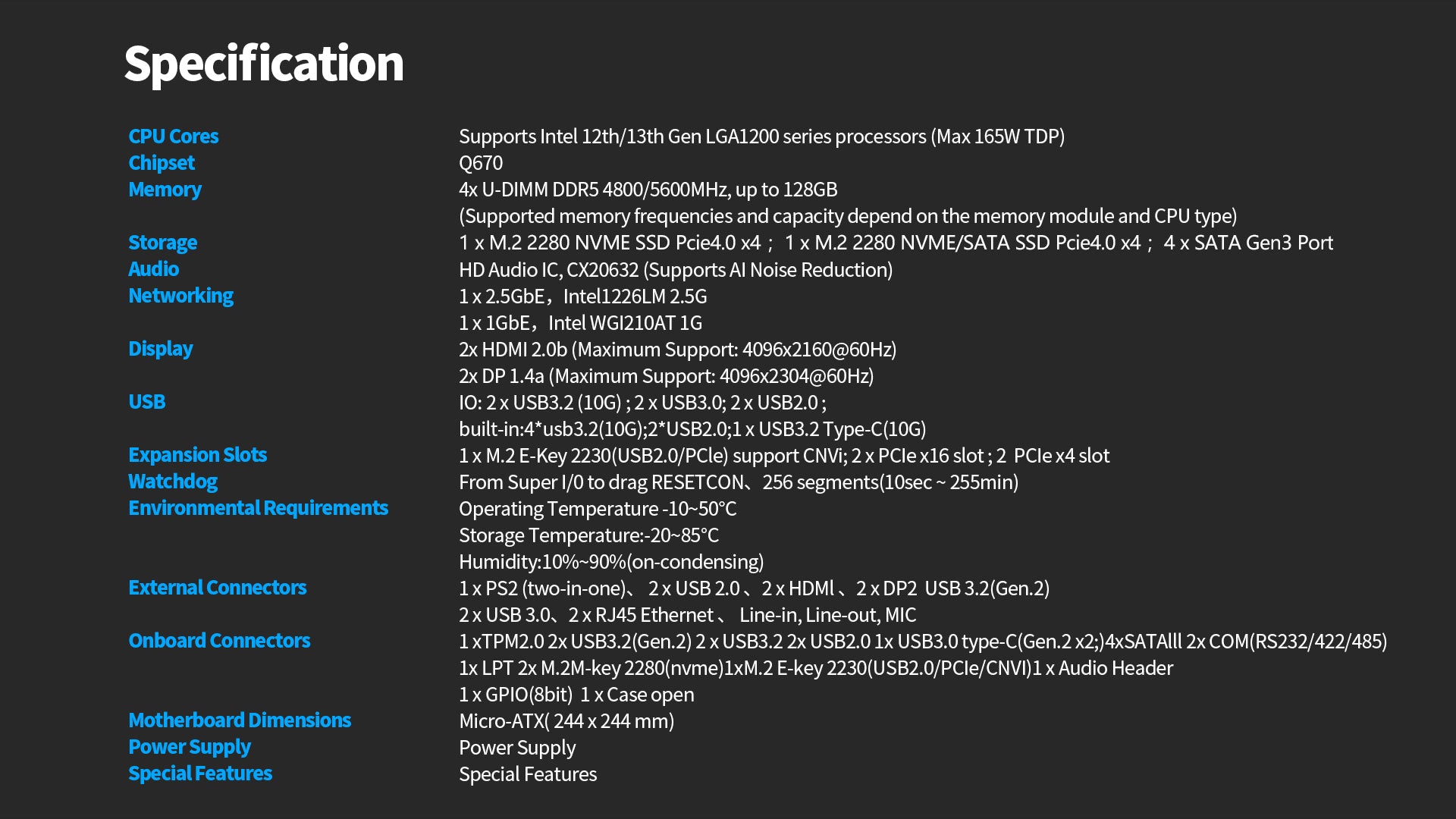

MS-Q670M vPro

• Model
• MS-Q670M vPro

• Form Factor
• Micro-ATX

• Chipset
• Intel Q670

• Processor Support
• Intel LGA1700 socket; 12th, 13th and 14th Gen Intel Core processors

• Memory
• 4× DDR5 DIMM slots

• Display Outputs
• 2× HDMI 2.0b, up to 4096×2160 at 60Hz
  2× DisplayPort 1.4a, up to 4096×2304 at 60Hz

• Expansion Slots
• 1× PCIe 5.0 x16
  1× PCIe 4.0 x4 in x16 slot
  1× PCIe 4.0 x4
  1× PCIe 3.0 x4

• Storage
• 2× M.2 2280 PCIe x4
  4× SATA 6Gb/s

• Audio
• Conexant CX20632 HD audio with AI noise reduction

• Network
• Intel I226-LM 2.5Gb Ethernet
  Intel WGI210AT Gigabit Ethernet

• USB
• Rear: 2× USB 10Gbps, 2× USB 5Gbps, 2× USB 2.0
  Internal: 4× USB 10Gbps, 2× USB 2.0, front USB-C 10Gbps

• Power Connectors
• 1× 24-pin ATX
  2× 8-pin ATX 12V

• Enterprise Features
• Intel vPro support; TPM 2.0 header
