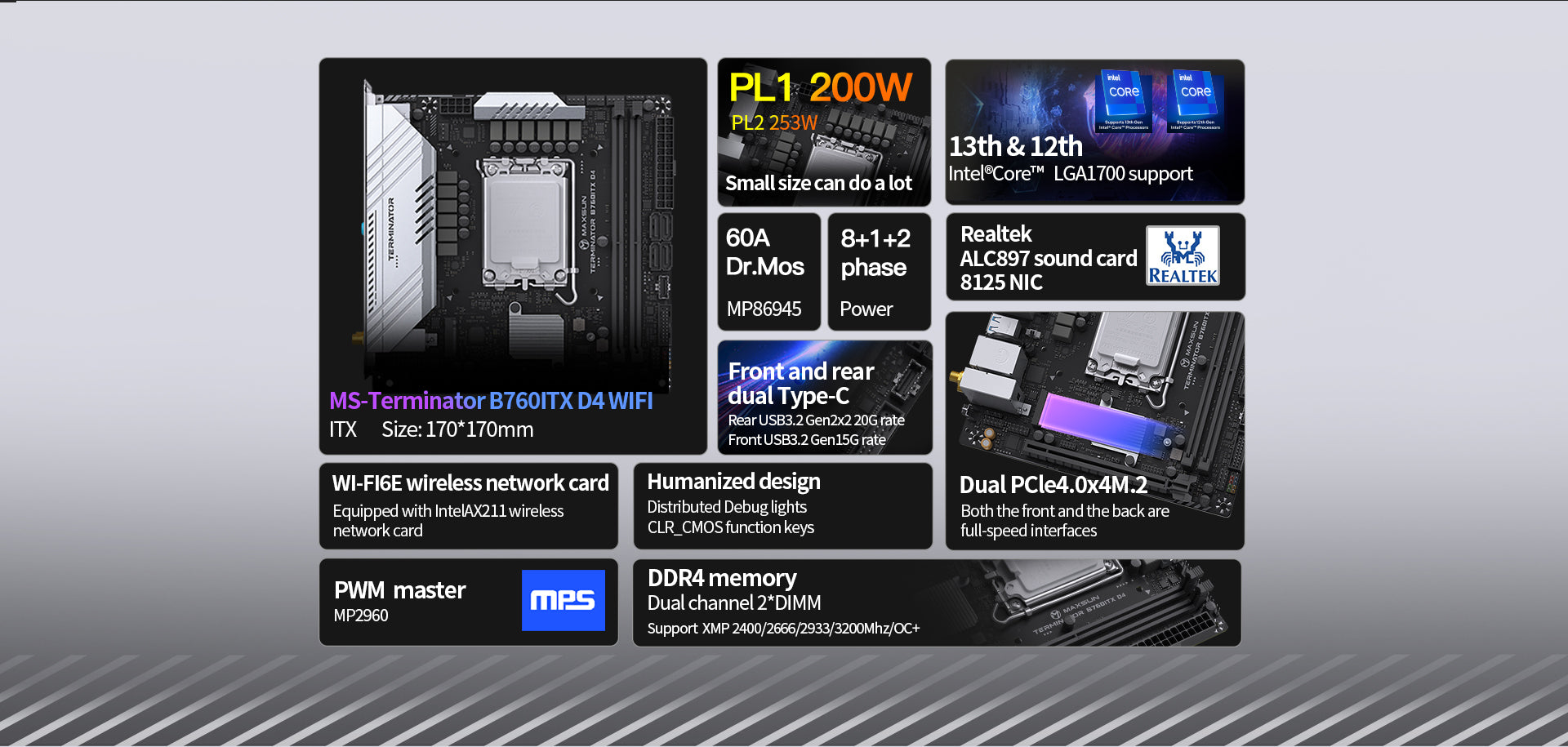

Terminator B760ITX D4 WIFI

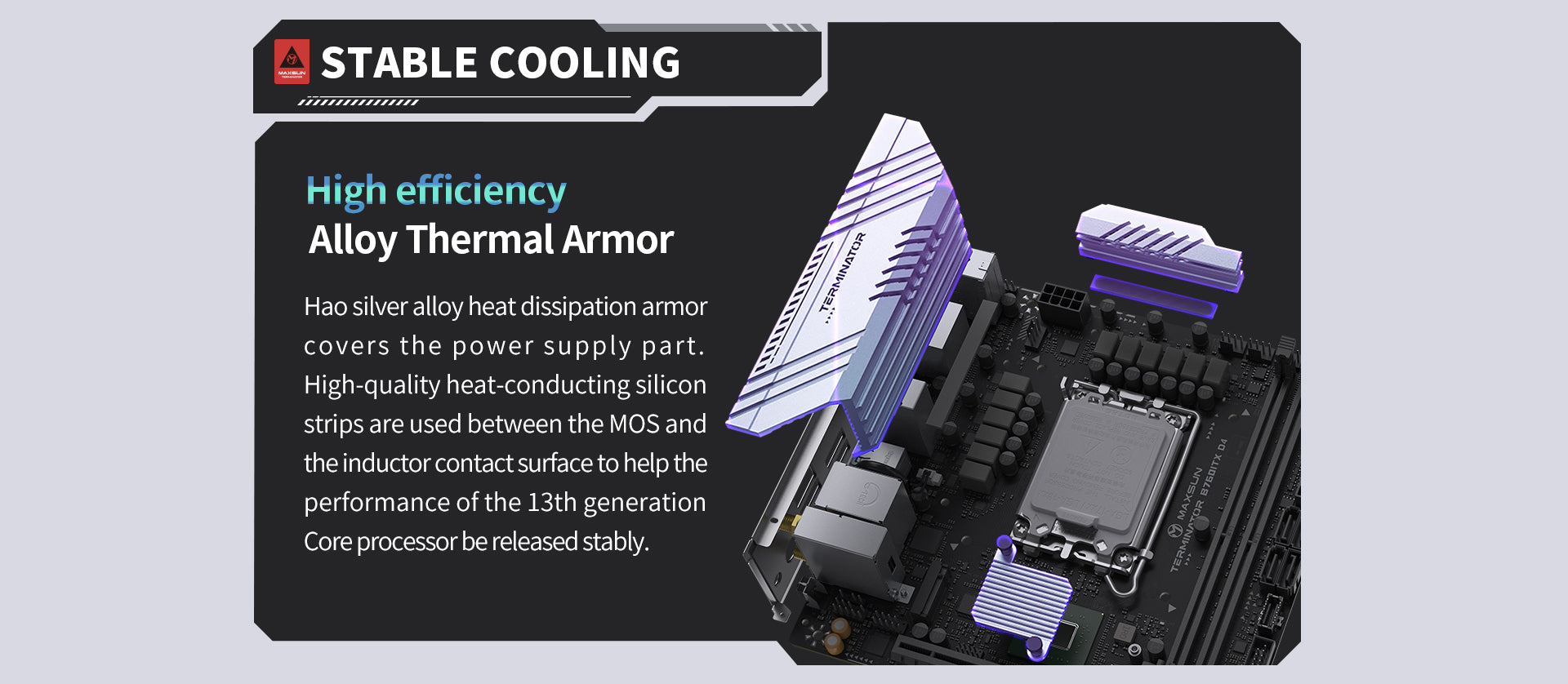

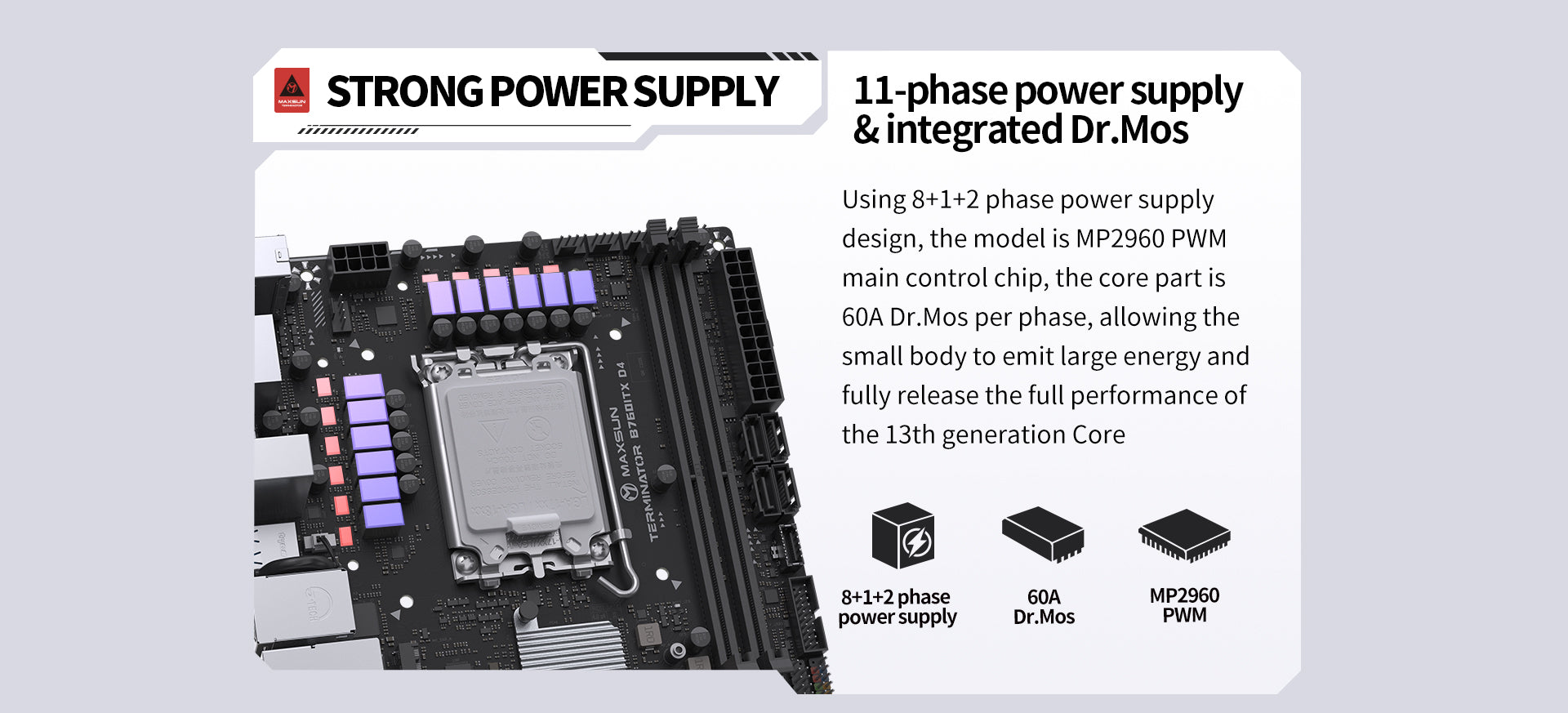

  • 8+1+2 power supply
  • Core 60A Dr. Mos
  • Dual Type-C front and rear

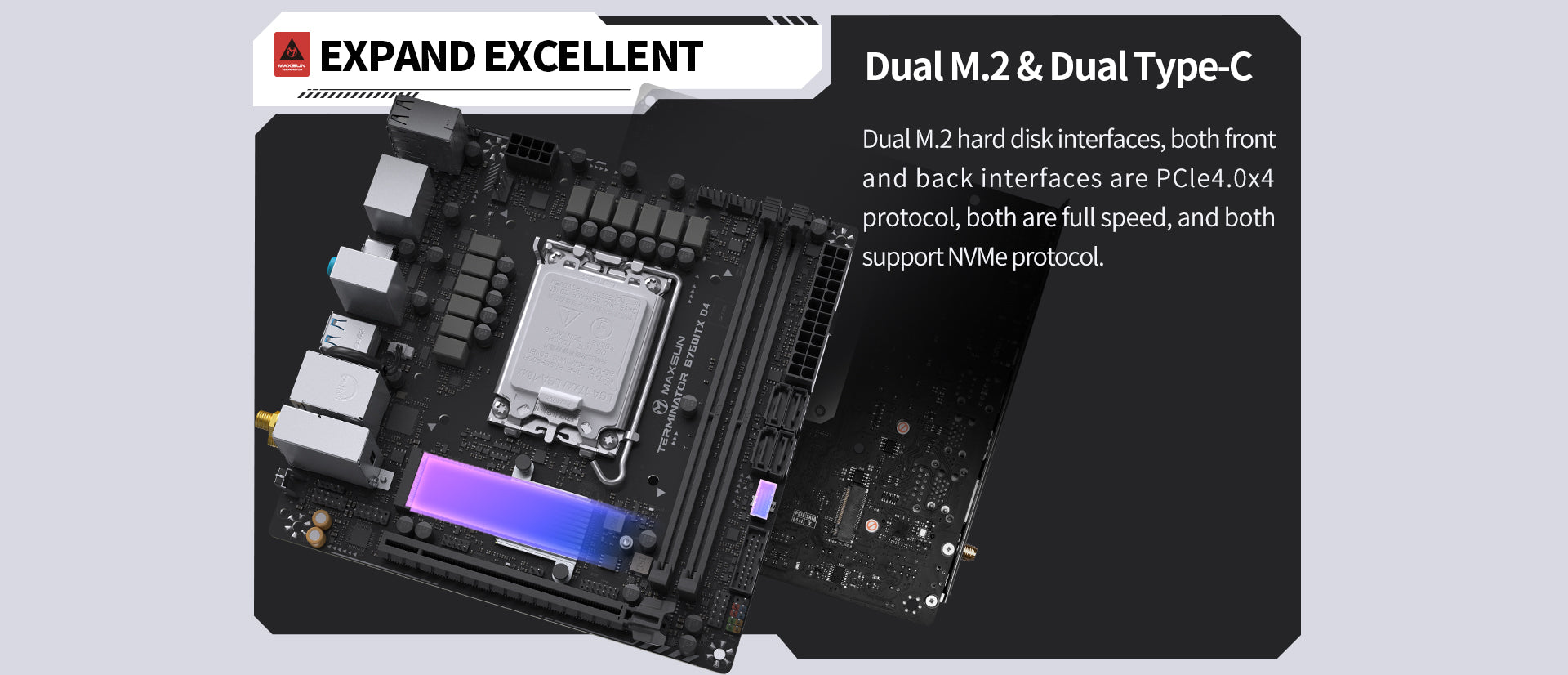

  • Dual M.2 hard drive interface
  • 2.5G & WIFI6E network port
Overview
Specification
Support

  • CHIPSET
  • INTEL B760
  • CPU
  • Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
    LGA 1700
  • MEMORY
  • 2x DDR4, Maximum Memory Capacity 64GB
    Memory Support DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz
    Supports Intel® XMP 2.0 OC
    Supports Dual-Controller Dual-Channel mode
  • ONBOARD GRAPHICS
  • 1x DisplayPort 1.4
    1x HDMI™port
    *HDMI™ port supports up to 4K@30Hz
    *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • EXPANSION SLOT
  • 1x PCIe 5.0 x16 slot
  • STORAGE
  • M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
  • RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB
  • *Front USB (Total 5 ports)
    1x USB 3.2 Gen1 Type C
    2x USB 3.2 Gen1 Type A
    2x USB 2.0
    *Rear USB (Total 9 ports)
    1x USB 3.2 Gen1 Type C
    4x USB 3.2 Gen1 Type A
    4x USB 2.0
  • LAN

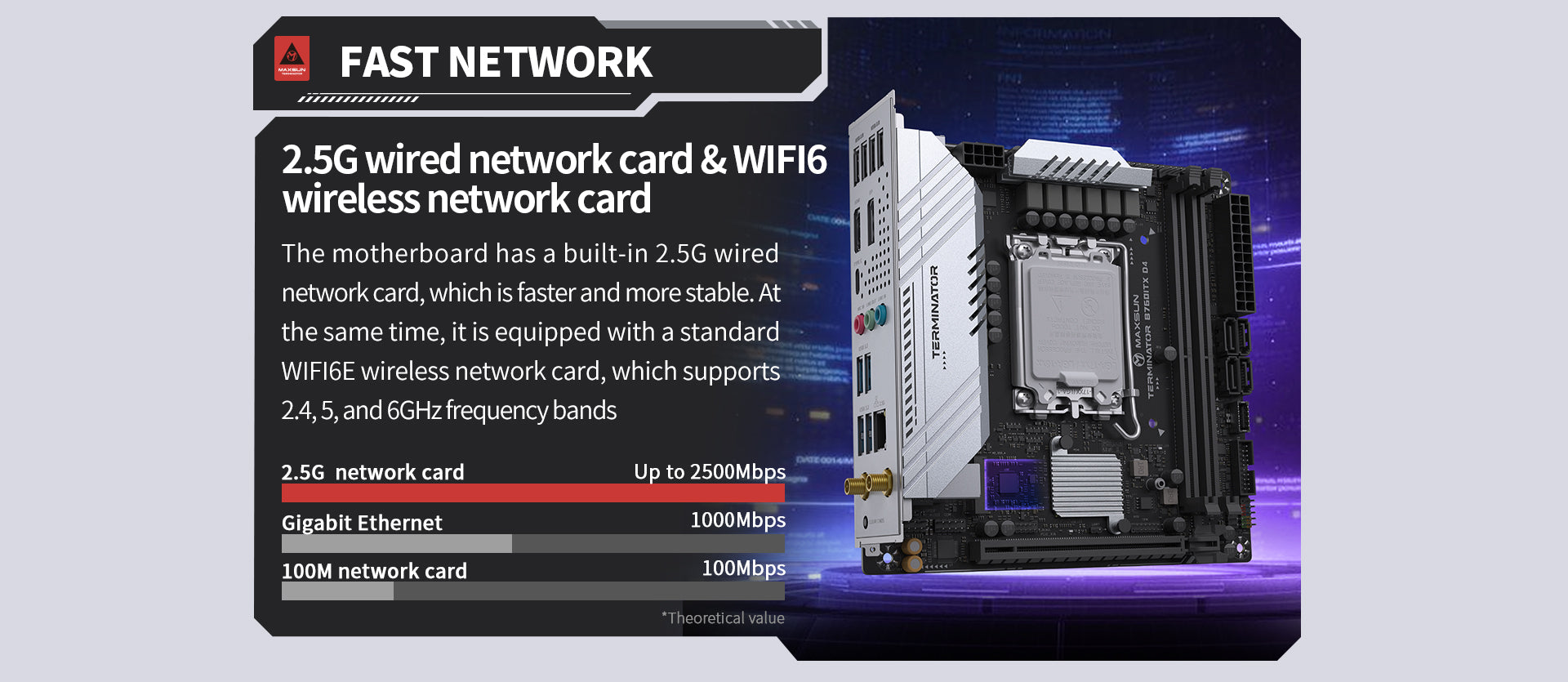

  • Realtek® RTL8125BG 2.5G LAN
  • WIRELESS / BLUETOOTH
  • Intel® Wi-Fi 6E AX211
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax
    Supports Bluetooth® 5.3
  • AUDIO
  • Realtek® ALC897 Codec
    5.1-Channel High Definition Audio
  • INTERNAL I/O
  • 1x 24-pin Power Connector(ATX_PWR)
    1x 8-pin Power Connector(CPU_PWR)
    1x CPU Fan
    1x PUMP Fan
    2x System Fan
    2 x M.2 slots (Key-M)
    4x SATA 6Gb/s ports
    1x CLR_CMOS
    1x 4-Pin BUZZER
    1x Front Audio
    1x COM Port
    1x 9-Pin JDEBUG
    1x TPM pin header(Support TPM 2.0)
    1x 3-Pin SPDIF
  • LED FEATURE

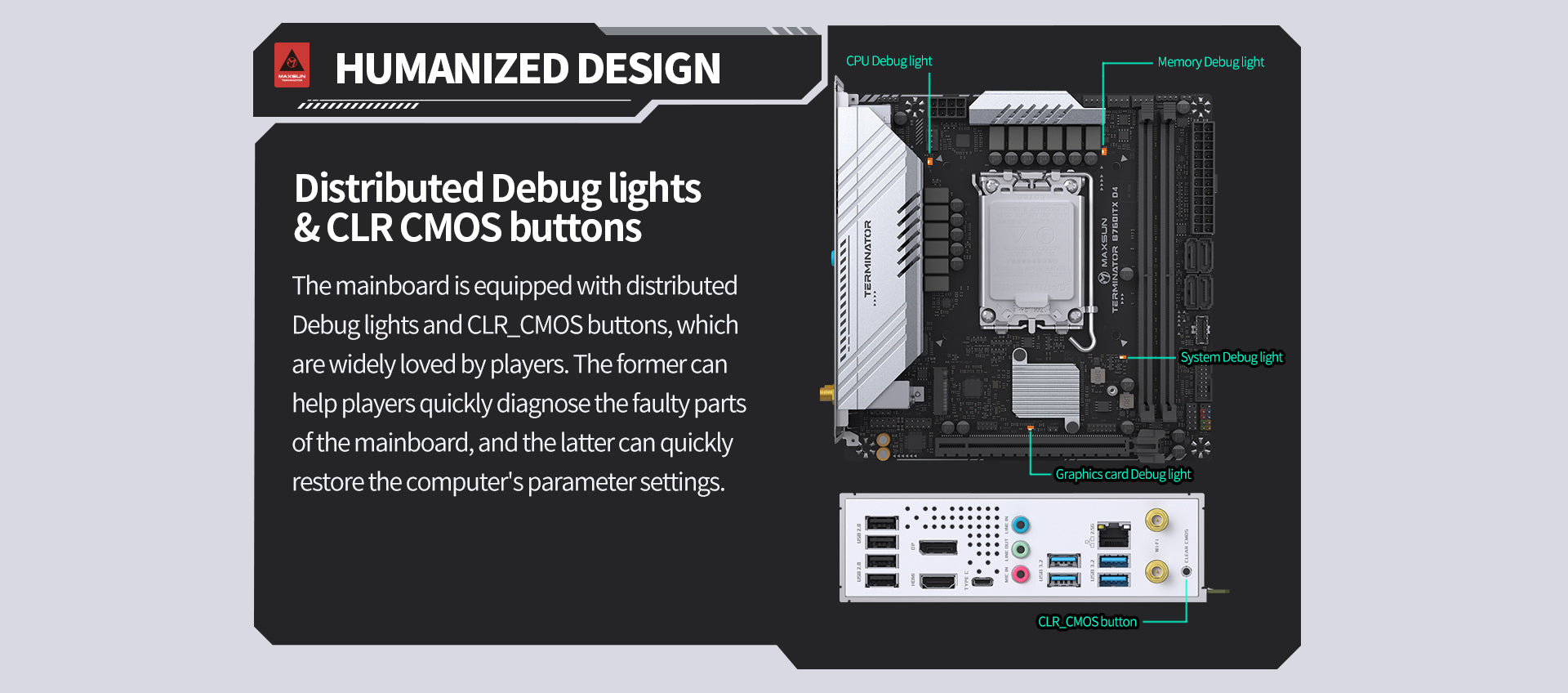

  • 4x Distributed Debug LED
  • OPERATING SYSTEM
  • Support for Windows® 11 64-bit, Windows® 10 64-bit
  • FORM FACTOR
  • ITX
    170mm x 170mm
