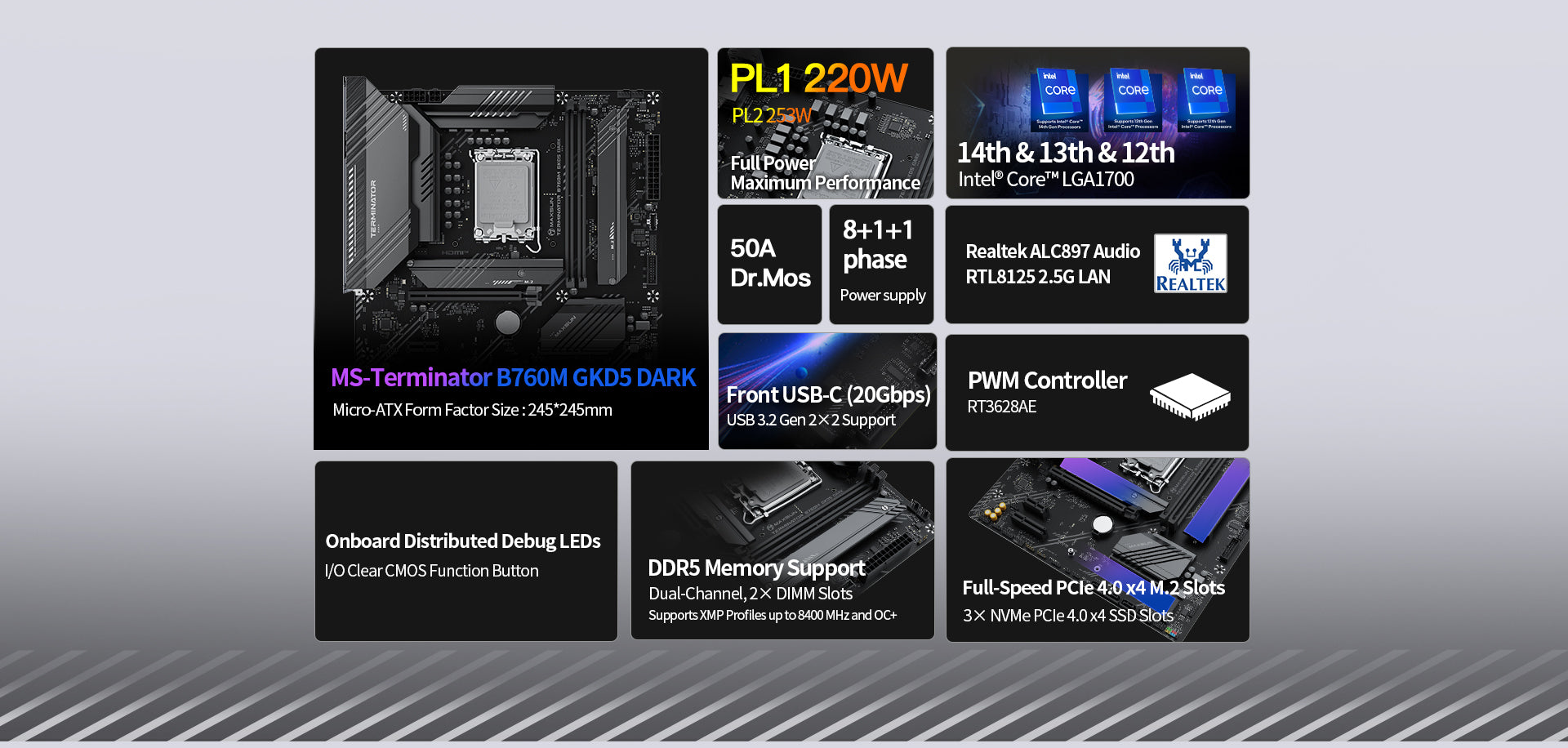

Terminator B760M GKD5 DARK

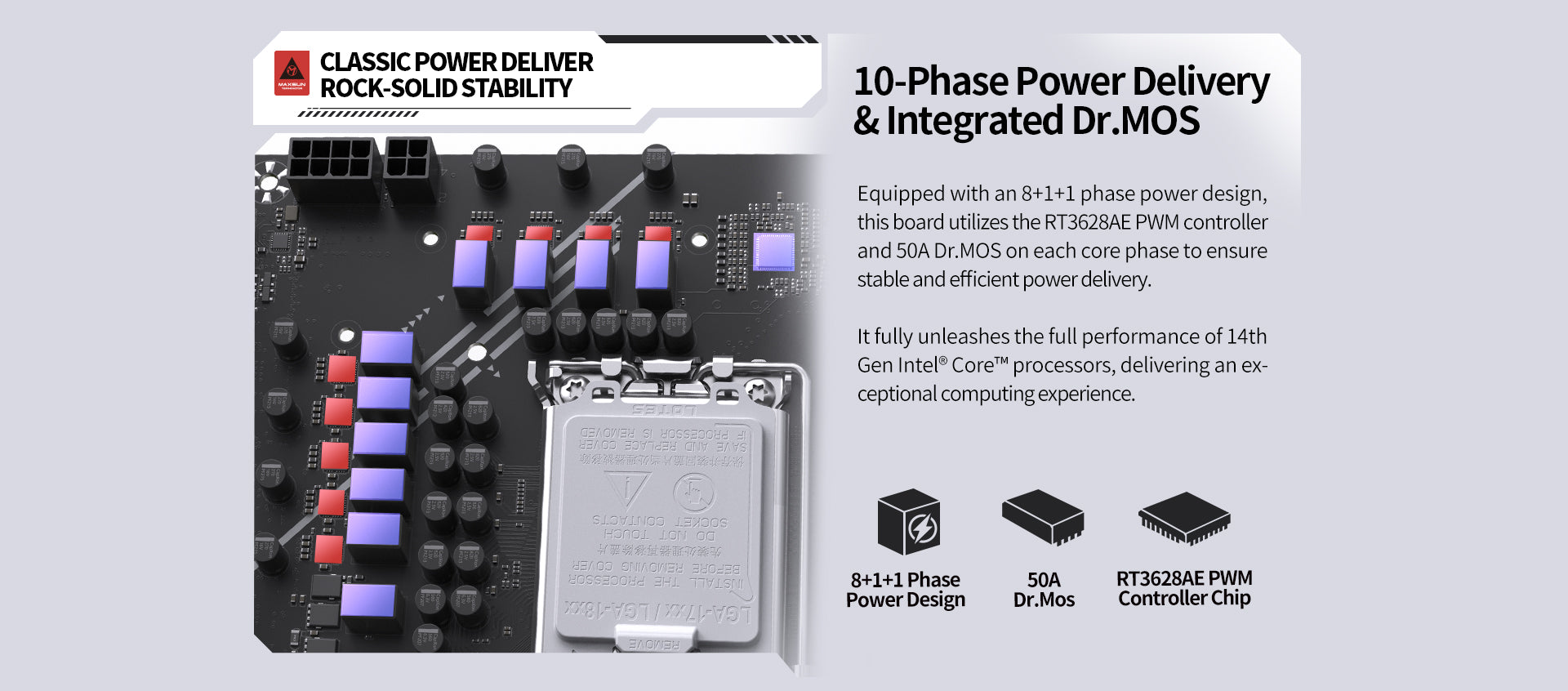

8+4 Pin Power & DDR5 OC Support
Delivers stable power and supports memory up to 8400MHz (OC+).
3× PCIe 4.0 M.2 Slots + 4× SATA 3.0
High-speed storage with massive expansion flexibility.

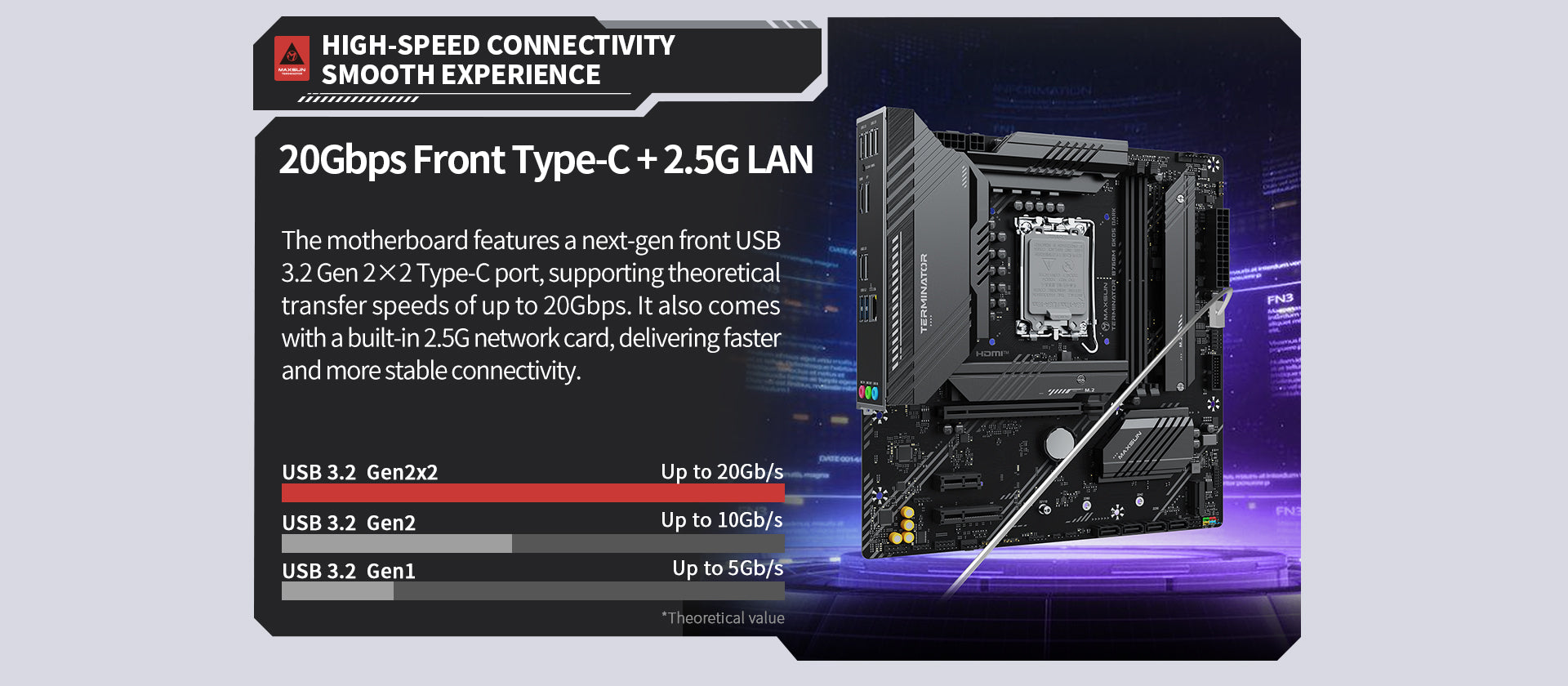

Front USB-C (20Gbps) + USB 3.2 Gen1 Header
Next-gen I/O for faster data transfer and convenience.
PCIe 4.0 x16 + x4 Open-End + x1 Slots
Versatile GPU and expansion card compatibility.
ARGB/RGB Headers + Debug LEDs
Sync your lighting and spot issues fast.
Overview
Specification
Support

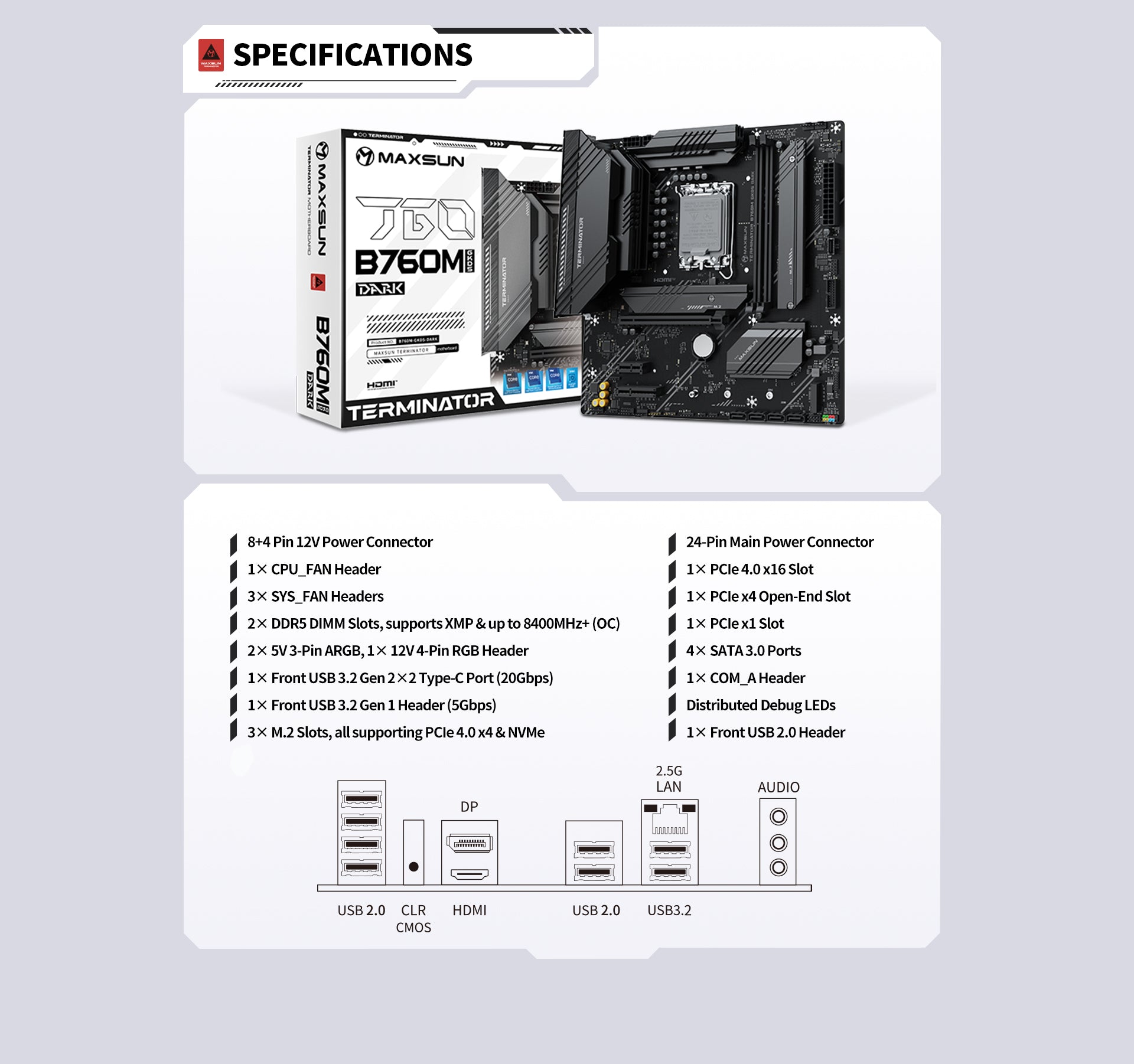

- Model
- MS-Terminator B760M GKD5 DARK
- Power Connectors
- 8+4 Pin 12V Power Connector
24-Pin Main Power Connector
- Fan Headers
- 1× CPU_FAN Header
3× SYS_FAN Headers
- Memory

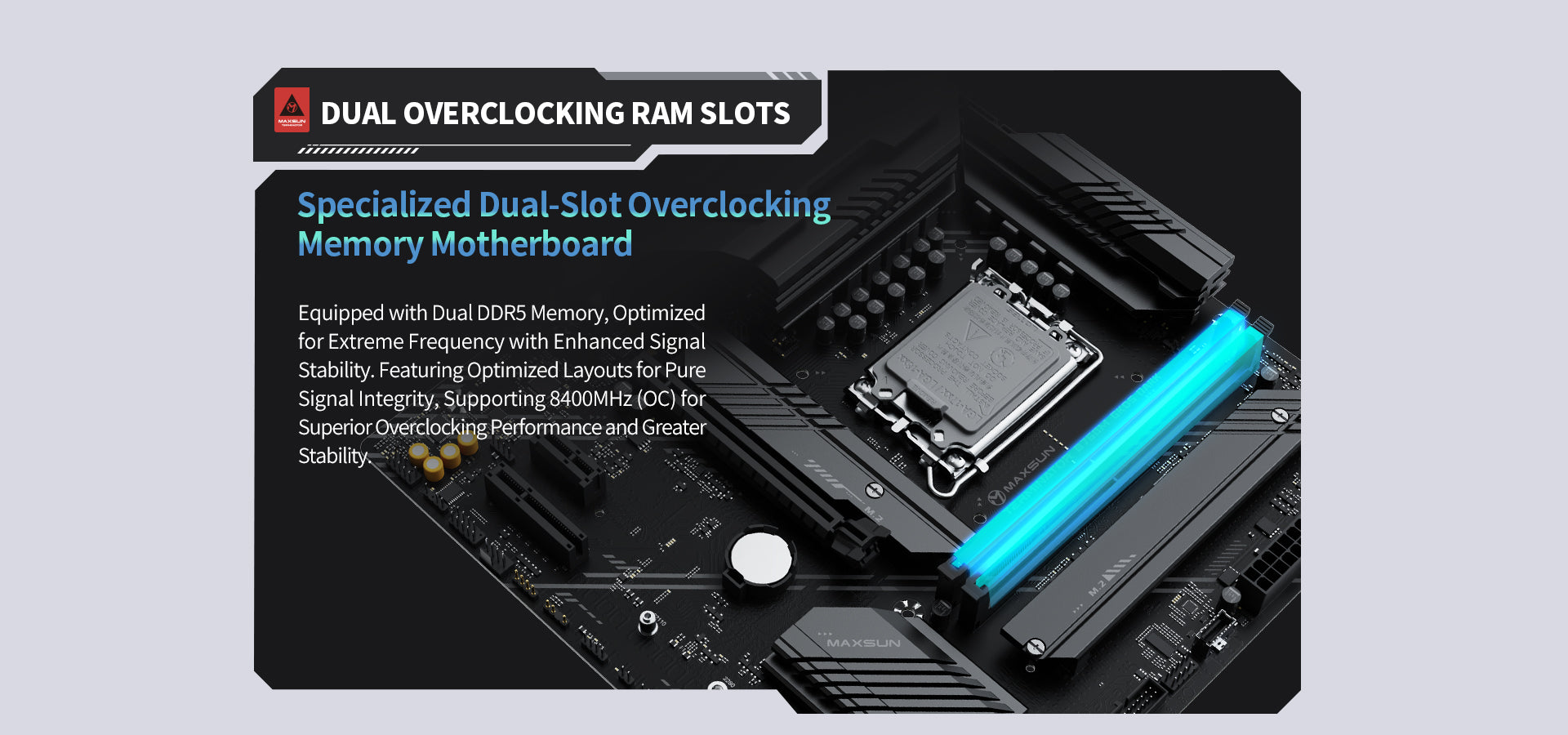

- 2× DDR5 DIMM Slots, supports XMP & up to 8400MHz+ (OC)
- RGB Headers
- 2× 5V 3-Pin ARGB, 1× 12V 4-Pin RGB Header
- USB Ports
- 1× Front USB 3.2 Gen 2×2 Type-C Port (20Gbps)
1× Front USB 3.2 Gen 1 Header (5Gbps)
1× Front USB 2.0 Header

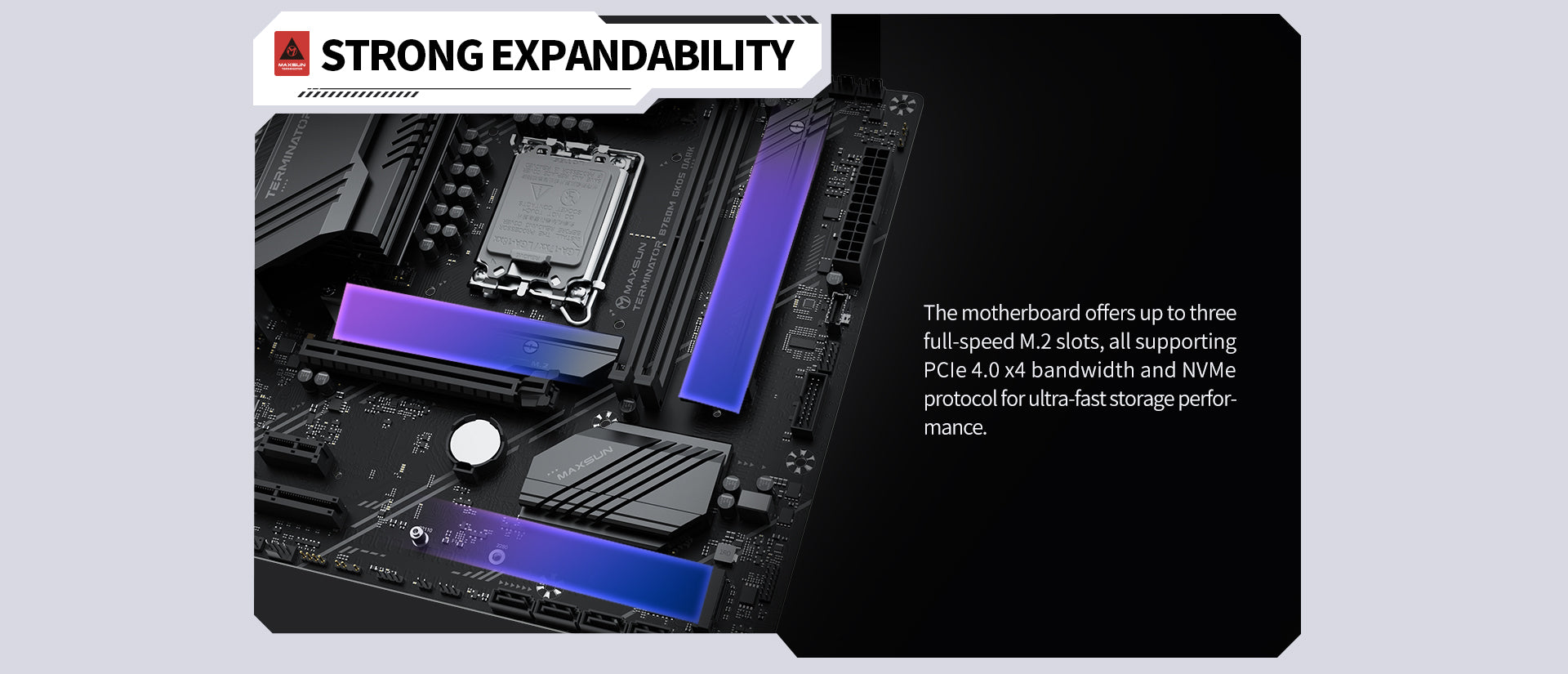

- M.2 Slots
- 3× M.2 Slots, all supporting PCIe 4.0 x4 & NVMe
- PCIe Slots
- 1× PCIe 4.0 x16 Slot
1× PCIe x4 Open-End Slot
1× PCIe x1 Slot
- SATA Ports
- 4× SATA 3.0 Ports
- Other Headers
- 1× COM_A Header
- Debug
- Distributed Debug LEDs
