Challenger H610M-H Wi-Fi

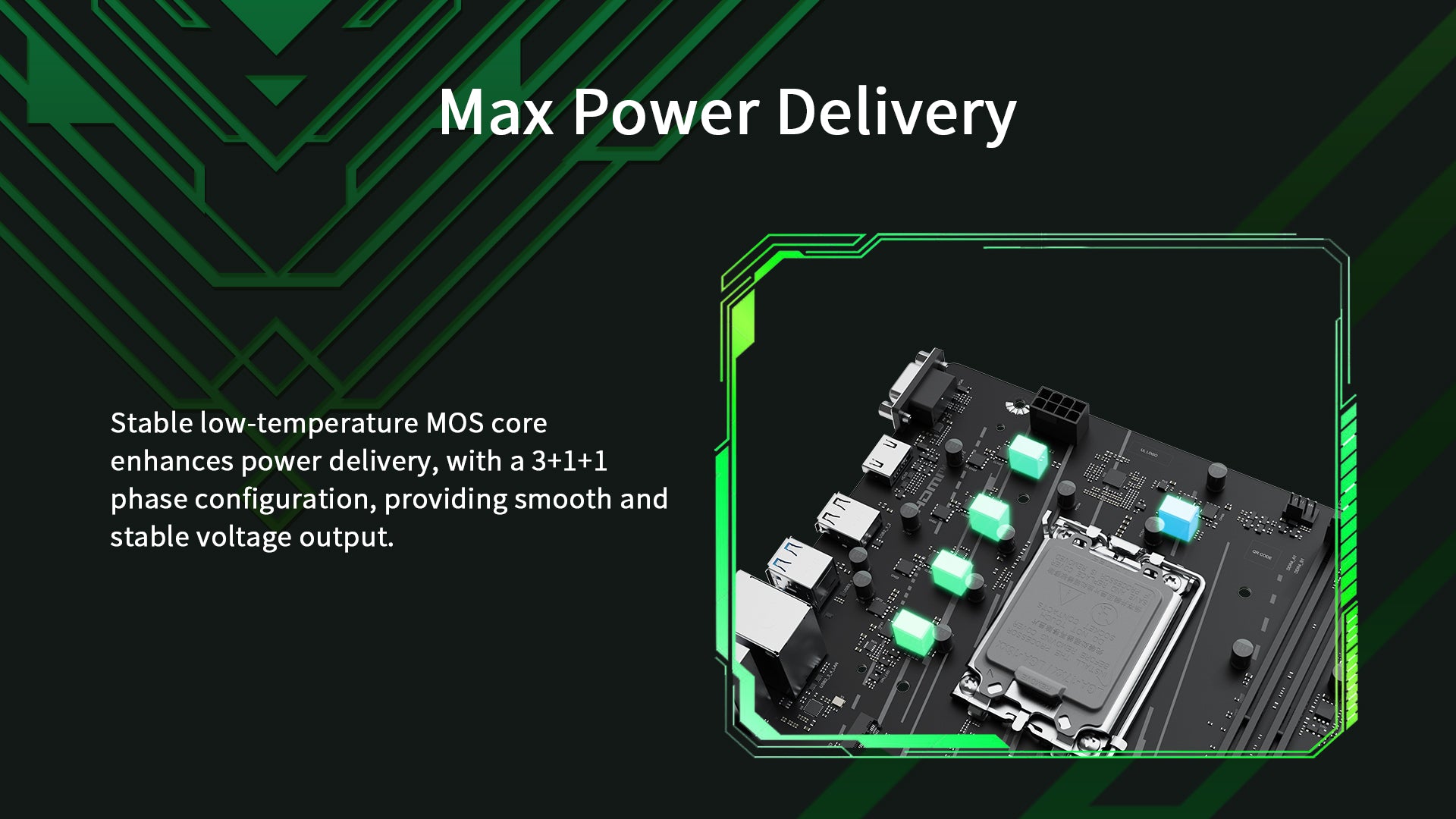

Potência estável – MOS de baixa temperatura e tampas de qualidade para uma entrega suave e confiável.

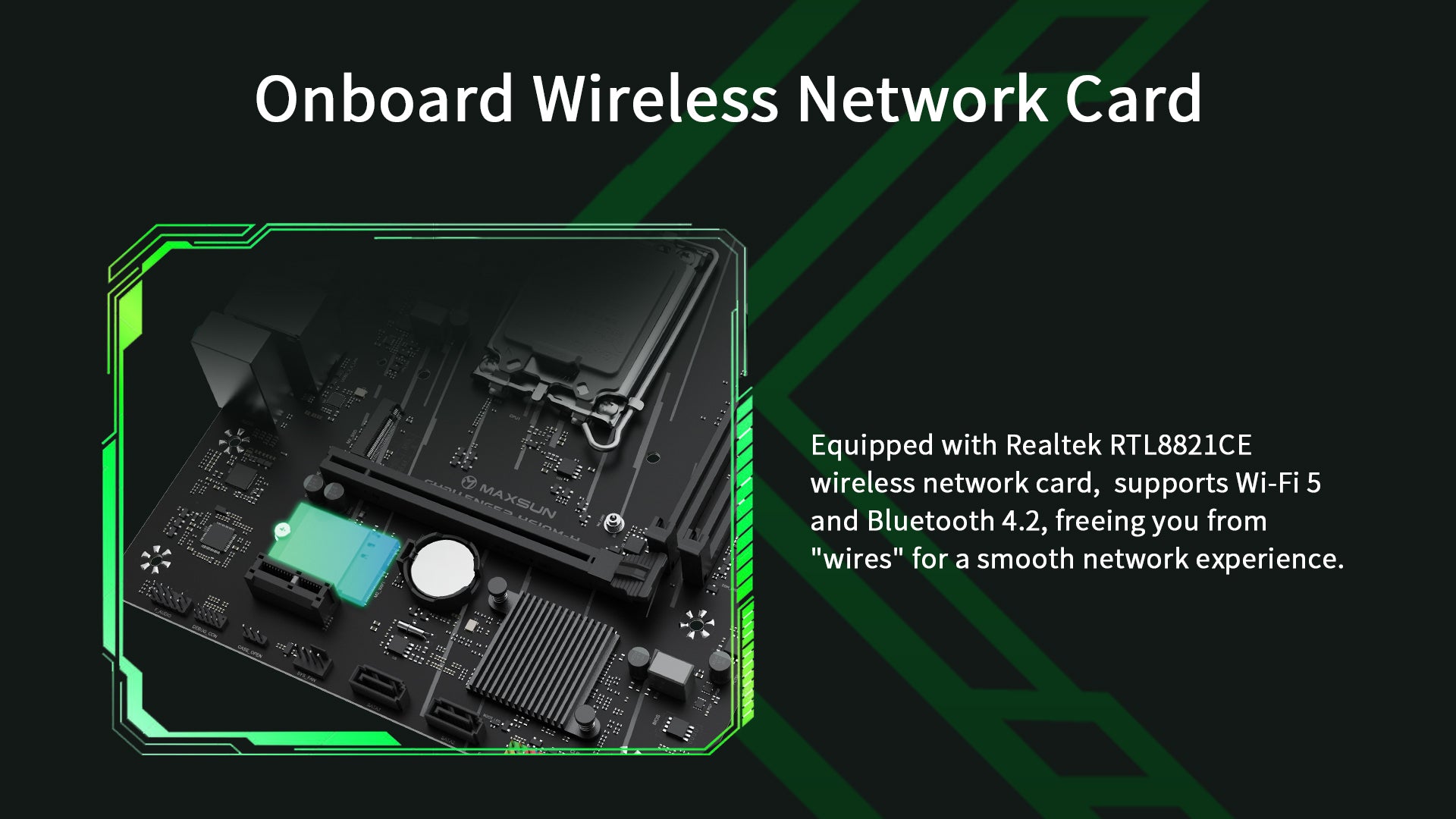

Wi-Fi integrado – RTL8821CE com Wi-Fi 5 e Bluetooth 4.2 integrados.
Expansão Flexível – DDR4 (até 64 GB), slot M.2, PCIe x16/x1.

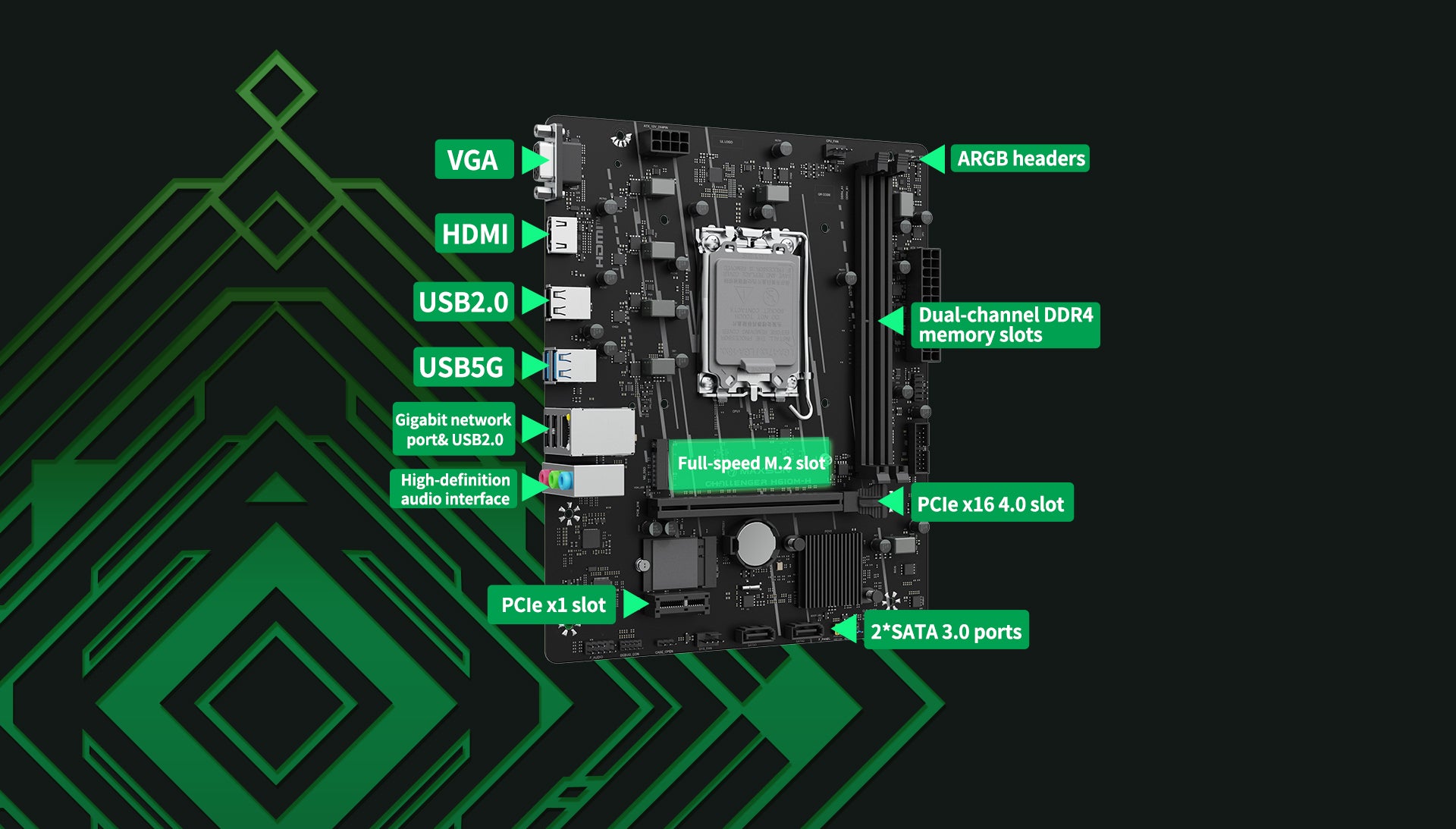

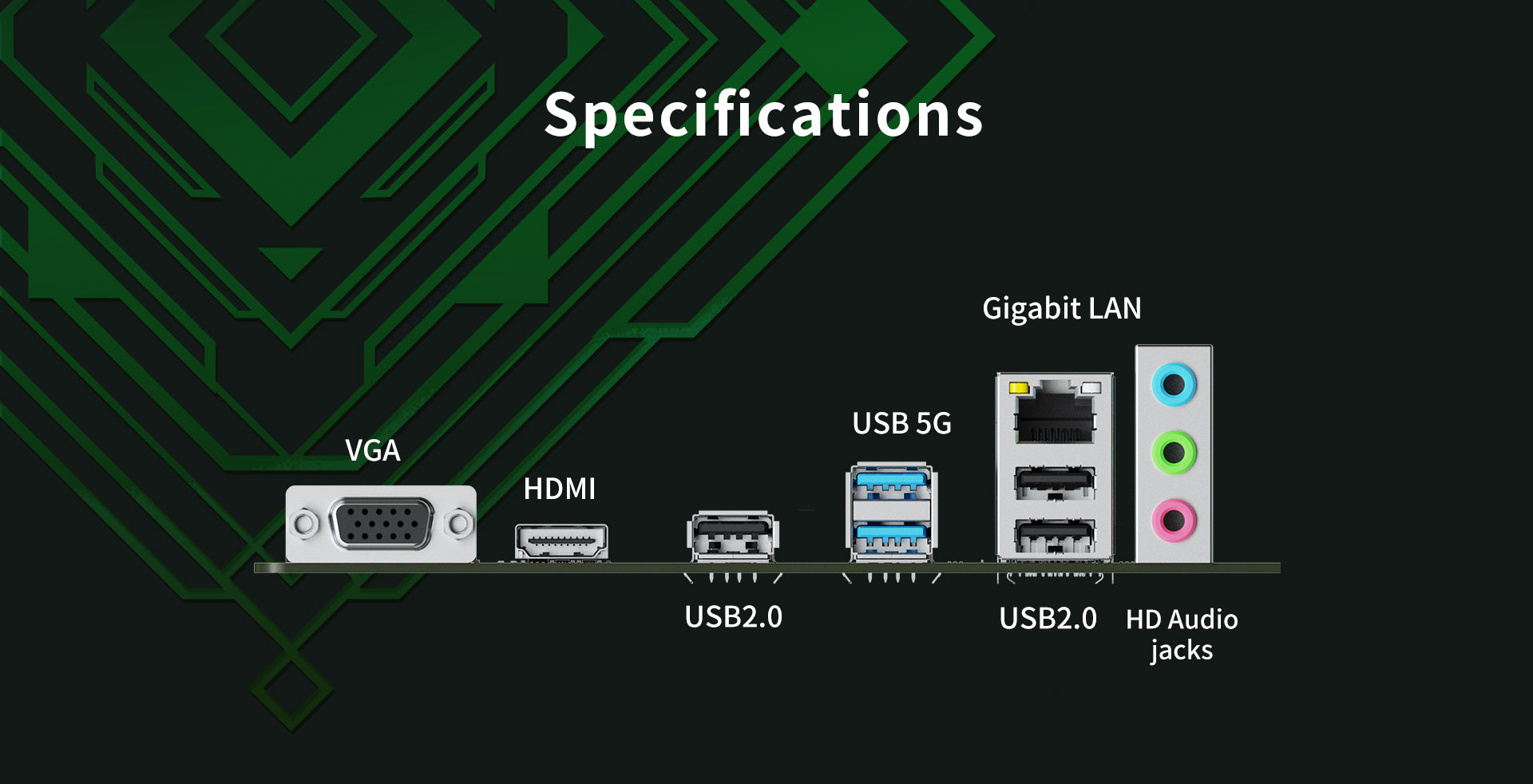

E/S versátil – Portas USB 3.2 Gen1, HDMI, VGA, LAN e áudio HD.

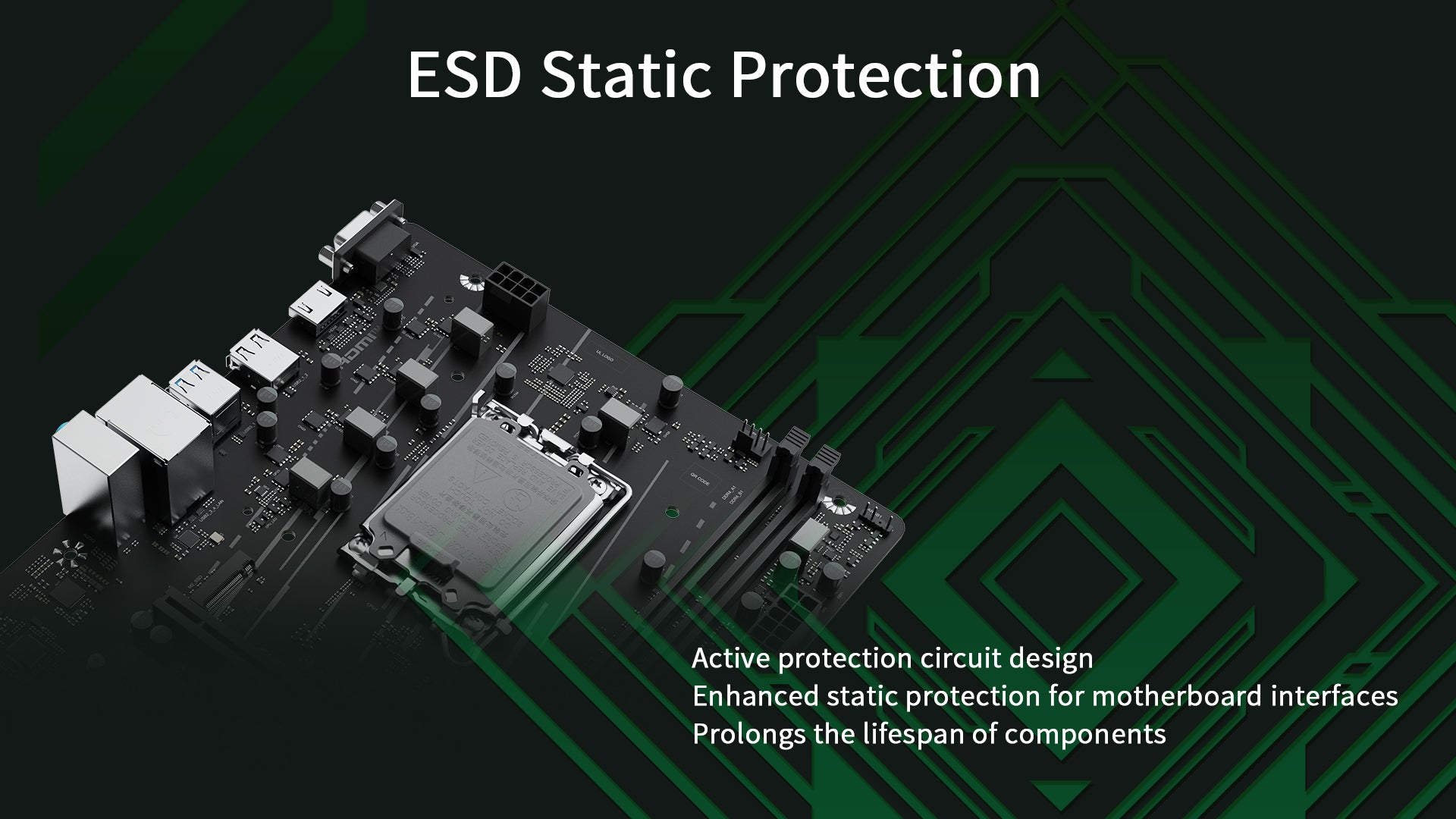

Proteção ESD completa – Proteção estática para prolongar a vida útil dos componentes.
Escudo de E/S durável – Design em aço inoxidável resistente à ferrugem.
Overview
Specification
Support

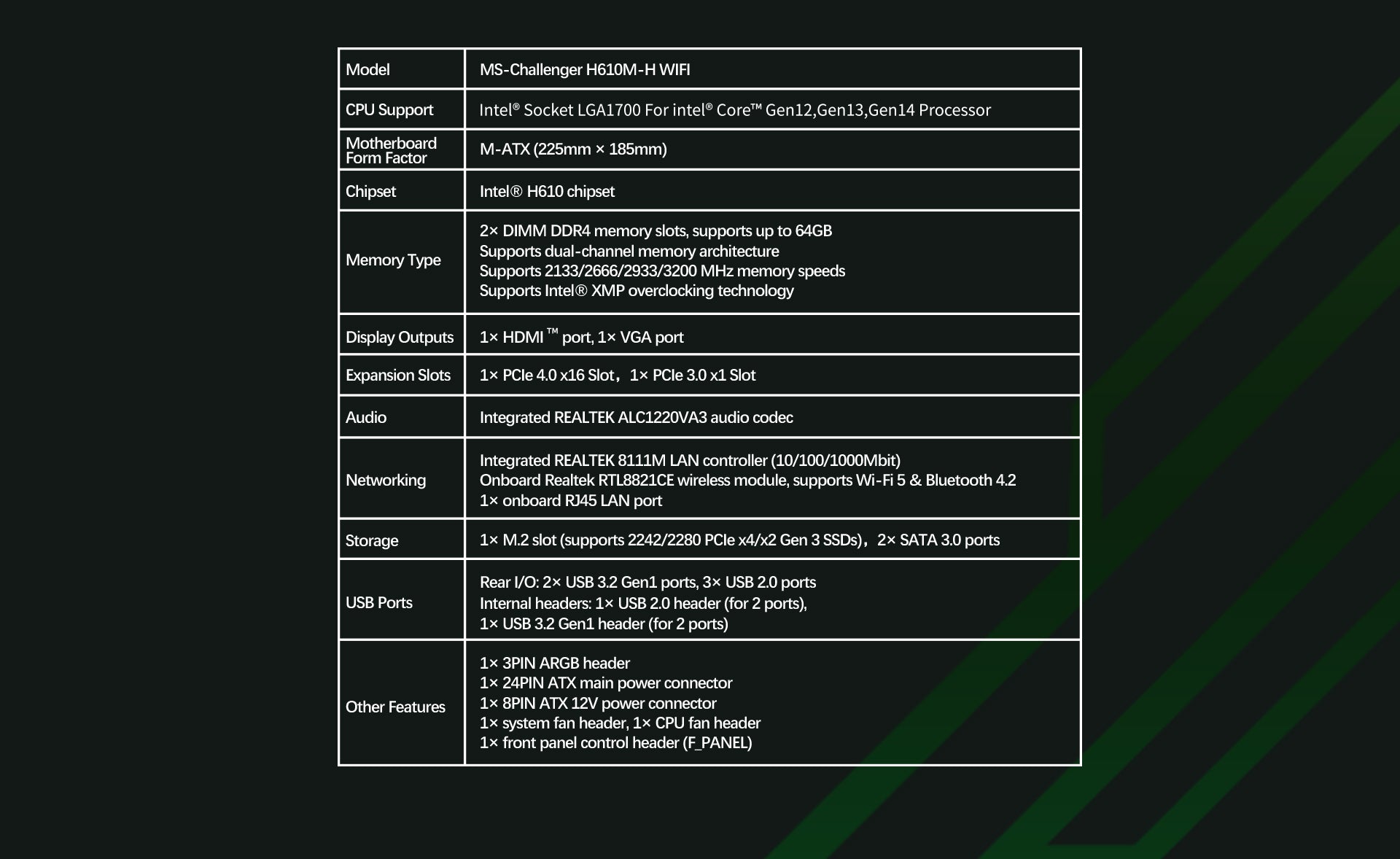

- Model
- MS - Challenger H610M-H WIFI
- Form Factor
- MicroATX (225mm × 185mm)
- CPU Socket
- Supports LGA1700 socket, compatible with Intel® 12th/13th/14th Gen processors
- Chipset
- Intel® H610 chipset
- Memory

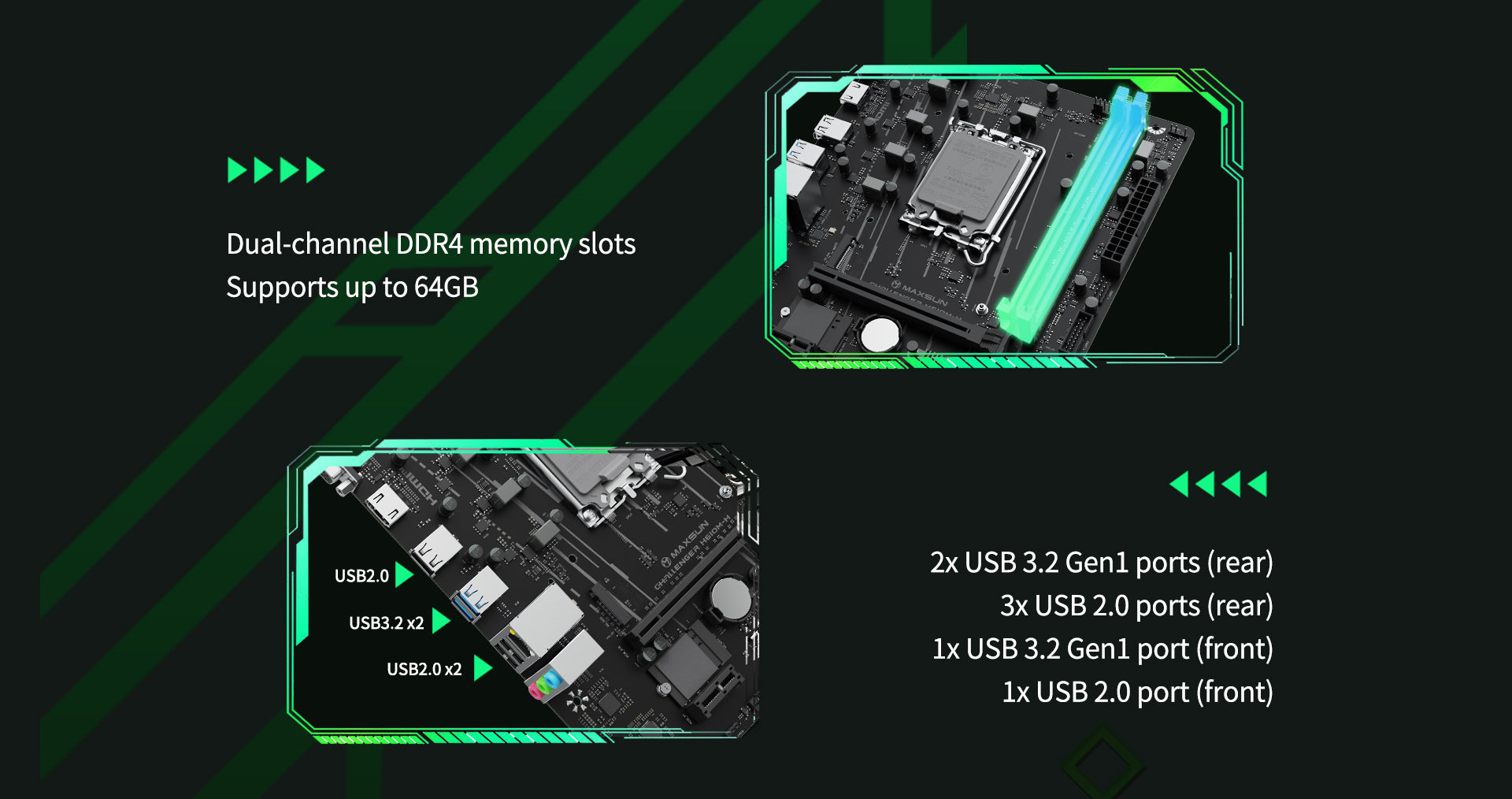

- 2× DIMM DDR4 memory slots, supports up to 64GB
Supports dual-channel memory architecture
Supports 2133/2666/2933/3200 MHz memory speeds
Supports Intel® XMP overclocking technology
- Display Outputs
- 1× HDMI port
1× VGA port
- Expansion Slots
- 1× PCIe x16 4.0 slot
1× PCIe x1 3.0 slot
- Audio
- Integrated REALTEK ALC1220VA3 audio codec
- Networking
- Integrated REALTEK 8111M LAN controller (10/100/1000Mbit)
Onboard Realtek RTL8821CE wireless module, supports Wi-Fi 5 & Bluetooth 4.2
1× onboard RJ45 LAN port
- Storage

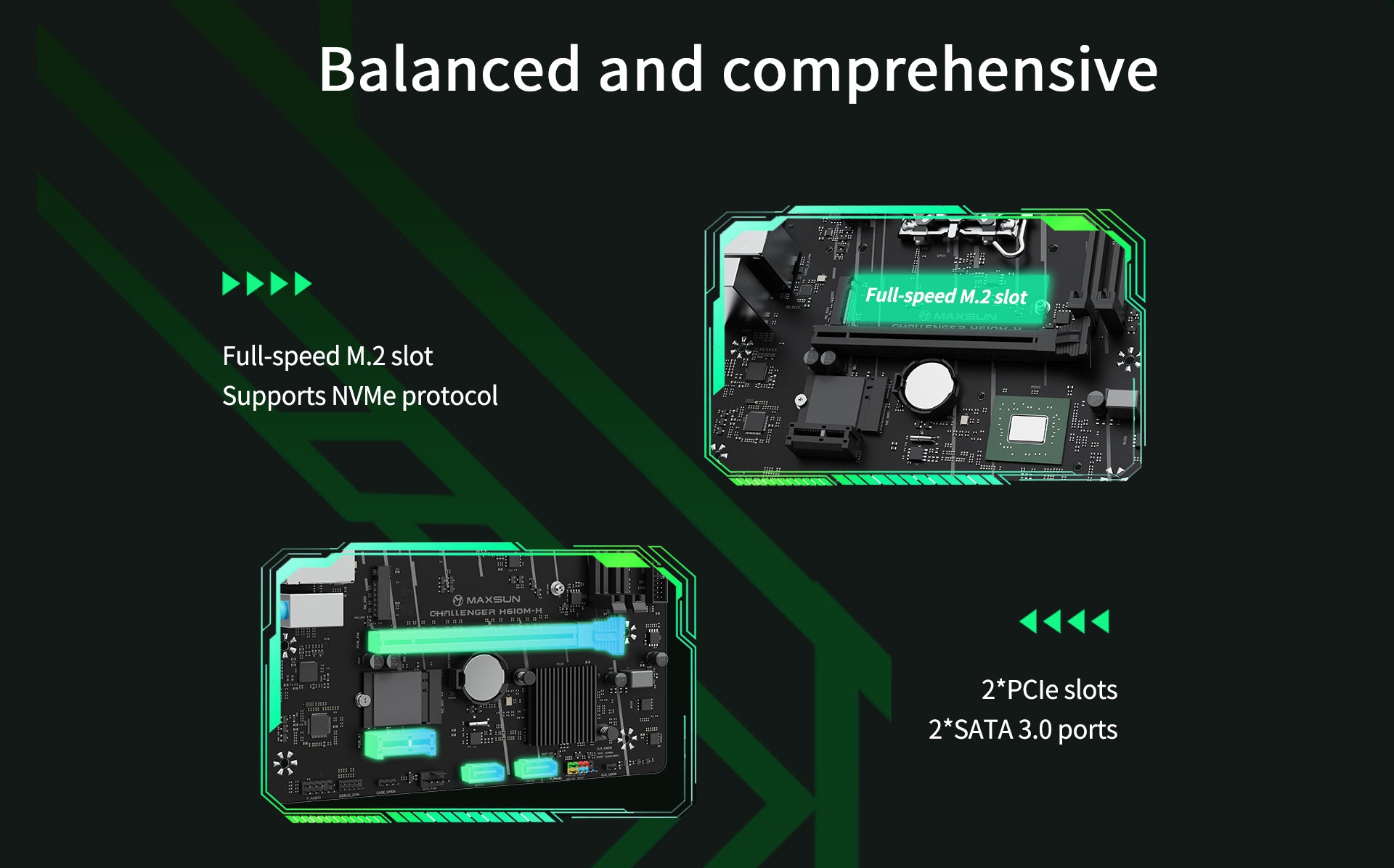

- 1× M.2 slot (supports 2242/2280 PCIe x4/x2 Gen 3 SSDs)
2× SATA 3.0 ports
- USB Ports
- Rear I/O: 2× USB 3.2 Gen1 ports, 3× USB 2.0 ports
Internal headers: 1× USB 2.0 header (for 2 ports), 1× USB 3.2 Gen1 header (for 2 ports)
- Other Features

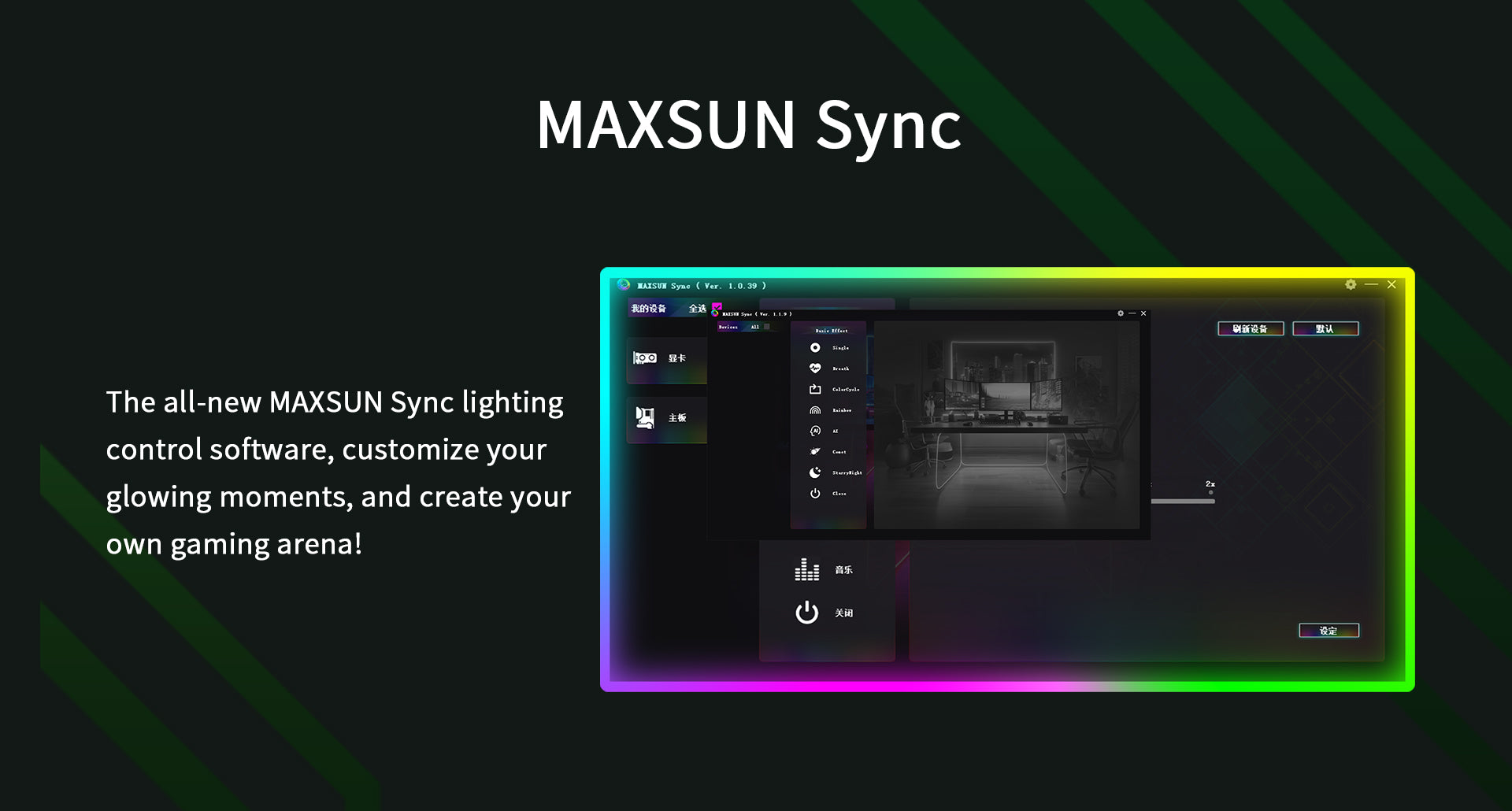

- 1× 3PIN ARGB header
1× 24PIN ATX main power connector
1× 8PIN ATX 12V power connector
1× system fan header
1× CPU fan header
1× front panel control header (F_PANEL)
