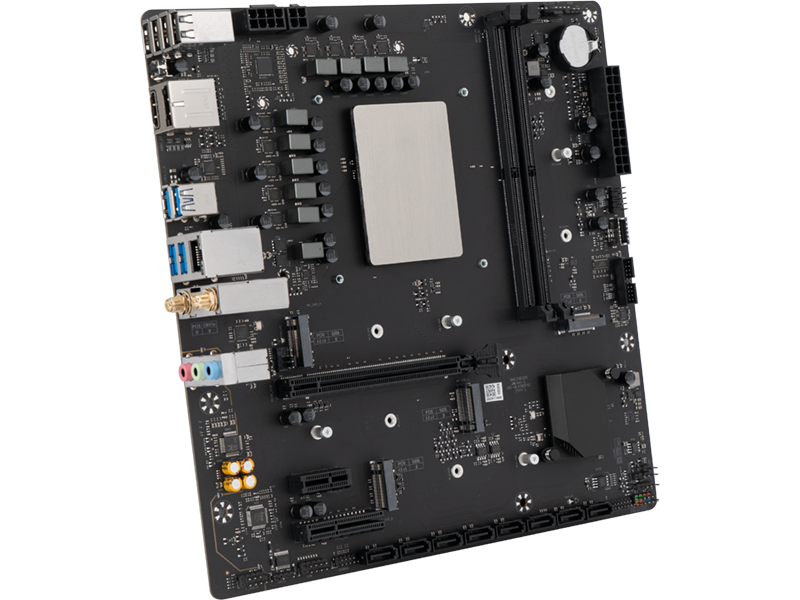

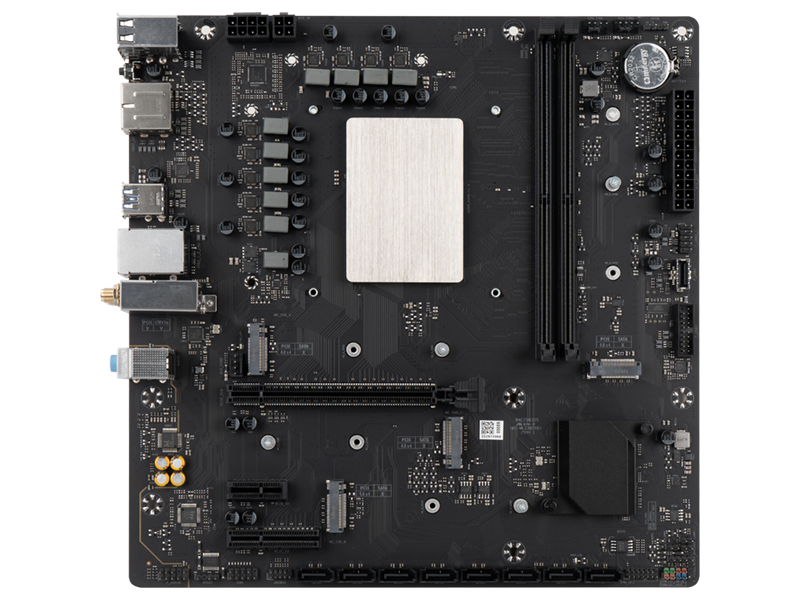

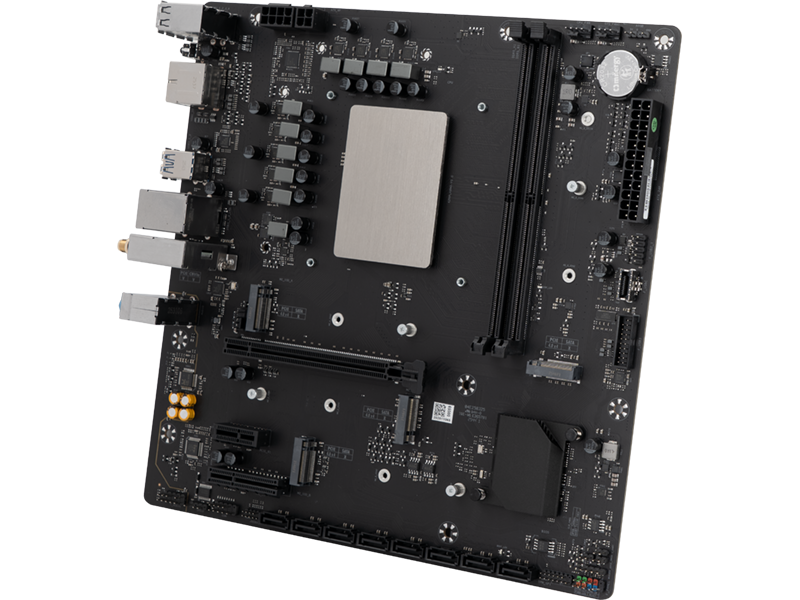

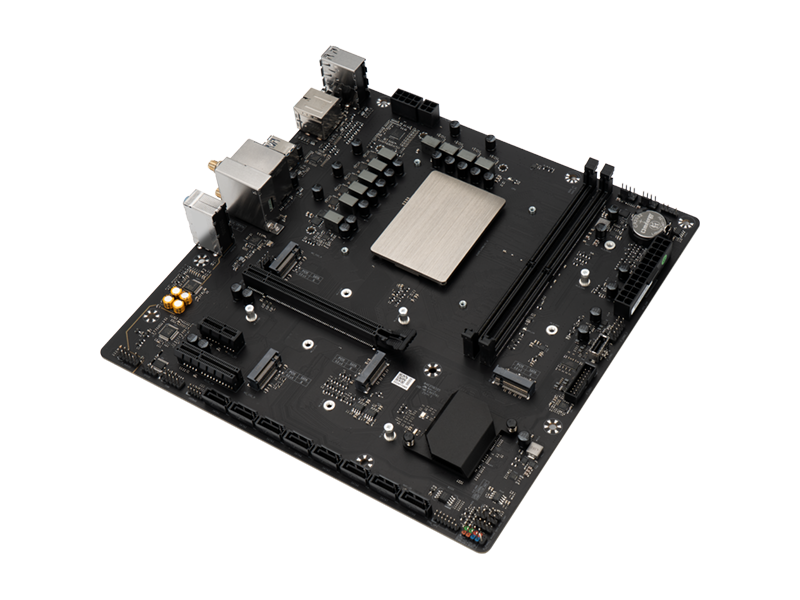

MS-MoDT 13650HX D5 WIFI

• Form Factor
• M-ATX (Micro-ATX)
  Size: 245mm × 245mm

• CPU
• Intel® Core™ i7-13650HX processor
  TDP: 125W

• Chipset
• Intel® HM770 chipset

• Memory
• 2 × DDR5 DIMM slots, up to 96GB
  Dual-channel memory architecture
  Supported speeds:
  4800 / 5600 / 6400 / OC+ MHz

• Graphics Output
• 1 × HDMI port (up to 4096 × 2160 @ 60Hz)
  1 × DisplayPort (up to 4096 × 2160 @ 60Hz)

• Expansion Slots
• 1 × PCIe x16 slot (PCIe 5.0)
  Supports AMD, NVIDIA and Intel discrete graphics cards
  Supports PCIe Resizable BAR technology (CPU and GPU support required)
  1 × PCIe x4 slot (PCIe 3.0)
  1 × PCIe x1 slot (PCIe 3.0)

• Storage Interfaces
• 4 × M.2 (Key M) slots
  M.2_A: PCIe 4.0 x4/x2, supports 2242 / 2280
  M.2_B: PCIe 4.0 x4/x2, supports 2242 / 2280
  M.2_C: PCIe 4.0 x4/x2, supports 2242 / 2280
  M.2_D: PCIe 4.0 x4/x2, supports 2242 / 2280 / 22110
  8 × SATA 6Gb/s ports

• Networking
• 1 × Realtek RTL8125D 2.5Gb Ethernet (10/100/1000/2500Mbps)
  Supports Wake-on-LAN
  Supports PXE and UEFI diskless boot
  1 × MTK7902 Wi-Fi 6E module with Bluetooth® 5.3

• USB Ports

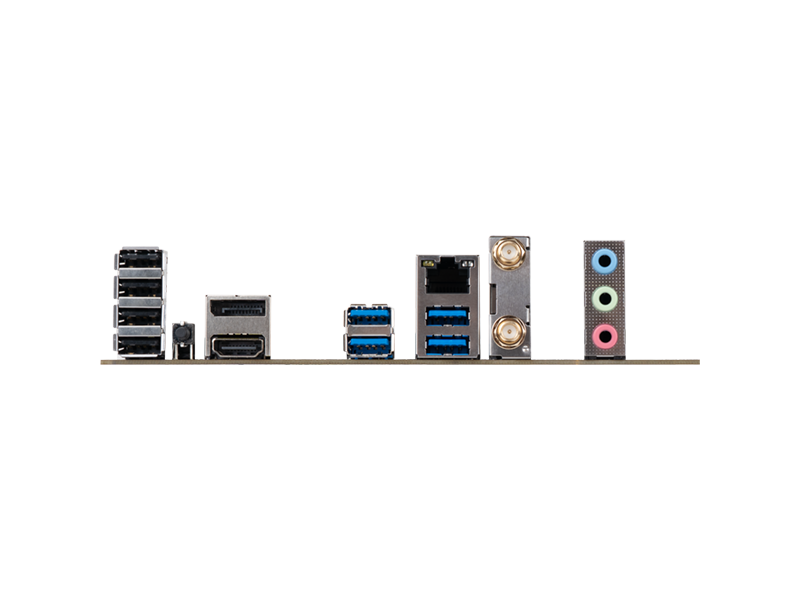

• Rear I/O:
  4 × USB 3.2 Gen1 Type-A
  4 × USB 2.0 Type-A

  Onboard headers:
  1 × USB 3.2 Gen1 header (supports 2 ports)
  1 × USB 2.0 header (supports 2 ports)
  1 × USB 3.2 Gen2x2 Type-E header (20Gbps)

• Audio
• Realtek ALC897 HD Audio Codec
  Supports front and rear audio simultaneous output

  Rear ports:
  1 × Line-In
  1 × Line-Out
  1 × Mic-In

  Front panel audio:
  1 × Front microphone header
  1 × Front audio header (F_AUDIO group)

• Internal Connectors
• 1 × 24-Pin ATX power
  1 × 8-Pin ATX 12V CPU power
  1 × 4-Pin ATX power
  1 × COM header
  2 × SYS_FAN headers
  1 × CPU_FAN header (supports smart fan control)
  1 × Front panel header (F_PANEL)

• Hardware Monitoring
• Voltage monitoring
  Temperature monitoring
  Fan monitoring
  Smart fan speed control (requires supported fans)

• Operating System Support
• Windows® 10 64-bit (UEFI)
  Windows® 11 64-bit (UEFI)
  Ubuntu 64-bit

• ESD Protection
• Air discharge: ±8KV Class C, ±6KV Class B
  Contact discharge: ±6KV Class C, ±3KV Class B
  Tested under proper system grounding conditions
