Challenger H610M-H WiFi

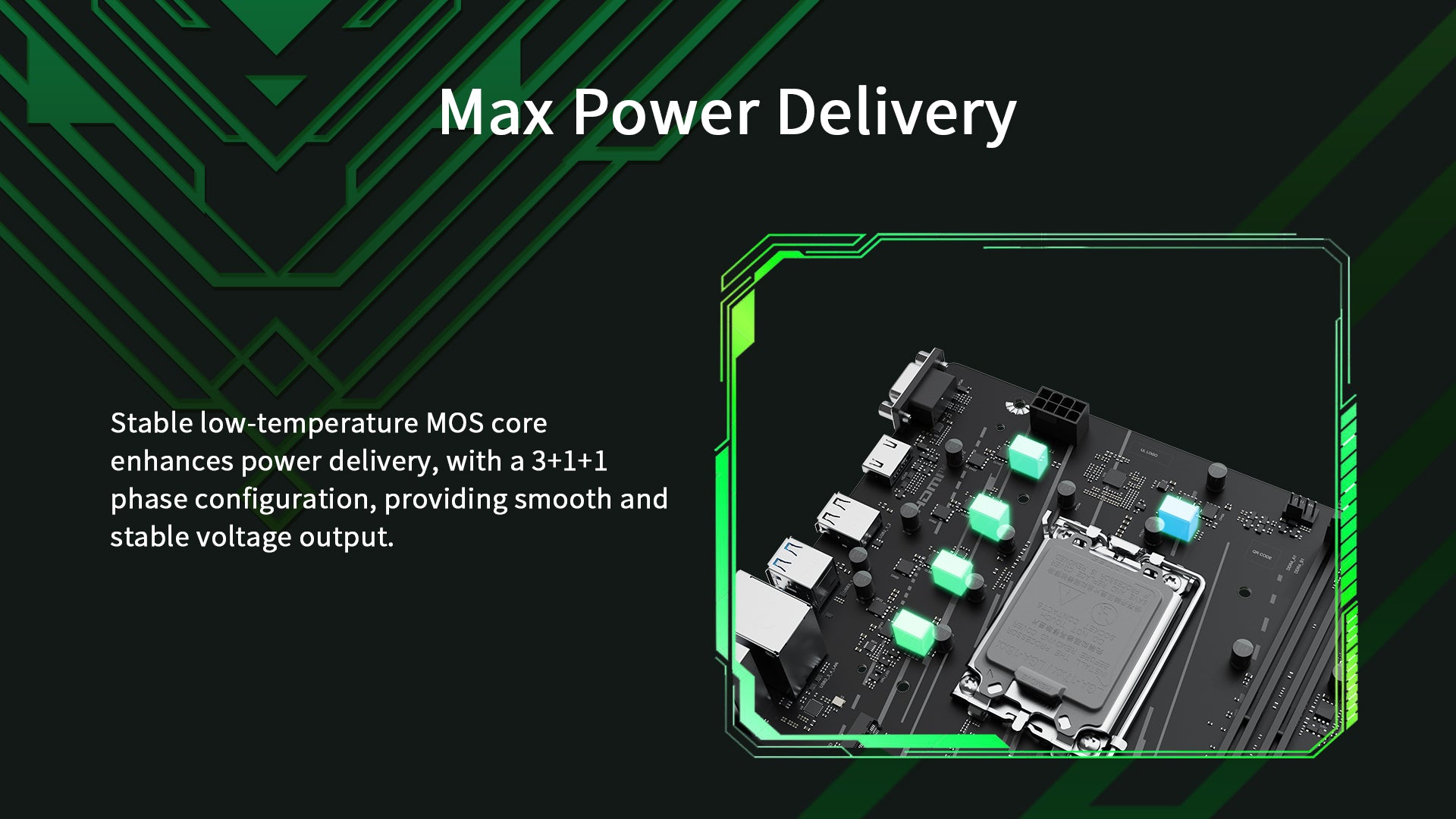

Nguồn điện ổn định – MOS nhiệt độ thấp và tụ điện chất lượng giúp truyền tải điện trơn tru, đáng tin cậy.

Wi-Fi tích hợp – RTL8821CE tích hợp Wi-Fi 5 và Bluetooth 4.2.

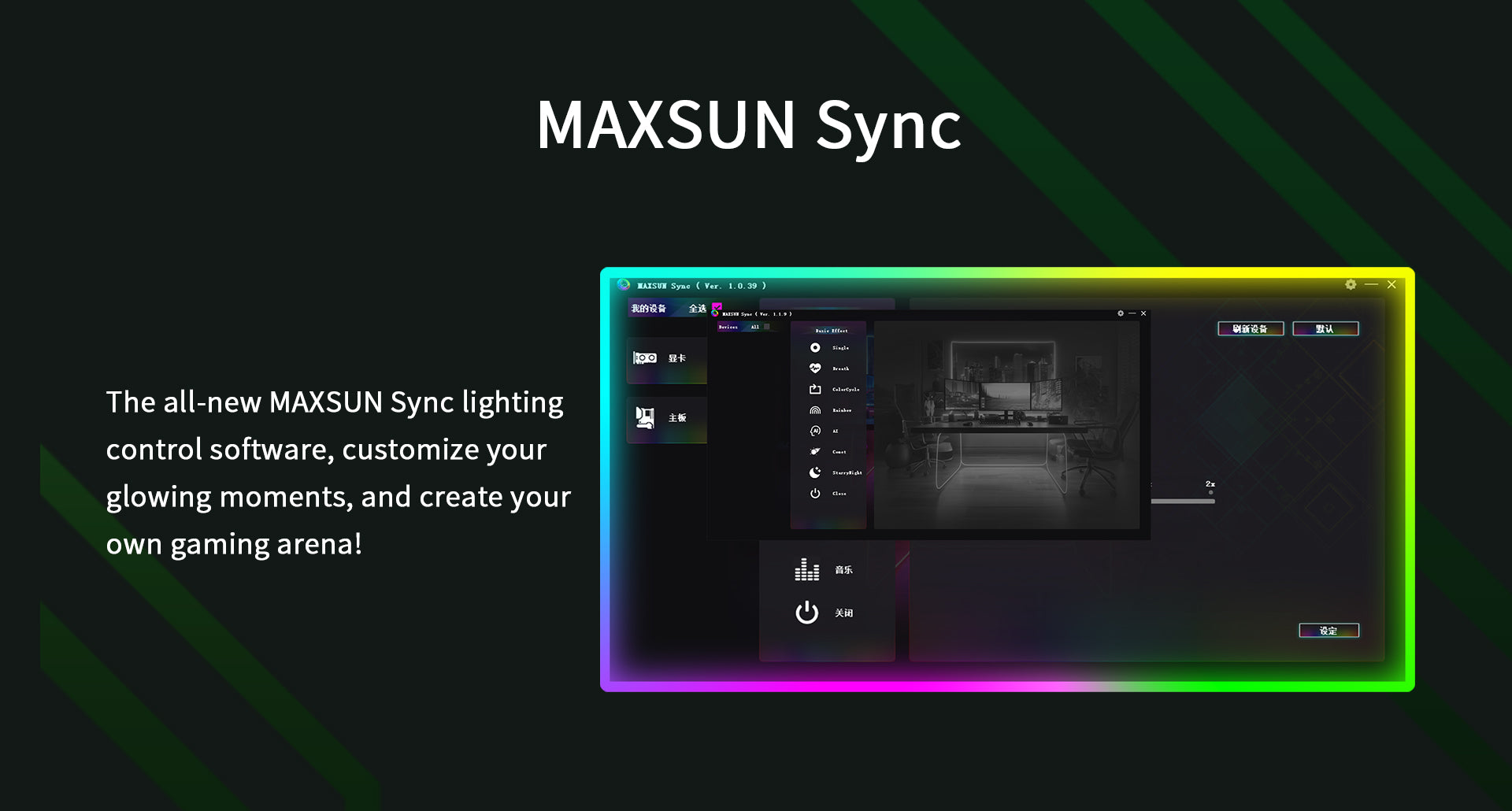

Đồng bộ MAXSUN – Đèn RGB có thể tùy chỉnh bằng phần mềm trực quan.

Mở rộng linh hoạt – DDR4 (tối đa 64GB), khe cắm M.2, PCIe x16/x1.

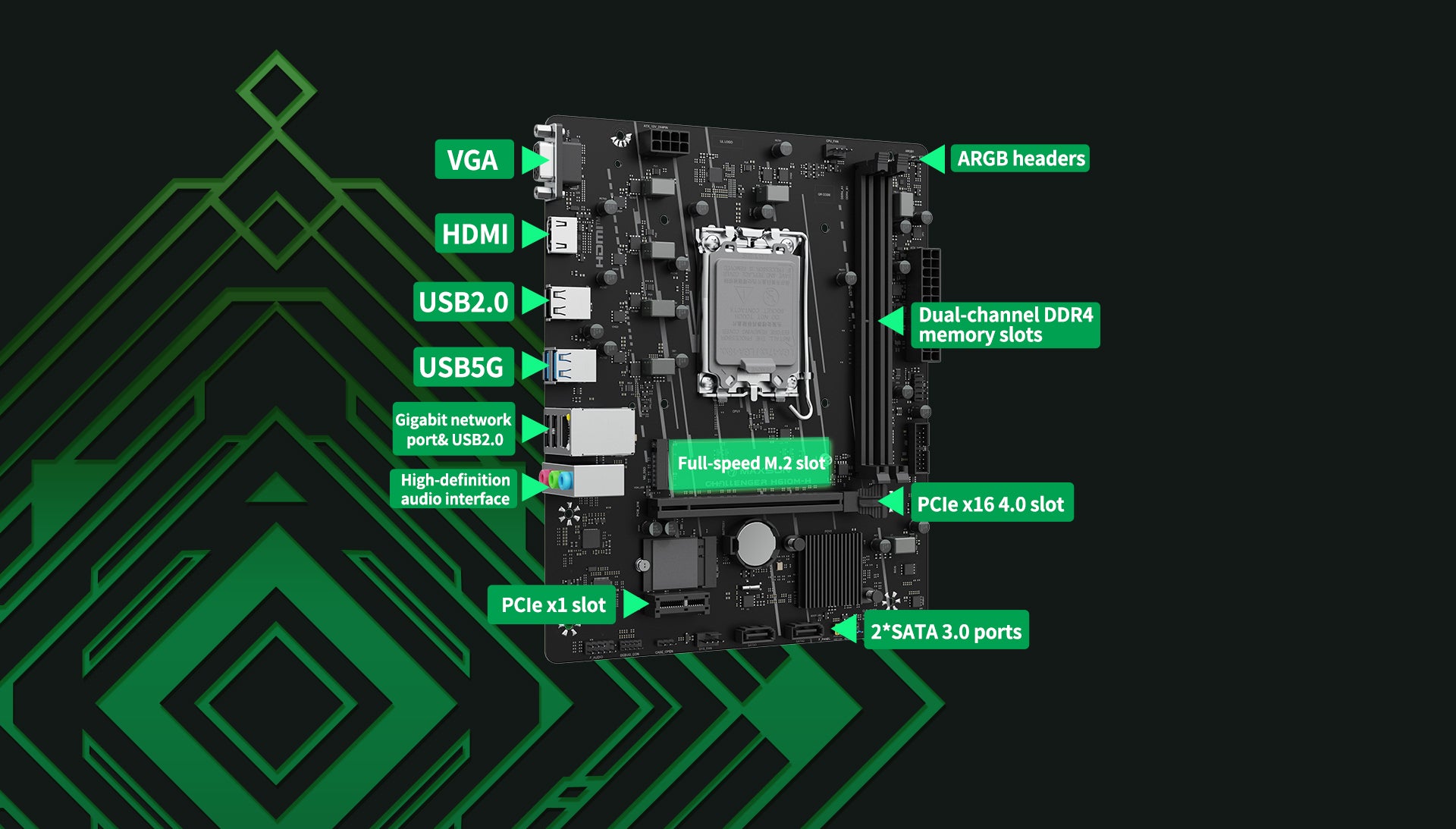

I/O đa năng – Cổng USB 3.2 Gen1, HDMI, VGA, LAN và âm thanh HD.

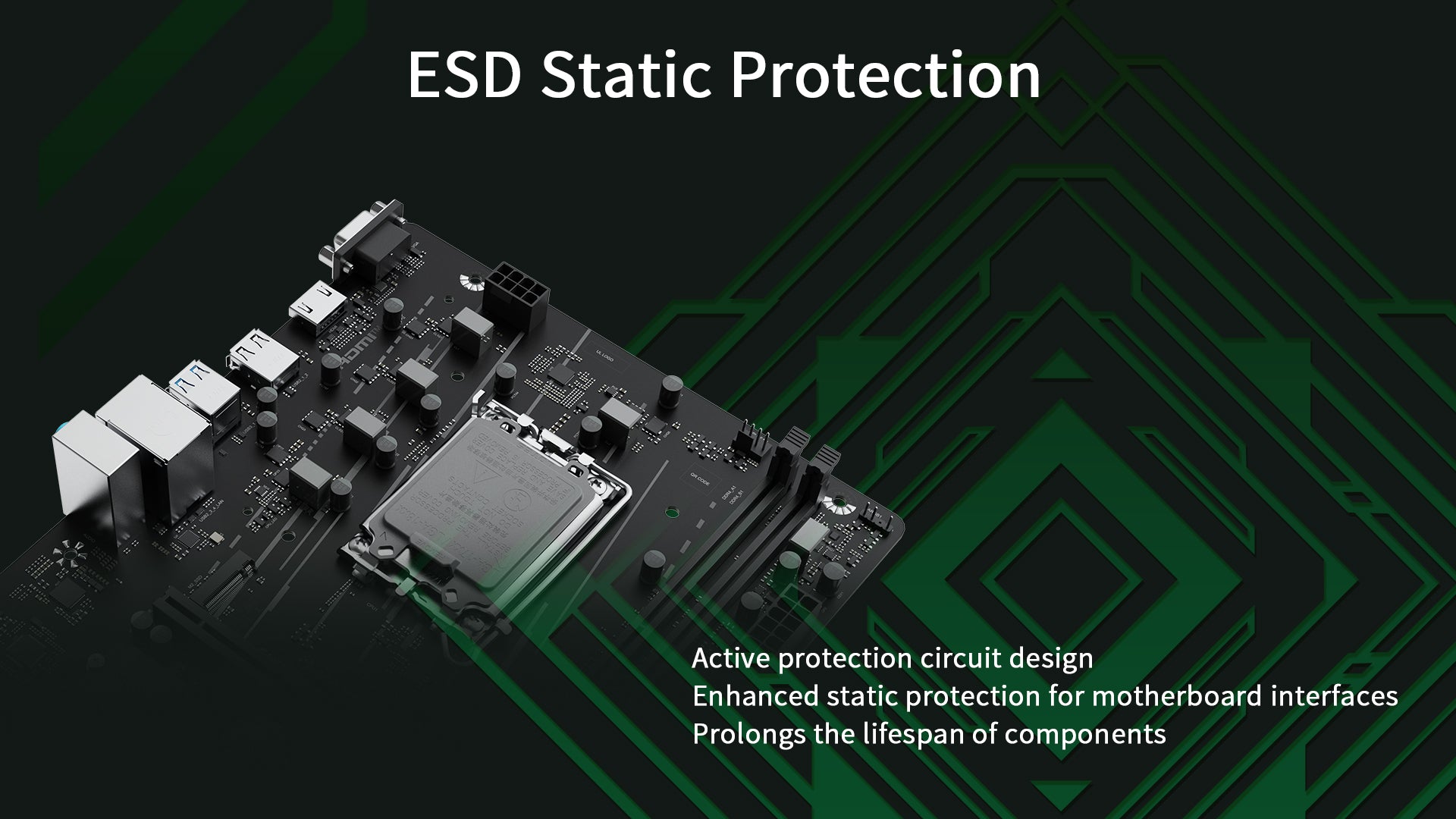

Bảo vệ ESD toàn diện – Bảo vệ tĩnh điện để kéo dài tuổi thọ linh kiện.

Tấm chắn I/O bền bỉ – Thiết kế bằng thép không gỉ chống gỉ.

Overview
Specification
Support

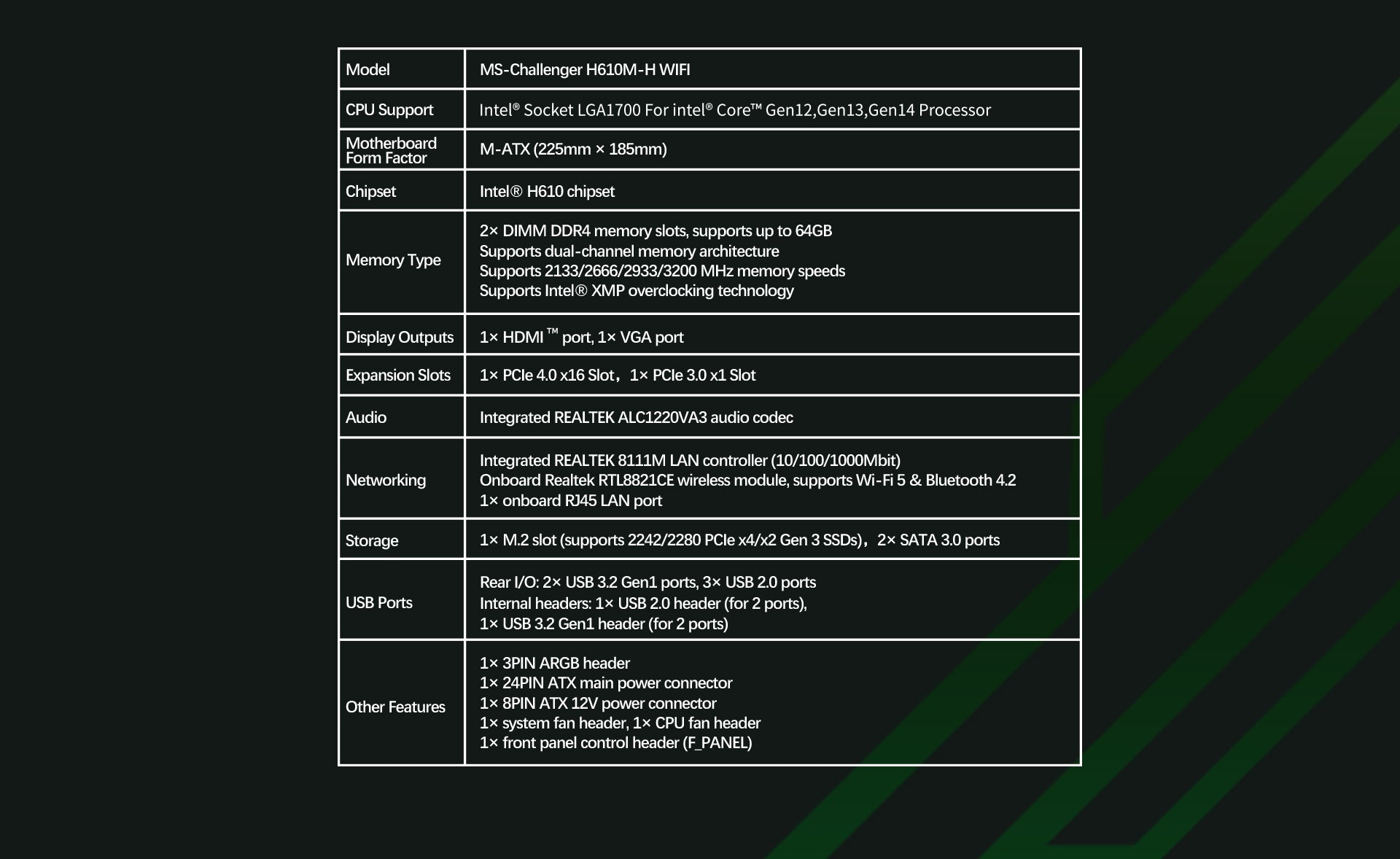

  • Model
  • MS - Challenger H610M-H WIFI
  • Form Factor
  • MicroATX (225mm × 185mm)
  • CPU Socket
  • Supports LGA1700 socket, compatible with Intel® 12th/13th/14th Gen processors
  • Chipset
  • Intel® H610 chipset
  • Memory

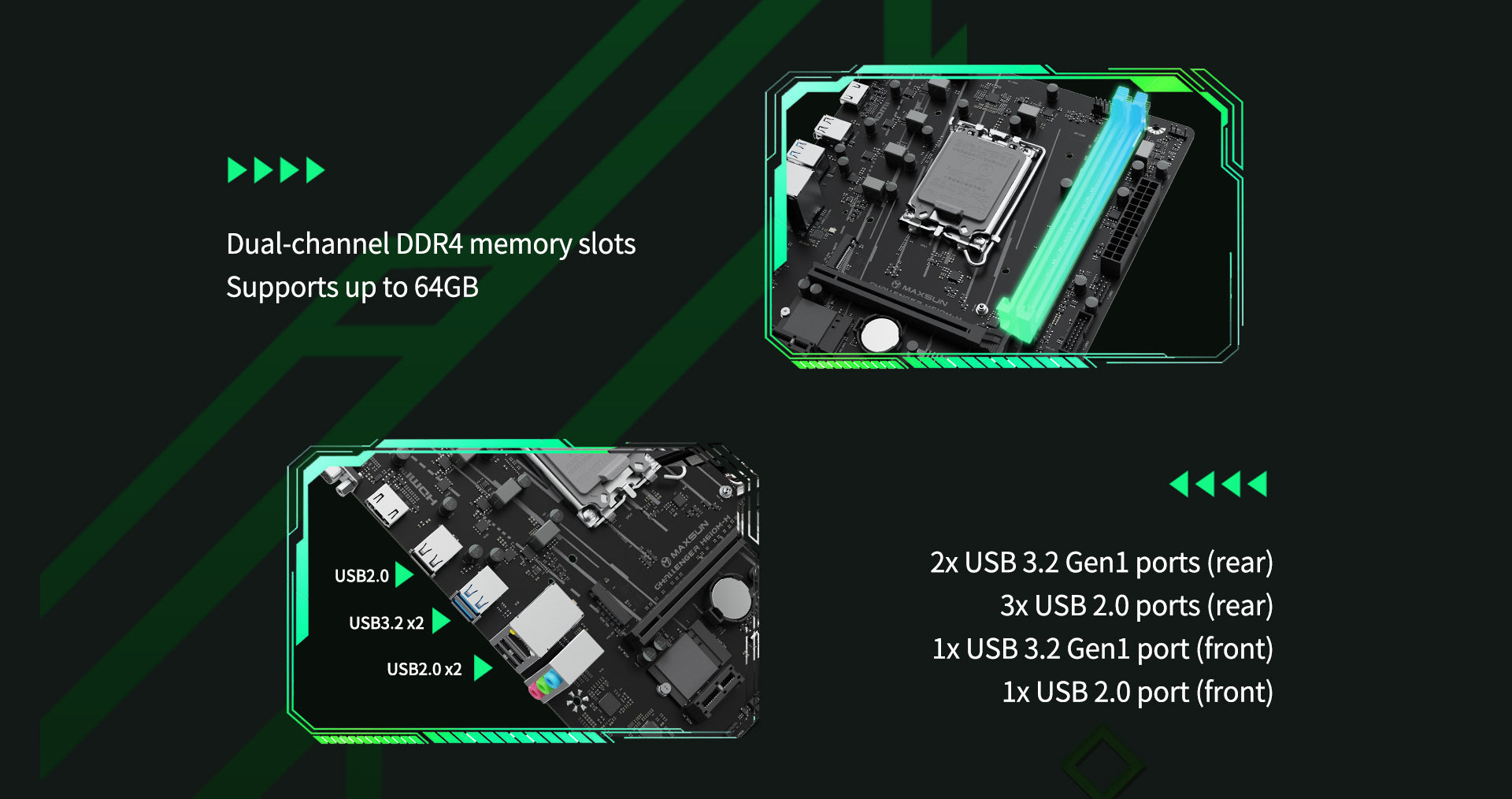

  • 2× DIMM DDR4 memory slots, supports up to 64GB
    Supports dual-channel memory architecture
    Supports 2133/2666/2933/3200 MHz memory speeds
    Supports Intel® XMP overclocking technology
  • Display Outputs
  • 1× HDMI port
    1× VGA port
  • Expansion Slots
  • 1× PCIe x16 4.0 slot
    1× PCIe x1 3.0 slot
  • Audio
  • Integrated REALTEK ALC1220VA3 audio codec
  • Networking
  • Integrated REALTEK 8111M LAN controller (10/100/1000Mbit)

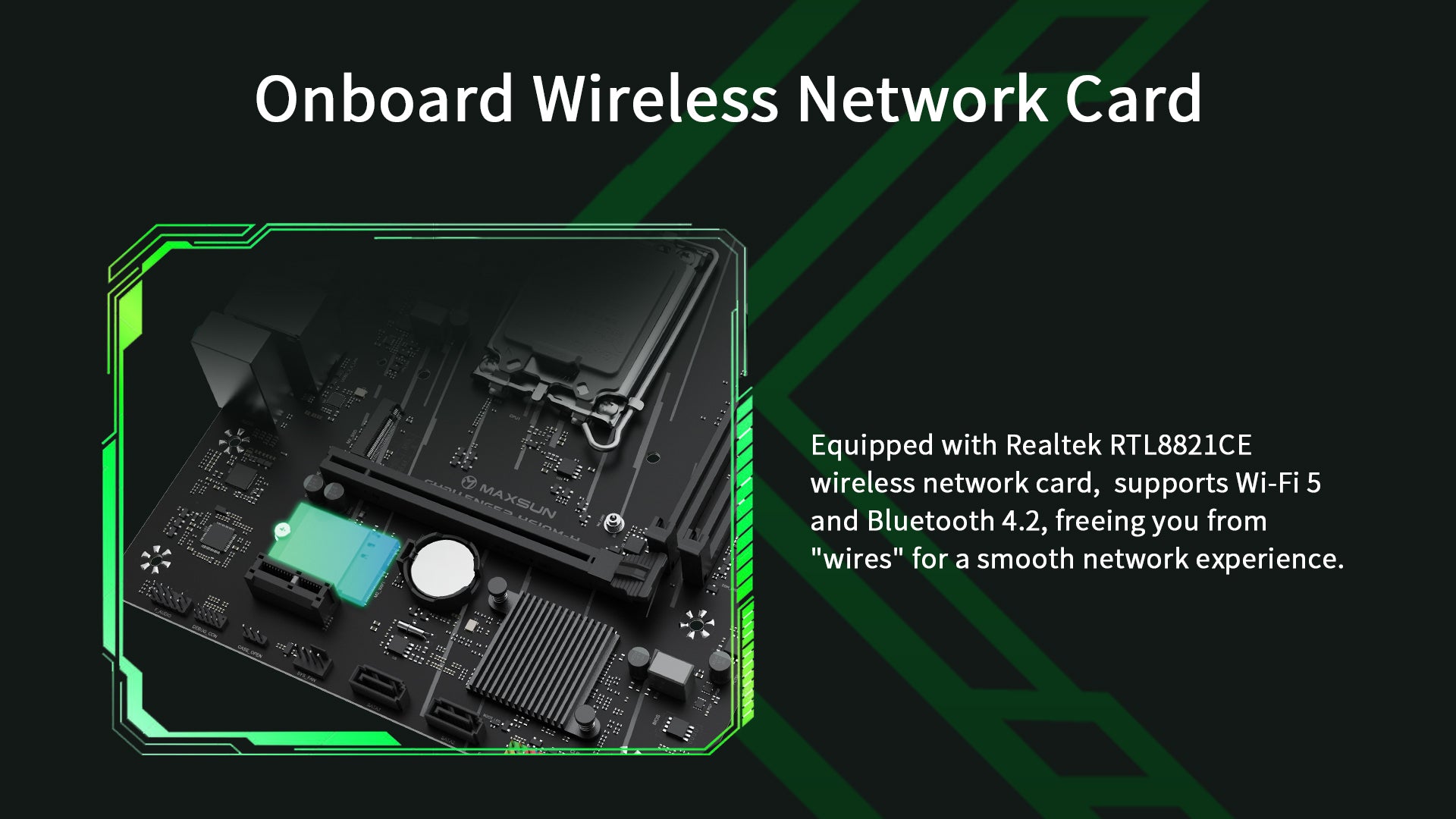

    Onboard Realtek RTL8821CE wireless module, supports Wi-Fi 5 & Bluetooth 4.2
    1× onboard RJ45 LAN port
  • Storage

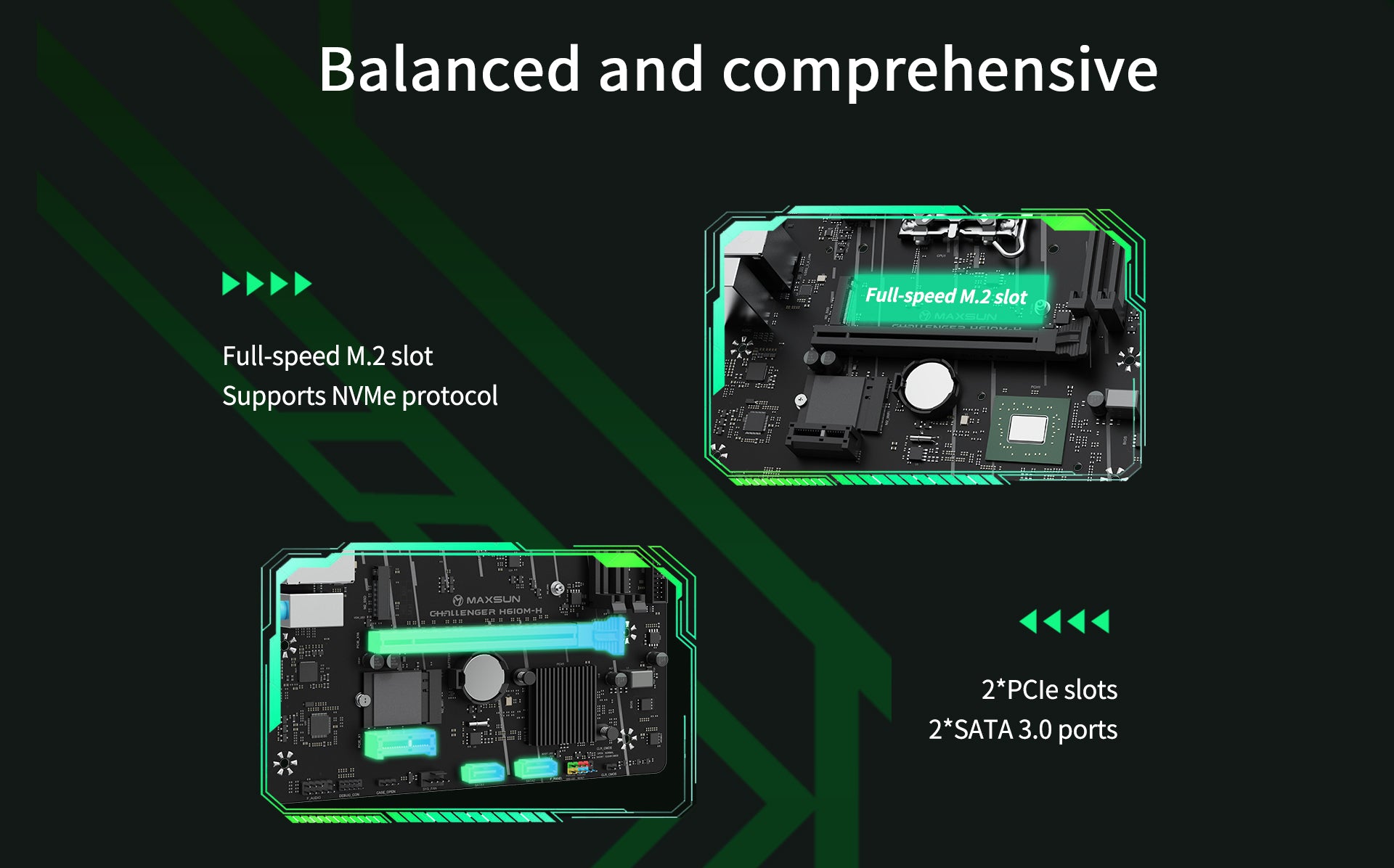

  • 1× M.2 slot (supports 2242/2280 PCIe x4/x2 Gen 3 SSDs)
    2× SATA 3.0 ports

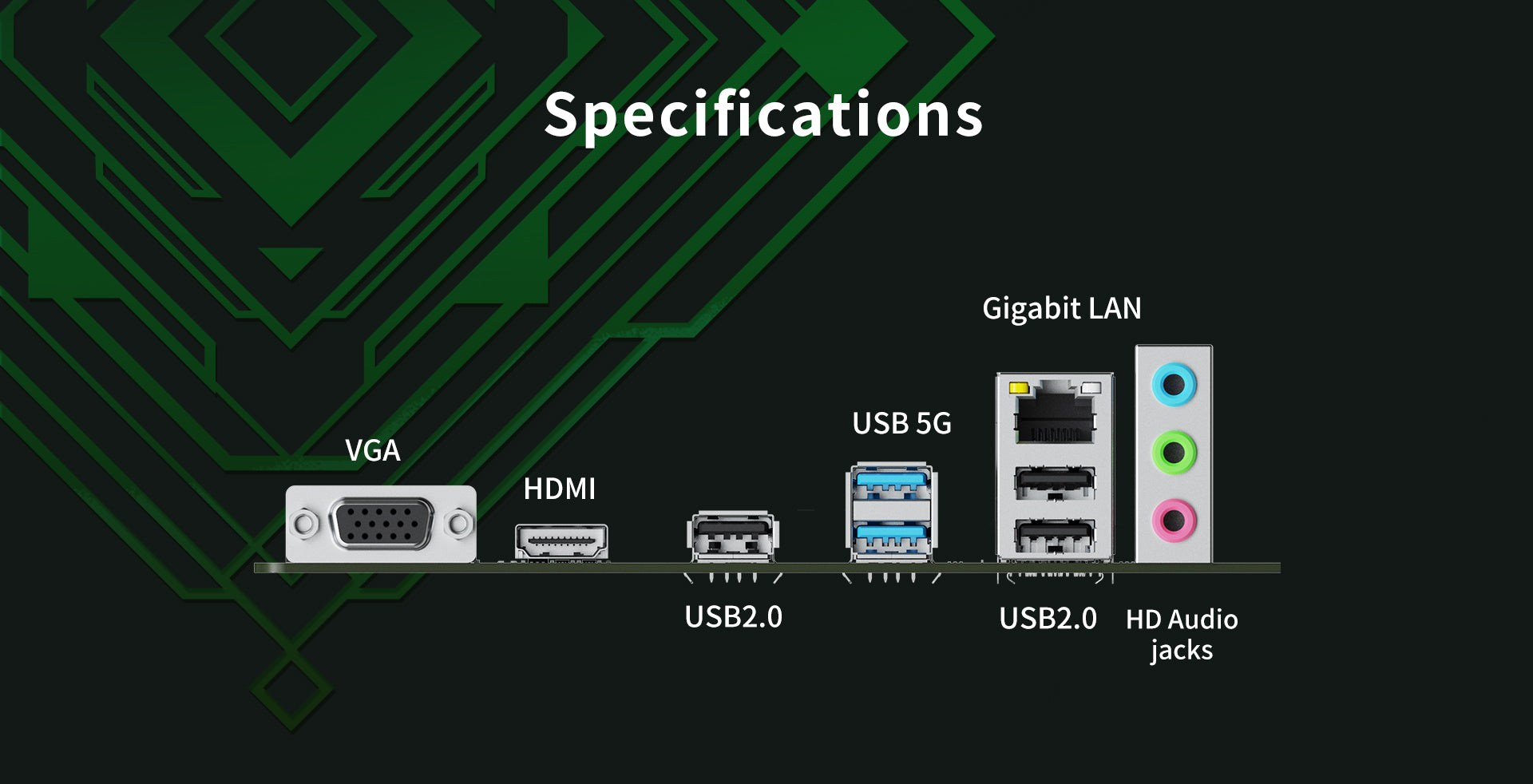

  • USB Ports
  • Rear I/O: 2× USB 3.2 Gen1 ports, 3× USB 2.0 ports
    Internal headers: 1× USB 2.0 header (for 2 ports), 1× USB 3.2 Gen1 header (for 2 ports)
  • Other Features
  • 1× 3PIN ARGB header
    1× 24PIN ATX main power connector
    1× 8PIN ATX 12V power connector
    1× system fan header
    1× CPU fan header
    1× front panel control header (F_PANEL)
