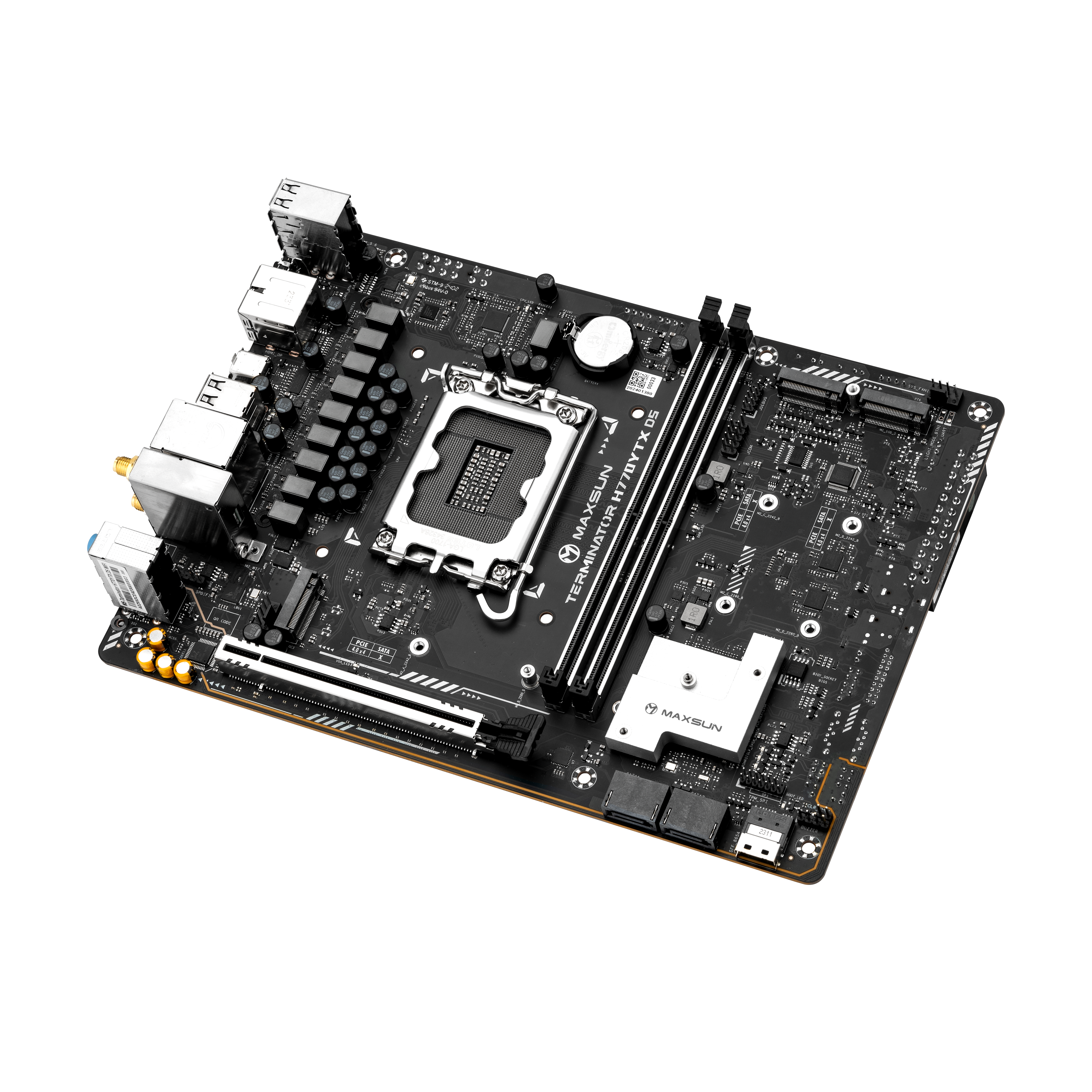

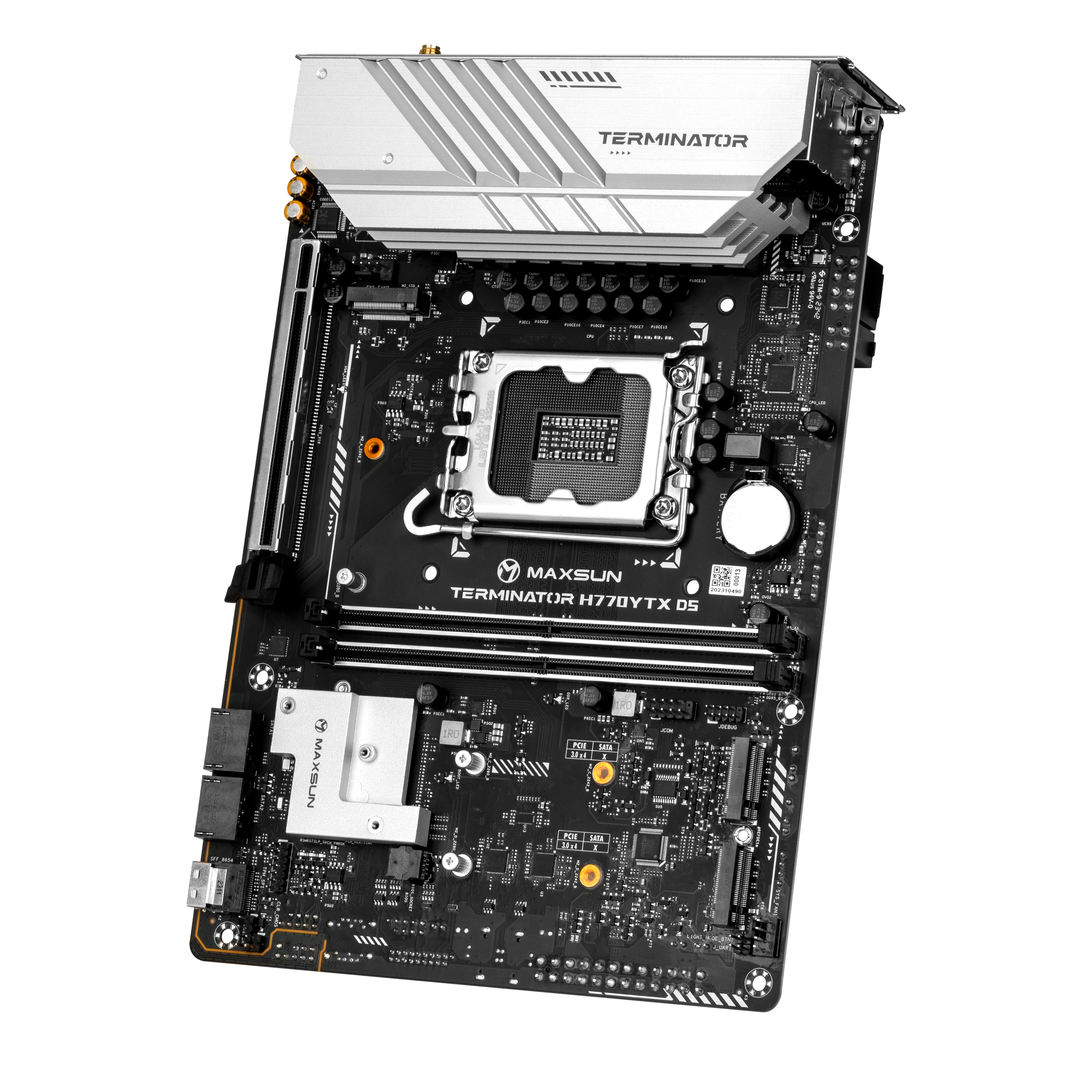

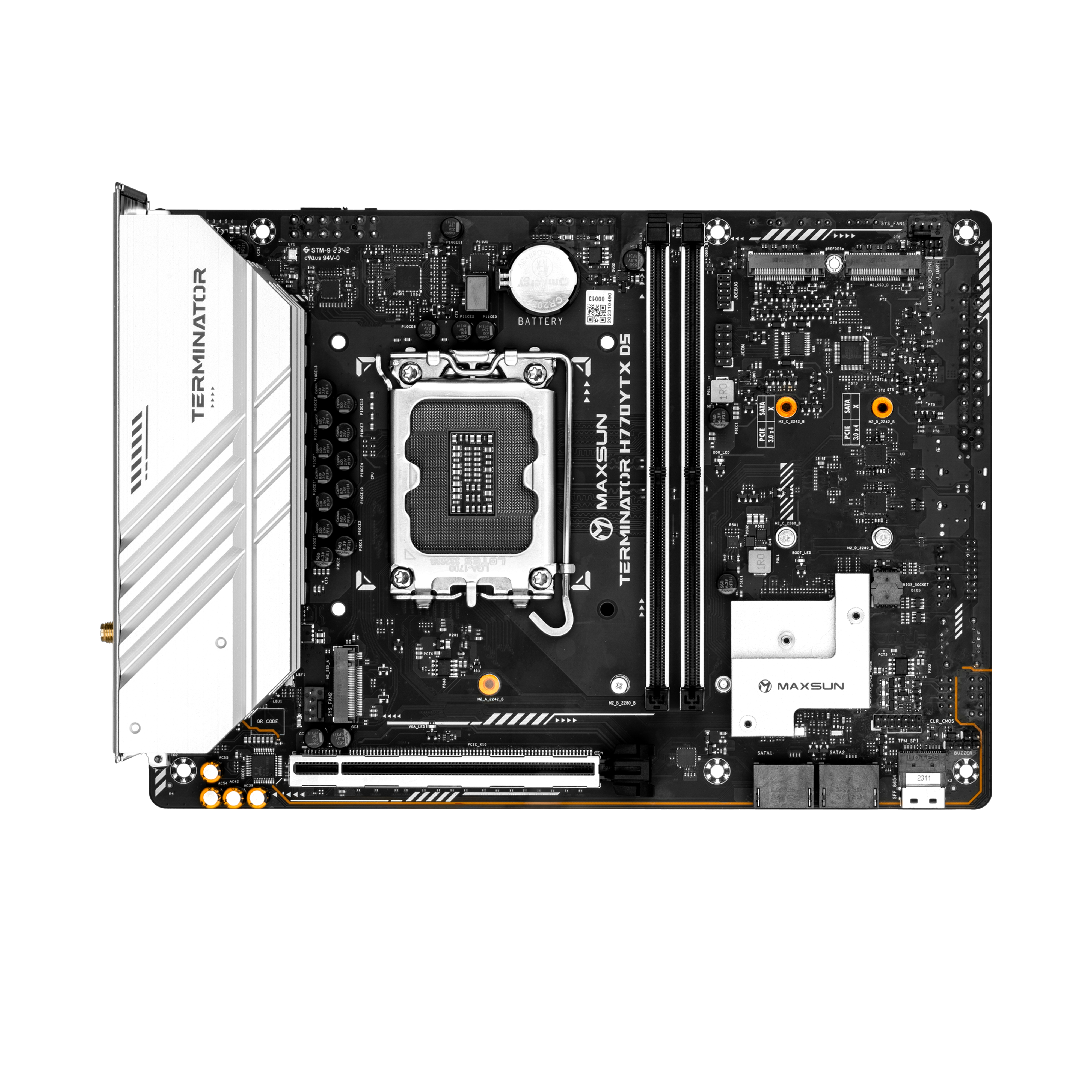

MS-TERMINATOR H770 YTX D5 WIFI


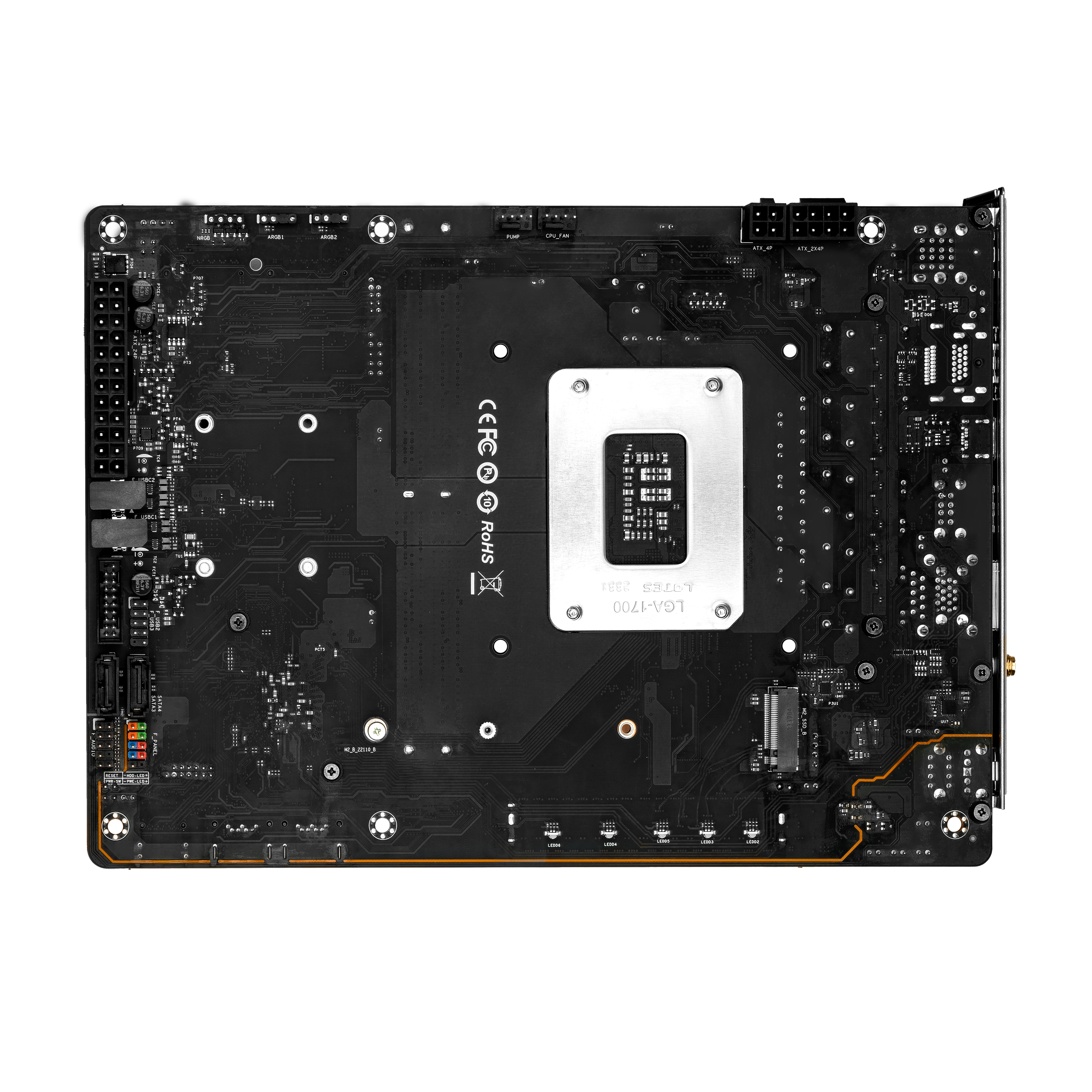

  • Backside Connectivity: Enhanced back plug design for superior expansion.
  • WIFI TERMINATOR H770: Unmatched wireless performance with the H770 YTX WIFI D5.
  • True Wireless Setup: YTX form factor eliminates wire clutter, enabling clean builds.
  • Dual Type-C Ports: Front-facing with support for DisplayPort and power output.
  • Expansive Expansion: 4 M.2 slots and 1 SFF-8654 4i for extensive connectivity.
  • Flexible PCIe x16 Slot: Supports device splitting for increased expansion.
  • Robust Power Design: 8+1+1 phase power with up to 253W for demanding components.
  • Compact YTX Form Factor: Space-efficient 175*245mm size without compromising performance.
Overview
Specification
Support

  • CHIPSET
  • INTEL H770
  • CPU
  • Supports 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
    LGA 1700
  • MEMORY
  • 2x DDR5, Maximum Memory Capacity 96GB
    Supports dual-channel memory architecture and Intel Extreme Memory Profile (XMP)Support8000(OC) / 7800(0 C) / 7600(0 C) / 7400(0 C) / 7200(C) / 7000(0 C) / < br > 6800(0 C) / 6600(OC) / 6400(0 C) / 6200(OC) / 6000(OC) / 5800(OC) / < br > 5600 / 5400 / 5200 / 5000 / 4800 MhzMemory frequency.
  • ONBOARD GRAPHICS
  • 1x DisplayPort 1.4
    1x HDMI™ 2.0 port
    *HDMI™ port supports up to 4K@60Hz
    *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • EXPANSION SLOT
  • 1x PCIe 4.0 x16 slot
  • STORAGE
  • Supports a total of 4x M.2 slots, 4x SATA 6Gb/s interfaces, and 1x SFF-8654 4i interface from Intel 14th & 13th & 12th Gen processors:
    M.2_A Slot (Key_M): Supports PCIe 4.0 X4/X2 modes, supports 2242/2280 lengths.
    M.2_B Slot (Key_M): Supports PCIe 4.0 X4/X2 modes, supports 2242/2280/22110 lengths (located on the back of the motherboard).
    M.2_C Slot (Key_M): Supports PCIe 4.0 X4/X2 modes, supports 2242/2280/22110 lengths.
    M.2_D Slot (Key_M): Supports PCIe 4.0 X4/X2 modes, supports 2242/2280 lengths.
    SFF-8654 4i Interface: Supports PCIe 4.0 X4/X2 and SATA (4x SATA 6Gb/s) modes.4x SATA 6Gb/s interfaces.
  • USB
  • *Onboard USB (Total of 6 ports):
    2x USB 3.2 Gen 2 Type-C (10G) front ports, supporting DisplayPort 1.4 with a maximum 4K@60Hz video output; supporting up to 15W power output.
    1x USB 3.2 Gen 1 (5G) header, supporting 2 additional USB 3.2 Gen 1 ports.
    1x USB 2.0 header, supporting 2 additional USB 2.0 ports.
    Rear USB (Total of 9 ports):
    1x USB 3.2 Gen 2x2 Type-C (20G) port.
    2x USB 3.2 Gen 1 Type-A (5G) ports.
    6x USB 2.0 Type-A ports
  • LAN
  • 1x Realtek RTL8125BG 2.5Gb Ethernet port
    1x Intel AX101 wireless card: Supports Wi-Fi 6 and Bluetooth® v5.2
  • AUDIO
  • Realtek® ALC897 Codec
    5.1-Channel High Definition Audio

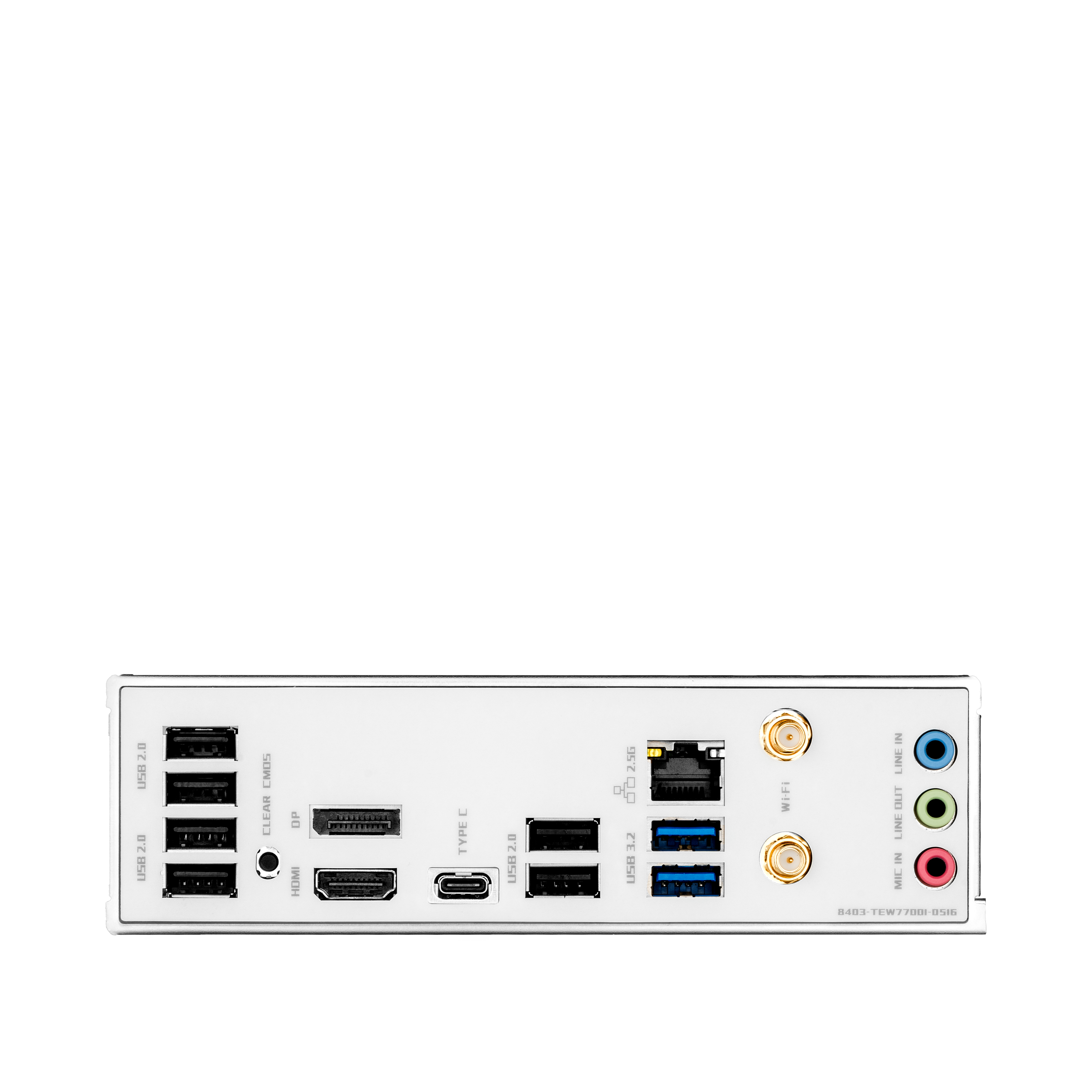

  • INTERNAL I/O
  • 6x USB 2.0 Type-A ports
    CLR_CMOS button
    1 x Display Port 1.4
    1 x HDMI™ 2.0
    1x USB 3.2 Gen 2x2 Type-C® (20G) port
    2x USB 3.2 Gen 1 Type-A (5G) ports
    1x Realtek 2.5Gb Ethernet port
    1x Wi-Fi antenna port
    3x audio jacks
  • LED FEATURE
  • 4x Distributed Debug LED
  • PCIE EXPANSION SLOTS
  • From Intel 14th & 13th & 12th Gen processors:
    1x PCIe x16 slot (supports PCIe 5.0 x16 mode, supports x16 lane splitting, can be split into x8+x8)
  • OPERATING SYSTEM
  • Support for Windows® 11 64-bit, Windows® 10 64-bit
  • FORM FACTOR
  • YTX
    245mm x 175mm
