MS-Challenger B760ITX D5
Powerful Expansion: 1× PCIe 5.0 x16 and 2× PCIe 4.0 M.2 slots for GPU and NVMe storage
Ultra-Fast Memory: Dual DDR5 slots, supports XMP up to 8000MHz (OC)
Comprehensive Cooling: 1× CPU and 3× system fan headers
Rich Connectivity: USB 3.2 Gen2 Type-C®, DisplayPort 1.4, HDMI 2.0/1.4
Reliable Networking: Dual LAN (2.5G + 1G) with optional M.2 WiFi slot
Overview
Specification
Support
- CHIPSET
- INTEL B760 High Speed Chipset
- CPU
- Supports 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
- MEMORY
- 2x DDR5, Maximum Memory Capacity 96GB
Support 4800 MHz /XMP/OC/memory frequencies
Supports Intel® XMP 2.0 OC
Supports Dual-Controller Dual-Channel mode
- ONBOARD GRAPHICS
- 2* DP1.4 display ports supporting up to 4096x2160@60Hz resolution
1*HDMl 2.0 display interface, support up to 4096x2160@60Hz resolution
1* HDMl 1.4 display interface, support up to 4096x2160@30Hz resolution
- EXPANSION SLOT
- 1x PCIe 5.0 x16 slot
- SSD
- 1x M.2_SSD_A Front Socket M.2 slot with Gen4 x4 support
1x M.2_SSD_B backside slot M.2 slot with Gen4 x4 support
4x SATA 3.0 ports
- USB
- Onboard USB pins (5 ports total)

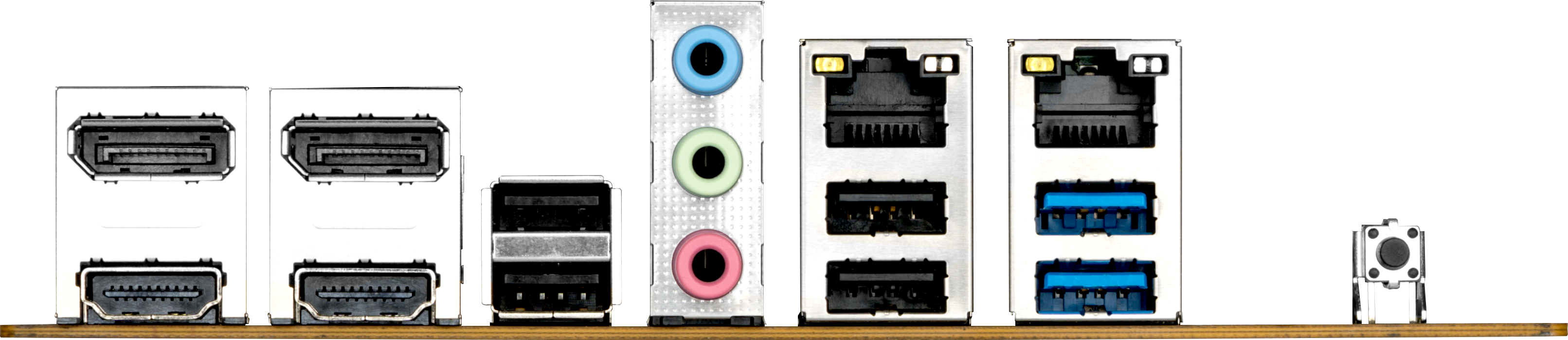

Rear USB ports
- LAN
- 2.5Gb+1Gb dual LAN ports
- AUDIO
- Realtek® ALC897 Codec
- INTERNAL I/O
- 1x 24-pin Power Connector(ATX_PWR)
1x 8-pin Power Connector(CPU_PWR)
1x CPU Fan
3x System Fan
1x M.2 slots (Key-M)
4x SATA 6Gb/s ports
1x CLR_CMOS
1x 4-Pin BUZZER
1x Front Audio
1x COM Port
- OPERATING SYSTEM
- Support for Windows® 10 64-bit, Windows® 11 64-bit
- FORM FACTOR
- ITX
170mm x 170mm
