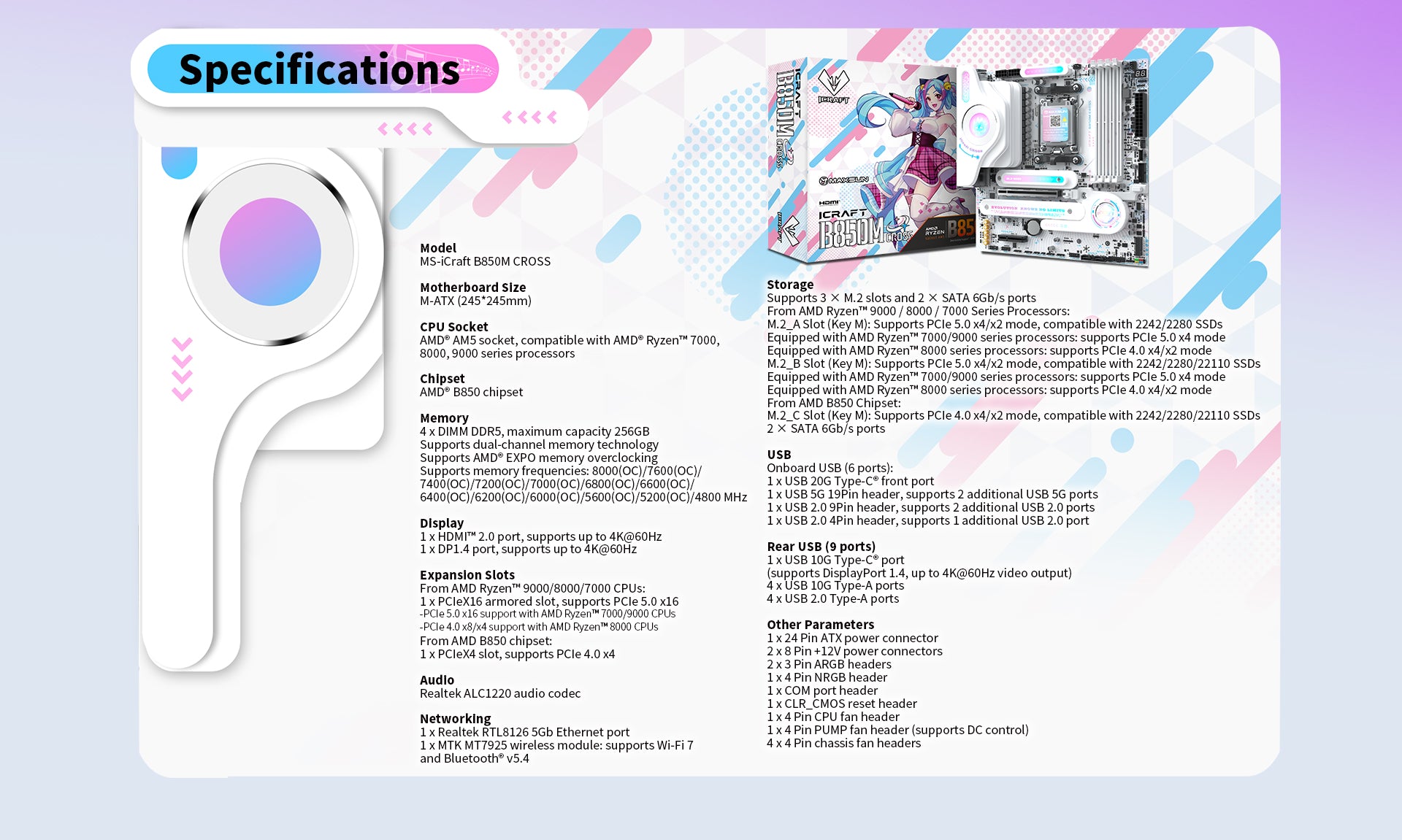

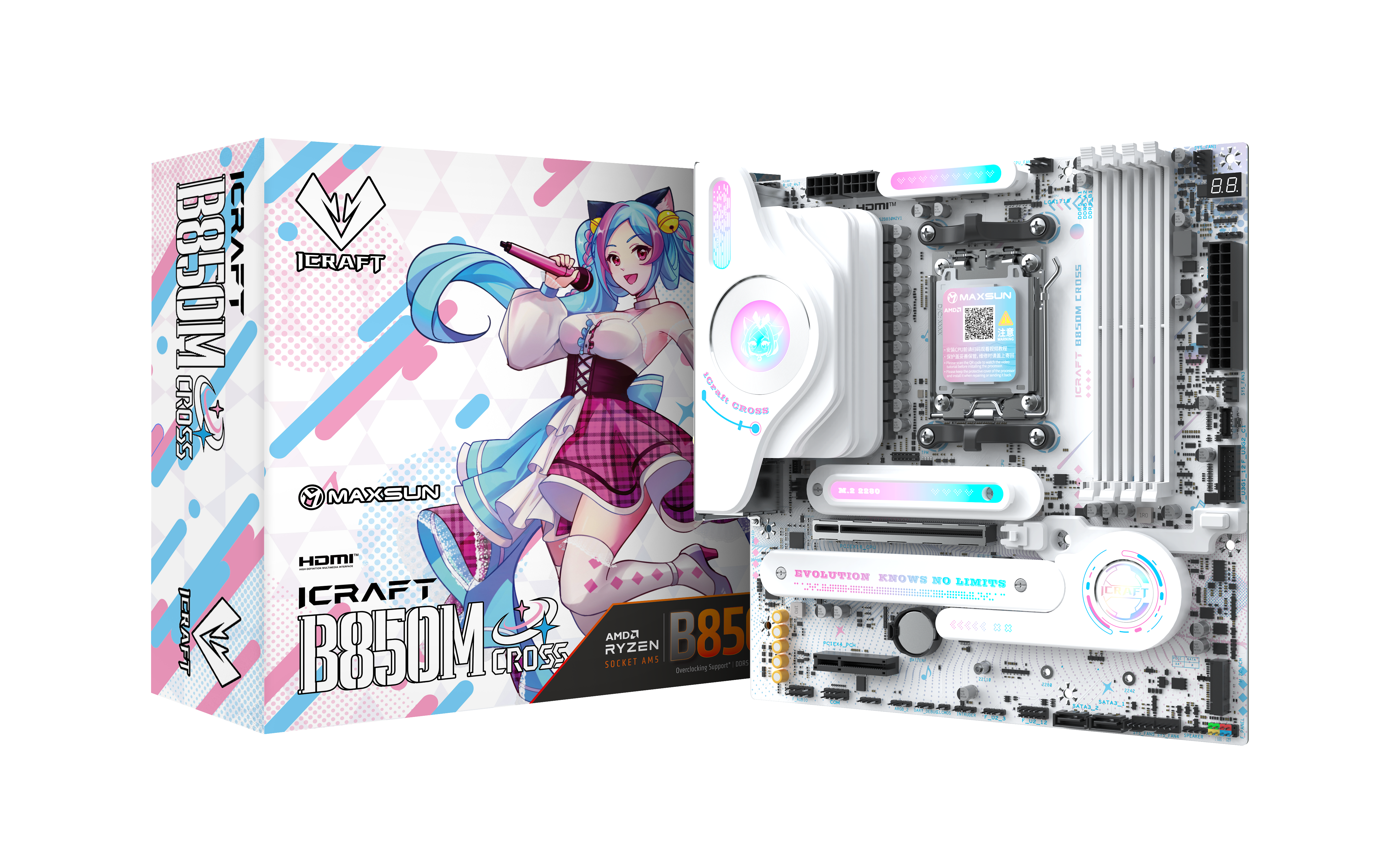

MS-iCraft B850M CROSS

• Model
• MS-iCraft B850M CROSS

• Motherboard Size
• M-ATX (245 × 245 mm)

• CPU Socket
• AMD® AM5 socket, compatible with AMD® Ryzen™ 7000, 8000, 9000 series processors

• Chipset
• AMD® B850 chipset

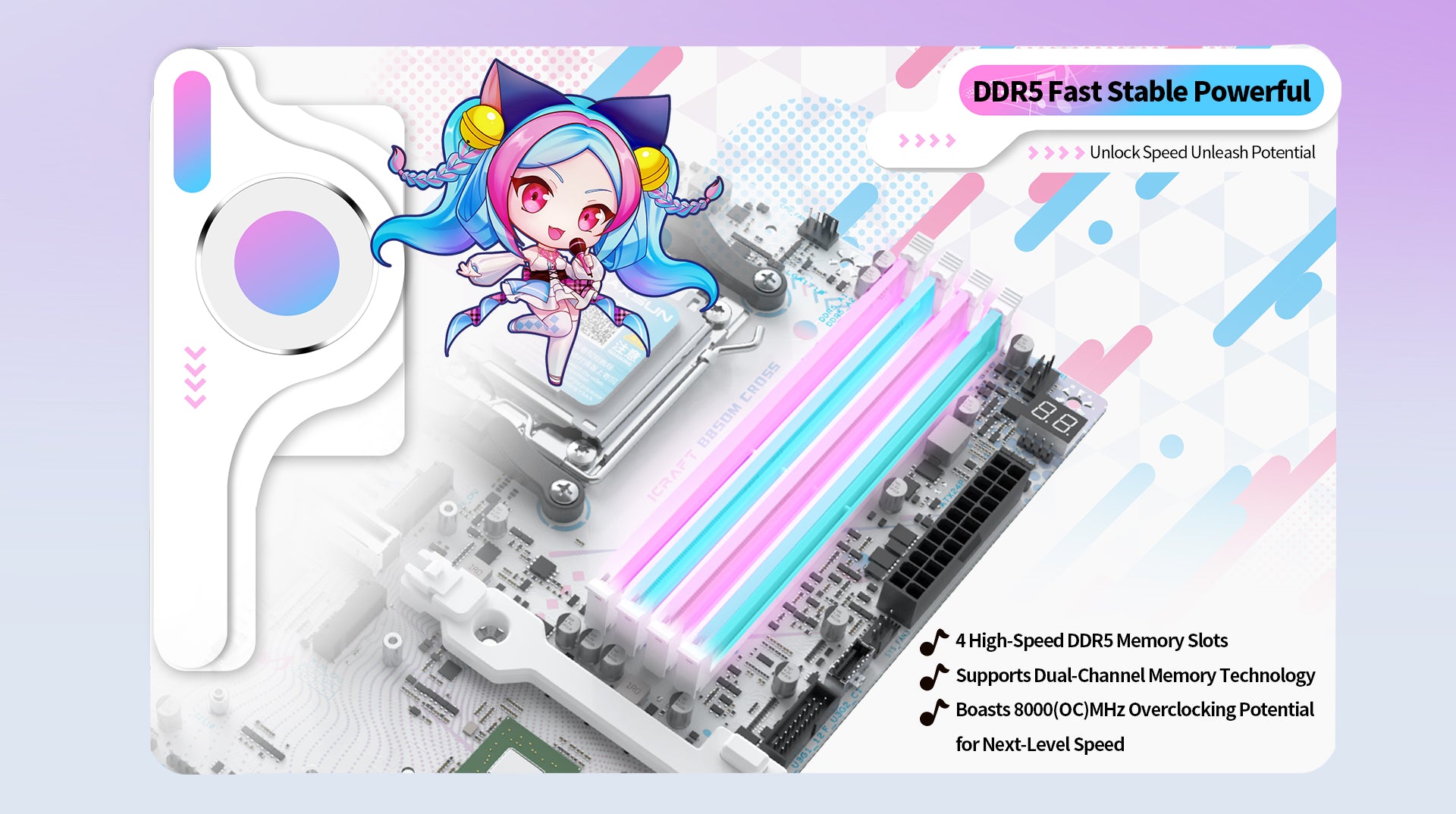

• Memory
• 4 × DIMM DDR5, maximum capacity 256GB
  Supports dual-channel memory technology
  Supports AMD® EXPO overclocking
  Supported frequencies:
  8000(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200(OC) / 4800 MHz

• Display
• 1 × HDMI™ 2.0 (up to 4K@60Hz)
  1 × DP 1.4 (up to 4K@60Hz)

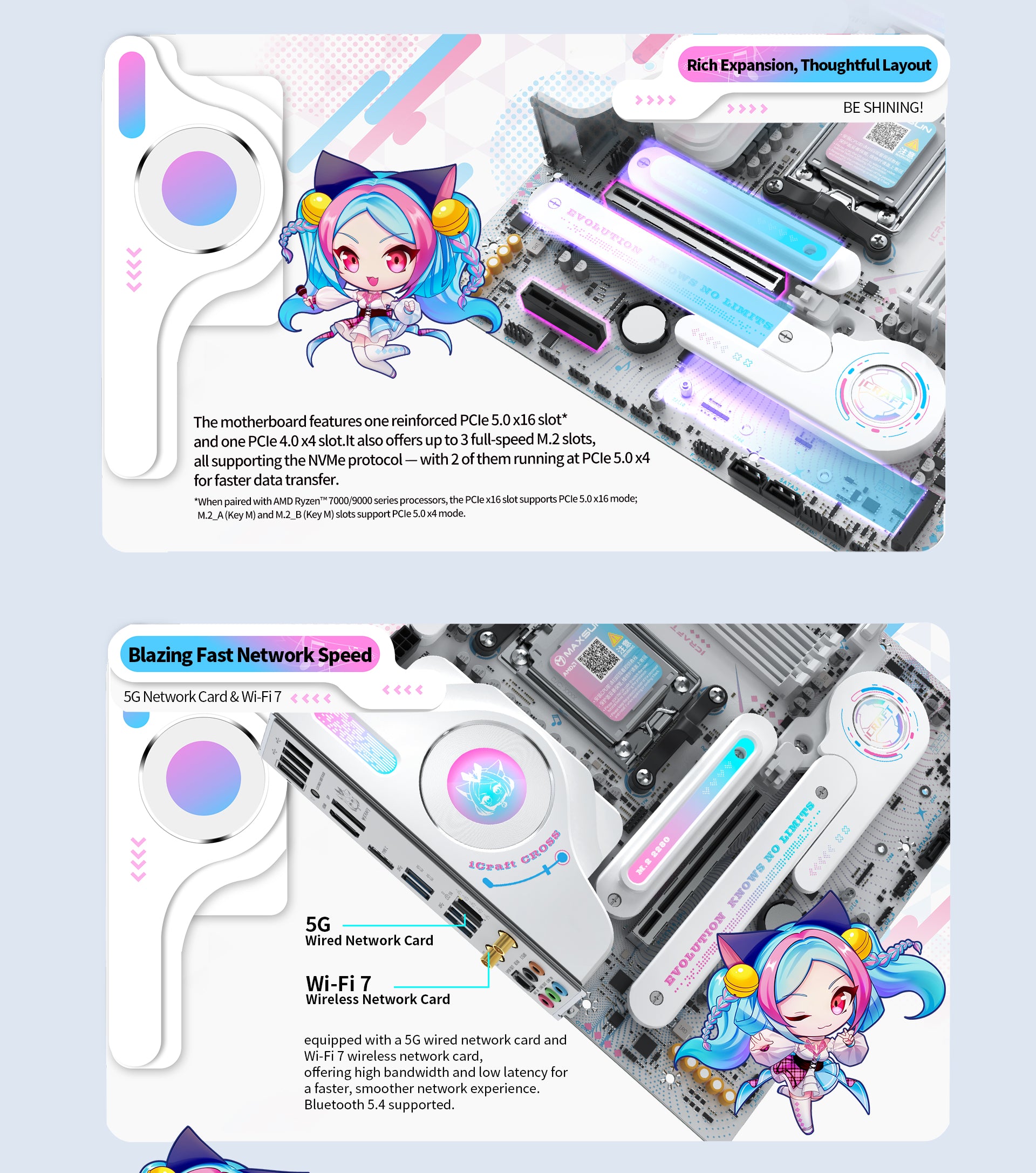

• Expansion Slots
• From AMD Ryzen™ 9000/8000/7000 CPUs:
  1 × PCIe X16 armored slot (PCIe 5.0 x16)

  From AMD B850 chipset:
  1 × PCIe X4 slot (PCIe 4.0 x4)

• Audio
• Realtek ALC1220 audio codec

• Networking
• 1 × Realtek RTL8126 5Gb Ethernet
  1 × MediaTek MT7925 wireless module (Wi-Fi 7 & Bluetooth® 5.4)

• Storage
• Supports 3 × M.2 slots and 2 × SATA 6Gb/s ports

  From AMD Ryzen™ 9000/8000/7000 CPUs:
  M.2_A (Key M): PCIe 5.0 x4, supports 2242/2280
  M.2_B (Key M): PCIe 5.0 x4, supports 2242/2280/22110

  From AMD B850 chipset:
  M.2_C (Key M): PCIe 4.0 x4/x2, supports 2242/2280/22110
  2 × SATA 6Gb/s ports

• USB
• Onboard USB:
  1 × USB 20G Type-C® front port
  1 × USB 5G 19-pin header (supports 2 × USB 5G ports)
  1 × USB 2.0 9-pin header (supports 2 × USB 2.0 ports)
  1 × USB 2.0 4-pin header (supports 1 × USB 2.0 port)

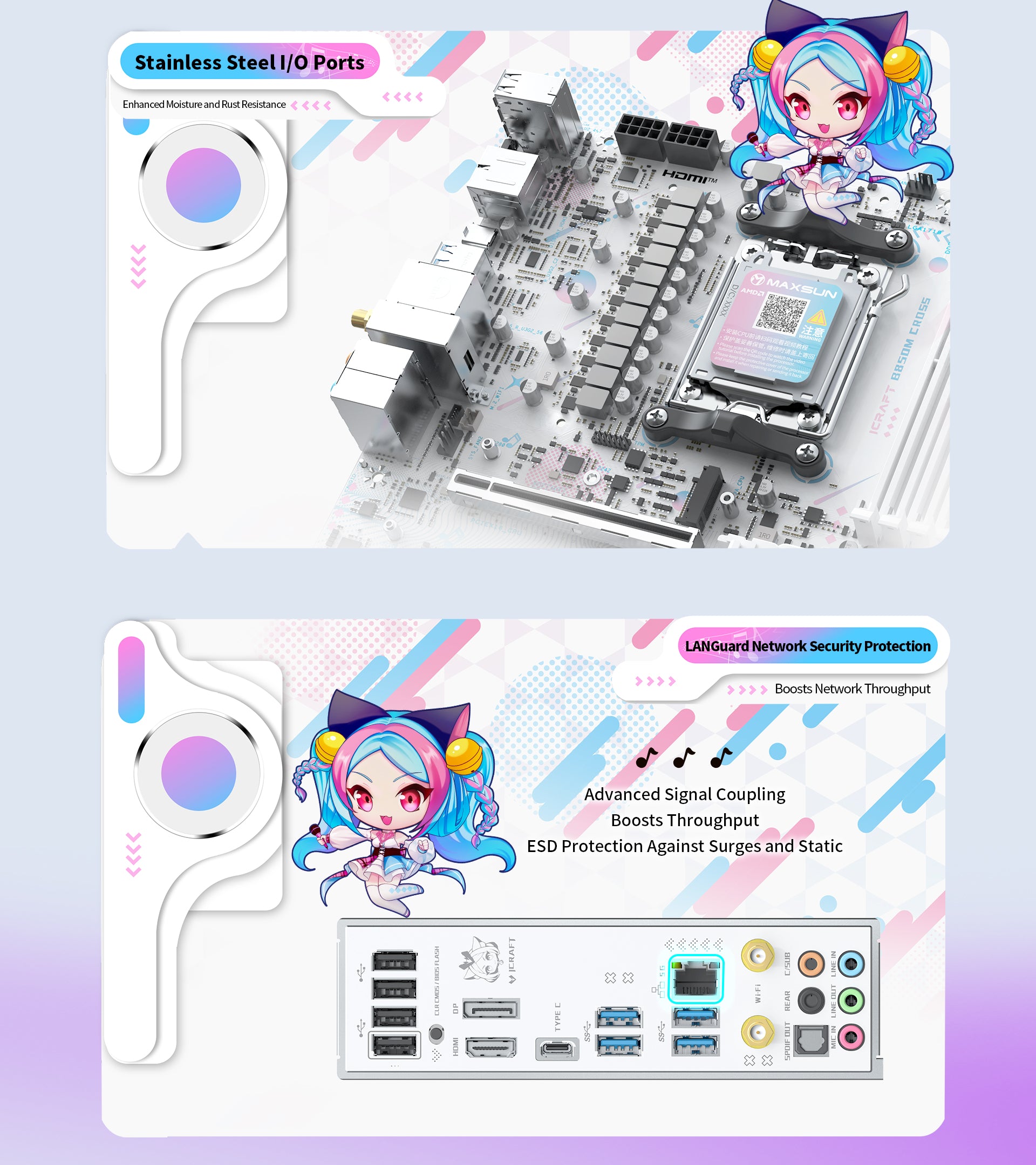

  Rear USB:
  1 × USB 10G Type-C® (DP 1.4 output, 4K@60Hz)
  4 × USB 10G Type-A
  4 × USB 2.0 Type-A

• Other Parameters
• 1 × 24-pin ATX power connector
  2 × 8-pin +12V CPU power connectors
  2 × 3-pin ARGB headers
  1 × 4-pin NRGB header
  1 × COM port header

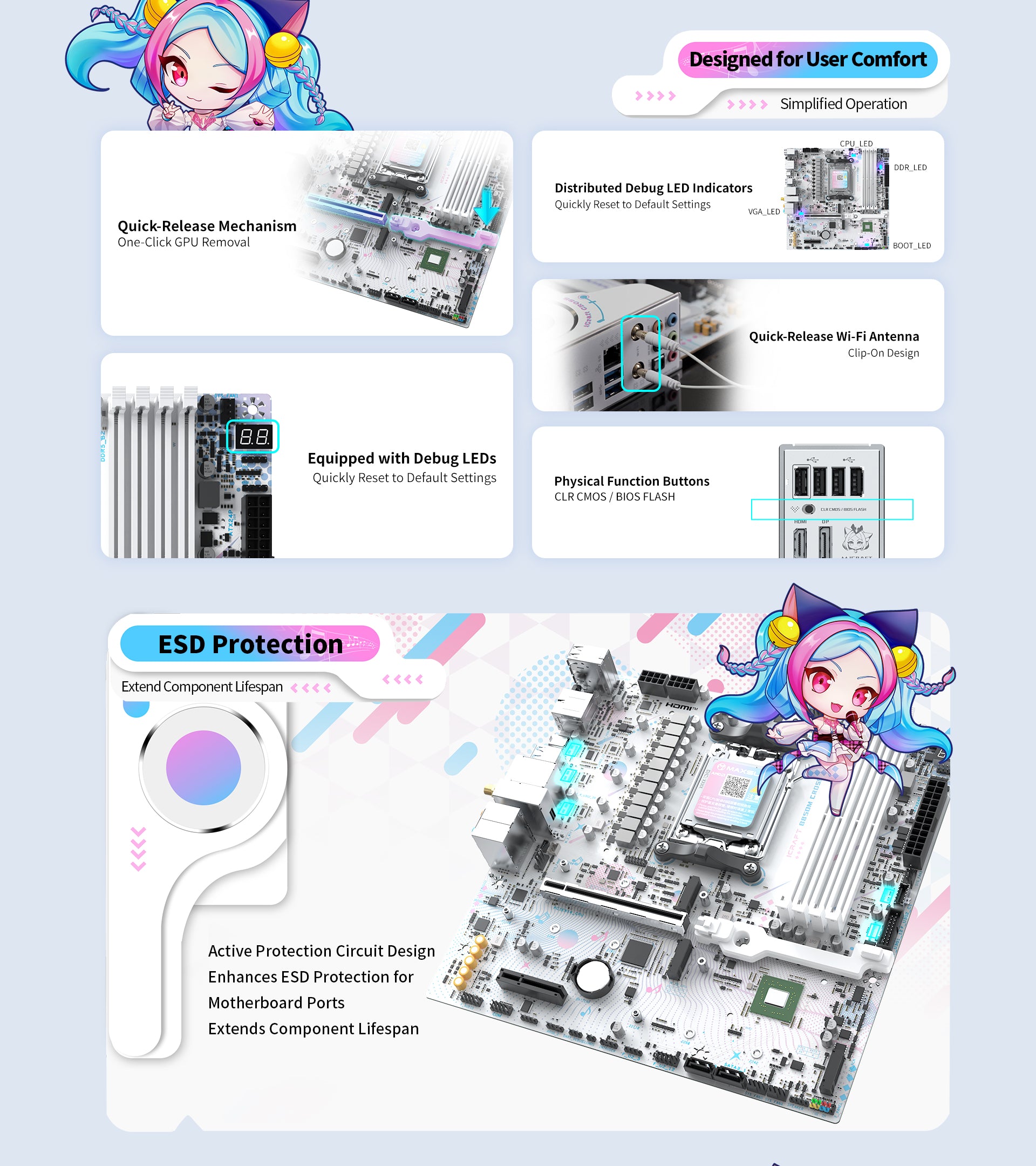

  1 × CLR_CMOS reset header
  1 × 4-pin CPU fan header
  1 × 4-pin PUMP header (DC supported)
  4 × 4-pin chassis fan headers
