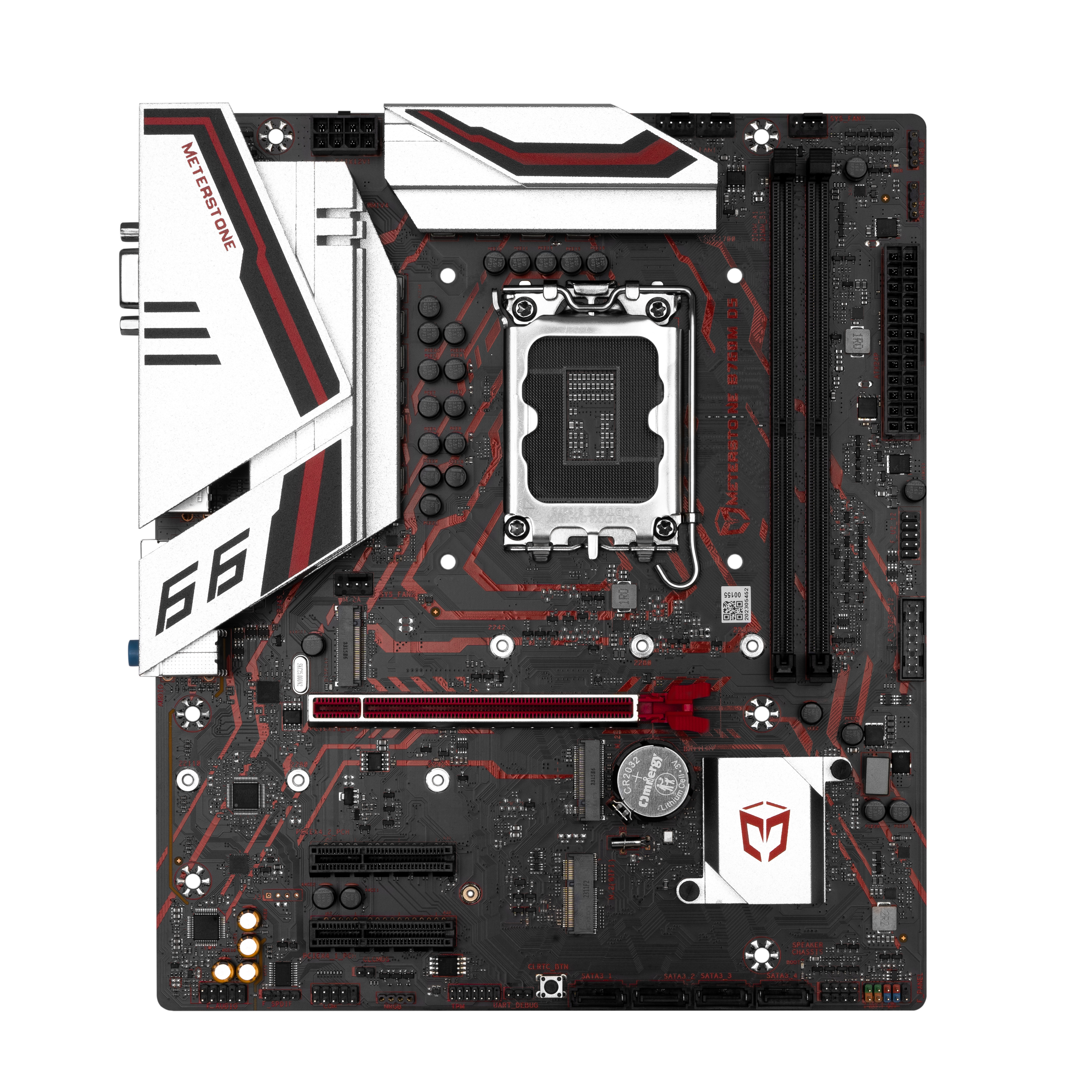

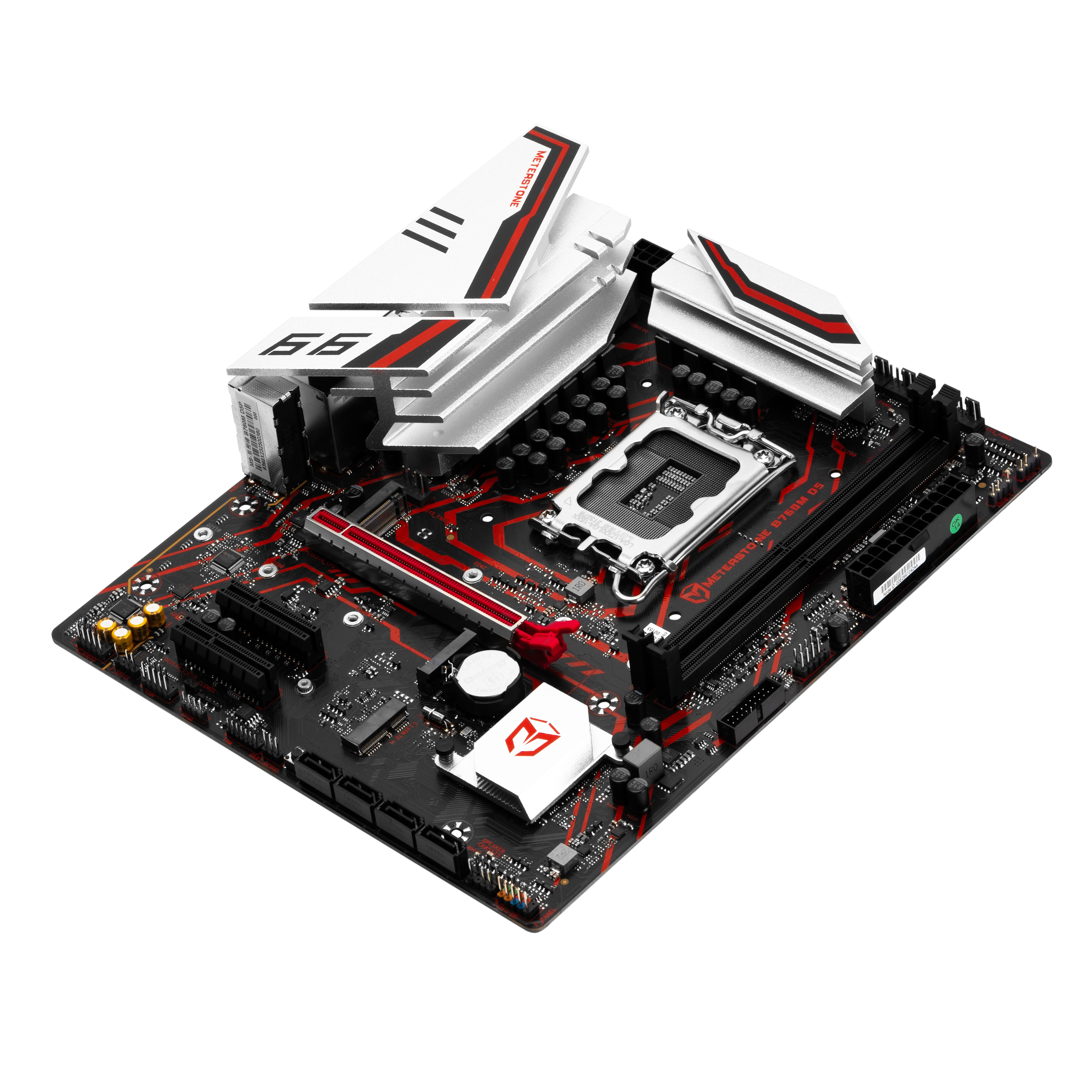

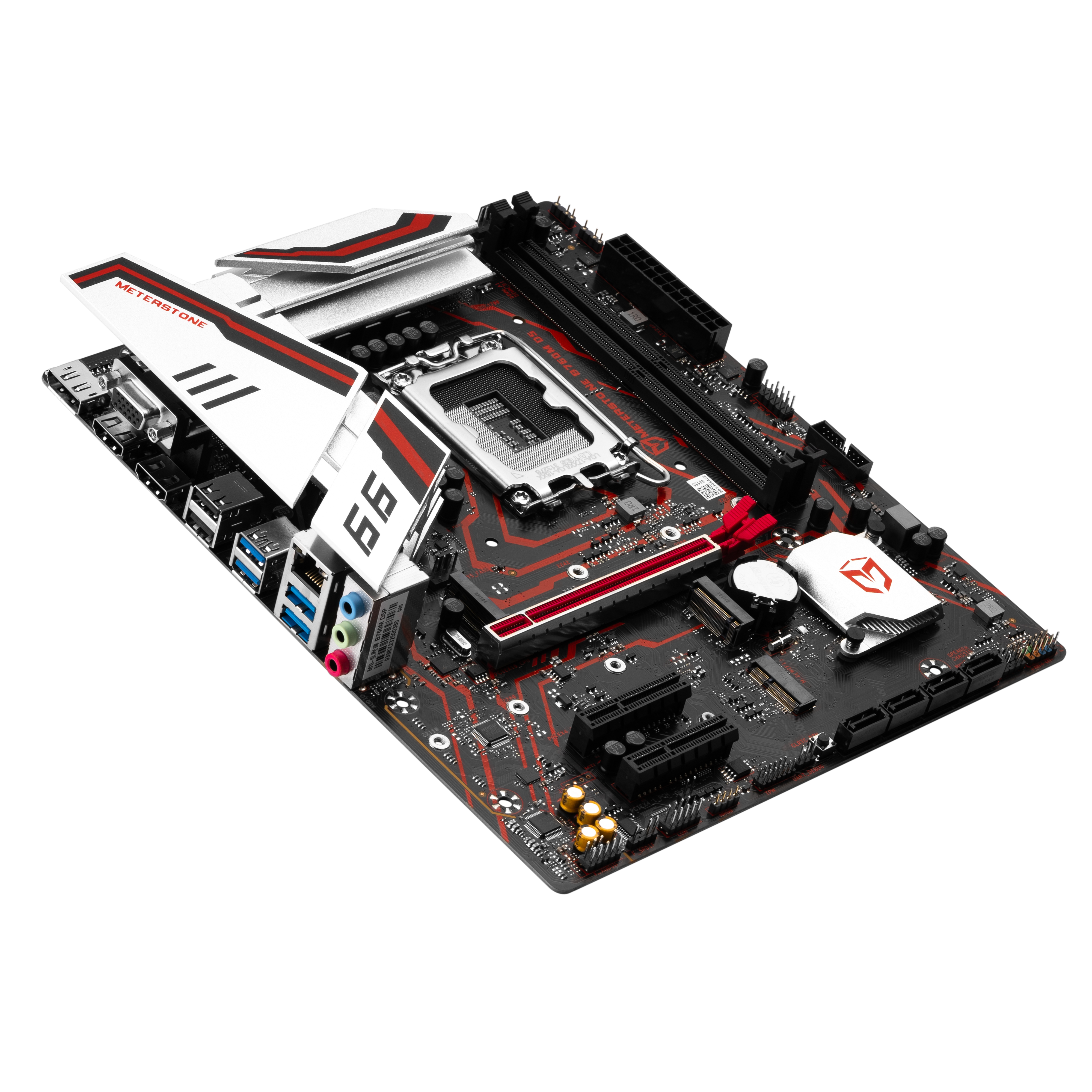

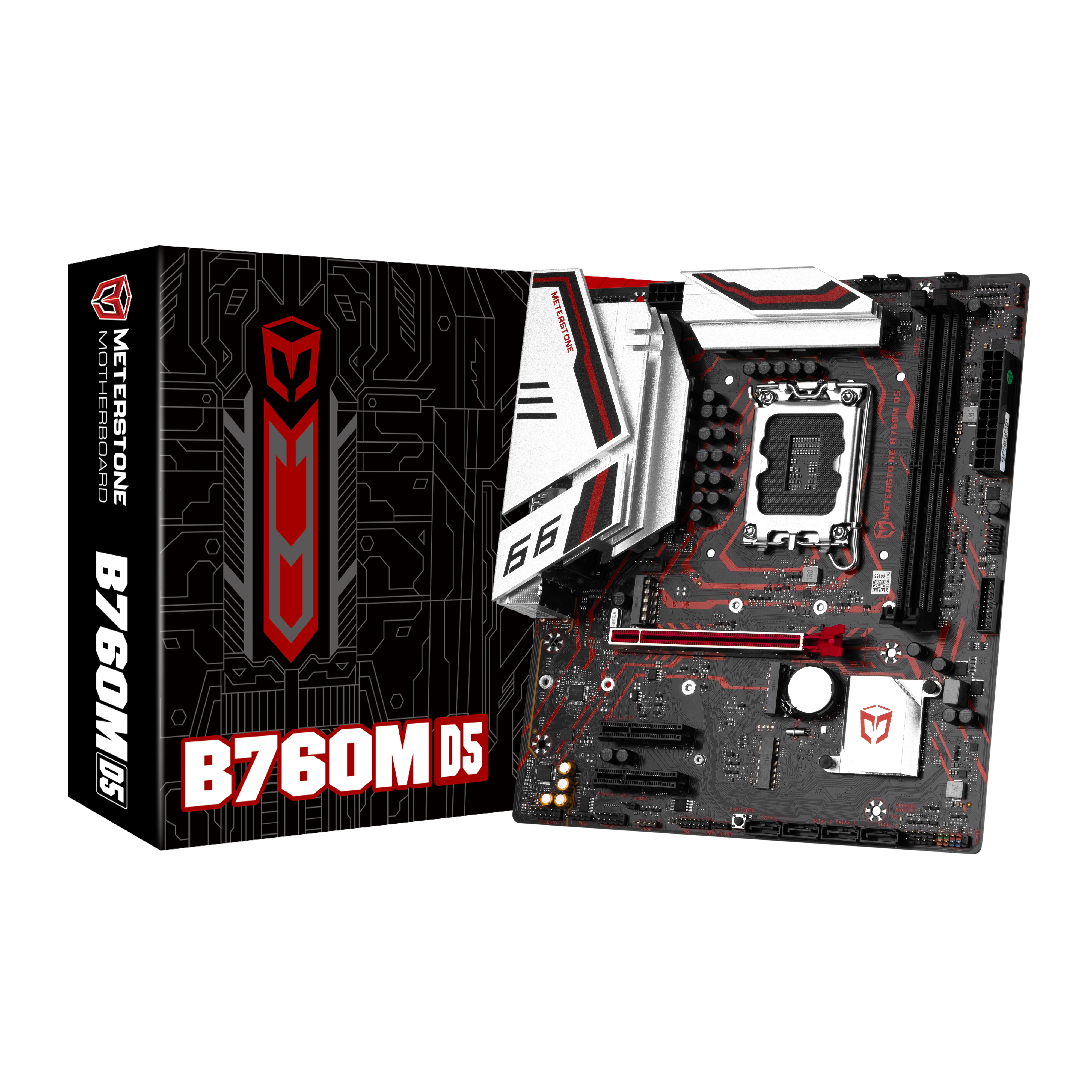

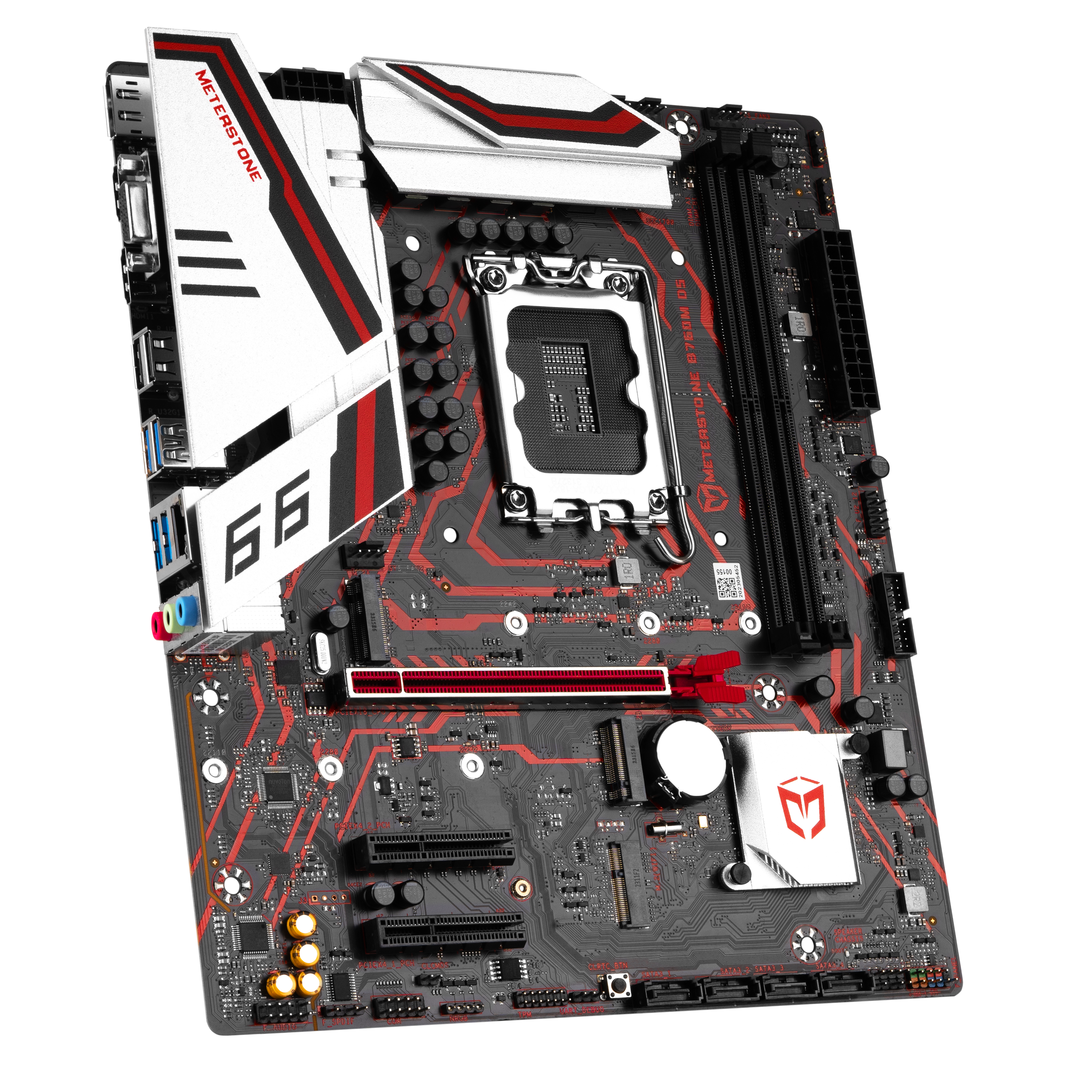

MS-Milestone B760M D5P


  • Intel Core 14th Gen CPU
  • 10-Phase Core 50A Dr. Mos Power Supply
  • DDR5 XMP 7600MHz Potential
  • 2.5G Wired NIC
  • Full Speed Dual M.2
  • Distributed Debug Lights
  • CLR_CMOS button
Overview
Specification
Support

  • CHIPSET
  • INTEL B760
  • CPU
  • Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
    LGA 1700
  • MEMORY
  • 2x DDR5, Maximum Memory Capacity 96GB
    Memory Support DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Supports Intel® XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode

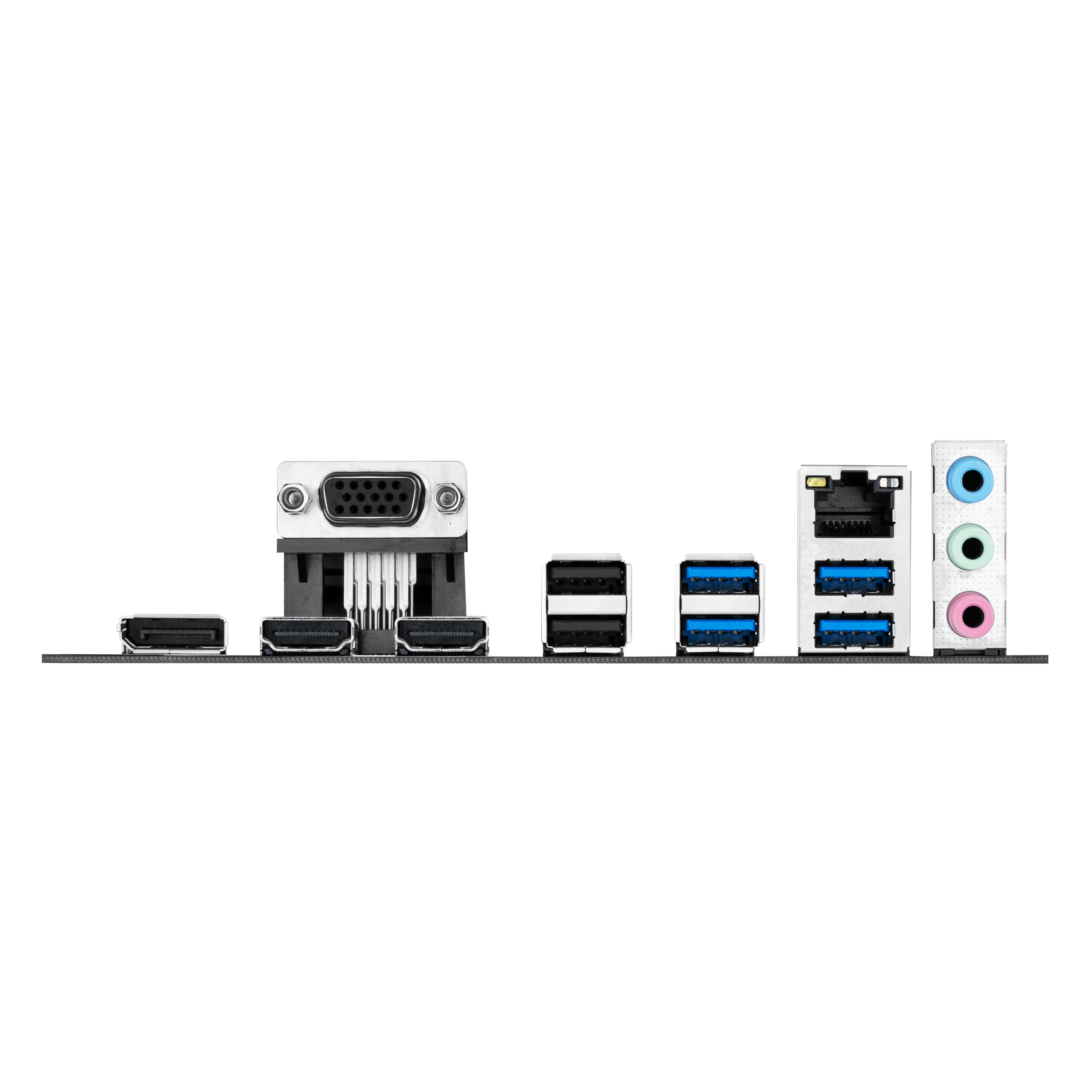

  • ONBOARD GRAPHICS
  • 1x DisplayPort 1.4
    2x HDMI™port
    *HDMI™ port supports up to 4K@30Hz
    1x VGA
    *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
    *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • EXPANSION SLOT
  • 1x PCIe 4.0 x16 slot
    2x PCIe 3.0 x4 slot
  • STORAGE
  • M.2_1 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
  • RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB
  • *Front USB (Total 4 ports)
    2x USB 3.2 Gen1 Type A
    2x USB 2.0
    *Rear USB (Total 6 ports)
    4x USB 3.2 Gen1 Type A
    2x USB 2.0
  • LAN
  • Realtek® RTL8125BG 2.5G LAN
  • AUDIO
  • Realtek® ALC897 Codec
    5.1-Channel High Definition Audio
  • INTERNAL I/O
  • 1x 24-pin Power Connector(ATX_PWR)
    1x 8-pin Power Connector(CPU_PWR)
    1x CPU Fan
    3x System Fan
    3 x M.2 slots (Key-M)
    4x SATA 6Gb/s ports
    1x M.2 slots (Key-E)
    1x 4-Pin SPEAKER
    2x 5V 3-Pin ARGB
    1x 12V 4-Pin RGB
    1x 2-Pin Clear CMOS
    1x Front Audio
    1x COM_A Port
    1x TPM pin header(Support TPM 2.0)
    1x Clear CMOS Button
    1x 3-Pin UART_DEBUG
    1x 3-Pin SPDIF
  • LED FEATURE
  • 4x Distributed Debug LED
  • OPERATING SYSTEM
  • Support for Windows® 11 64-bit, Windows® 10 64-bit
  • FORM FACTOR
  • M-ATX
    245mm x 210mm
