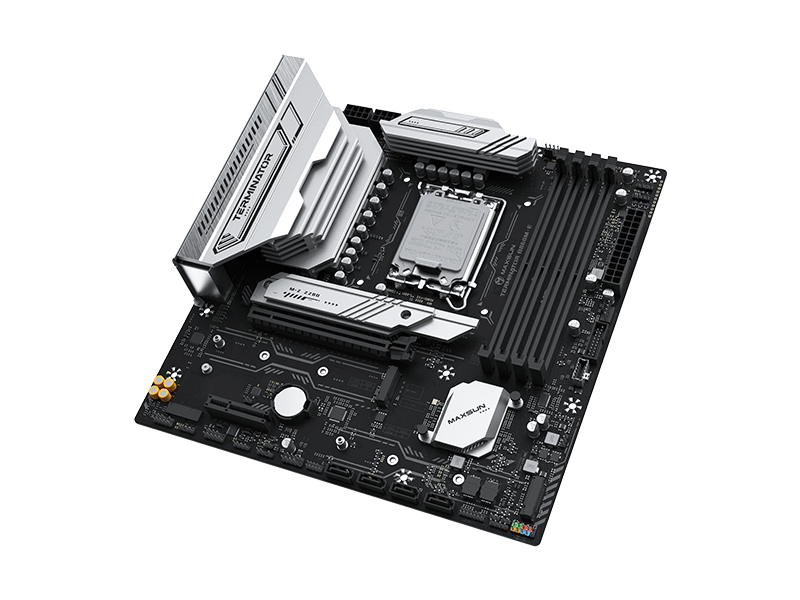

MS-Terminator B860M-E

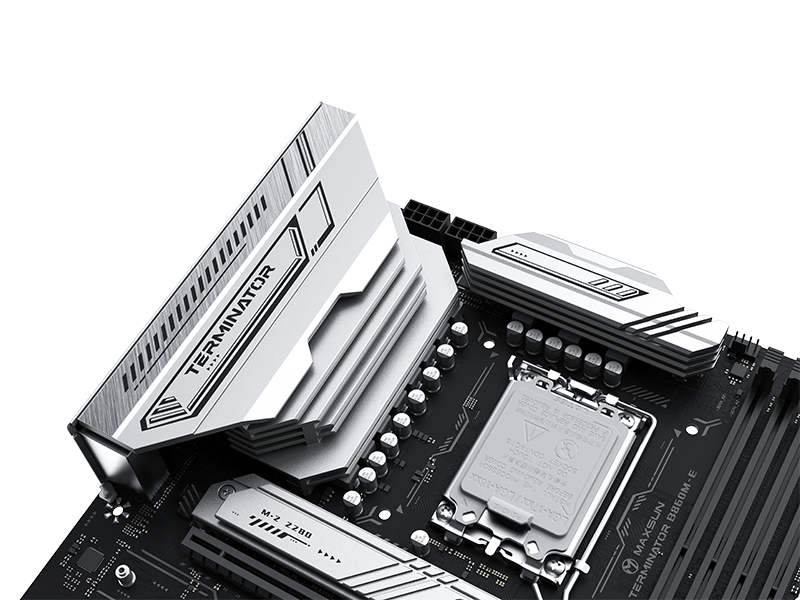

  • 8+1+1 Phase Power Design with 50A Dr.MOS for stable power delivery

  • PTM UI BIOS offers a user-friendly interface for easier configuration

  • 3× Full-Speed M.2 Slots for high-performance NVMe storage

Overview
Specification
Support

  • Form Factor
  • Micro-ATX
  • Chipset
  • Intel B860 Chipset
  • CPU Support

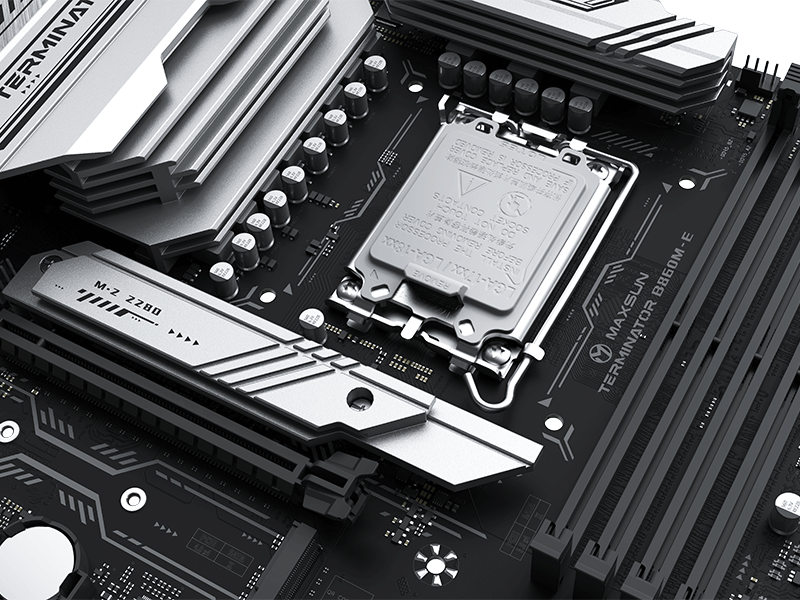

  • Intel® LGA1851 socket
    Compatible with Intel® Core™ Ultra processors
  • Memory Support
  • 4× DDR5 DIMM slots
  • Networking
  • Realtek® RTL8125D 2.5G LAN
    1× M.2_WIFI slot (Key E), supports CNViO2 / PCIe / USB modes (for installing wireless network cards)
  • Expansion Support
  • Storage Interfaces
  • 1× M.2 slot (PCIe 5.0 x4/x2 mode), supports 2242/2280 lengths
    2× M.2 slots (PCIe 4.0 x4/x2 mode), supports 2242/2280/22110 lengths
    4× SATA 6Gb/s ports
  • PCIe Slots
  • 1× PCIe x16 slot (supports PCIe 5.0 x16 mode)
    1× PCIe x4 slot (supports PCIe 4.0 x4 mode)
  • USB Ports
  • Onboard (Front Panel):
    1× USB-C® 20Gbps header
    1× USB 5Gbps 19-pin header (supports 2 additional USB 5G ports)
    1× USB 2.0 9-pin header (supports 2 additional USB 2.0 ports)

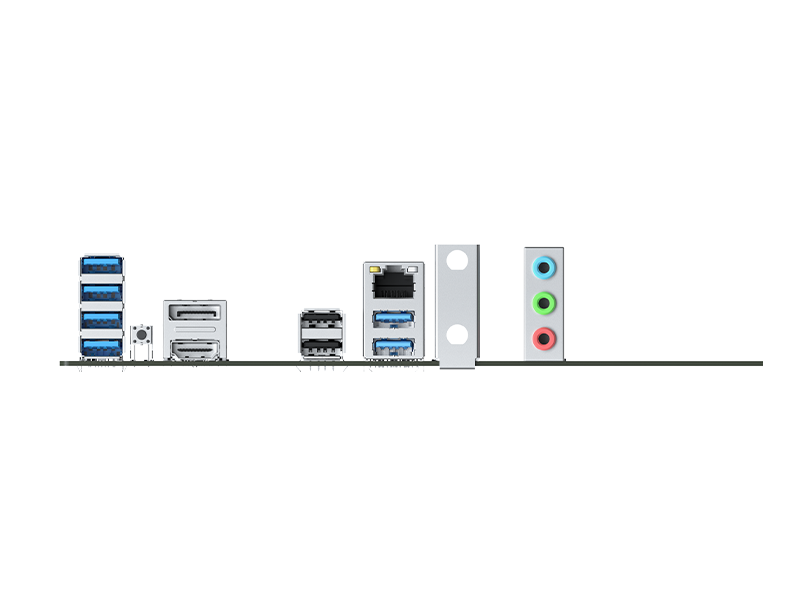

    Rear I/O:
    4× USB 10Gbps Type-A
    2× USB 5Gbps Type-A
    2× USB 2.0 Type-A
  • Audio
  • Realtek ALC897 HD Audio Codec
  • Video Outputs
  • 1× HDMI™ 2.0
    1× DisplayPort 1.4
  • Power Connectors
  • 1× 24-pin ATX main power connector
    8+8 Pin 12V CPU power connectors
  • Accessories
  • 2× SATA data cables
    1× M.2 SSD screw kit
    1× Product warranty card
