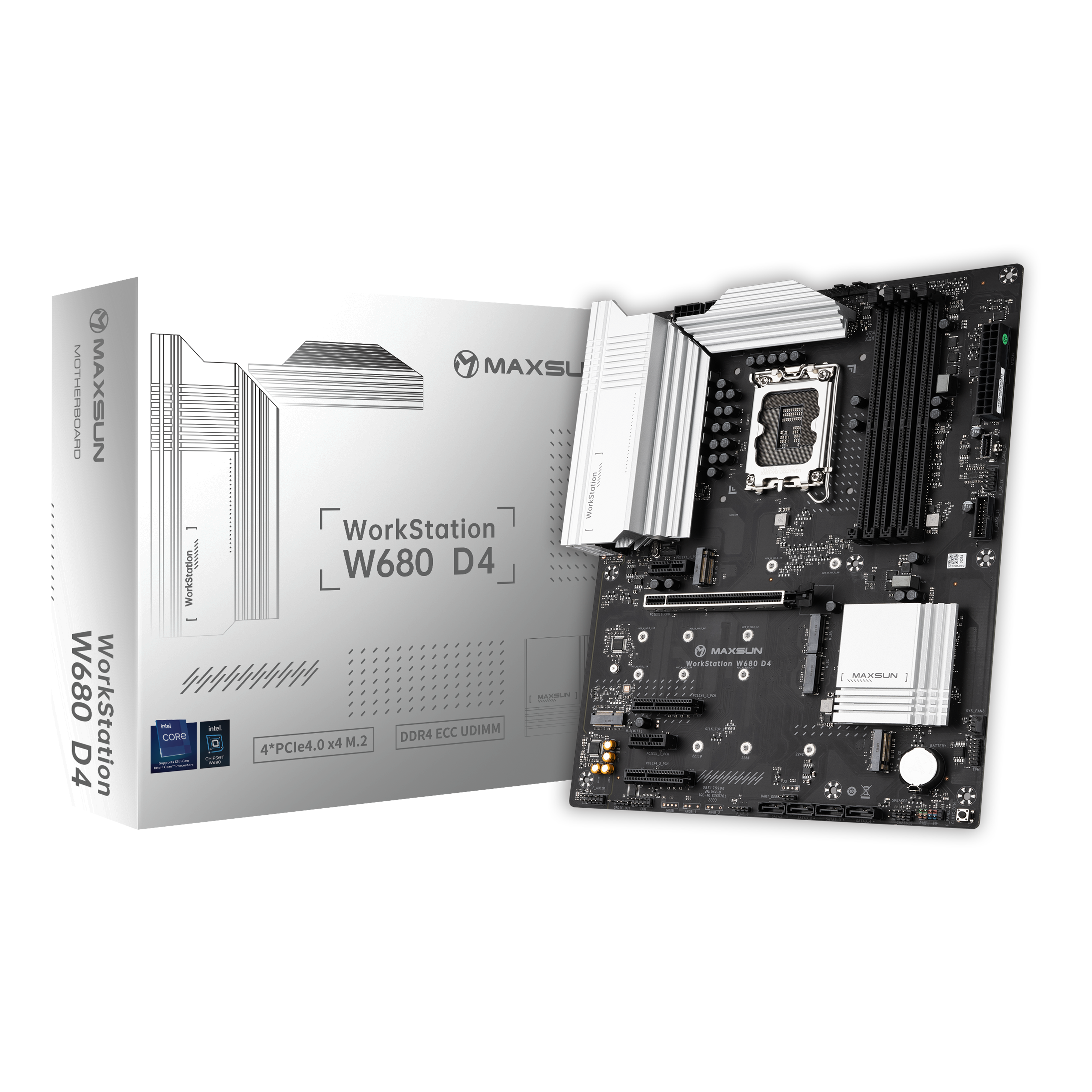

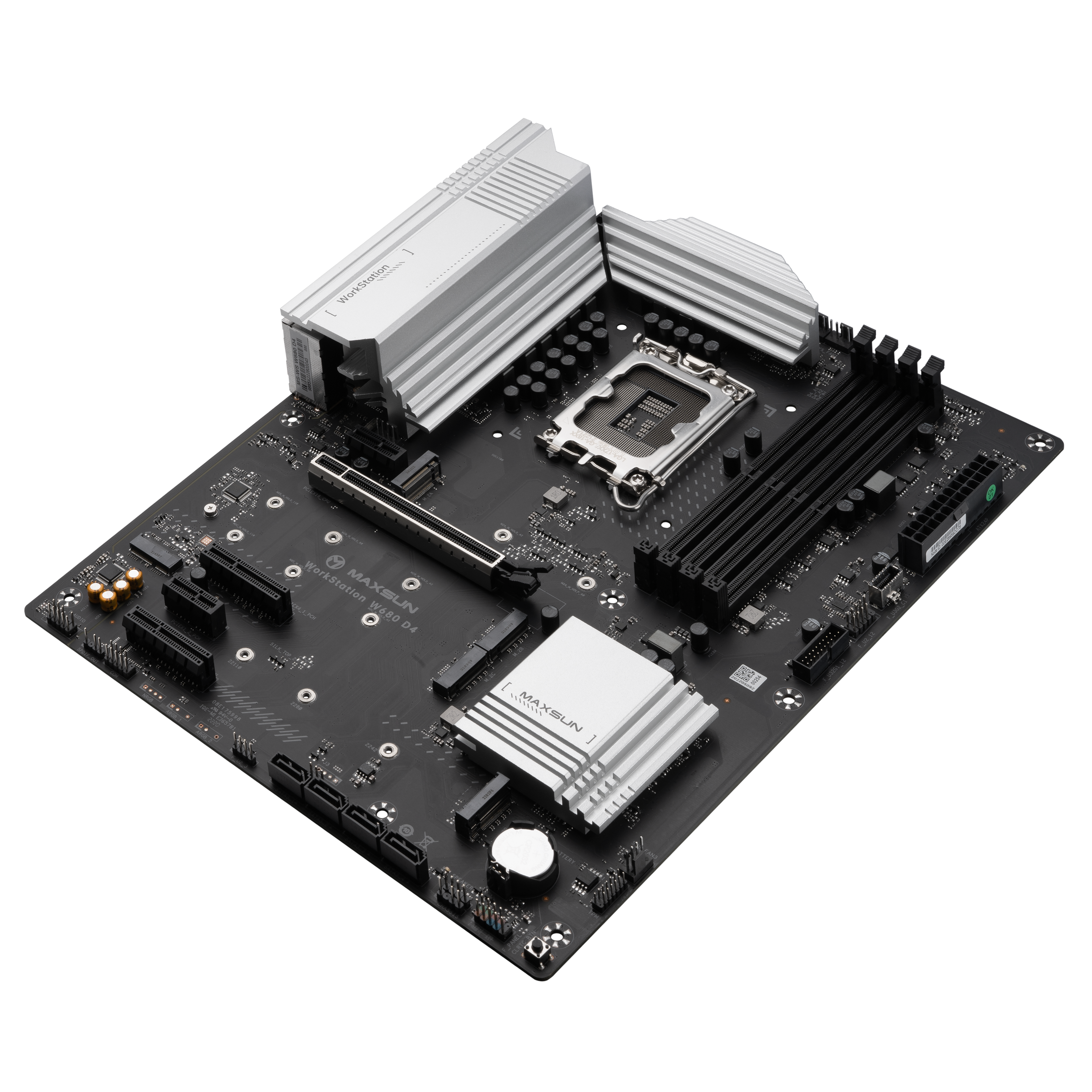

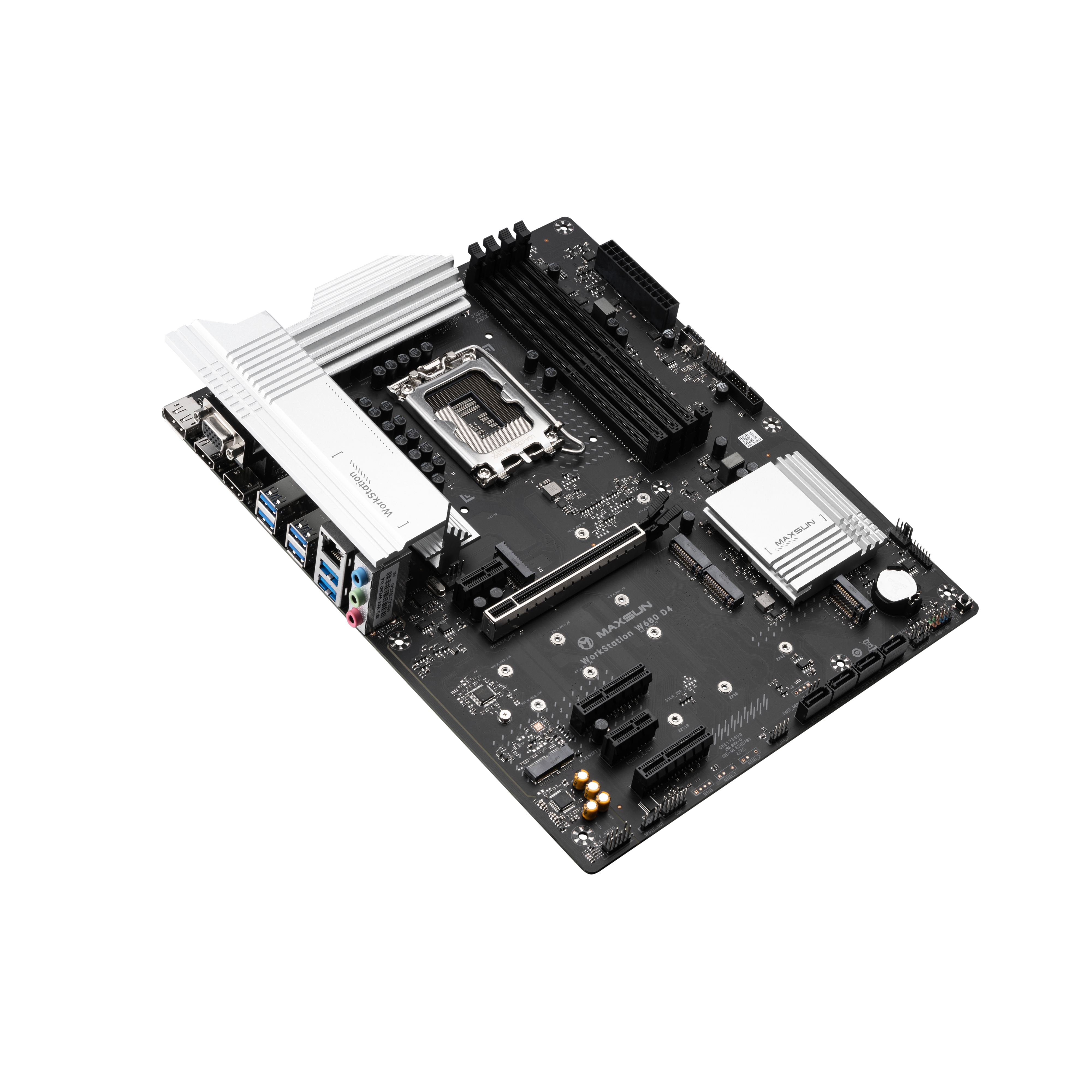

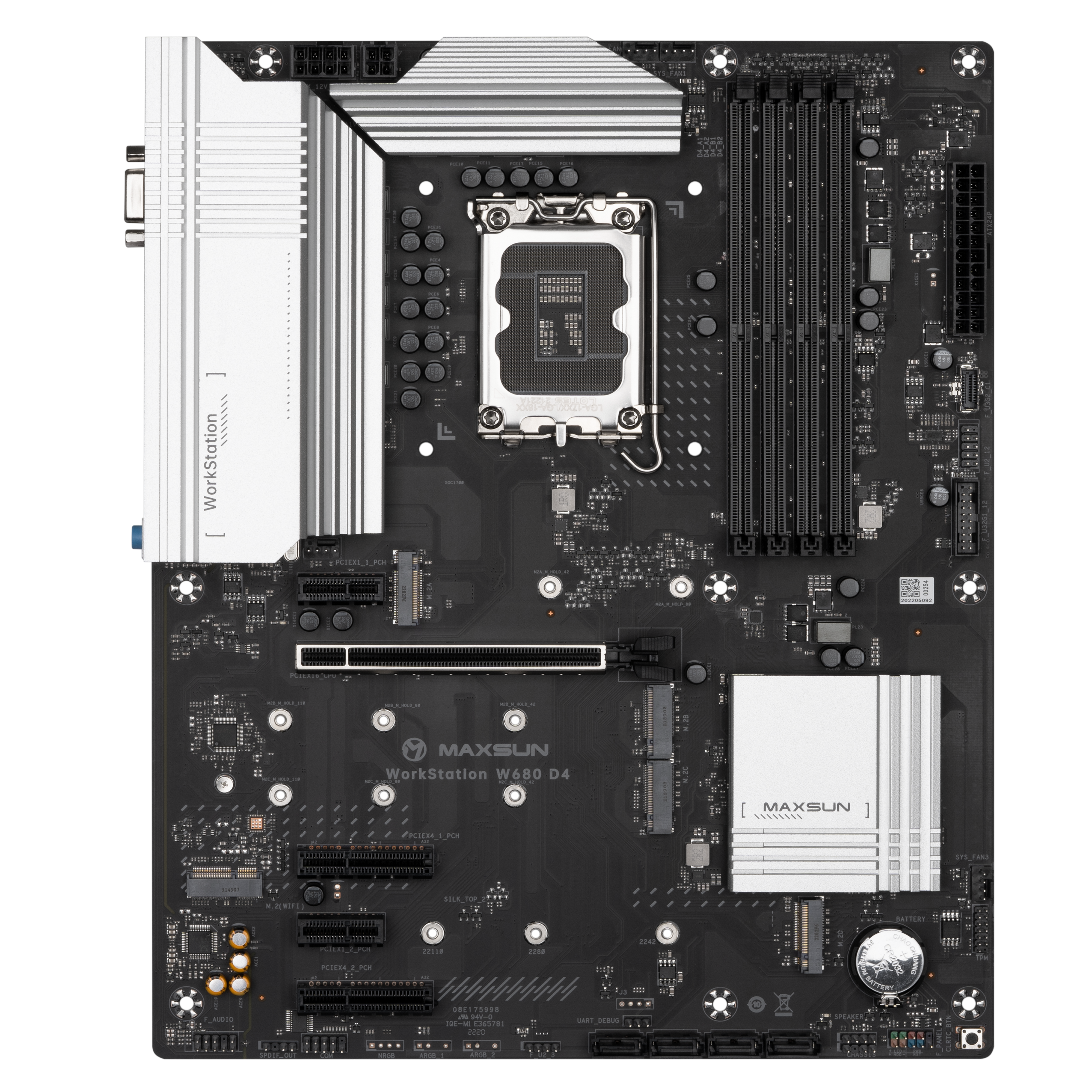

WorkStation W680 D4
- ECC memory support
- 1 x PCIe4.0 x16 alloy graphics card slot
- 2 open PCIe x4 slots
- 1 x PCIe x1 slot
- 4 M.2 solid state drives
- 4 SATA interfaces
- 1 M,2 wireless NIC port
OVERVIEW
SPECIFICATION
SUPPORT
OVERVIEW
SPECIFICATION
- CHIPSET
- INTEL W680
- CPU
- Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
- MEMORY
- 4x DDR4, Maximum Memory Capacity 128GB
Memory Support DDR4 3200+(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz
Supports Intel® XMP 2.0 OC
Supports Dual-Controller Dual-Channel mode
ECC memory support
- ONBOARD GRAPHICS
- 1x DisplayPort 1.4
2x HDMI™port
*HDMI™ port supports up to 4K@30Hz
1x VGA
*Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- EXPANSION SLOT
- 1x PCIe 4.0 x16 slot
2x PCIe 3.0 x4 slot
2x PCIe 3.0 x1 slot
- STORAGE
- M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
- RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- USB
- *Front USB (Total 6 ports)
1x USB 3.2 Gen2 Type C
2x USB 3.2 Gen1 Type A
3x USB 2.0

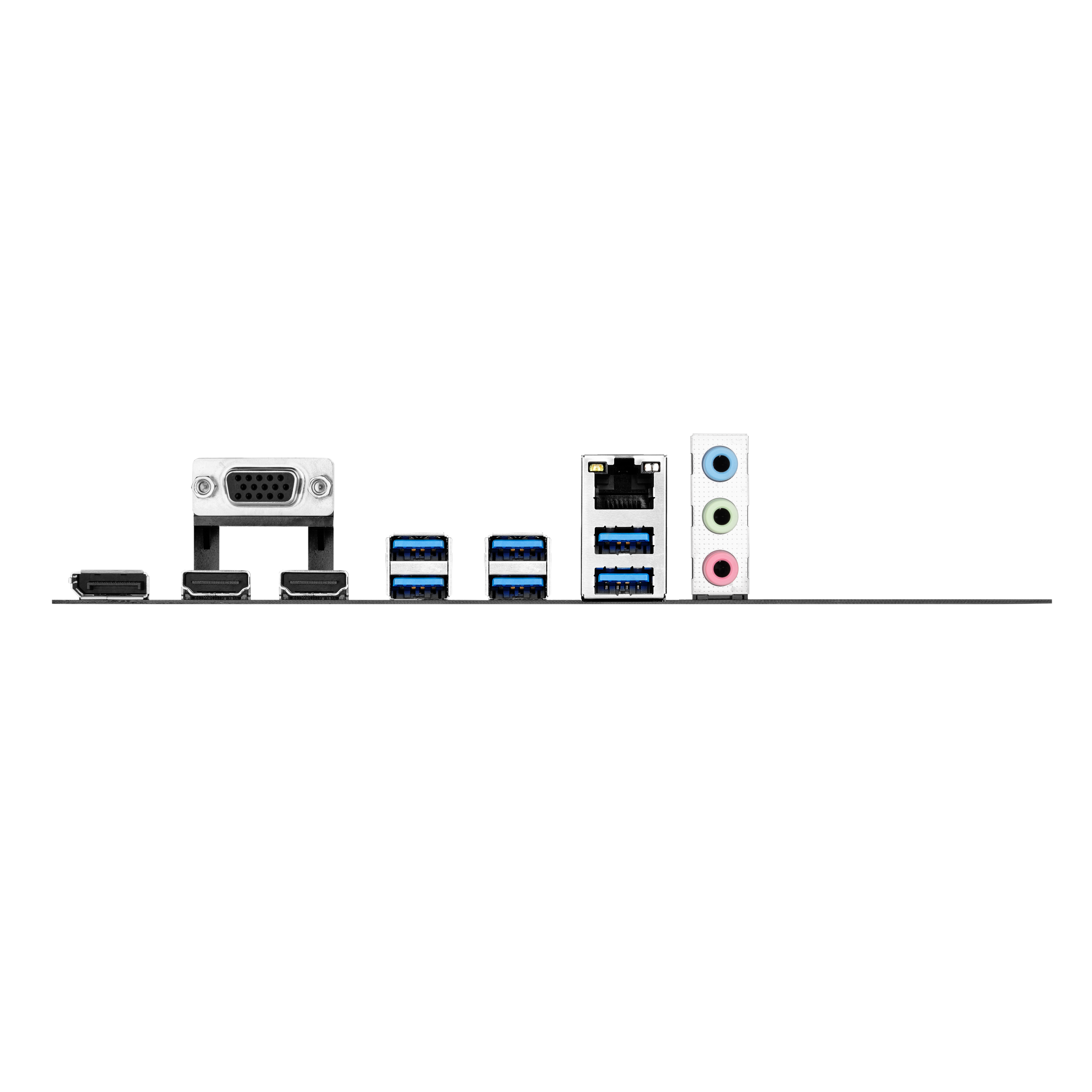

*Rear USB (Total 6 ports)
6x USB 3.2 Gen1 Type A
- LAN
- Realtek® RTL8125B 2.5G LAN
- AUDIO
- Realtek® ALC897 Codec
5.1-Channel High Definition Audio
- INTERNAL I/O
- 1x 24-pin Power Connector(ATX_PWR)
1x 8+4-pin Power Connector(CPU_PWR)
1x CPU Fan
4x System Fan
4 x M.2 slots (Key-M)
4x SATA 6Gb/s ports
1x M.2 slots (Key-E)
1x 4-Pin SPEAKER
1x 2-pin Clear CMOS
1x Front Audio
1x COM_A Port
1x TPM pin header(Support TPM 2.0)
- LED FEATURE
- 4x Distributed Debug LED
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- FORM FACTOR
- ATX
305mm x 245mm
