H310C-工控机

• CPU
• Supports 6th/7th/8th/9th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
  LGA 1151

• CHIPSET
• INTEL H310C

• GRAPHICS
• CPU Integrated Graphics

• MEMORY
• 2x SO-DIMM DDR4
  *Maximum Memory Capacity 64GB
  *Memory Support DDR4 3200 MHz

• OPERATING SYSTEM
• Support for Windows® 11 64-bit, Windows® 10 64-bit, Windows® 7 64-bit, Linux

• STORAGE
• 1x M.2 slot (Key M), type 2242/2280
  2x SATA Gen3 ports

• AUDIO
• HD Audio IC: Realtek® ALC897
  *NS4251 amplifier, supports 4Ω 3W

• LAN
• 2x Realtek® RTL8111H 1G LAN
  *Provides 2x RJ45 port; supports Wake-on-LAN/PXE

• ONBOARD GRAPHICS
• 1x HDMI
  1x LVDS (2x15-pin plugs)
  1x VGA
  *Support VGA, HDMI, LVDS synchronous/asynchronous display

• AUDIO PORT
• 1x 3.5mm Line out
  1x 3.5mm Audio Jack
  1x 9-pin 2.54mm wafer expansion pins

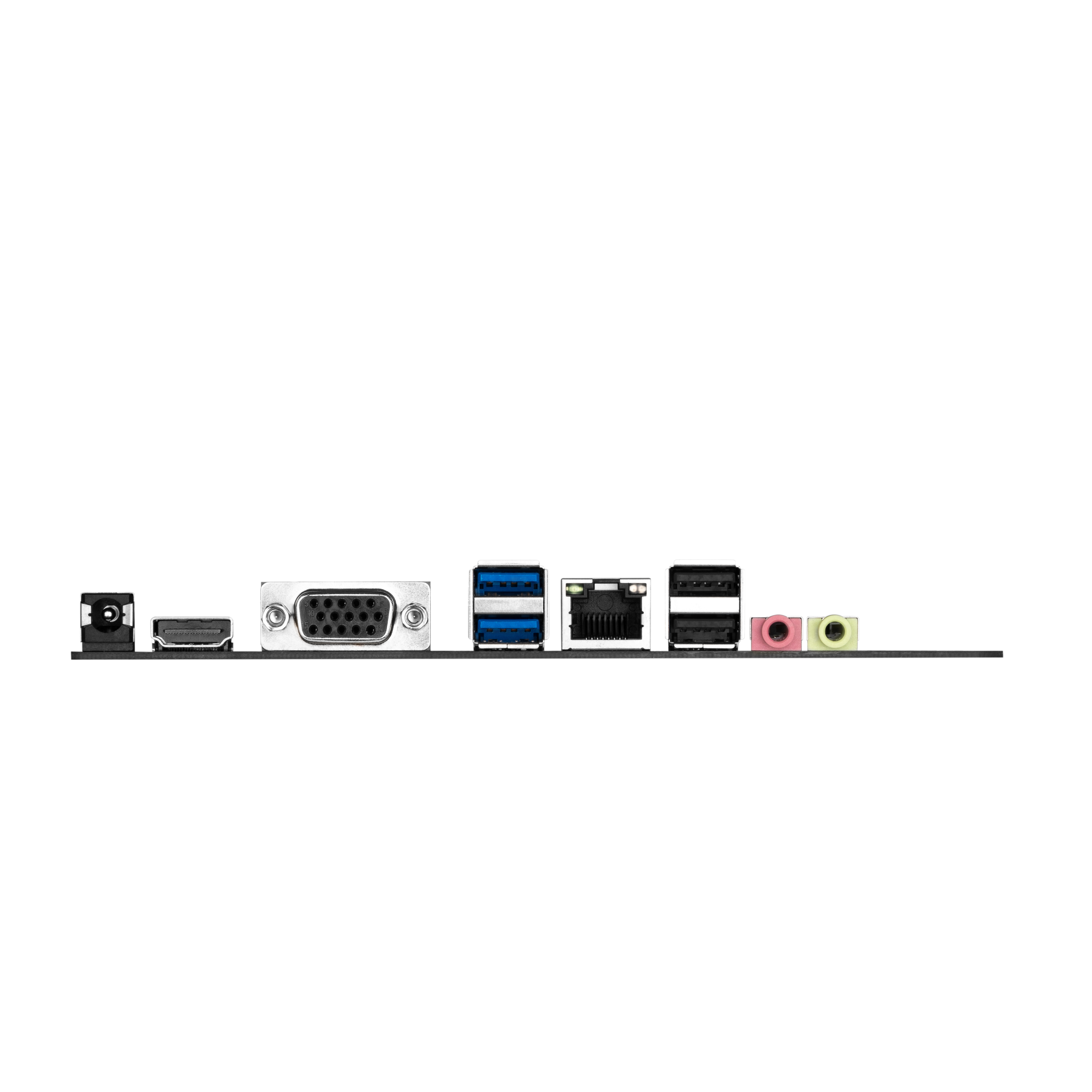

• USB PORT
• IO: 2x USB 3.0 Type-A
  Onboard: 3x sets (9-pin) USB2.0 pins, expandable to 6x USB2.0 ports

• SERIAL PARALLEL PORT
• 6x RS232 serial port (COM2 port supports switching RS485)
  1x LPT port

• EXPANSION
• 1x Mini PCIE expansion slot (WIFI supported)

• FAN CONNECTOR
• Designed for fanless cooling, 1x 4-Pin CPU smart fan connector
  1x 3-Pin system fan connector

• GPIO
• Support 4 line input/output GPOI function

• WATCHDOG
• Support hardware reset function (256 levels, 0~255 seconds)

• SWITCH
• 1x 9-pin 2.54mm extension switch signal

• POWER INPUT
• 12V DC IN, 2.5/5.5 DC Jack power supply port
  1x 4-Pin ATX power supply connector

• WORKING TEMPERATURE
• -10~60 degrees Celsius

• WORKING HUMIDITY
• 10%~90% non-condensation

• PLACEMENT TEMPERATURE
• -20~70 degrees Celsius

• FORM FACTOR
• 170mm x 170mm
