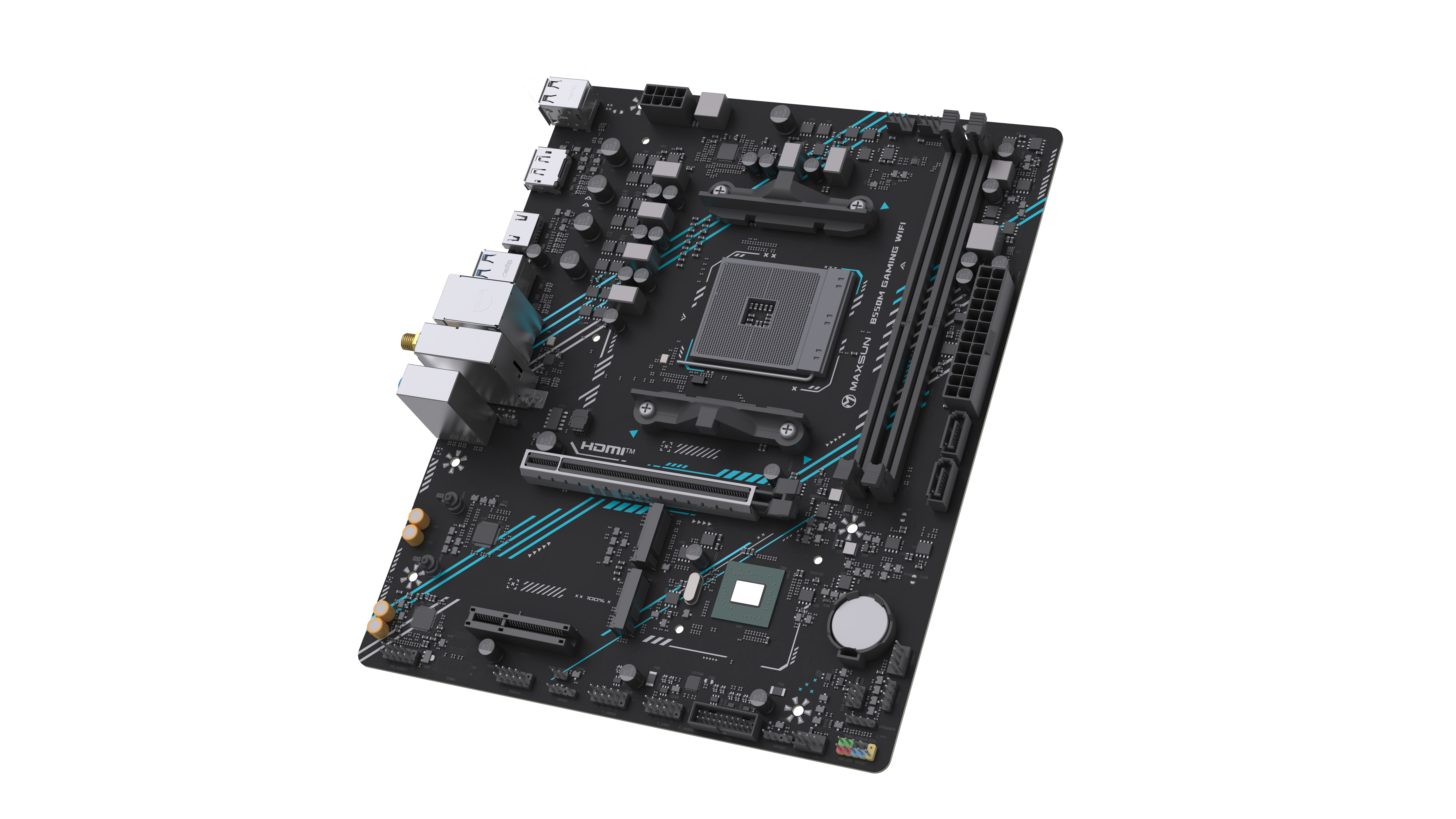

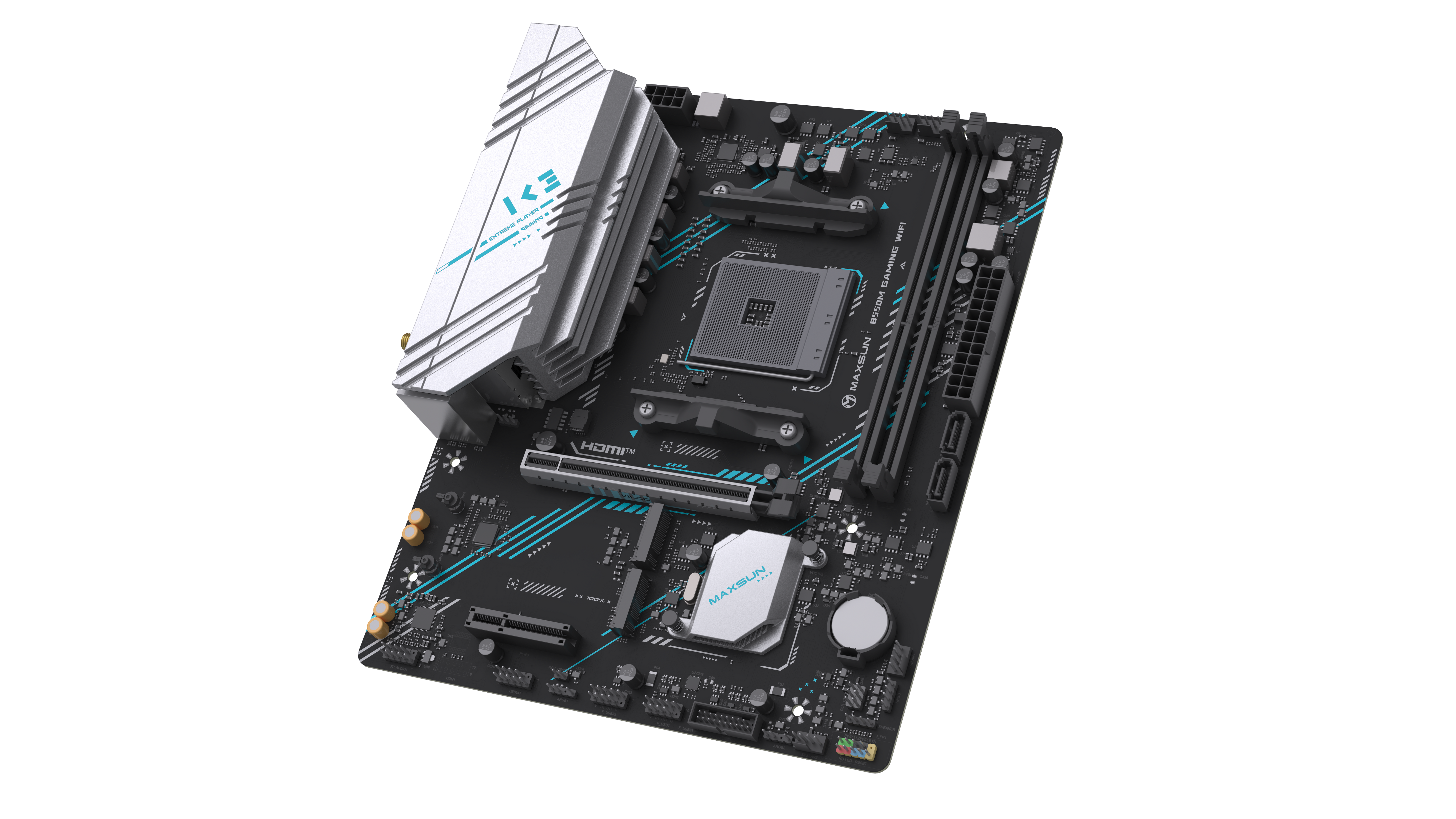

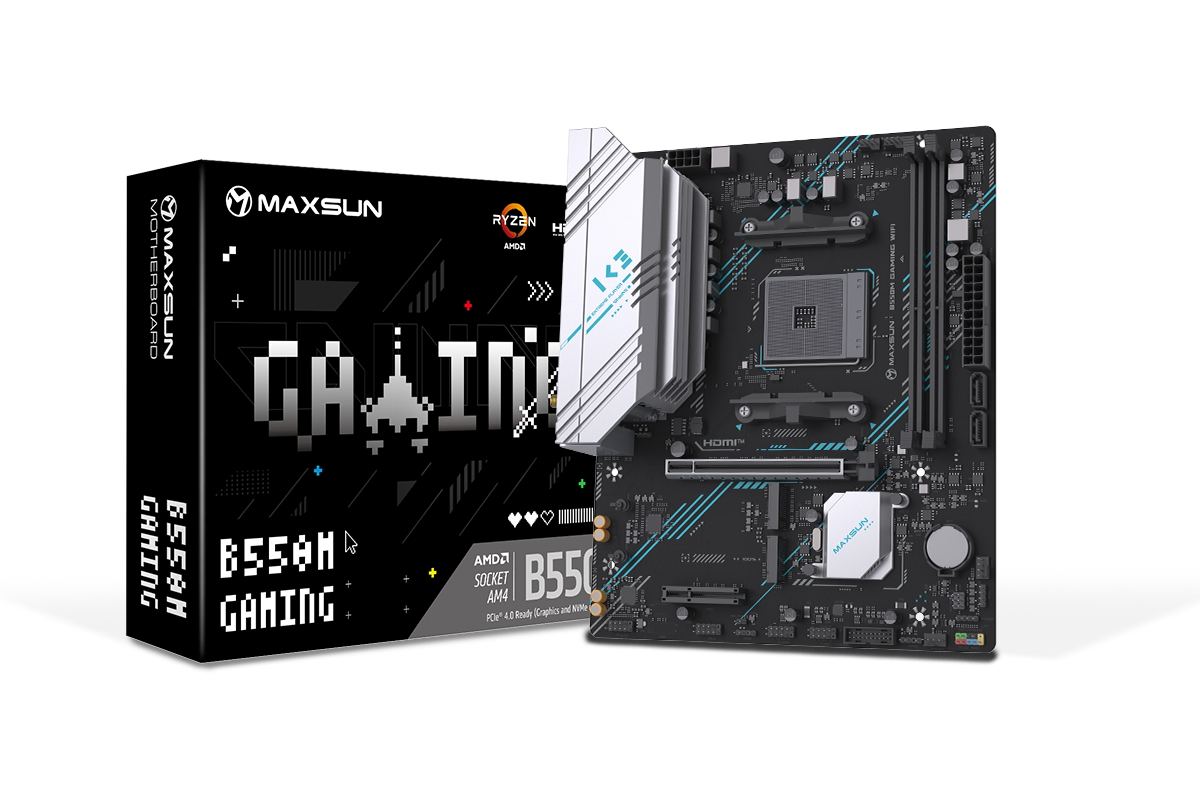

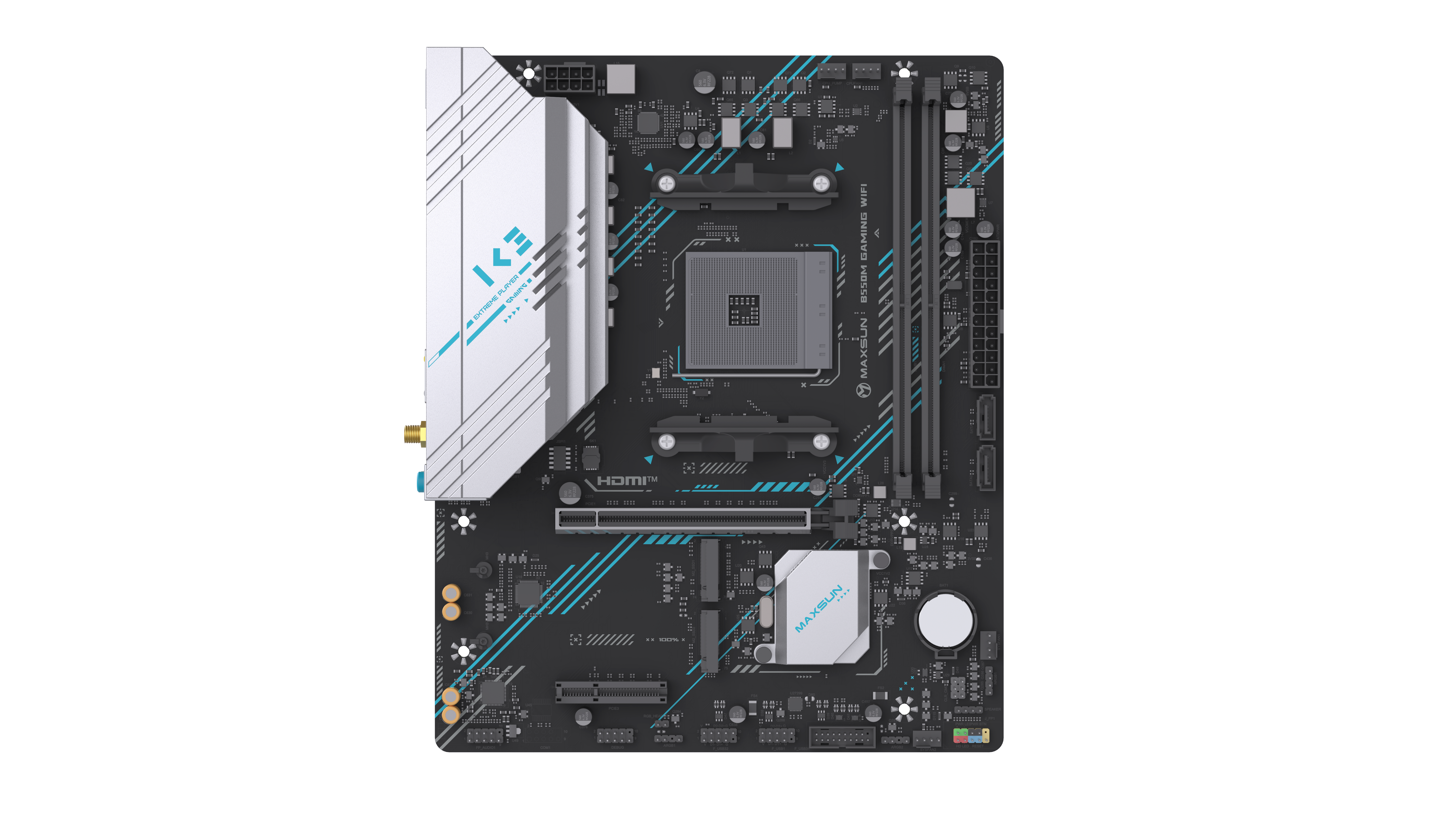

B550M游戏wifi
双 M.2 和 SATA:快速 PCIe X4 M.2 插槽和 SATA 端口,可实现快速存储。
快速联网:Realtek 千兆 LAN 和 Wi-Fi 5(802.11ac),实现流畅的在线游戏。
RGB 自定义:双 5V ARGB 和 12V RGB 接头,可实现个性化照明。
USB 端口:多个 USB 5Gbps 和 USB 2.0 端口,适用于所有外围设备。
ESD保护:内置保护功能可防止静电损坏,确保长期可靠性。
Overview
Specification
Support
- Model
- MS-B550M Gaming WIFI
- CPU Support
- – Supports AMD AM4 Socket
– Compatible with AMD Ryzen 1000–5000 Series Processors
- Motherboard Form Factor
- – 22.5 × 20 cm (Micro-ATX)
- Memory Support
- – 2 × DDR4 DIMM Slots, 2133–3200MHz
– Supports A-XMP Profiles
- Power Design
- – 4+2 Phase Power with Octopus MOS (2 High + 2 Low)
- Display Outputs
- – DP + HDMI™
- Networking
- – 1 × Realtek RTL8111H/M Gigabit Ethernet Port
– Built-in Realtek RTL8821CE Wi-Fi Module
– Supports IEEE 802.11 a/b/g/n/ac, Bluetooth 4.2
- Storage
- – 2 × PCIe X4 M.2 Slots (NVMe SSD Support)
– 2 × SATA 6Gb/s Ports

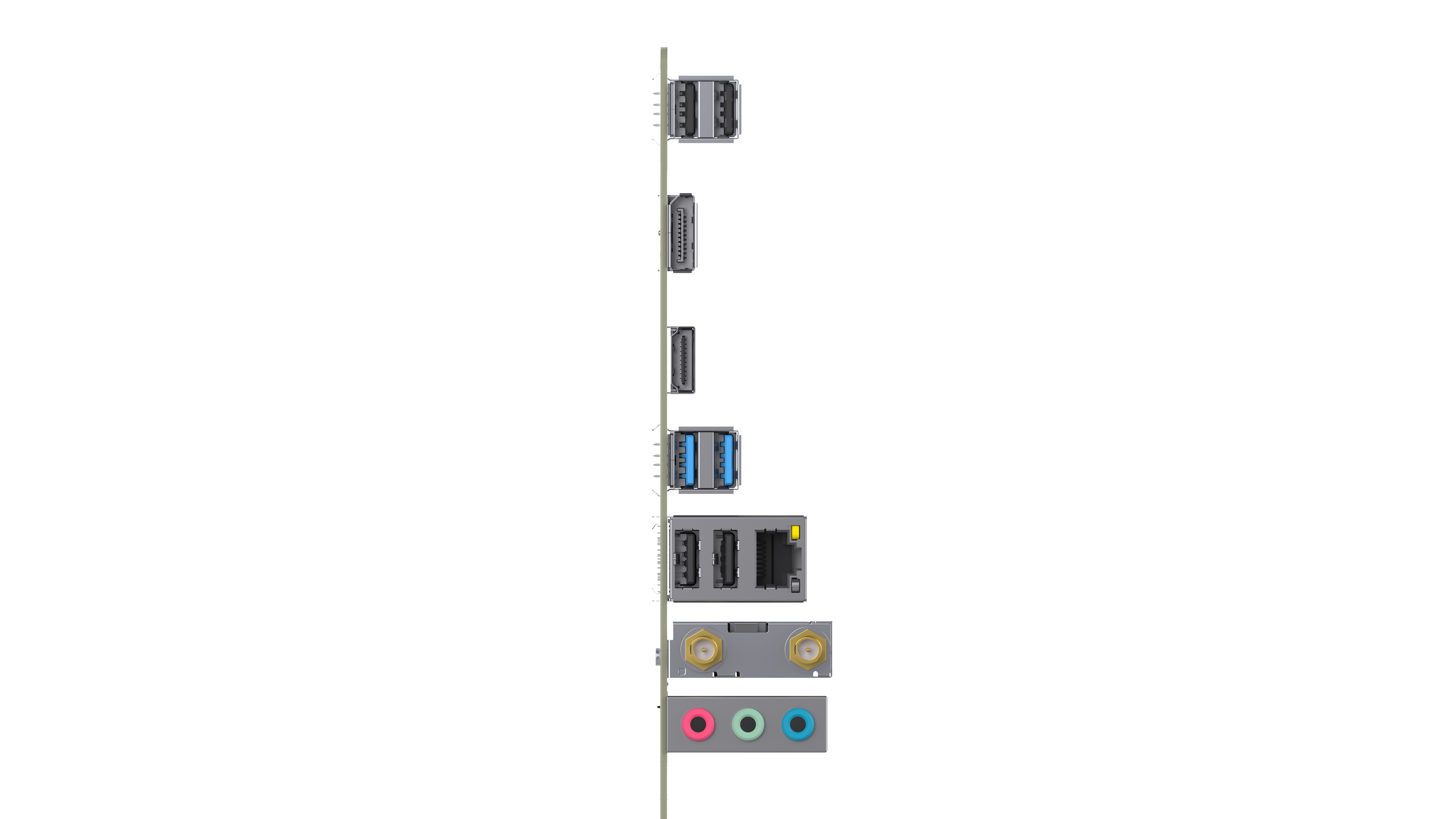

- USB Ports
- Rear USB:
– 2 × USB 5Gbps Ports
– 4 × USB 2.0 Ports
Front USB Headers:
– 2 × USB 2.0 Headers (4 Ports Total)
– 1 × USB 5Gbps Header (2 Ports)
- PCIe Slots
- – 1 × PCIe X16 (PCIe 4.0, CPU Dependent)
– 1 × PCIe X4 (Open-ended)
- ARGB & RGB Headers
- – 2 × 3-Pin 5V ARGB Headers
– 1 × 4-Pin 12V RGB Header
- Other Headers
- – 1 × Front Panel Audio Header
– 1 × 10+1 Pin Front Panel System Header
