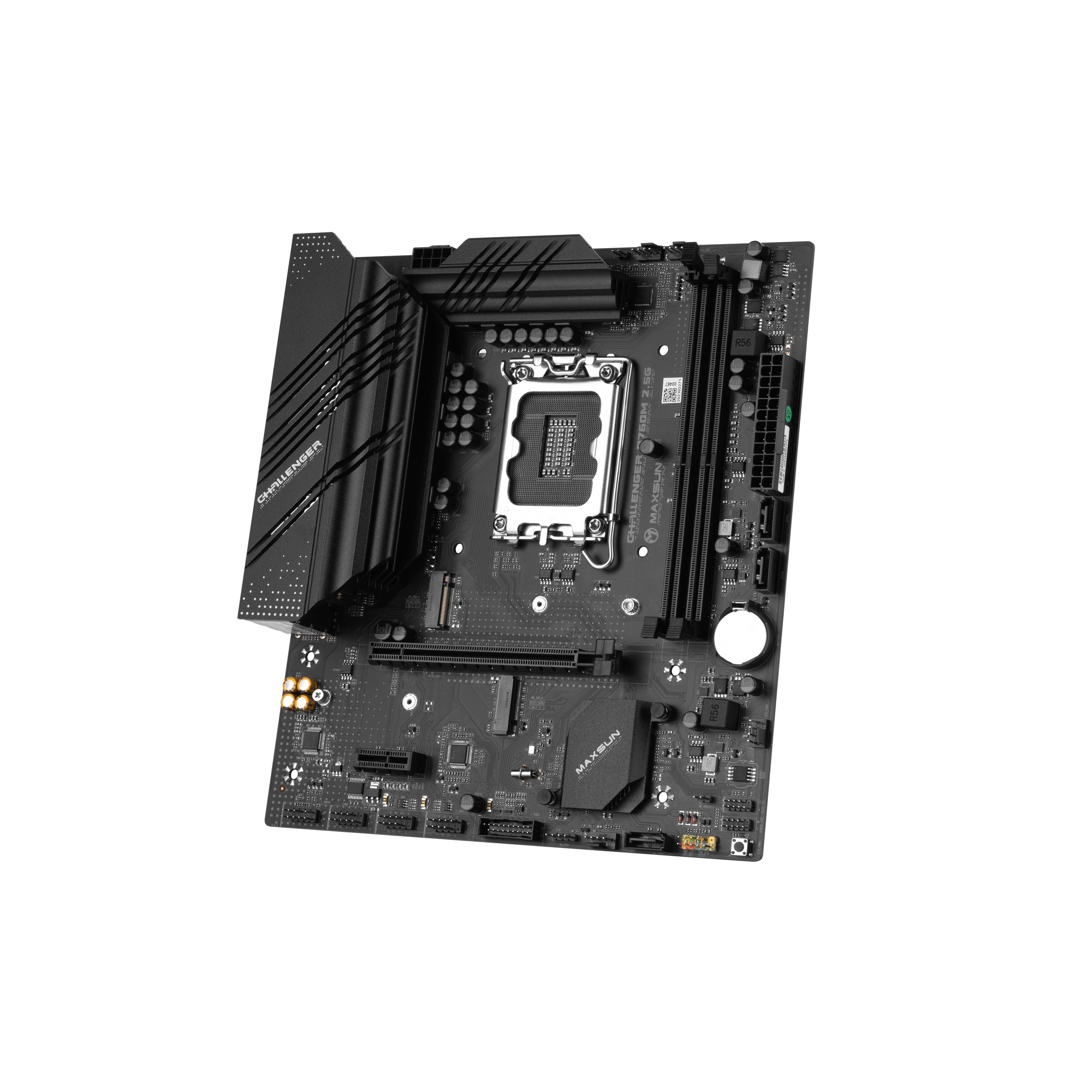

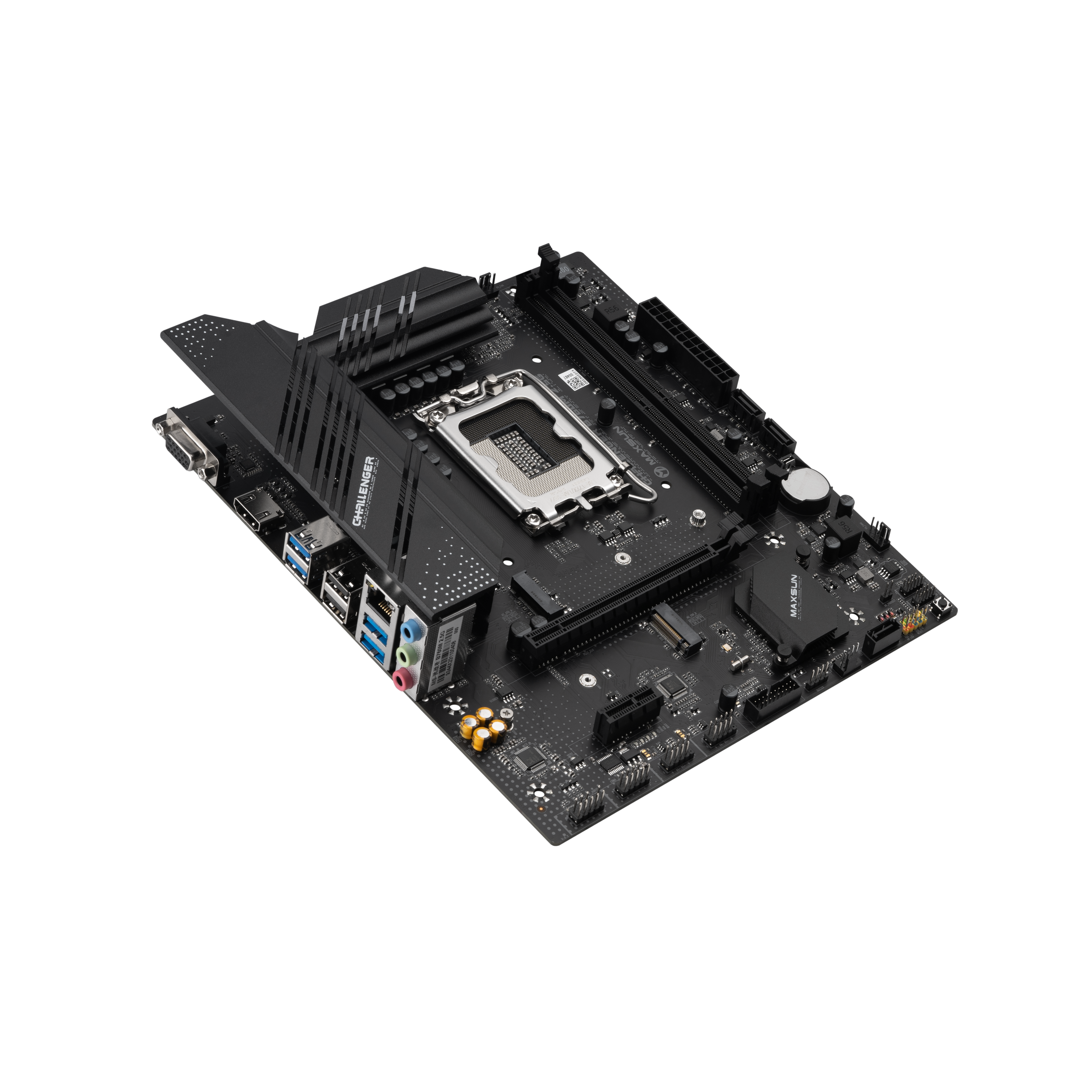

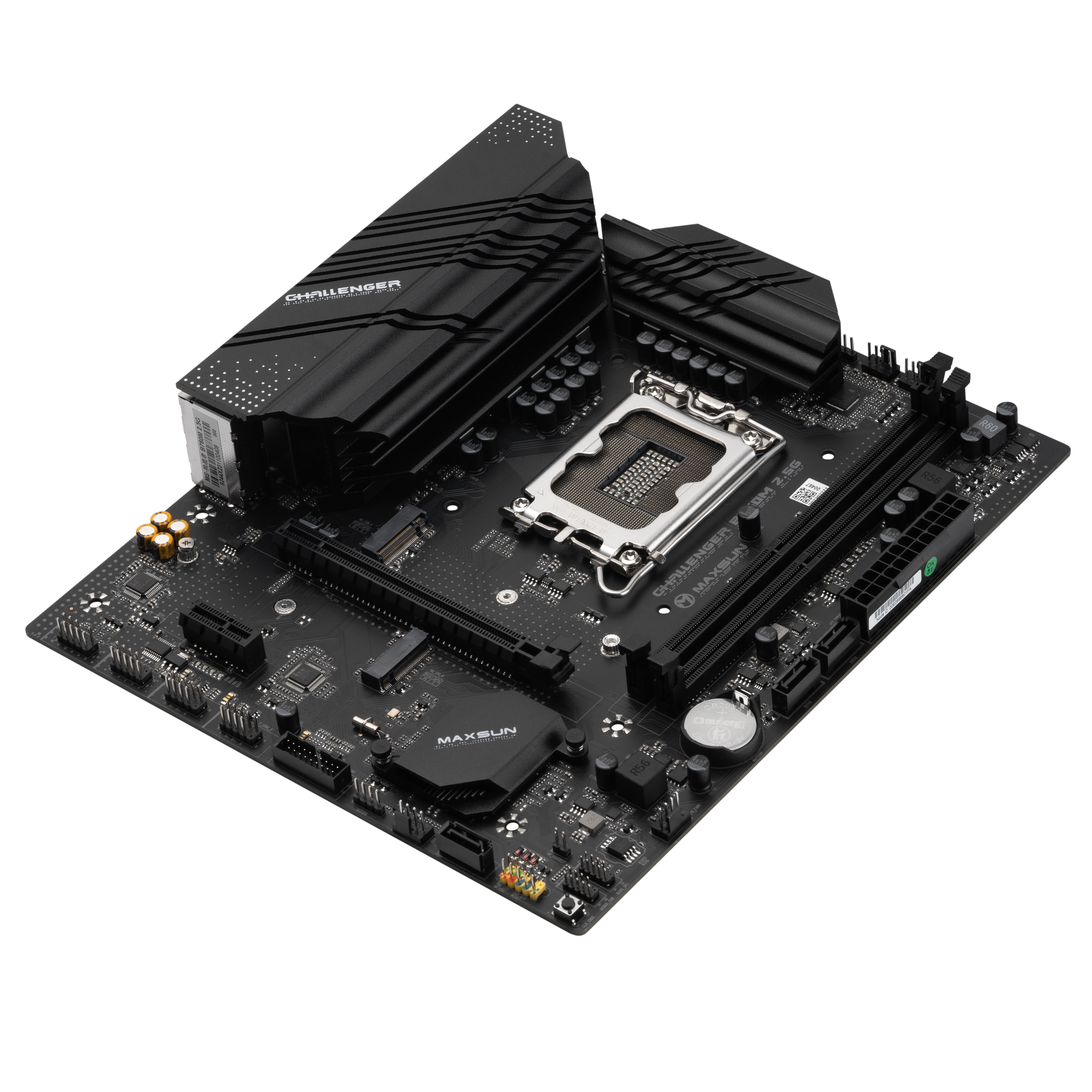

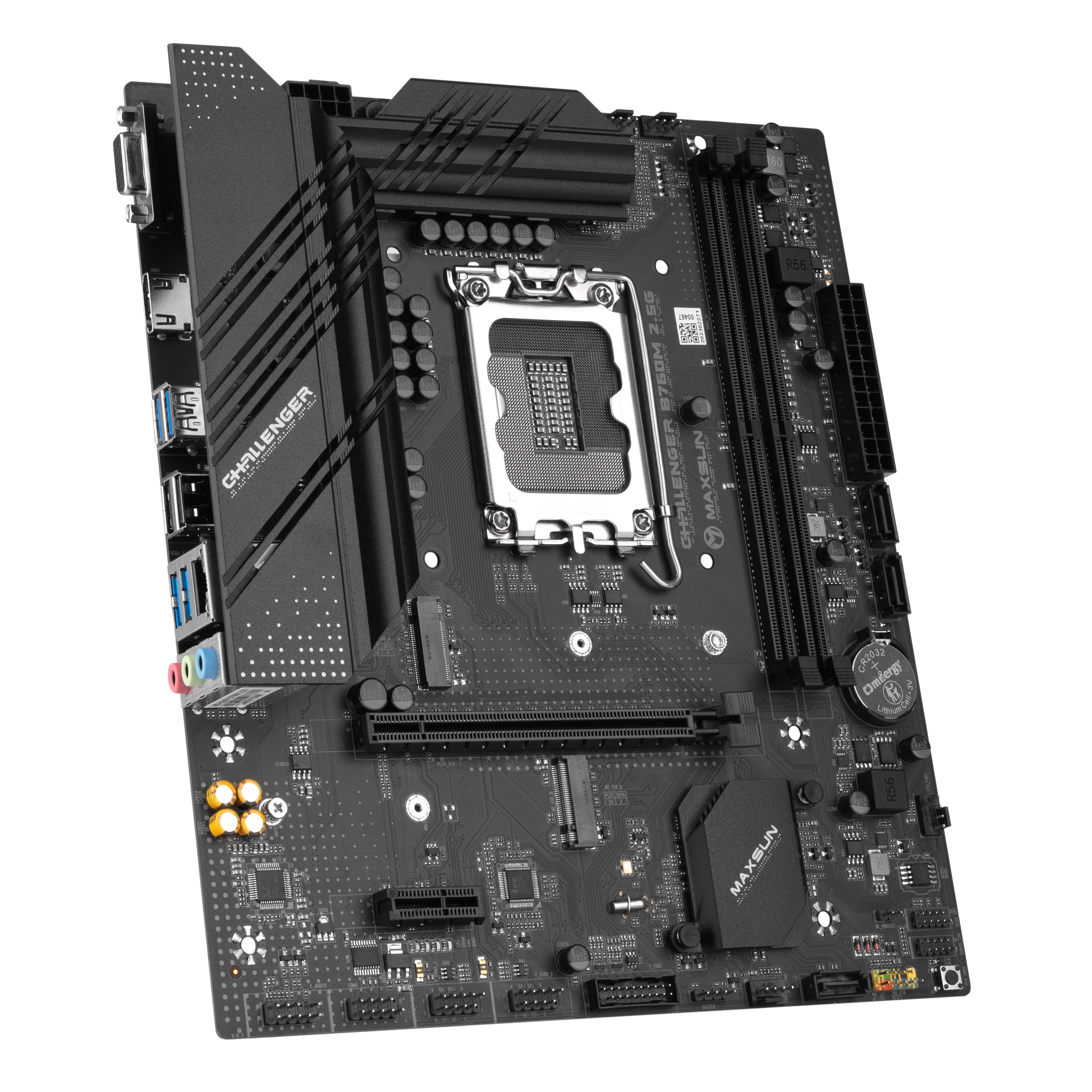

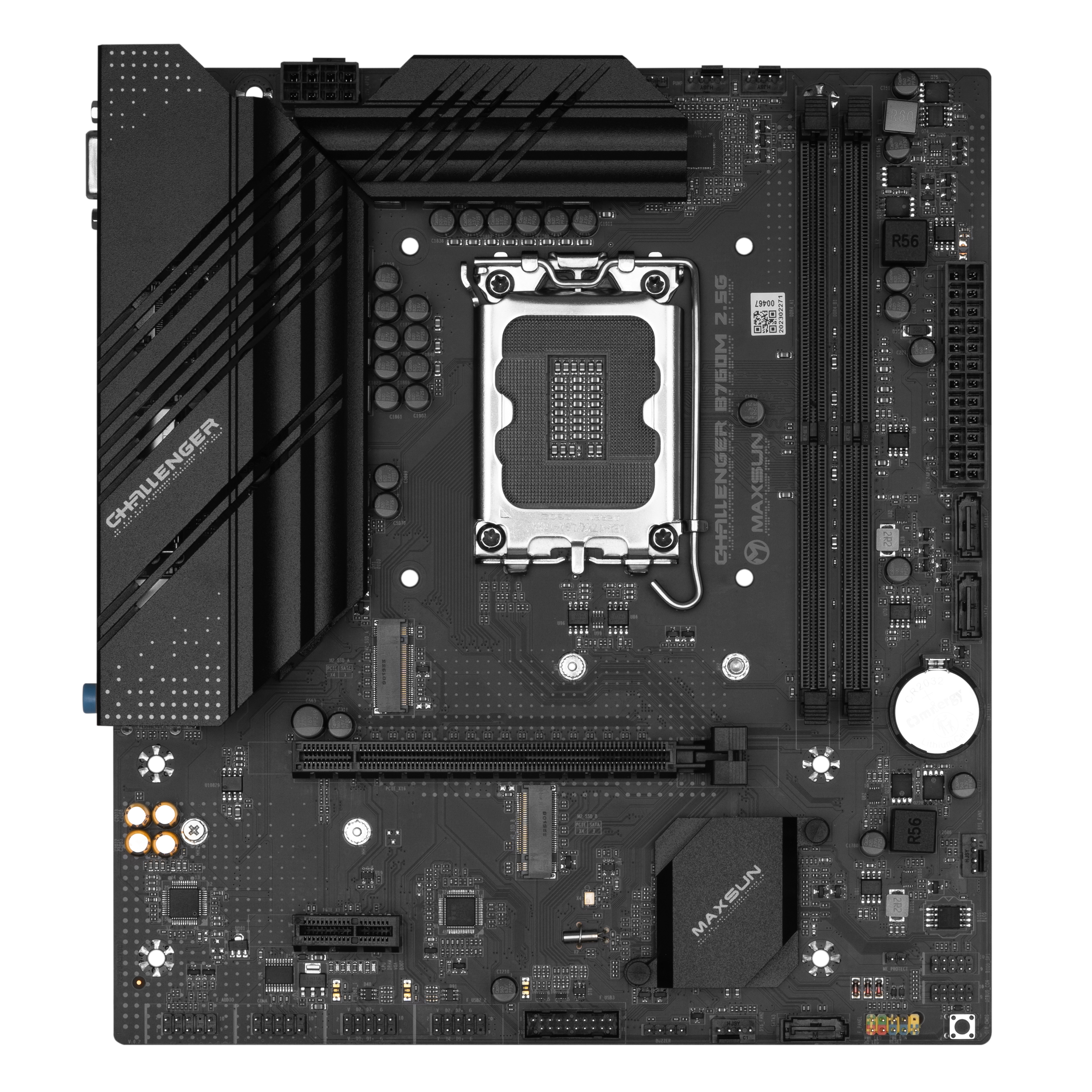

Challenger B760M 2.5G
- 10相供电
- 核心 50A Dr. Mos
- 支持双 M.2,NVME
- 调试错误检测灯
- 一键CLR_CMOS
- 2.5G网口
OVERVIEW
SPECIFICATION
SUPPORT
OVERVIEW
SPECIFICATION
- CHIPSET
- INTEL B760
- CPU
- Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
- MEMORY
- 2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz
Supports Intel® XMP 2.0 OC
Supports Dual-Controller Dual-Channel mode
- ONBOARD GRAPHICS
- 1x VGA
*Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
1x HDMI™port
*HDMI™ port supports up to 4K@30Hz
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- EXPANSION SLOT
- 1x PCIe 4.0 x16 slot
1x PCIe 3.0 x1 slot
- STORAGE
- M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
3 x SATA 6Gb/s ports
- RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- USB
- *Front USB (Total 6 ports)
2x USB 3.2 Gen1 Type A
4x USB 2.0

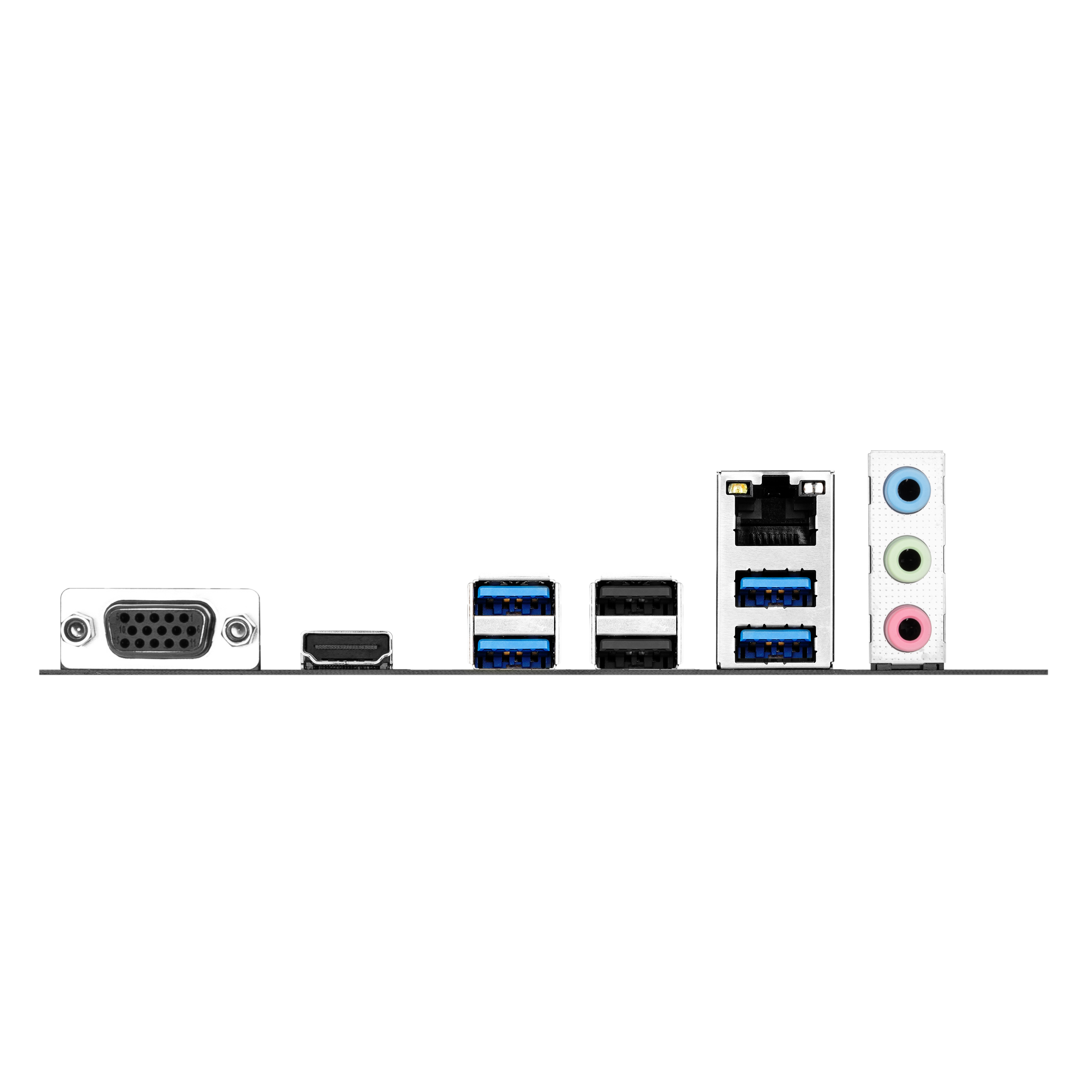

*Rear USB (Total 6 ports)
4x USB 3.2 Gen1 Type A
2x USB 2.0
- LAN
- Realtek® RTL8125BG 2.5G LAN
- AUDIO
- Realtek® ALC897 Codec
5.1-Channel High Definition Audio
- INTERNAL I/O
- 1x 24-pin Power Connector(ATX_PWR)
1x 8-pin Power Connector(CPU_PWR)
1x CPU Fan
1x PUMP Fan
2x System Fan
2 x M.2 slots (Key-M)
3x SATA 6Gb/s ports
1x CLR_CMOS
1x 4-Pin BUZZER
1x Front Audio
1x COM_A Port
1x 9-Pin DEBUG_CON
1x 9-Pin BIOS_SPI
1x 2-Pin ME_PROTECT
- LED FEATURE
- 4x Side-by-Side Debug LED
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- FORM FACTOR
- M-ATX
230mm x 205mm
