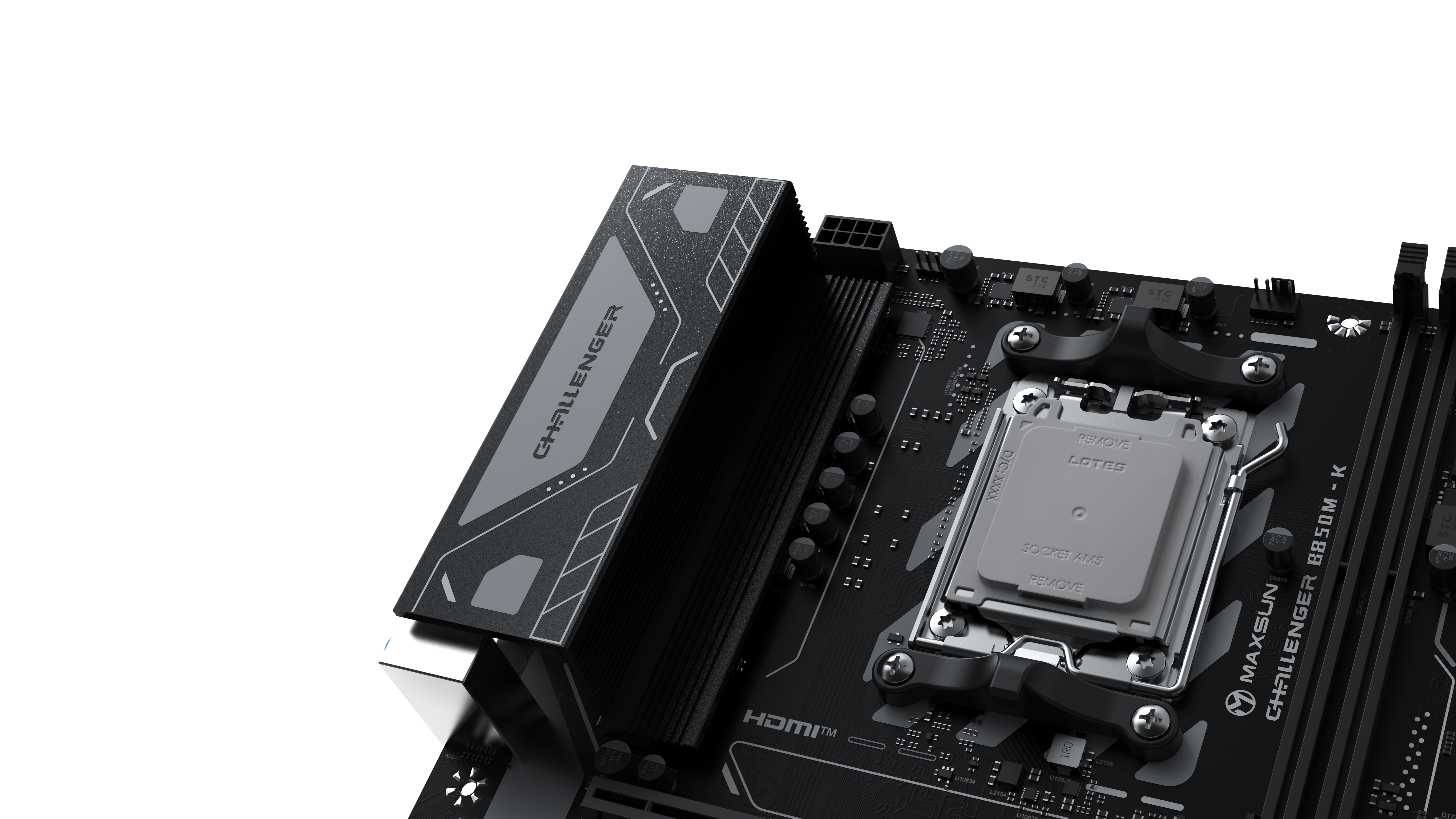

Challenger B850M-K

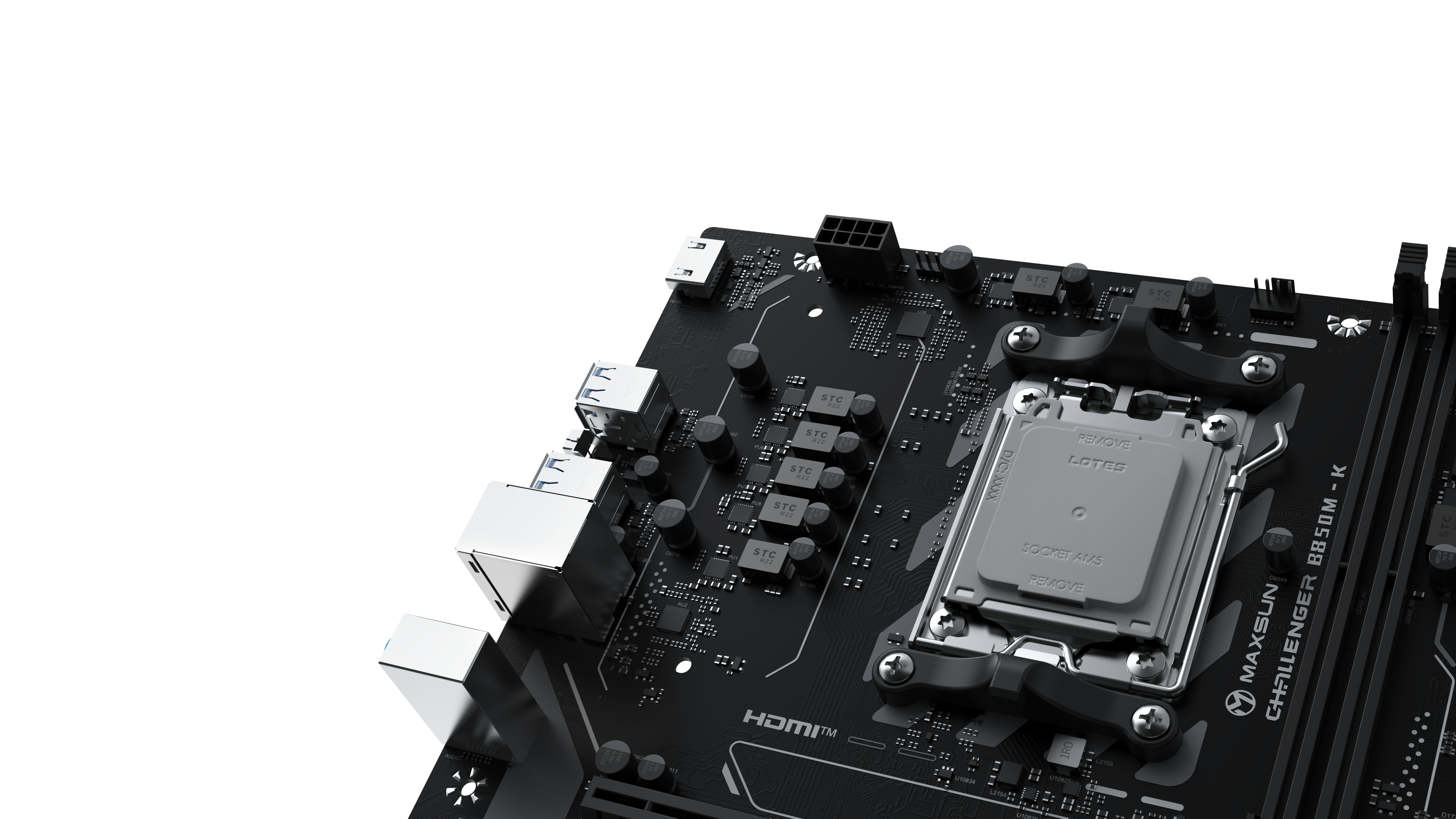

强大的电源设计 – 4+2+1 相，配备 50A Dr.MOS，可实现稳定、高效的传输。
高速 DDR5 – 双插槽，最高支持96GB，支持6800MHz（OC）。
下一代扩展 – PCIe 5.0 x16 + PCIe 3.0 x1，实现最佳兼容性。
快速存储支持 – PCIe 4.0 M.2 和 SATA 用于高速访问。
ARGB 灯光控制 – 双头
Overview

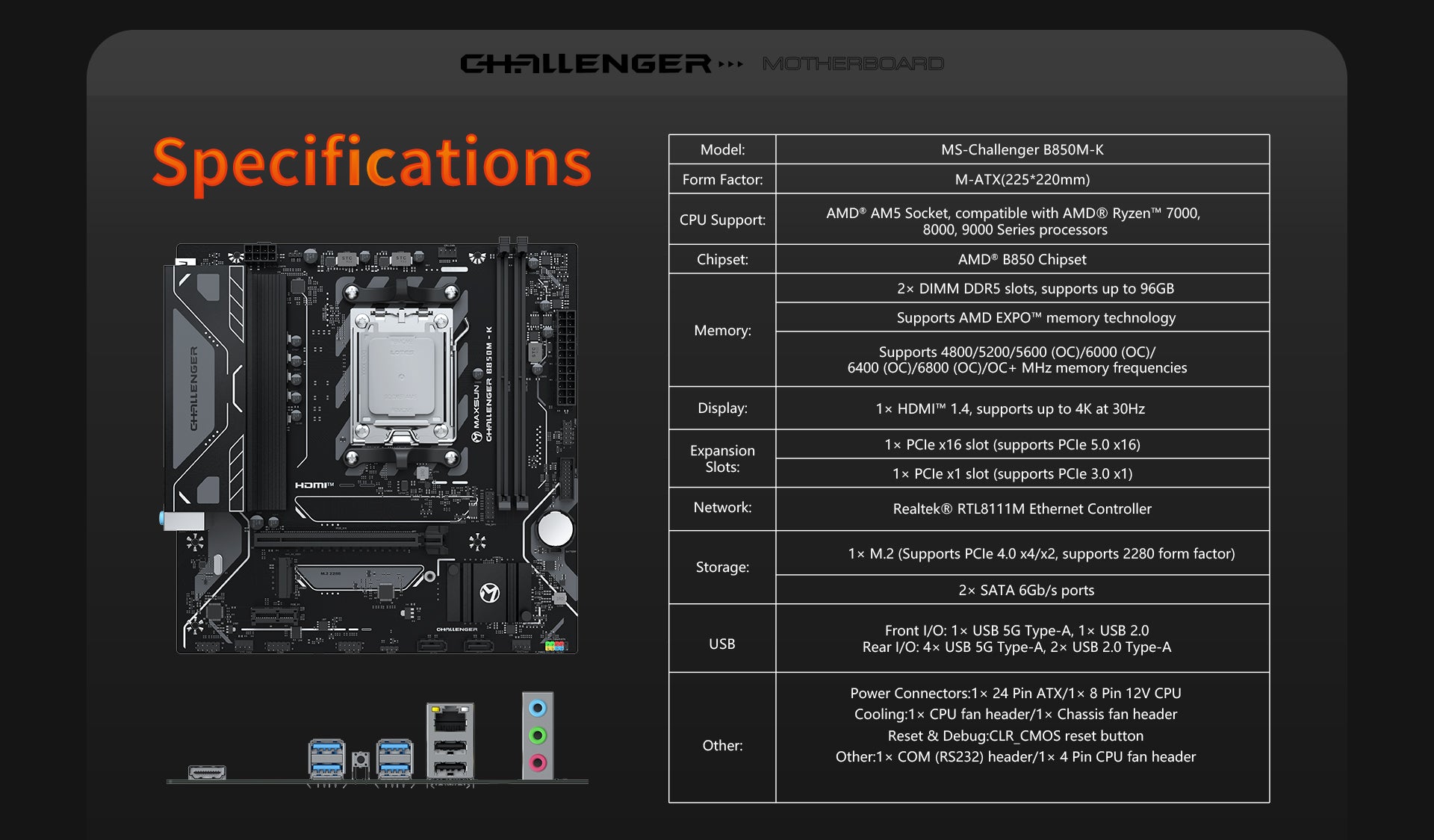

Specification
Support
- Model
- MS-Challenger B850M-K
- Form Factor
- M-ATX (225 × 220mm)
- CPU Support
- AMD® AM5 Socket, compatible with AMD® Ryzen™ 7000, 8000, 9000 Series processors
- Chipset
- AMD® B550 Chipset
- Memory
- 2× DIMM DDR5 slots, supports up to 96GB
Supports AMD EXPO™ memory technology
Supports 4800/5200/5600 (OC)/6000 (OC)/6400 (OC)/6800 (OC)/OC+ MHz memory frequencies
- Display
- 1× HDMI™ 2.1, supports up to 4K at 30Hz
- Expansion Slots
- 1× PCIe x16 slot (supports PCIe 5.0 x16)
1× PCIe x1 slot (supports PCIe 3.0 x1)
- Network
- Realtek® RTL8111M Ethernet Controller
- Storage
- 1× M.2 (Supports PCIe 4.0 x4/x2, supports 2280 form factor)
2× SATA 6Gb/s ports
- USB
- Front I/O:
1× USB 5G Type-A, 1× USB 2.0
Rear I/O:
4× USB 5G Type-A, 2× USB 2.0 Type-A
- Power Connectors
- 1× 24 Pin ATX
1× 8 Pin 12V CPU
- ARGB Support
- 2× 3 Pin ARGB headers
- Cooling
- 1× CPU fan header
1× Chassis fan header
- Reset & Debug
- CLR_CMOS reset button
- Other
- 1× COM (RS232) header
1× 4 Pin CPU fan header
