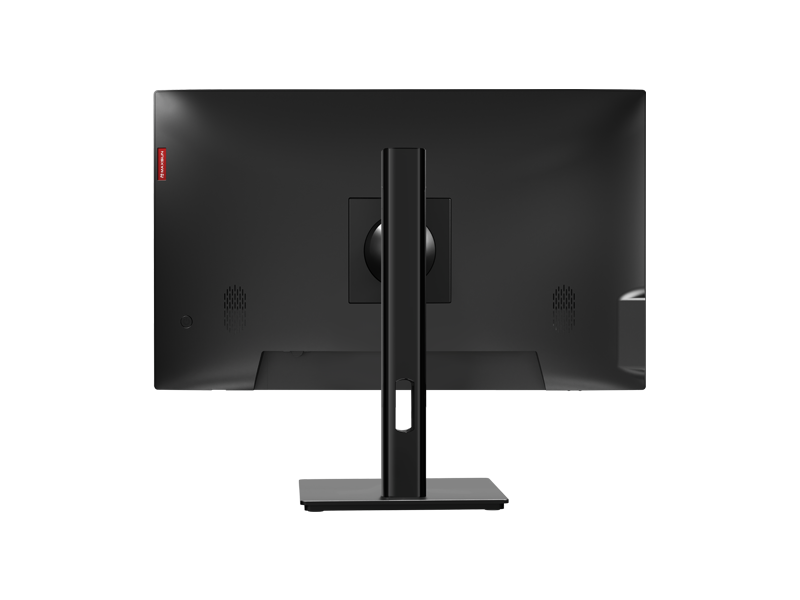

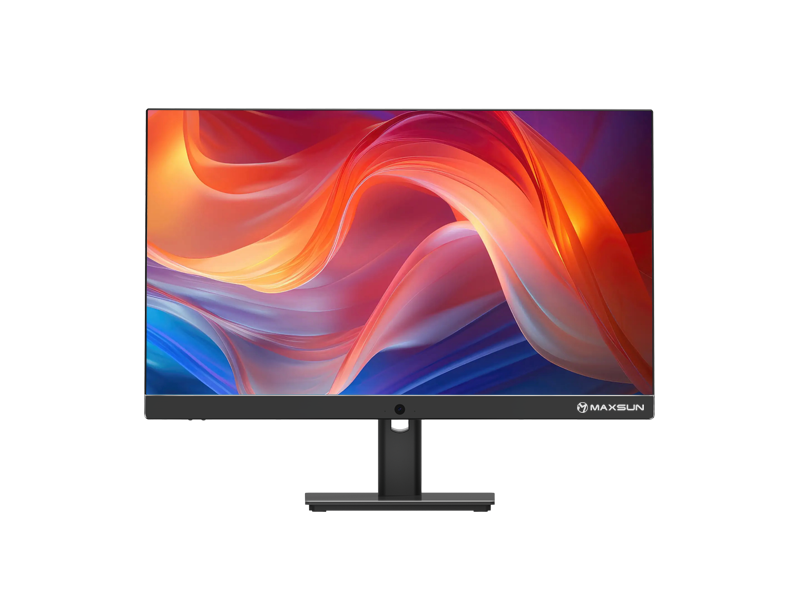

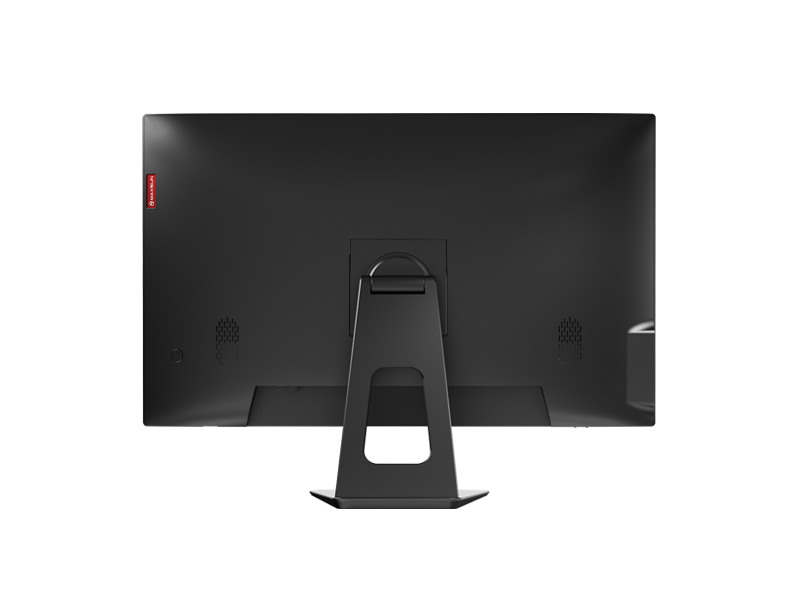

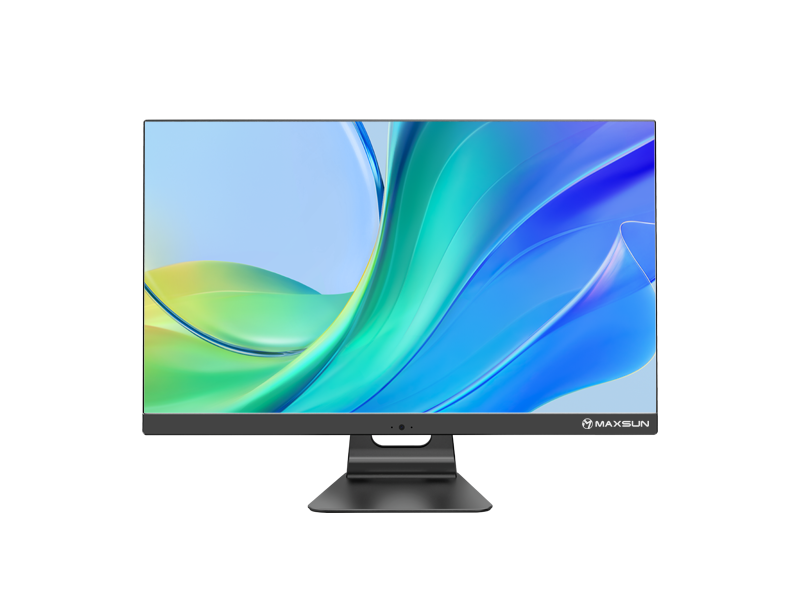

F24
-
支持
Intel 第 10 代至第 14 代处理器Intel H470/H510/H610 芯片组 -
高达 32GB DDR4
内存 （2x SO-DIMM）和灵活的存储选项（M.2 NVMe 和 2.5" SATA） -
23.8" IPS 级 FHD 显示屏，具有 99% sRGB 和 60-75Hz 刷新率
-
多个 I/O，包括 HDMI、COM/VGA、RJ45、USB 3.0/2.0 和可选 Type-C
-
内置 2.0 扬声器、千兆 LAN 和内置 2.0MP（可选 5.0MP）摄像头/麦克风
Overview
Specification
Support
- Model
- MS-F24
- Product Category
- All-in-One PC
- Processor Support
- Intel 10th–15th Gen processors
Intel N95 / N100 / N150
Intel Core i5-12450H / i5-12600HX / i5-13420H / i7-13620H
- Chipset
- Intel H470 / H510 / H610 / H810 or Intel SoC
- Memory
- SO-DIMM DDR4 or SO-DIMM DDR5
- Storage
- 1 × M.2 2280 SATA / NVMe
1 × 2.5-inch SATA SSD or HDD
- Graphics
- Intel HD Graphics
- Wireless / Bluetooth
- 1 × M.2 Key-E 2230; supports 802.11 b/g/n/ac and Bluetooth
- Network
- Gigabit LAN
- Speakers
- Built-in 2.0 speakers
- Camera / Microphone
- Built-in 2.0 MP or 5.0 MP camera with microphone (optional)
- Stand
- Aluminum-alloy fixed-height or height-adjustable stand
- Color
- Black / White / Gray
- Display
- 23.8-inch frameless flat IPS-level panel
- Resolution / Viewing Angle
- 1920 × 1080 / 178°
- Brightness
- 250 cd/m²
- Refresh Rate
- 60 Hz or 100 Hz
- Response Time
- 14 ms
- Color Gamut
- 99% sRGB
- I/O Ports
- 1 × HDMI
1 × COM/VGA
1 × RJ45
4 × USB 3.0 + 2 × USB 2.0
1 × DC-in (12 V or 19 V)
1 × 3.5 mm line-out
1 × 3.5 mm microphone input
1 × power button
Optional: USB 2.0 Type-C and SD card slot
- Power Input
- 48 W / 90 W / 120 W
- Dimensions
- 541 × 64 × 410 mm (L × W × H)
- Package Dimensions
- 591 × 170 × 391 mm (L × W × H)
- Net / Gross Weight
- 5.8 kg / 7.4 kg
