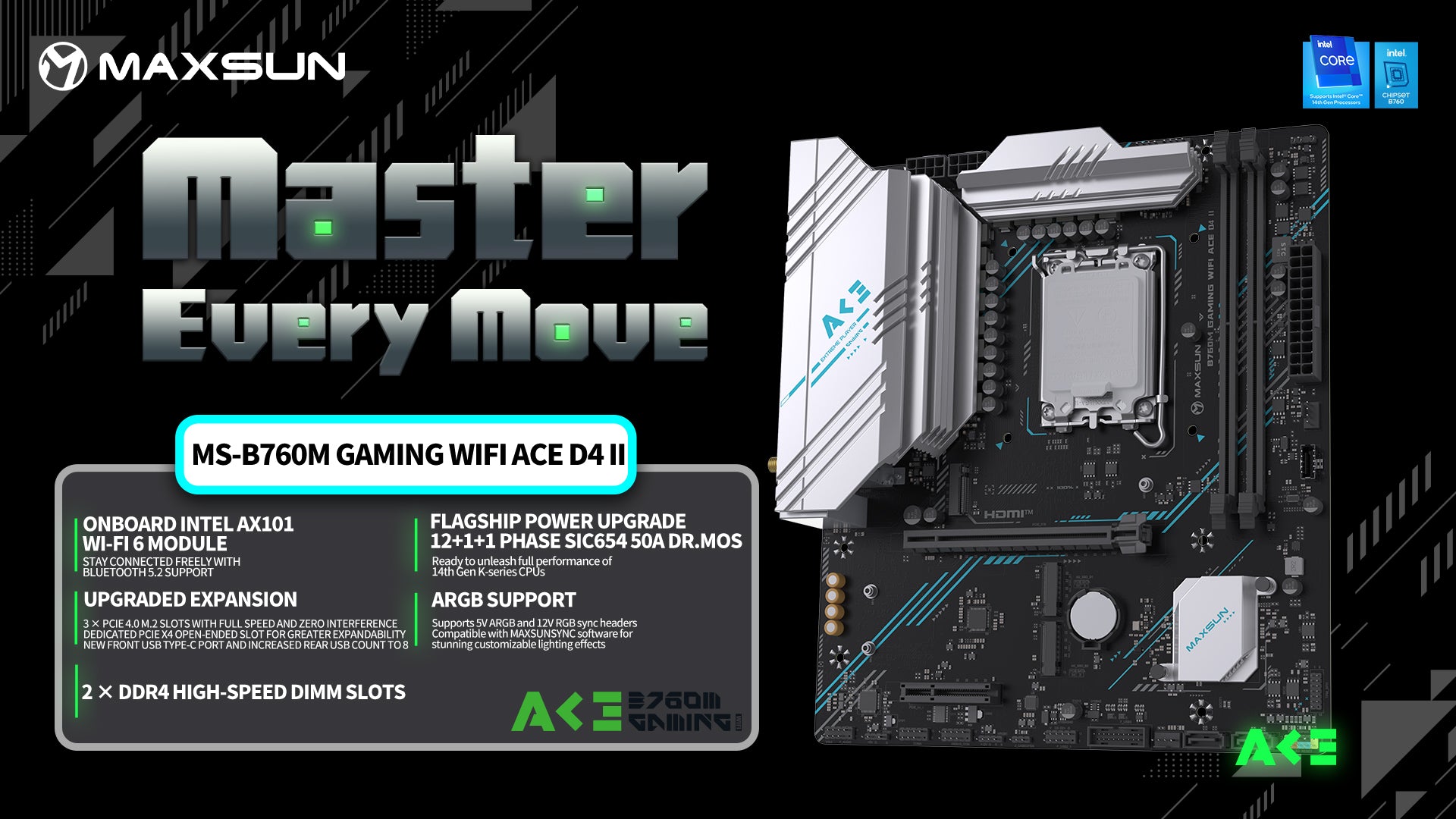

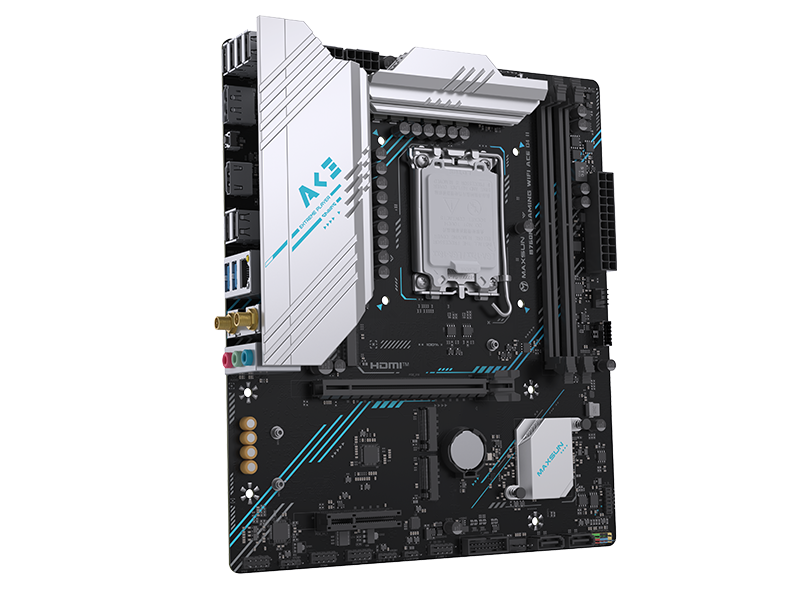

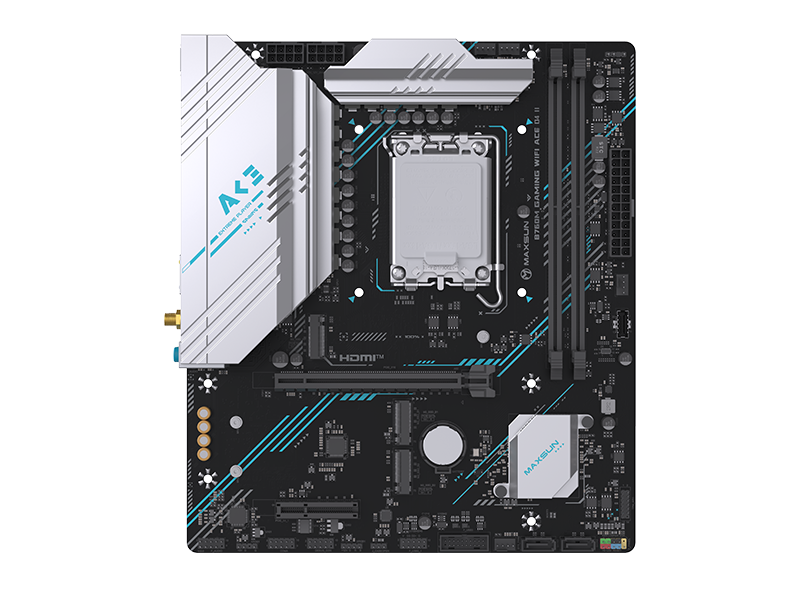

MS-B760M GAMING WIFI ACE D4 Ⅱ

• Model
• MS-B760M Gaming WIFI ACE II

• Form Factor
• 24.5 × 21 cm M-ATX

• CPU Support
• Intel® LGA1700 socket
  Compatible with Intel® Core™ 12th, 13th, and 14th Gen processors

• Memory Support
• 2 × DDR5 DIMM slots, up to 96GB
  Dual-channel memory architecture
  Supports Intel® Extreme Memory Profile (XMP)
  Supported memory frequencies:
  4800 / 5200 / 5600 / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) MHz
  Note: Maximum supported memory frequency depends on the CPU and DRAM quality. Actual achievable speeds may vary by configuration.

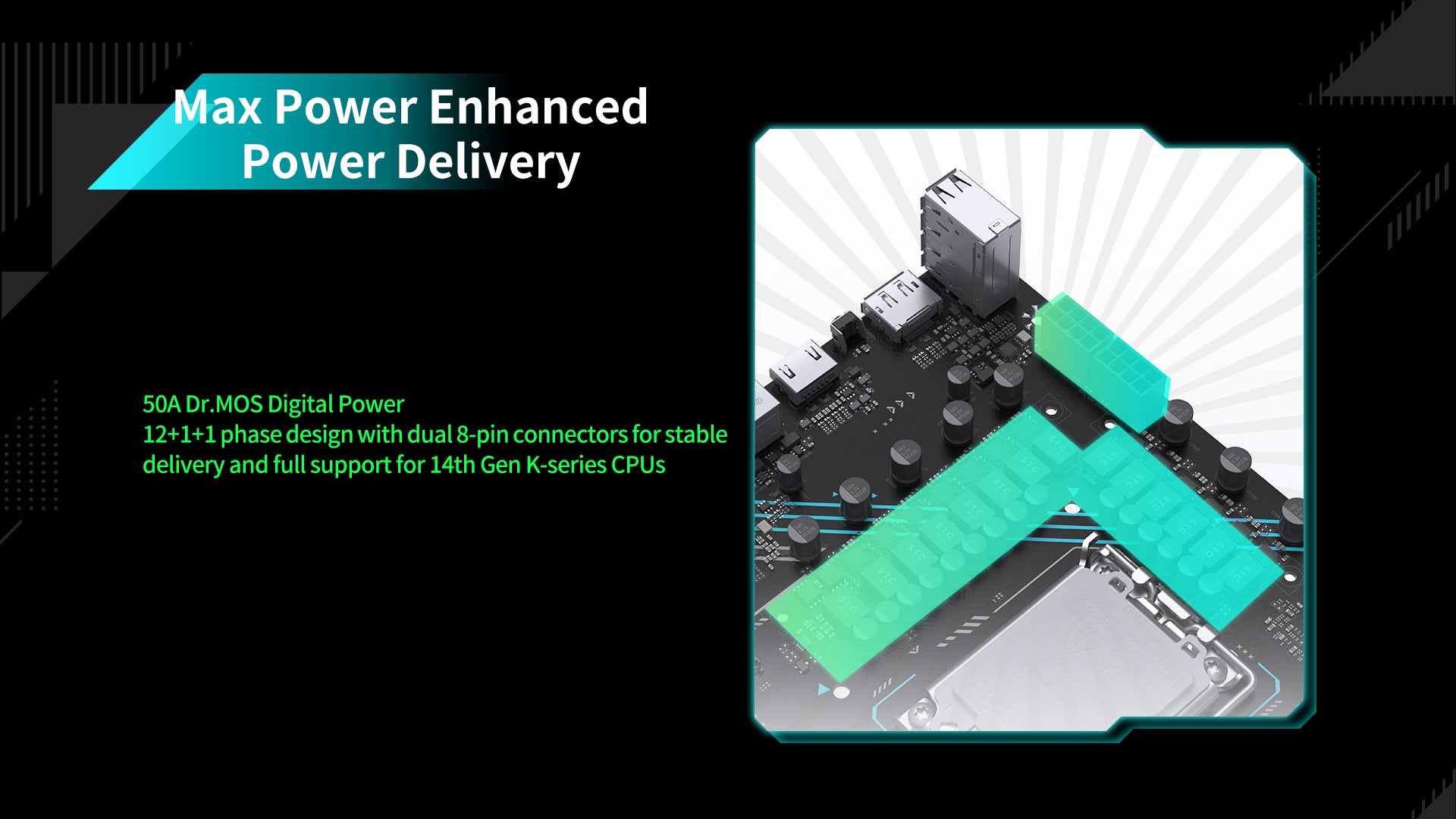

• Power Design
• 12+1+1 phase Dr.MOS power stages
  50A SiC654

• Display Outputs
• 1 × DisplayPort 1.2 (up to 4K@60Hz)
  1 × HDMI™ 1.4 (up to 4K@30Hz)
  Note: Graphics capabilities may vary depending on the CPU. For details, refer to www.intel.com.

• Networking
• 1 × Realtek RTL8125BG/D 2.5Gb Ethernet port

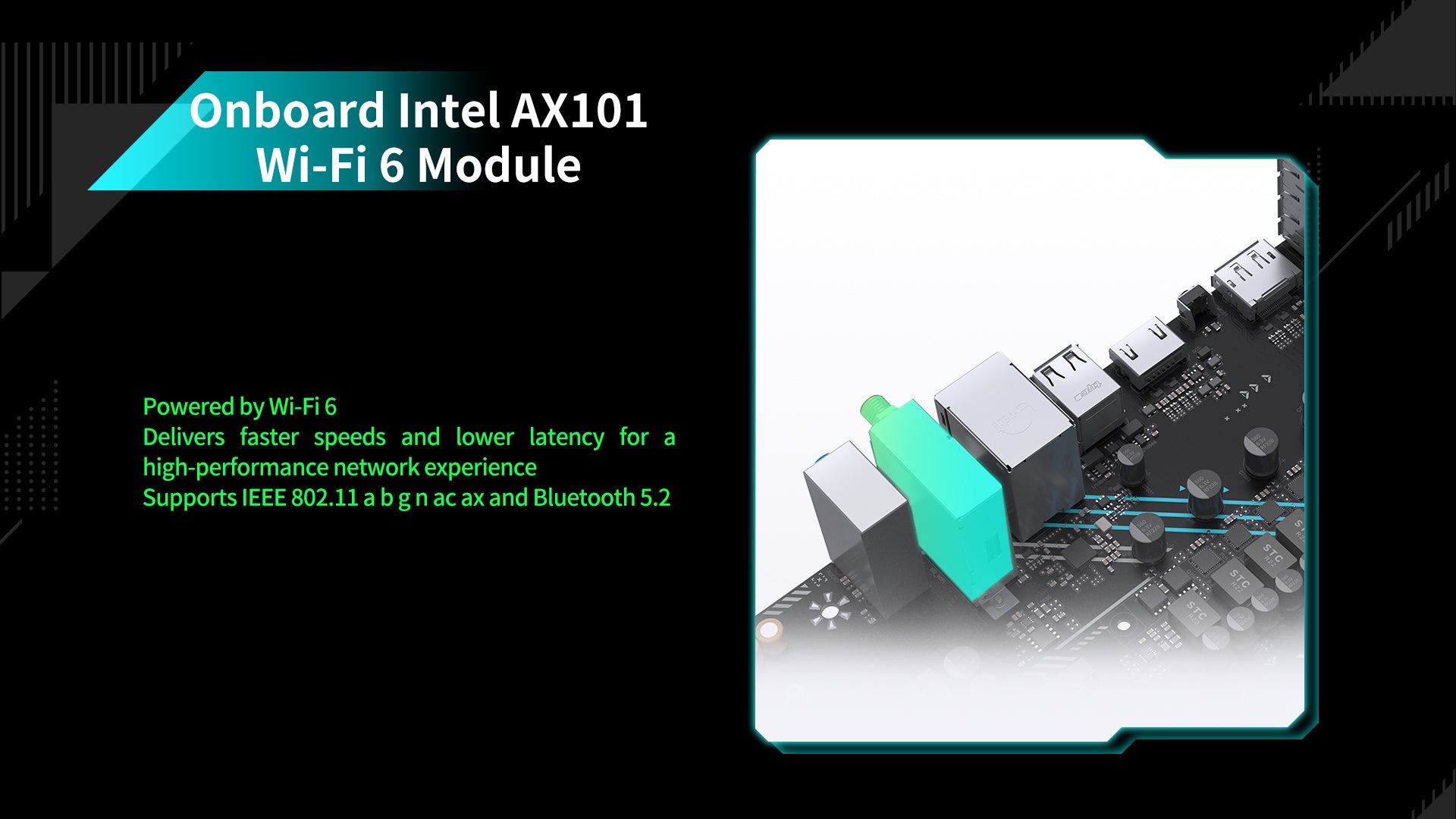

  Onboard Intel AX101 Wi-Fi 6 wireless module
  Supports IEEE 802.11 a/b/g/n/ac/ax
  Bluetooth 5.2 support

• Storage Interfaces

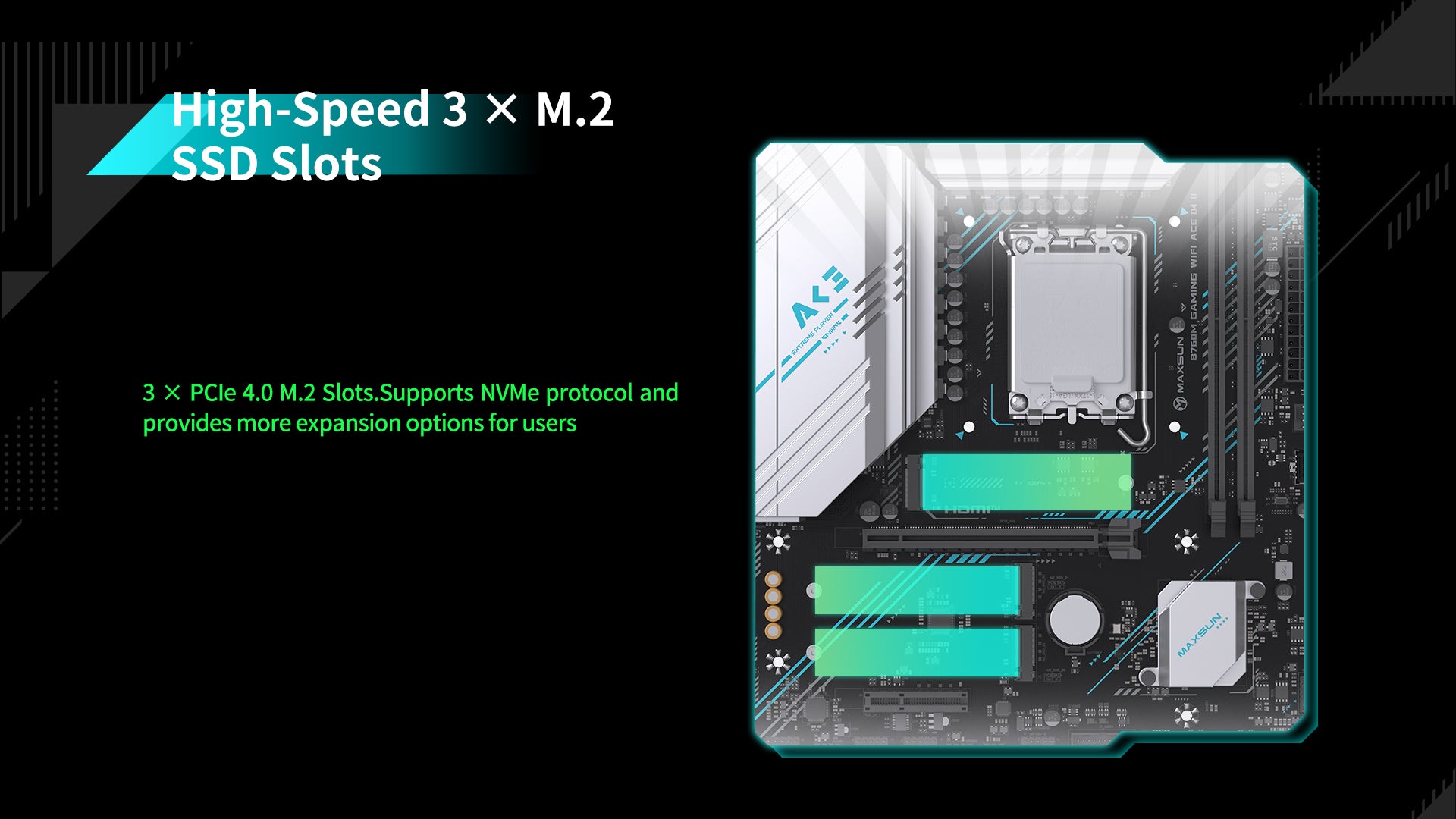

• 3 × PCIe 4.0 M.2 slots for NVMe SSDs
  2 × SATA3 6Gb/s ports

• USB Ports

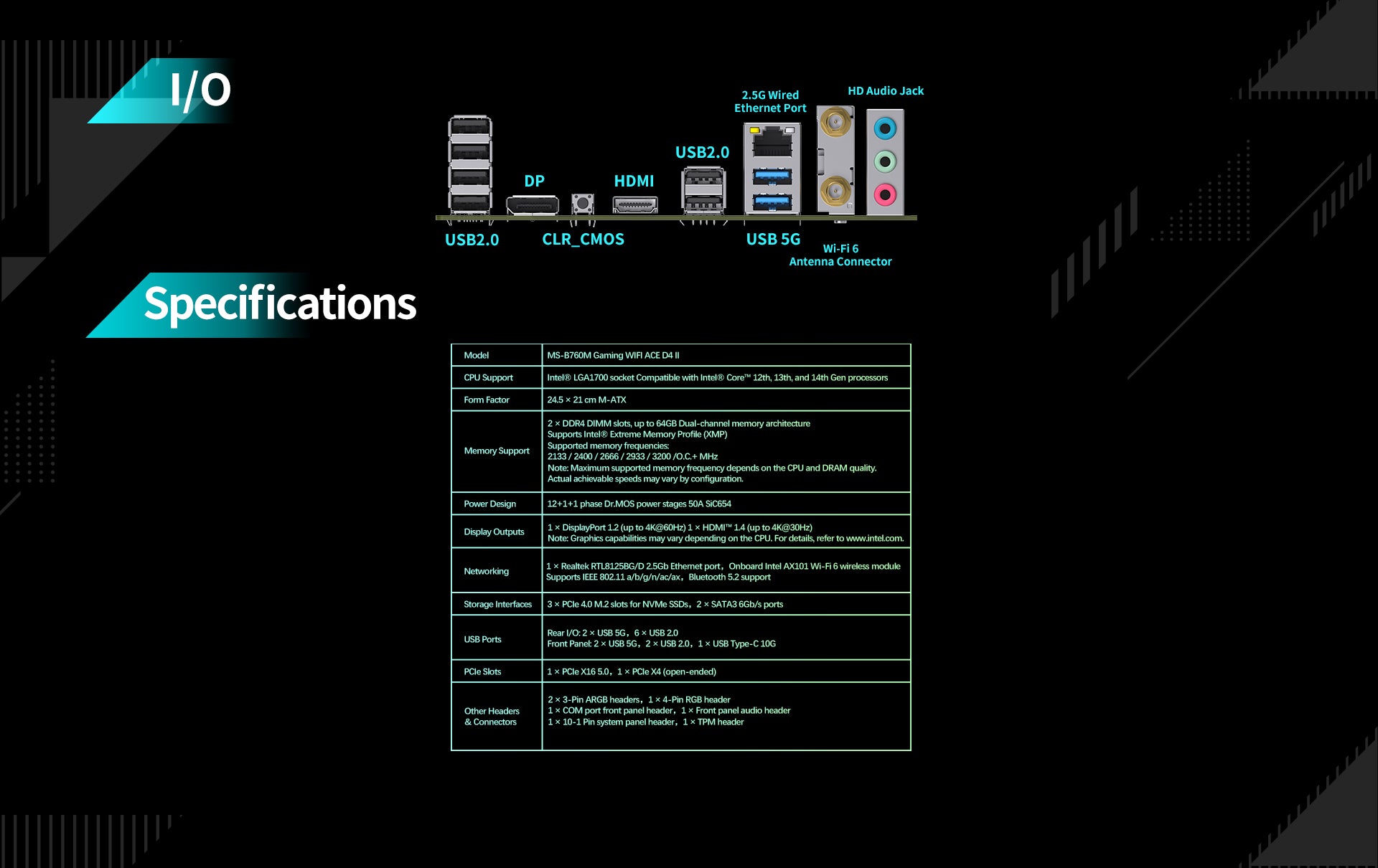

• Rear I/O:
  2 × USB 5Gbps
  6 × USB 2.0

  Front Panel:
  2 × USB 5Gbps
  2 × USB 2.0
  1 × USB Type-C 10Gbps

• PCIe Slots
• 1 × PCIe X16 Gen 5
  1 × PCIe X4 (open-ended)

• Other Headers & Connectors

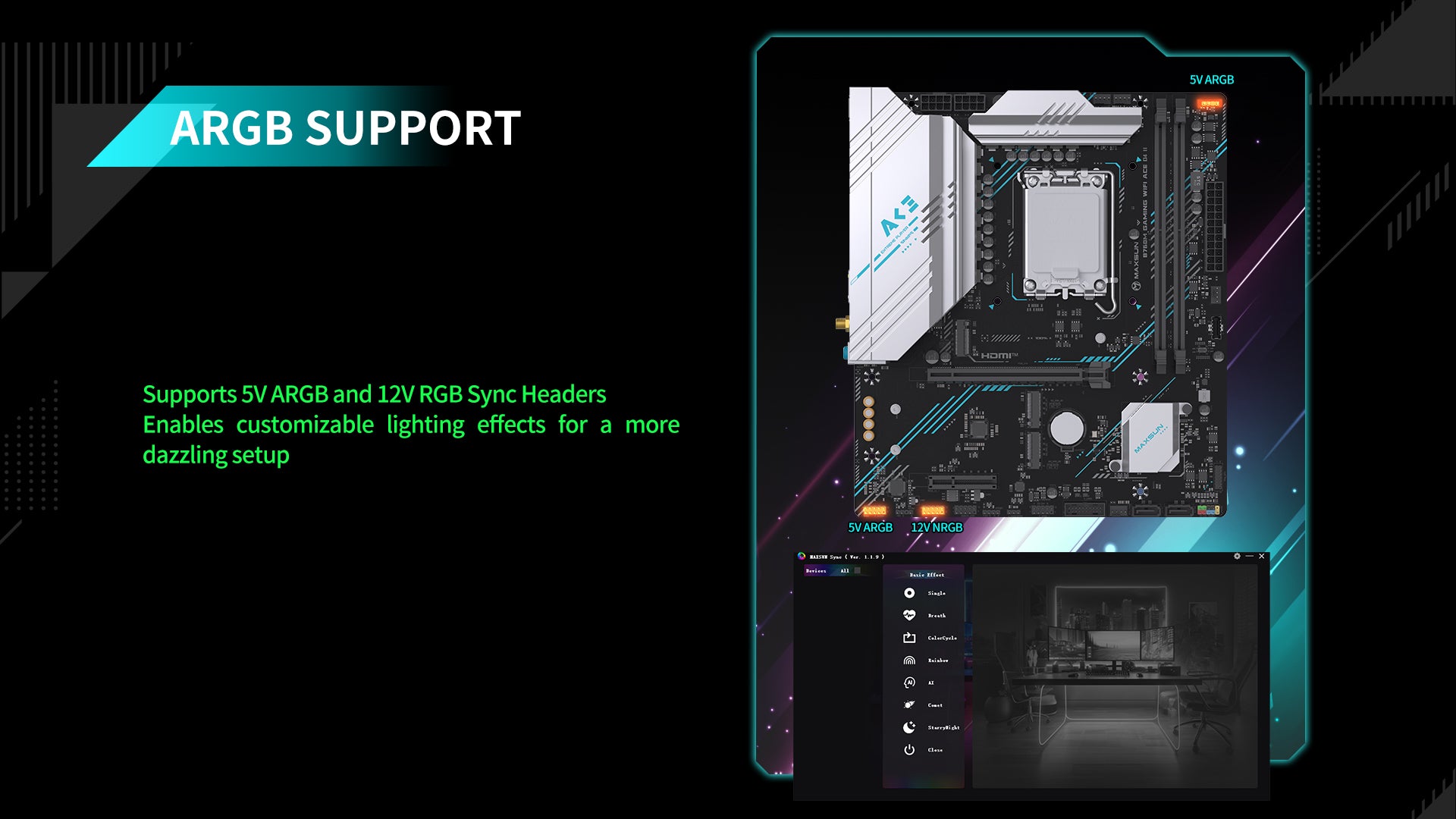

• 2 × 3-Pin ARGB headers
  1 × 4-Pin RGB header
  1 × COM port front panel header
  1 × Front panel audio header
  1 × 10-1 Pin system panel header
  1 × TPM header
  1 × 10-Pin chassis front panel connector
