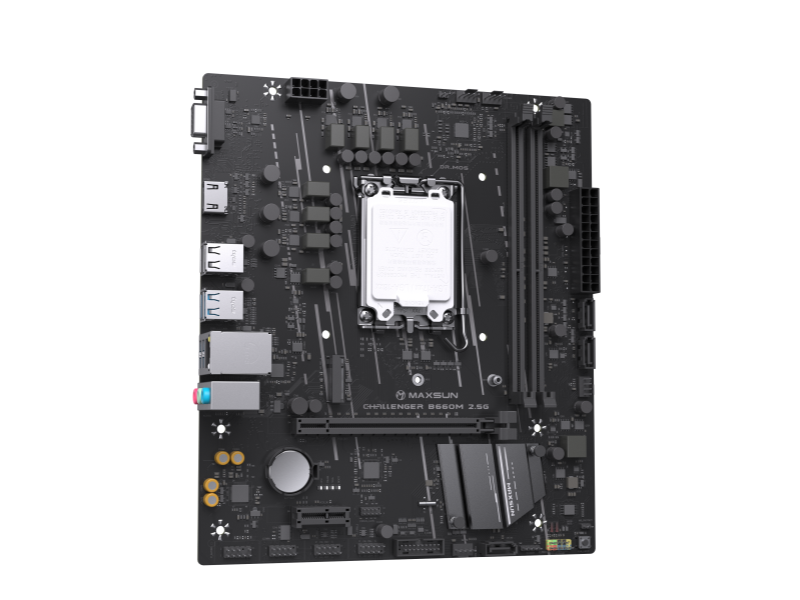

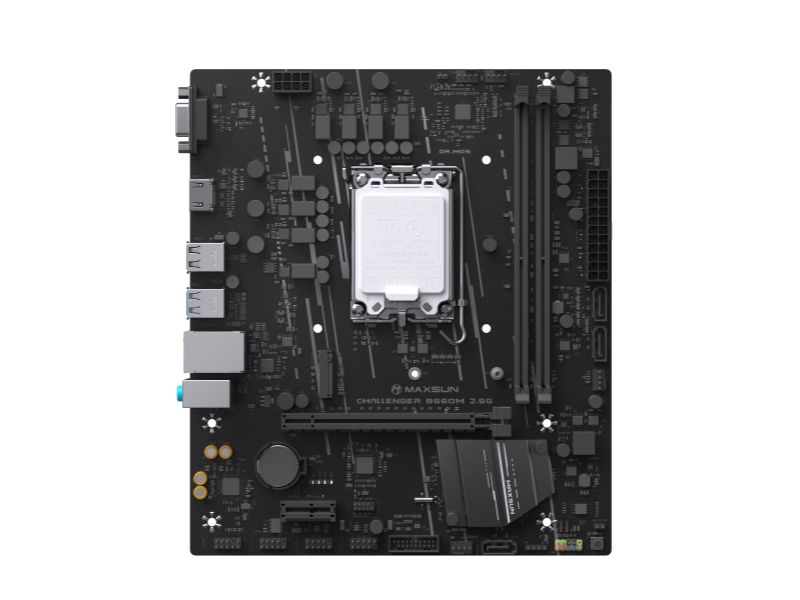

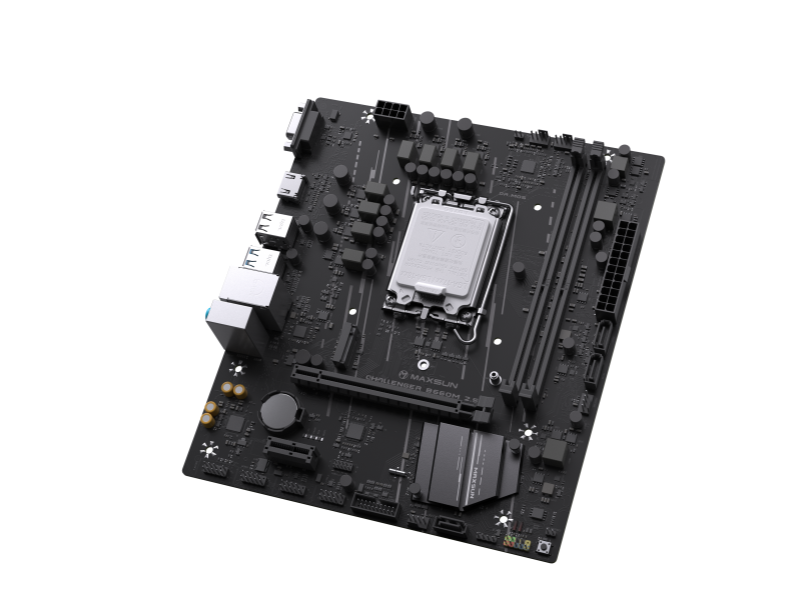

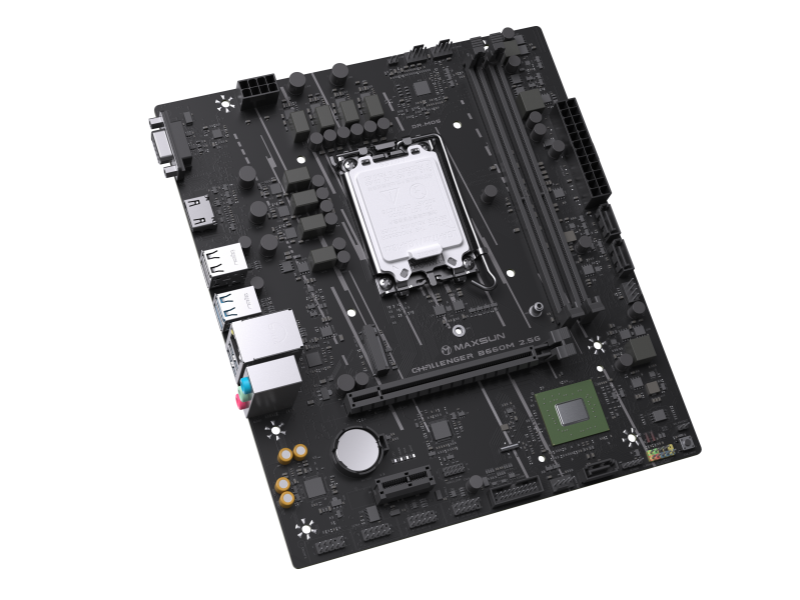

MS-Challenger B660M 2.5G

• Model
• MS-Challenger B660M 2.5G

• CPU Socket
• LGA1700 socket, supporting Intel® 12th, 13th, and 14th Gen processors

• Chipset
• Intel® B660 high-speed chipset

• Memory
• 2 × DDR4 DIMM slots, up to 64GB capacity
  Dual-channel memory architecture
  Supports 3200/2933/2666/2400/2133 MHz and OC Memory frequencies

• Display Output
• 1 × HDMI port, up to 4096×2160 @30Hz resolution
  1 × VGA port, up to 1920×1080 @60Hz resolution

• Expansion Slots
• 1 × PCIe 4.0 x16 slot
  1 × PCIe 3.0 x1 slot

• Audio
• Integrated Realtek® ALC897 audio codec

• Networking
• Integrated Realtek® RTL8125BG 2.5G LAN controller

• Storage
• 1 × M.2 4.0 slot (supports 2242/2280 PCIe x4/x2 SSDs)
  3 × SATA 3.0 ports

• USB Connectivity

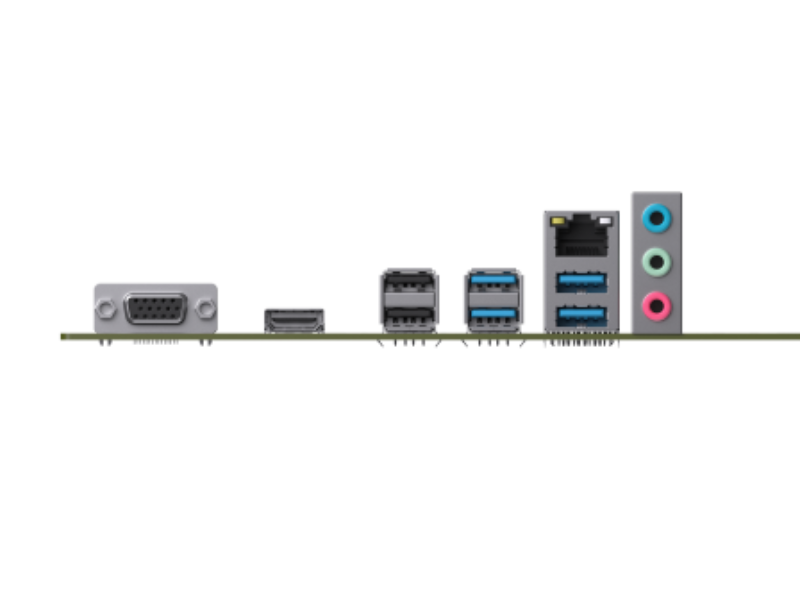

• Rear I/O:
  4 × USB 3.2 Gen1 ports
  2 × USB 2.0 ports

  Onboard Headers:
  2 × USB 2.0 headers (supporting 4 ports)
  1 × USB 3.2 Gen1 header (supporting 2 ports)

• Power Connectors
• 1 × 24-pin ATX main power connector
  1 × 8-pin ATX 12V power connector (12V input)
  1 × 8-pin ATX 12V power connector (13V input)

• Internal Connectors & Headers
• 1 × COM_A header
  2 × System fan headers
  1 × CPU fan header
  1 × Pump fan header
  1 × CLR_CMOS button
  1 × Debug header
  1 × ME protection header
  1 × Front panel control header
