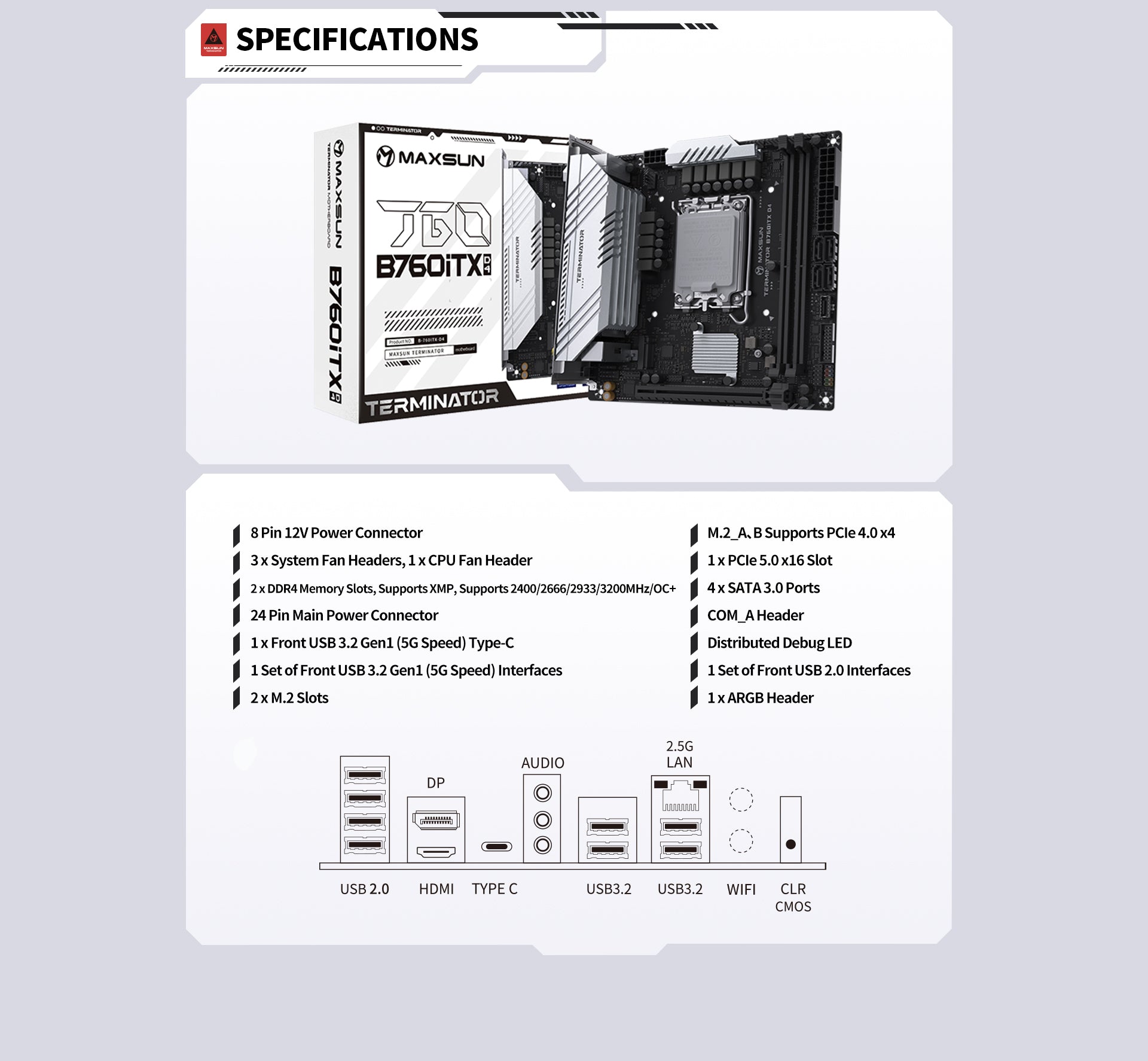

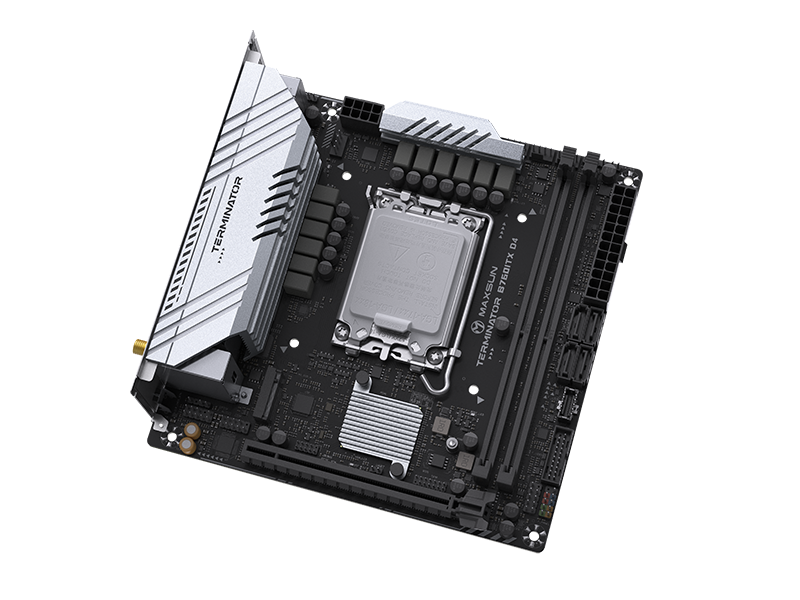

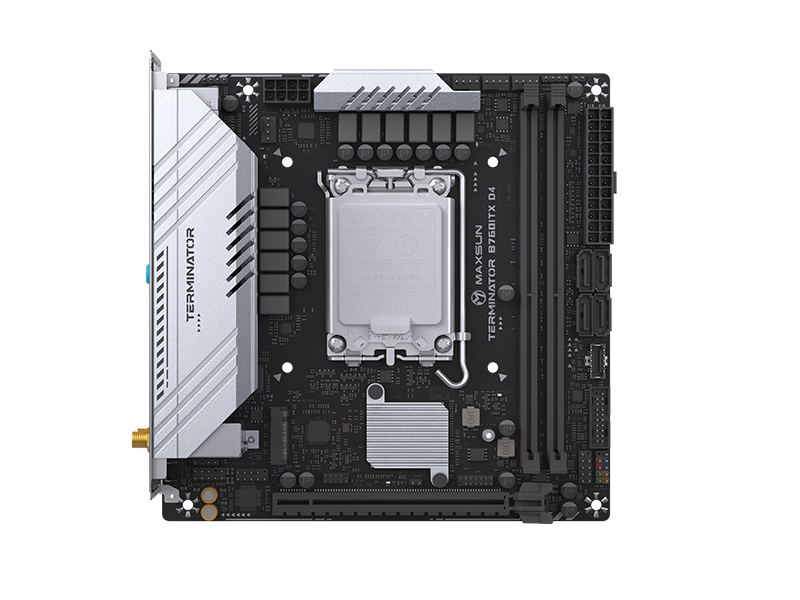

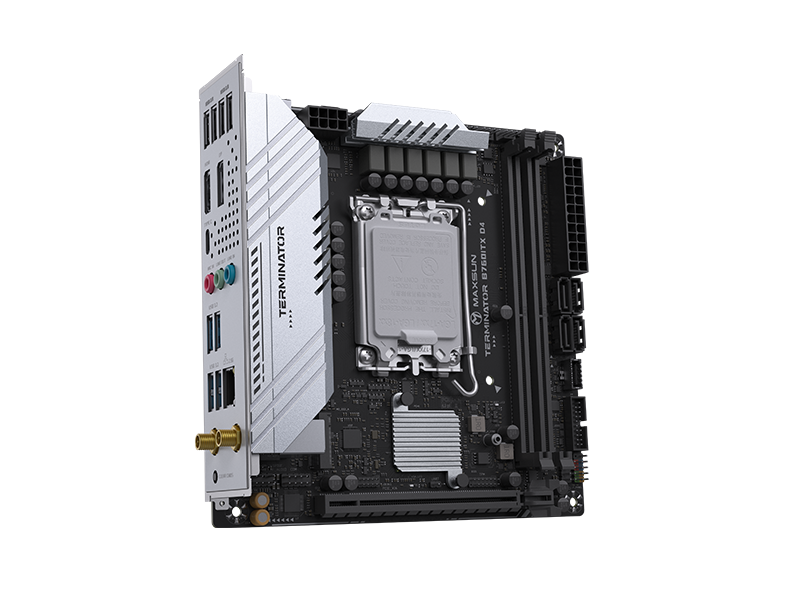

MS-Terminator B760ITX D4 WIFI V3

• Power Connectors
• 1 × 8-pin +12V Power Connector
  1 × 24-pin Main Power Connector

• Fan & Cooling Headers
• 3 × System Fan Headers
  1 × CPU Fan Header

• Memory
• 2 × DDR4 Memory Slots
  Supports Intel® XMP
  Supports 2400 / 2666 / 2933 / 3200MHz / OC+

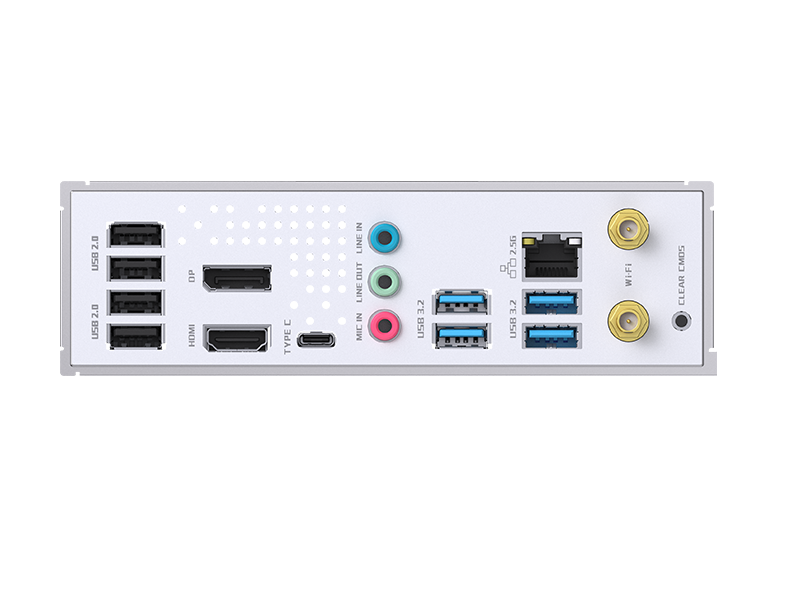

• USB Connectivity
• Front:
  1 × USB 3.2 Gen1 (5G) Type-C Port
  1 × USB 3.2 Gen1 (5G) Header (Supports Additional Ports)
  1 × USB 2.0 Header (Supports Additional Ports)

• Storage

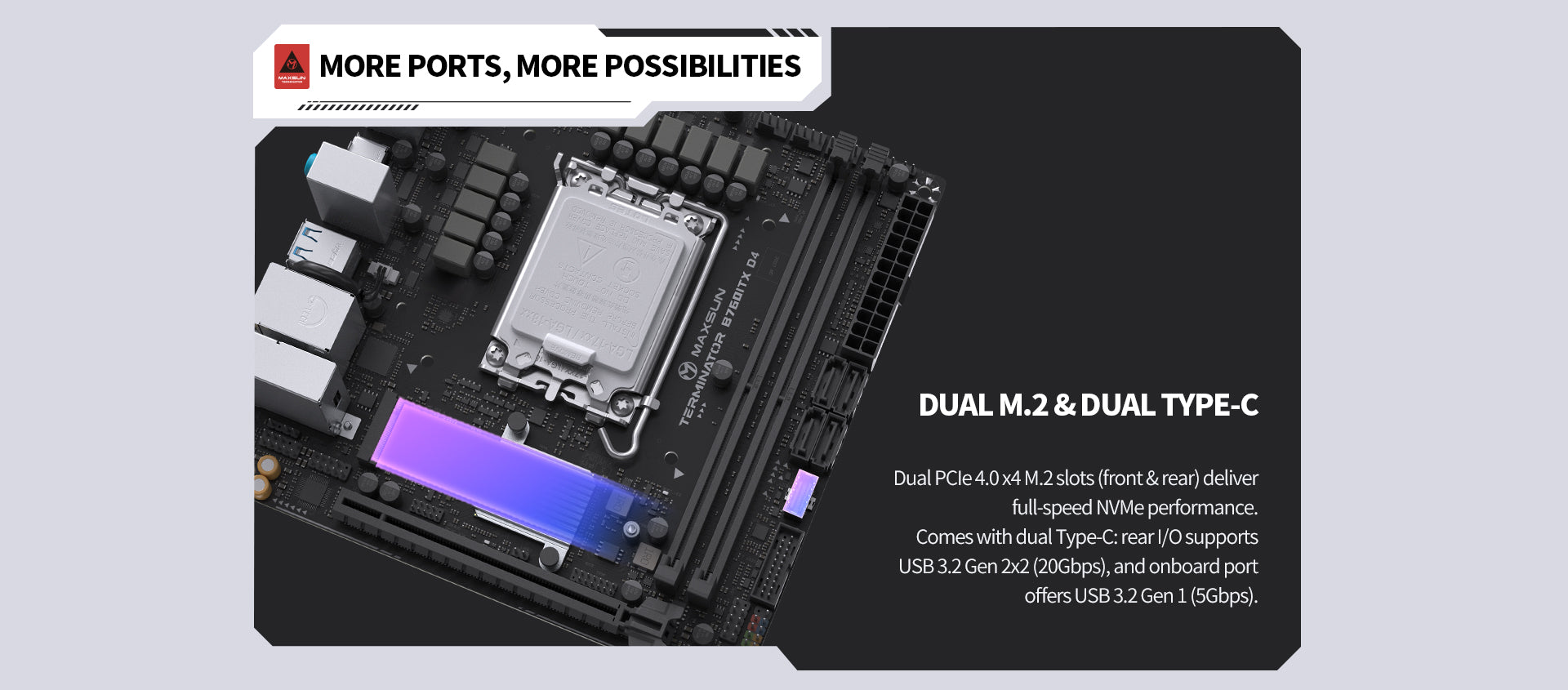

• 2 × M.2 Slots (M.2_A & M.2_B Support PCIe 4.0 x4 Mode)
  4 × SATA 3.0 Ports

• Expansion Slots
• 1 × PCIe 5.0 x16 Slot

• Other Features
• 1 × COM_A Header
  1 × ARGB Header

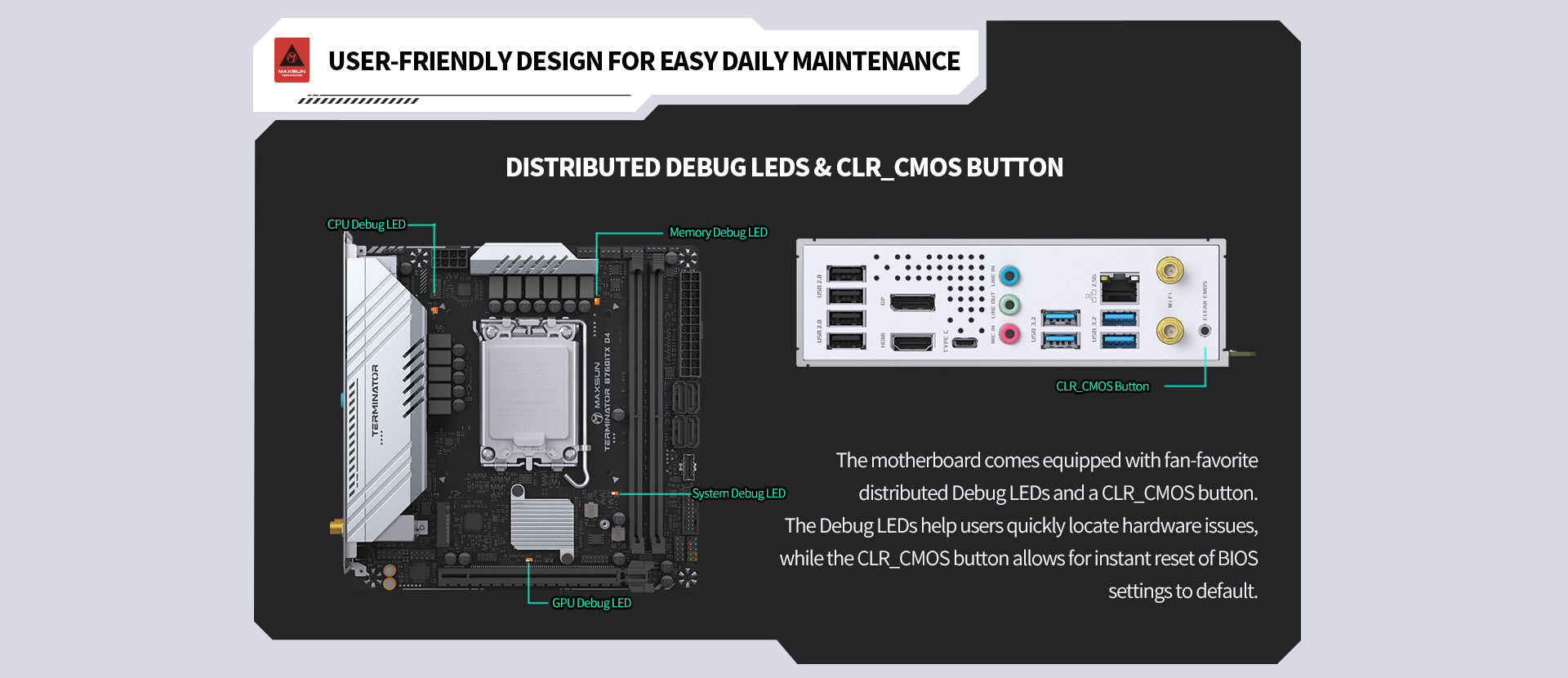

  Distributed Debug LED
