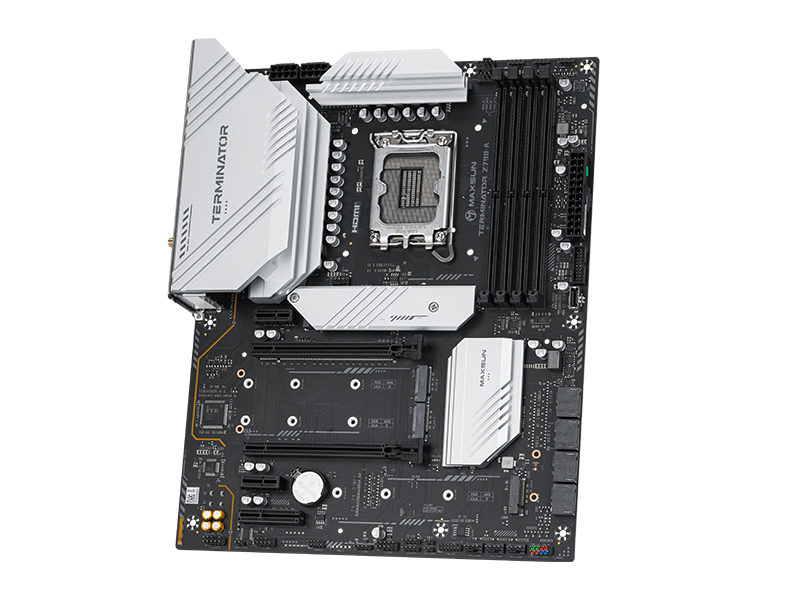

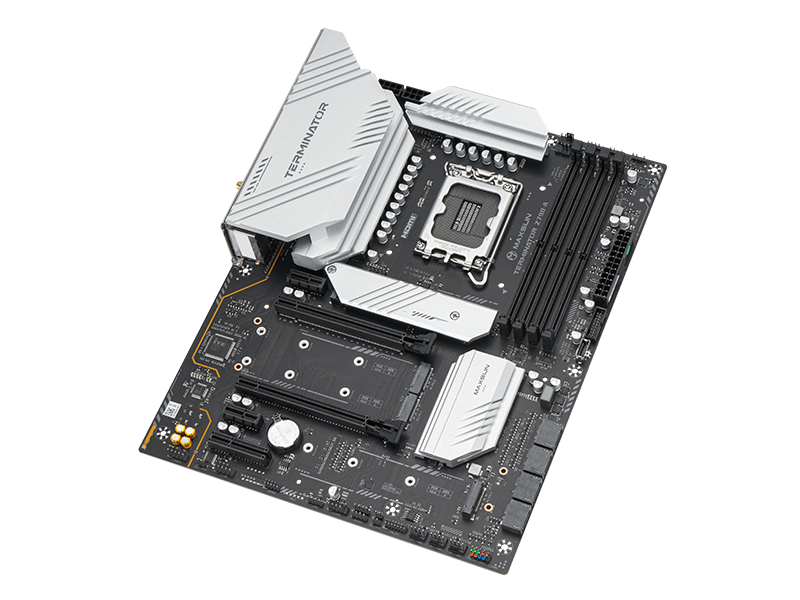

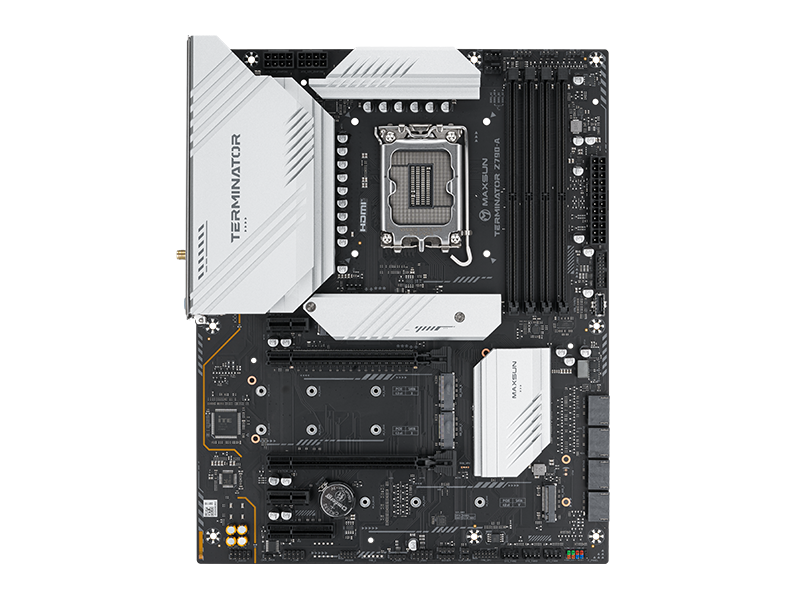

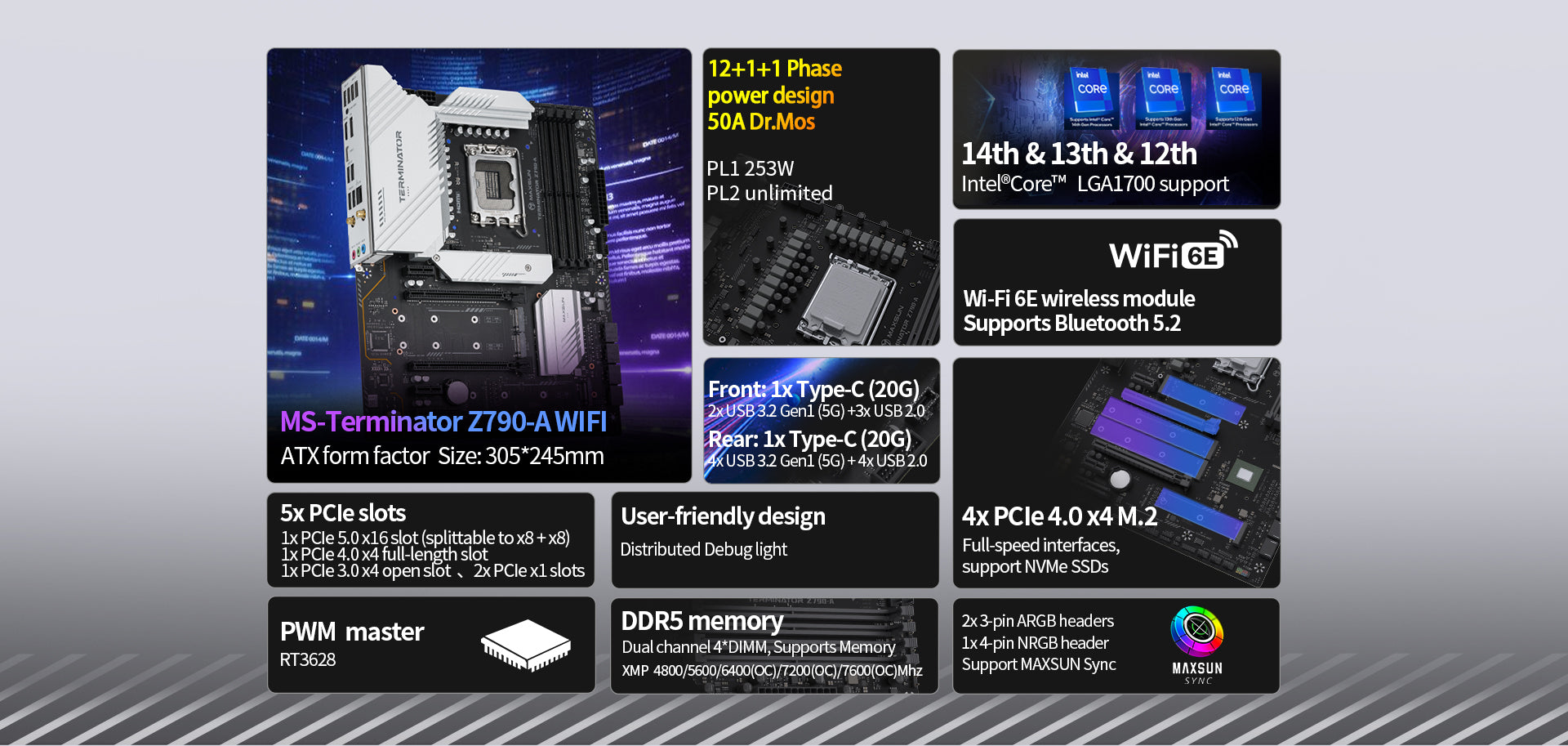

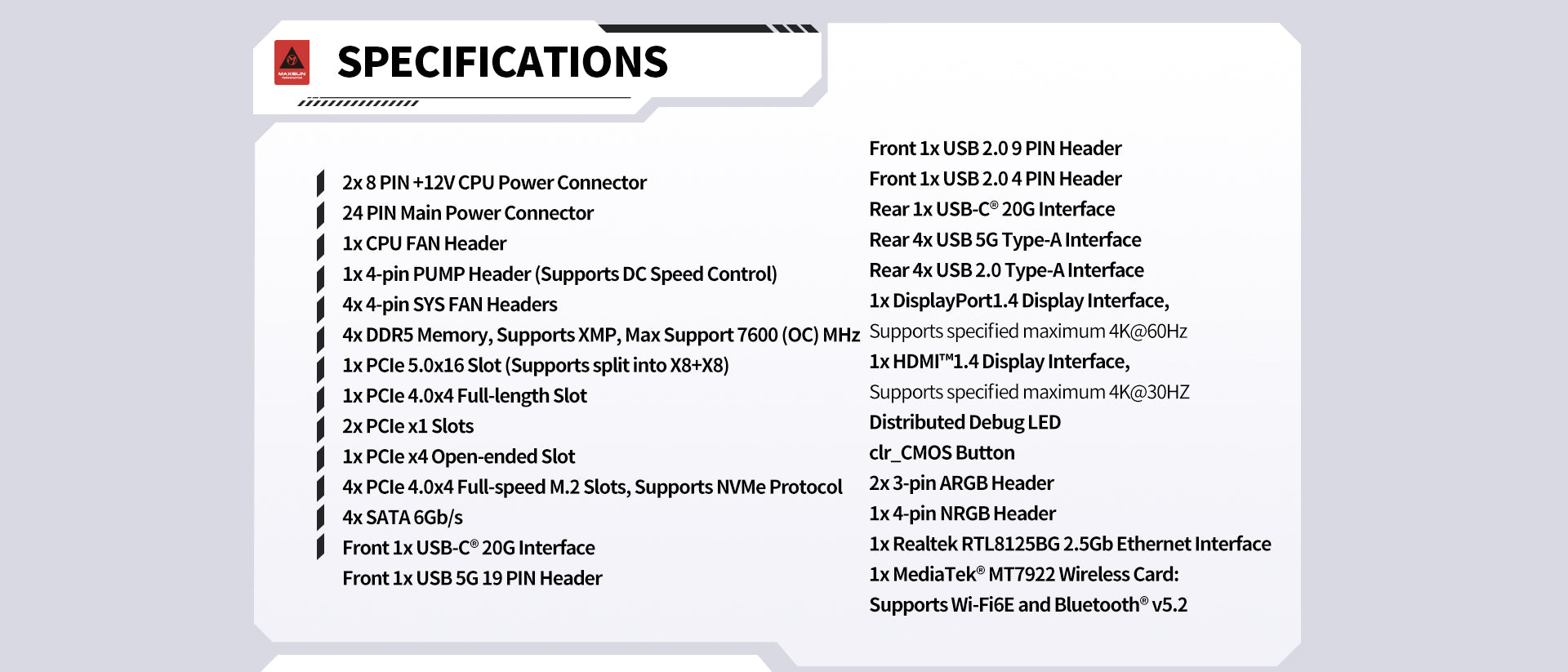

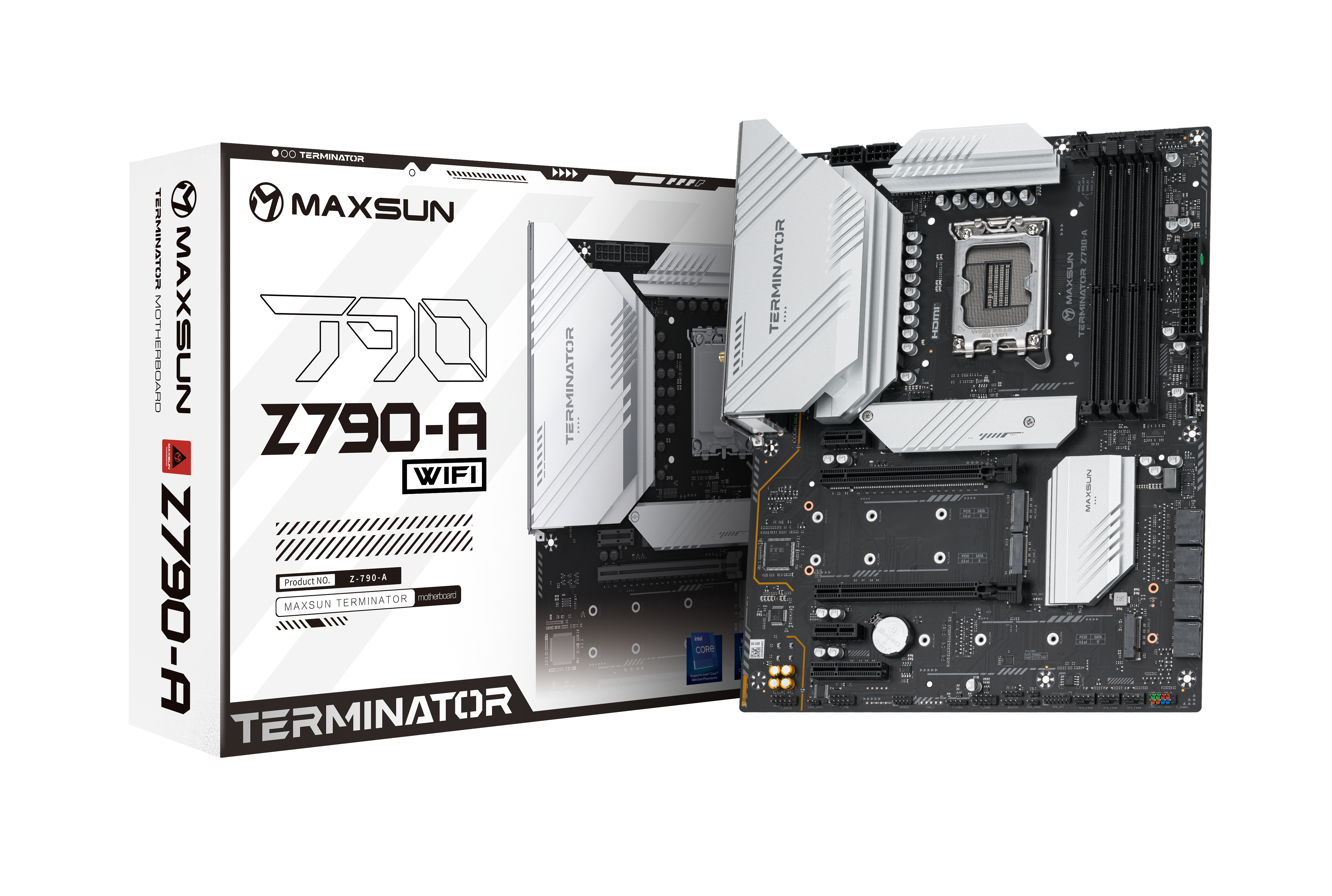

MS-Terminator Z790-A WIFI

• Power Connectors
• 2 × 8-pin +12V CPU Power Connectors
  1 × 24-pin Main Power Connector

• Fan & Cooling Headers
• 1 × CPU FAN Header
  1 × 4-pin PUMP Header (Supports DC Speed Control)
  4 × 4-pin SYS FAN Headers

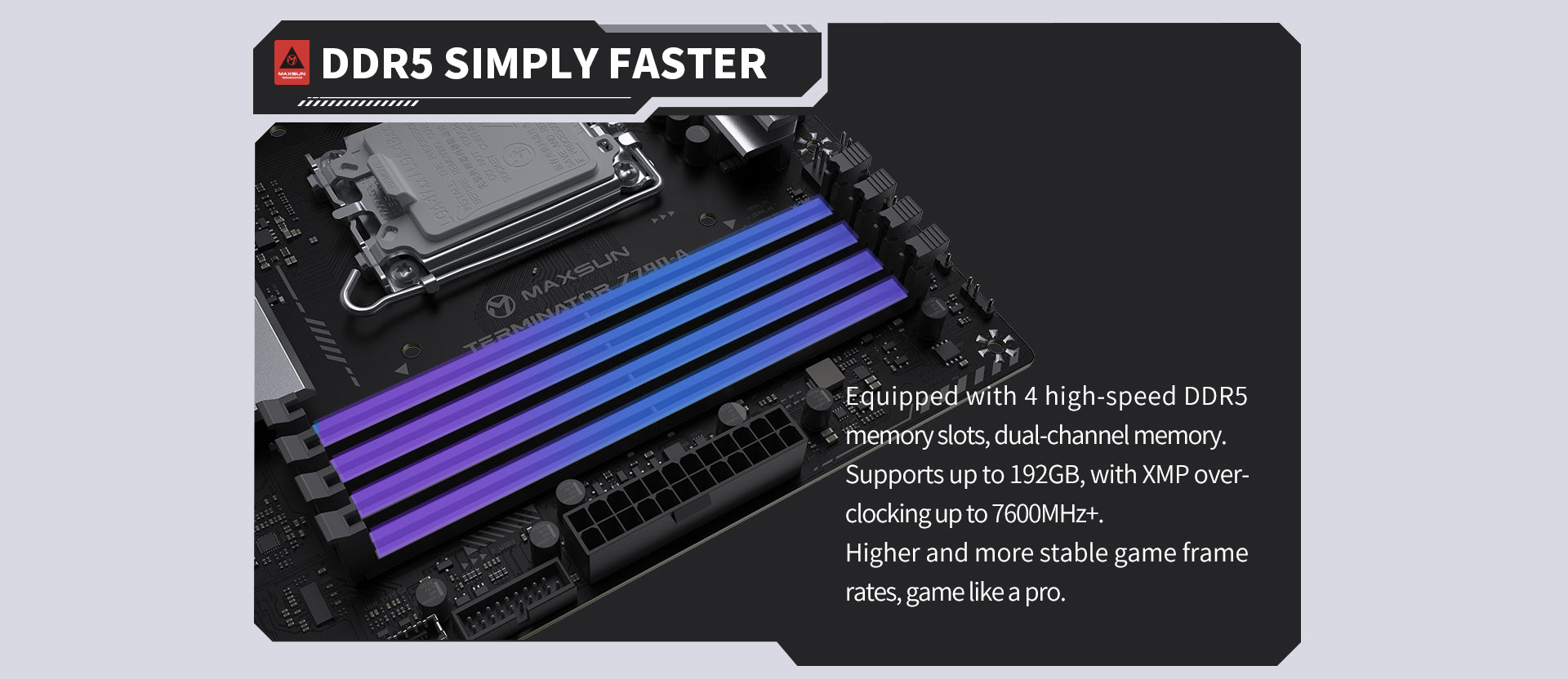

• Memory
• 4 × DDR5 Memory Slots
  Supports Intel® XMP
  Max Frequency Support: 7600 (OC) MHz

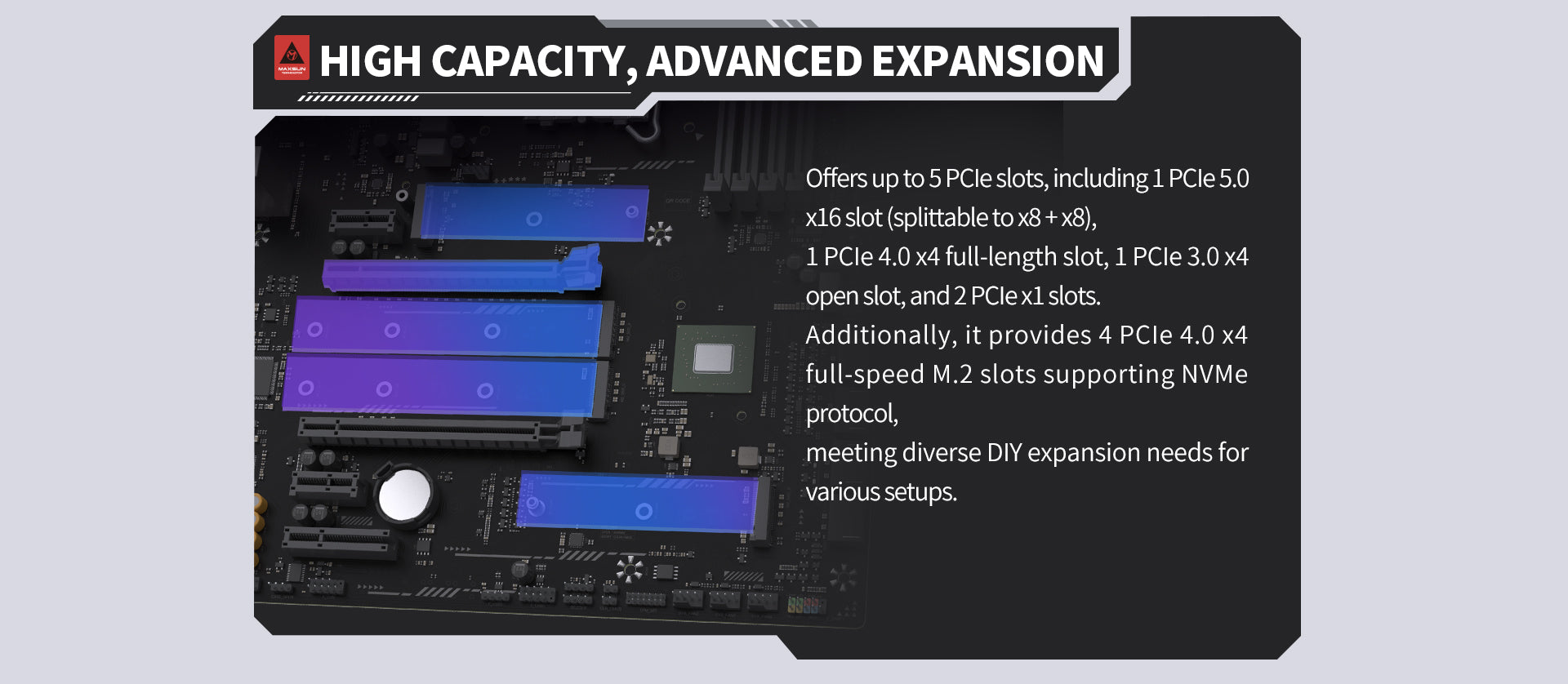

• Expansion Slots
• 1 × PCIe 5.0 x16 Slot (Supports split into X8+X8)
  1 × PCIe 4.0 x4 Full-length Slot
  2 × PCIe x1 Slots
  1 × PCIe x4 Open-ended Slot

• Storage
• 4 × PCIe 4.0 x4 Full-speed M.2 Slots (Supports NVMe Protocol)
  4 × SATA 6Gb/s Ports

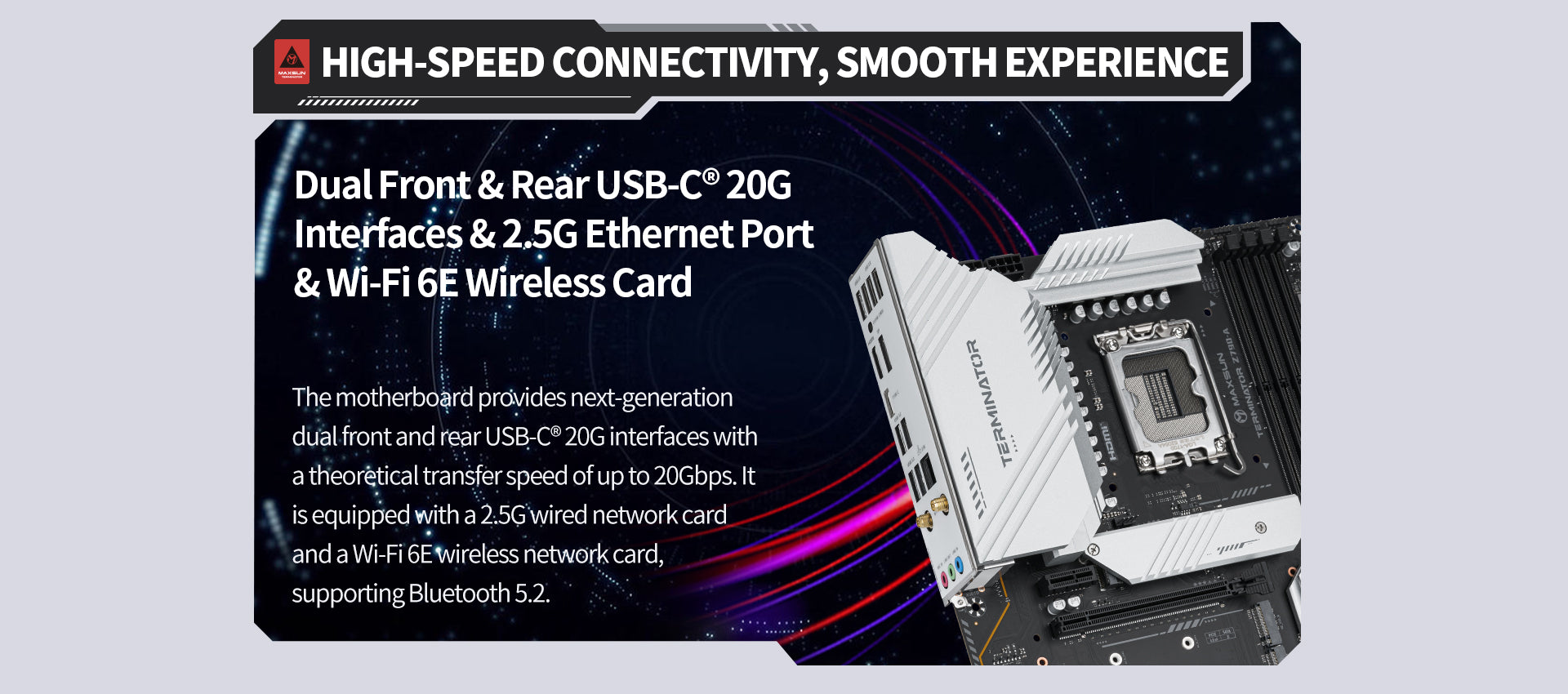

• USB Connectivity
• Front:
  1 × USB-C® 20G Interface
  1 × USB 5G 19-pin Header
  1 × USB 2.0 9-pin Header
  1 × USB 2.0 4-pin Header

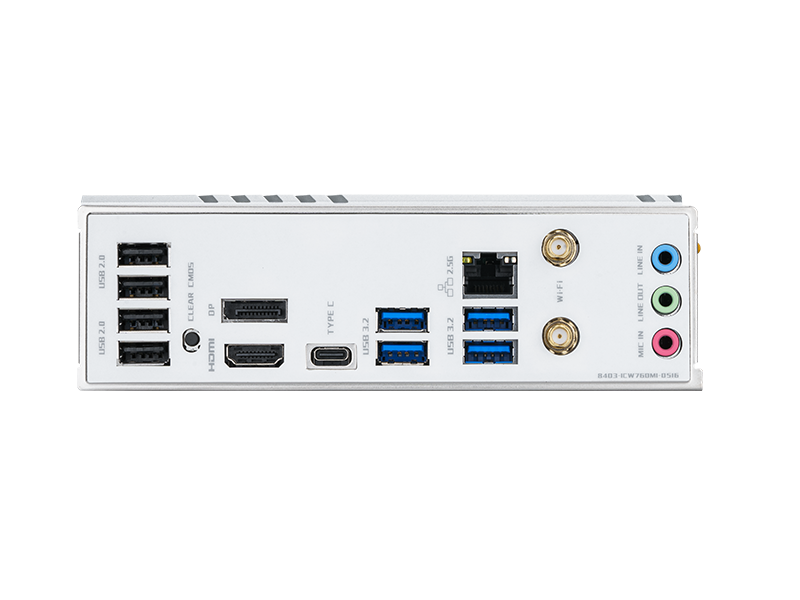

  Rear:
  1 × USB-C® 20G Interface
  4 × USB 5G Type-A Ports
  4 × USB 2.0 Type-A Ports

• Display Outputs
• 1 × DisplayPort 1.4 Interface (Supports up to 4K@60Hz)
  1 × HDMI™ 1.4 Interface (Supports up to 4K@30Hz)

• Diagnostics & Control
• Distributed Debug LED
  CLR_CMOS Button

• RGB & Lighting
• 2 × 3-pin ARGB Headers
  1 × 4-pin NRGB Header

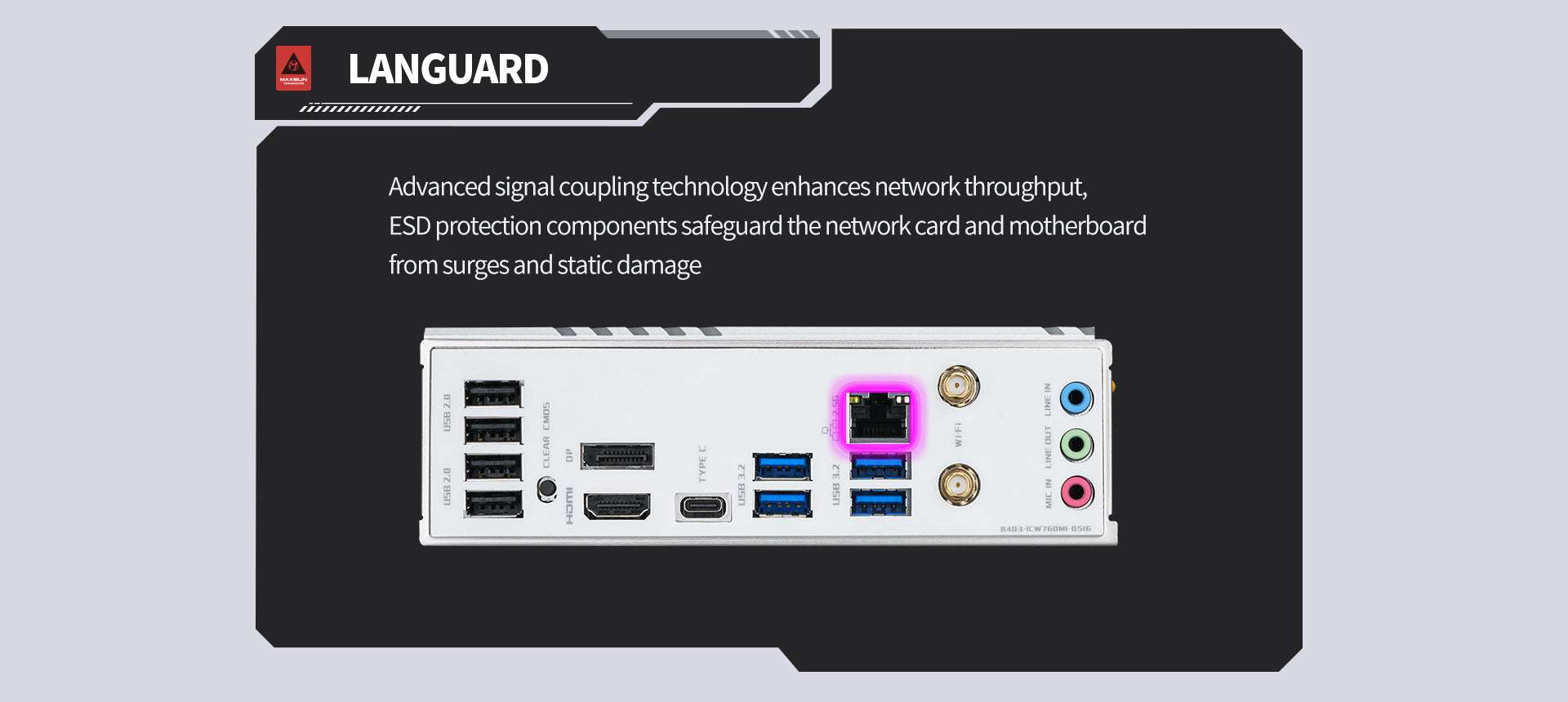

• Networking
• 1 × Realtek RTL8125BG 2.5Gb Ethernet Interface
  1 × MediaTek® MT7922 Wireless Card (Supports Wi-Fi 6E and Bluetooth® v5.2)
