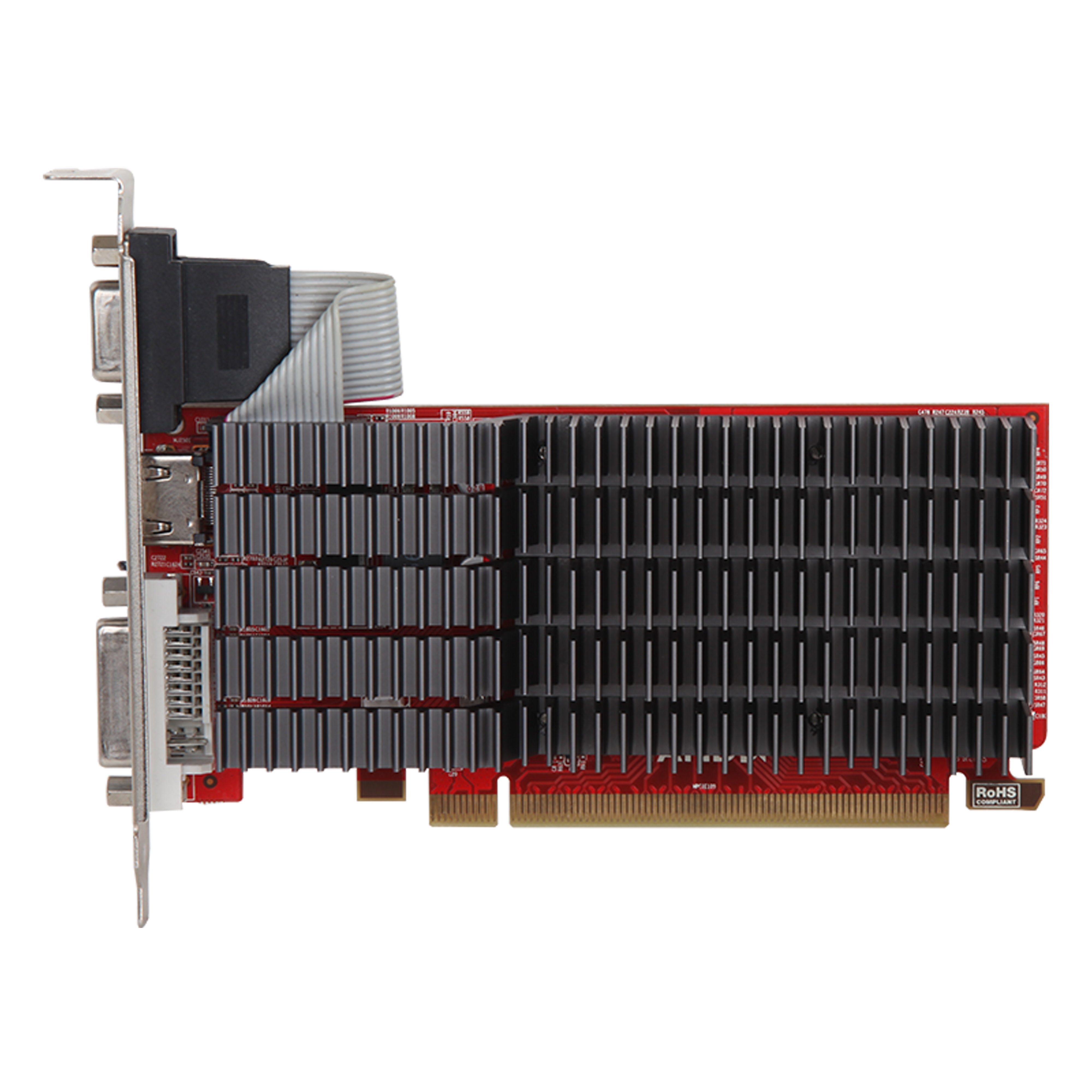

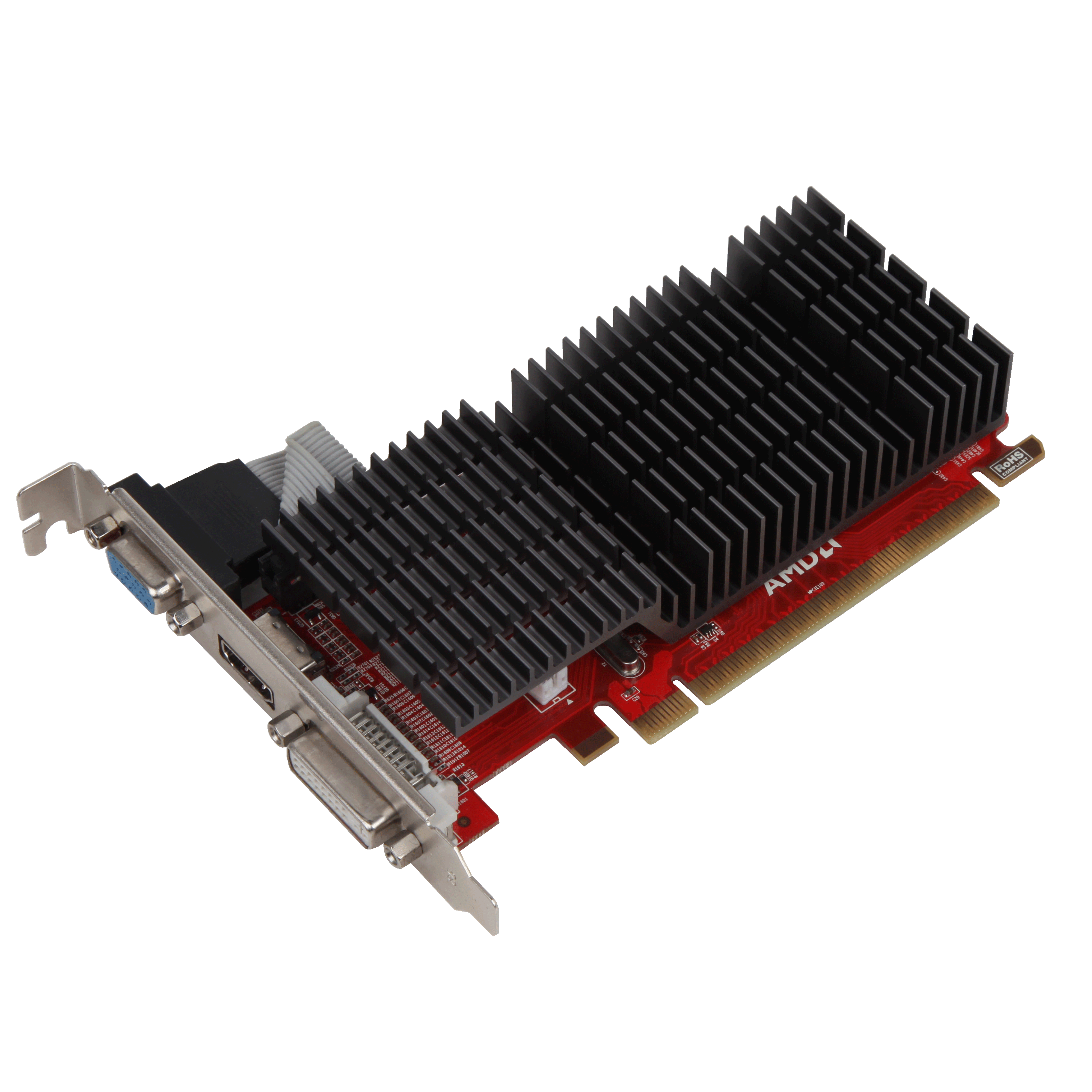

R5 220 动力锤 2G
• 2GB DDR3 | 64 位 | 1066MHz 带宽
• PCIe 1.1 x16 接口
• 多显示器输出：1×HDMI + 1×VGA + 1×DVI， 支持最高 1920×1080 分辨率
OVERVIEW
SPECIFICATION
SUPPORT
OVERVIEW
SPECIFICATION
- MODEL NAME
- R5 220 Powerhammer 2G
- GRAPHICS PROCESSING UNIT
- AMD® R5 220
- ARCHITECTURE
- Terascale 2
- GPU
- Cedar Pro
- TECHNOLOGY
- 40nm
- CUDA® CORES
- 80 Units
- ENGINE CLOCK
- 625 MHz
- MEMORY SPEED
- 1 Gbps
- MEMORY
- 2GB DDR3
- MEMORY BUS
- 64-bit
- INTERFACE
- PCI Express® Gen 2
- HEAT SINKS
- Open cooling
- OUTPUT
- 1x HDMI™
1x DVI
1x VGA
- DIGITAL MAXIMUM RESOLUTION
- Digital Max Resolution 1920 x 1080
- POWER CONNECTORS
- PCI Express X8
- TDP
- 18W
- RECOMMENDED PSU
- Above 200W
- 3D API
- DirectX 11
OpenGL 4.4
- CARD DIMENSION (MM)
- 145*69*23 mm
