RX 550 变形金刚 SI 4G
Industrial Graphics Card
Single-slot half-height blade card design preferred for industry compatibility
Single-slot half-height blade card design preferred for industry compatibility
OVERVIEW
SPECIFICATION
SUPPORT
OVERVIEW
SPECIFICATION
- MODEL NAME
- RX 550 Transformers SI 4G
- GRAPHICS PROCESSING UNIT
- AMD® RX 550
- ARCHITECTURE
- 4th Gen GCN
- GPU
- Lexa
- TECHNOLOGY
- 14nm
- CUDA® CORES
- 512 Units
- ENGINE CLOCK
- 1183 MHz
- MEMORY SPEED
- 6 Gbps
- MEMORY
- 4GB GDDR5
- MEMORY BUS
- 128-bit
- INTERFACE
- PCI Express® Gen 3
- HEAT SINKS
- Open cooling

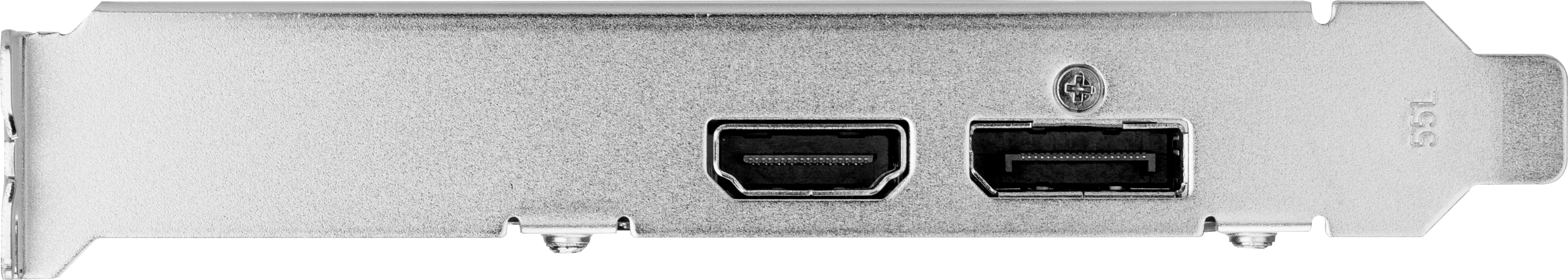

- OUTPUT
- 1x DisplayPort 1.4
1x HDMI™ 2.0
- DIGITAL MAXIMUM RESOLUTION
- Digital Max Resolution 7680 x 4320
- POWER CONNECTORS
- PCI Express X8
- TDP
- 35W
- RECOMMENDED PSU
- Above 250W
- 3D API
- DirectX 12
OpenGL 4.5
- CARD DIMENSION (MM)
- 168*69*18 mm
