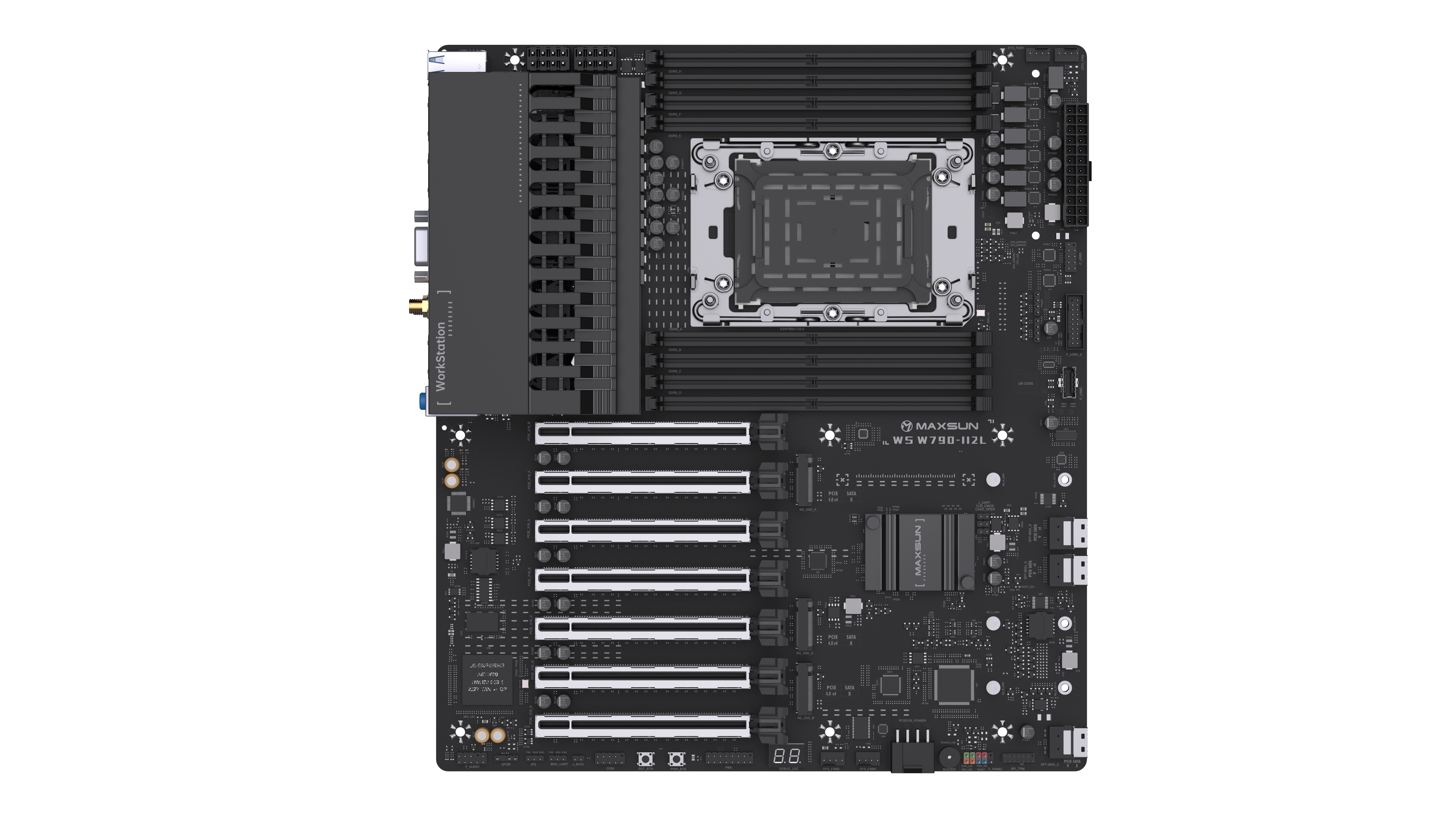

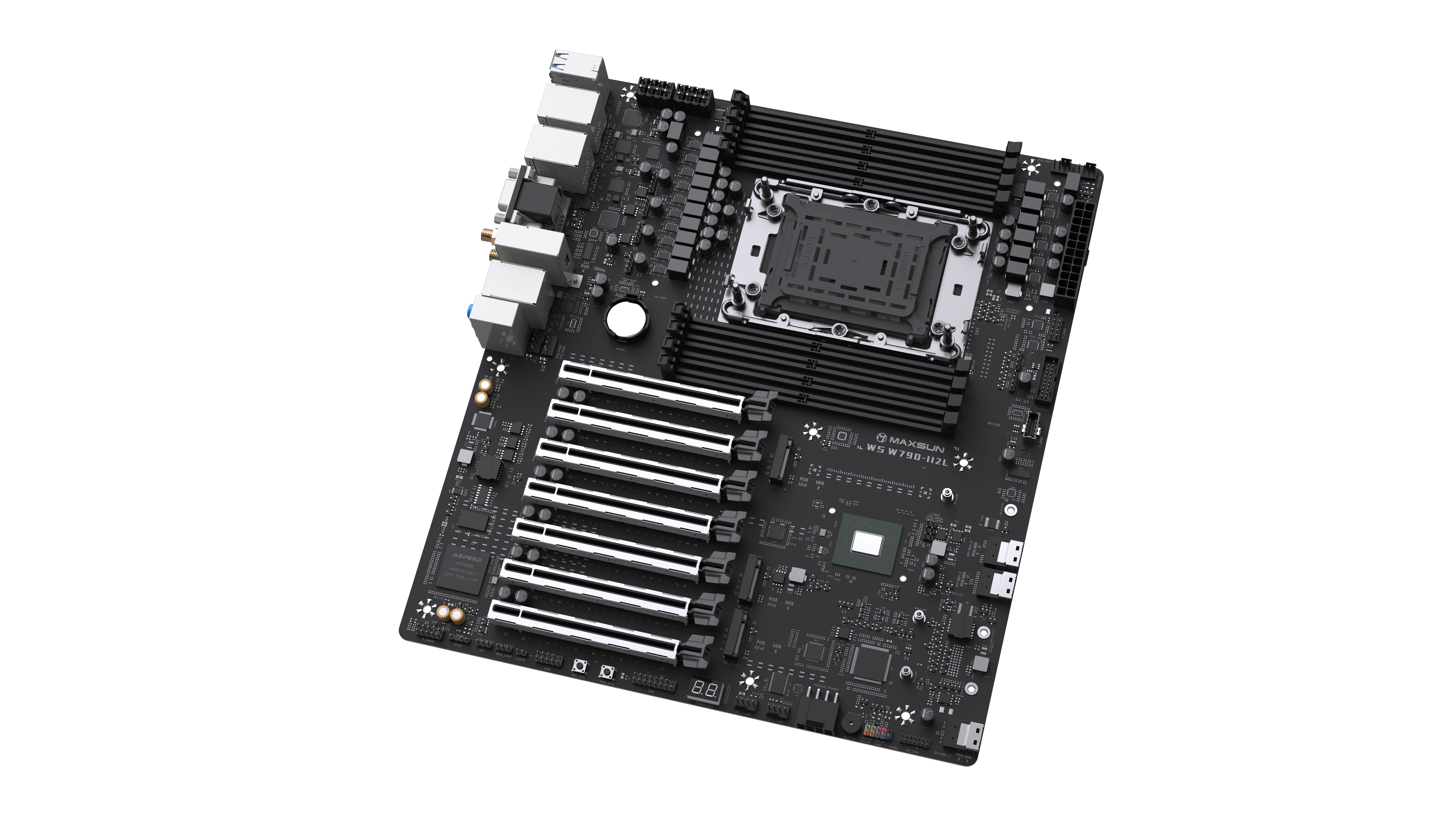

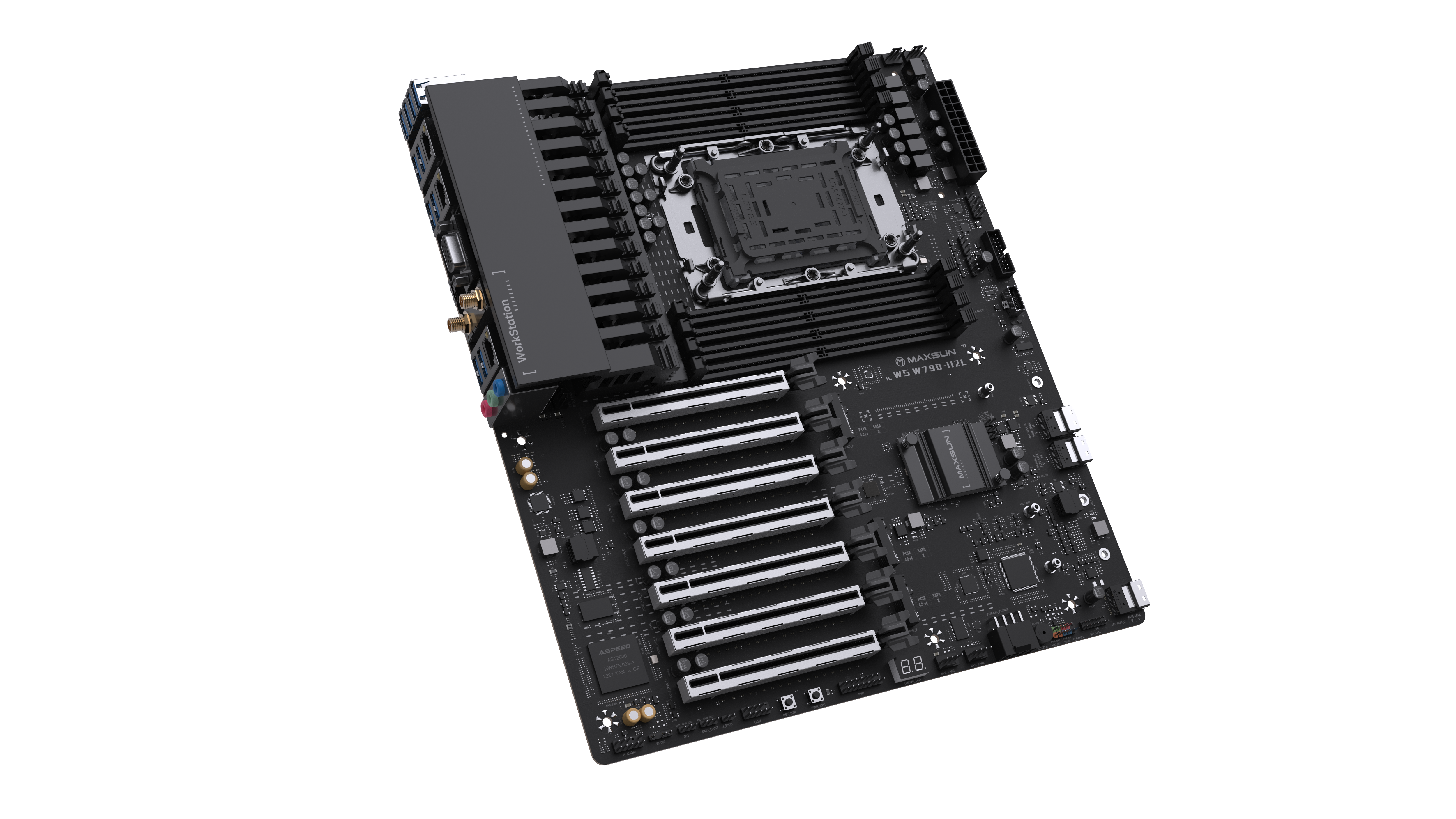

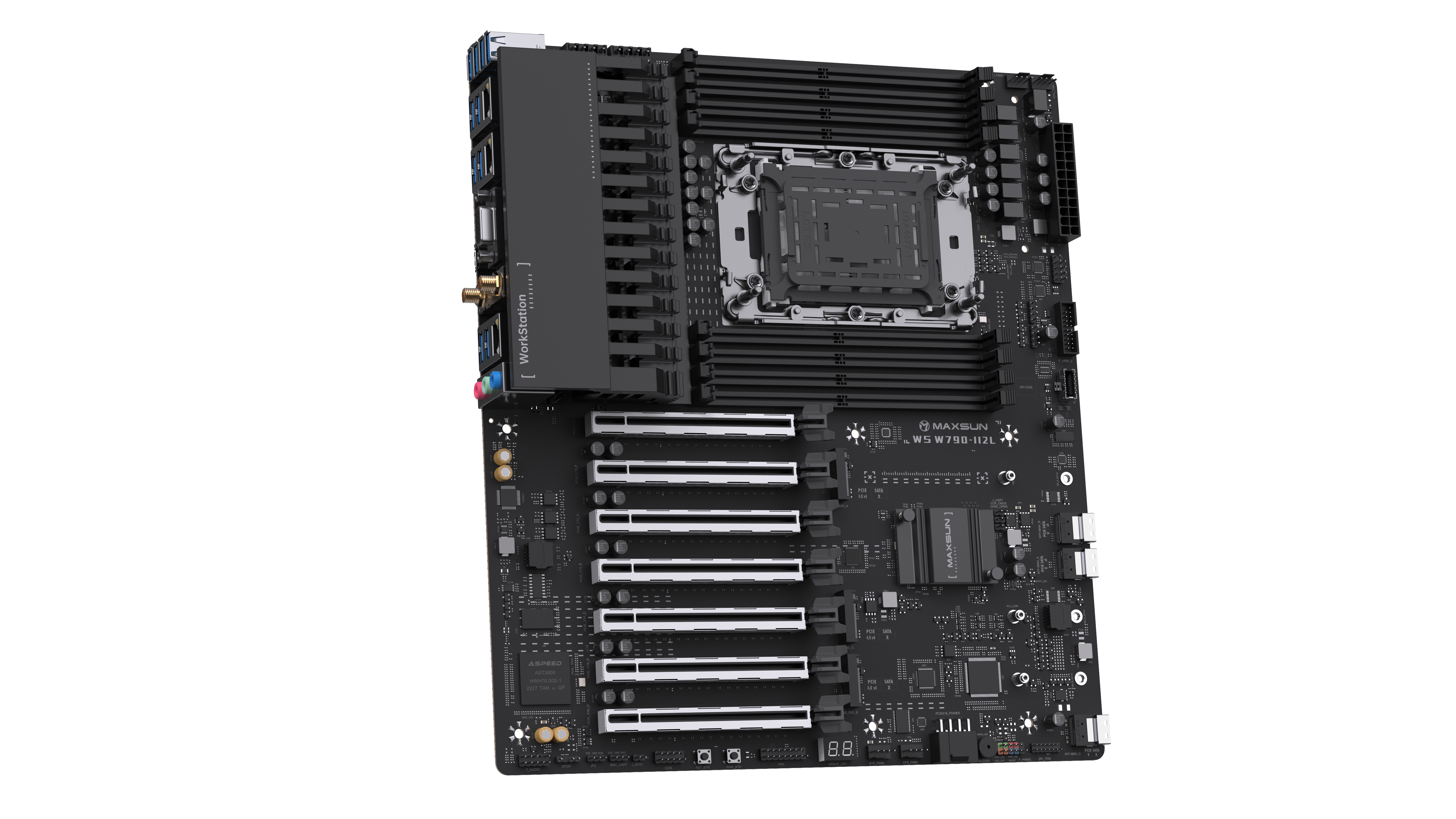

Workstation W790-112L
Xeon-Ready 性能
支持
服务器级电源设计
10相110A SPS数字VRM确保稳定、高效的输出。
大量的
最多 8 通道 DDR5 R-DIMM ECC
全速 PCIe 5.0 插槽
7 个 PCIe 5.0 x16 插槽 — 非常适合多 GPU 或高带宽设置。
专为
可靠、可扩展且可用于渲染、模拟或 AI 工作负载。
Overview
Specification
Support
- Model
- MS-Workstation W790-112L
- Form Factor
- E-ATX
Dimensions: 305 × 268 mm
- CPU Support
- Intel® LGA4677 socket
Supports Intel® Xeon® W-2400 / W-2500 / W-3400 / W-3500 series processors
TDP support up to 1000W
- Power Delivery
- 10-phase 110A SPS server-grade power design
- Chipset
- Intel® W790 chipset
- Memory
- 8 × R-DDR5 ECC DIMM slots
Max capacity: 2048GB
1DPC 8-channel architecture
Supports Intel® XMP
Supported speeds: 6800 / 6600 / 6400 / 5600 / 4800 / 4400 MT/s
- Display Output
- 1 × VGA port
Max resolution: 1080p @ 60Hz
- PCIe Expansion
- With Intel® Xeon® W processors:
7 × PCIe x16 slots
Supports PCIe 5.0 x16
Configurable as x16 / x8 + x8
Supports bypass mode
- Storage
- 3 × M.2 slots + 3 × SFF-8654 4i ports
M.2_A (Key-M): PCIe 4.0 x4/x2, 2280/22110
M.2_B (Key-M): PCIe 4.0 x4/x2, 2280/22110
M.2_C (Key-M): PCIe 4.0 x4/x2, 2280/22110
SFF-8654 4i_A: PCIe 4.0 x4/x2 or SATA (4 × SATA 6Gb/s)
SFF-8654 4i_B: PCIe 3.0 x4/x2 or SATA (4 × SATA 6Gb/s)
SFF-8654 4i_C: PCIe 3.0 x4/x2
- Networking
- 1 × Intel® I226-LM 2.5Gb Ethernet
1 × Intel® I226-V 2.5Gb Ethernet (vPro®)
1 × Realtek RTL8211 1Gb Ethernet (BMC + IPMI)
1 × Intel® AX201 Wi-Fi 6 & Bluetooth® 5.3
- USB
- Onboard USB:
1 × USB-C® 20G header
1 × USB 5G 19-pin header (supports 2 ports)
1 × USB 2.0 9-pin header (supports 2 ports)
Rear I/O USB:
1 × USB-C® 20G
10 × USB 10G Type-A

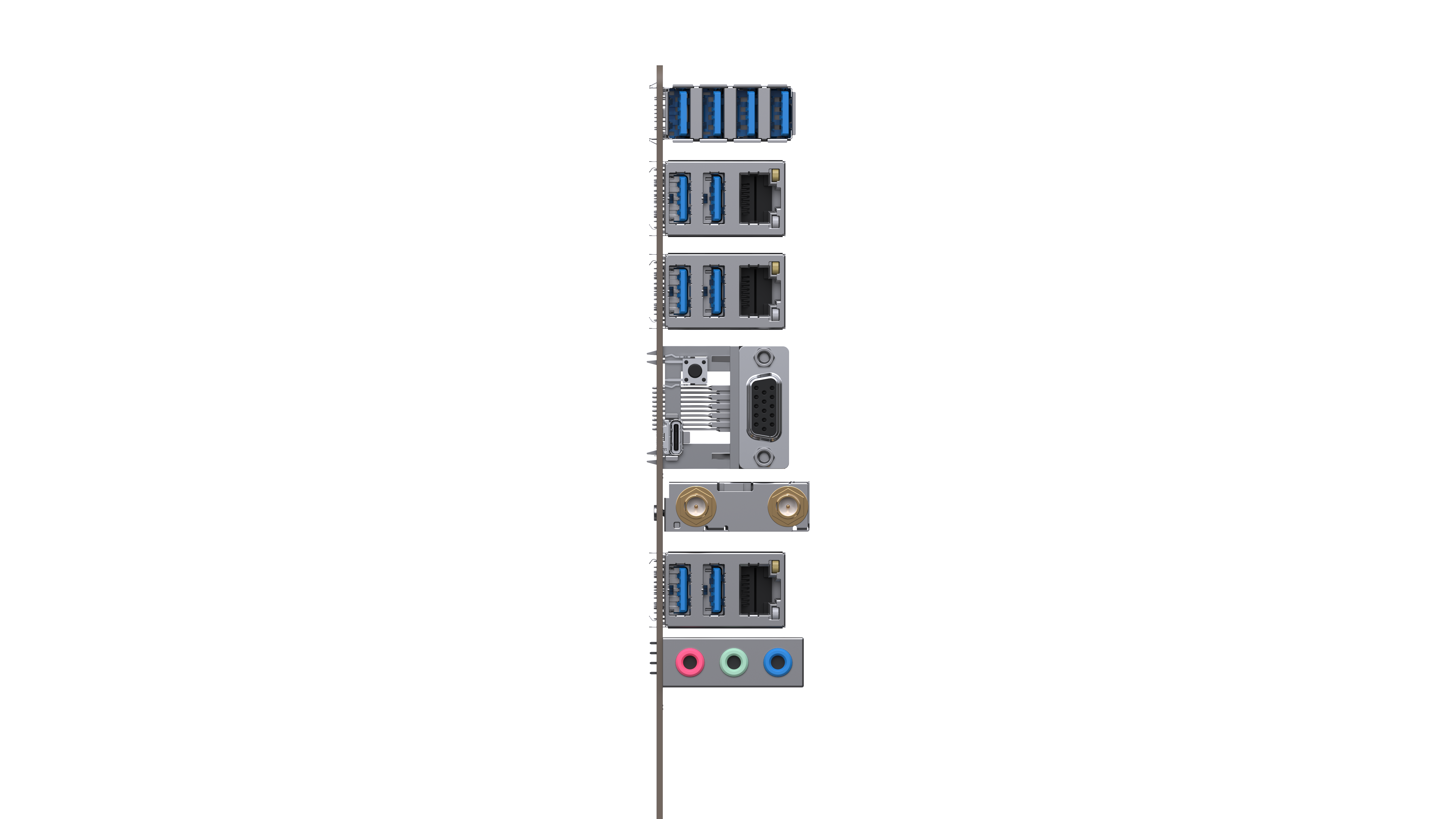

- Rear I/O Panel
- 10 × USB 10G Type-A
1 × USB-C® 20G
1 × Intel® I226-LM 2.5Gb Ethernet
1 × Intel® I226-V 2.5Gb Ethernet (vPro®)
1 × Realtek RTL8211 1Gb Ethernet (BMC)
1 × VGA port
1 × CLR_CMOS button
1 × Wi-Fi antenna connector
3 × Audio jacks
- Internal Connectors
- 1 × 24-pin ATX power connector
2 × 8-pin +12V CPU power connectors
1 × COM header
1 × SPI_TPM header
1 × IPMI header
1 × Front audio header
1 × SPDIF header
1 × 10-pin system panel header
1 × POWER_BIN onboard power button
1 × RESET_BIN onboard reset button
- Cooling
- 1 × 4-pin CPU_FAN
5 × 4-pin SYS_FAN
- Audio
- Realtek ALC897 HD audio codec
3 rear audio jacks
- OS Support
- Windows® 11
Windows® 10 64-bit
Linux
- Special Features
- Debug LEDs
80-code diagnostic display
CLR_CMOS quick reset button
POWER_BIN & RESET_BIN onboard switches
SFF-8654 high-speed storage support
Intel® vPro® technology
IPMI remote management support
BMC professional control capability
