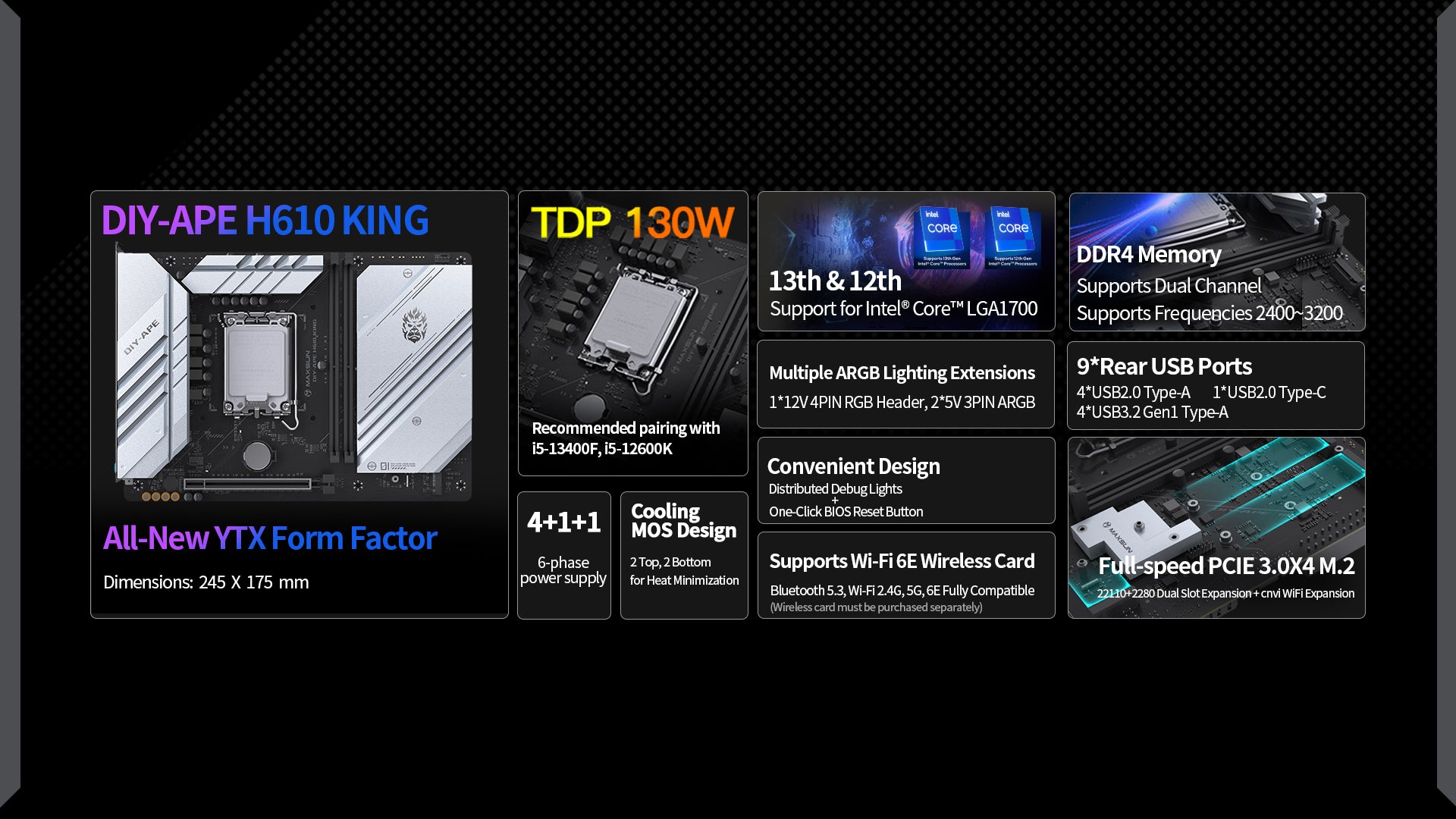

DIY-APE H610 КОРОЛЬ


  • Новый форм-фактор YTX
  • Инновационный интерфейс с обратной заглушкой
  • 22110 удлиненное расширение M2

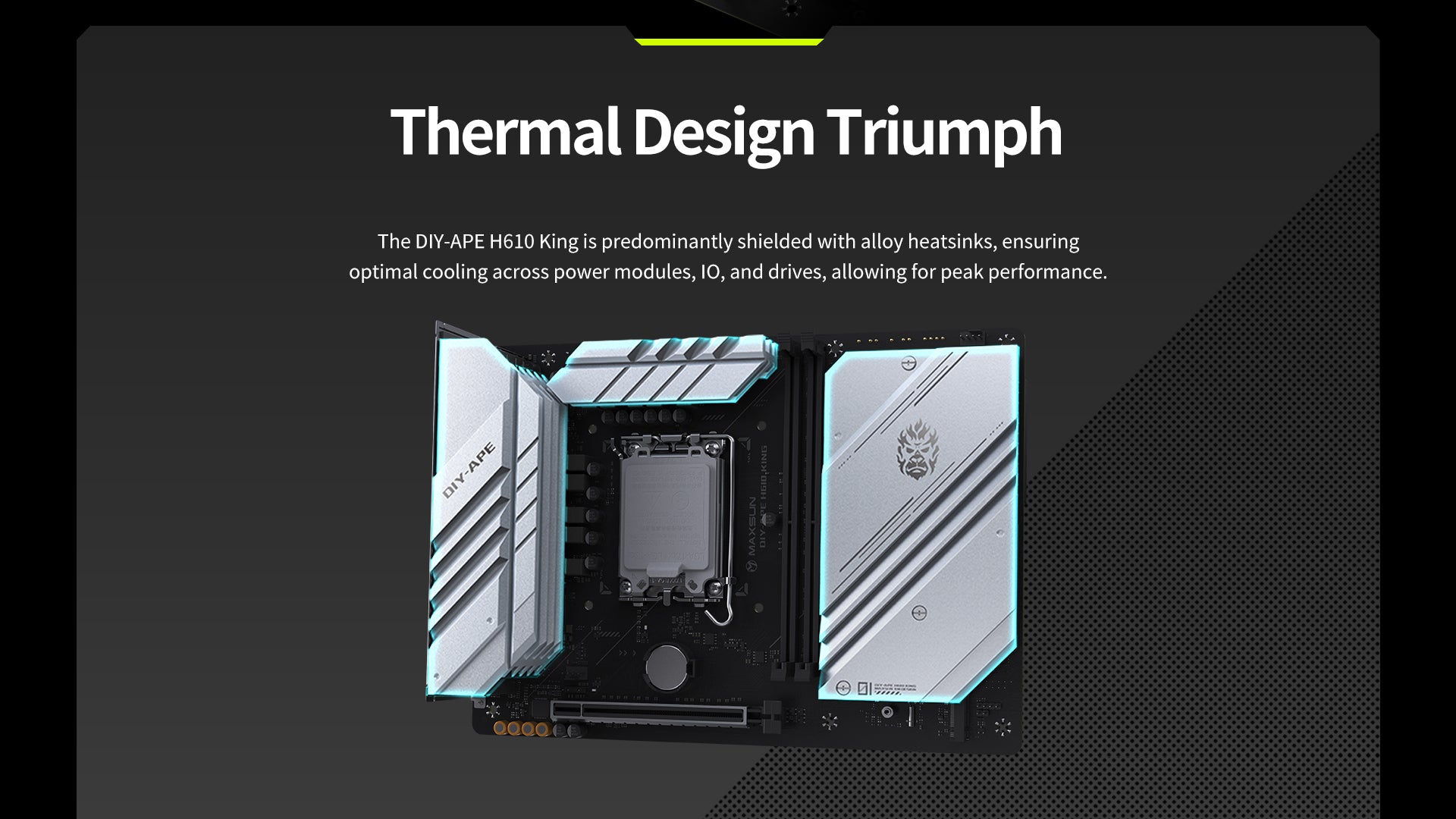

  • Полная тепловая броня
Overview
Specification
Support

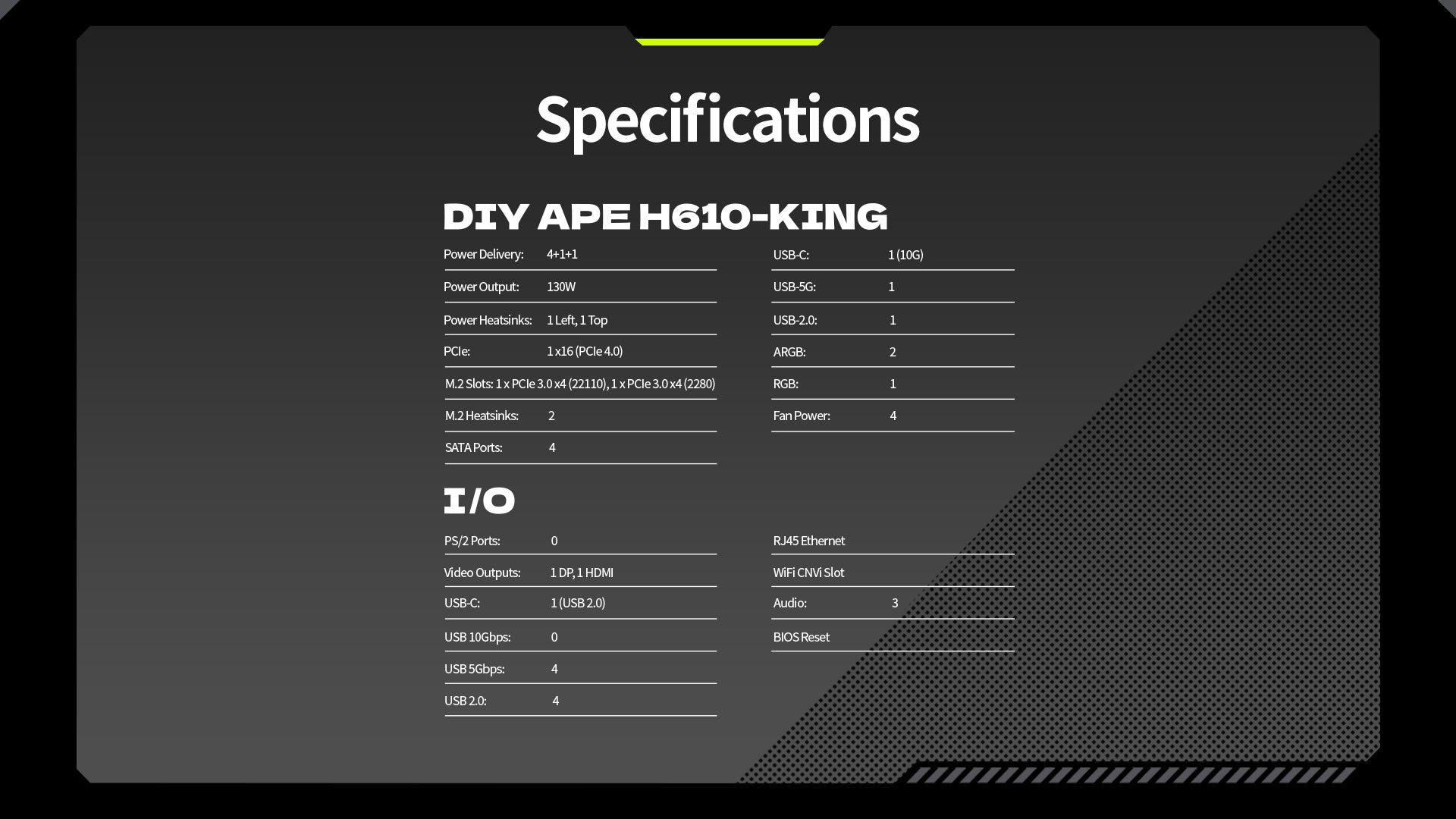

  • CHIPSET
  • INTEL H610
  • CPU
  • Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
    LGA 1700
  • MEMORY
  • 2x DDR4, Maximum Memory Capacity 64GB
    Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz
    Supports Intel® XMP 2.0 OC
    Supports Dual-Controller Dual-Channel mode
  • ONBOARD GRAPHICS
  • 1x DisplayPort 1.4
    1x HDMI™port
    *HDMI™ port supports up to 4K@30Hz
    *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • EXPANSION SLOT
  • 1x PCIe 4.0 x16 slot
  • STORAGE

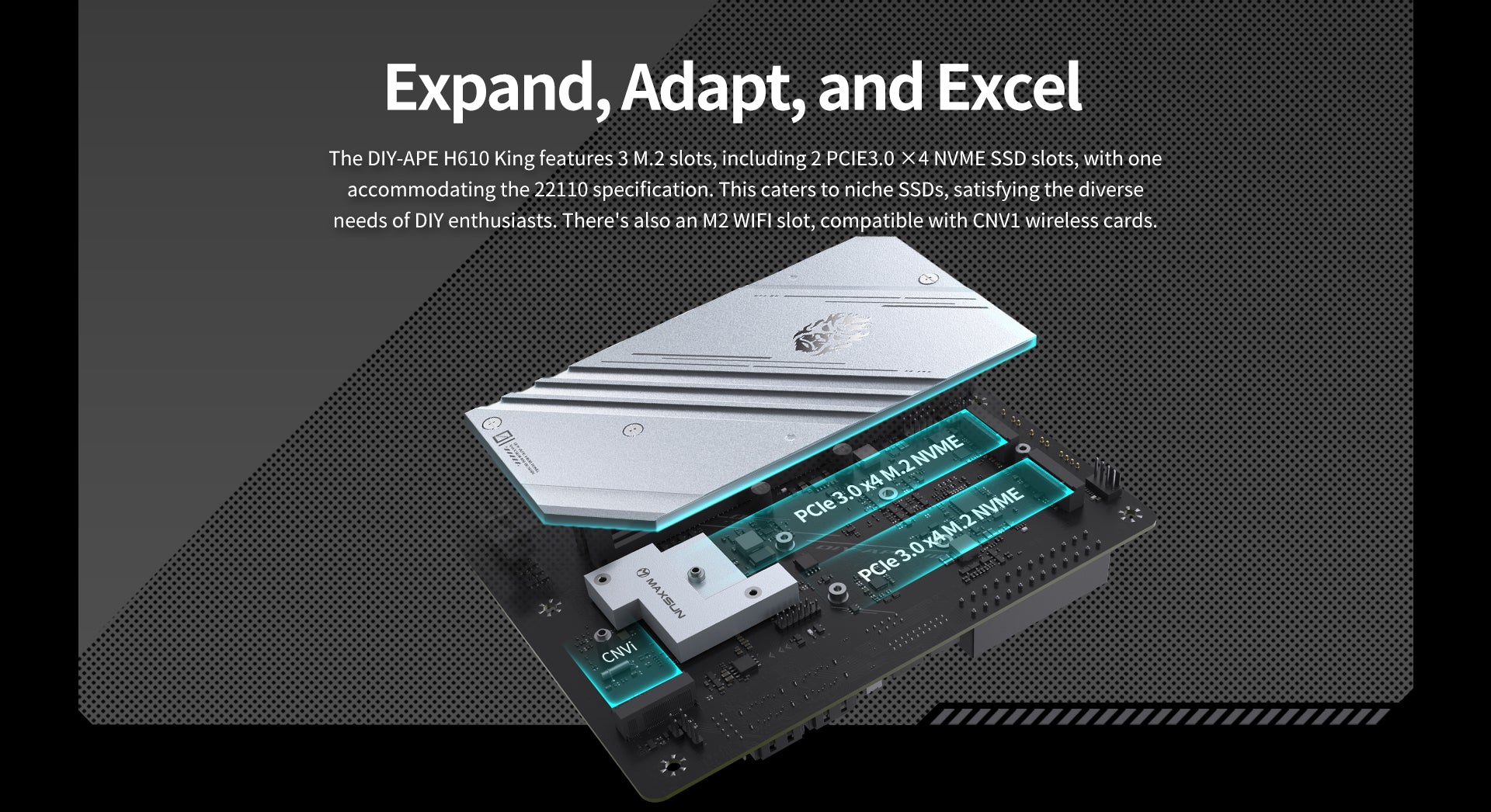

  • M.2_A slot (Key M), type 2242/2280 (supports PCIe 3.0 x4 mode)
    M.2_B slot (Key M), type 2242/2280/22110 (supports PCIe 3.0 x4 mode)
    4x SATA 6Gb/s ports
  • RAID
  • Not Supports RAID
  • USB
  • *Front USB (Total 5 ports)
    1x USB 3.2 Gen2 Type C
    2x USB 3.2 Gen1 Type A
    2x USB 2.0

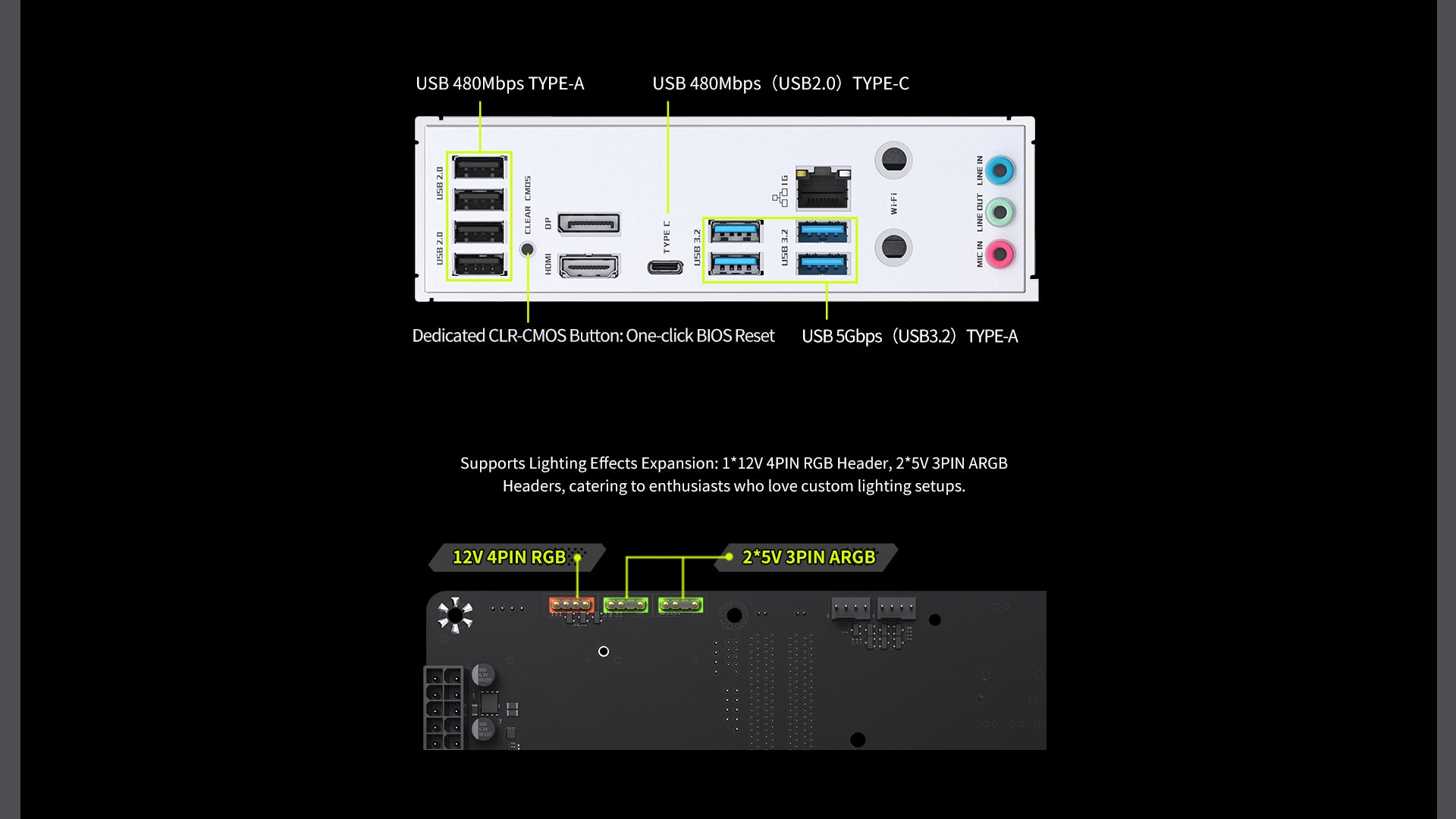

    *Rear USB (Total 9 ports)
    1x USB 3.2 Gen1 Type C
    4x USB 3.2 Gen1 Type A
    4x USB 2.0
  • LAN
  • Intel® 219-V 1G LAN
  • AUDIO
  • Realtek® ALC897 Codec
    5.1-Channel High Definition Audio
  • INTERNAL I/O
  • 1x 24-pin Power Connector(ATX_PWR)
    1x 8-pin Power Connector(CPU_PWR)
    1x CPU Fan
    3x System Fan
    2x M.2 slots (Key-M)
    4x SATA 6Gb/s ports
    1x M.2 slots (Key-E)
    1x CLR_CMOS Button
    1x 4-Pin BUZZER
    1x Front Audio
    2x 5V 3-Pin ARGB
    1x 12V 4-Pin RGB
    1x COM_A Port
    1x 9-Pin DEBUG_CON
    1x 9-Pin BIOS_SPI
  • LED FEATURE

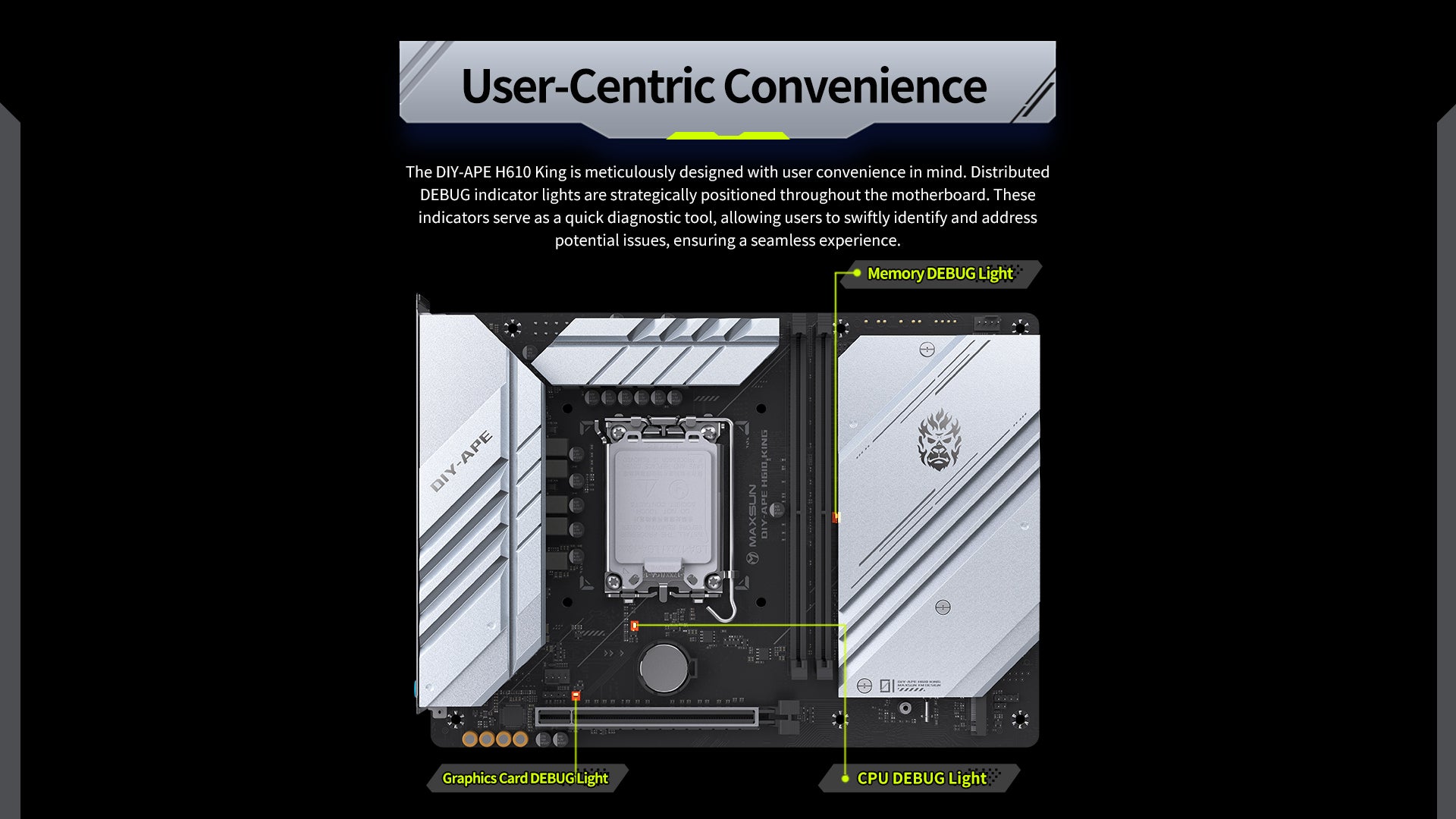

  • 4x Distributed Debug LED
  • OPERATING SYSTEM
  • Support for Windows® 11 64-bit, Windows® 10 64-bit
  • FORM FACTOR
  • YTX
    245mm x 175mm
