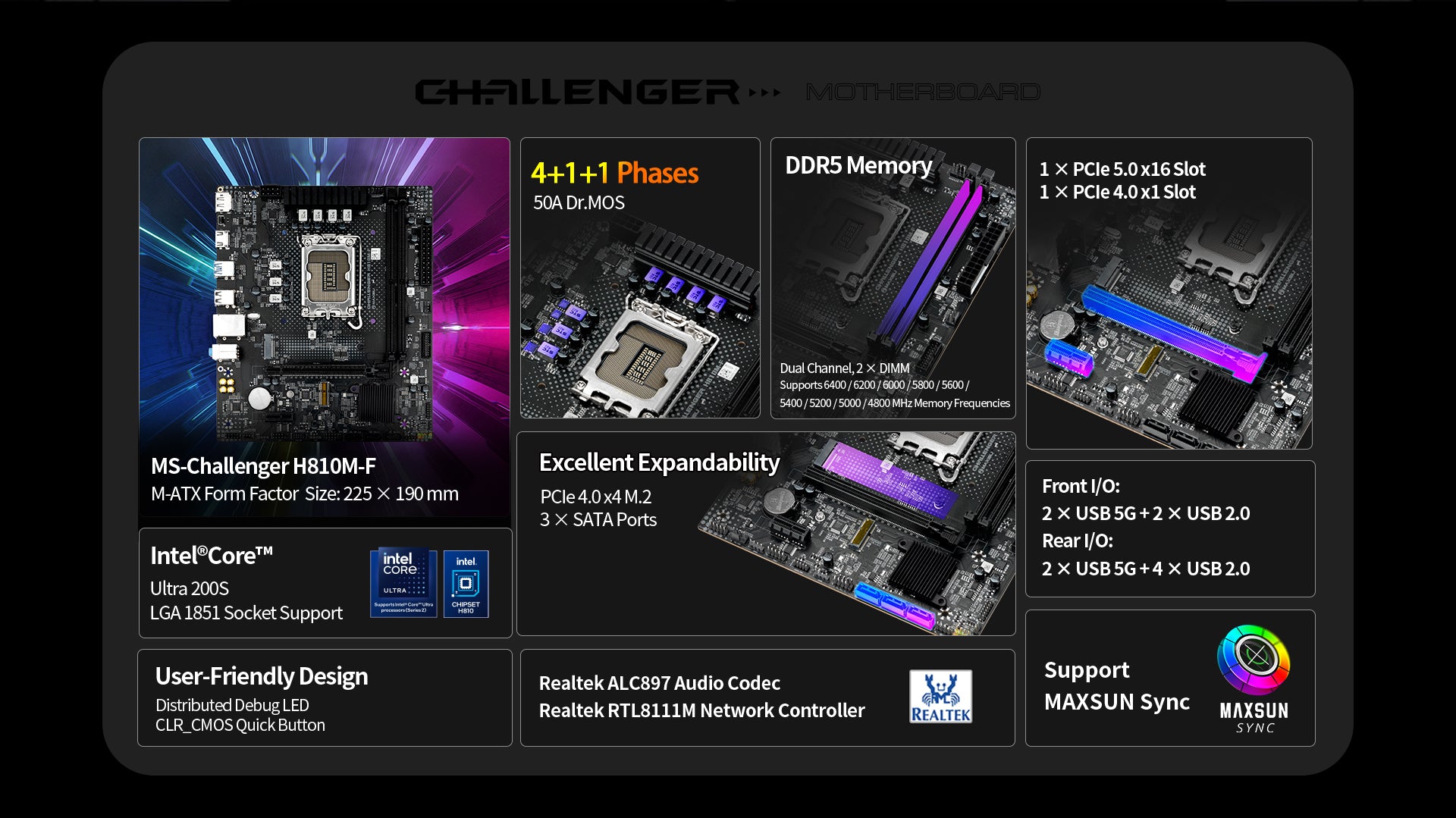

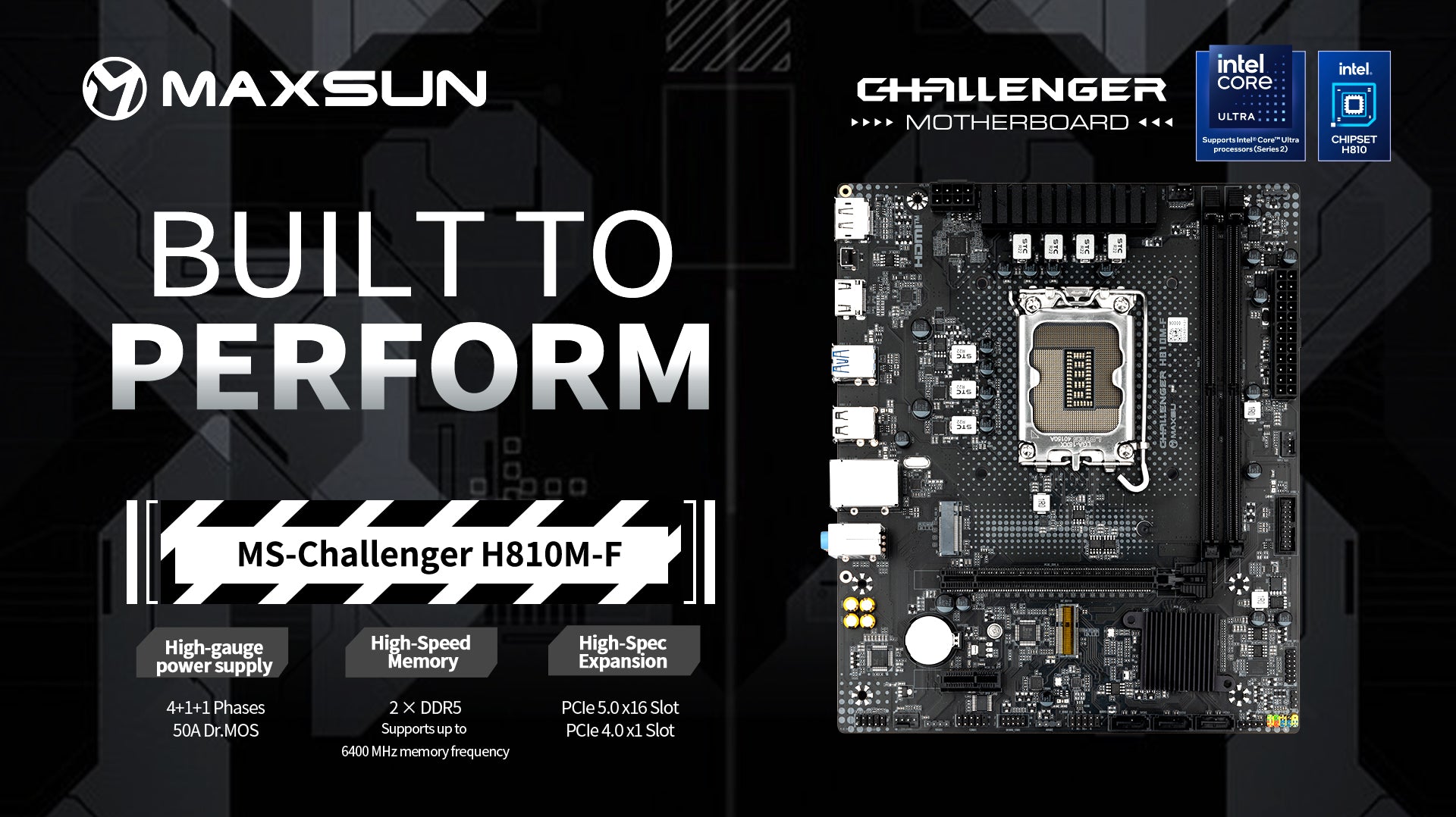

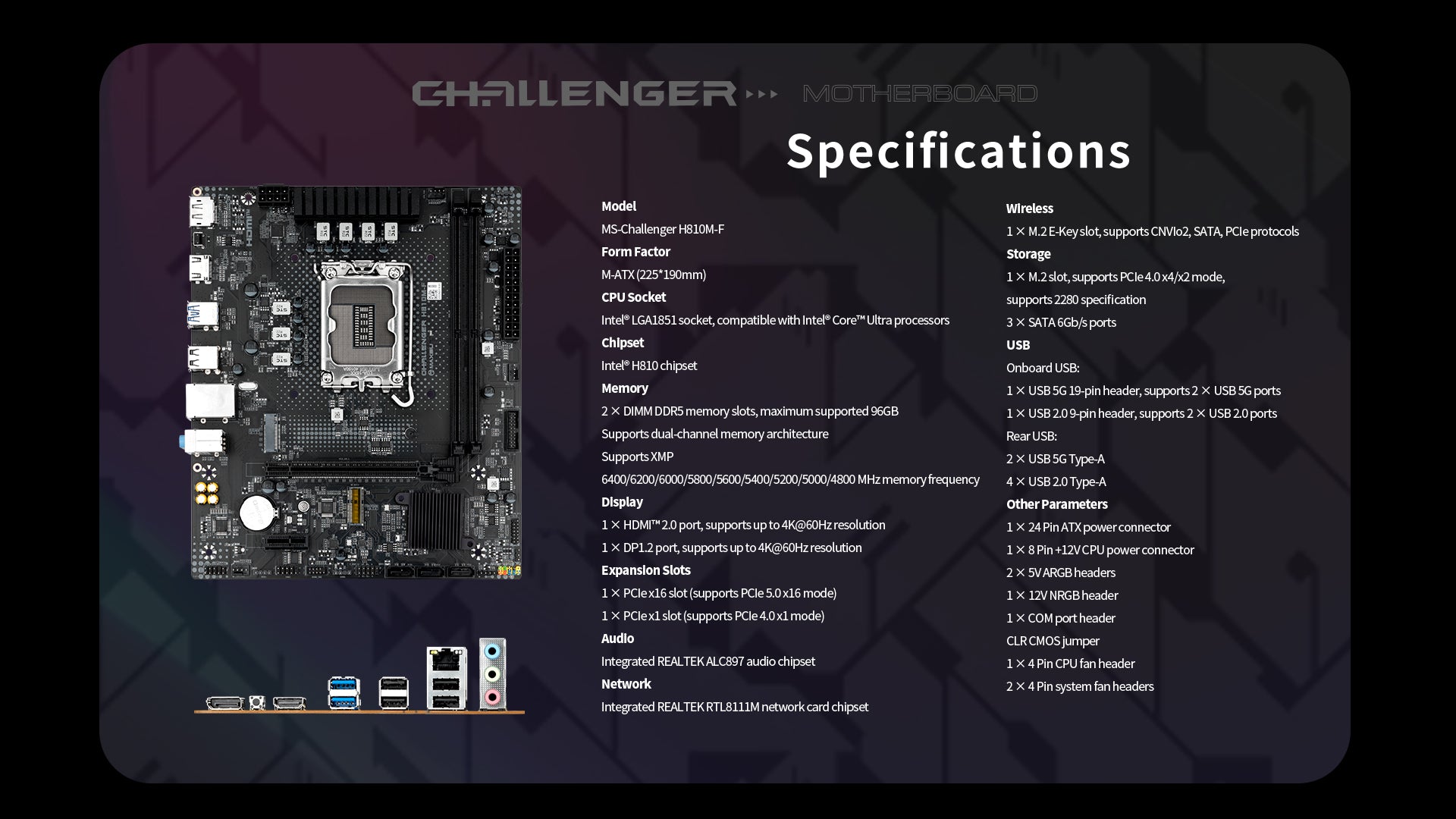

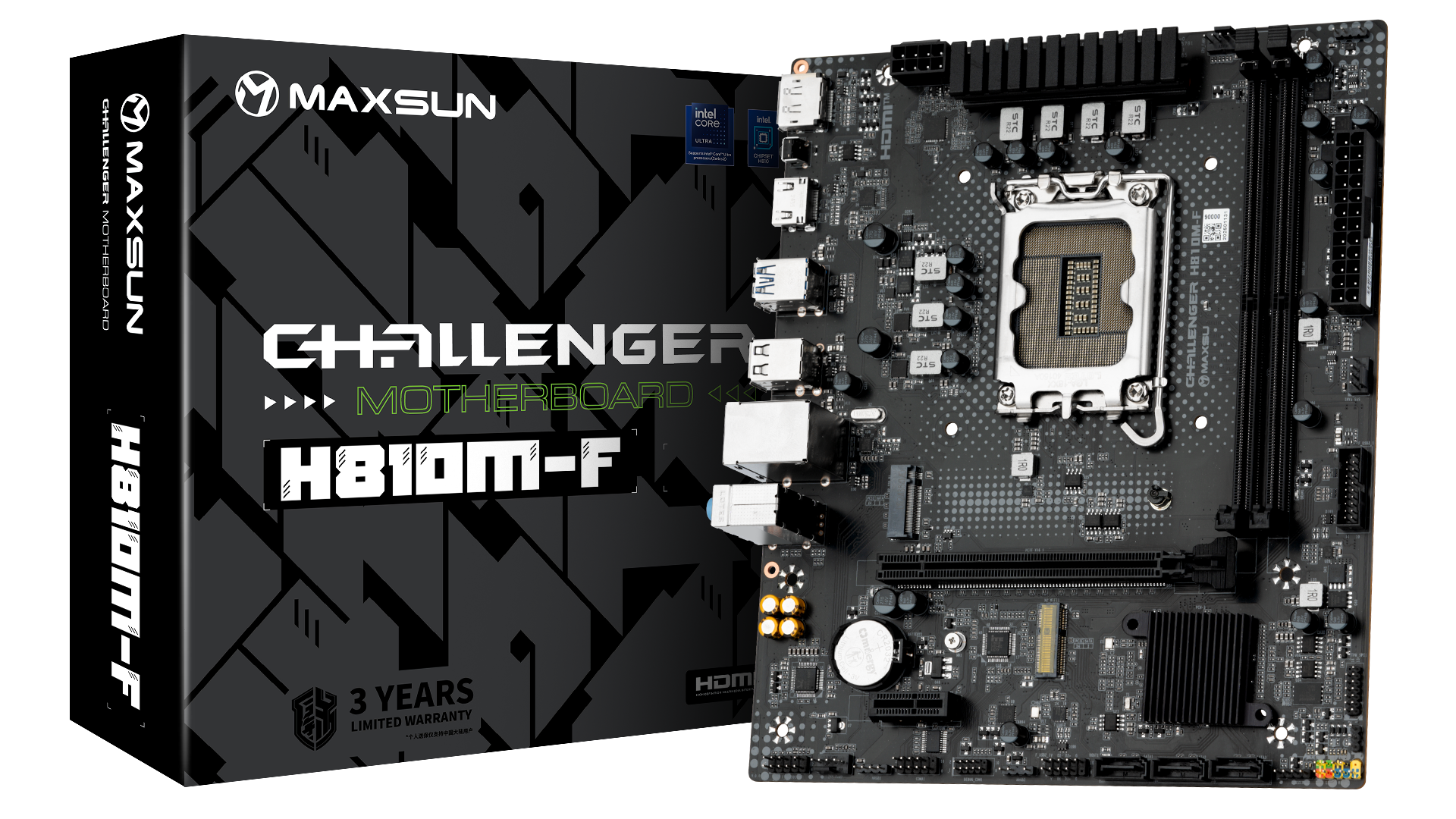

MS-Challenger H810M-F

• Model
• MS-Challenger H810M-F

• Form Factor
• M-ATX (225 × 190mm)

• CPU Socket
• Intel® LGA1851 socket, compatible with Intel® Core™ Ultra processors

• Chipset
• Intel® H810 chipset

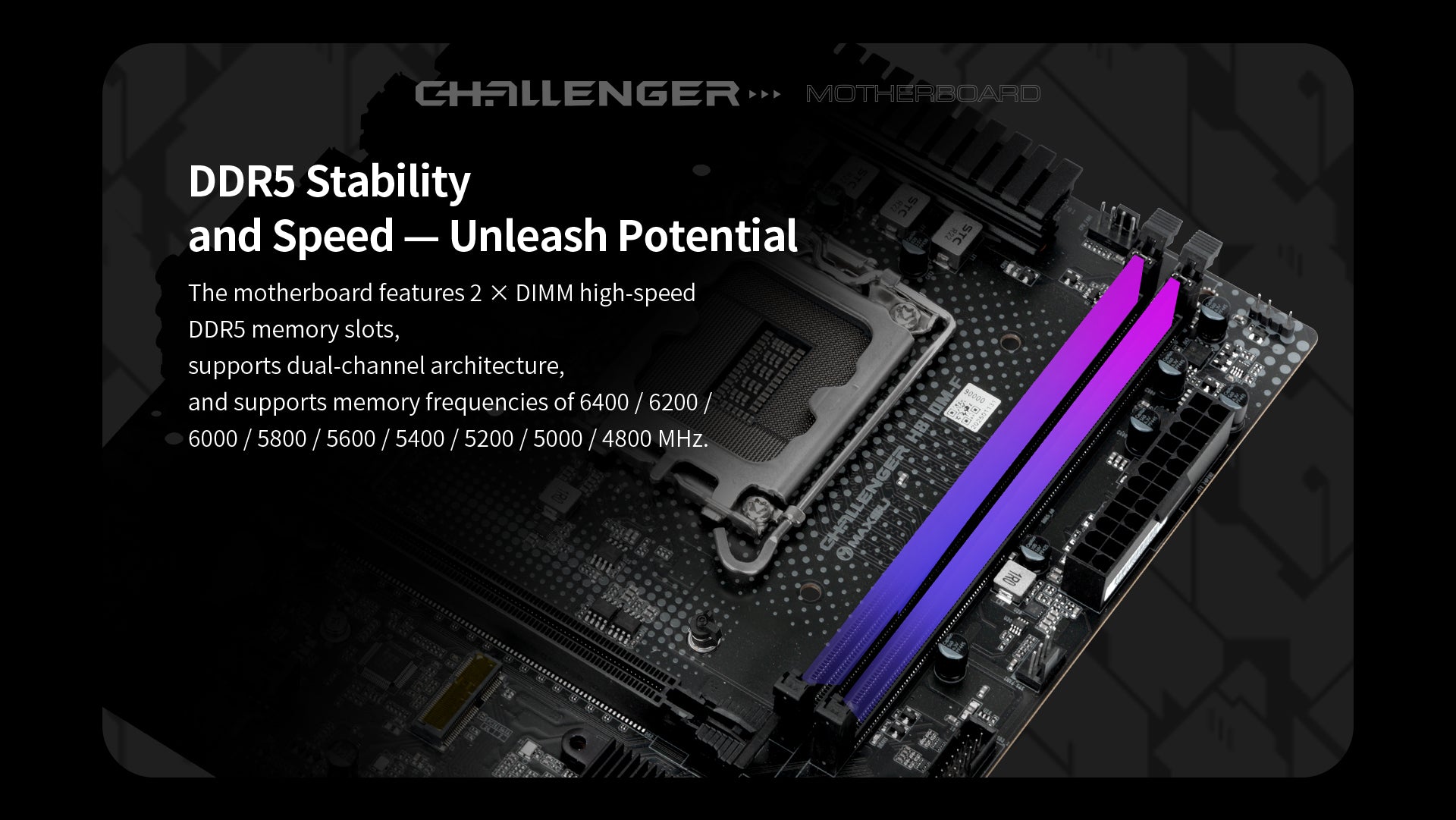

• Memory
• 2 × DIMM DDR5 memory slots, maximum supported 96GB
  Supports dual-channel memory architecture
  Supports Intel® XMP
  Supported frequencies: 6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 5000 / 4800 MHz

• Display
• 1 × HDMI™ 2.0 port, supports up to 4K@60Hz resolution
  1 × DP1.2 port, supports up to 4K@60Hz resolution

• Expansion Slots
• 1 × PCIe x16 slot (supports PCIe 5.0 x16 mode)
  1 × PCIe x1 slot (supports PCIe 4.0 x1 mode)

• Audio
• Integrated REALTEK ALC897 audio chipset

• Network
• Integrated REALTEK RTL8111M network card chipset

• Wireless
• 1 × M.2 E-Key slot, supports CNVIo2, SATA, and PCIe protocols

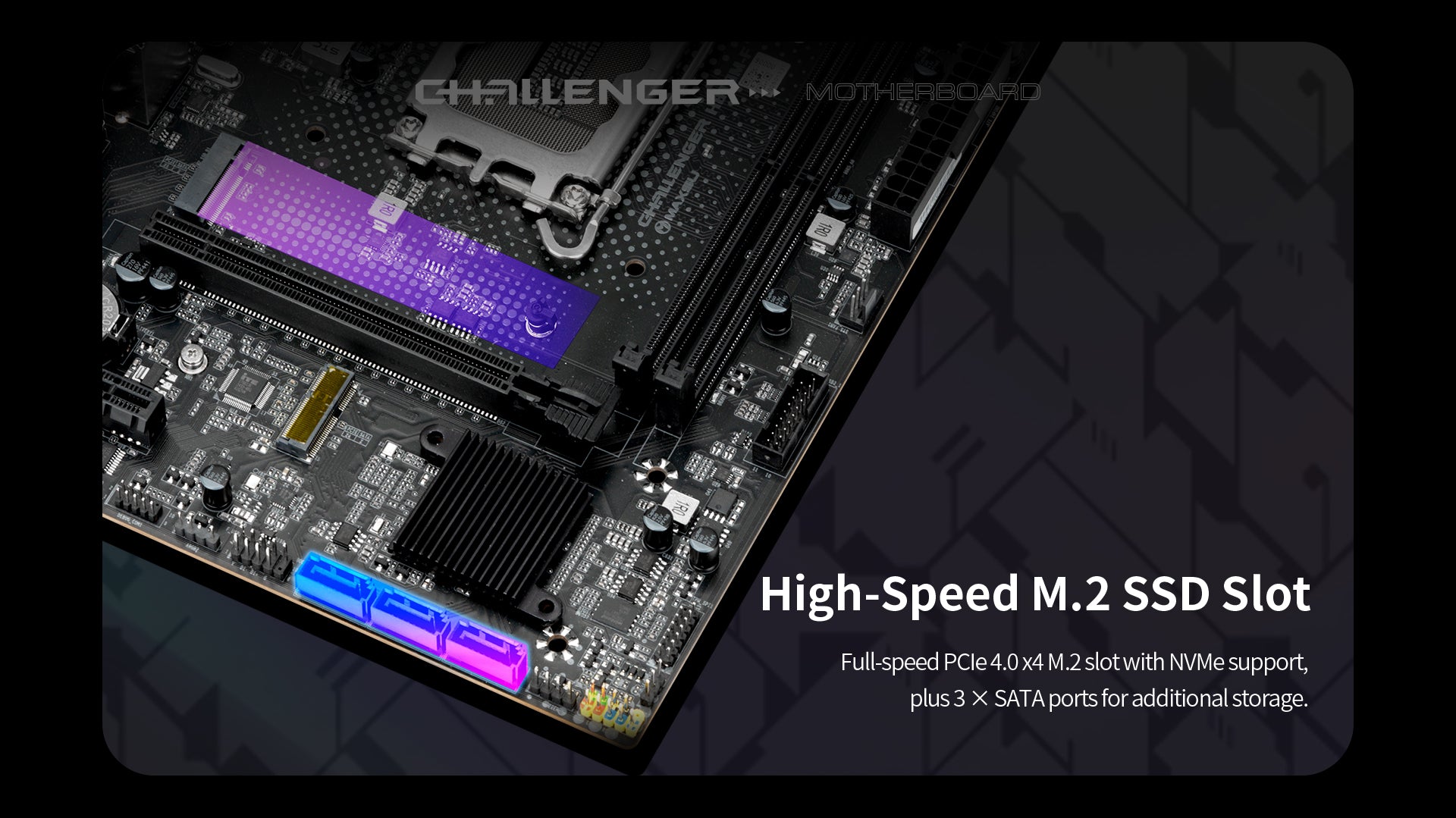

• Storage
• 1 × M.2 slot, supports PCIe 4.0 x4 mode (2280 specification)
  3 × SATA 6Gb/s ports

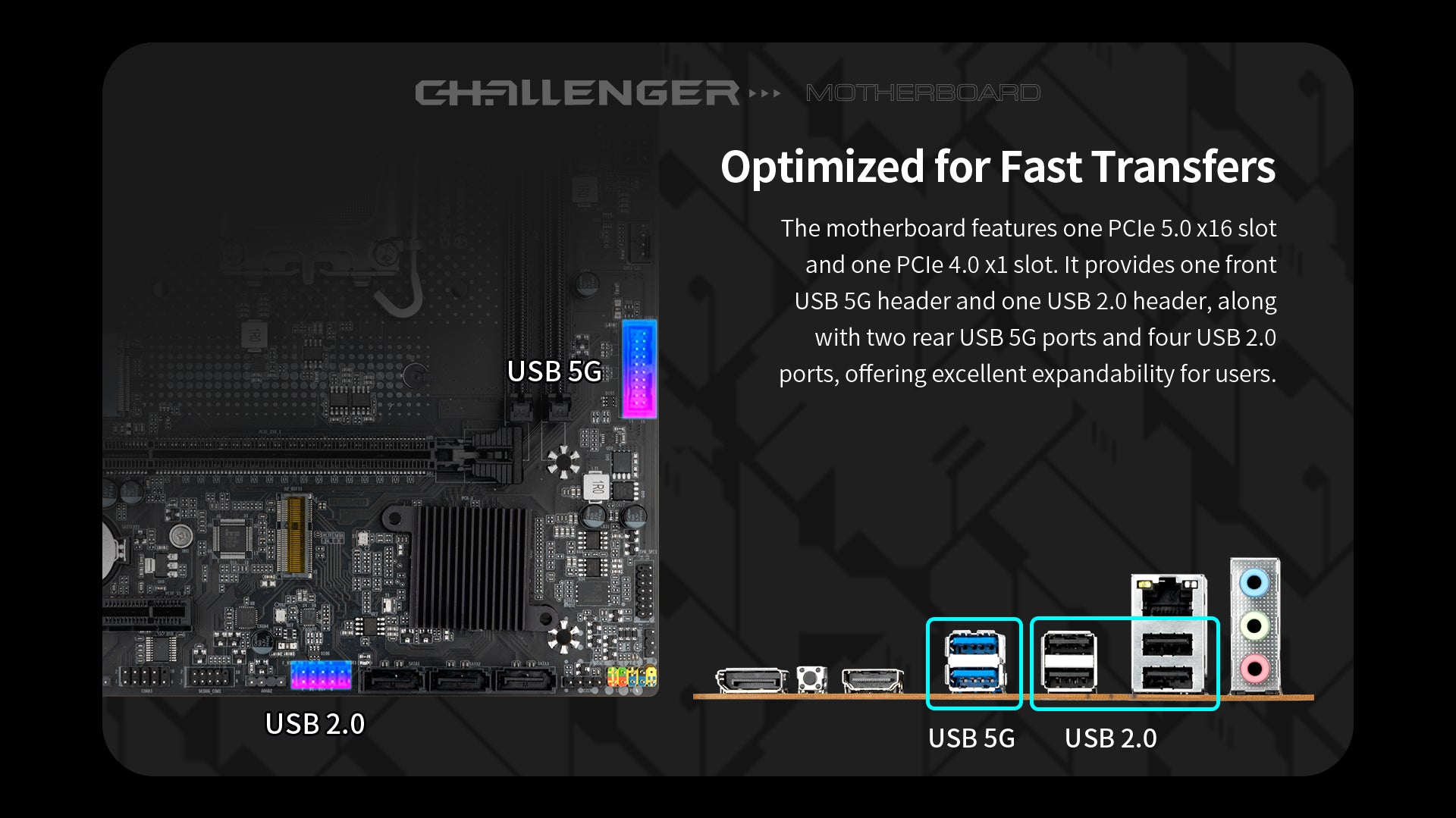

• USB
• Onboard USB:
  1 × USB 5G 19-pin header (supports 2 × USB 5G ports)
  1 × USB 2.0 9-pin header (supports 2 × USB 2.0 ports)

  Rear USB:
  2 × USB 5G Type-A
  4 × USB 2.0 Type-A

• Other Parameters
• 1 × 24-pin ATX power connector

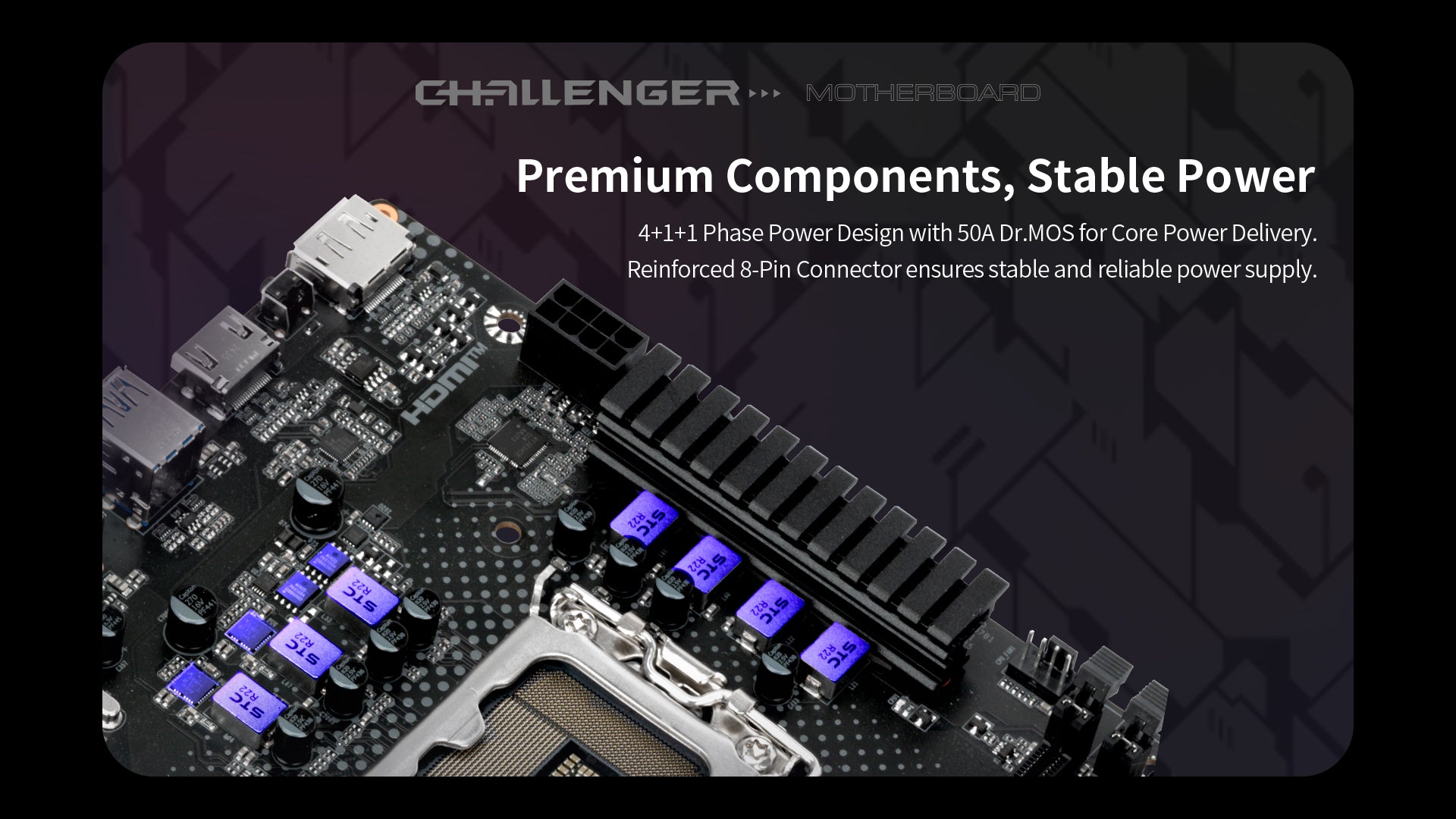

  1 × 8-pin +12V CPU power connector
  2 × 5V ARGB headers
  1 × 12V NRGB header
  1 × COM port header

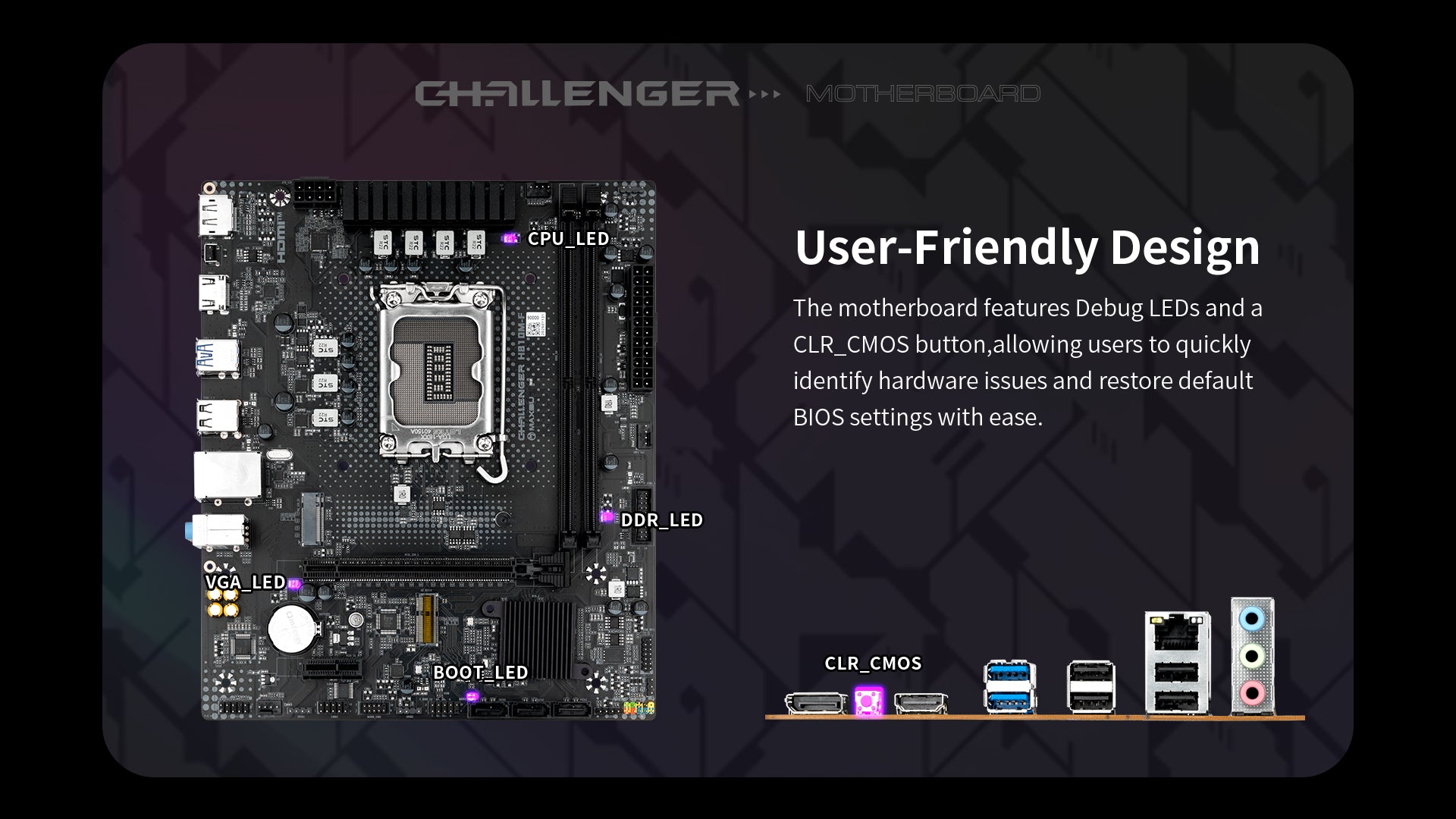

  CLR CMOS jumper
  1 × 4-pin CPU fan header
  2 × 4-pin system fan headers
